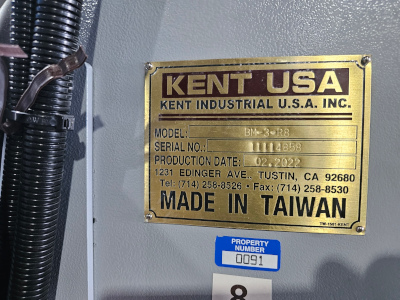

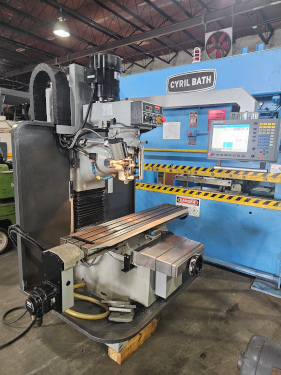

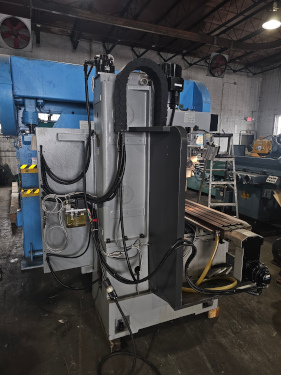

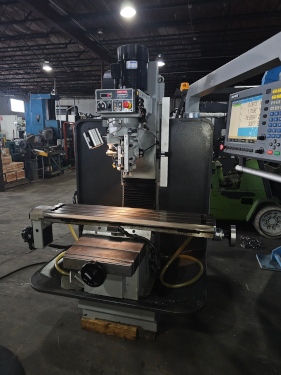

KENT USA, #BM-3, 3 axis Bedmill, 30"x16"x22" trav, 3 HP, R8, 10" X 50" tbl. 2022 Our stock number: 7208

Manufacturer

Kent

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

7208

Model

#BM-3

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

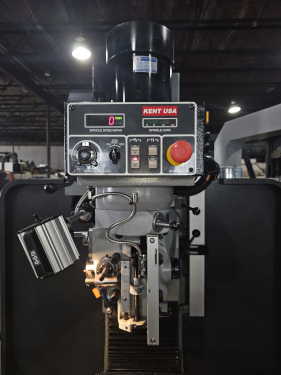

Rigid spindle/head housing with powerful 3 HP vector drive spindle motor
80-4500 rpm programmable spindle provides greater range of machining capability
Metal telescopic way cover on front saddle ways enhances durability
X-axis and Y-axis metal hand wheels for manual operation and set ups
Automatic lubrication system with metered check valves
Programmable flood coolant with splash guards and chip pan
Built in coolant reservoir in machine base
Certified Meehanite machine casting for superior dampening and stability

SPECIFICATIONS:
MACHINE CAPACITY:
Size of table (length x width) 10" x 50"
Longitudinal travel 30"
Cross travel 16"
Ram traverse 22"
Spindle nose to table top 2" to 24"
Spindle center to column 17.8"
Quill travel 5"
Table load capacity 1,480 lbs (distributed)

MILLING HEAD:
Spindle motor 3 HP
Spindle taper R-8
Speed range 80 to 4500 rpm
Drilling capacity 1"
Tapping capacity 1/4"

RAPID TRAVERSE:
Rapid feed rate (X/Y/Z) 200 ipm

UTILITY:
Machine power required 220V/3PH/ 30A
CNC control/servo power required 120V/1PH/ 20A
Air pressure required 80 psi

WEIGHT & DIMENSION:
Net weight (approx.) 3,960 lbs
Dimensiones (L x W x H) 98" X 58" x 83"

EQUIPPED WITH:

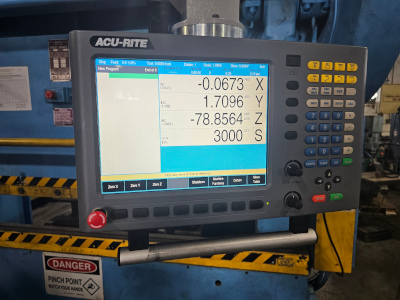

Acu-Rite MillPwr-G2 (3 axis CNC) conversational control with 12.1" color LCD
Manual/DRO, conversational, and G-code operational modes
Dual USB (front/back) ports, Ethernet port, and RS-232 port
Programmable spindle speed control and spindle speed override knob
Programmable flood coolant (M08), splash guards and chip pan
Automatic lubrication system and work light
Q-SCALE, quill scale feedback with linked Z-axis compensation
SCALE-XYZ, linear glass scale feedback option (X/Y/Z)
High speed CPU, Graphics, RS232 port for DNC
Back splash guarding, Servo driven handwheels mounted on x & Y axis

Power on hours: 9,646; Running hours: 1,035
