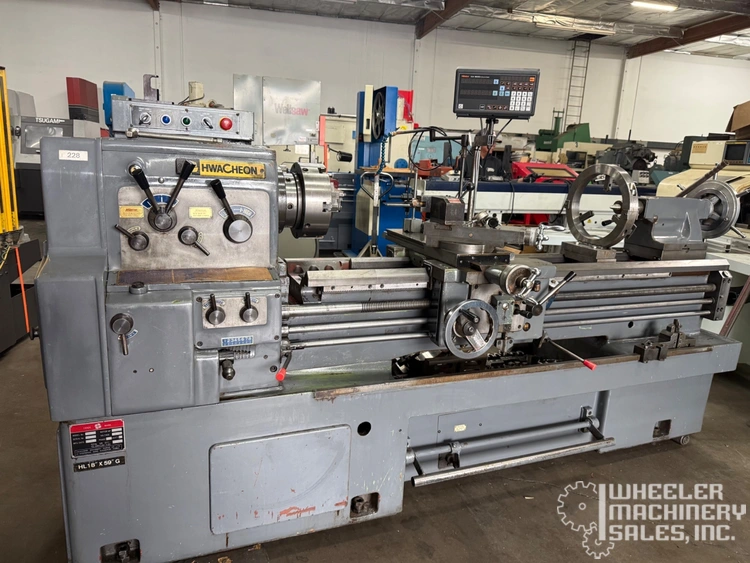

1995 HWACHEON HL18X59G Engine Lathe #8093 #1

Manufacturer

HWACHEON

Category

Lathes

Type

LATHES, ENGINE

Stock

8093

Model

HL-18

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
HWACHEON
Model:
HL-18
Year:
1995
Stock #:
8093
Status:
For Sale

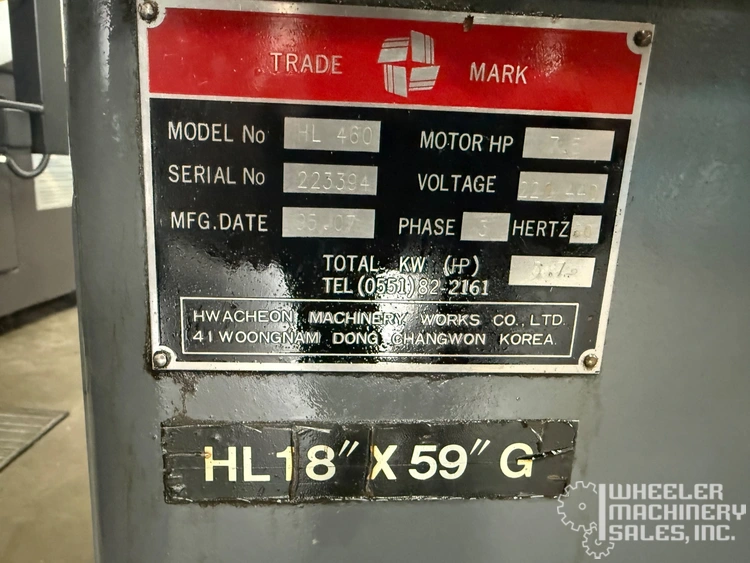

Serial #:
223394
Country:
United States

Description

Used HWACHEON HL-18 Engine Lathe, featuring an 18" swing, 60" centers, and a 3.062" spindle bore. Powered by 7.5 hp with up to 1,800 RPM. Swing over cross slide is 12.5". Ideal for precision tasks.

1995 HWACHEON HL18X59G Engine Lathe #8093 #1

SPECIFICATIONS:
Swing over bed: 18"
Swing over cross slide: 11"
Swing over gap: 25"
Distance between centers: 594"
Spindle nose: D1-6
Spindle bore: 2-3/64"
Taper of spindle bore: MT no. 6
Taper of center: MT no. 4
Number of spindle speeds: 12
Range of spindle speeds (RPM): 32, 62, 82, 112, 160, 200, 285, 395,
510, 710, 1010, 1800
Number of feed changes: 40
Cross slide travel: 10"
Gap width: 7-7/8"
Bed width: 13-3/4"
Inch threads: 4 to 80 TPI
Metric threads: .5 to 7 mm
Weight approx. 5,200 lbs.
Overall dimensions approx. 114" L-R x 42" F-B x 55" H

EQUIPPED WITH:
3 & 4 jaw chucks

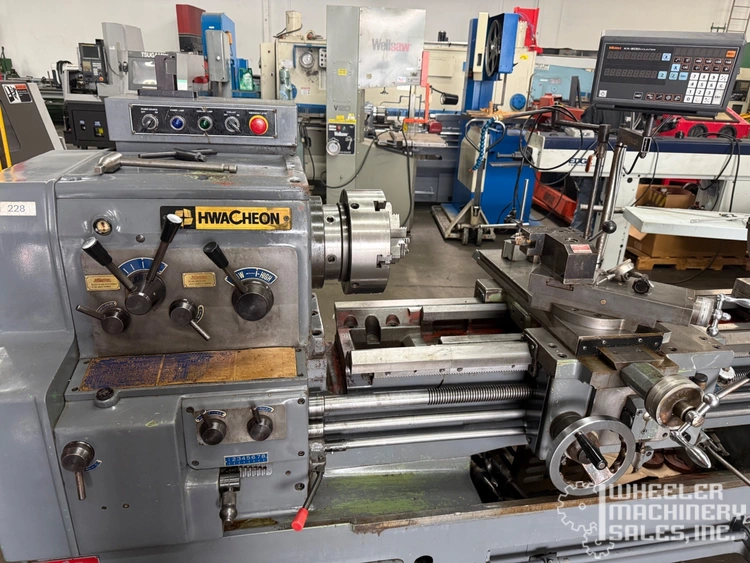

Mitutoyo digital readout
Selector switch for on - off
Coolant pump with control
Emergency stop treadle
Approx. 7.5 HP 240 volts motor
