8022
PSR-5014 1PH
California

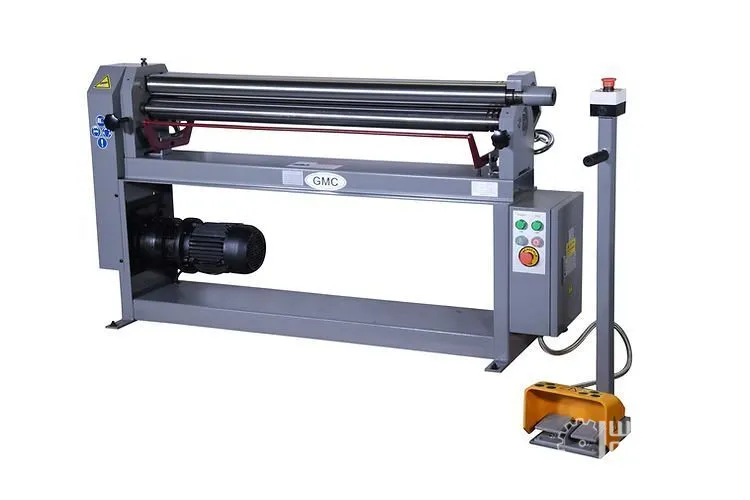

GMC PSR-5014 1PH Slip Roll Machine: 50"x14Ga. capacity for mild steel, 50"x20Ga. for stainless, 50"x10Ga. for aluminum. Features a 2 HP motor, 201"/min speed, ¼” roll opening, and removable safety foot pedal. Dimensions: 68x29x48”. Net weight: 932 lbs.
Rolling capacity:
Mild steel 50"x14Ga.
Stainless steel 50"x20Ga.
Soft aluminum 50” x 10Ga
Min. thickness capacity 50"x26Ga.
Rolls size, length x dia 50”x 3”
Min. roll bending dia. 3 1/2"
capacity
Rolls speed 201” / min.
Rolls opening ¼”
(3) grooves sizes 5/16”, 3/8” , ½”
Main motor 2 HP, 220V, 1ph 15amps
Net weight 932 LBS
Machine dimensions, LxWxH 68x29x48”
Electrical cabinet
Removable safety foot pedal
