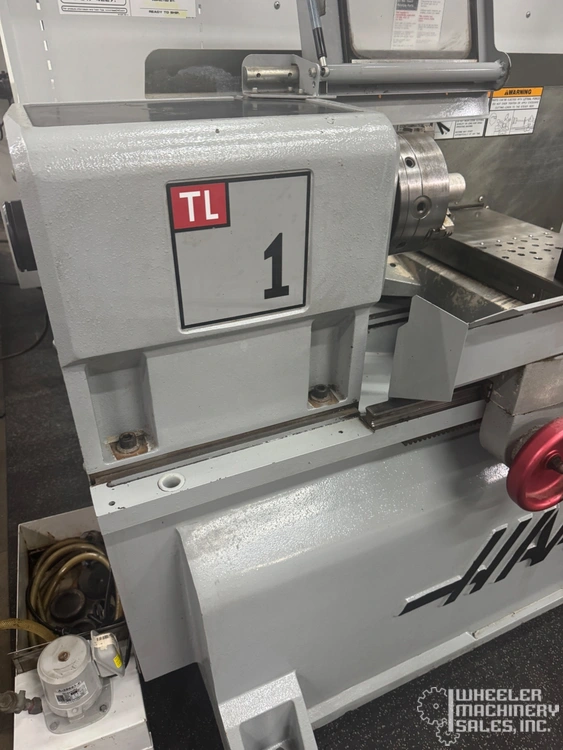

2006 HAAS TL-1 CNC Tool Room Lathe #7954 #1

Manufacturer

HAAS

Category

Lathes

Stock

7954

Model

TL-1

Dealer Location

California

Spec Sheet

Overview

Type:
LATHES, CNC, FLAT BED
Manufacturer:
HAAS
Model:
TL-1
Year:
2006
Stock #:
7954
Status:
For Sale

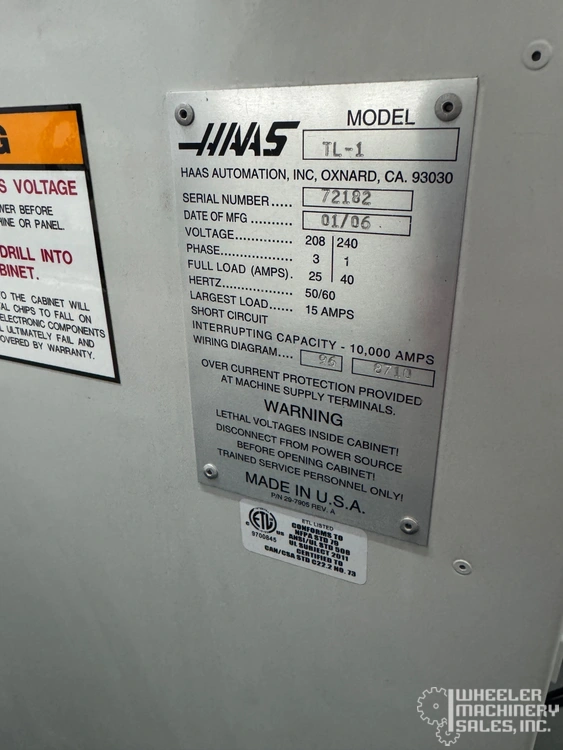

Serial #:
72182
Country:
United States

Description

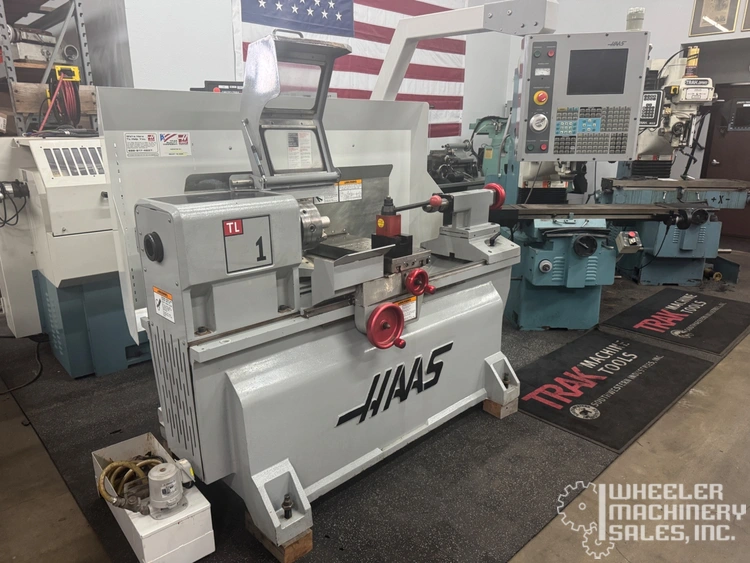

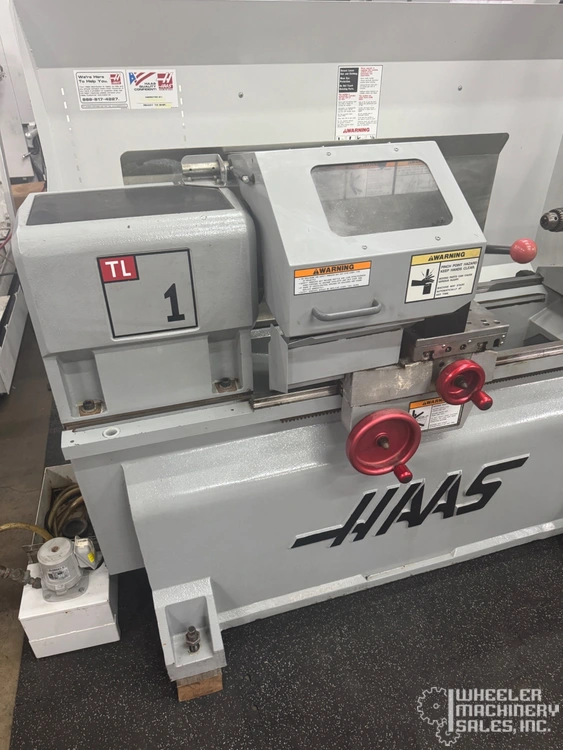

2006 HAAS TL-1 CNC Tool Room Lathe offers 20” max swing, 16” max cutting diameter. Features HAAS CNC control, 8” BISON 3 jaw chuck, and tailstock. 10 HP motor, spindle speed up to 1800 RPM. Ideal for precision machining tasks.

2006 HAAS TL-1 CNC Tool Room Lathe #7954 #1

SPECIFICATIONS:
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 30”
Distance between centers- 30”
X axis travel- 8”
Z axis travel- 30”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-5
Max spindle speed- 1800 R.P.M.
Spindle bore- 2.30”

EQUIPPED WITH:

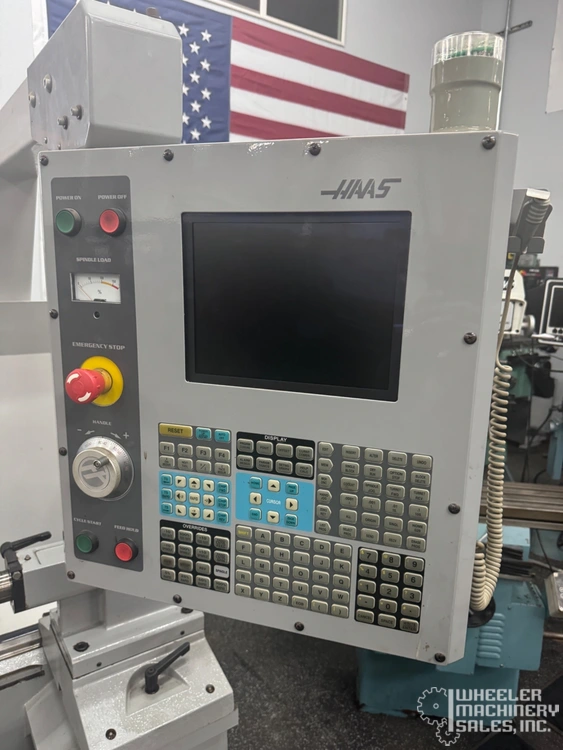

HAAS CNC control

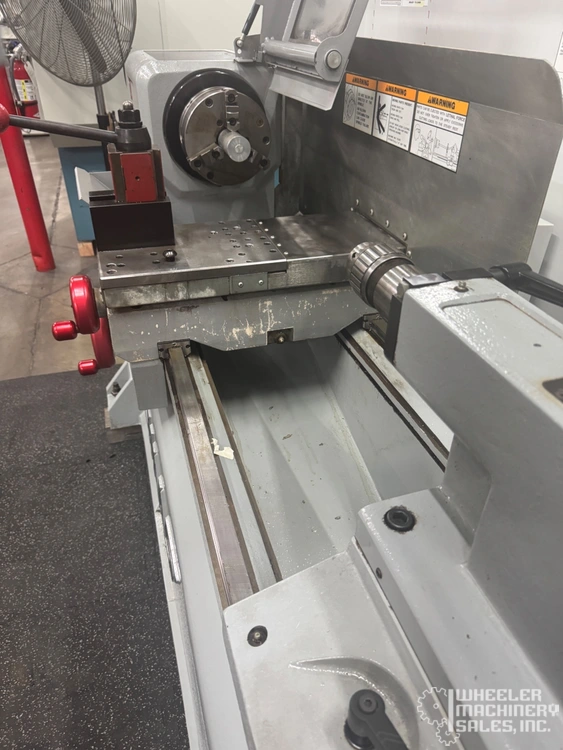

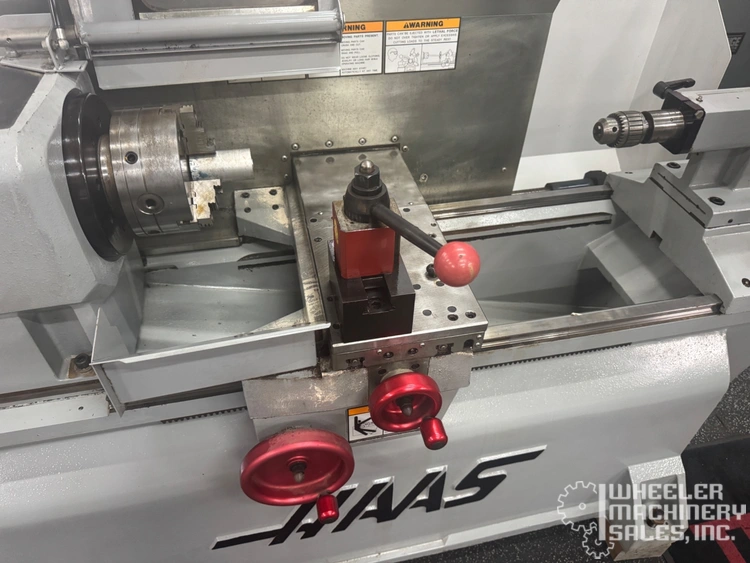

8” BISON 3 jaw chuck
Jacobs drill chuck
Tailstock
Main spindle motor 10 H.P.
Machine weight- 5000 Lbs.
Machine dimensions- 92” x 69” W x 83” H
