New GMC Angle Iron Ring Roller, Hydraulic Tube Bender PRB-55H-1ph

Manufacturer

GMC

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

7283

Model

PRB-55H

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
ROLLS, ANGLE BENDING
Manufacturer:
GMC
Model:
PRB-55H
Stock #:
7283
Status:
For Sale

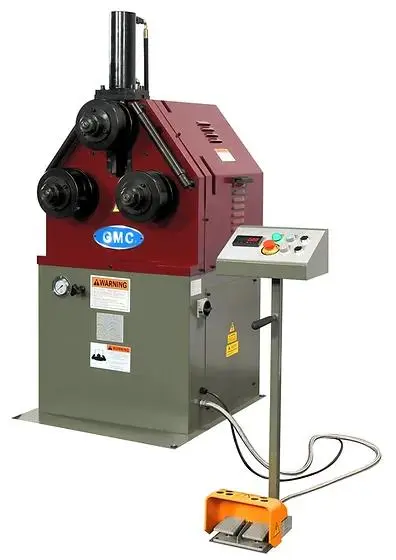

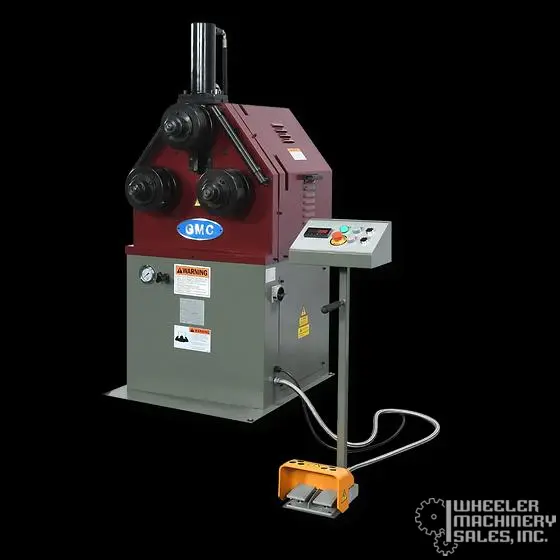

New GMC Angle Iron Ring Roller, Hydraulic Tube Bender PRB-55H-1PH

ISO 9001 certified

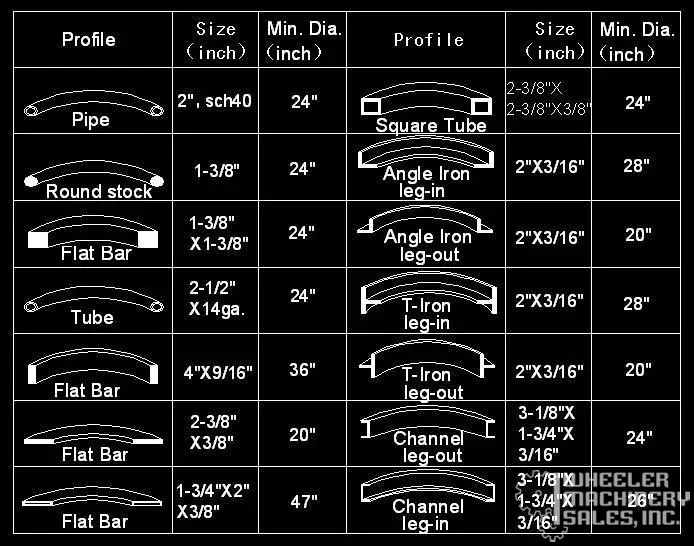

2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube

Easy to operate in two positions; vertically and horizontally on its back

DRO -Digitally displays your exact position and ensures repeatability

Heavy Duty 3HP AC main motor

1 - Top forming roll (hydraulic driven)

2 - Driven bottom rolls

Robust, all steel and welded framework

Quiet, compact, hydraulic system that ensures precision and improves productivity

Adjustable pressure control valve

1-year parts only warranty and lifetime tech support (by video and phone)

One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)

Digital Readout (ensures repeatability and digitally displays your exact position)

Left and right guide rollers (easily adjustable)

Foot pedal (controls forward and reverse)

Digital Readout (digital display)

4 - metal support legs for horizontal position

One Roll Set (3 rolls) - for pipe & round tubing, any size -call for pricing

Anti-twisting attachment - $call for pricing

Roll AdjustmentHydraulic DrivenDia. of roller7.5"Dia. of roller shaft2"Roller speed16 RPMMain Motor4 HP 220VAC - Single Ph.

25-30 amp

Dimensions40" x 35" x 65"Weight1,120 LBSOil Tank Capacity

(only fill up 90%)

7 Gal.Recommended Hydraulic OilTexaco-Rando HD-68 Hydraulic Oil

Shell AW-68 Hydraulic Oil

Optional Roll Sets:

TUBE ROLL SETS:

34T-PRB55

¾”

1T-PRB55

1”

114T-PRB55

1-1/4”

112T-PRB55

1-1/2”

2T-PRB55

2”

212T-PRB55

2-1/2”

PIPE ROLL SETS:

34P-PRB55

¾”

1P-PRB55

1”

114P-PRB55

1-1/4”

112P-PRB55

1-1/2”

2P-PRB55

2”
