2022 Takisawa TS-3000 YS Multi Axis CNC Lathe #7195 #1

Manufacturer

TAKISAWA

Category

Lathes

Type

LATHES, SLANT BED, CNC

Stock

7195

Model

TS-3000 YS

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, SLANT BED, N/C & CNC
Manufacturer:
TAKISAWA
Model:
TS-3000 YS
Year:
2022
Stock #:
7195
Status:
For Sale

Description

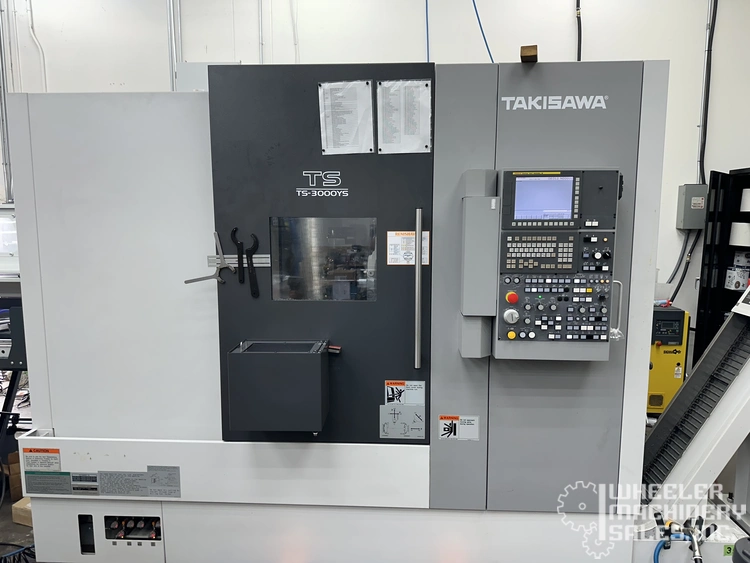

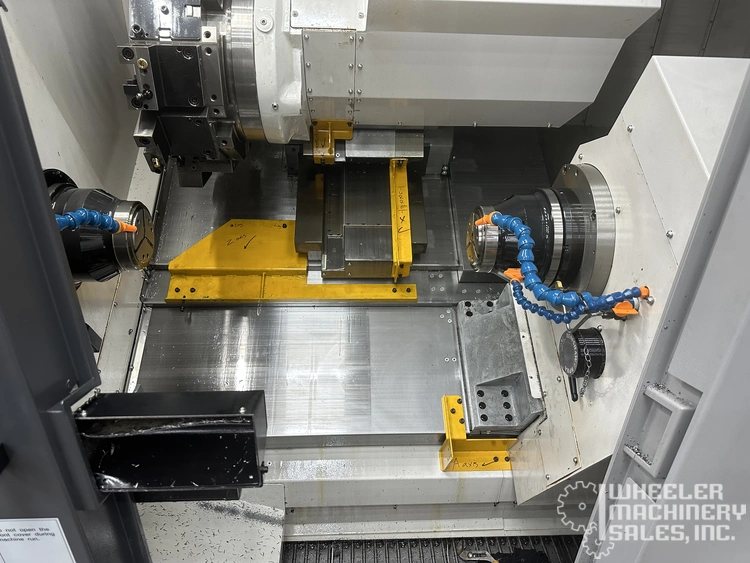

Explore precision with the 2022 Takisawa TS-3000 YS Multi Axis CNC Lathe, featuring a FANUC 32i controller, 6000 RPM counter spindle, and Renishaw probing. Equipped with an LNS bar feeder, chip conveyor, and part catcher, it handles complex machining tasks.

2022 Takisawa TS-3000 YS Multi Axis CNC Lathe #7195 #1

CNC controller: FANUC 32i Model B

Axes/capacity

X-axis travel mm: 261

Y-axis travel mm: -50+70

Z-axis travel mm: 630

C-axis : 0,001

Turning length mm: 545

Swing diameter mm: ø 292

Bar work capacity mm: 67

Turret

Tool holder: BNT-40

Number of tool slots St .: 12

Speed driven tools RPM: 6000

Drive power driven tools kW: 7,5/3,7

Main spindle

Speed spindle rpm: 5000

Drive power spindle kW: 15/11

Spindle bore mm: ø77

Counter spindle

Speed spindle rpm: 6000

Drive power spindle kW: 11/7.5

Spindle bore mm: ø53

Counter spindle travel mm: 665

Equipment

Renishaw probing system

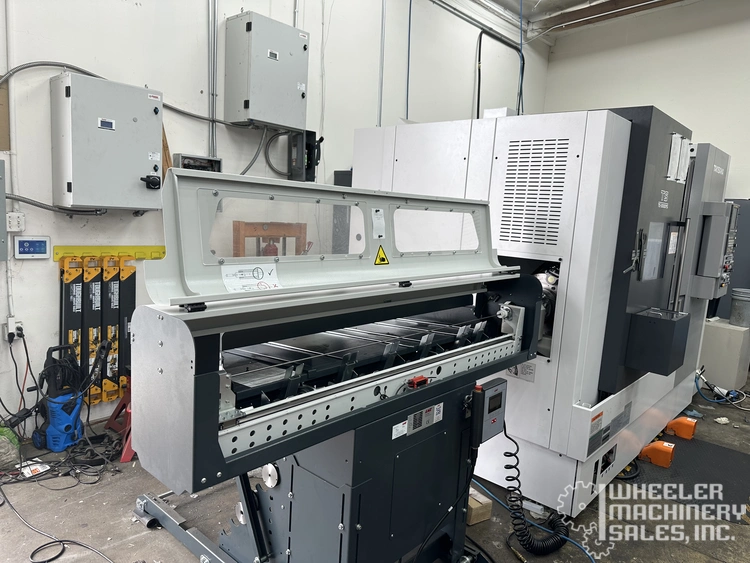

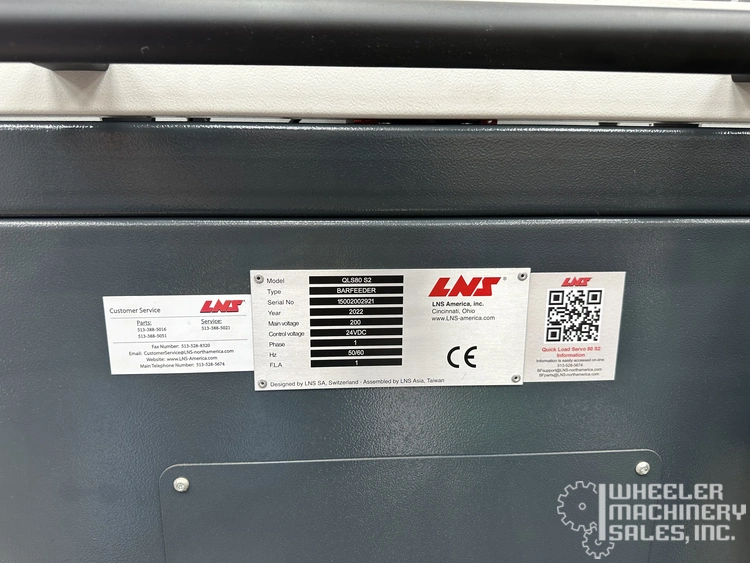

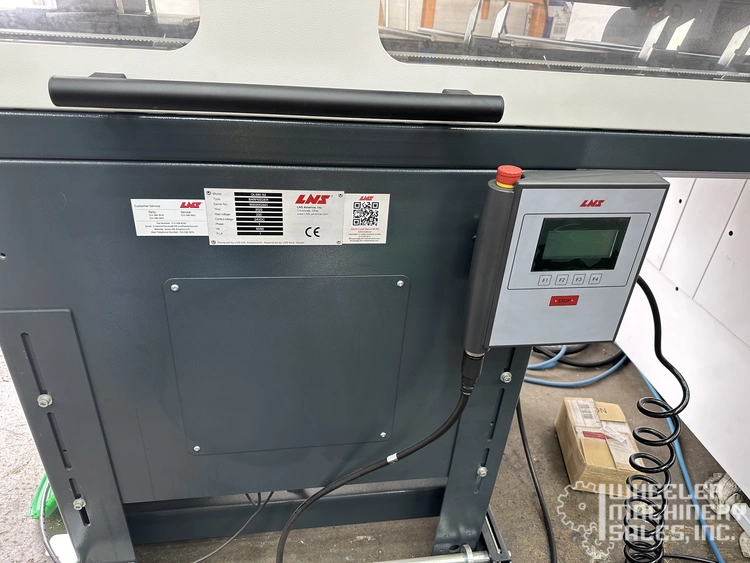

LNS QLS80 S2 bar feeder

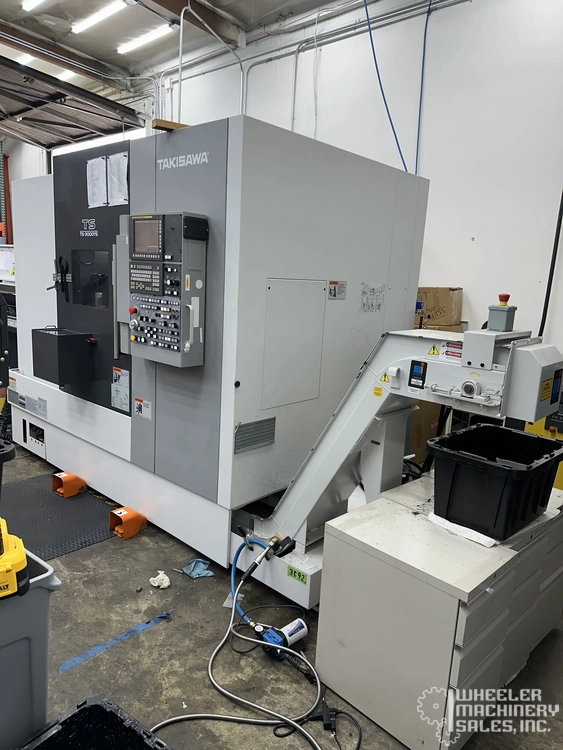

Chip conveyor

Part catcher for right spindle (max. ø80 mm and L 120 mm)

Air or water through the center of the spindle (counter spindle)

Driven tools included

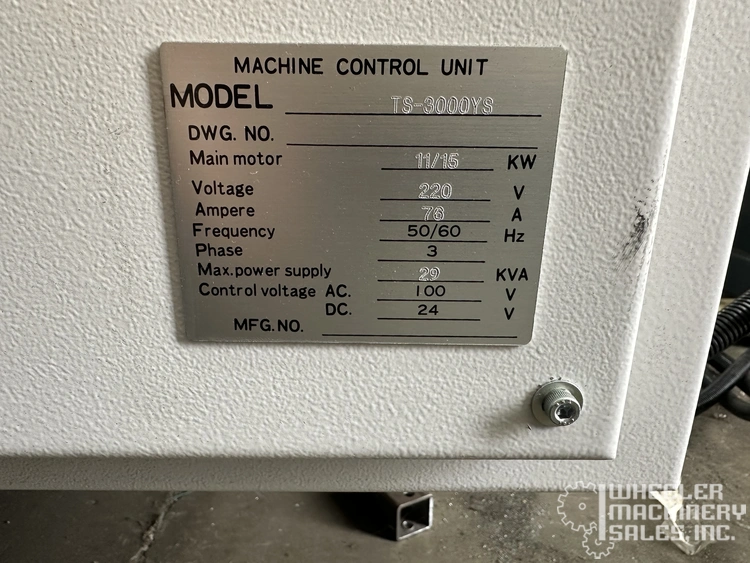

Rated power kVA: 31

Dimensions

Lathe:

L86" x W11" (170" with chip conveyor) x H91"

Bar Feed:

L66" x W80" x H54"

Weight: Approx. 15,000 lbs. with all equipment
