24" Babin Auto Bolt Circle Drill

Manufacturer

BABIN

Category

Drilling Machines

Type

DRILLS, BOLT CIRCLE

Stock

0110565

Model

Circl-Matic 24"

Dealer Location

Texas

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

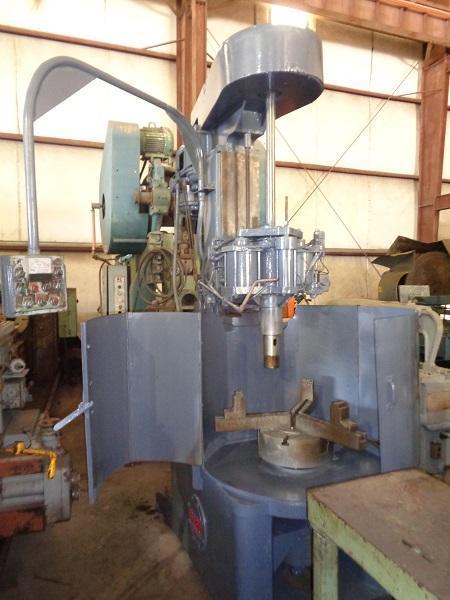

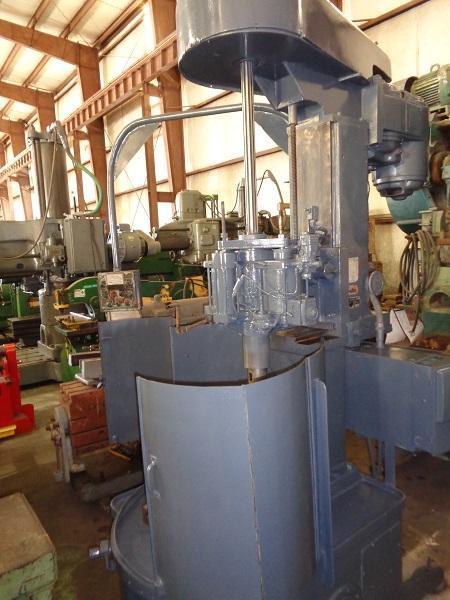

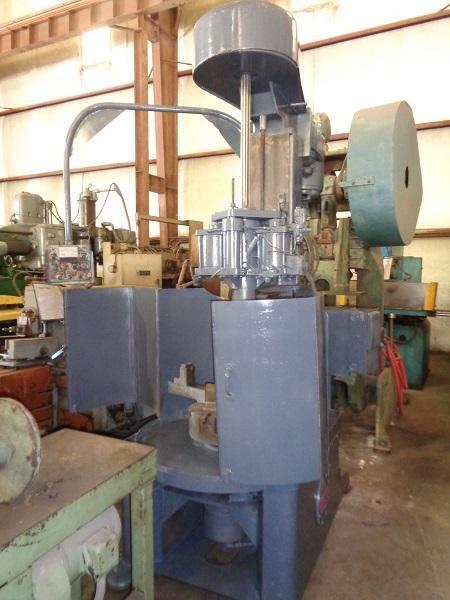

24" Babin Circle-Matic Automatic Bolt Circle Drill
S/N: ADP192

Specifications:

  • Standard Bolt Circle Range: 4" to 30"
  • Standard Division of Equal Spaced Holes: 4,5,6,8,10,12,16,20 & 24
  • Max Diameter of Work Piece (Swing): 33"
  • Max OD Chucking with Standard Jaws: 26"
  • Max ID Chucking with Standard Jaws: 33"
  • Centerline of Chuck to Front & Rear of Machine: 23" and 55"
  • Drilling Capacity in Carbon Steel: 2-1/2"
  • Spindle Stroke Maximum: 6"
  • Spindle Speeds: 76 to 552 RPM
  • Spindle Taper: 5 MT
  • Maximum Table Weight w/ Support Rings: 1,500 lbs
  • Main Motor: 5 HP

Equipped With:

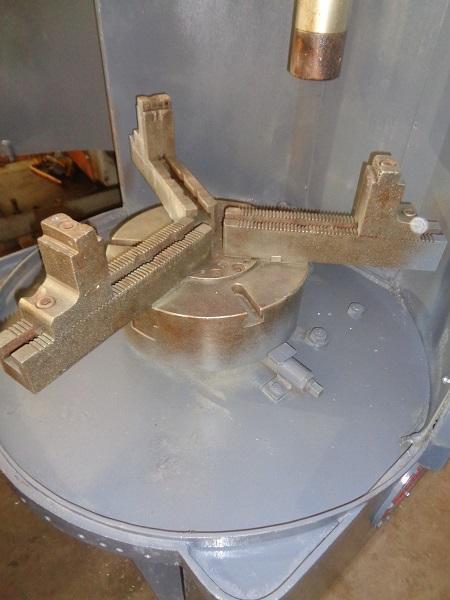

15" 3-Jaw Air Operated Chuck
Tachometer for Spindle Speeds
Coolant Pump
Splash Guards

Approx Dimensions: 50" W x 133" H
Approx Weight: 5,600 lbs
