NEW GMC PSR-5016N-3ph

Manufacturer

GMC

Category

Rolls

Type

ROLLS, PLATE BENDING, PYRAMID TYPE, (Including Sheet Metal)

Stock

7735

Model

PSR-5016N-3ph

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
ROLLS, PLATE BENDING, 4 ROLL
Manufacturer:
GMC
Model:
PSR-5016N-3ph
Condition:
New - In-Stock
Stock #:
7735
Status:
For Sale
Country:
United States

Description

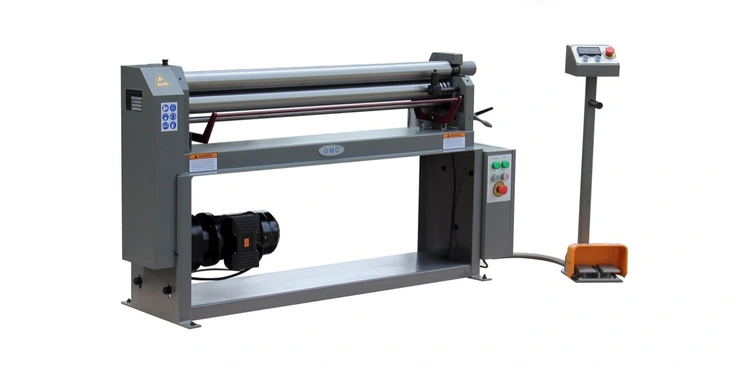

Discover precision with the new GMC PSR-5016N-3ph plate bending rolls. Its features include heavy steel construction, quick-release top roller, and precision alloy steel rollers, all powered by a 1 HP, 220V/440V motor. Perfect for versatile and reliable metalworking!

Length of Rolls50'15.2 m
Max Thickness0.0625"1.5875 mm
Max Thickness (gauge)16 gauge16 gauge
# Rolls44
Power1 hp0.7 kW
Roll Diameter3"76.2 mm
Dimensions68x28x4768x28x47
Weight837837

Specifications
PSR-5016N-3ph #7735
Rolling capacity:
mild steel
stainless steel
Soft aluminum
min. thickness capacity
50” x 16Ga.
50” x 22Ga.
50”x11Ga.
50” x 26Ga.
Rolls size, length x dia
Min. roll bending dia. capacity
50”x 3”
3-1/2”
Rolls speed 201” / min.
Rolls opening ¼”
(3) grooves sizes 5/16”, 3/8” , ½”
Main motor 1 HP,220V/440V, 3ph
Net weight 837 LBS
Machine dimensions, LxWxH 68x28x47”

Main Features:
· ISO 9001 certified

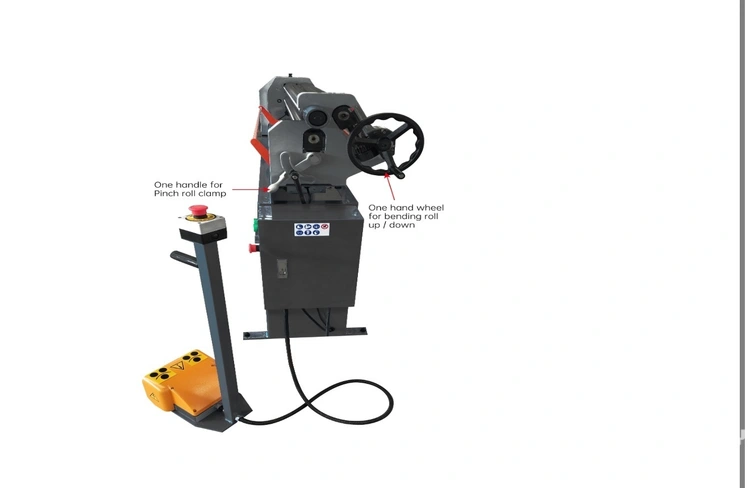

· One handle for pinch roll clamping
· One handwheel for bending roll up/down
· Cone attachment to make various size cone parts
· Heavy welded all steel construction for maximum rigidity
· Silence electrical motor
· Quick release top roller
· Two rolls are driven
· Precision ground rollers
· 1” roll opening
· All three rolls are made of high grade alloy steel, hardened
· All rolls run forward and reverse
· Safety type removable foot pedal
· Overload protection and disconnect switch
· One year warranty for parts
Standard Equipment:
· Cone attachment
· Electrical cabinet
· Removable safety foot pedal
