Webb WL-435 Engine Lathe - 17"/25" x 40" #8114 #1

Stock

8114

Model

WL-435

Dealer Location

California

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
WEBB
Model:
WL-435
Stock #:
8114
Status:
For Sale

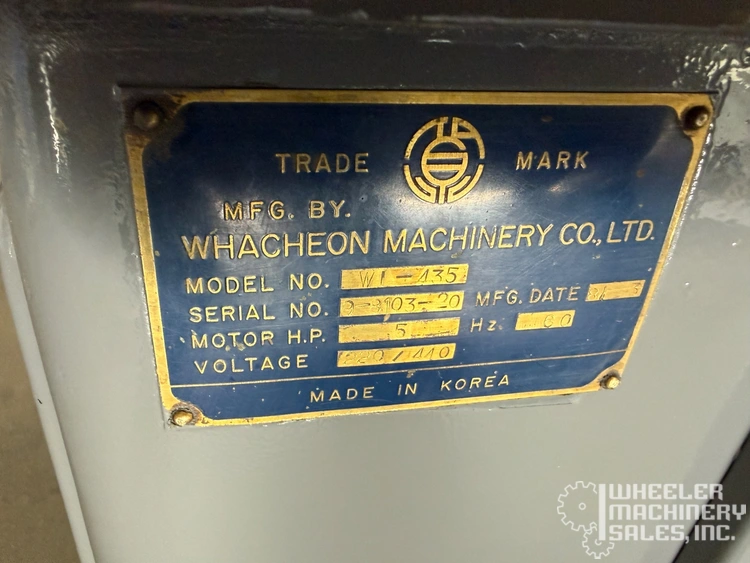

Serial #:
9-3103-20
Country:
United States

Description

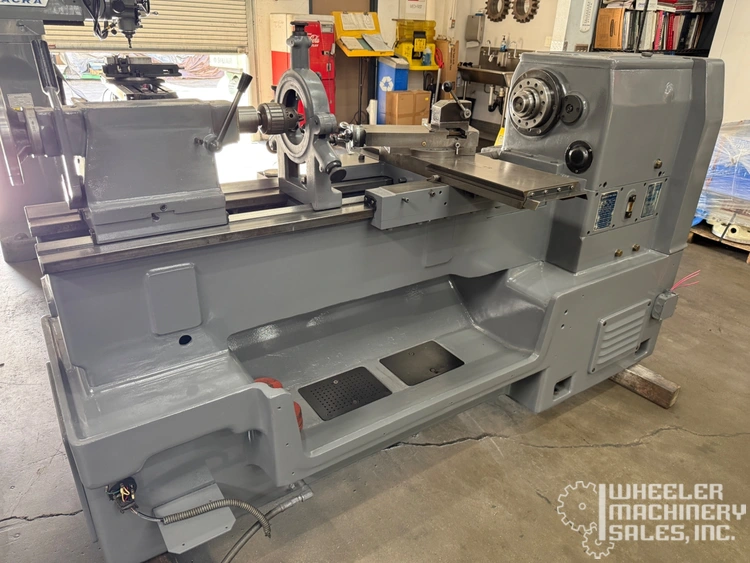

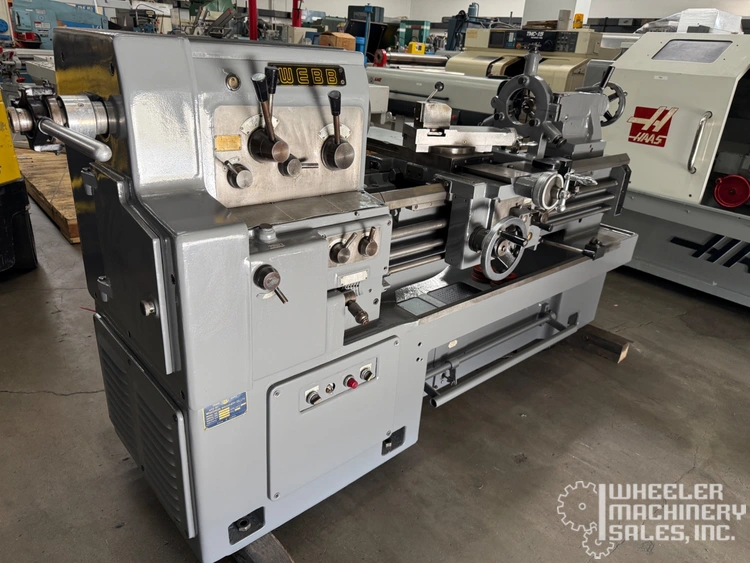

Used Webb WL-435 Engine Lathe with 17"/25" x 40" capacity. Features include 17" swing over bed, 25 9/16" swing in gap, 40" between centers, 32-1800 RPM spindle speeds, 5 HP motor, and equipped with collet closer, quick change tool post, coolant, and tailstock. #8114 #1

Webb WL-435 Engine Lathe - 17"/25" x 40" #8114 #1

SPECIFICATIONS:
Swing Over Bed: 17"
Swing In Gap: 25 9/16"
Distance Between Centers: 40"
Swing Over Cross Slide: 9-3/4"
Spindle Speeds: (12) 32-1800 RPM
Spindle Hole: 2-1/4"
Inch Threads: 4-80 TPI
Metric Threads: 0.5-7 MM
Main Motor: 5 HP

EQUIPPED WITH:
Steady Rest
Quick Change Tool Post
Coolant
Tailstock
