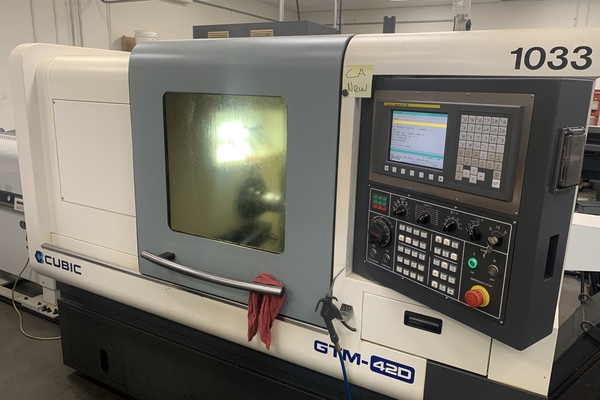

2016 CUBIC GTM-42D CNC LATHE

Manufacturer

CUBIC

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE

Stock

81088475

Model

GTM-42D

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

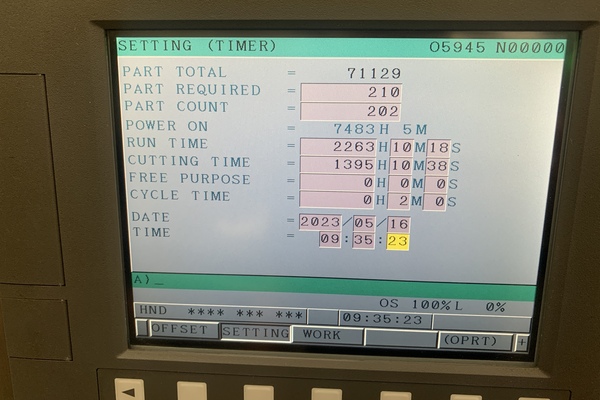

Low Hours, 7 Axes, High Productivity Machine.

Machining Length 6.3"
Bar Capacity 42 mm
Power 10 hp
Max RPM 4,000 RPM
Turning Dia 5.12"
Live Tooling Yes

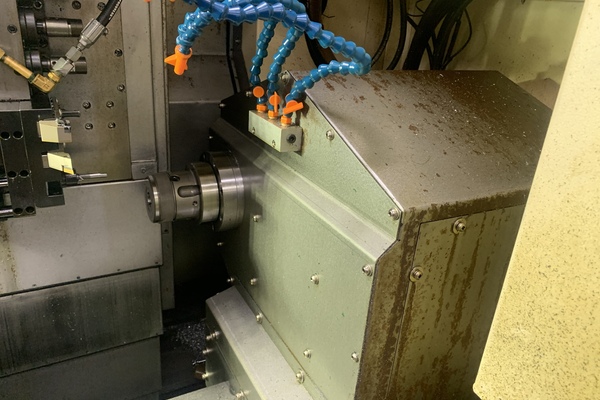

Sub Spindle Yes

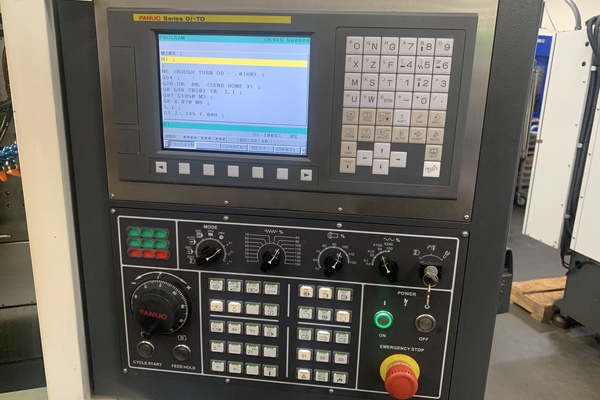

Control CNC (Fanuc Oi-TD)
Weight 7,000 lbs
Sub Bar Capacity: 1 in 26mm
Sub Spindle Nose: A2-4
Sub Spindle Speed: 40-4000 Rpm
Sub Spindle Power: 4 HP
Number of Fixed Tools: 8 Turning + 7 id
Turning Tool Diameter: 16 and 20 mm
Boring tool: 25 mm
Number of Live Tools: 11 (ER20)
Live Tool Speed: 3,000 rpm
Live Tool Motor: 2 Hp 1kw
Rapid Traverse:590 ipm
Coolant Tank Capacity: 48 Gallon
Coolant Pump: 1 Hp
Machine Weight: 7,700 lb

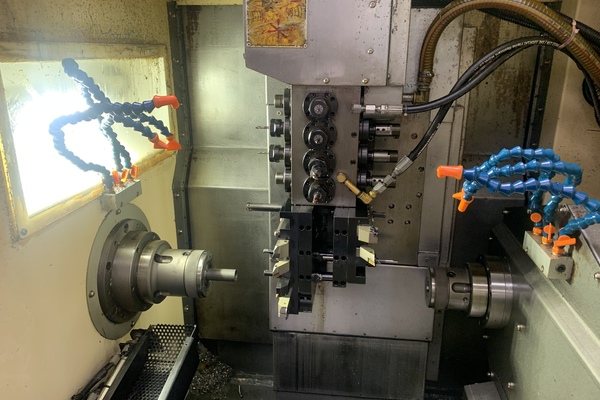

Fauna 0iTD Control with 7 axis Capacity
Fanuc Spindles with C positioning function
4 End Working Live Tools
4 ID Tools for Main Spindle
5 OD Turning tools
4 Live Tools for OD work
3 end Working Live Tools for Sub Spindle
3 ID Tools For Sub Spindle
3 OD Tools for Turning Tools for Sub Spindle

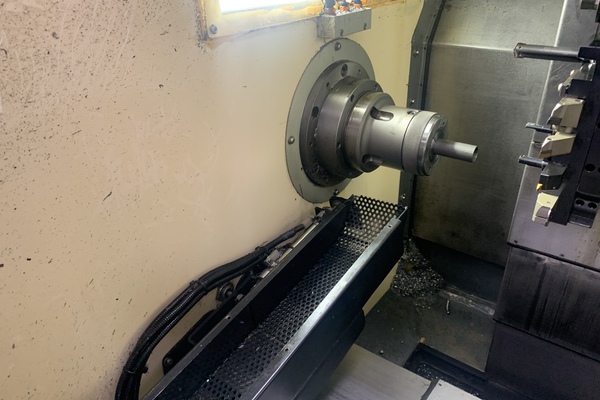

Parts Catcher
Work Light
Coolant System
Hydraulic Disc Brake on Both Spindles

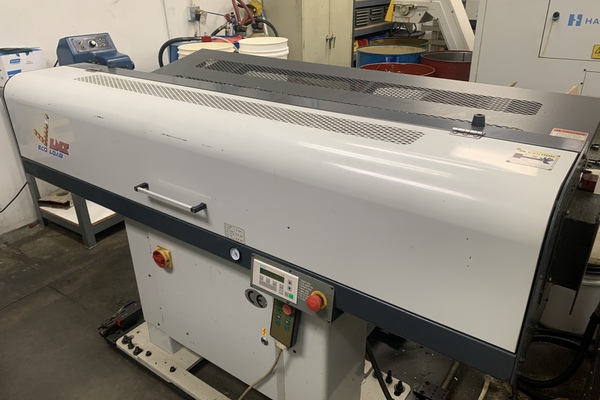

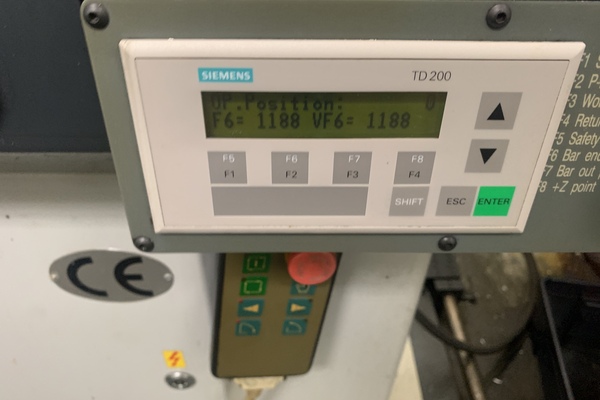

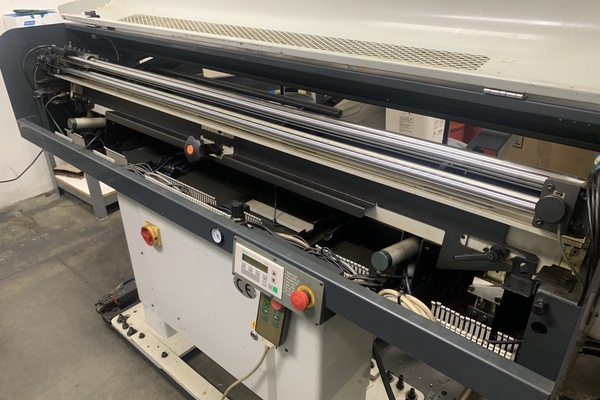

Bartered Interface and LNS Barfeeder
Chip Conveyor

Buyer Is Responsible For Scheduling Transportation Of All Items, As Well As All Cost To Move It. We Can Provide You With Shipping And Rigging Quotes If You Need Help. Please Contact Us And We Will Assist You With Any Questions You May Have.

All Items Are Are Sold "As Is, Where Is”. Specifications, Options, And Additional Accessories Are Quoted To The Best Of Our Knowledge And Are Subject To Buyer's Verification And Correction.
