KINGSTON CJ30160C - Horizontal Lathe

Manufacturer

KINGSTON

Category

Lathes

Type

LATHES, FLAT BED, CNC

Stock

25719

Model

CJ30160C

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Flat Bed Design

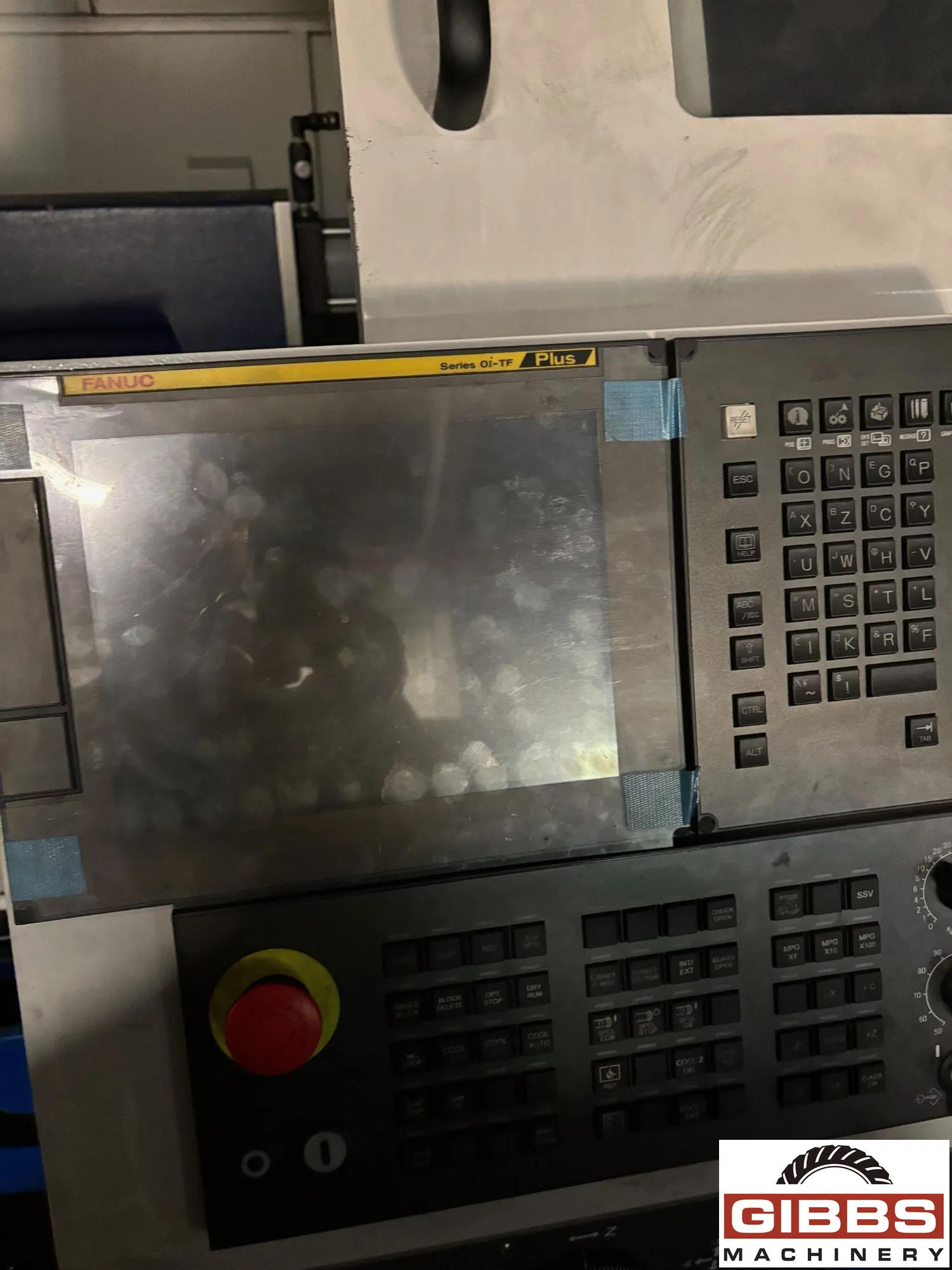

  • Fanuc Control 0iTF Plus
  • C-Axis
  • Coolant System
  • One Remote MPG handwheel
  • Automatic Lubrication
  • Work Light

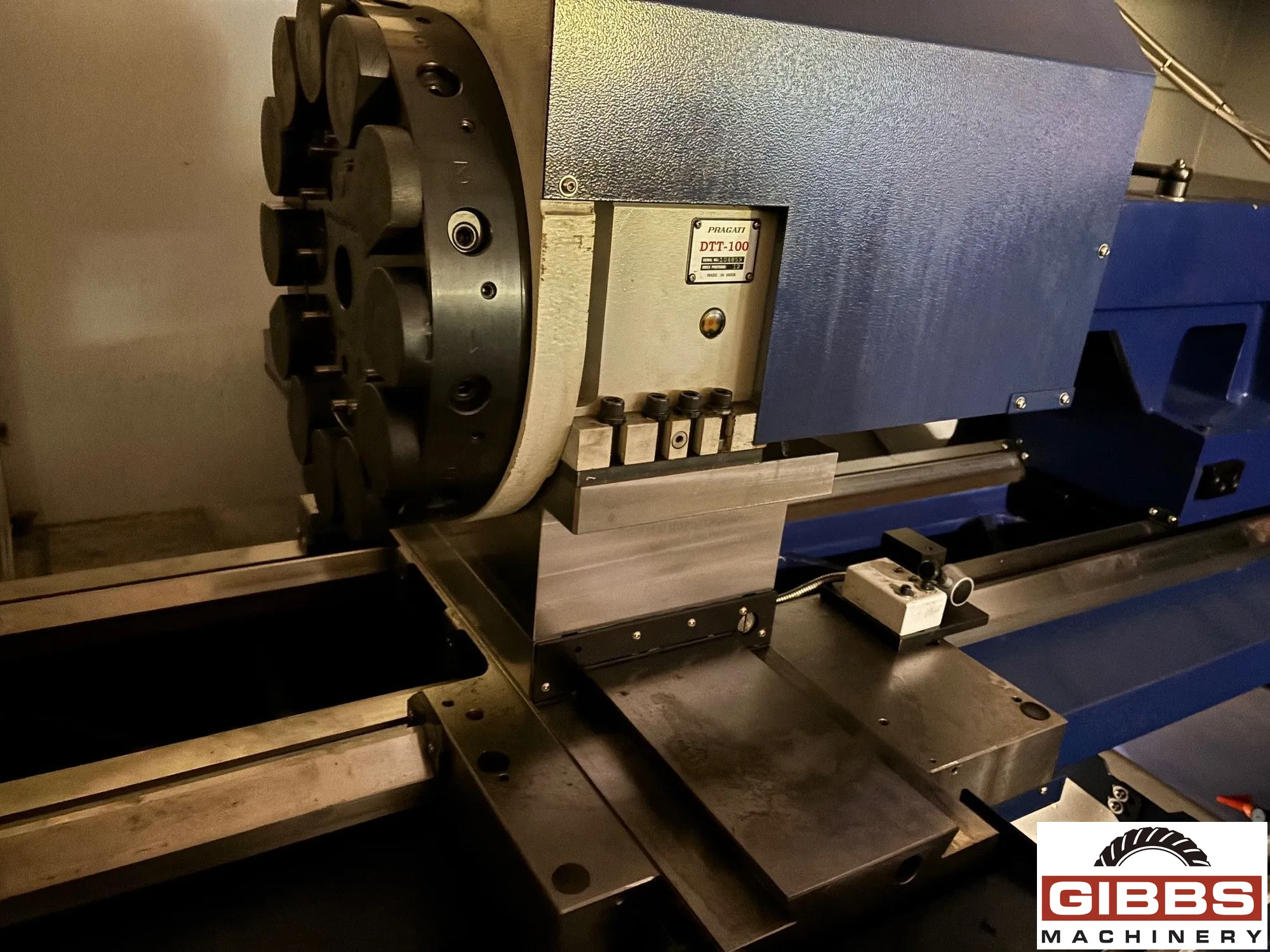

  • V12 Live Tooling Turret VDI 40
  • Wired: 220 Volt 3 Phs.
  • Optional Accessories:
  • 8.3″ Steady Rest With Roller Jaws
  • 4.9″ Steady Rest With Roller Jaws
  • 19.7″ Steady Rest With Roller Jaws
  • Fanuc a30i Servo Spindle Motor
  • Boring Bar Holder On Cross Slide – Specify size at time of order
  • Hydraulic Tailstock
  • Heavy Duty Live Center 6 MT
  • Follow Rest
  • Auto Tool Probe
  • Transformer

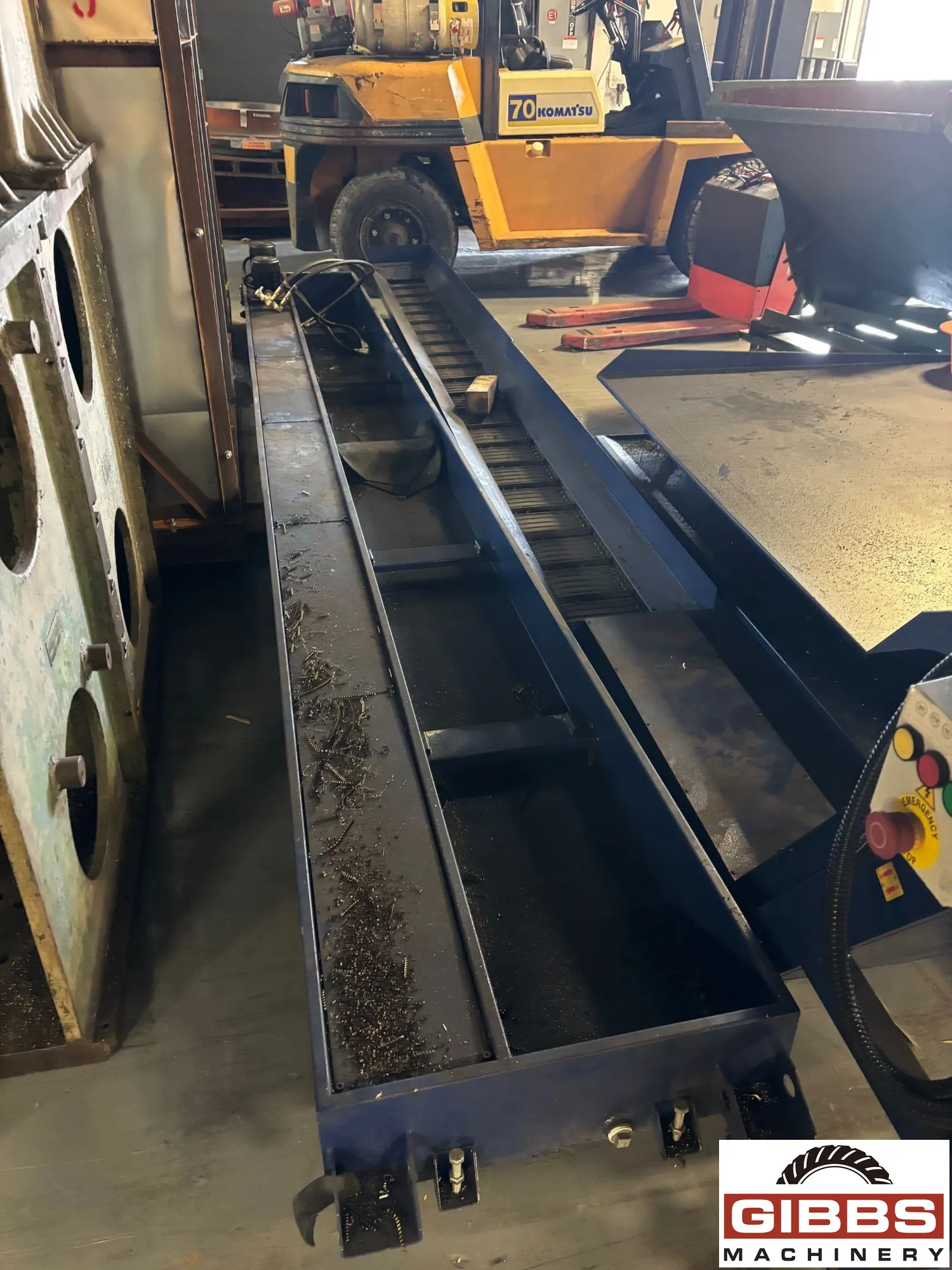

  • Chip Conveyor With Cart Tail Exit
  • 25″ – 3 Jaw Chuck A2-11 Spindle Mount
  • 25″ – 4 Jaw Chuck A2-11 Spindle Mount
,

Machine Specifications :

  • Year 2021
  • Manufacturer KINGSTON
  • Swing 29.9"
  • Centers 160.0"
  • Spindle Bore 6.1"
  • Power 25.0 HP
  • RPM 2,000 RPM
  • Swing Over Cross Slide 21.8"
,

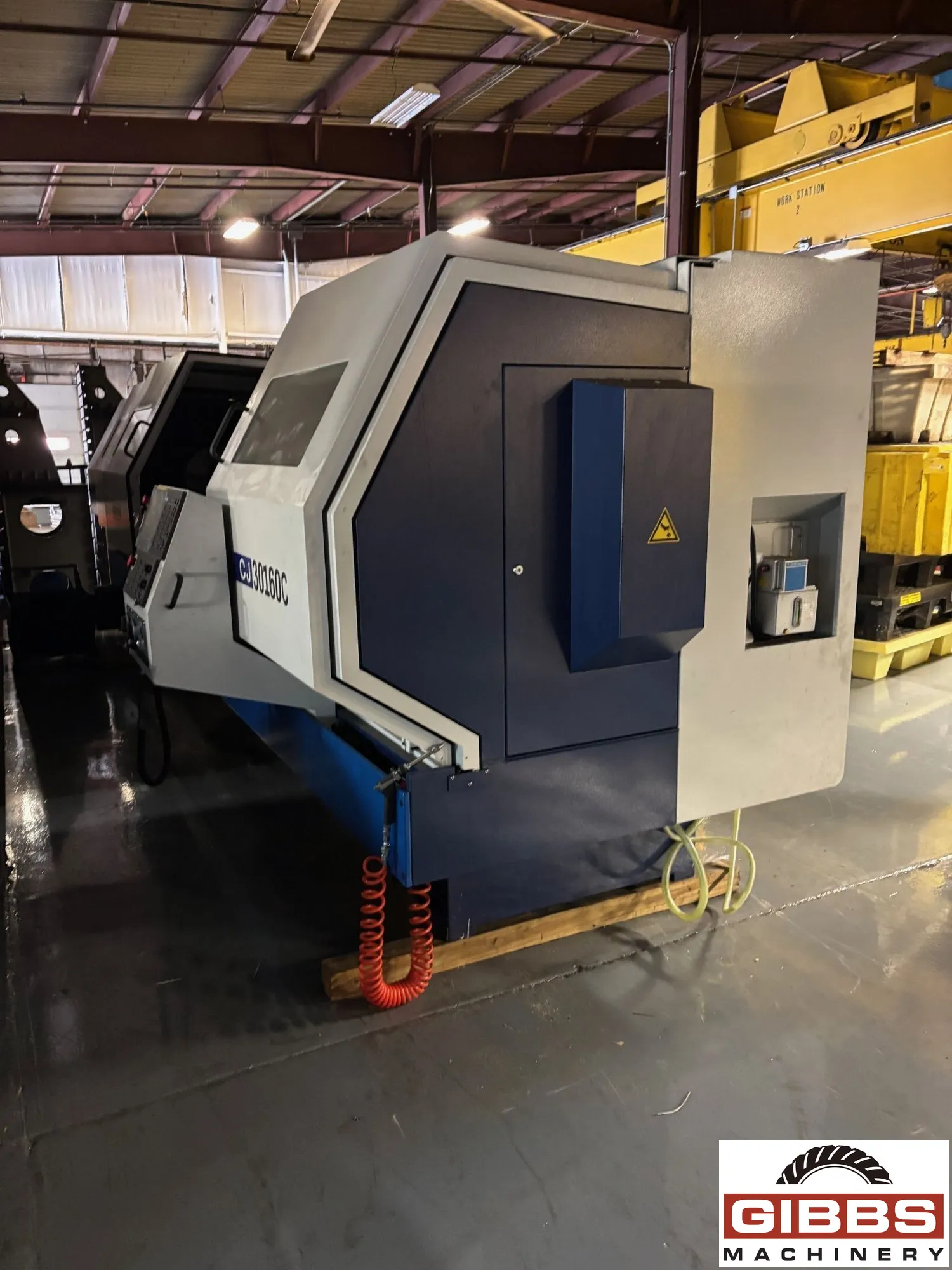

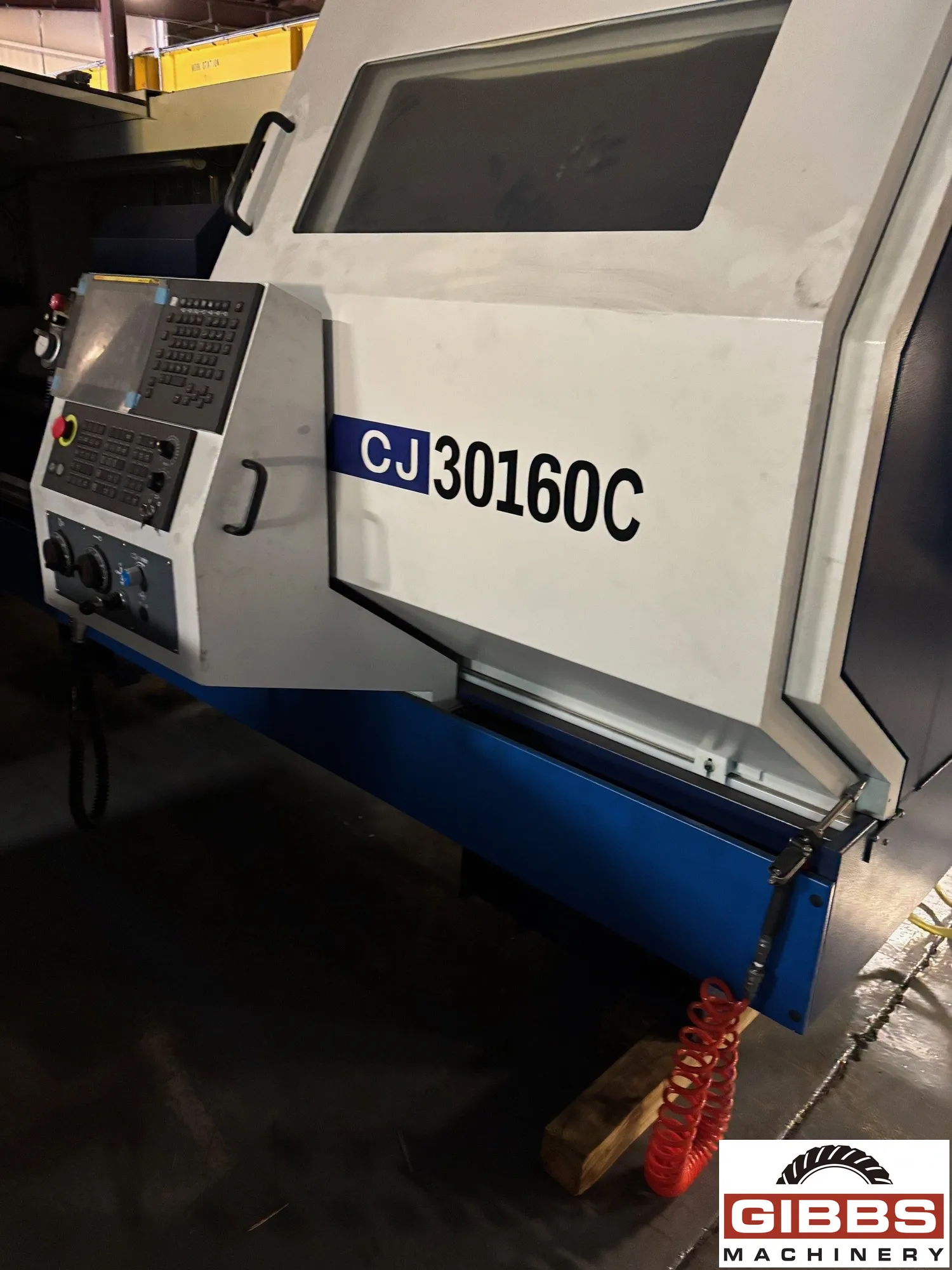

The Kingston CJ30160C is a 30-inch swing, 160-inch center flatbed CNC teach lathe with a direct drive system and live tooling capabilities. It features a V12 VDI-40 live tooling turret, Fanuc 0iTF Plus control with conversational programming, and a C-axis with a hydraulic brake for complex milling, drilling, and other operations in addition to turning. This machine is designed for shops transitioning to CNC, technical schools, and those needing to perform multi-operation processes on a single machine to improve cycle times and accuracy.

    Specifications:

  • Swing Over Bed: 29.9"
  • Swing Over Cross Slide: 21.8"
  • Swing In Gap: 40.9"
  • Gap Width From Faceplate: 11.8"
  • Distance Between Centers: 160"
  • Maximum Cutting Length: 144.8"
  • Width of Bed: 18.9"
  • Spindle Bore: 6.1"
  • Spindle Motor: 20/25 HP
  • Type of Spindle Nose: A2-11
  • Number of Speed Ranges: 1
  • Spindle Speed: 0-2000 RPM
  • Maximum Stroke (V8):
  • -X-Axis: 15.3"
  • -Z-Axis: 146.8"
  • Rapid Traverse:
  • -X-Axis: 315 in/min
  • -Z-Axis: 275 in/min
  • Servo Motor:
  • -X-Axis: 11 Nm
  • -Z-Axis: 20 Nm
  • Tailstock Quill Center: MT #6
  • Tailstock Quill Diameter: 4.125
  • Tailstock Quill Travel: 11.8"
  • Floor Space (L x W x H): 264" x 89" x 89"
  • Net Weight: 16,280 Lbs.
  • Total Power Required: 26 KVA
