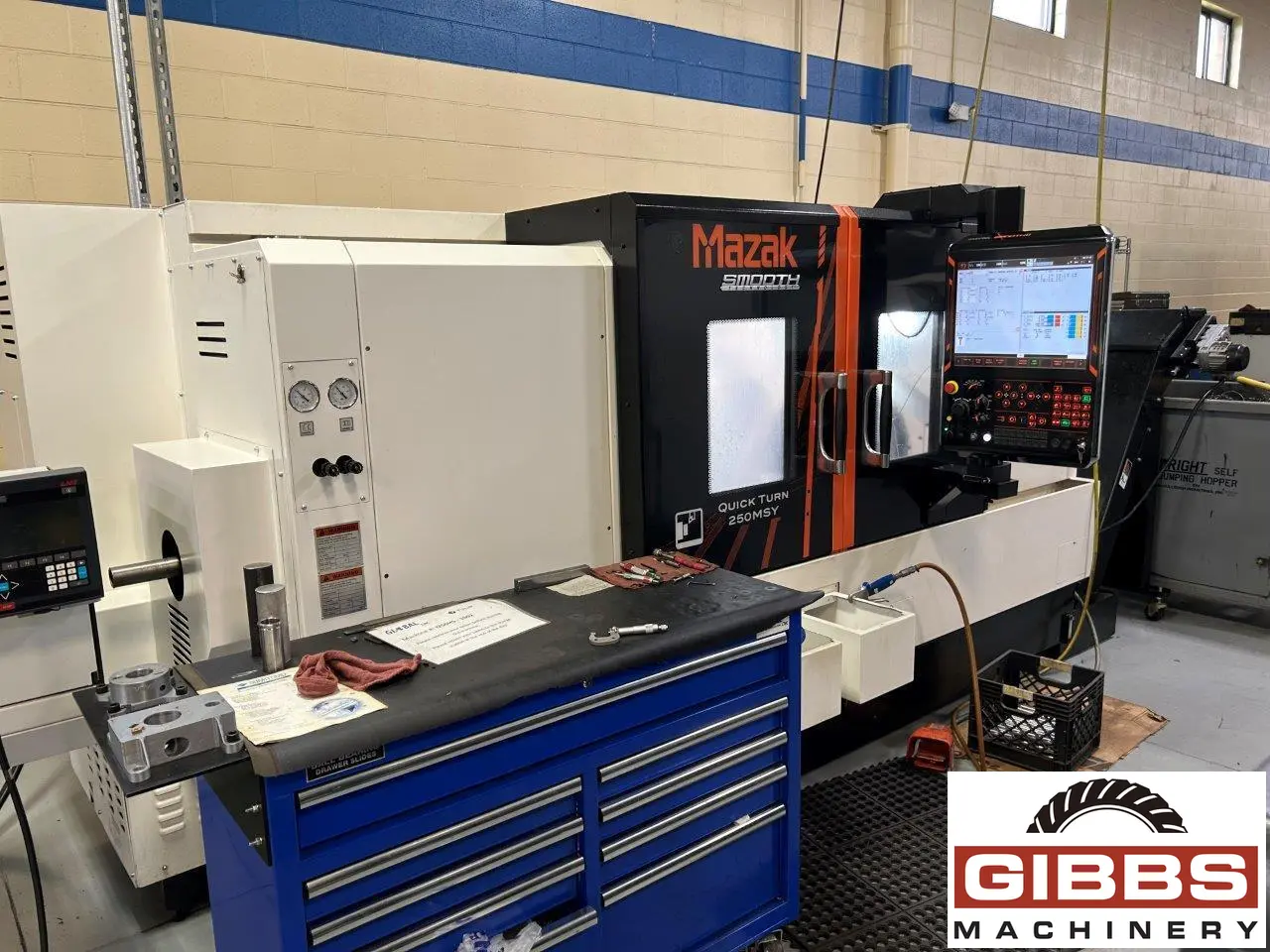

MAZAK QUICK TURN 250MSY - Horizontal Lathe

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, CNC

Stock

25706

Model

QUICK TURN 250MSY

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Smooth Control

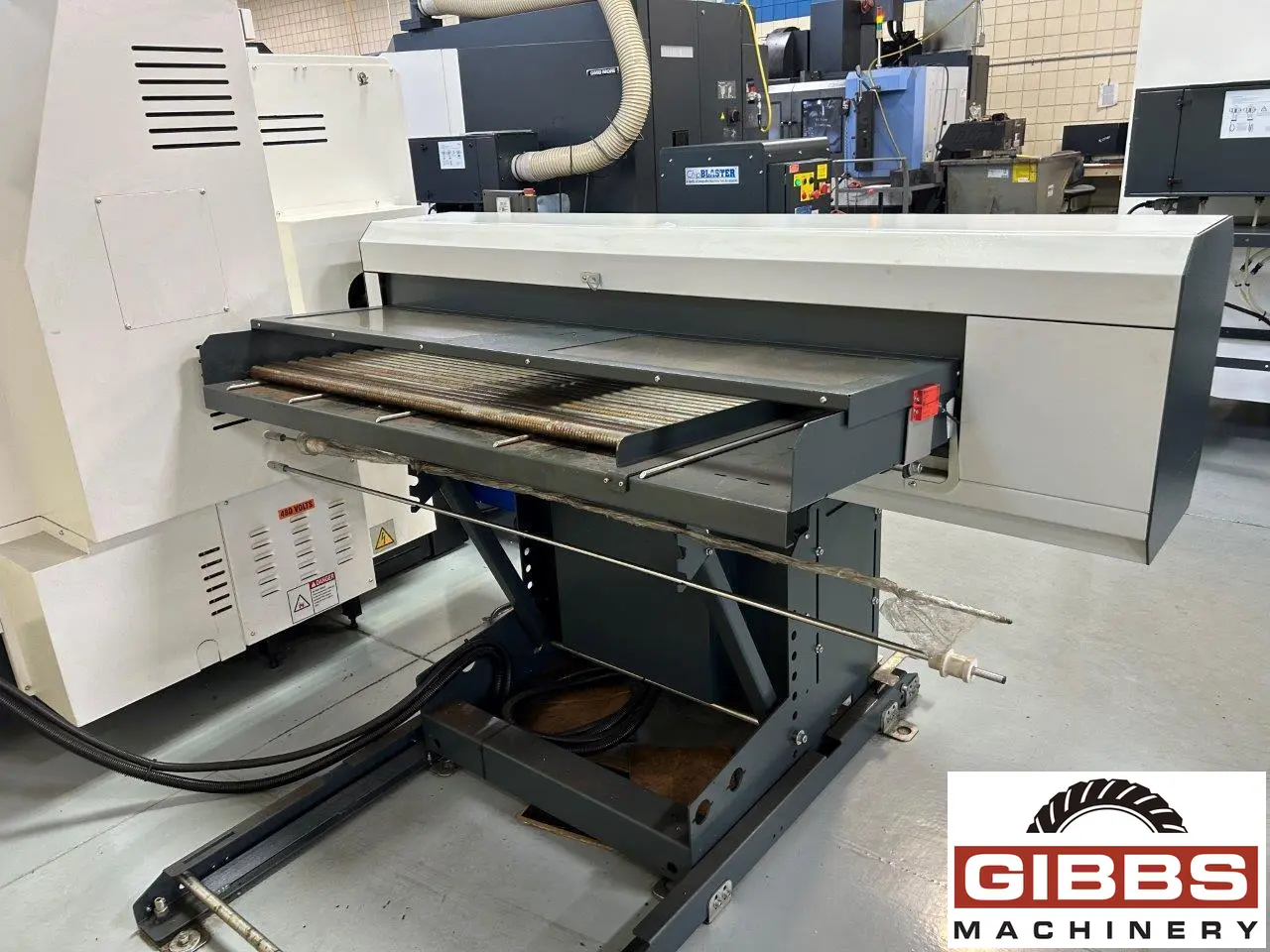

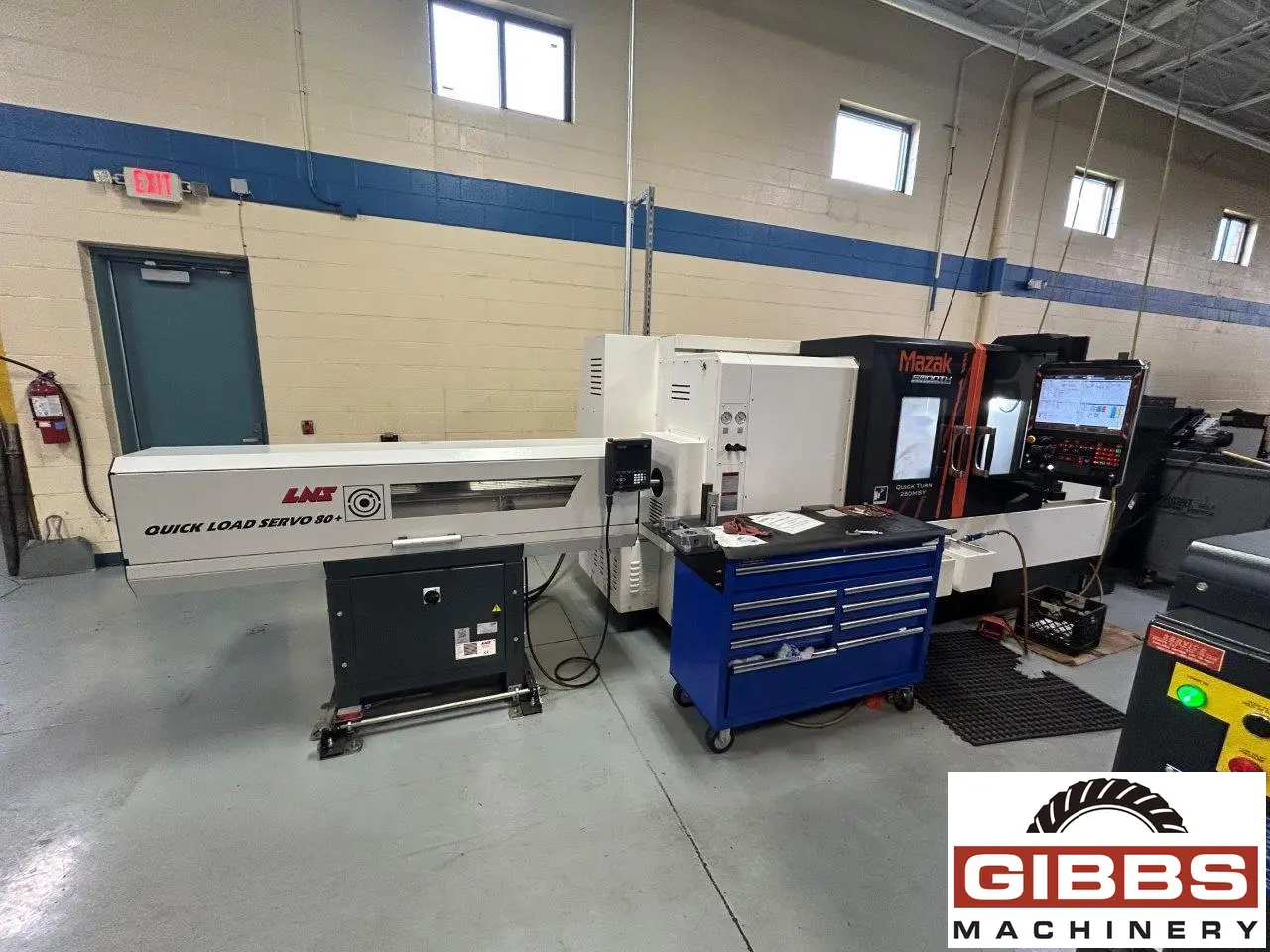

  • LNS QLS Bar Feeder
  • Collet Chucks
  • Live Tools
  • Y-Axis

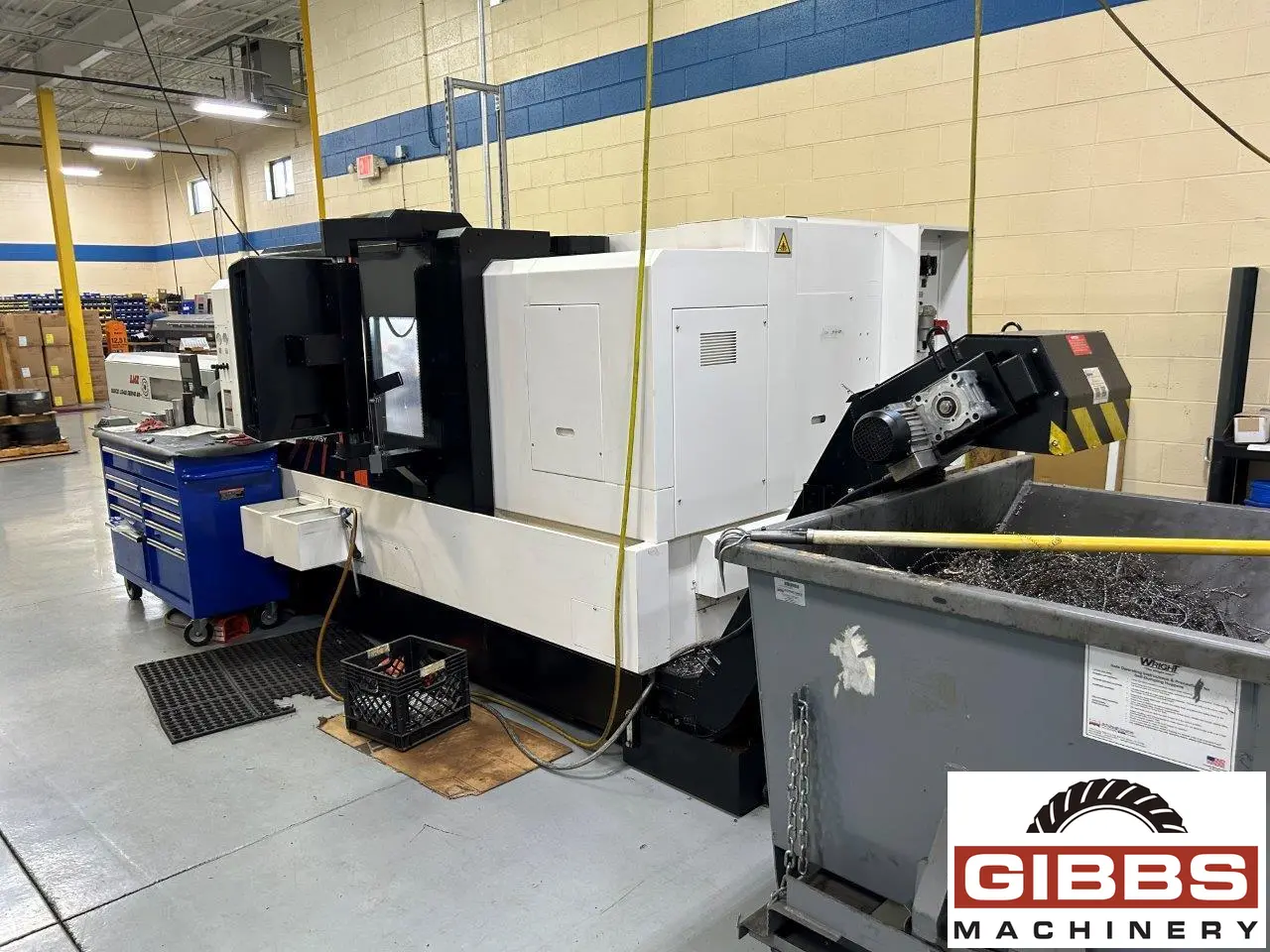

  • Chip Conveyor
  • Coolant System
,

Machine Specifications :

  • Year 2022
  • Manufacturer MAZAK
  • Swing 26.5"
  • Machining Length 21.3"
  • Chuck Size 6.0"
  • Bar Capacity 3.0"
  • Power 10.0 HP
  • Max RPM 6,000 RPM
  • Turning Dia 14.75"
  • Tailstock No
  • Live Tooling Yes
,

The MAZAK QUICK TURN 250MSY is a highly versatile CNC lathe known for its multitasking capabilities, featuring both turning and milling operations, along with Y-axis and second spindle functionality. This machine is designed for efficient and accurate machining of complex parts with a single setup.

    Specifications:

  • Maximum Swing: 26.5"
  • Max Turning Diameter: 14.75"
  • Main Spindle Bore/Max Bar Capacity: 3.5"/ 3.0"
  • Maximum Cutting Length: 21.275"
  • X-Axis Travel (X1, X2, X3): 9"
  • Z-Axis Travel (Z1, Z2, Z3): 22.75"
  • Y-Axis Travel (Y1, Y2, Y3): 4" (+/- 2")
  • C-Axis Indexing (1, 2): .0001, .0001 Degree
  • W-Axis Travel Sub Spindle: 23"
  • Main Spindle Bore Diameter: 3.5"
  • Main Spindle Maximum Bar Work: 3"
  • Main Spindle Speed: 4,000 RPM
  • Main Spindle Horsepower (CONT. /30 MINS): 35
  • Sub Spindle/2nd Spindle Speed: 6,000 RPM
  • Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS): 10
  • Turret Tool Positions 1, 2: 12
  • Turret Rotary Tool Spindle Speed 1, 2: 4500
  • Turret Rotary Tool Horse Power 1, 2: 7.0
  • Rapid Traverse, X-Axis: 1181
  • Rapid Traverse, Y-Axis: 826
  • Rapid Traverse, Z-Axis: 1299
  • Weight: 12,000 LBS
