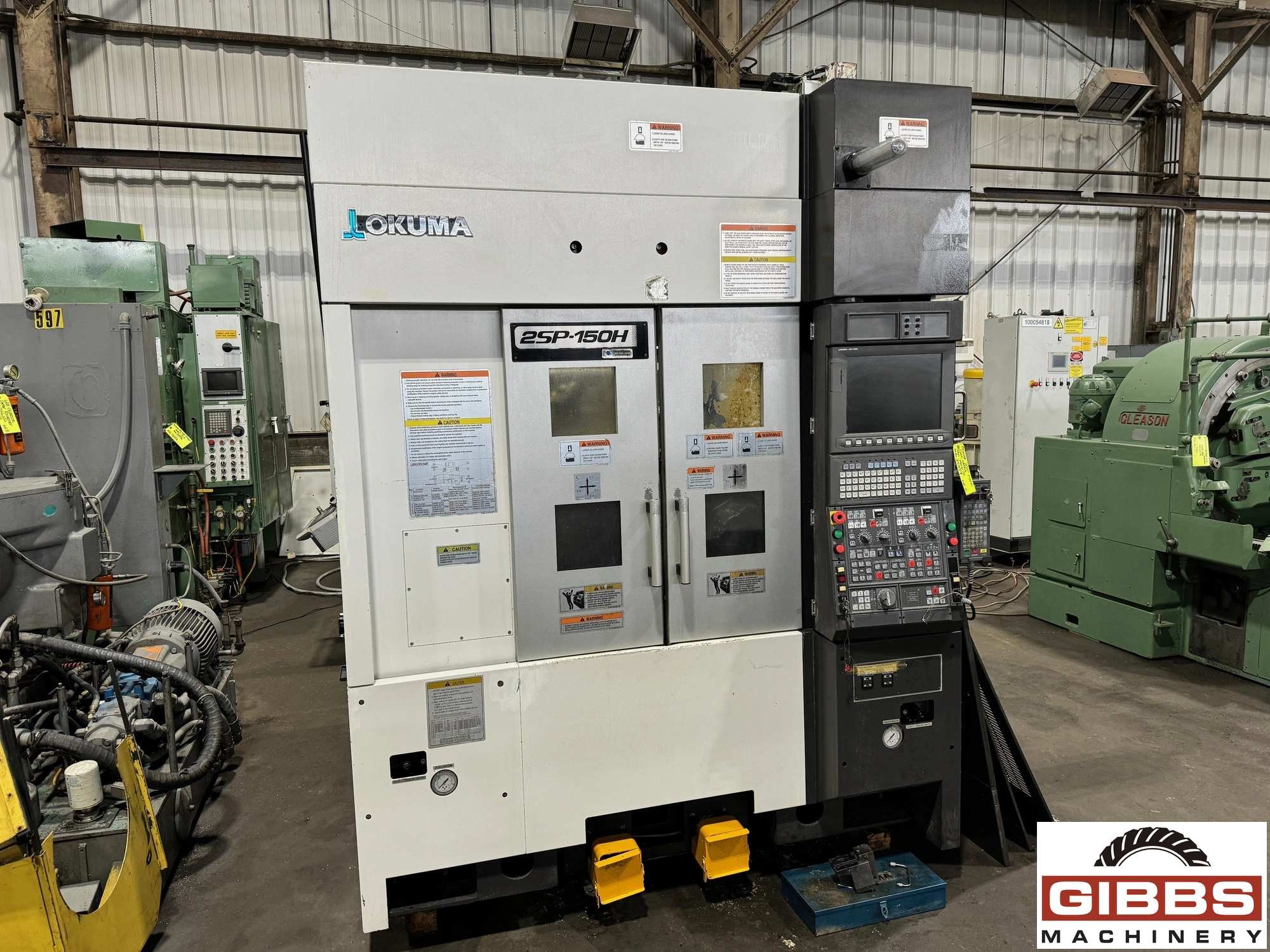

OKUMA 2SP-150H - Horizontal Lathe

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, TURNING

Stock

25454

Model

2SP-150H

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

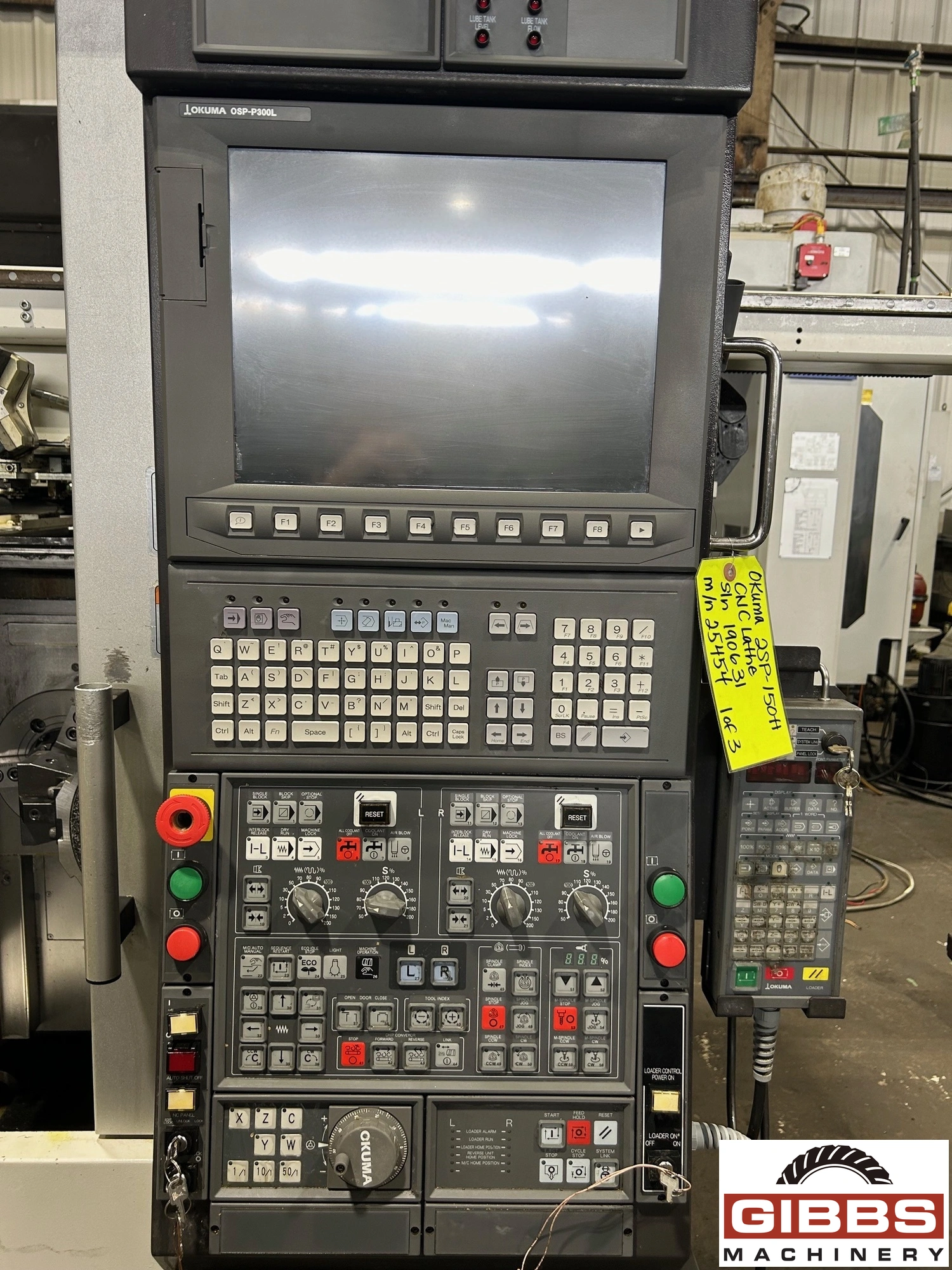

  • Okuma OSP-P300L CNC Control
  • 8" 3-Jaw Chuck
  • Expanding Mandrel

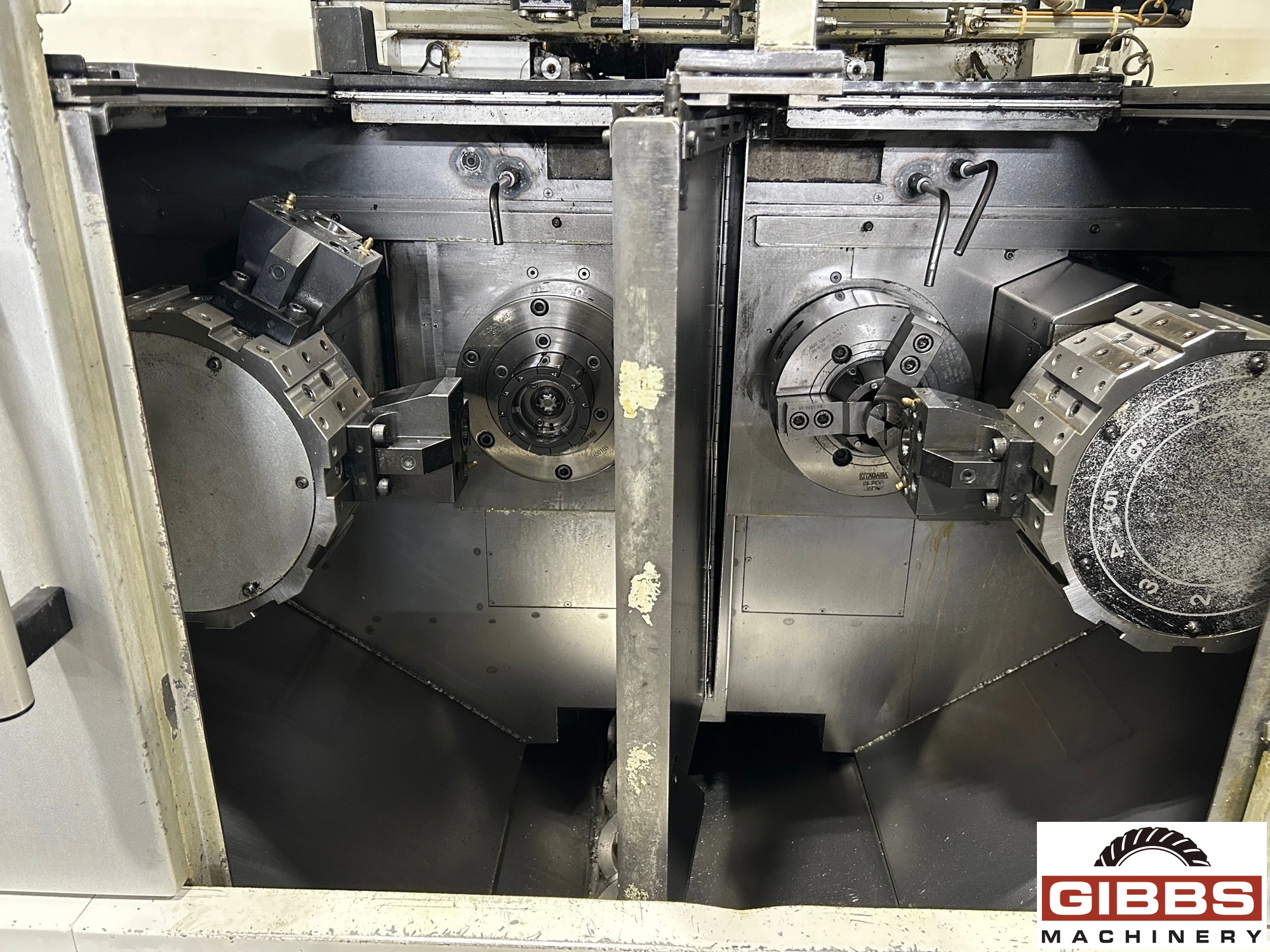

  • Turret Tooling

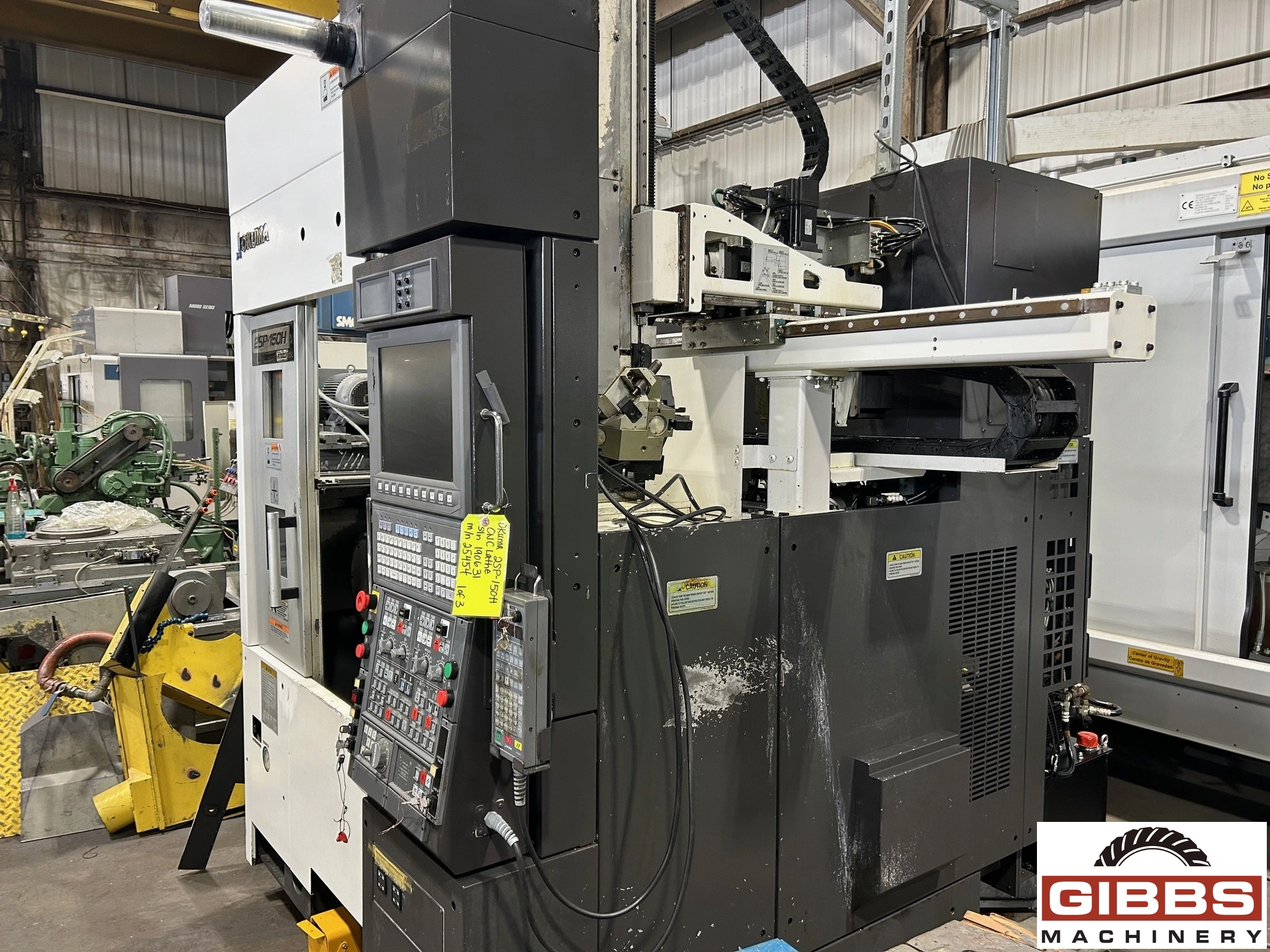

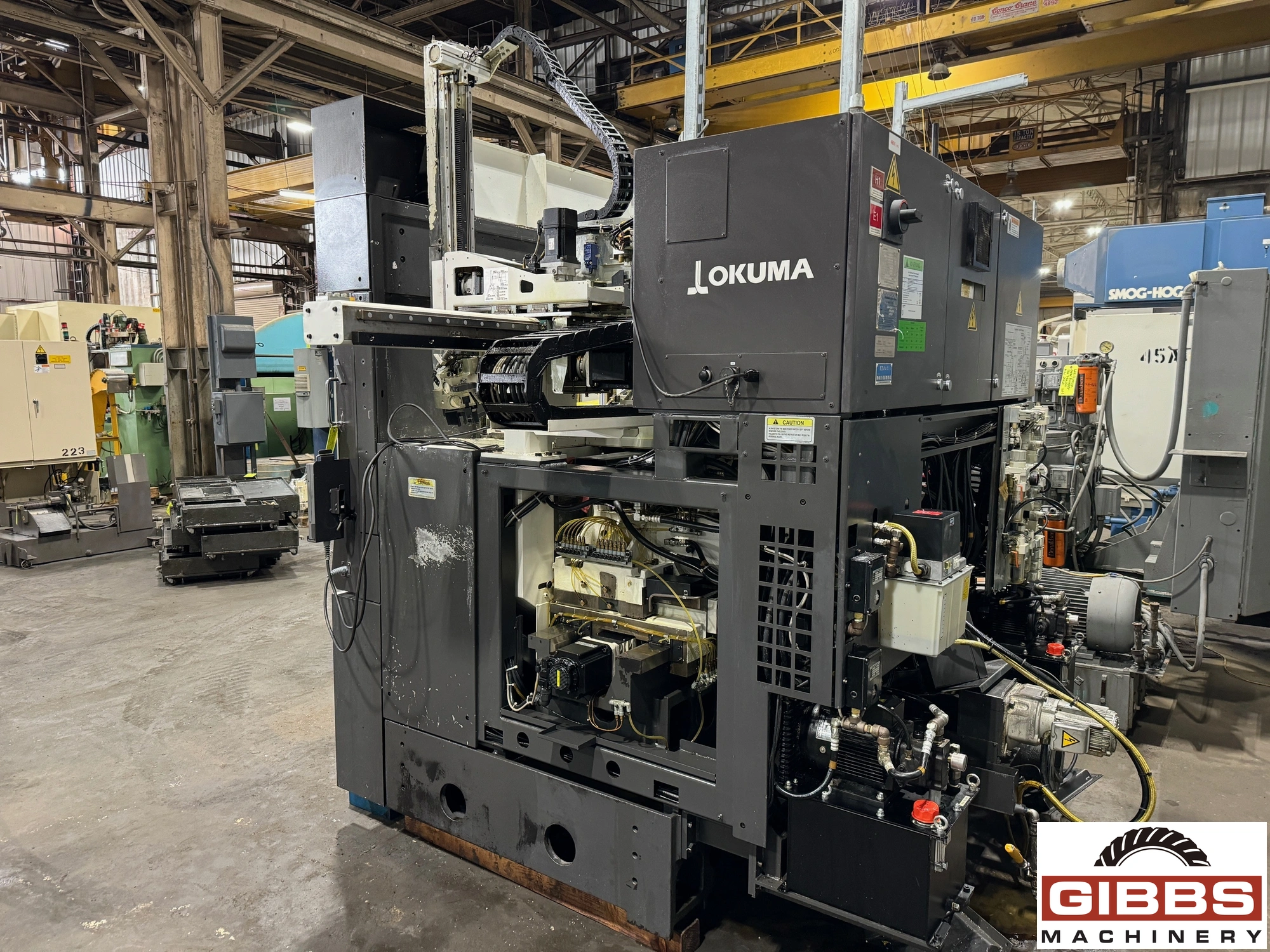

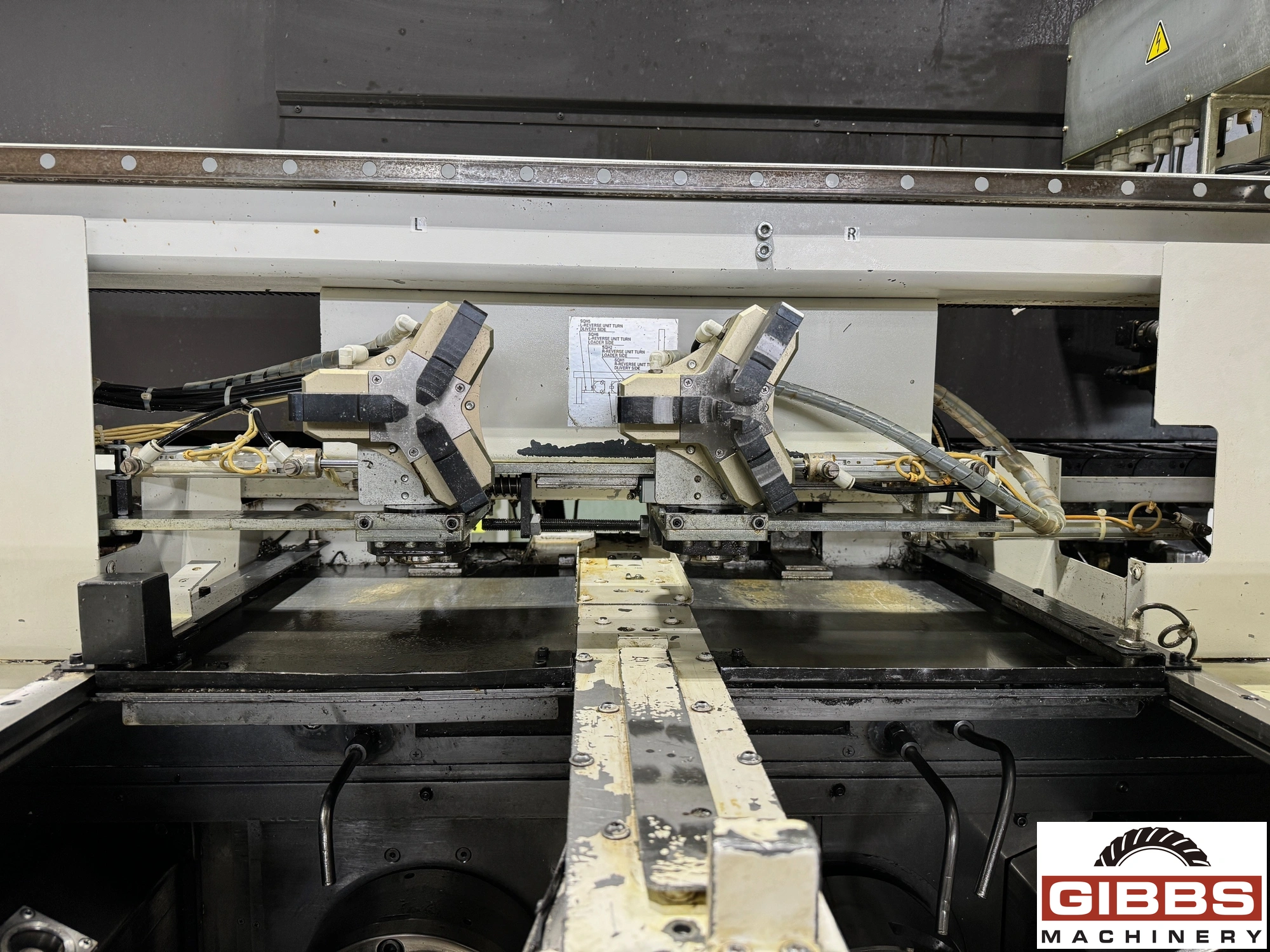

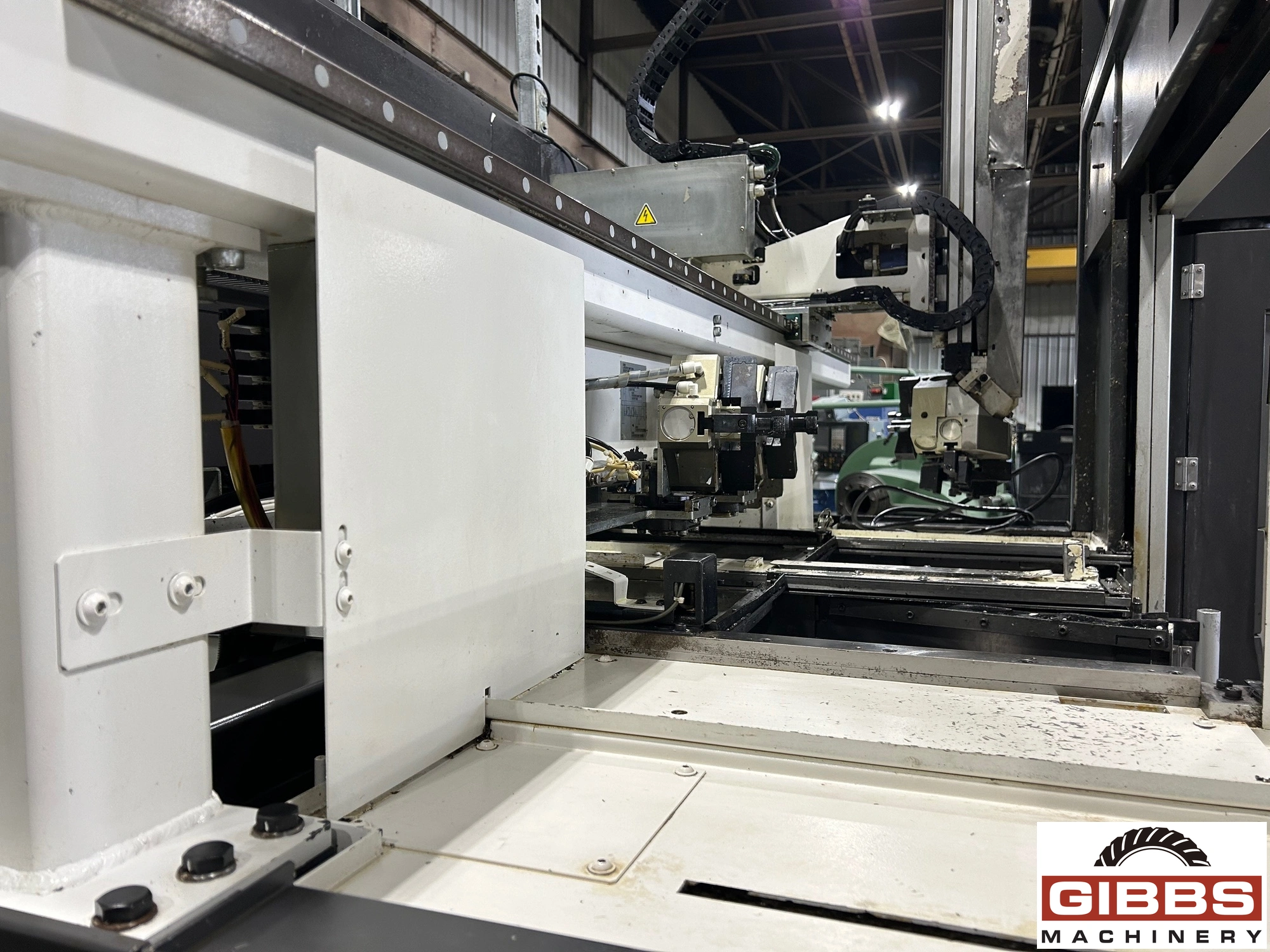

  • Gantry Loader
  • Pendant Controller
  • Chip Auger
  • Stack Light
,

Machine Specifications :

  • Year 2015
  • Manufacturer OKUMA
  • Swing 13.7"
  • Machining Length 5.91"
  • # Axis 3.0
  • Chuck Size 6.0"
  • Bar Capacity 2.0"
  • Power 15.0 HP
  • Max RPM 4,500 RPM
  • Turning Dia 8.68"
  • Tailstock No
  • Live Tooling No
  • Sub Spindle No
,

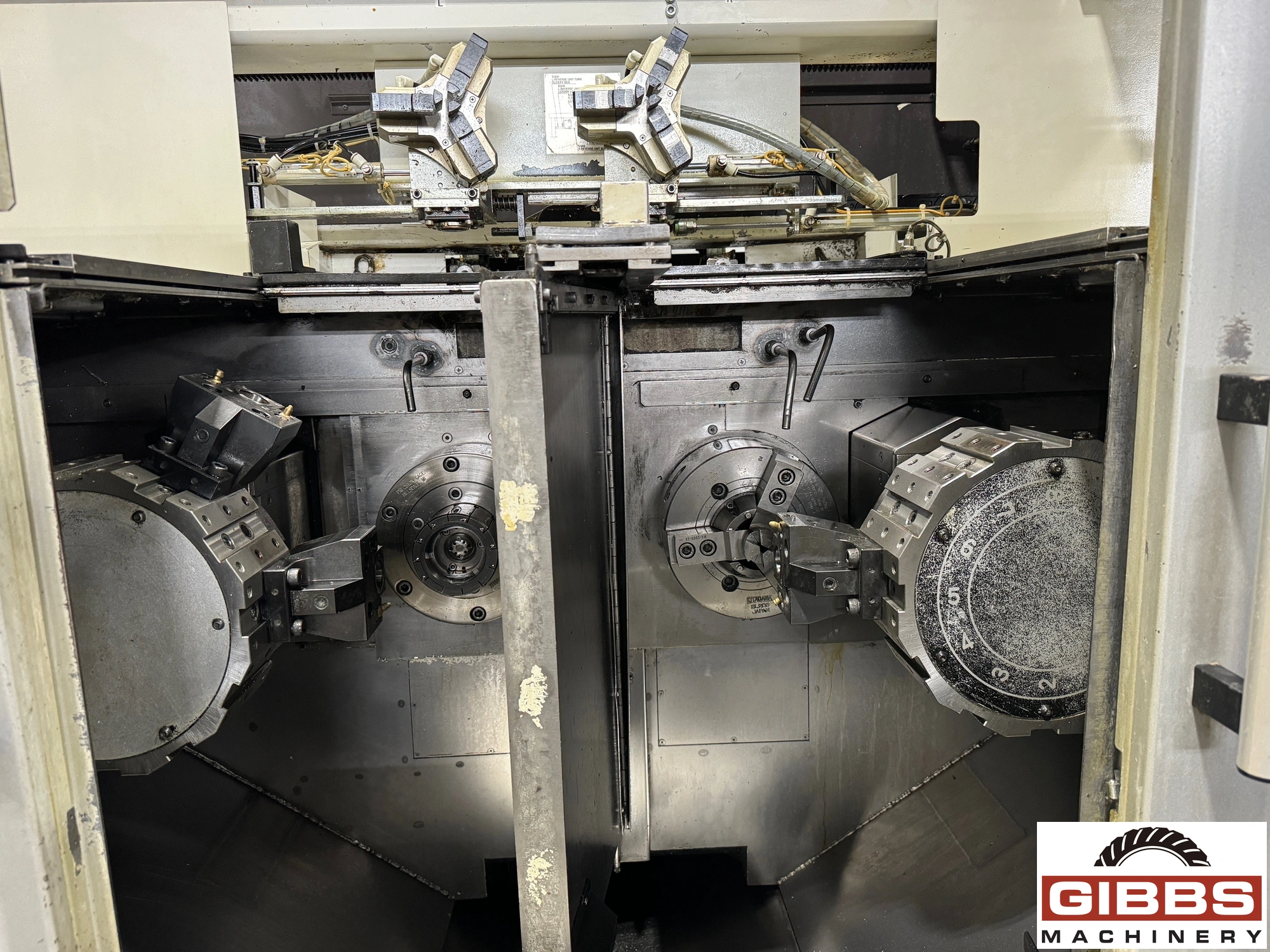

The innovative front-facing spindle of the 2SP-150H helps create an automation-friendly lathe for small parts production. By moving the spindle off the side and incorporating the Okuma Gantry Loader (OGL) into the production line, parts can be loaded and unloaded automatically. An extremely compact footprint improves floor space utilization, while the popular dual spindle option significantly reduces cycle time.

    Specifications:

  • Maximum Turning Diameter: 200 mm
  • Maximum Turning Length: 150 mm
  • X-Axis Travel: 150 mm
  • Z-Axis Travel: 155 mm
  • C-Axis Travel: 360 Degree
  • Spindle Speed: 50 - 4500 Min1
  • Spindle Speed Ranges: Infinitely Variable
  • Spindle Nose: Dia. 140 Flat
  • Spindle Bearing Diameter: 80 mm
  • Spindle Bore Diameter: 42 mm
  • Turret Type: Turning V12
  • Number of Turret Tools: 12
  • Turret OD Tool Shank Diameter: 40 mm
  • Turret ID Tool Shank Diameter: 40 mm
  • Feed Rates (Rapid Traverse): X: 24 m/min / Z: 24 m/min
  • Spindle Motor: 11 kW
  • X/Z Axis Drive Motor: 2.2 kW
  • Machine Height: 104.25"
  • Machine Floor Space: 72.83" x 84.65" (machine only)
  • Machine Weight: 11,000 # (loader included)
