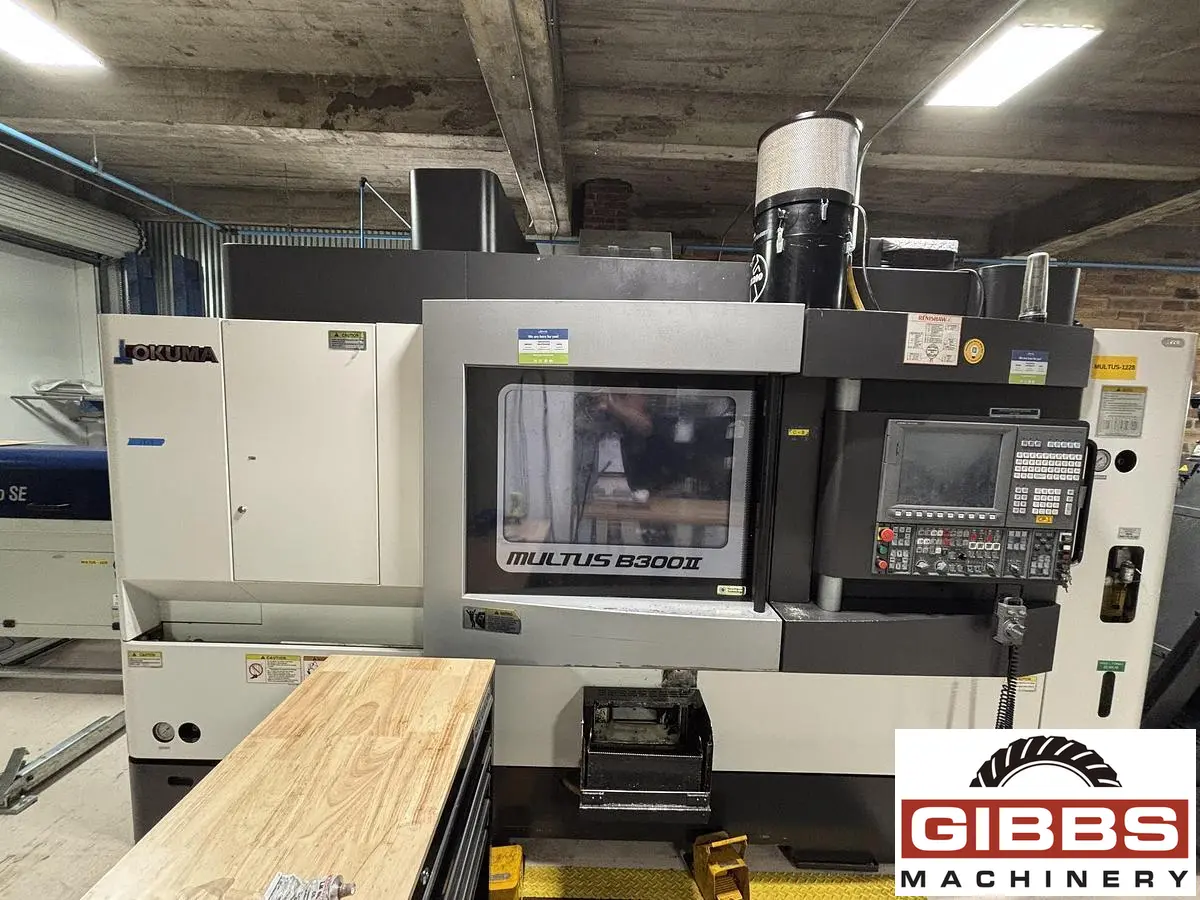

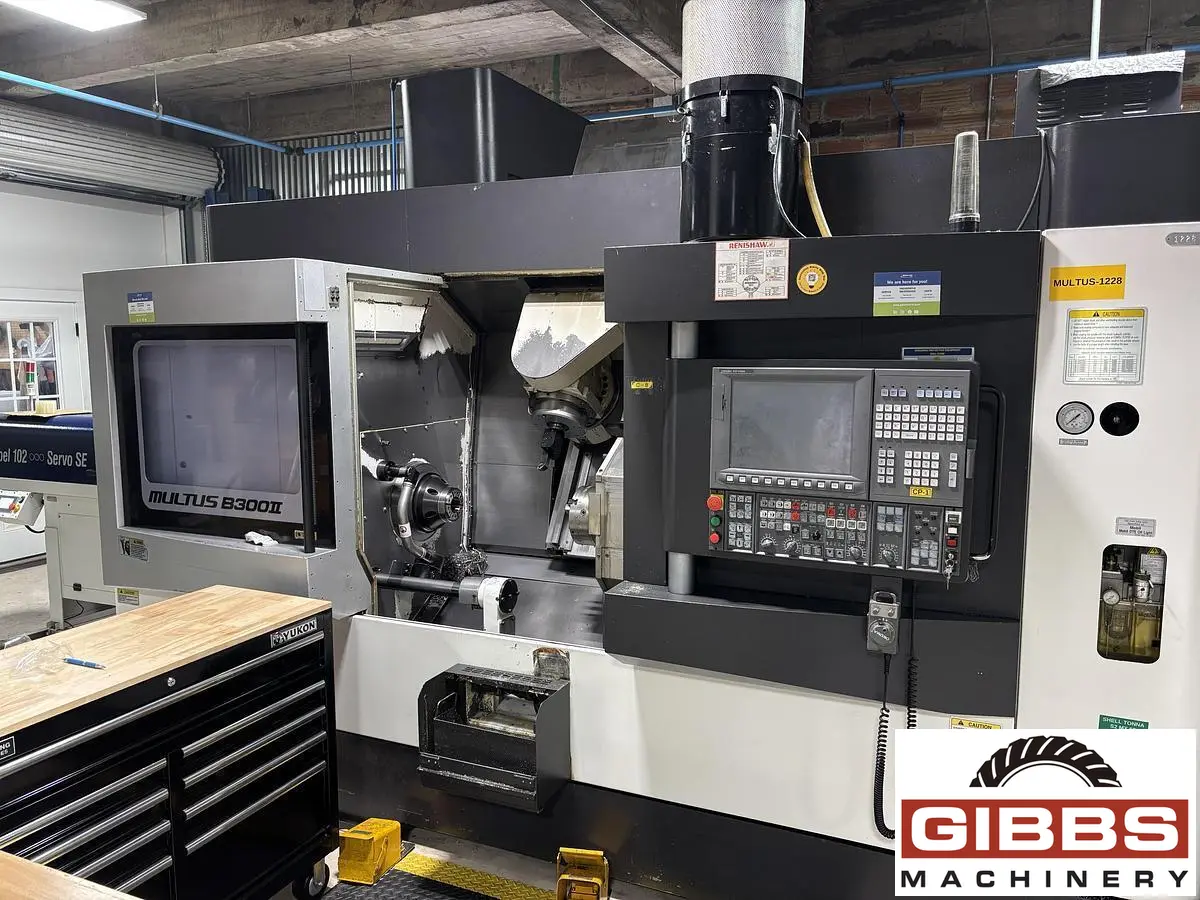

OKUMA MULTUS B300II - Horizontal Lathe

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, CNC

Stock

25873

Model

MULTUS B300II

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • OSP-P300S Control
  • Sub Spindle
  • Big Bore Option: 3.15" Bar capacity
  • Capto C6 Spindle Taper

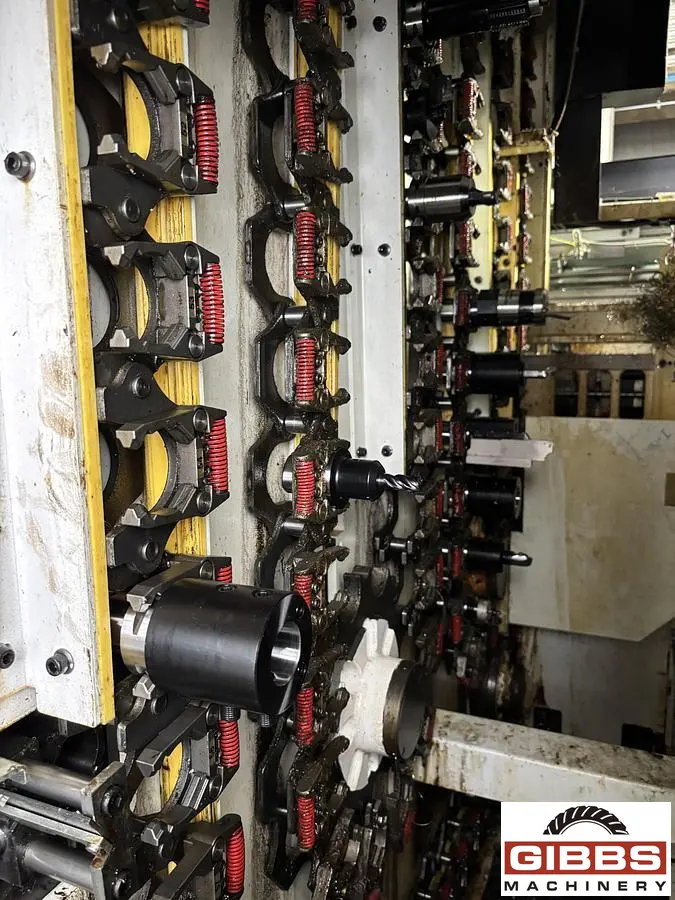

  • 120 Tool Capacity
  • Tool Presetter
  • Parts Catcher

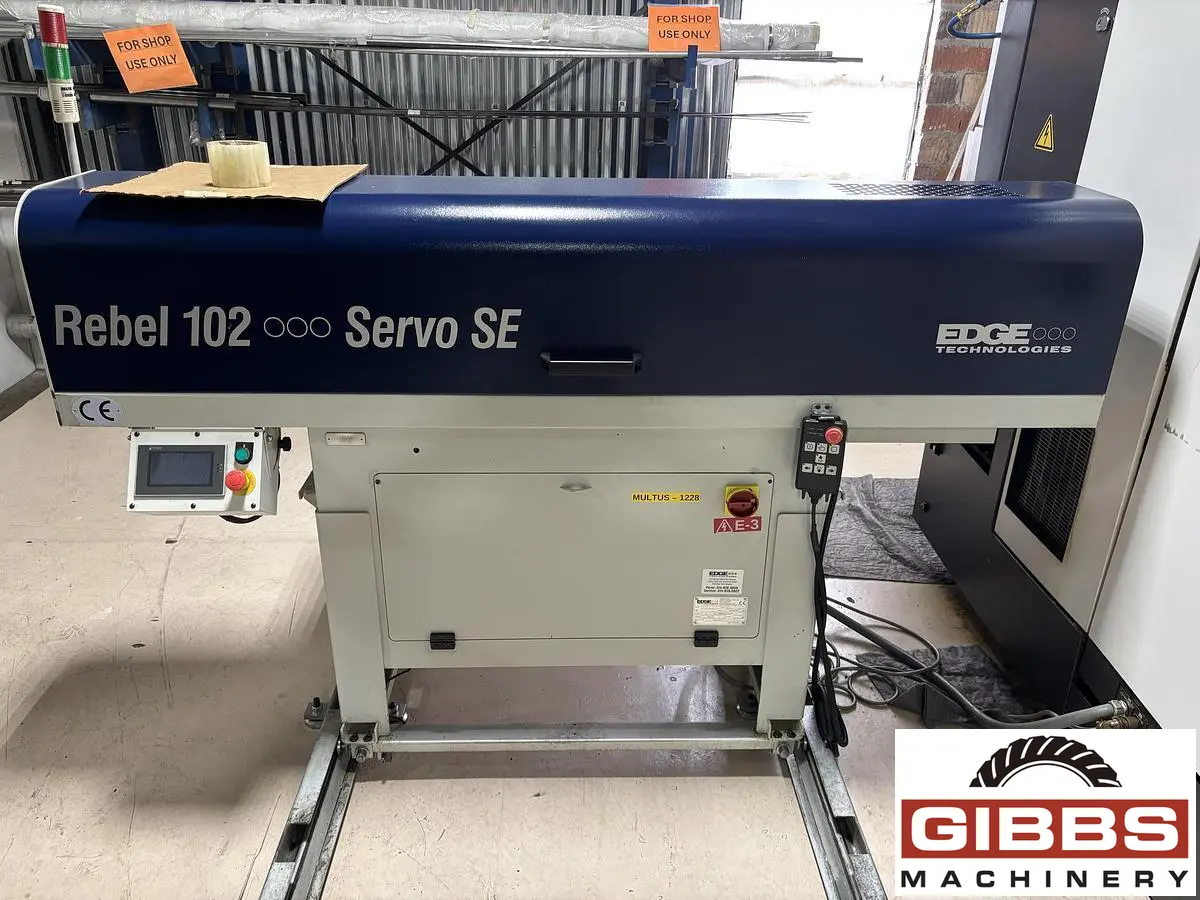

  • Edge Rebel 102 Bar Feeder
  • Spindle Liners

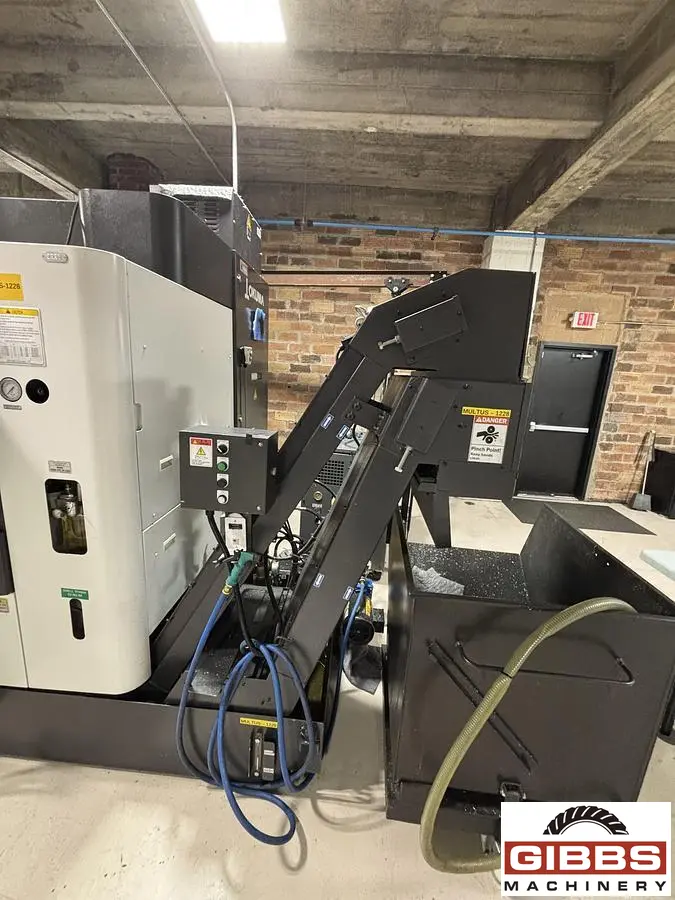

  • Hinge Type Chip Conveyor

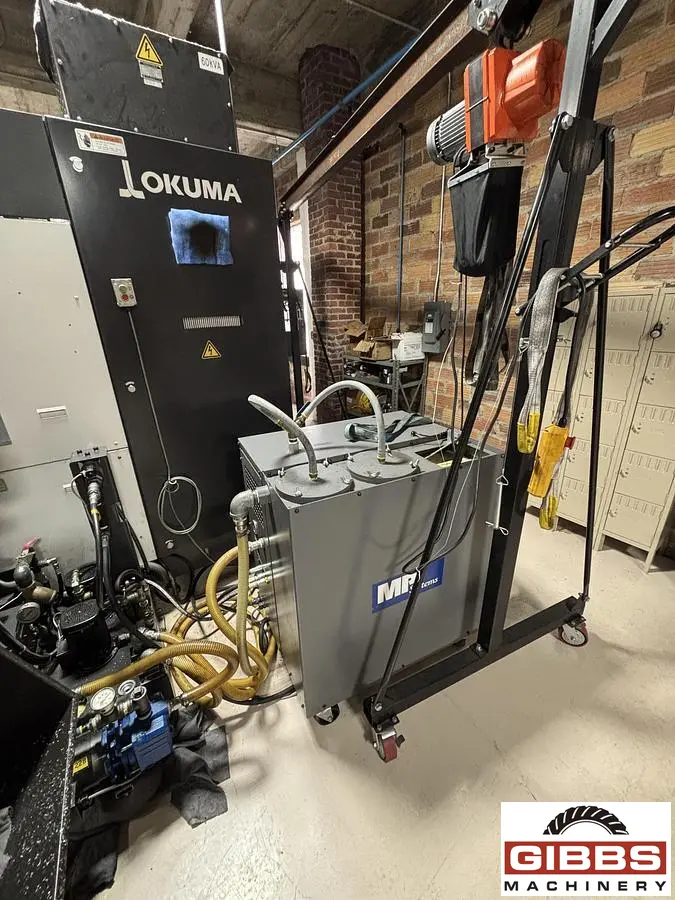

  • MP Systems 1000 PSI Coolant Thru Spindle

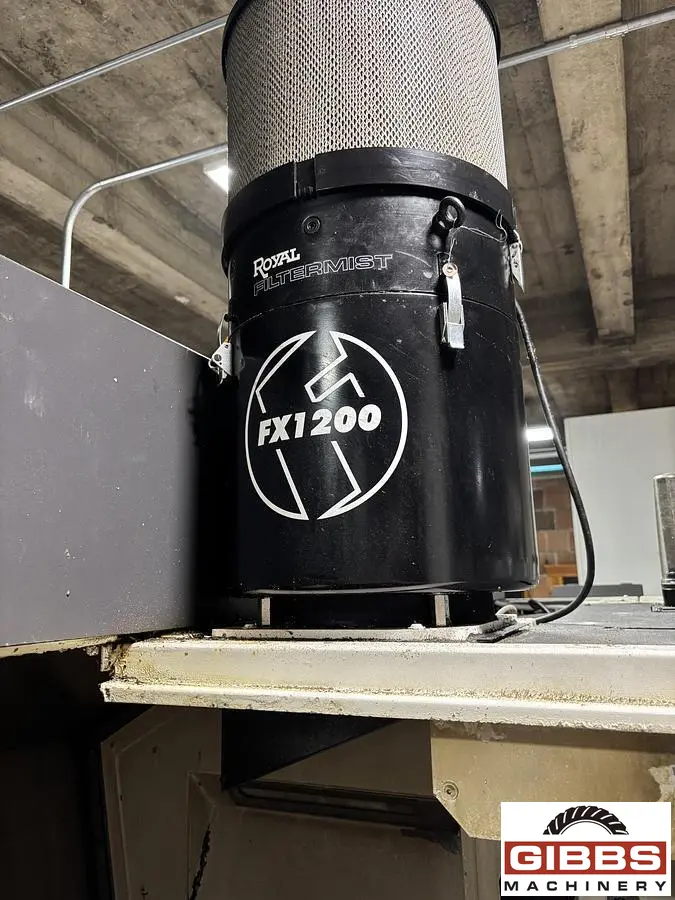

  • Royal Filtermist FX1200 Mist Control Unit
  • Coolant Tanks w Flood pumps
  • Chiller Unit
  • Transformer

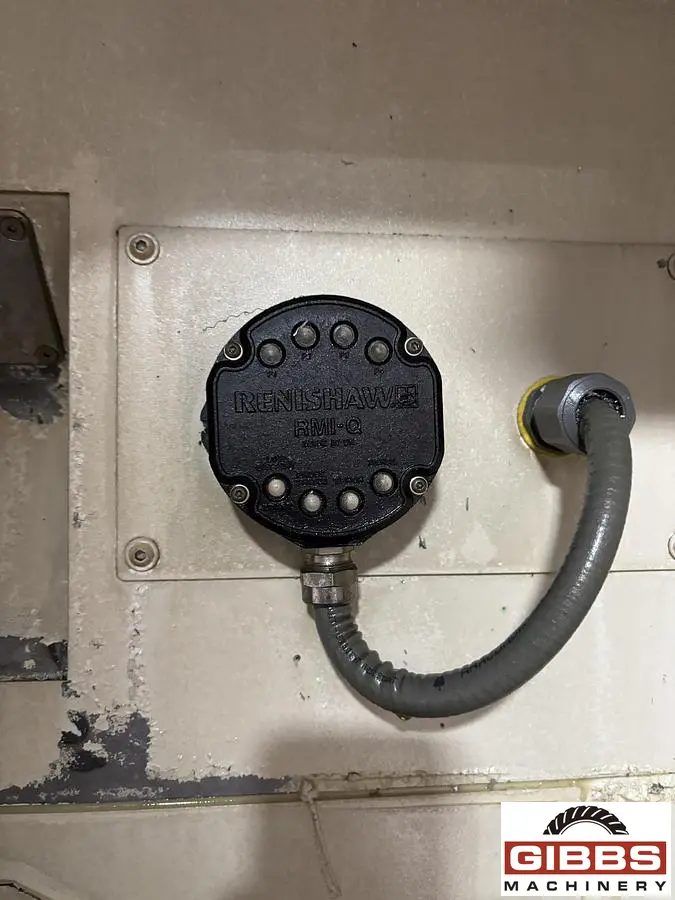

  • Renishaw Tool Probe (RMI-Q)

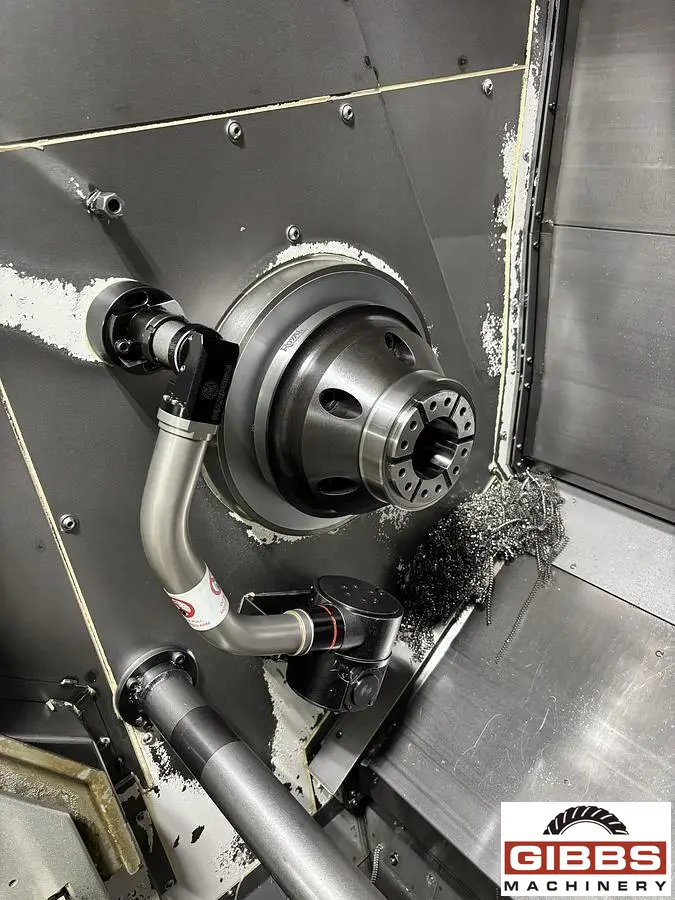

  • Royal Collet Chuck on Main Spindle
  • Various Capto C6 Tooling
,

Machine Specifications :

  • Year 2015
  • Manufacturer OKUMA
  • # Axis 5.0
  • Swing 24.8"
  • Power 30.0 HP
  • Max RPM 5,000 RPM
,

    Specifications:

  • Swing Over Saddle: 24.8"
  • Distance Between Centers: 35.43"
  • X-Axis Travel: 22.83"
  • Y-Axis Travel: +/- 3.15"
  • Z-Axis Travel: 35.51"
  • W-Axis Travel: 39.37"
  • B-Axis Travel: 30 to +195 degree
  • B-Axis Indexing: 0.001 degree
  • Main Spindle Chuck Size: 10"
  • Main Spindle Speed: 5,000 RPM
  • Main Spindle Power: 30 HP
  • Spindle Nose: A2-6
  • Main Spindle Bore: 3.93"
  • Main Spindle Bar Size: 3.15"

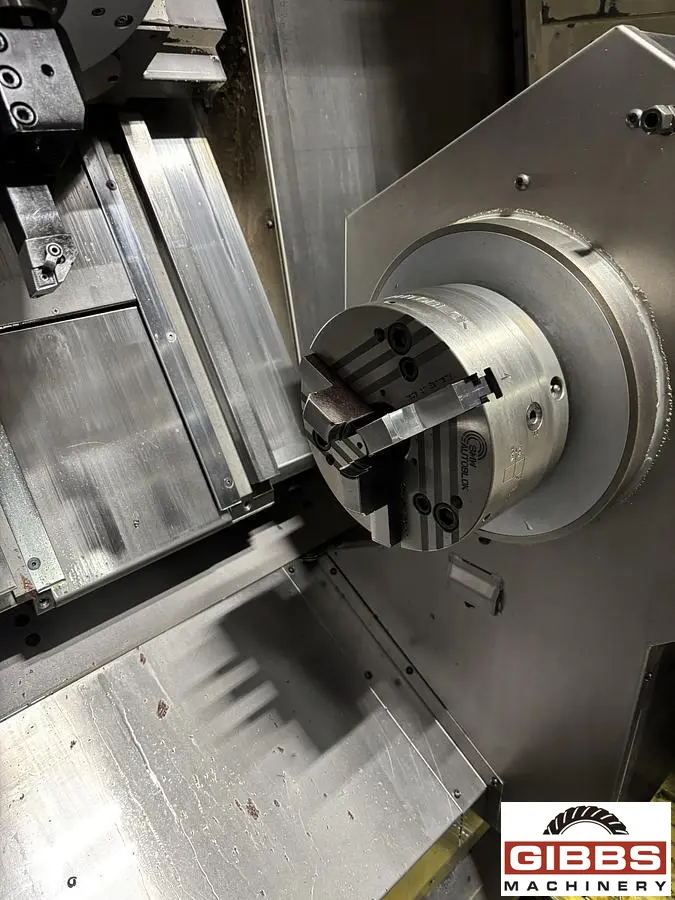

  • Sub-Spindle Chuck Size: 8"
  • Sub-Spindle Speed: 6,000 RPM
  • Sub-Spindle Power: 15 HP
  • Sub-Spindle Bore: 3.94"
  • Sub-Spindle Bar Size: 3.15"
  • Milling Spindle Speed Max: 12,000 RPM
  • Milling Spindle Taper: Capto C6
  • ATC Capacity: 120
  • Machine Size: 142.52" x 87.01" x 101.66"
  • Machine Weight: 17,820 lbs
