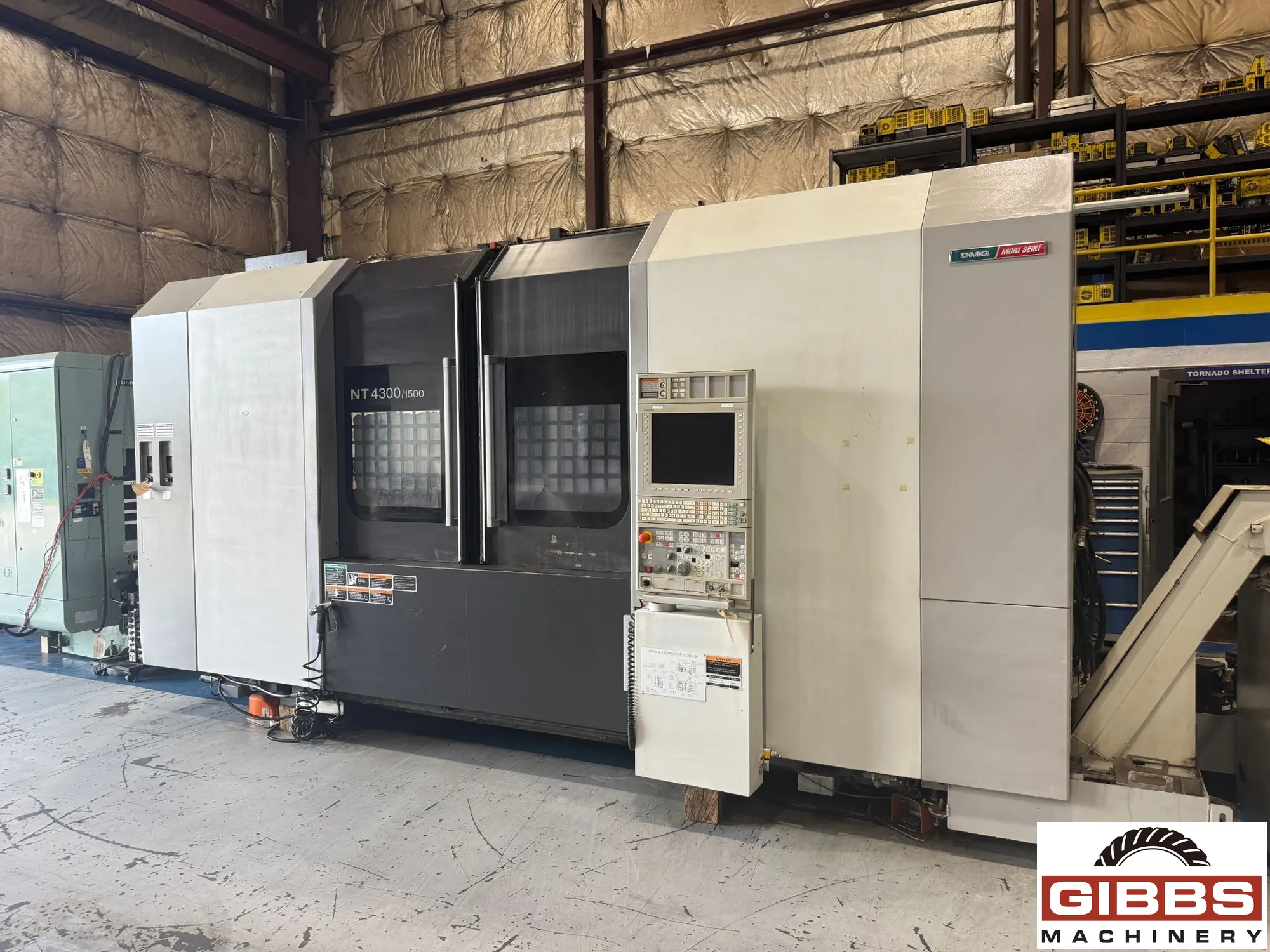

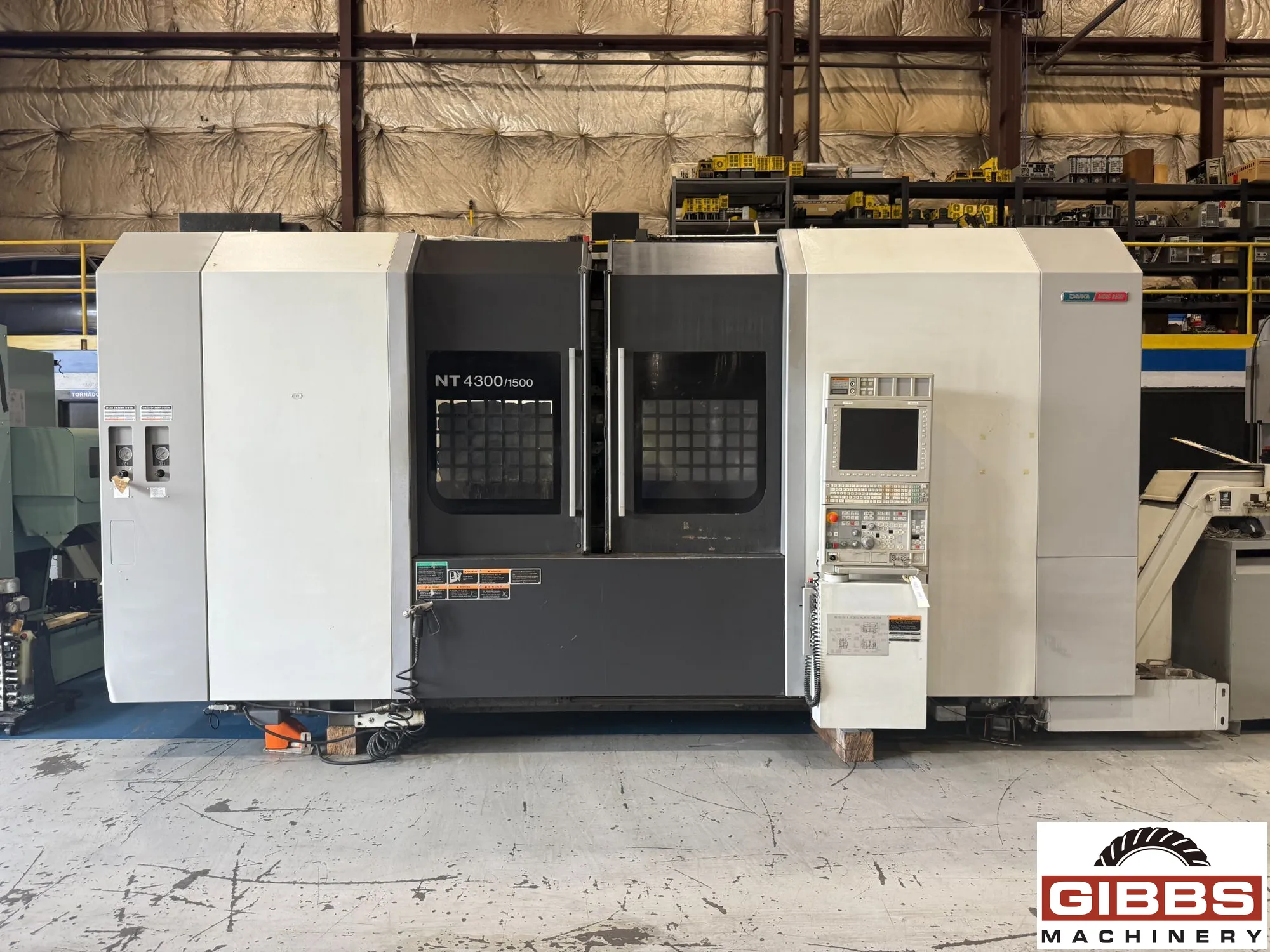

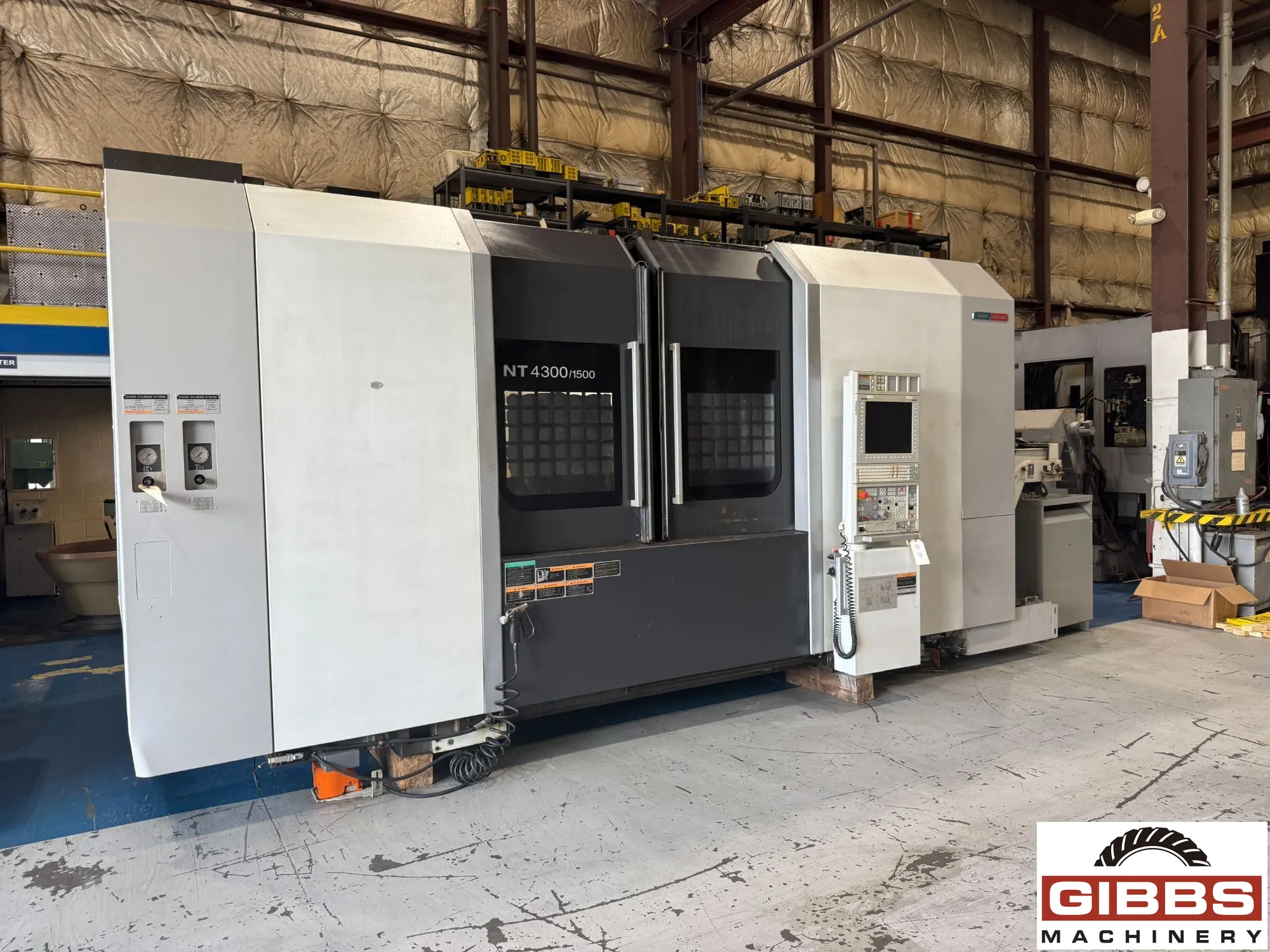

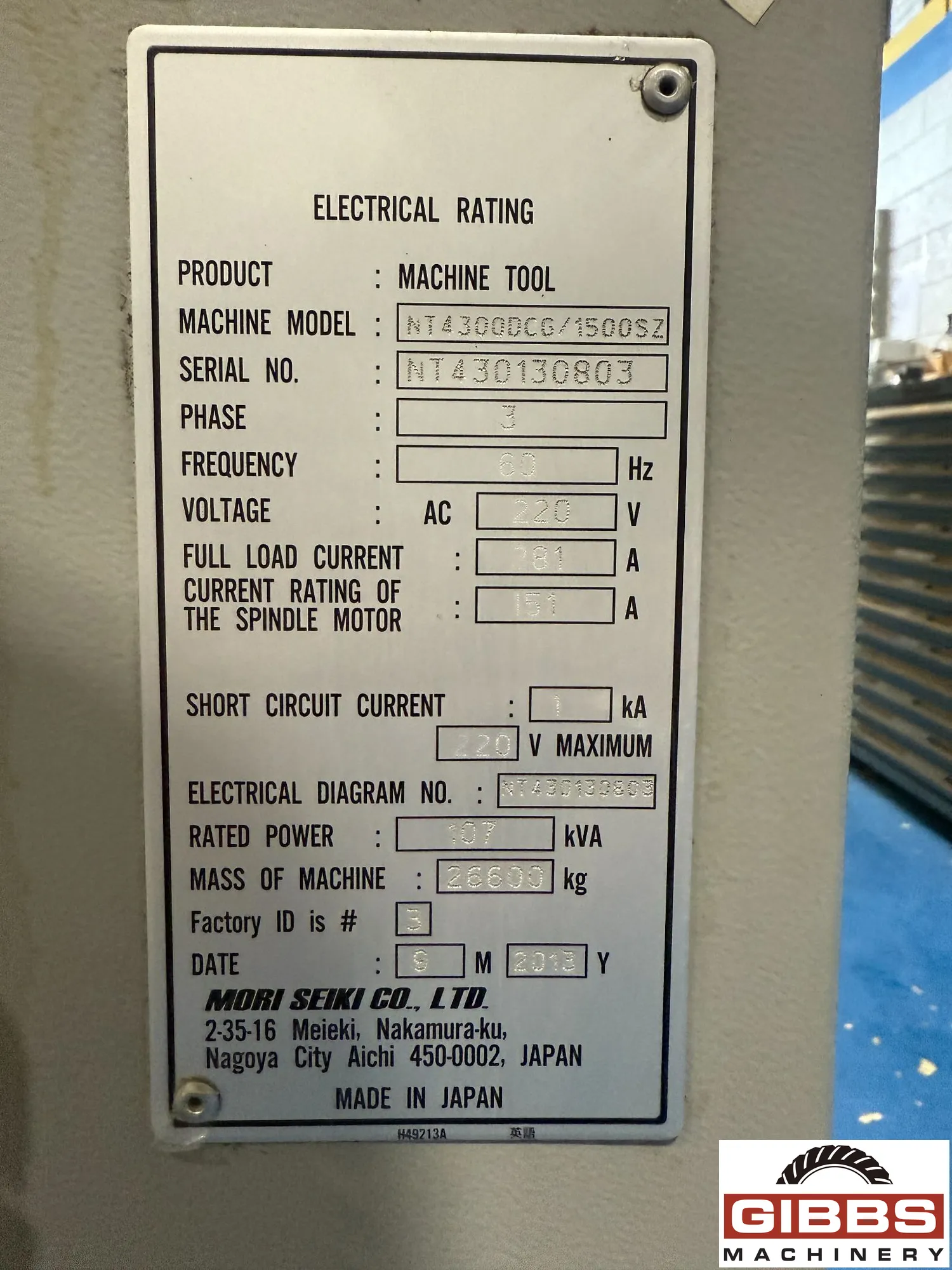

MORI SEIKI NT-4300DCG/1500SZ - Horizontal Lathe

Manufacturer

MORI SEIKI

Category

Lathes

Type

LATHES, CNC

Stock

25673

Model

NT-4300DCG/1500SZ

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

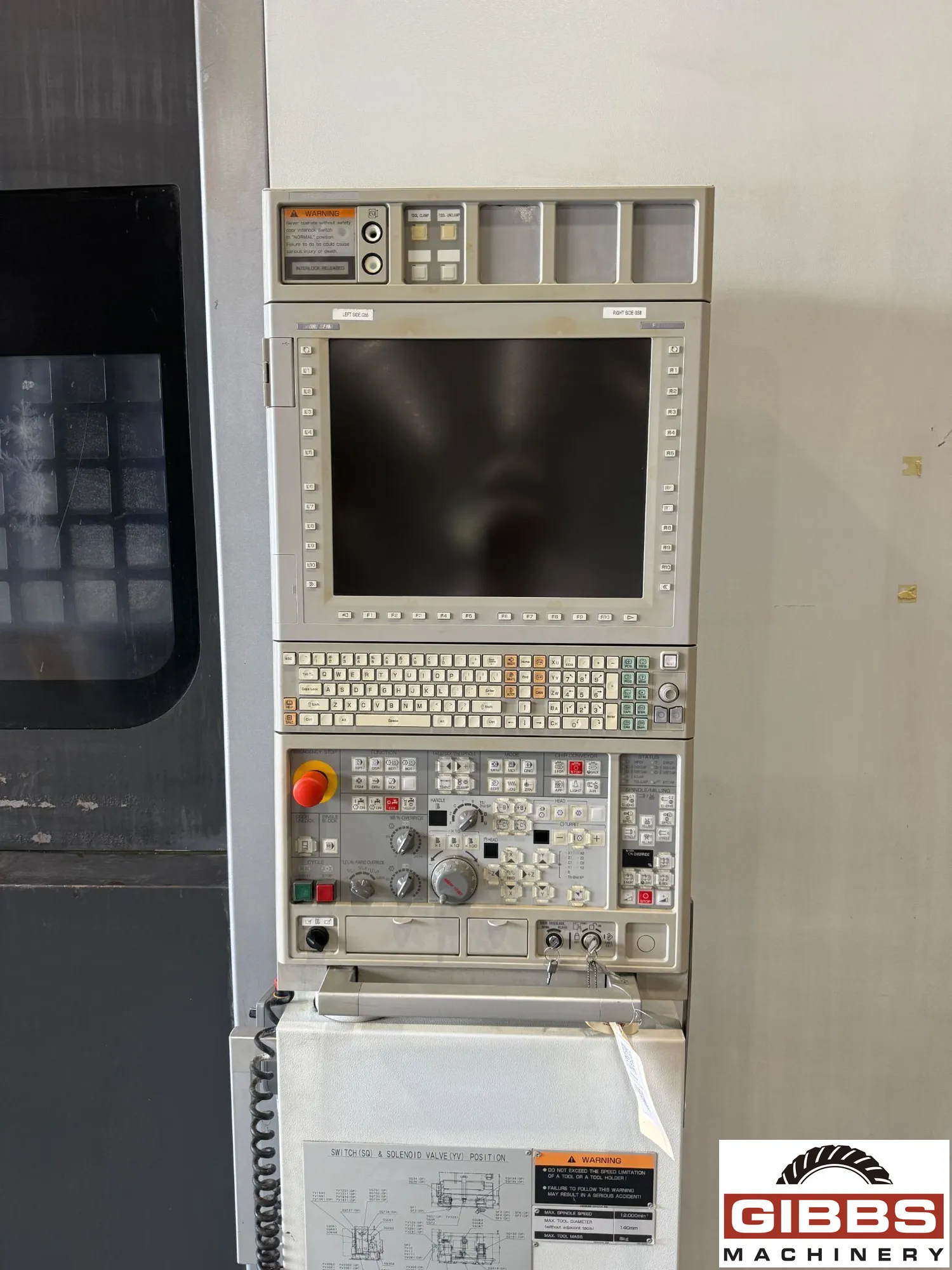

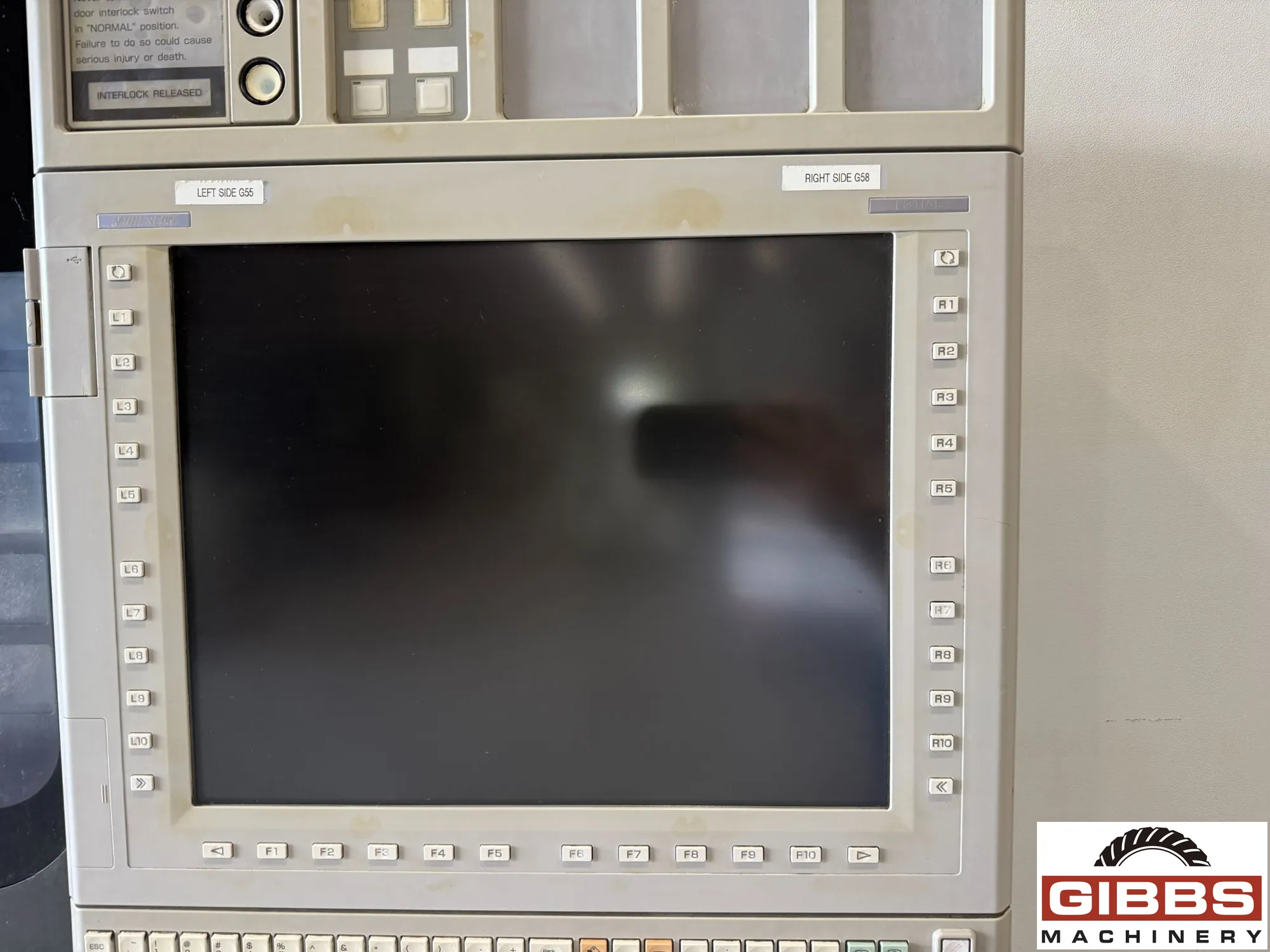

  • Fanuc 31iA5 Control
  • Full B-Axis Milling Head

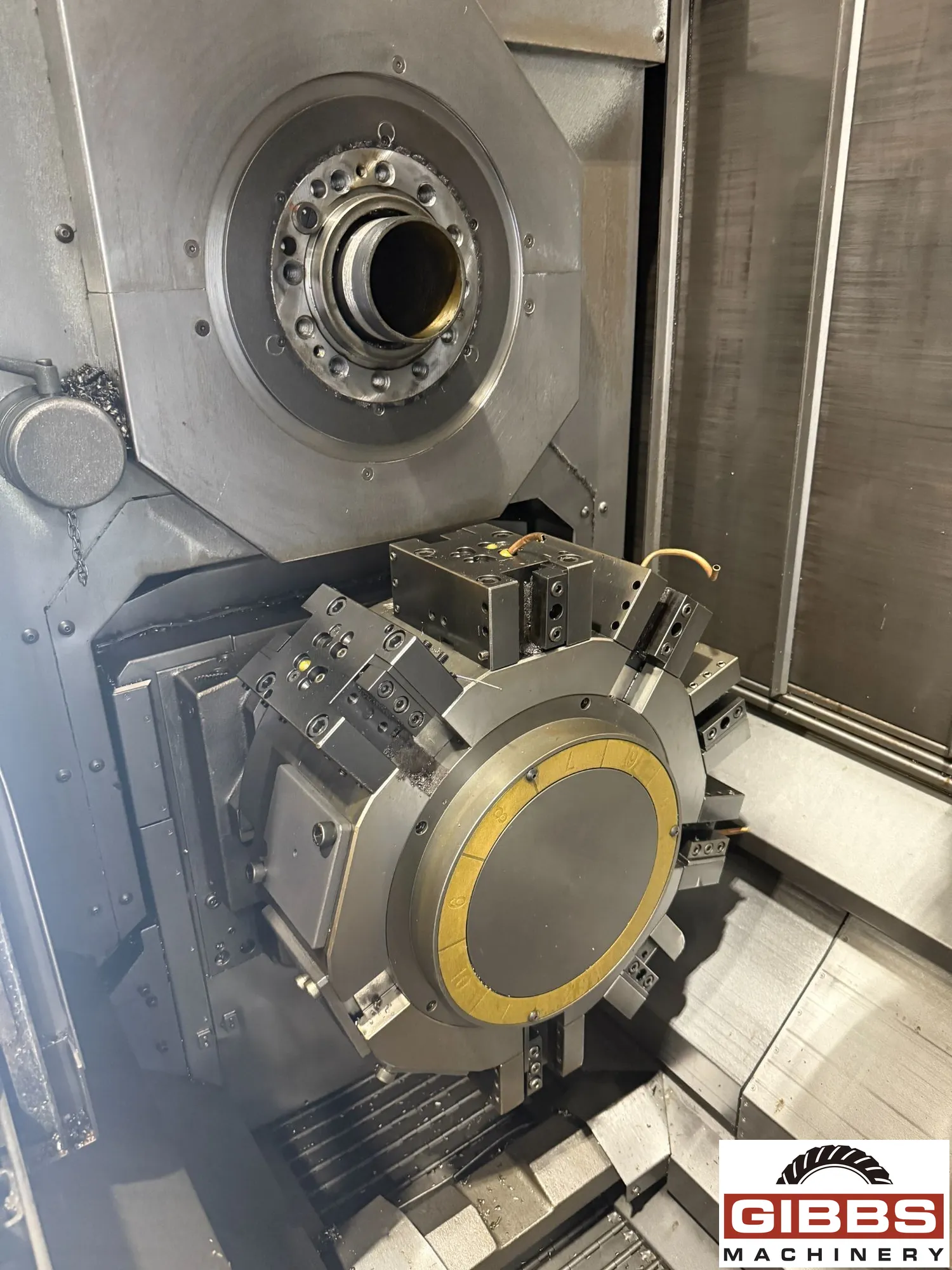

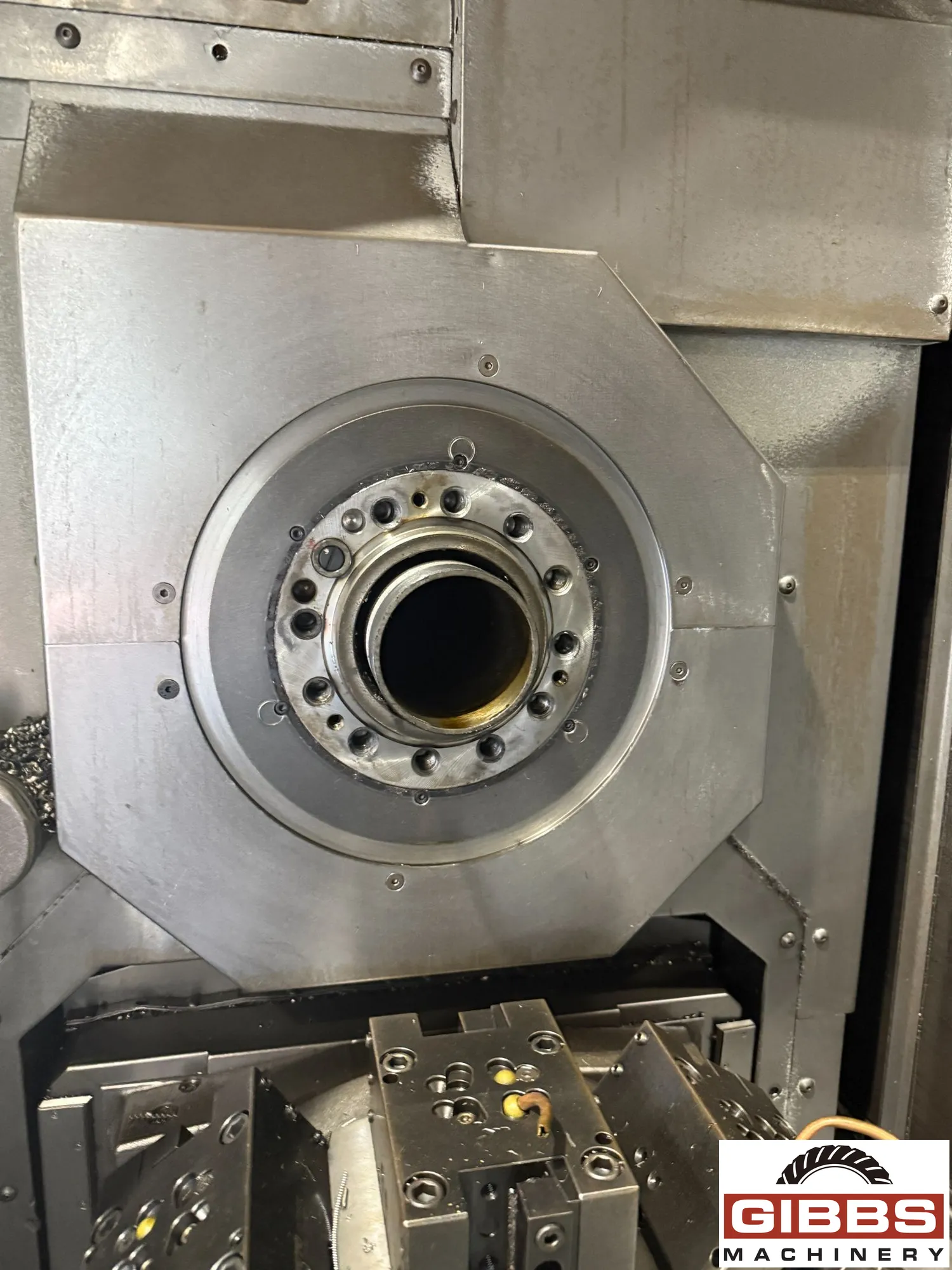

  • Live Tooling on Turret

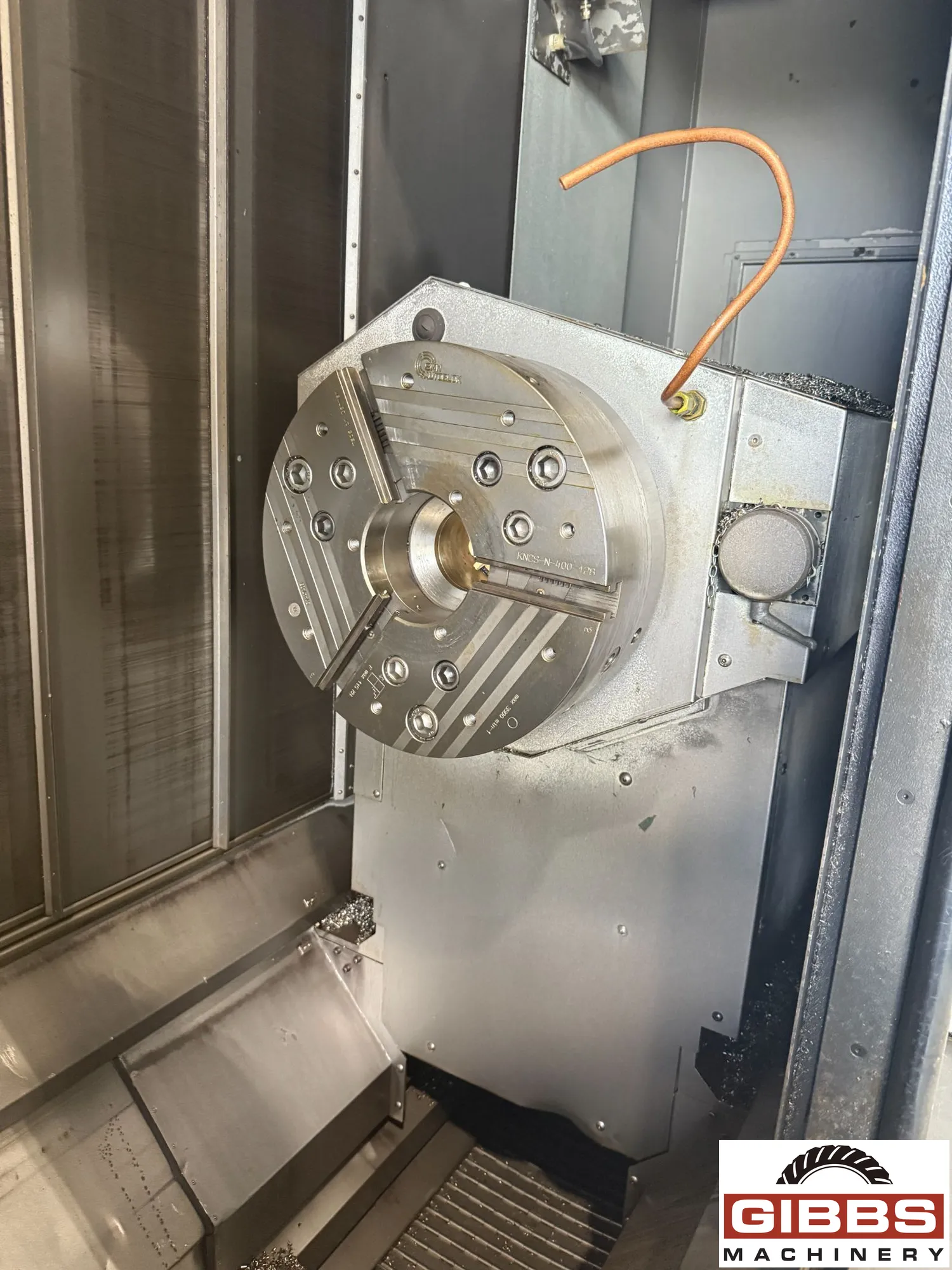

  • 15" SMW 3-Jaw Chucks
  • Scale Feedback on X & Xi
  • Dual Ball Screws on X
  • Chip Blaster GV2-80 High Pressure Coolant
  • Chip Conveyor
  • Flood Coolant System
  • Renishaw Probe
  • Tool Presetter
  • Assorted CAPTO 6 Tools
  • 100-Tool ATC
  • Hobbing Software
  • Transformer
  • Daikin Chiller
,

Machine Specifications :

  • Year 2013
  • Manufacturer MORI SEIKI
  • # Axis 9.0
  • Swing 28.7"
  • Machining Length 59.0"
  • Chuck Size 15.0"
  • Bar Capacity 3.5"
  • Power 30.0 HP
  • Max RPM 3,000 RPM
  • Turning Dia 25.9"
  • Tailstock No
,

The NT series models are ultimate integrated mill turn centers combining milling performance of horizontal machining centers and turning capability of CNC lathes with DMG MORI original cutting-edge technologies. The original technologies, DCG (Driven at the Center of Gravity), DDM (Direct Drive Motor), ORC (Octagonal Ram Construction), allow high-speed, high-precision machining, which contributes to high productivity. The NT 4300 DCG, with a standard chuck size of 12 inches, offers two types of distances between centers of 1,000 mm and 1,500 mm. Various specifications including the Right Spindle and the Turret 2 specifications are available.

    Specifications:

  • Maximum Workpiece Swing Diameter mm(in.): 730(28.74)
  • Swing Over Cross Slide:
  • - mm(in.) 730(28.74)
  • - (turret2) mm(in.) 400(15.75)
  • Maximum Turning Diameter:
  • - (tool spindle Capto C6) mm(in.) 660(25.98)
  • - (turret2) mm(in.) 350(13.78)
  • Maximum Turning Length mm(in.): 1,542(60.71)
  • Bar Work Capacity mm(in.): 80(3.15)
  • Maximum Distance Between Centers mm(in.): 1,862(73.31)
  • Y-axis Travel mm(in.): ±210(8.27)
  • X1-axis Travel(tool spindle) mm(in.): 750(29.53)
  • Z1-axis Travel(tool spindle) mm(in.): 1,550(61.02)+100(3.94)
  • X2-axis Travel(turret 2) mm(in.): 195(7.68)
  • Z2-axis Travel(turret 2) mm(in.): 1,525(60.04)
  • B-axis Rotation Range(tool spindle) deg: ±120
  • Maximum Spindle Speed min-1: 4,000
  • Type of Spindle Nose: JIS A2-8
  • Through-Spindle Hole Diameter mm(in.): 91(3.58)
  • Minimum Spindle Indexing Increment deg: 0.0001
  • Spindle Bearing Inner Diameter mm(in.): 140(5.51)
  • Number of Tool Stations Tools: 1
  • B-axis Indexing Time: sec 0.65/90 degrees
  • B-axis Indexing Time [full indexing]: sec 0.4/90 degrees
  • Minimum B-axis Indexing Increment deg: 1
  • Minimum B-axis Indexing Increment [full indexing] deg: 0.0001
  • Tool Spindle Coupling Indexing Angle deg: 7.5

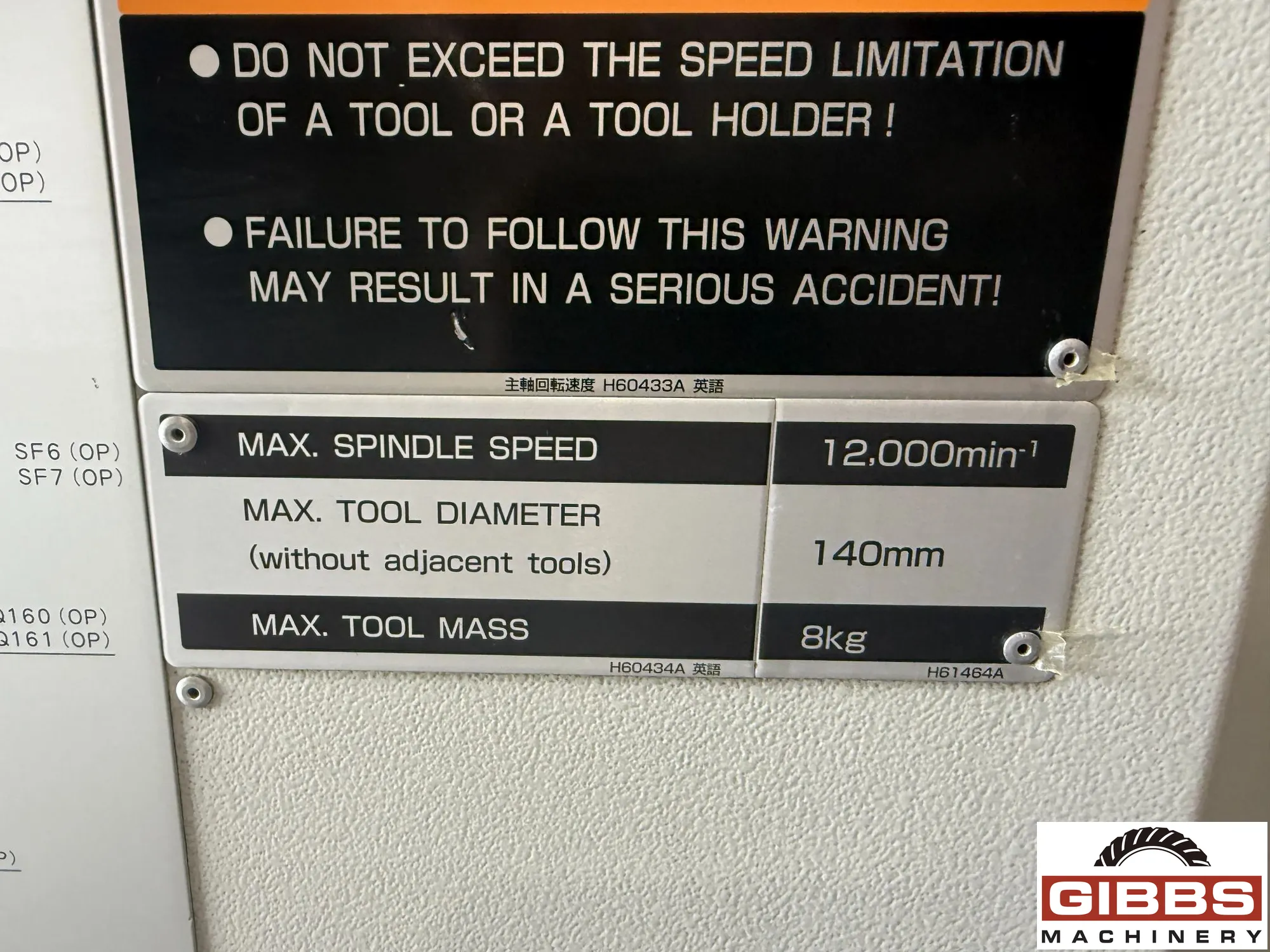

  • Maximum Spindle Speed min-1: 12,000
  • Number of Tool Stations Tools: 12
  • Shank Height for square Tool mm(in.): 25(0.98)
  • Diameter of Boring Bar Shank Part (Maximum) mm(in.): 50(1.97)
  • Turret Indexing Time(1-station) sec: 0.28
  • Maximum Rotary Tool Spindle Speed min-1: [6,000]
