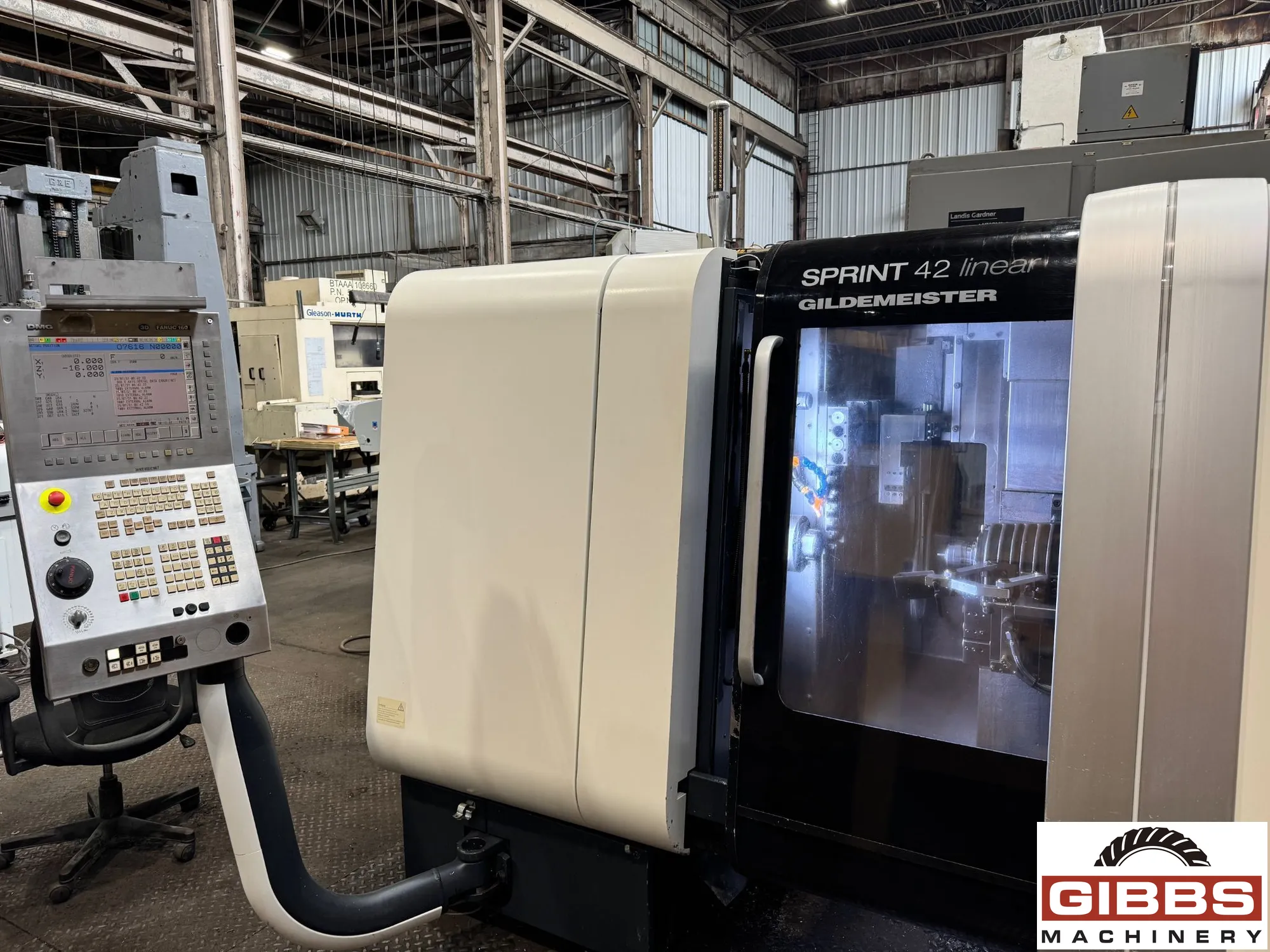

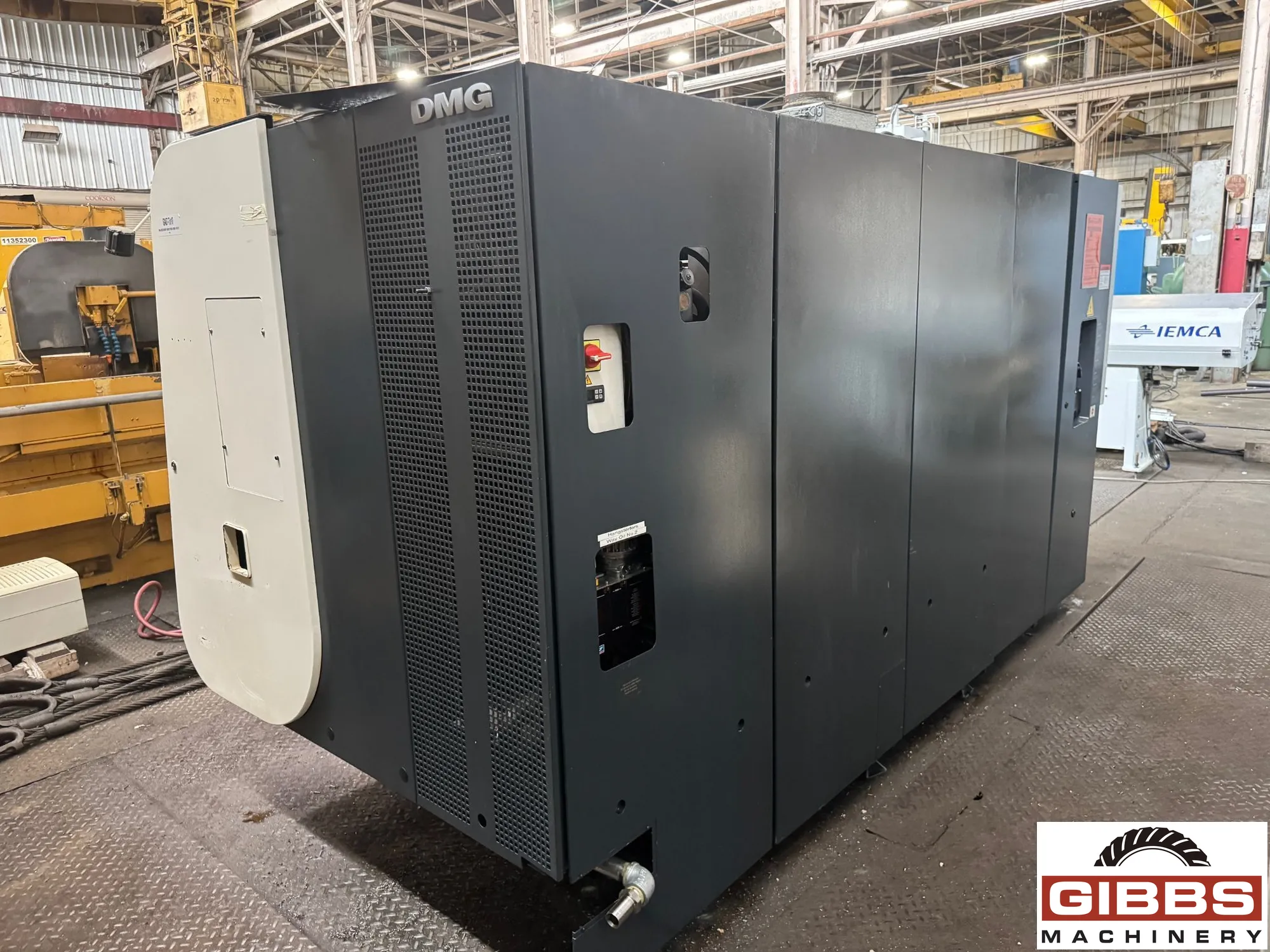

DMG GILDEMEISTER Sprint 42 Linear - Horizontal Lathe

Manufacturer

DMG GILDEMEISTER

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

25690

Model

Sprint 42 Linear

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

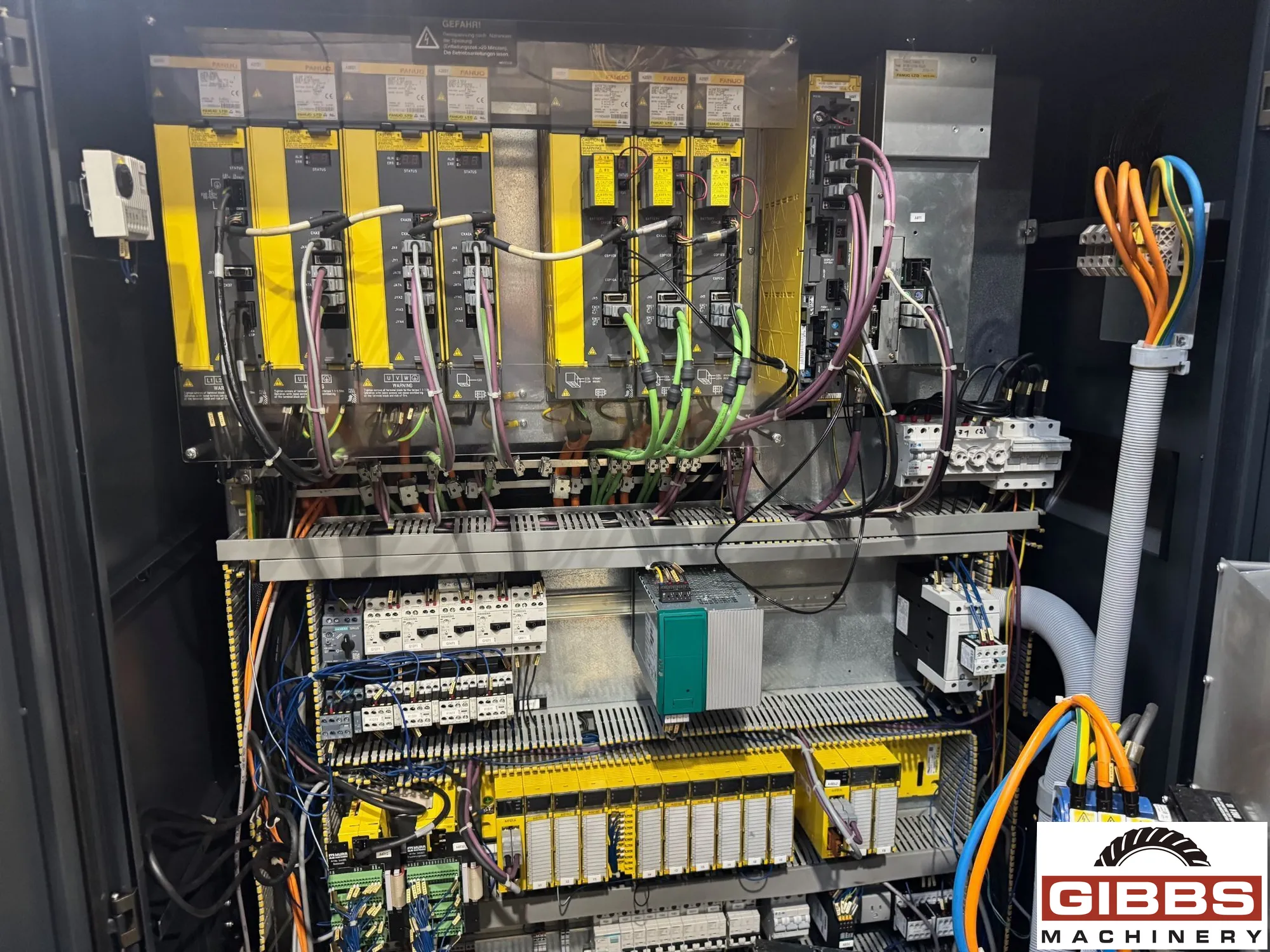

  • Fanuc 160i CNC Control

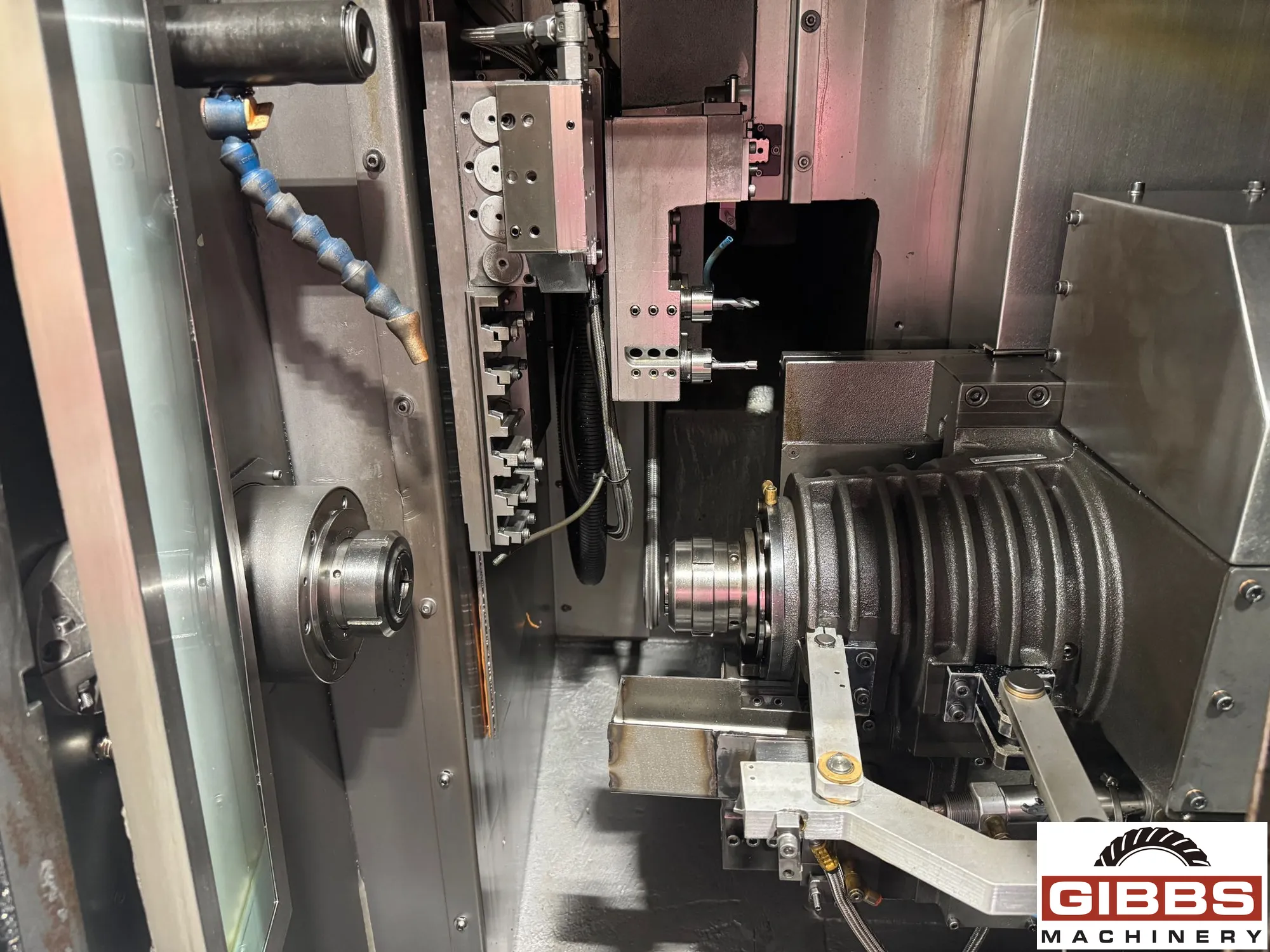

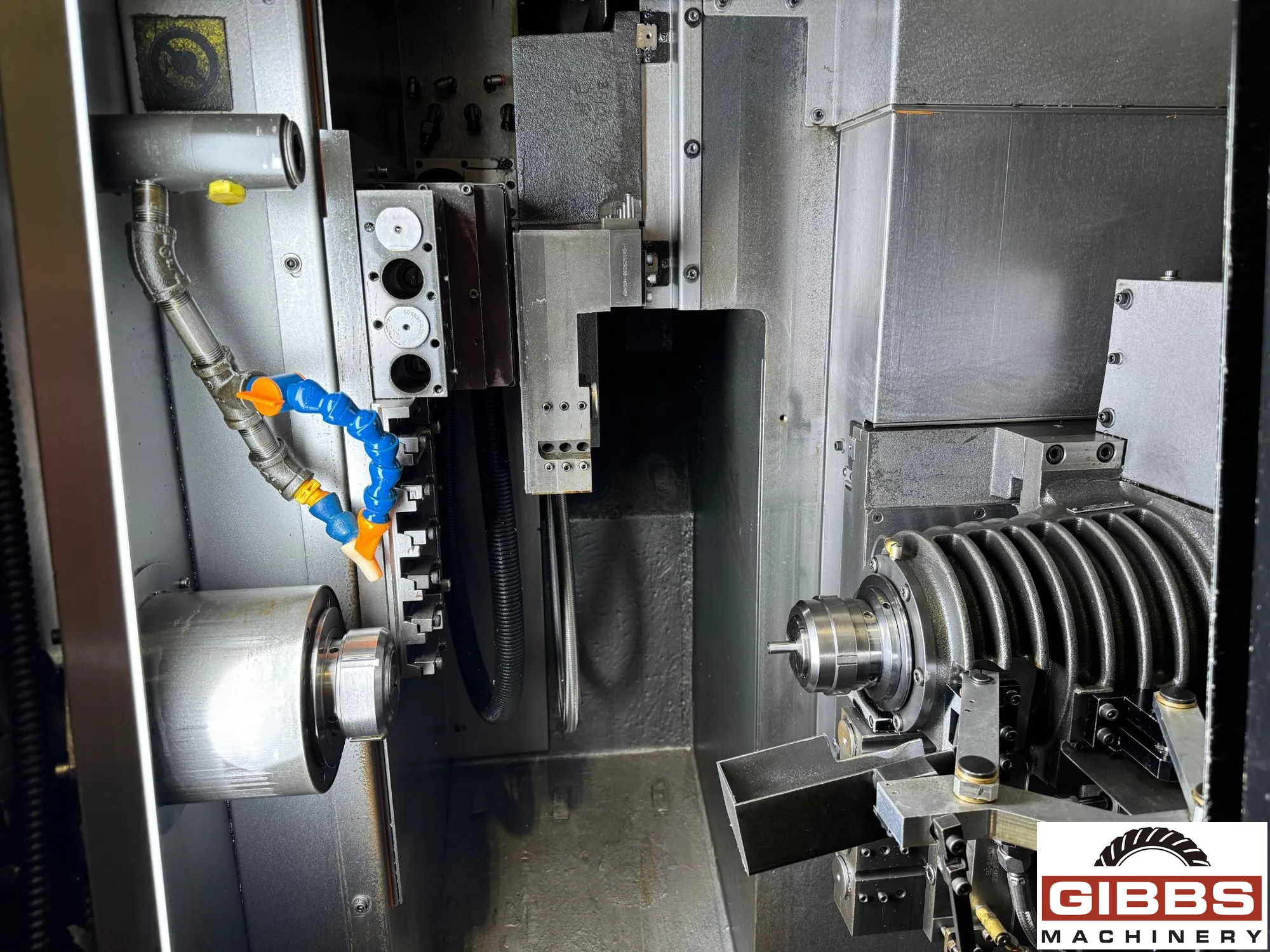

  • Collet Chuck on Main Spindle
  • Collet Chuck on Counter Spindle

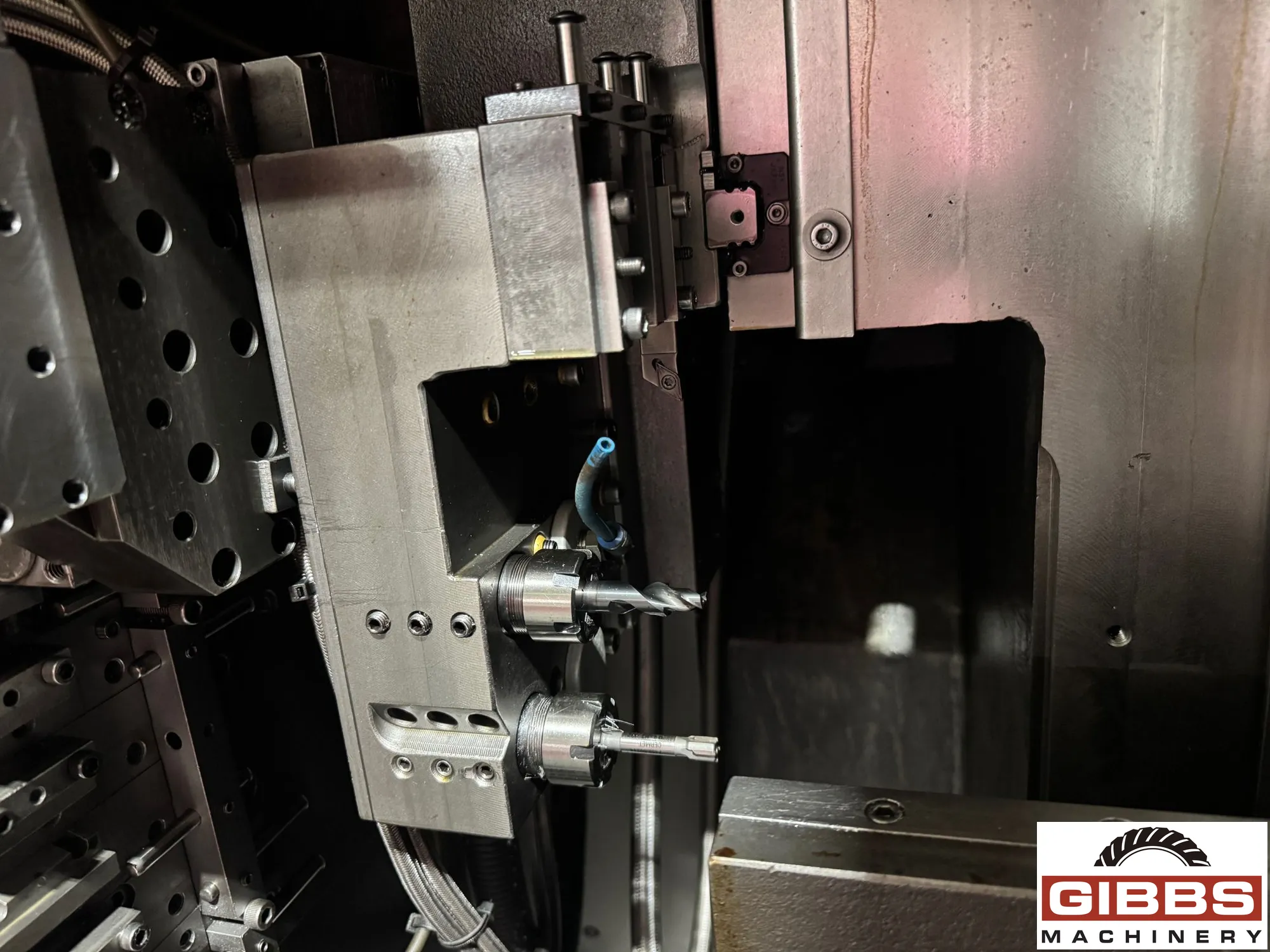

  • Drive Unit for Driven Tools Counter Spindle
  • Parts Catcher

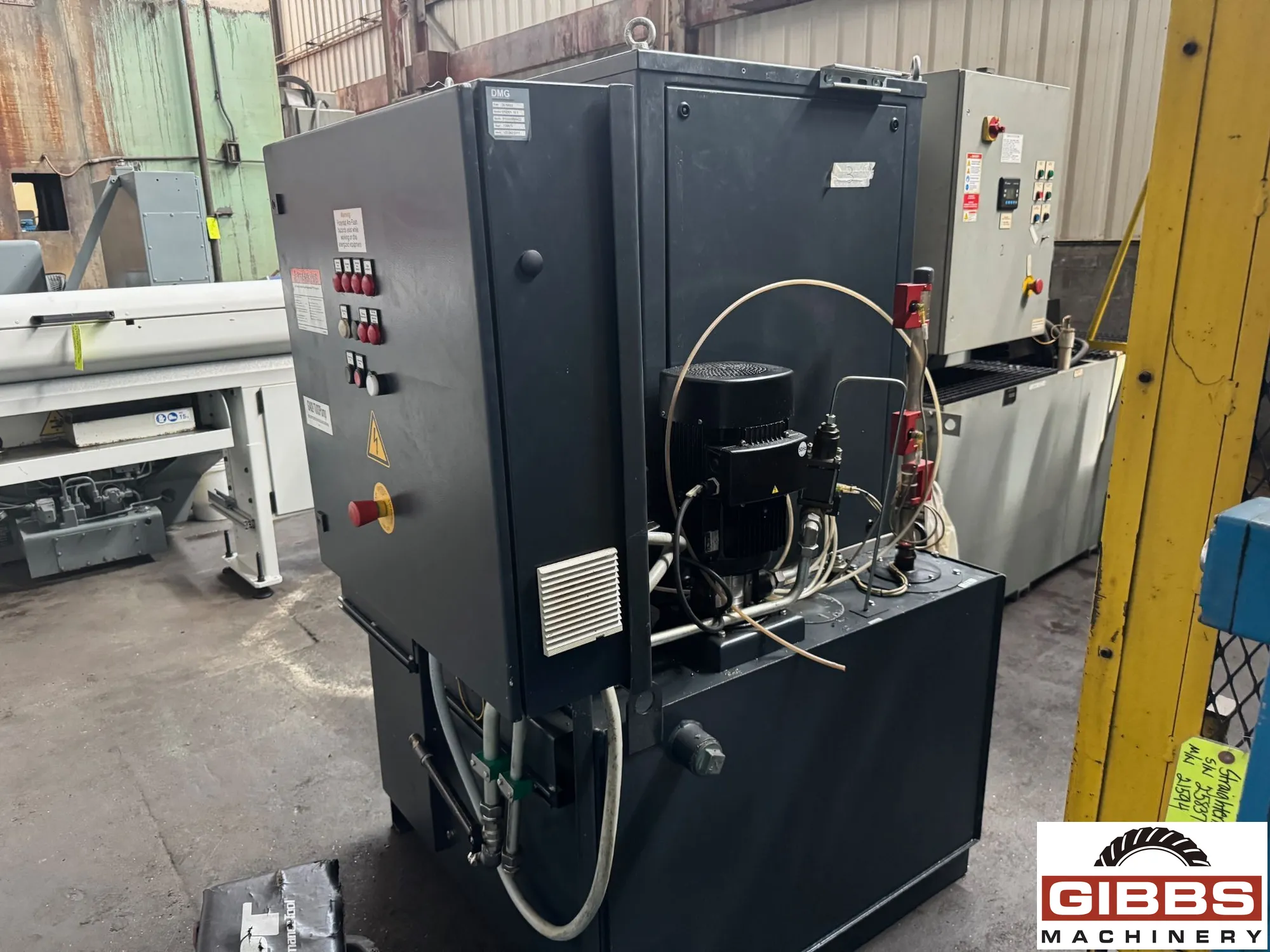

  • High Pressure Coolant System

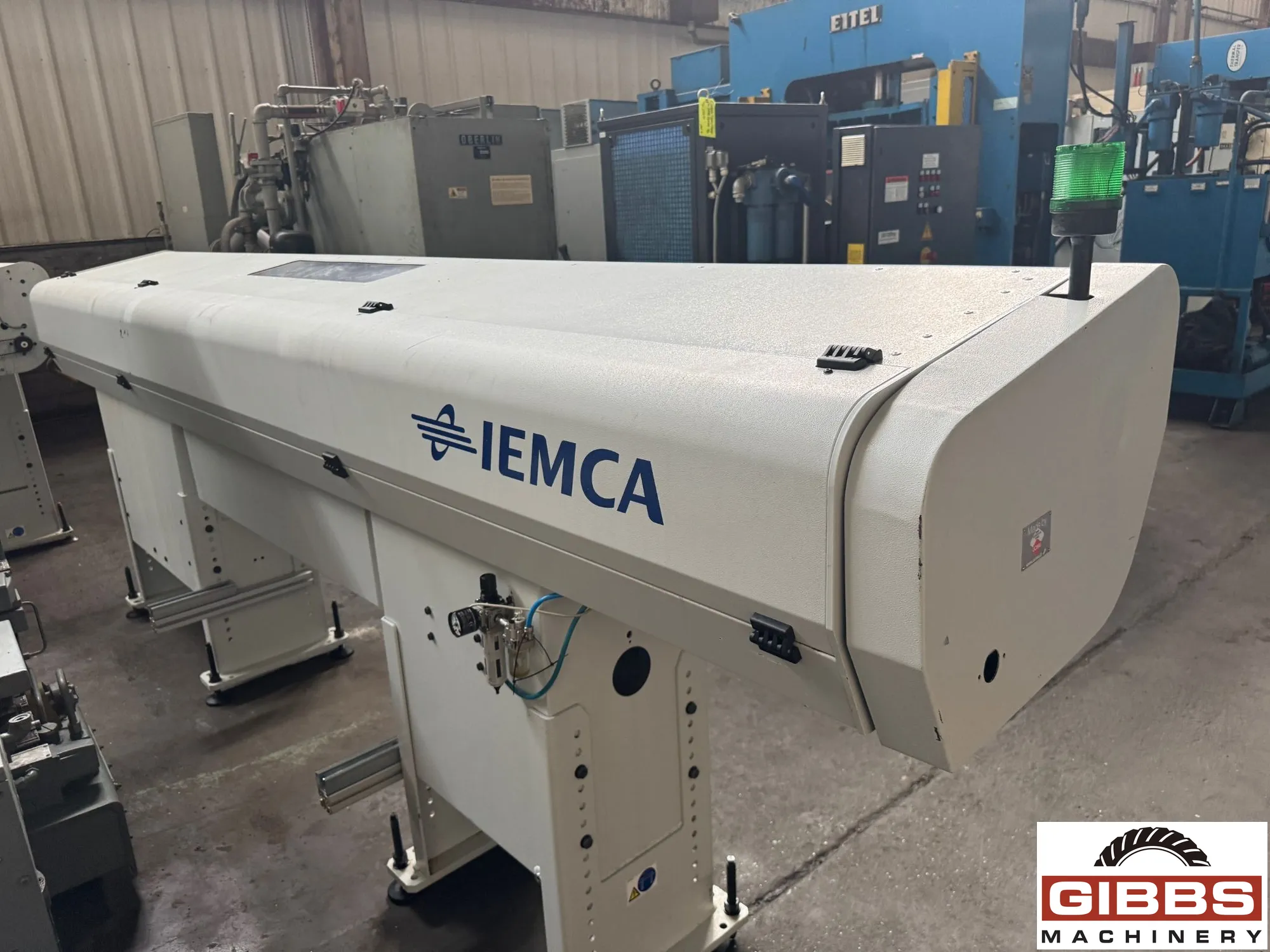

  • IEMCA Boss 545 E Bar Feeder
  • Coolant Tank
  • Chip Conveyor
  • Stacklight
  • Worklight
,

Machine Specifications :

  • Year 2011
  • Manufacturer DMG GILDEMEISTER
  • Power 22.0
  • RPM 6,500 RPM
  • # Axis 8.0
  • Max Workpiece Diameter 1.7"
  • Max Workpiece Length 12.6"
  • Max X-Axis Travel 2.0"
  • Max Y-Axis Travel 13.8"
  • Max Z-Axis Travel 4.7"
  • Spindle Hole Dia 1.7"
,

The DMG Mori Gildemeister Sprint Linear 42 is a high-performance CNC lathe designed for precision machining of small to medium-sized parts. This machine is a part of the Sprint series by DMG Mori, which is renowned for offering fast, efficient, and accurate machining capabilities. The Sprint Linear 42 is particularly well-suited for industries like automotive, aerospace, medical, and general manufacturing, where high productivity and precision are key.

    Specifications:

  • Machine Dimensions: Approx. 2,000 mm x 1,500 mm x 2,000 mm (varies depending on configuration)
  • Machine Weight: 4,500 kg (approx.)
  • Spindle Speed: Up to 6,000 RPM (depending on the configuration)
  • Spindle Power: 22 kW (continuous)
  • Spindle Torque: 80 Nm
  • Spindle Bore: 42 mm (Standard for parts up to 42 mm diameter)
  • X-Axis Travel: 210 mm
  • Y-Axis Travel: 120 mm
  • Z-Axis Travel: 350 mm
  • Rapid Traverse (X, Y, Z): 48 m/min (maximum)
  • Feed Rate: 30 m/min (maximum feed rate for all axes)
  • Maximum Tool Diameter: 40 mm (depending on tool station configuration)
  • Maximum Tool Length: 100 mm
  • Tool Change Time: < 1.5 seconds (tool-to-tool change)
  • Positioning Accuracy: ±0.003 mm
  • Repeatability: ±0.001 mm
  • Spindle Runout: < 0.003 mm
