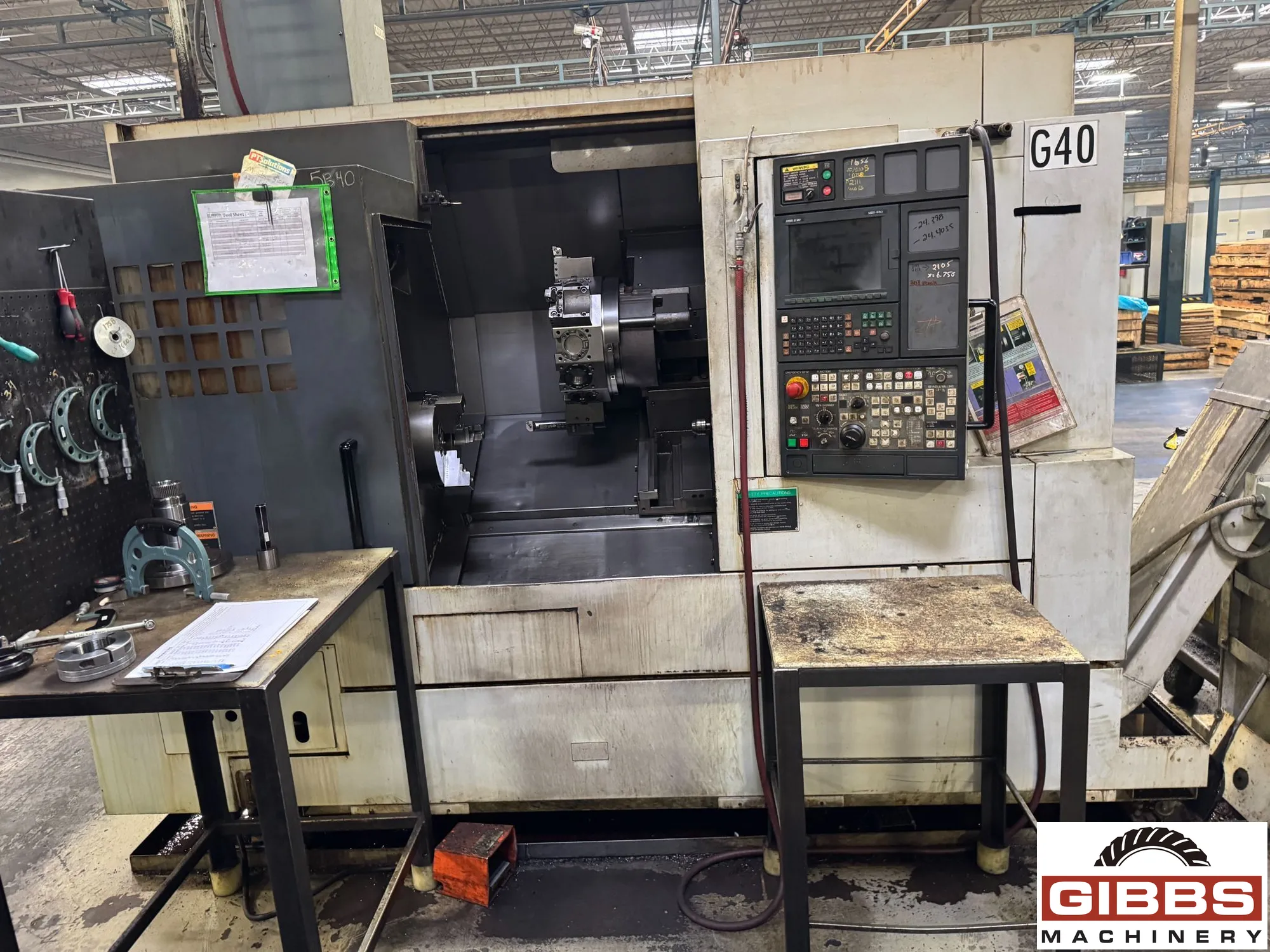

MORI SEIKI NL2500/700 - Horizontal Lathe

Manufacturer

MORI SEIKI

Category

Lathes

Type

LATHES, TURNING

Stock

25638

Model

NL2500/700

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year 2006
  • Manufacturer MORI SEIKI
  • Swing 36.37"
  • Machining Length 27.75"
  • Chuck Size 10.0"
  • Bar Capacity 2.87"
  • Power 26.0 HP
  • Max RPM 4,000 RPM
  • Turning Dia 14.01"
,

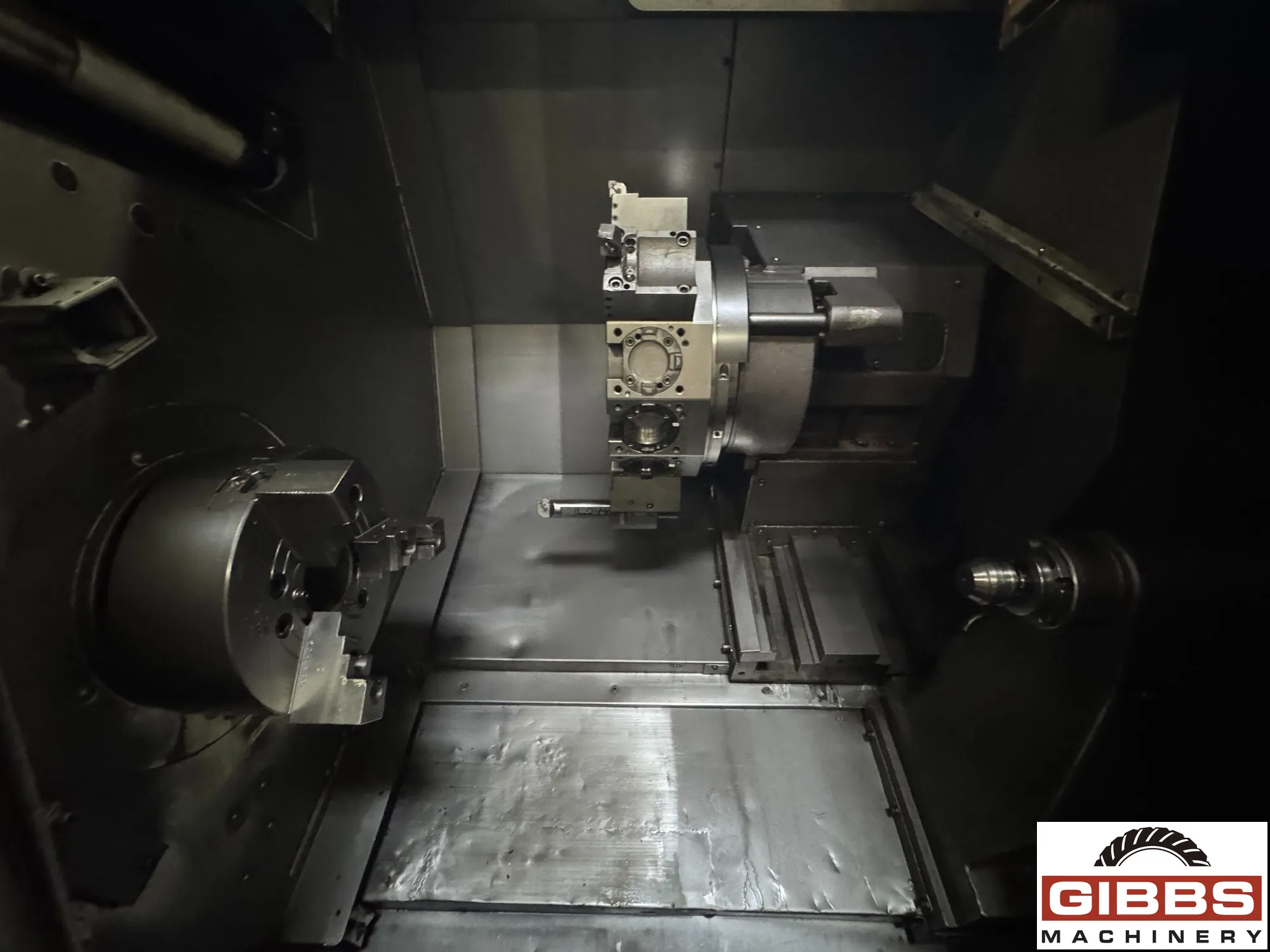

The Mori Seiki NL2500/700 is a high-precision, high-speed CNC turning center capable of machining a wide variety of workpieces. It features a rigid bed, powerful turning capability, and milling functionality with a built-in motor turret (BMT). The machine utilizes the ERGOline X CELOS X control panel, which allows operators to easily machine both simple and complex shapes

    Specifications:

  • Maximum Turning Diameter: 14.4″
  • Maximum Turning Length: 27.7″
  • Maximum Bar Capacity: 3.1″
  • Swing Over Bed: 23.2″
  • Distance Between Centers: 31.5″
  • X Axis Travel: 10.2″
  • Z Axis Travel: 31.2″
  • Rapid Traverse X Axis: 1181 IPM
  • Rapid Traverse Z Axis: 1181 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.5″
  • Spindle Speed: 4000 RPM
  • Spindle Motor: 25 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock:
  • Tailstock Body Travel: 28.8″
  • Tailstock Quill Dia.: 3.34″
  • Tailstock Quill Stroke: 3.1″
  • Tailstock Taper: MT-4

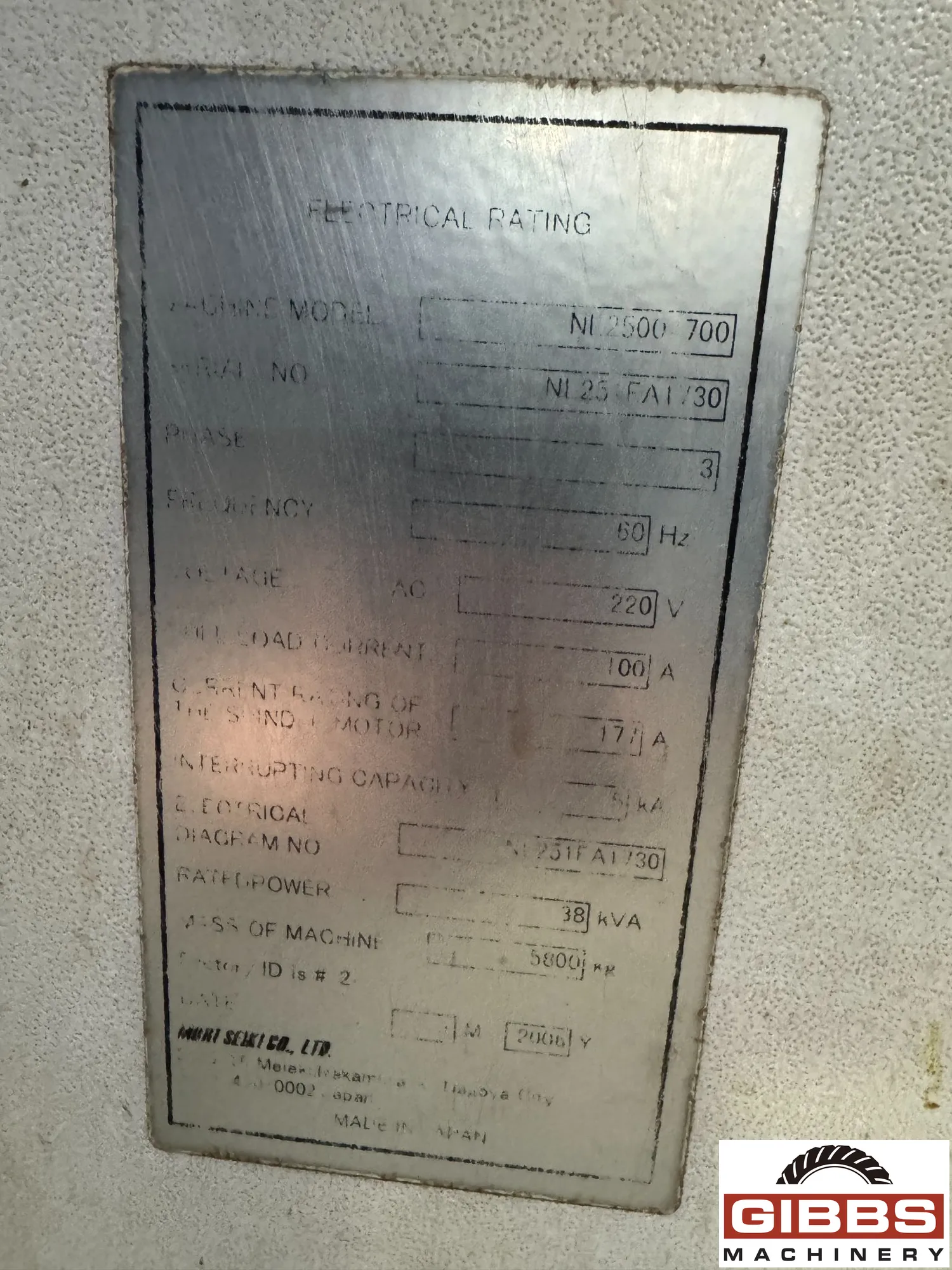

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 36 kva
  • Overall Dimensions: 156.7″ x 82.9 ″ x 86.6″ High With Chip Conveyor
  • Approximate Weight : 12,786 Lbs.
