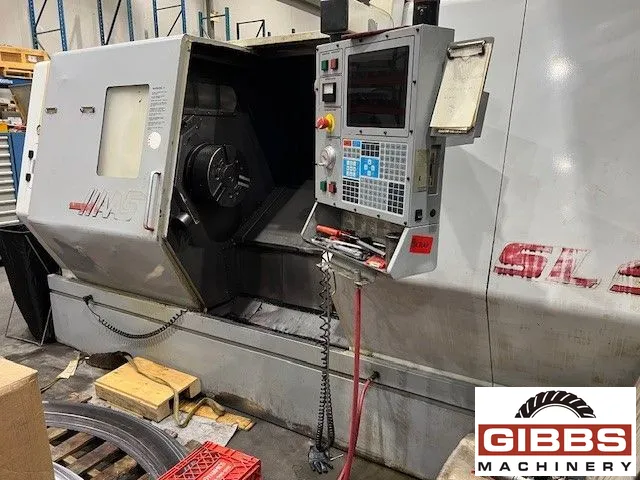

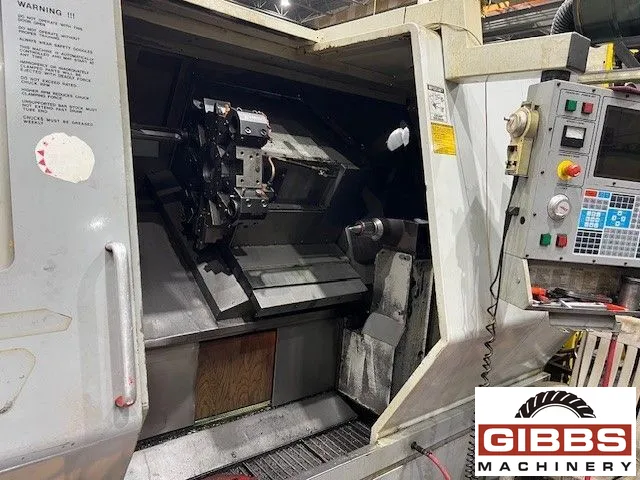

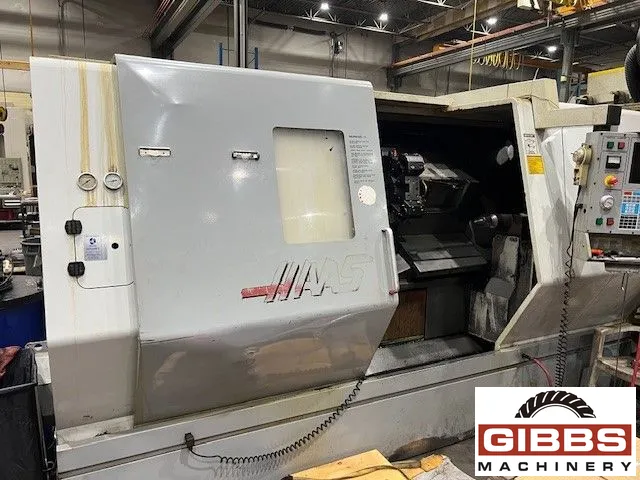

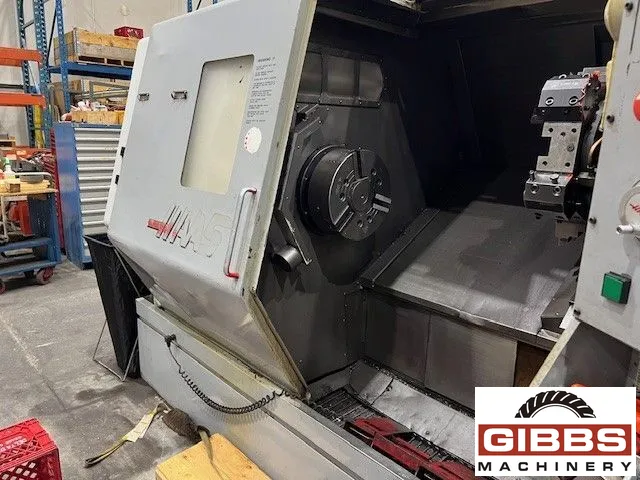

HAAS SL-40T - Horizontal Lathe

Manufacturer

HAAS

Category

Lathes

Type

LATHES, TURNING

Stock

25606

Model

SL-40T

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • 15" Hydraulic Chuck
  • High Pressure Coolant
  • Chip Conveyor
  • Tailstock
  • Tool Setter
  • Rigid Tap
  • 1 MB Extended Memory
  • Remote Jog Handle
  • High Intensity Lights
,

Machine Specifications :

  • Year 2000
  • Manufacturer HAAS
  • Swing 40.0"
  • Machining Length 51.0"
  • Chuck Size 15.0"
  • Bar Capacity 4.0"
  • Power 55.0 HP
  • Max RPM 2,400 RPM
  • Turning Dia 25.5"
  • Tailstock Yes
,

The Haas SL-40T CNC Lathe is a high-performance turning center known for its robust construction and precision capabilities. It features a 15" chuck, 4" bar capacity, and 40" swing, capable of machining long parts with a maximum length of 44". The machine operates with a 55 HP motor, reaches 2400 RPM, and is equipped with a 10-station turret for versatile tooling.

    Specifications:

  • Capacity:
  • Maximum Turning Diameter: 25.5″
  • Maximum Turning Length: 40.0″
  • Maximum Bar Capacity: 4.75″
  • Swing Over Bed: 40.0″
  • Distance Between Centers: 44.0″
  • Travels:
  • X Axis Travel: 11.3″
  • Z Axis Travel: 42.0 ”
  • Rapid Traverse X Axis: 710 IPM
  • Rapid Traverse Z Axis: 710 IPM
  • Spindle:
  • Spindle Nose: A2-11
  • Spindle Bore: 5.02″
  • Spindle Speed: 24 – 2400 RPM
  • Spindle Motor: 30 HP
  • Turret:
  • Turret Capacity: 10 Stations Turret
  • Index Time: 1 Second
  • Tailstock:
  • Tailstock Taper: MT-4
  • Tailstock Body Travel: 34.0″
  • General:
  • Power: 45 kva, 220v / 3-Phase Overall
  • Dimensions: 180″ X 102″ X 104 ” High
  • Weight: 20,000 lbs
