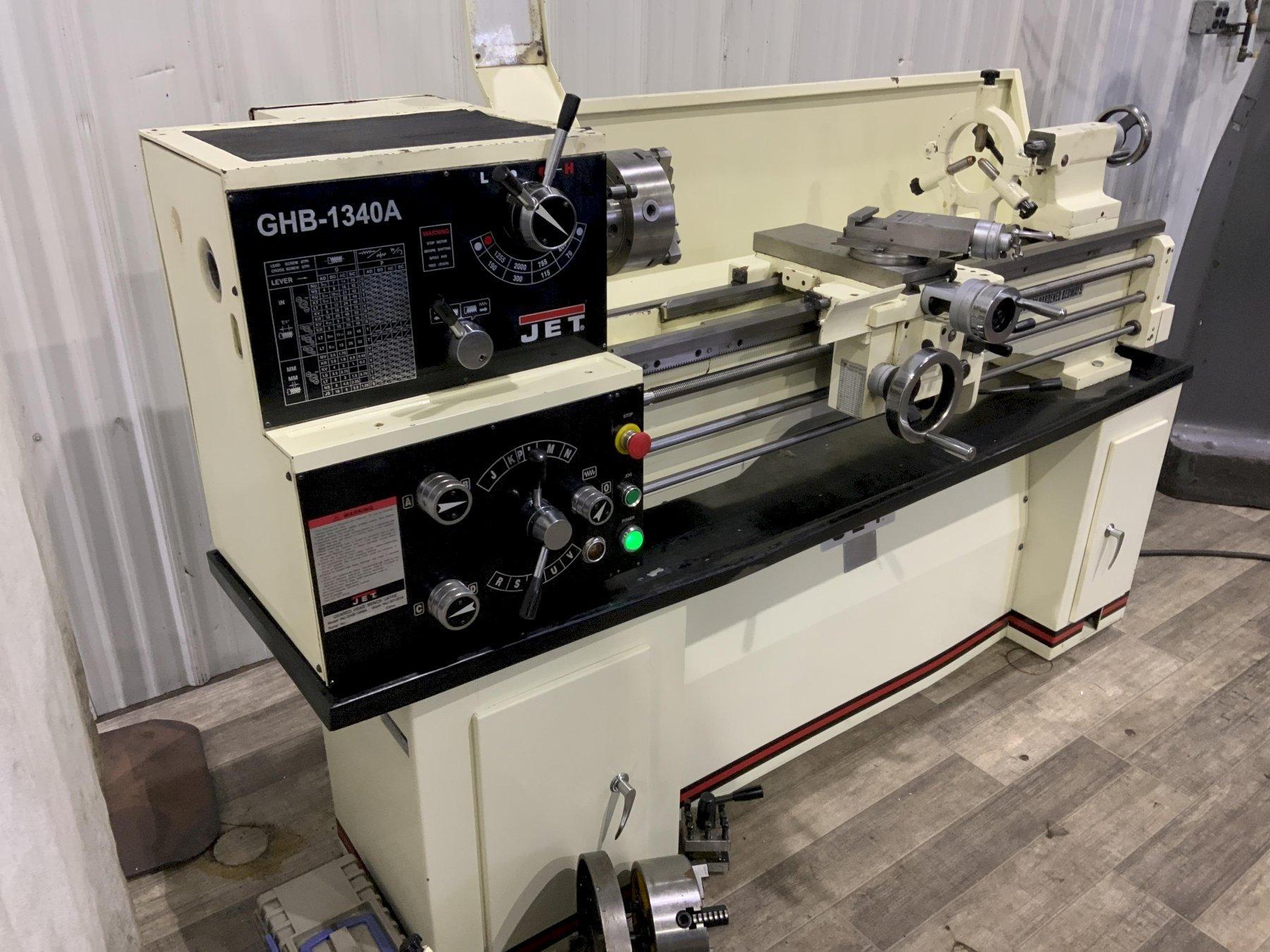

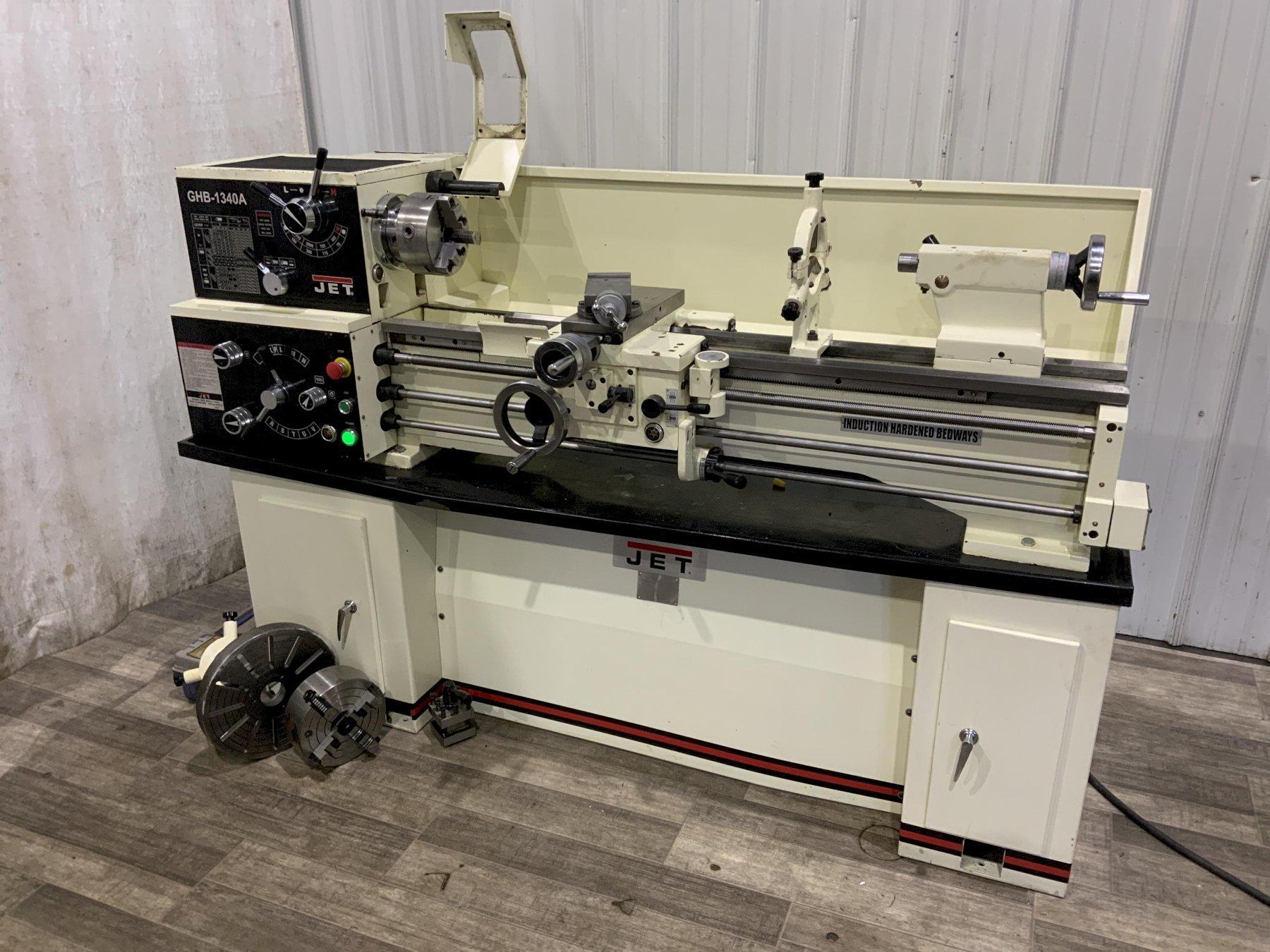

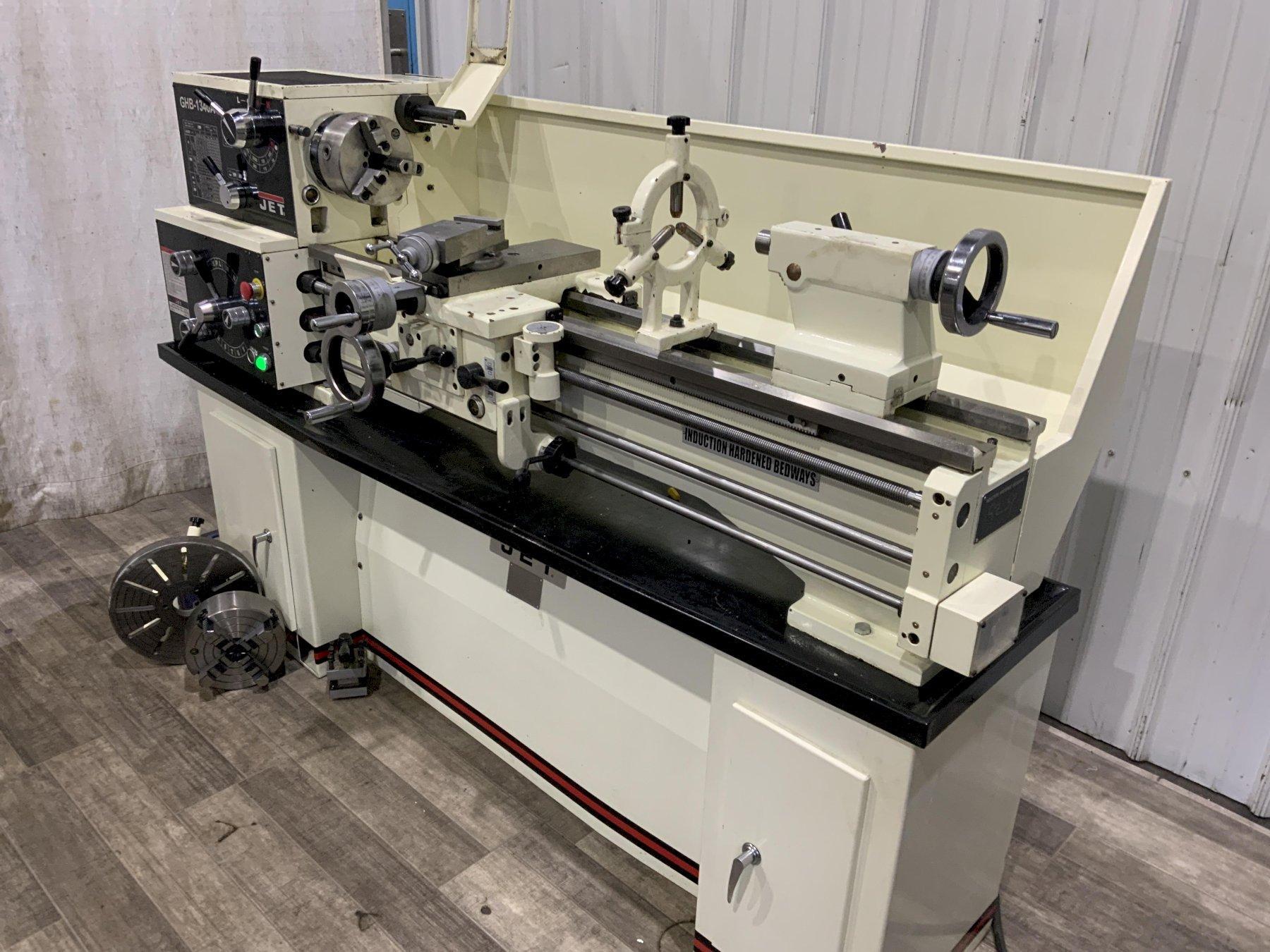

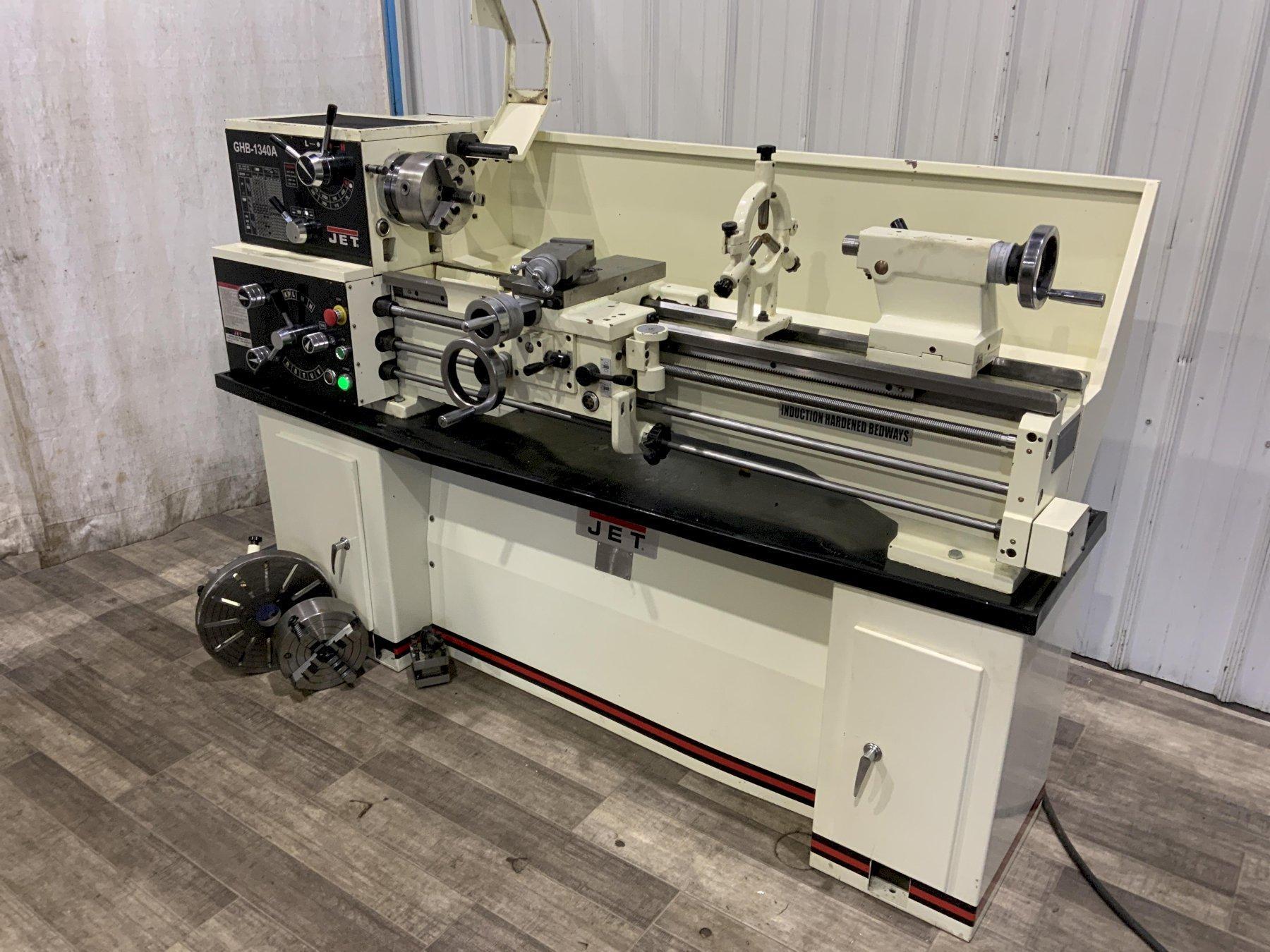

13" X 40" JET MODEL GHB1340A GAPBED Engine Lathe: STOCK #80790

Manufacturer

JET

Category

Lathes

Type

LATHES, ENGINE

Stock

80790

Model

GHB-1340A

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



SERIAL ..................... 15033194A

MODEL ...................... GHB-1340A

YEAR NEW ................... 2015

SWING OVER WAYS ............ 13"

SWING IN GAP ............... 18-3/4"

LENGTH OF GAP .............. 8-1/8"

SWING OVER CROSS SLIDE ..... 7-25/32"

DISTANCE BETWEEN CENTERS ... 40"

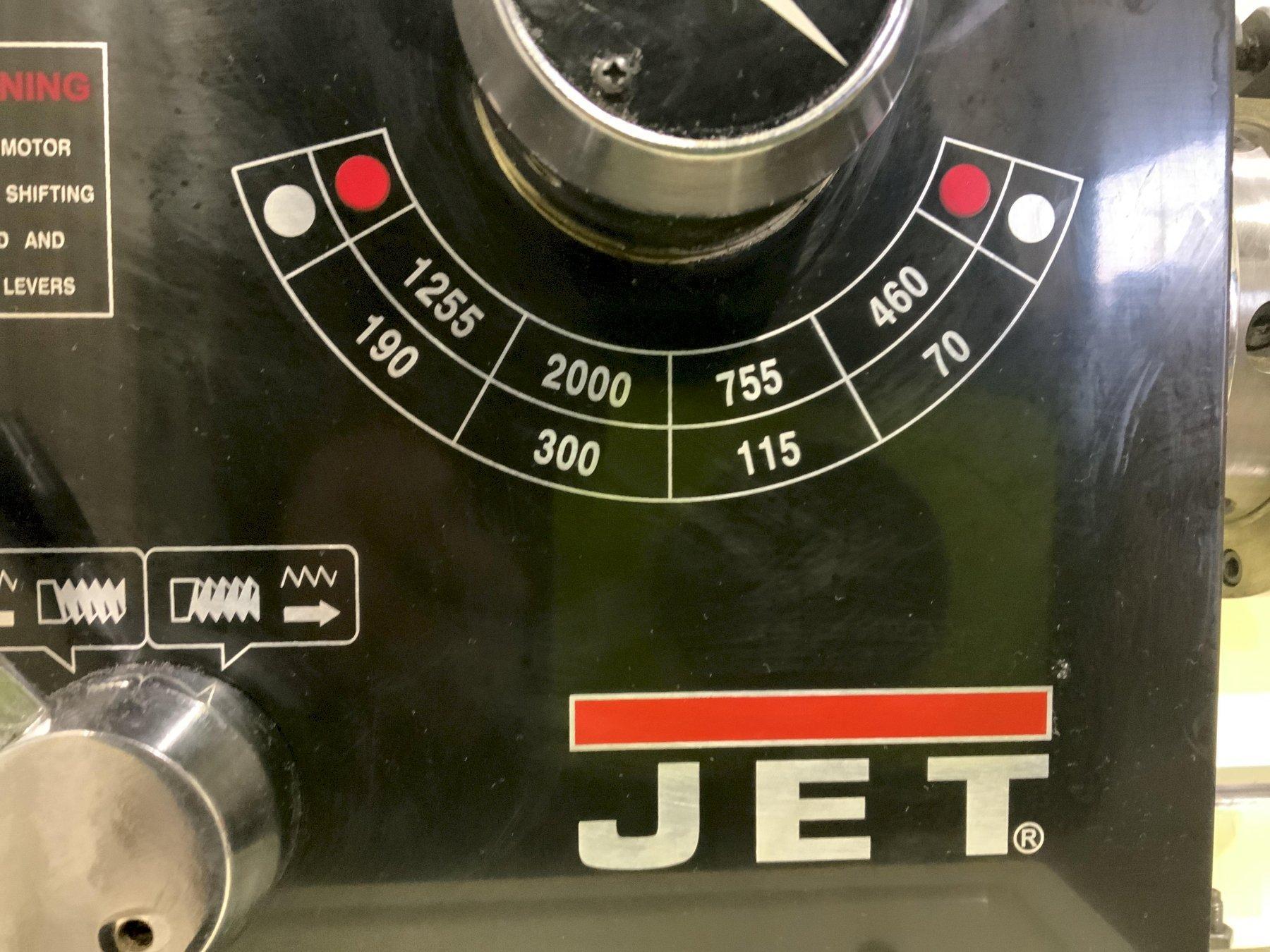

SPINDLE SPEEDS ............. (8) 70 TO 2000

DIAMETER OF SPINDLE HOLE ... 1-1/2"

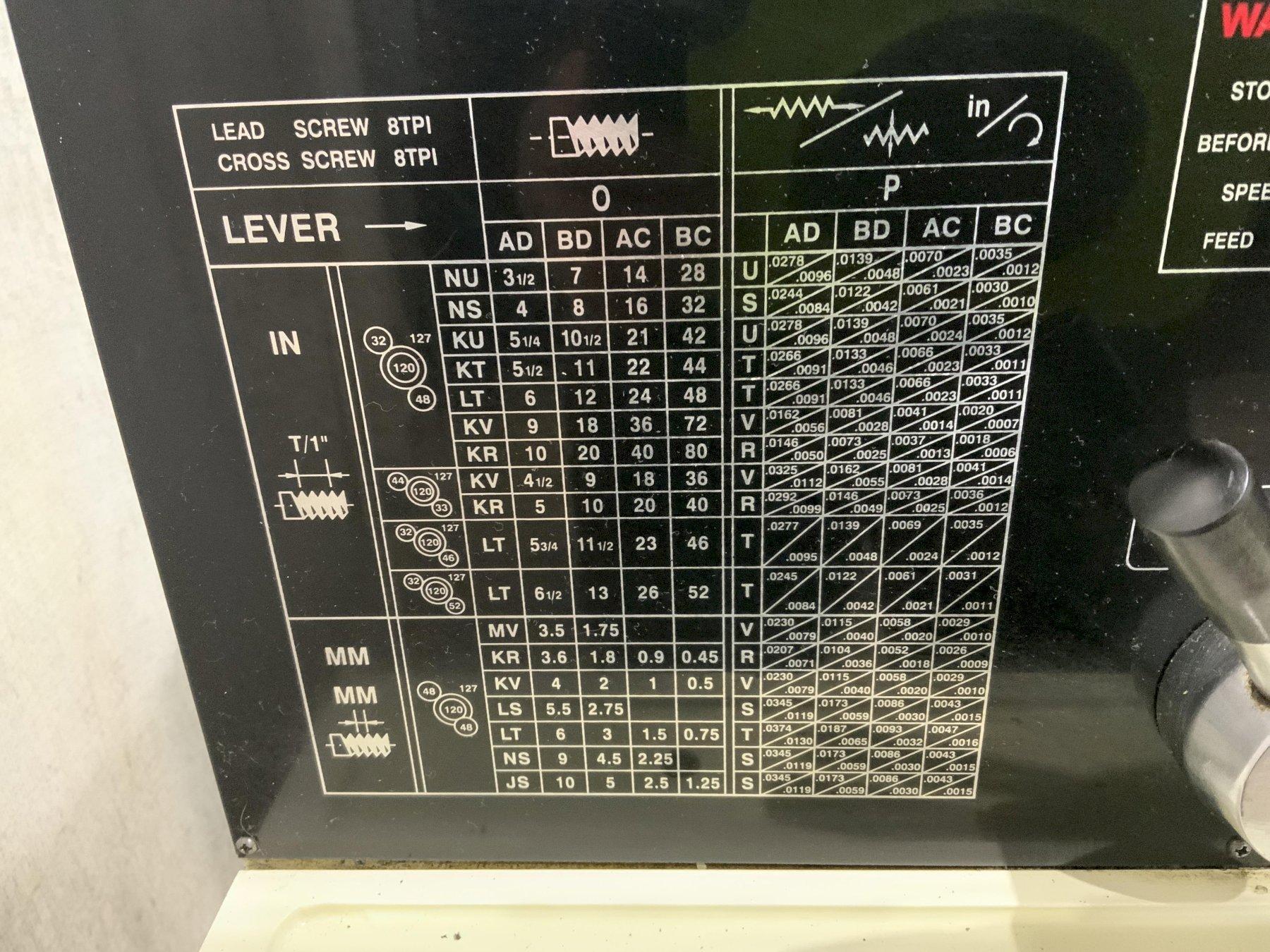

ENGLISH THREADS ............ (40) 4 TO 112 TPI

METRIC THREADS ............. (27) 0.2 TO 6 TPMM

FEEDS LONGITUDINAL ......... (40) 0.0036 TO 0.1005 IPR

FEED CROSS ................. (40) 0.0012 TO 0.00345 IPR

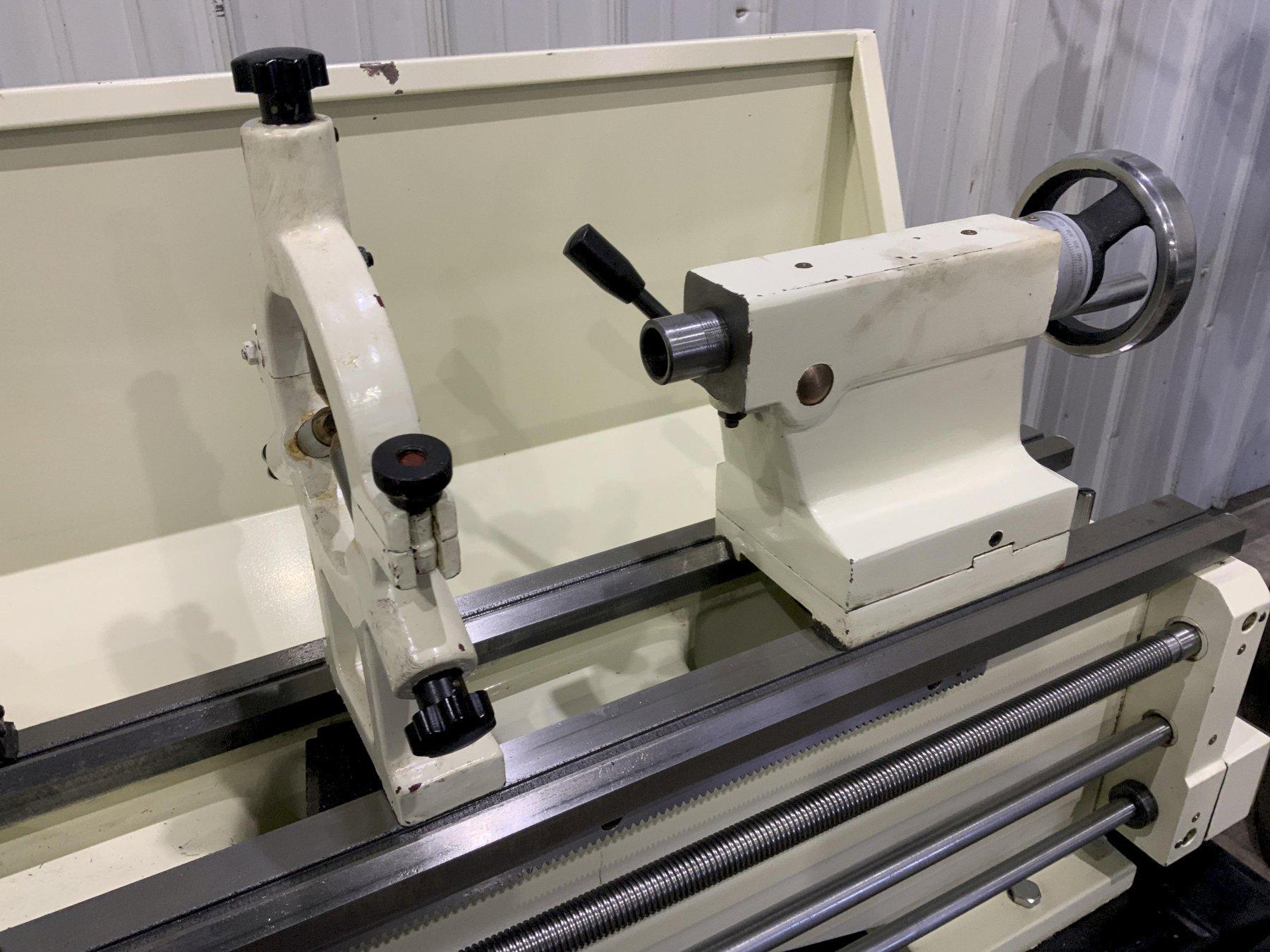

TAPER IN TAILSTOCK ......... #3 MT

COOLANT WITH CHIP PANS ..... YES

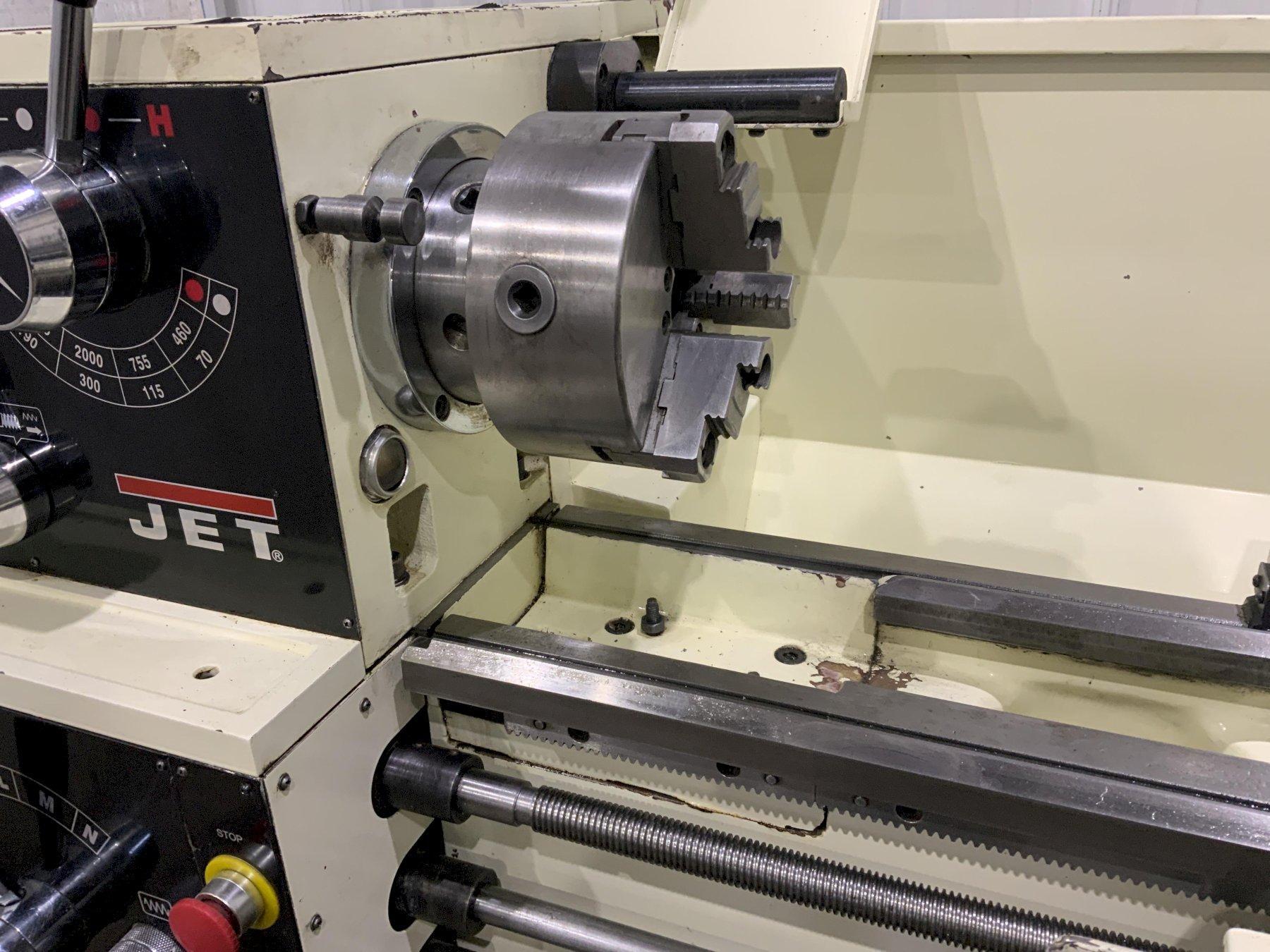

6" 3 JAW CHUCK, 8" 4-JAW CHUCK ...... YES

PHASE ....................1

VOLTAGE ...................... 110/.220

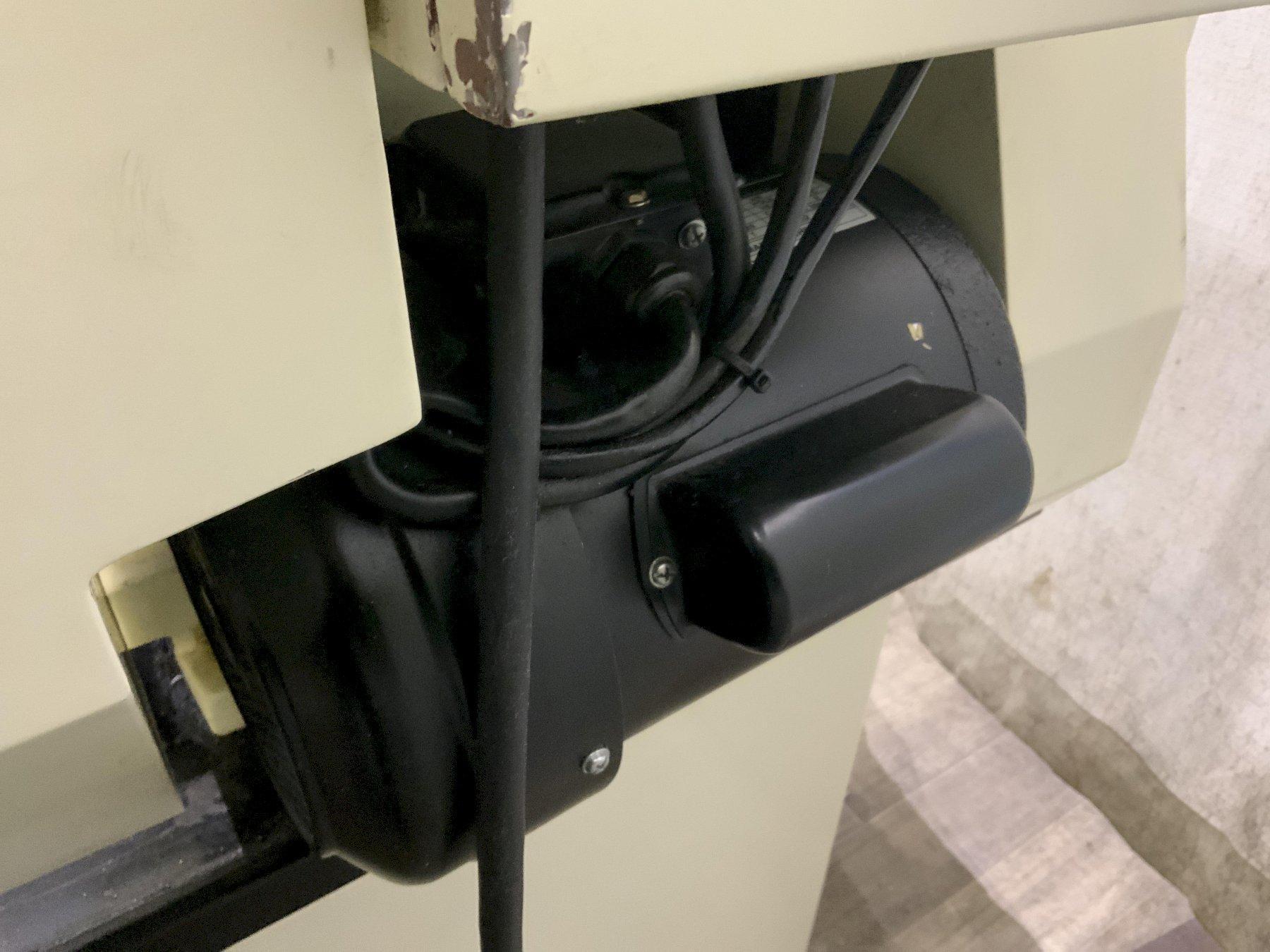

MAIN MOTOR ................. 2 HORSEPOWER

LOOK TO BE NOT USED VERY MUCH.... NICE LATHE
