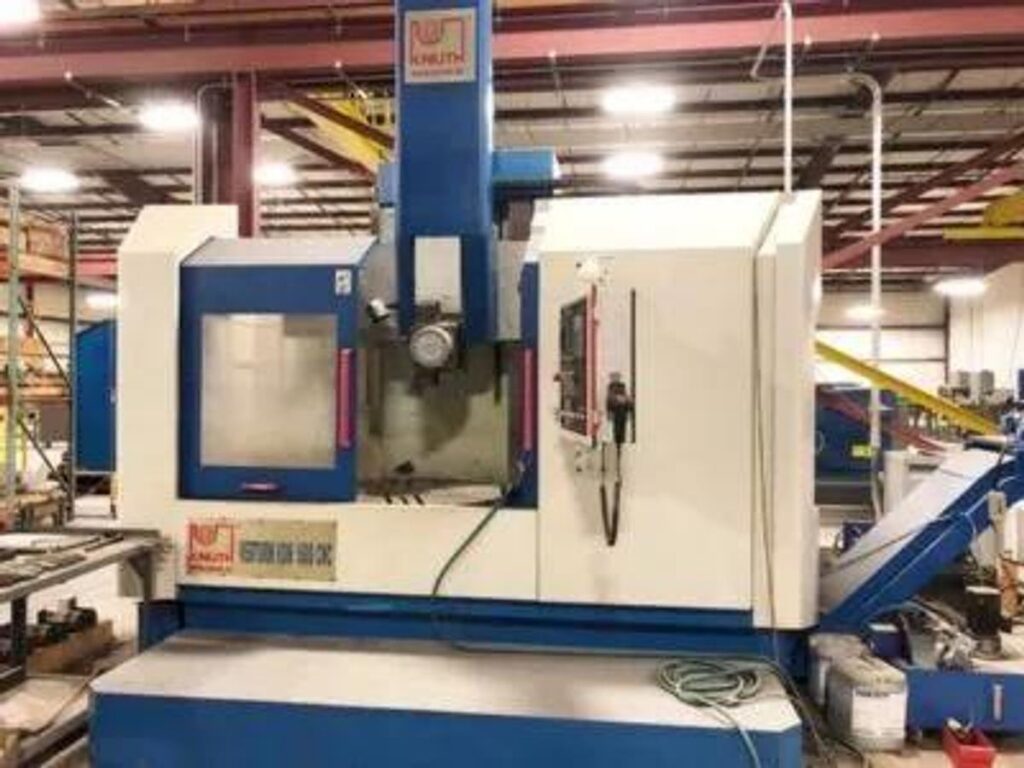

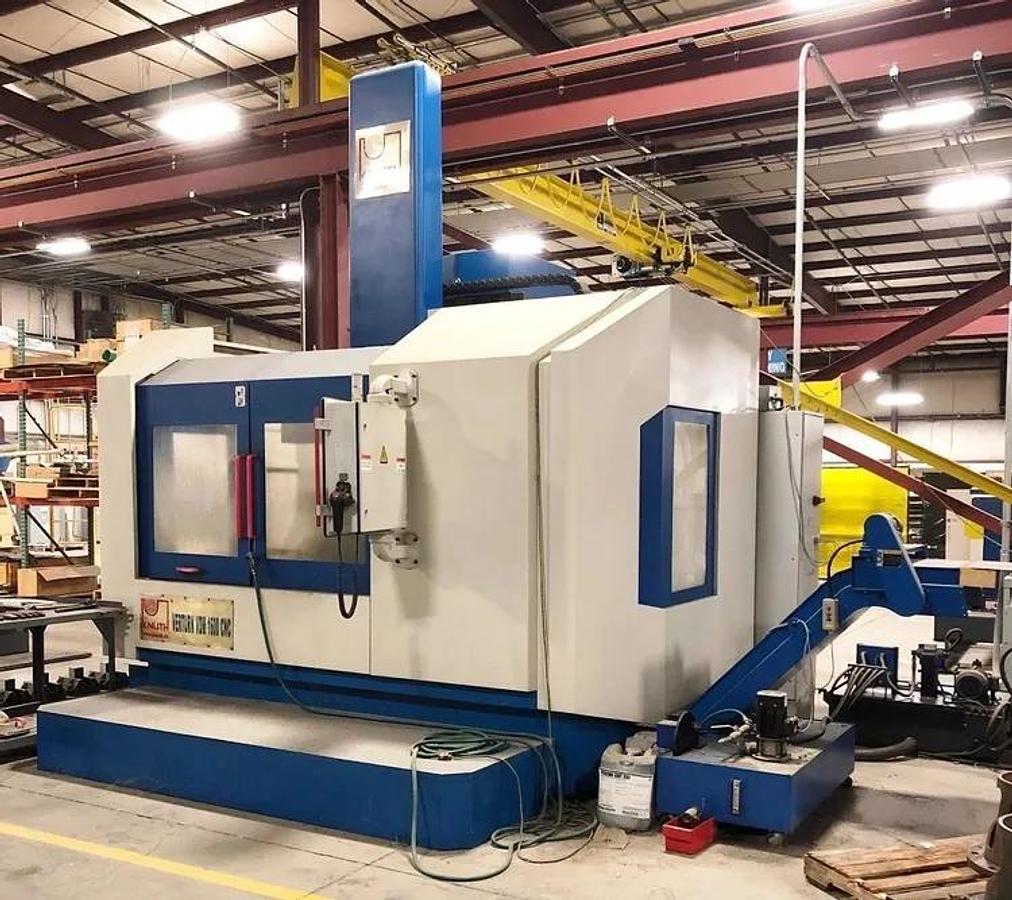

Knuth Verturn VDM 1600 2015 CNC Vertical Turning Lathe (VTL)

Manufacturer

Knuth

Type

DERRICKS

Stock

191260004

Model

Verturn VDM 1600

Dealer Location

Georgia

Spec Sheet

  • Stock #: 191260004
  • Brand: Knuth
  • Model: Verturn VDM 1600
  • Year: 2015
  • Approx. Shipping Weight: 26,400 lbs
  • Approx. Shipping Dimensions: 209″L x 150″D x 165″H

Specifications

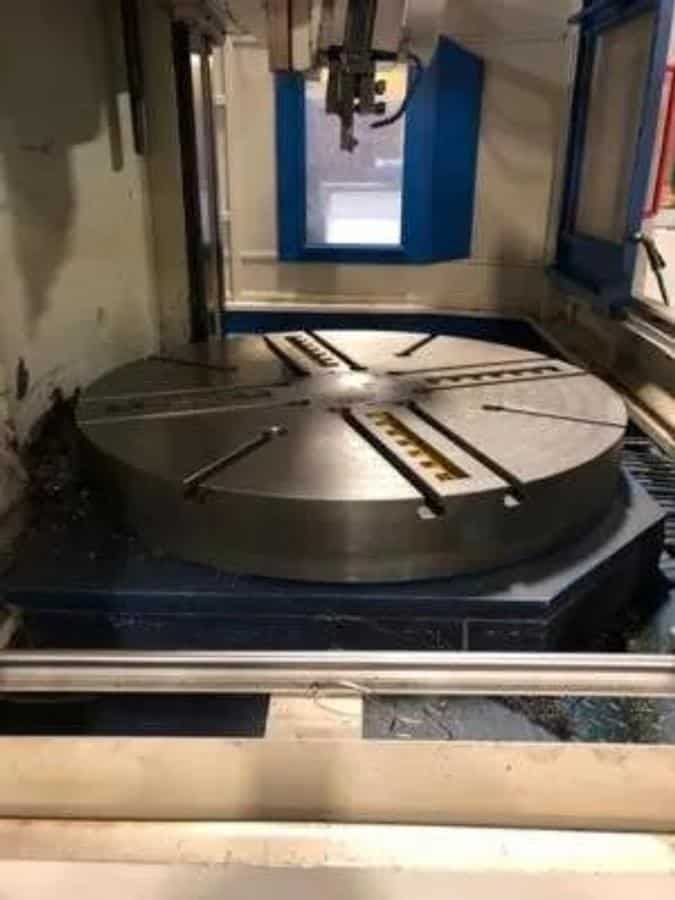

  • Table Dia: 55″; 1,397 mm
  • Swing: 63″; 1,600.2 mm
  • Work Ht-U/R: 47″; 1,193.8 mm
  • RPM: 200 RPM
  • Turning Dia: 63″
  • X Axis Travel: 40″
  • Z Axis Travel: 31″
  • W Axis Travel: 33″
  • Work Piece Weight (max): 11,000 lbs
  • Speed Range: .5 – 200 RPM
  • Torque Max: 23,600 ft lb
  • Lathe Chuck Dia: 55″
  • Rapid Feed X axis: 236 IPM
  • Rapid Feed Z axis: 236 IPM
  • Feed W axis: 17 IPM
  • Tool Weight: 55 lbs
  • Main Motor Drive: 60 HP

Equipped With

Siemens 840D SL Controller

Additional Info

Machine is located in Greeneville, TN. 100 running hours. It can be demoed upon request.
