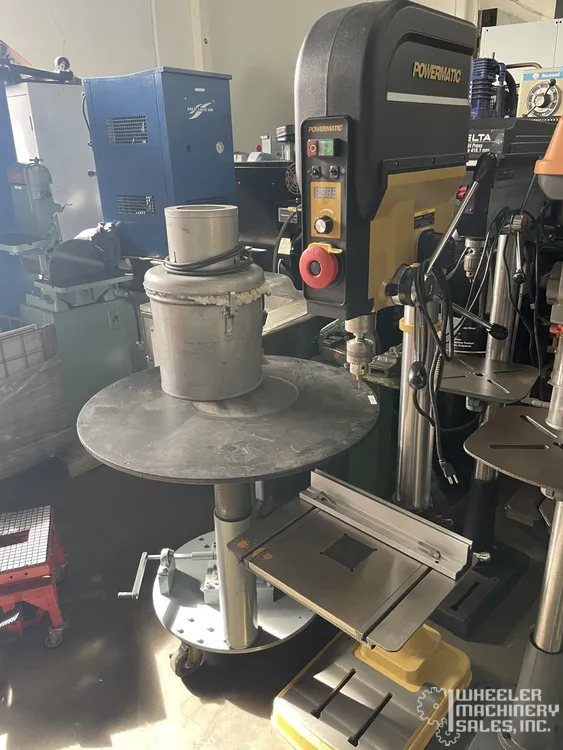

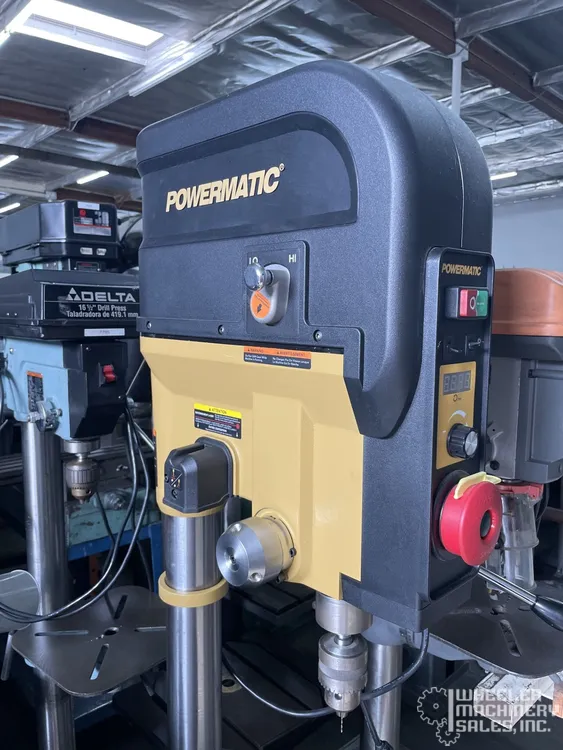

POWERMATIC PM2820EVS Single Spindle Drill Press #8131 #1

Manufacturer

POWERMATIC

Category

Drilling Machines

Type

DRILLS, HEAVY DUTY & SENSITIVE, (Single Vertical Spindle)

Stock

8131

Model

PM2820EVS

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
DRILLS, HEAVY DUTY & SENSITIVE, VERTICAL, SINGLE SPINDLE
Manufacturer:
POWERMATIC
Model:
PM2820EVS
Stock #:
8131
Status:
For Sale
Serial #:
21121465
Country:
United States

Description

Explore the versatility of the used POWERMATIC PM2820EVS Drill Press. Features include a 1hp motor, 2 variable spindle speeds (150 - 3,600 RPM), and a large 20.5" x 15.5" table. Perfect for heavy-duty, precise drilling tasks.

POWERMATIC PM2820EVS Single Spindle Drill Press #8131 #1

SPECIFICATIONS:
Base Dimensions: 22.7" x 16.3" x 2.75"
Base Size: 22-3/4" x 16-3/8" x 2-3/4"
Base Work Table: 11.81" x 12.05"
Chuck Distance to Base: 41-1/4"
Chuck Distance to Table: 19-1/4"
Chuck Size: 5/8"
Column Diameter: 3-3/8"
Fence Size (L x H): 19-3/4" x 2-5/8"
Gross Weight: 413 lbs.
Motor Amps: 8
Motor: 1hp
Motor Voltage: 120v
Net Weight: 337 lbs.
Number of Spindle Speeds: 2 Variable
Overall Dimensions (L x W x H): 24.5" x 20.5" x 71.85"
Prewired Voltage: 115v
Quill Diameter: 2.6"
Spindle Distance to Base: 45"
Spindle Distance to Table (Max.): 23"
Spindle Speed (RPM): 150 - 3,600
Spindle Taper: MT2
Spindle Travel: 6"
Swing: 20"
Table Size Fully Extended (L x W): 20-1/2" x 15-1/2"
Table Size (L x W): 20-1/2" x 15-1/2"
Table Tilt: 90° L/R
