Hardinge HLV-H-EM Precision Tool Room Lathe with Inch/Metric Threading #8130 #1

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, PRECISION, JEWELERS, TOOLROOM, (Etc.)

Stock

8130

Model

HLV-H-EM

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, PRECISION, JEWELERS, TOOLROOM, Etc.
Manufacturer:
HARDINGE
Model:
HLV-H-EM
Stock #:
8130
Status:
For Sale
Serial #:
HLV-H-14300-T
Country:
United States

Description

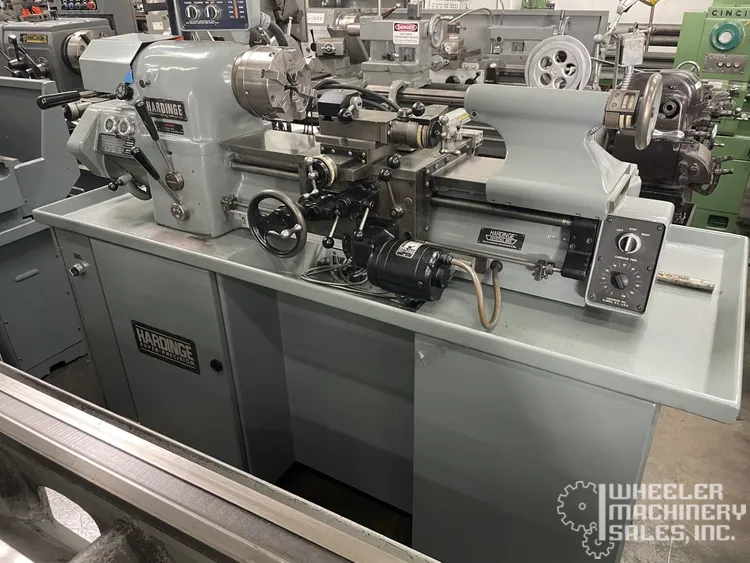

Used Hardinge HLV-H-EM Precision Tool Room Lathe #8130 #1. Features 1-1/16″ spindle capacity, 11″ swing over bed, 18″ between centers, and variable spindle speeds 125-3000 RPM. Equipped with Inch/Metric threading, Acu-Rite III 2-axis digital readout, and tailstock. 230V/3Ph/60Hz. Approx. 2200 lbs.

Hardinge HLV-H-EM Precision Tool Room Lathe with Inch/Metric Threading #8130 #1

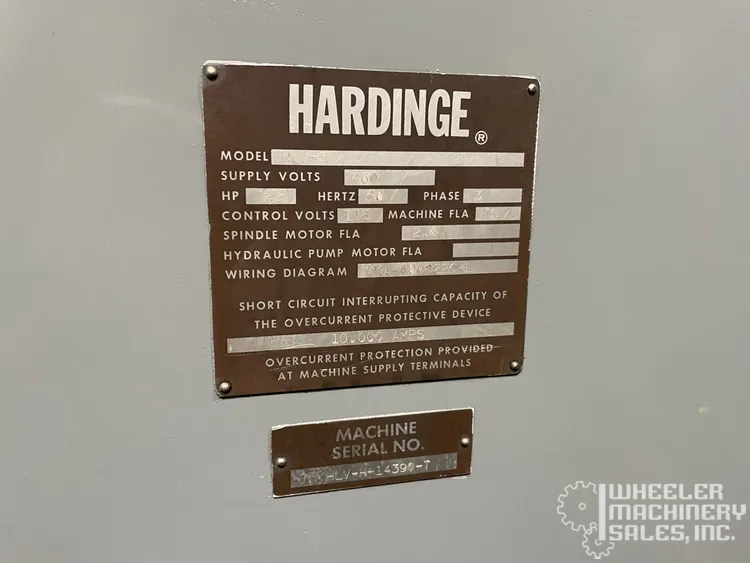

Serial # HLV-H-14300-T

SPECIFICATIONS:
Spindle Capacity 5C Collets – Round: 1-1/16″
Spindle Capacity 5C Collets – Hex: 7/8″
Step Chucks: 1-1/16″ – 6″
Variable Spindle Speeds: 125 – 3000 RPM
Swing Over Bed: 11″
Swing Over Cross Slide: 6″
Swing Over Carriage: 9″
Distance Between Centers: 18″
Hole thru Spindle: 1-1/4″
Compound Slide Travel: 3″
Carriage Power Feed Range: 5/16″ – 7 IPM
Cross Slide Power Feed Range: 3/16″ – 4 IPM
Tailstock Spindle Travel: 3-3/4″
Tailstock Spindle Taper: No. 2 MT
Lead Screw Diameter: 1″ – 8″ Thread
Range of Threads (27) – Inch: 11″ – 108″ TPI
Range of Threads (27) – Metric: 0.275 – 2.7 mm
Electrics: 230V/3Ph/60Hz
Actual Machine Dimensions: 69″L x 32″W x 80″H
Actual Skid w/Guard Dimensions: 48″L x 48″W x 61″H
Weight – Approximate: 2,200 Lbs.

EQUIPPED WITH:
Inch/Metric Threading Gear Box

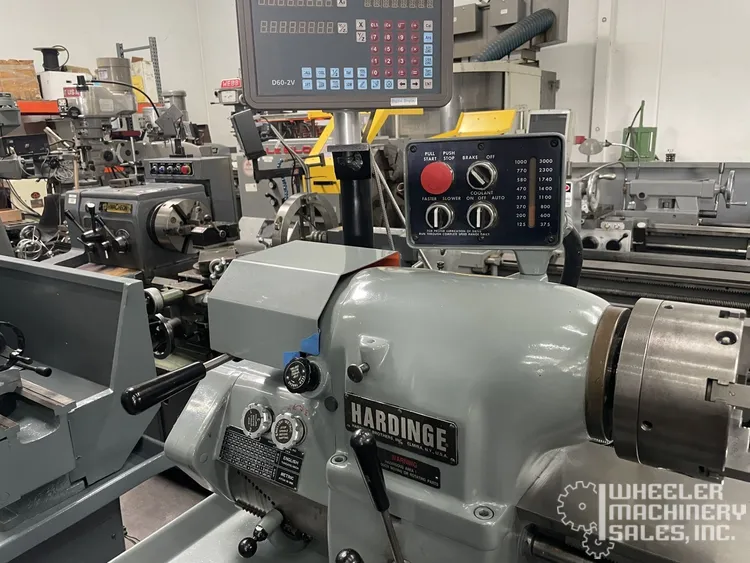

D60-2V 2-Axis Digital Read Out
Tailstock
