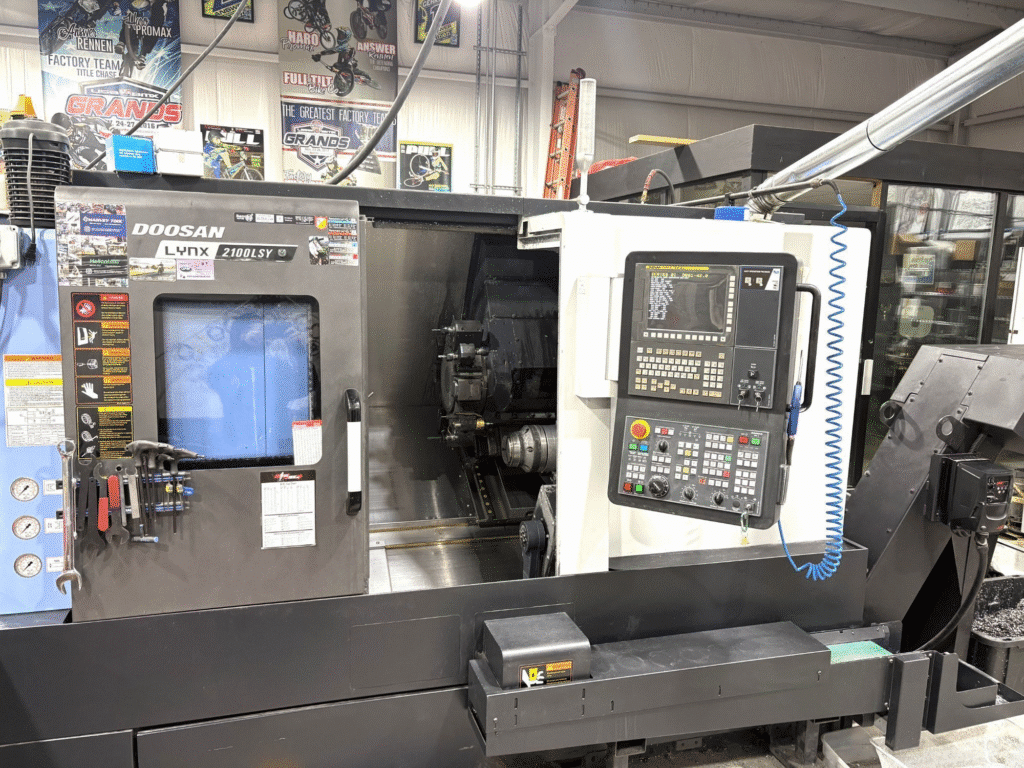

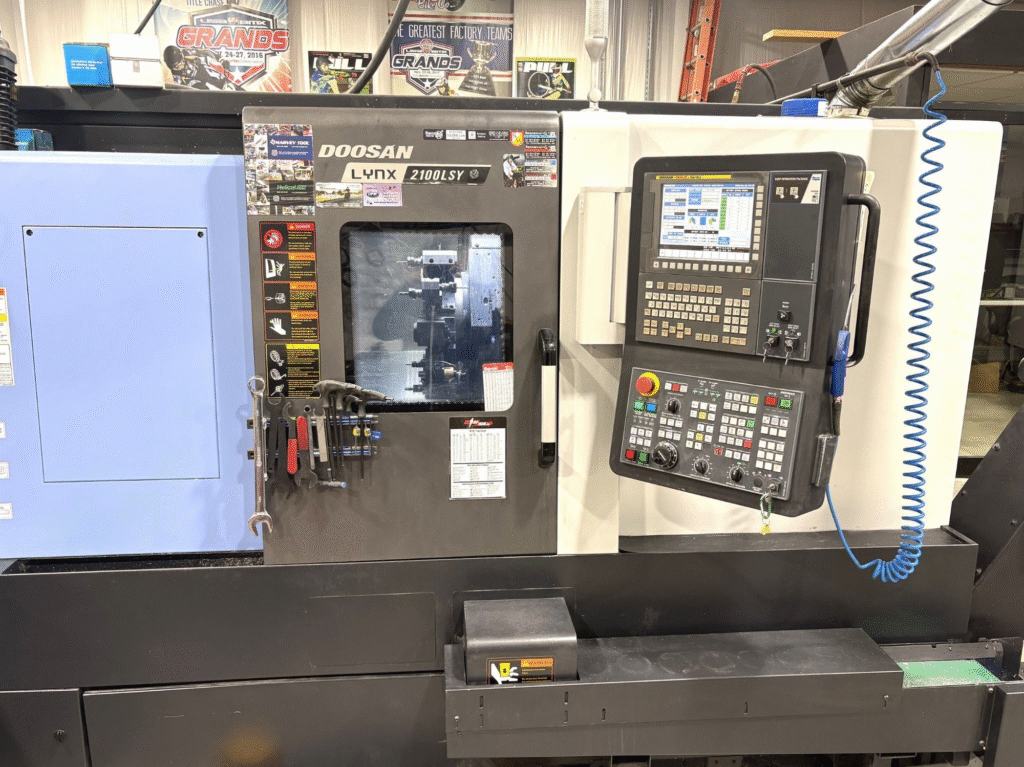

Doosan Lynx 2100LSYB CNC Lathe (2018)

Manufacturer

Doosan

Category

Lathes

Type

LATHES, CNC

Stock

113260002

Model

Lynx 2100LSYB

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 113260002
  • Brand: Doosan
  • Model: Lynx 2100LSYB
  • Year: 2018
  • Condition: Used – Original Owner

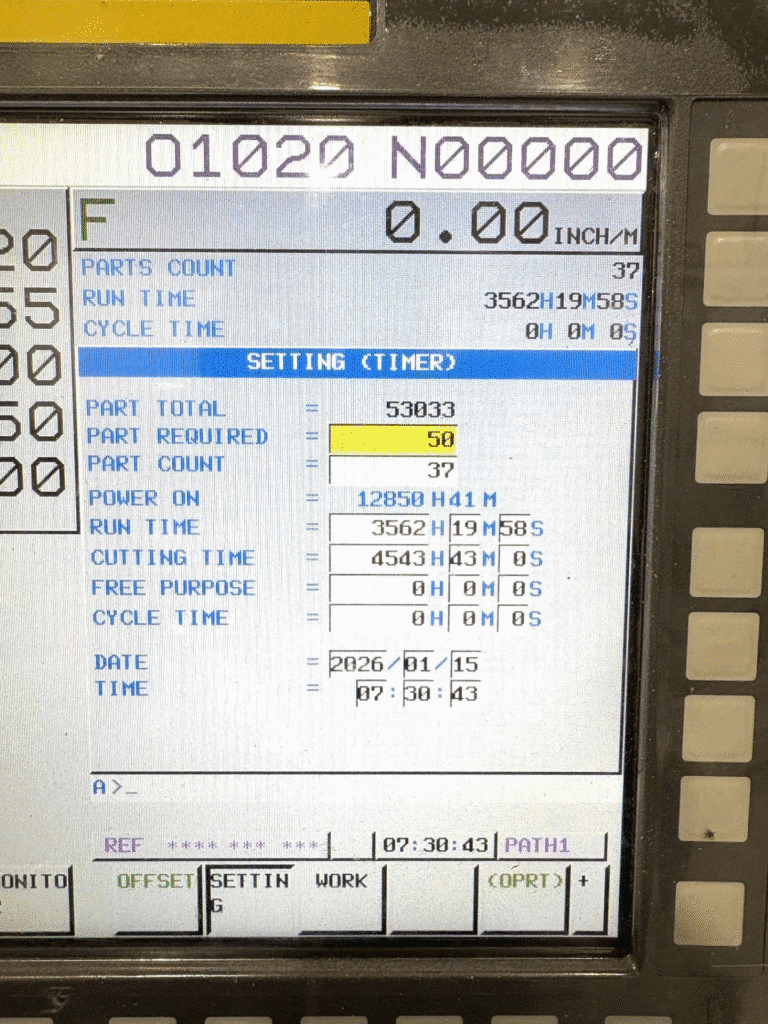

  • Hours: Approx. 4,600 Total / 4,543 Cutting Hours (as of Jan 2026)

Specifications

  • Swing Over Bed: 23.6″ (599.44 mm)
  • Max Cutting Diameter: 11.8″ (299.72 mm)
  • Max Cutting Length: 20.1″ (510.54 mm)
  • X-Axis Travel: 8.1″ (205.74 mm)
  • Y-Axis Travel: 4.1″
  • Z-Axis Travel: 22″ (558.8 mm)
  • C-Axis: Full C-Axis Indexing
  • Chuck Size (Main): 8″ (203.2 mm)
  • Bar Capacity: 2.6″ (66.04 mm)
  • Spindle Bore: 3″ (76.2 mm)
  • Spindle Nose: A2-6
  • Spindle Motor: 20 HP (14.9 kW)
  • Spindle Speed: 4,500 RPM

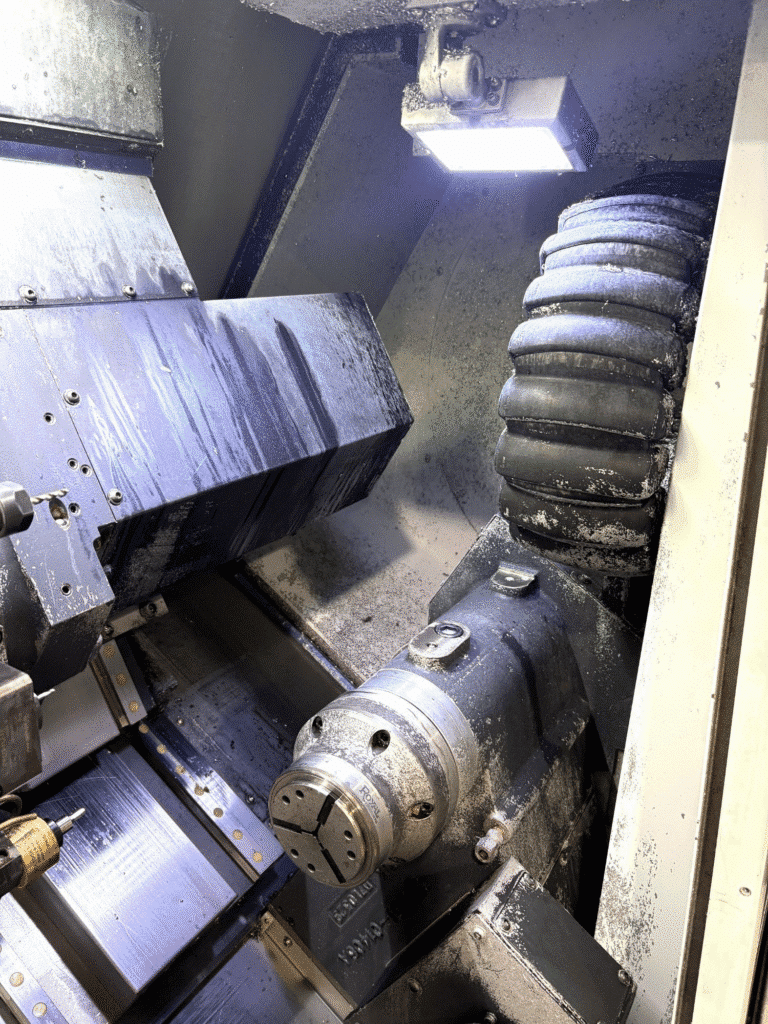

  • Sub Spindle Chuck Size: 5″ (127 mm)
  • Sub Spindle Bore: 1.7″ (43.18 mm)
  • Sub Spindle Motor: 5 HP (3.7 kW)
  • Sub Spindle Speed: 6,000 RPM

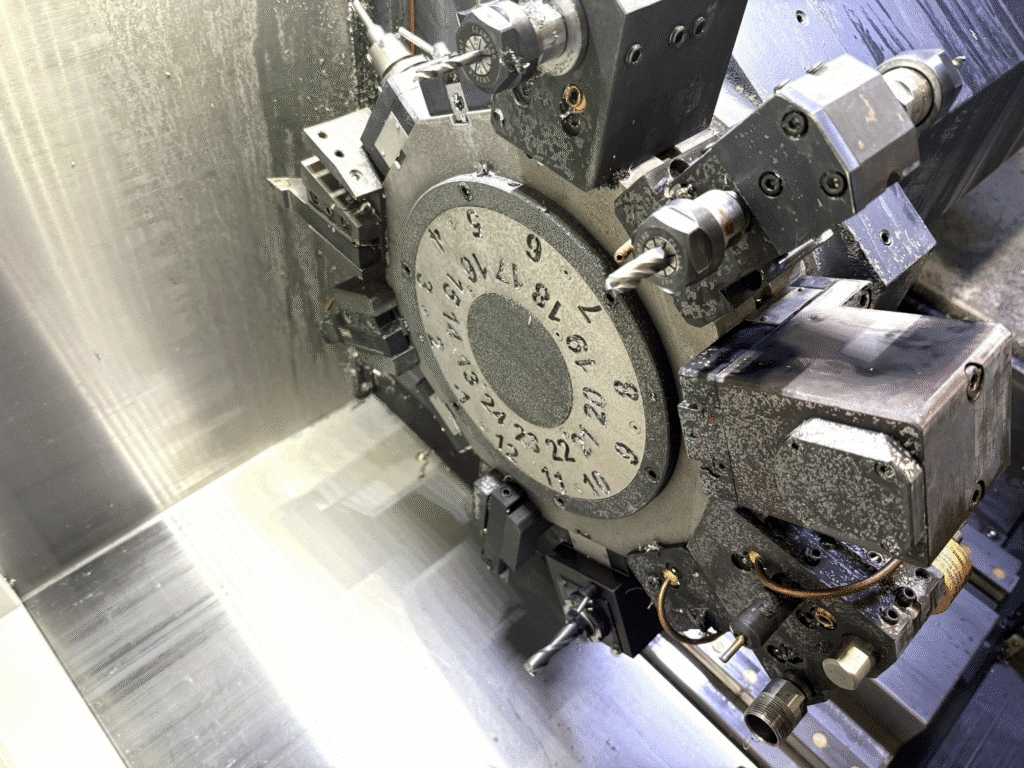

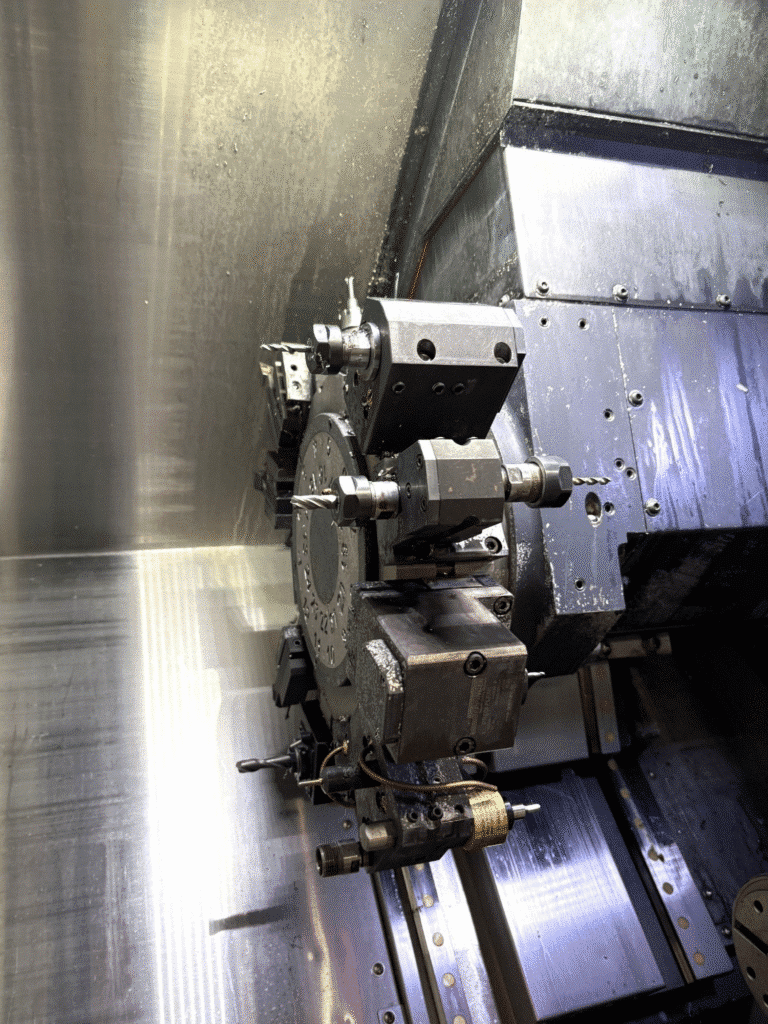

  • Turret Capacity: 24 Tool Positions
  • Turret Type: BMT45
  • Live Milling Speed: 6,000 RPM

Equipped With

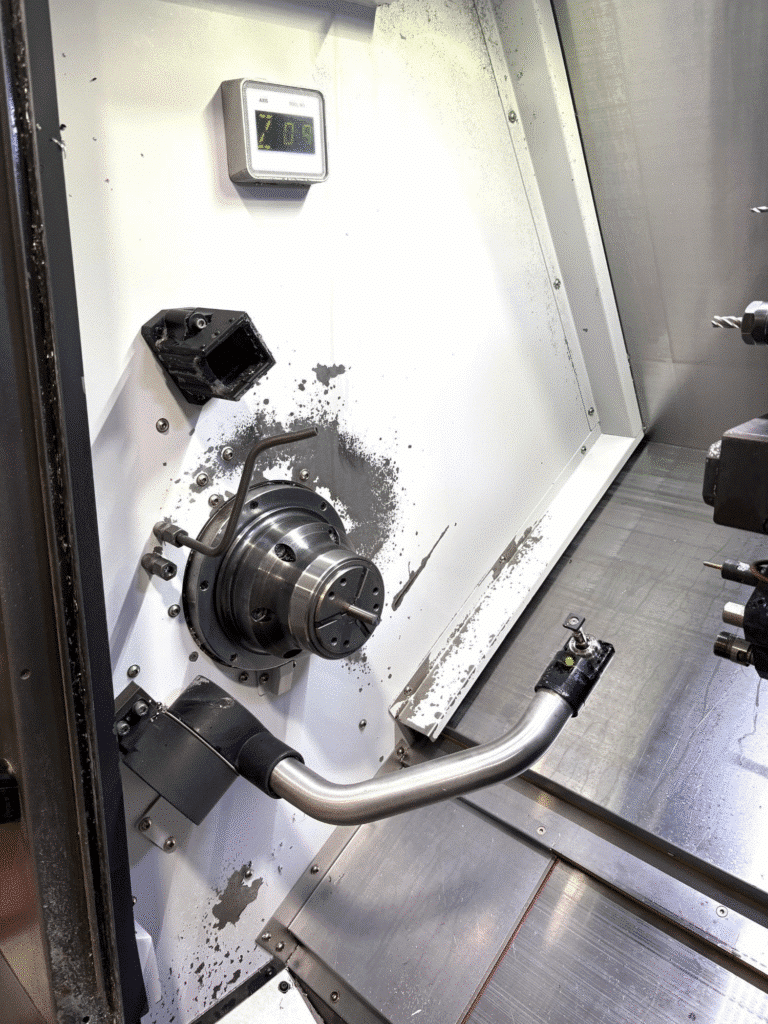

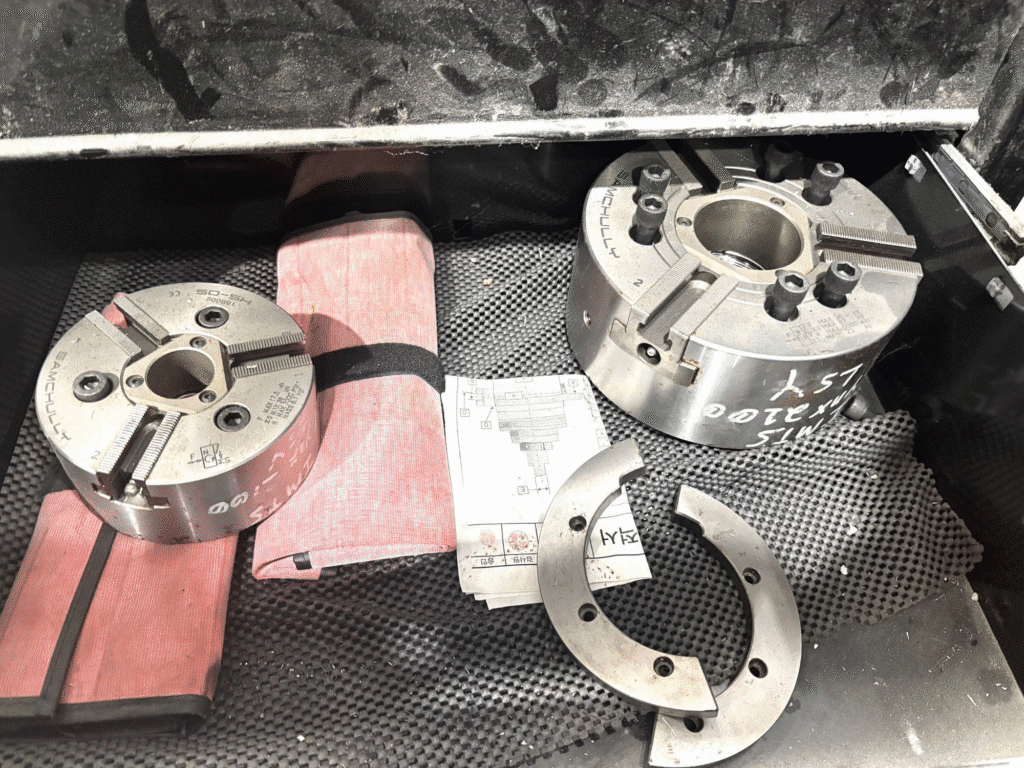

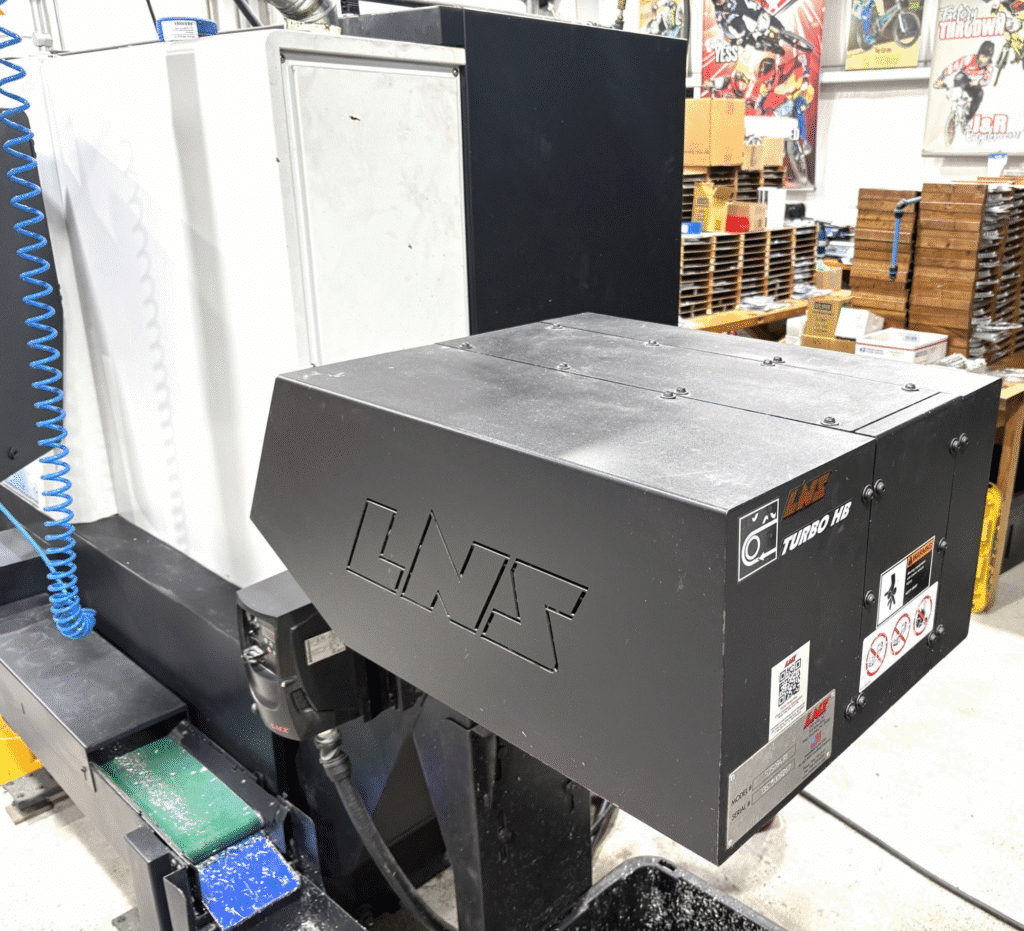

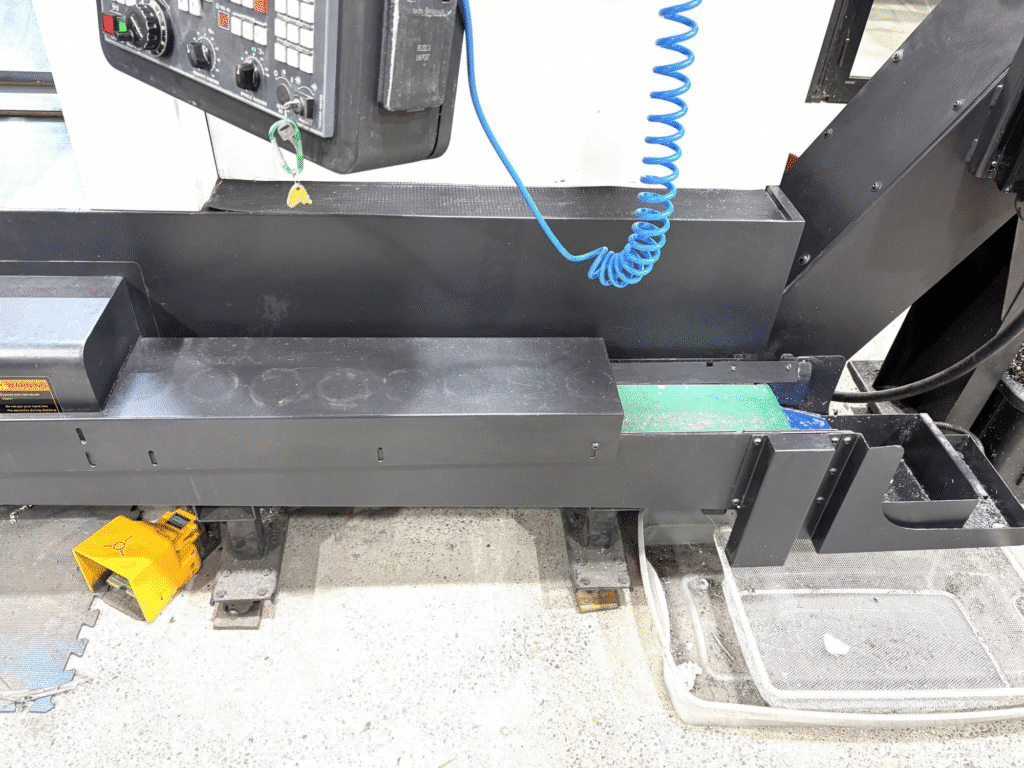

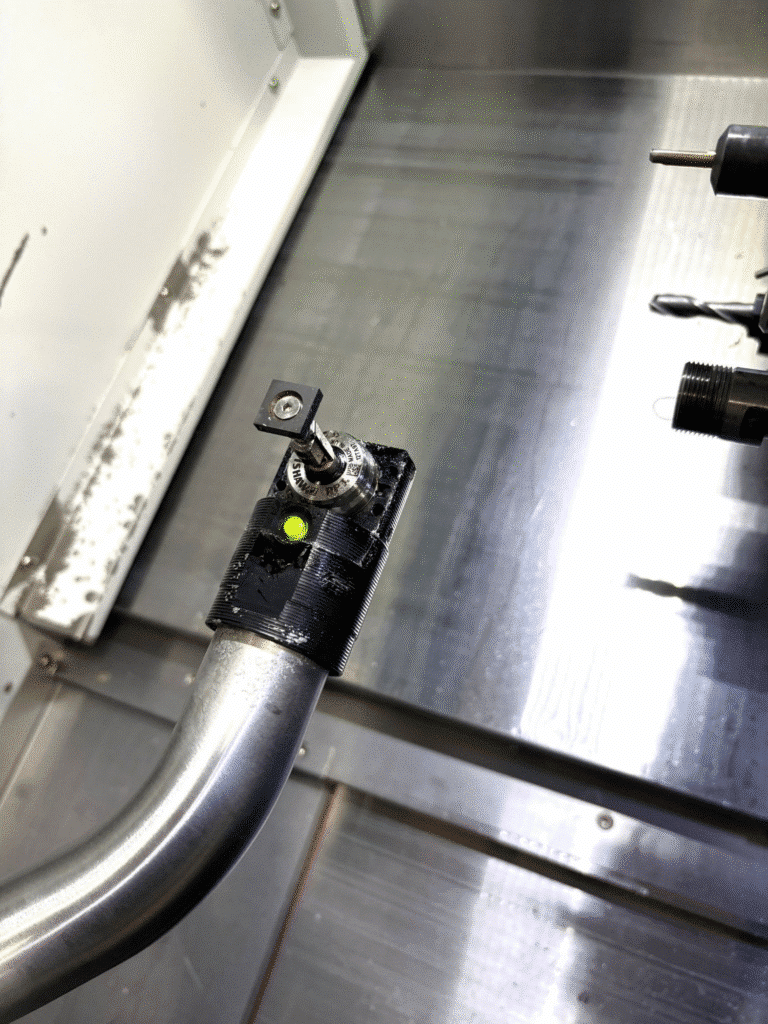

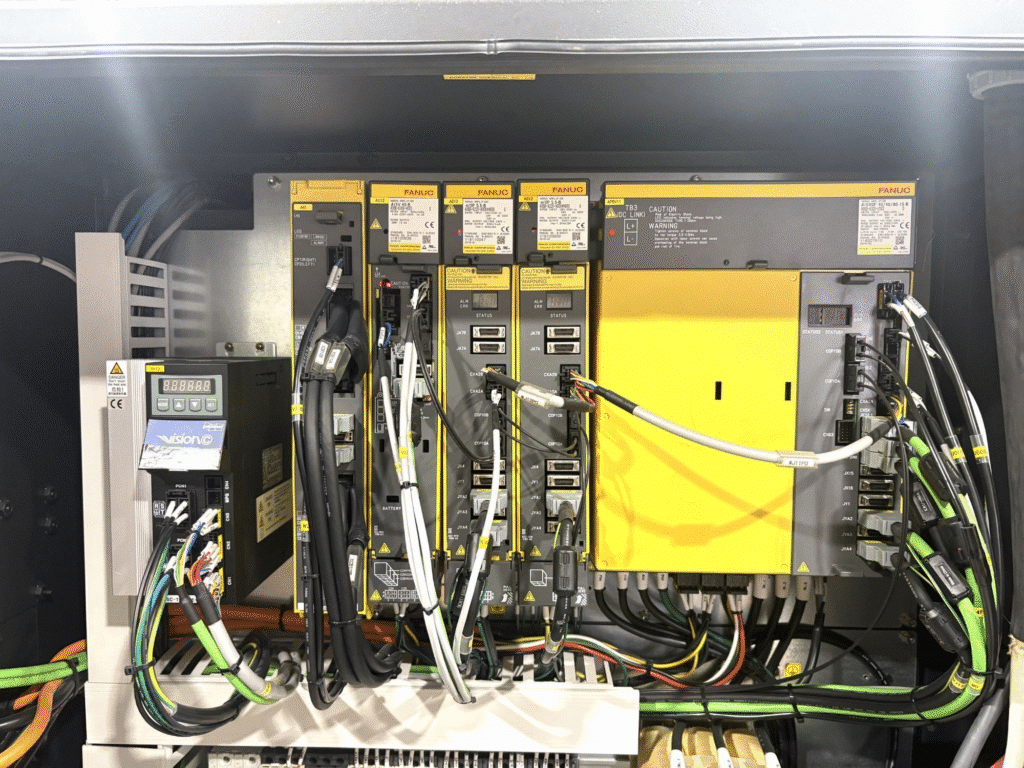

Fanuc i-Series CNC Control with Touchscreen, Sub Spindle, Y-Axis, Live Milling, Full C-Axis, 8″ Main Spindle Chuck (New), 5″ Sub Spindle Chuck (New), Renishaw RP3 Tool Setting Probe, Tool Presetter, Parts Catcher, External Parts Conveyor, LNS Turbo HB Side Discharge Chip Conveyor, Coolant System, Work Light, USB Port

Additional Info

Original owner 2018 Doosan Lynx 2100LSYB CNC multi-axis lathe with low hours, primarily used for aluminum & titanium. In plant, under power, and ready for immediate inspection/demo/purchase. As-is, where-is. Contact us for video, additional photos, or to schedule a viewing.
