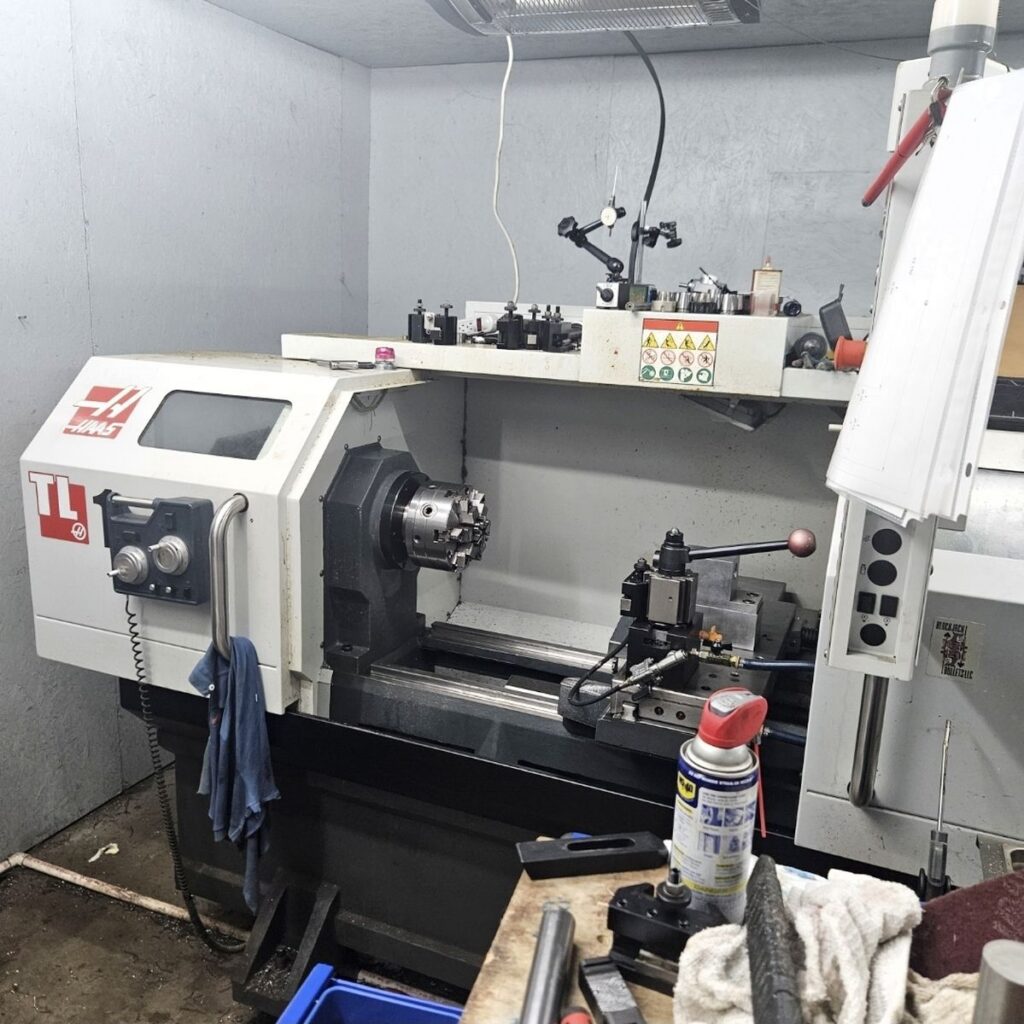

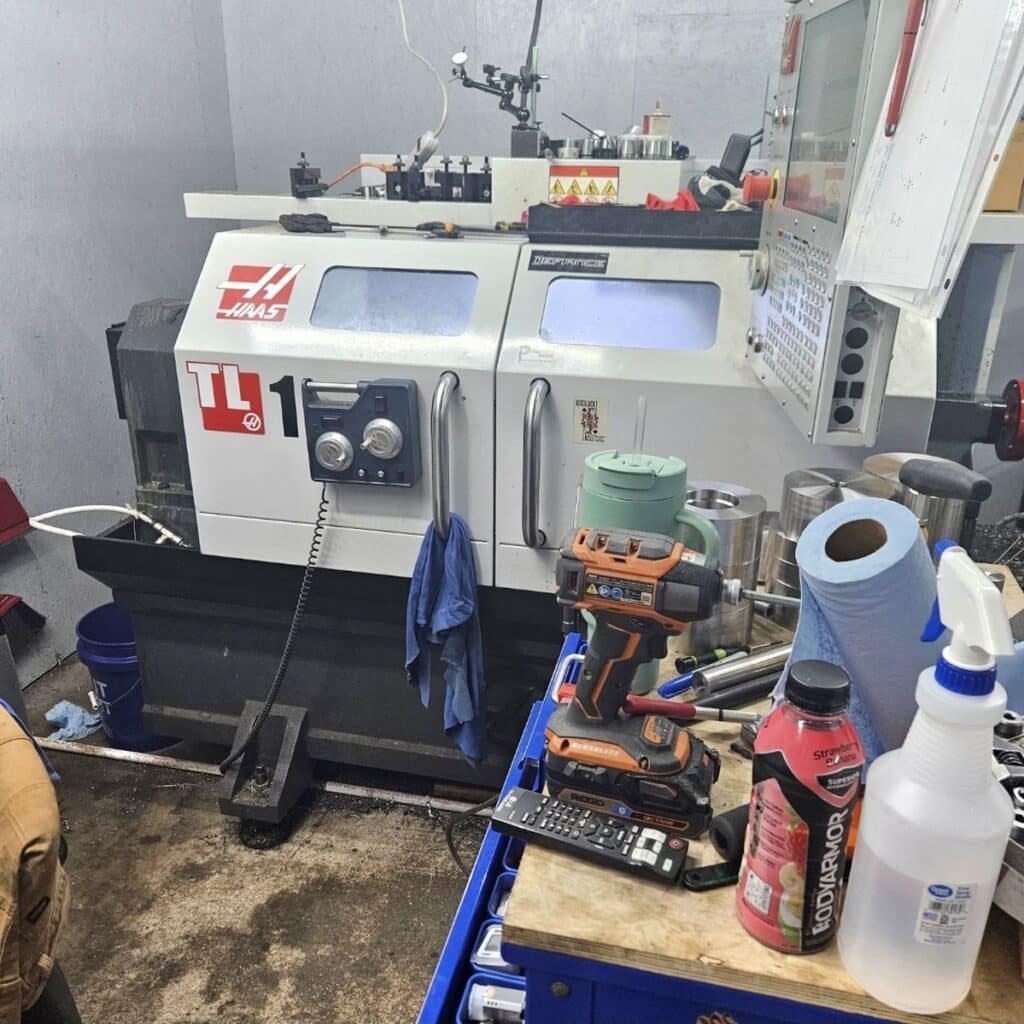

Haas TL-1 CNC Toolroom Lathe (2020)

Manufacturer

Haas

Category

Lathes

Stock

171260012

Model

TL-1

Dealer Location

Georgia

Spec Sheet

  • Stock #: 171260012
  • Location: TX
  • Brand: Haas
  • Model: TL-1
  • Year: 2020
  • Approx. Shipping Weight: 4,300 LBS
  • Approx. Shipping Dimensions: 84″L x 57″W x 79″H
  • Loading Fee: Rigging Required

Specifications

  • X-Axis Travel: 8″
  • Z-Axis Travel: 30″
  • Max Cutting Diameter: 16″
  • Distance Between Centers: 30″
  • Spindle Bore: 2.3″
  • Rapid Rate X-Axis: 450 IPM
  • Rapid Rate Z-Axis: 450 IPM
  • Spindle Nose: A2-5
  • Spindle RPM: 1,800 RPM
  • Spindle Power: 10 HP
  • Power Required: 220V / 3 Phase

Equipped With

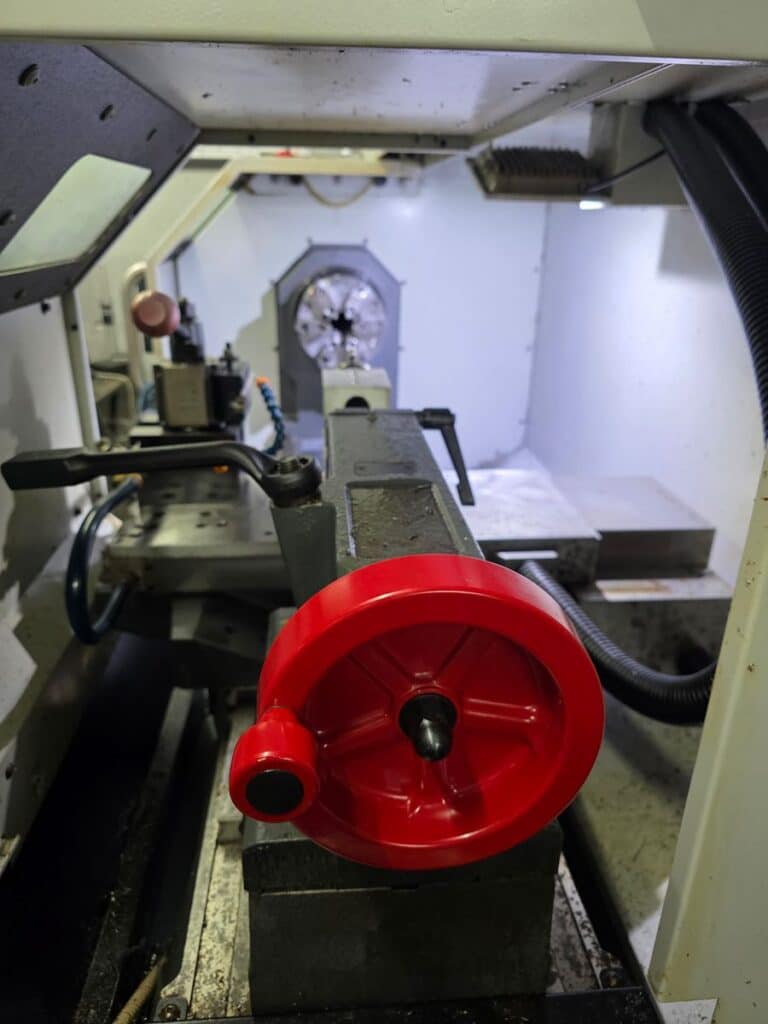

Electronic Handwheels, Manual Tailstock – MT4, 5″ Manual Steadyrest

Additional Info

Machine is under power and available to demo.
