8153
CW61125B
California
SHENYANG 61125B Large Engine Lathe. Model CW61125B, this used engine lathe offers sturdy, reliable performance for various machining needs. Ideal for workshops requiring heavy-duty lathe capabilities. Perfect addition for enhancing productivity.

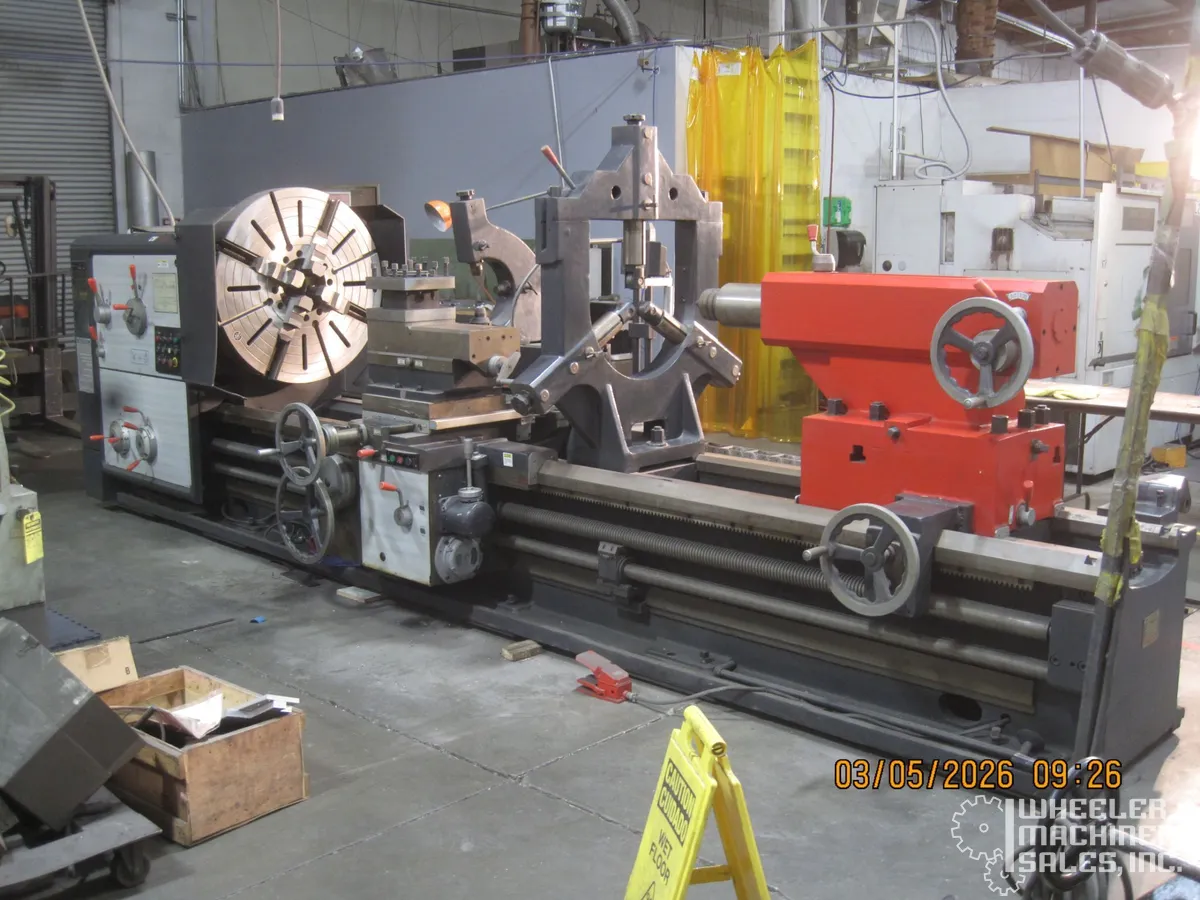

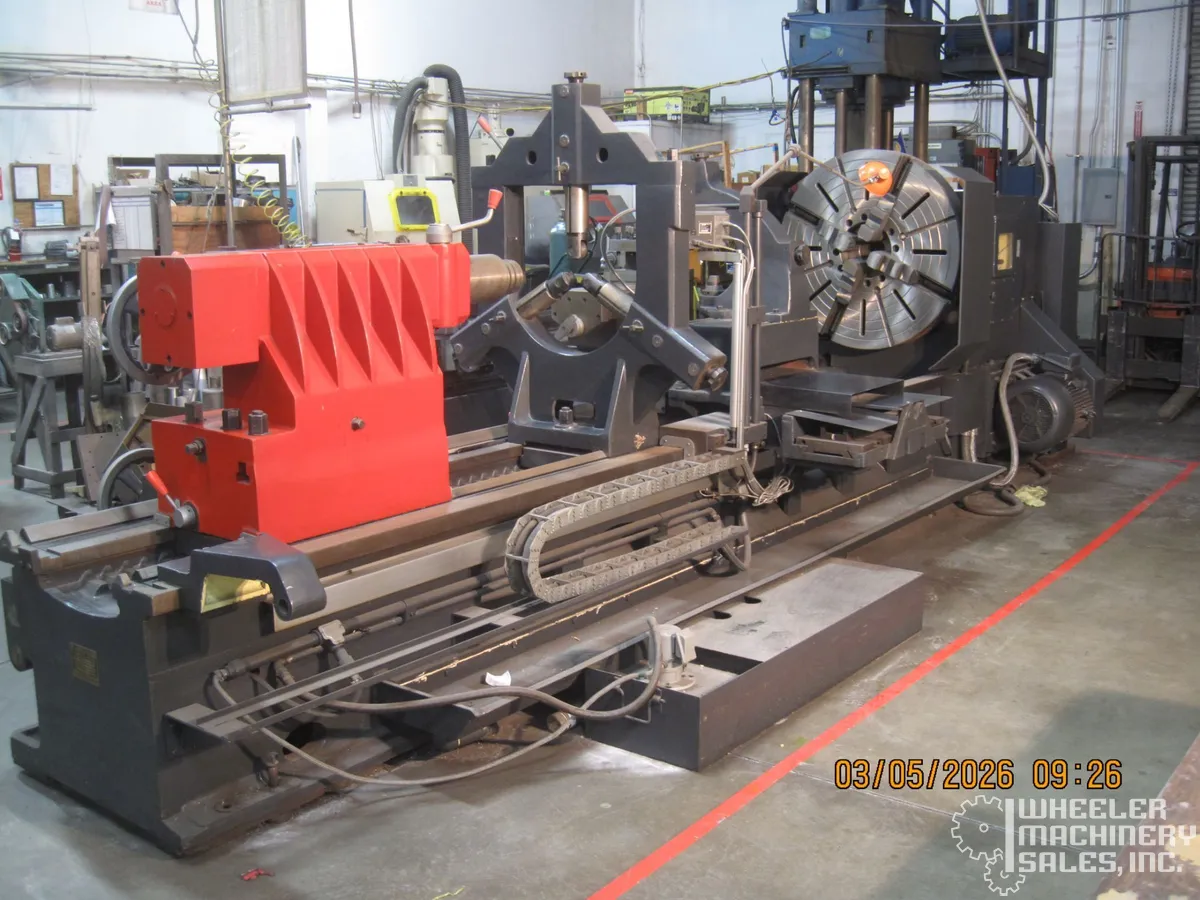

SHENYANG 61125B Large Engine Lathe #8153 #2
SPECIFICATIONS:
Swing over bed: 1000/1250 mm
Distance between centers: 1500/3000/5000 - 15000 mm
Swing over cross slide: 610/850 mm
Spindle bore diameter: 130 mm
Front taper of spindle hole: Metric 140
Number of forward spindle speeds: 21
Number of reverse spindle speeds: 12
Range of tool post feed per spindle revolution: 56
Longitudinal feeds: 0.1 - 12 mm
Cross feeds: 0.05 - 6 mm
Upper tool post feed: 0.025 - 3 mm
Metric thread pitch range: 44 kinds, 1 - 120 mm
Inch thread range: 31 kinds, 24 - 1/4 t.p.i
Module thread range: 45 kinds, 0.5 - 60 mm
Diametral pitch thread range: 38 kinds, 1/2 - 56 DP
Saddle travel: Workpiece length minus 50 mm
Cross travel of lower tool post: 520 mm
