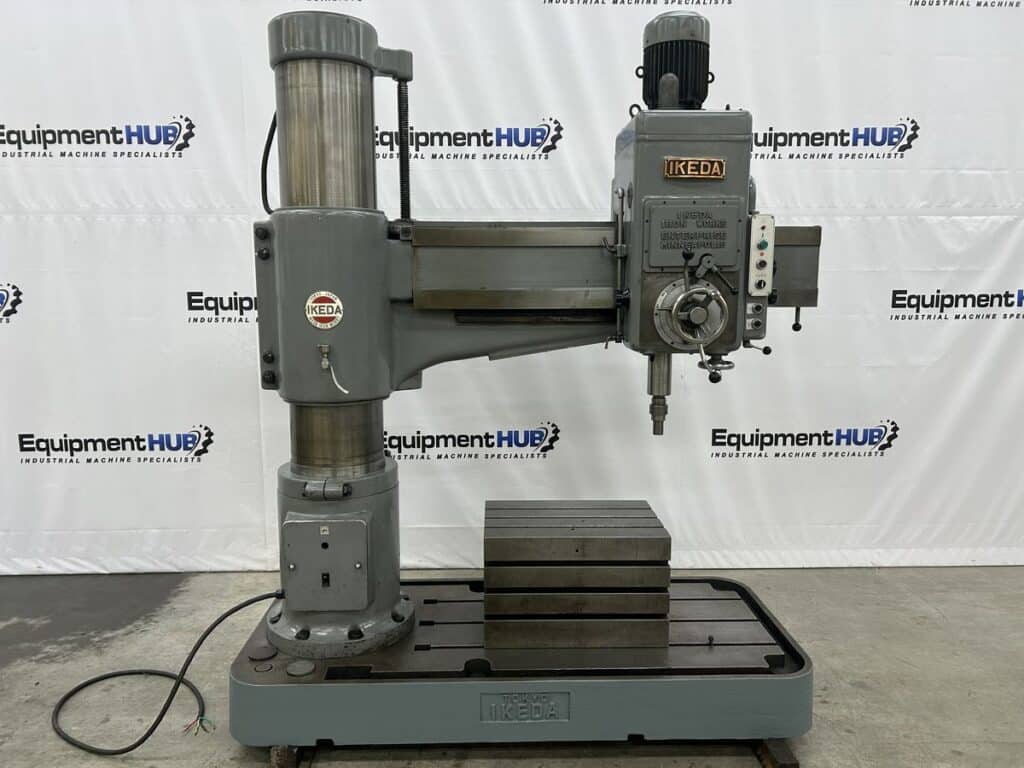

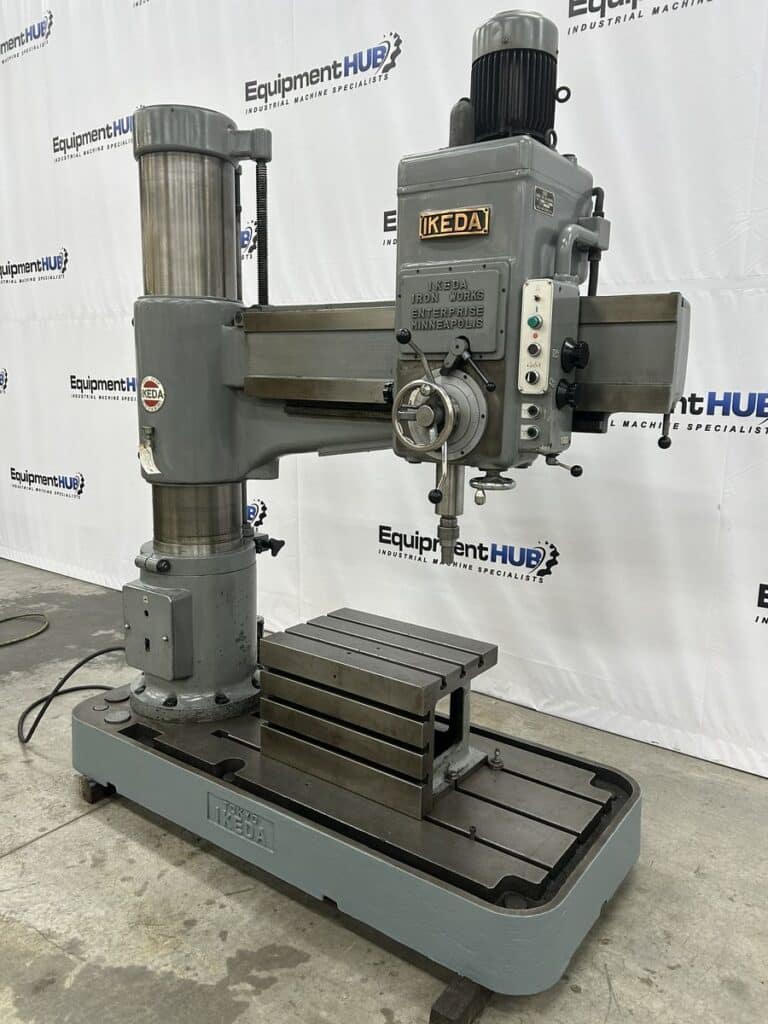

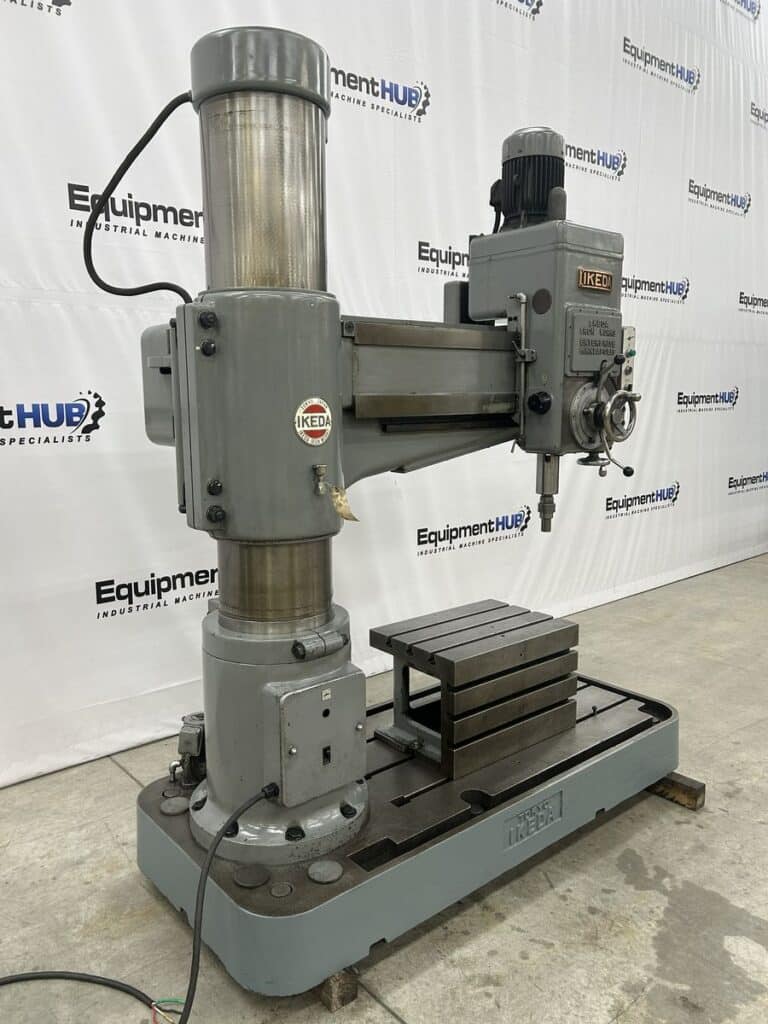

Ikeda RM1300 4′ x 13″ Radial Arm Drill

Manufacturer

Ikeda

Category

Drilling Machines

Type

DRILLS, RADIAL

Stock

180260011

Model

RM1300

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 180260011
  • Location: Decatur, GA

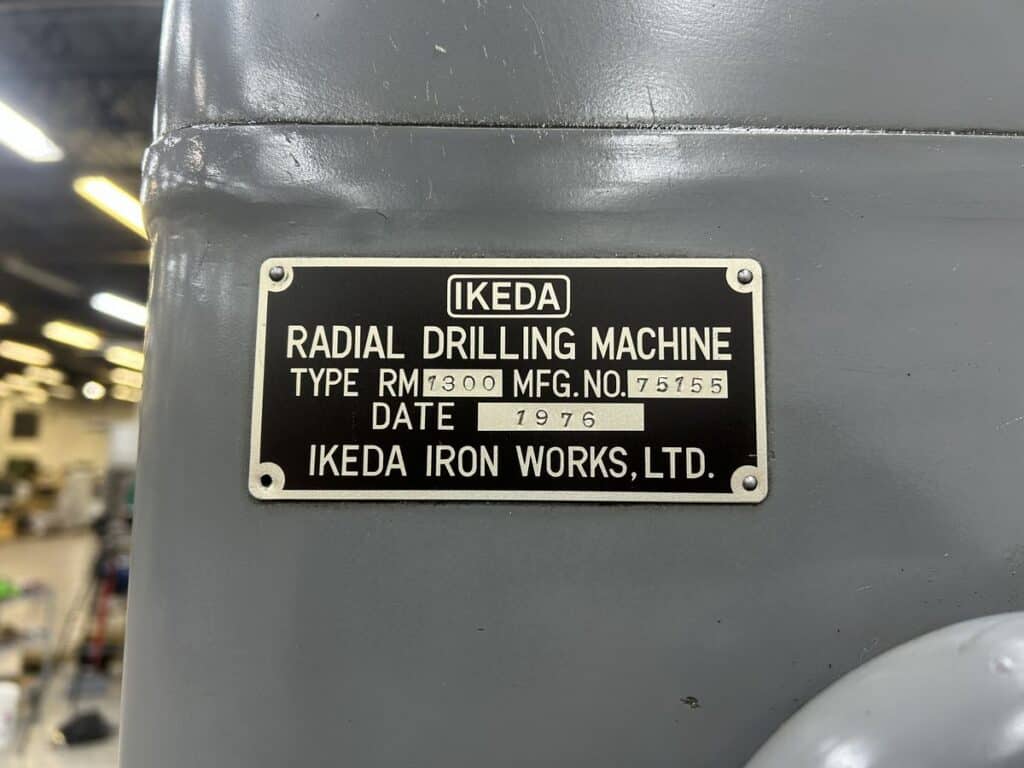

  • Brand: Ikeda
  • Model: RM1300
  • Serial #: 75155
  • Year: 1976
  • Approx. Shipping Weight: 6,000 Lbs.
  • Approx. Shipping Dimensions: 8′ L x 3′ W x 8’6″ H
  • Skidding Fee: Skidding Unavailable

Specifications

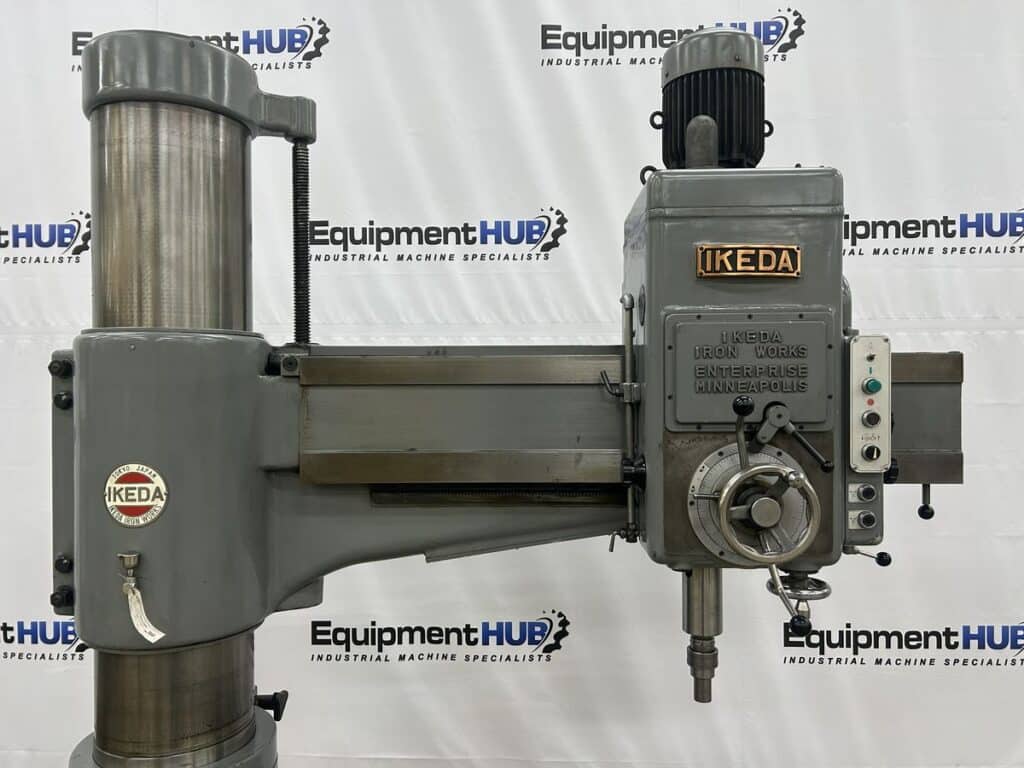

  • Arm Length: 4′

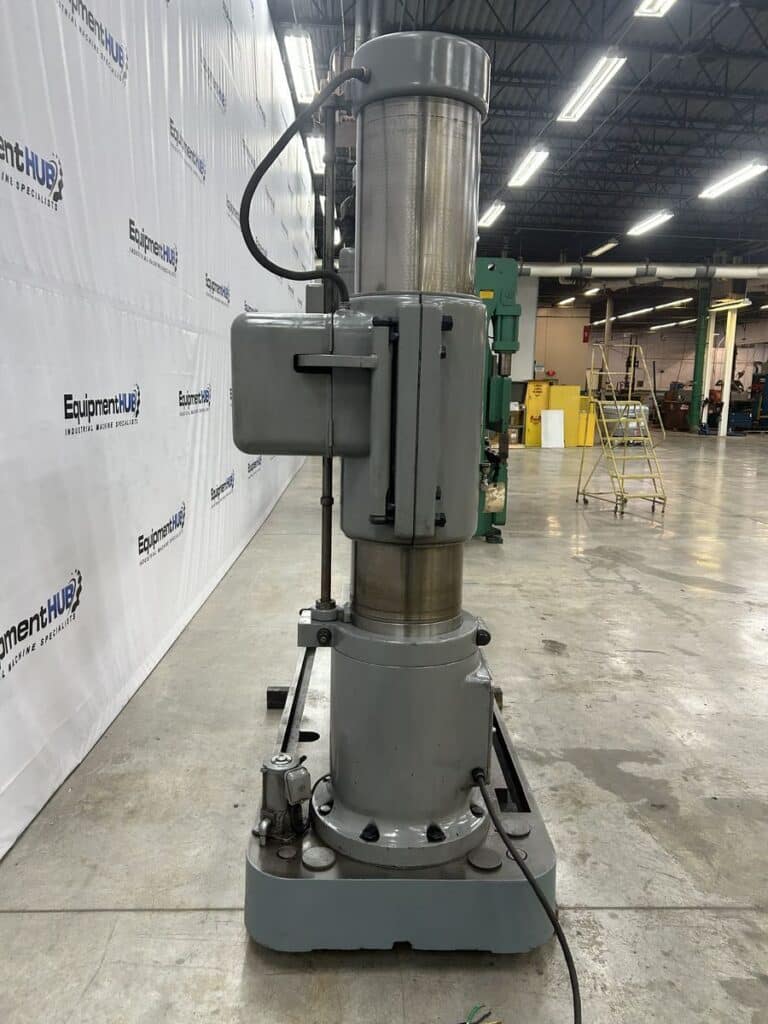

  • Column Diameter: 13-5/8″

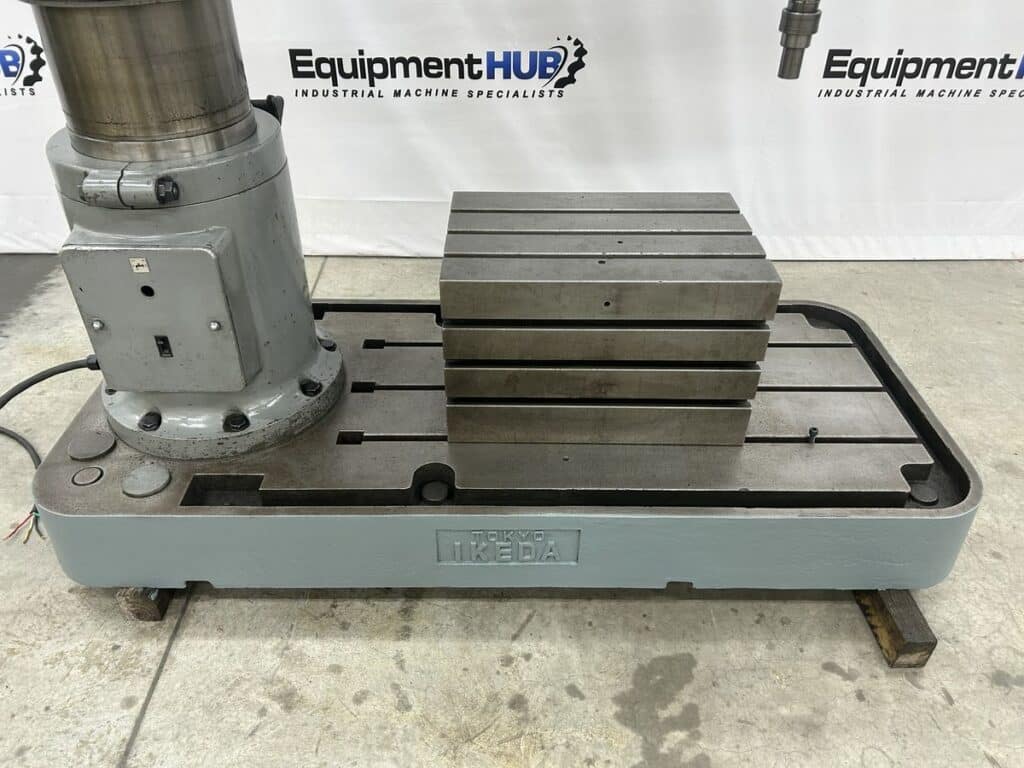

  • Area of Base (T-Slotted): 52″ x 36″

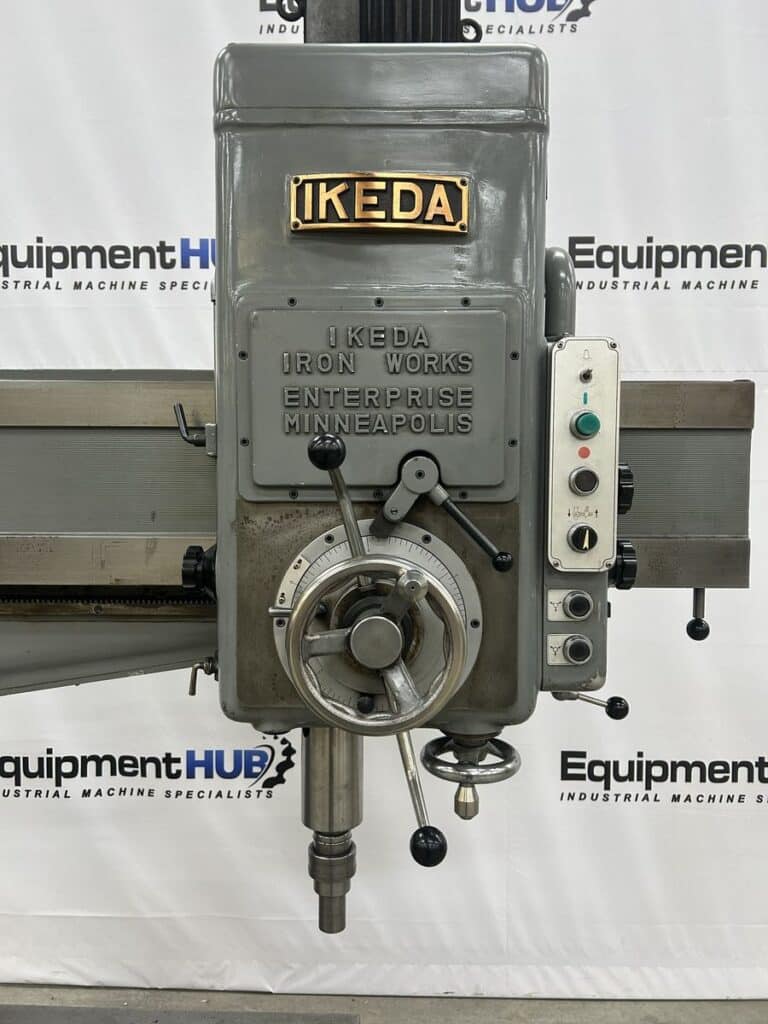

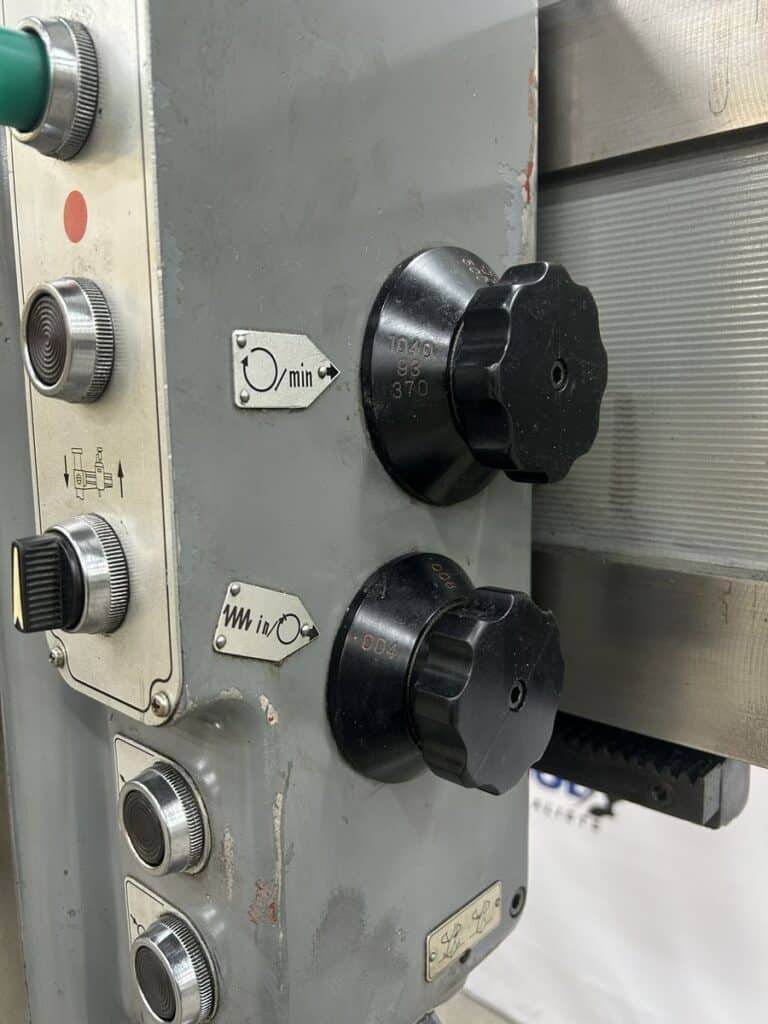

  • Spindle Speeds(12): 30 to 1440 RPM
  • Spindle Feeds: .004/.008/.013/.021 IPR
  • Spindle Stroke: 10″
  • Spindle To Column: 10-1/2″ Min. / 52″ Max.
  • Spindle To Base: 15″ Min. / 49″ Max.

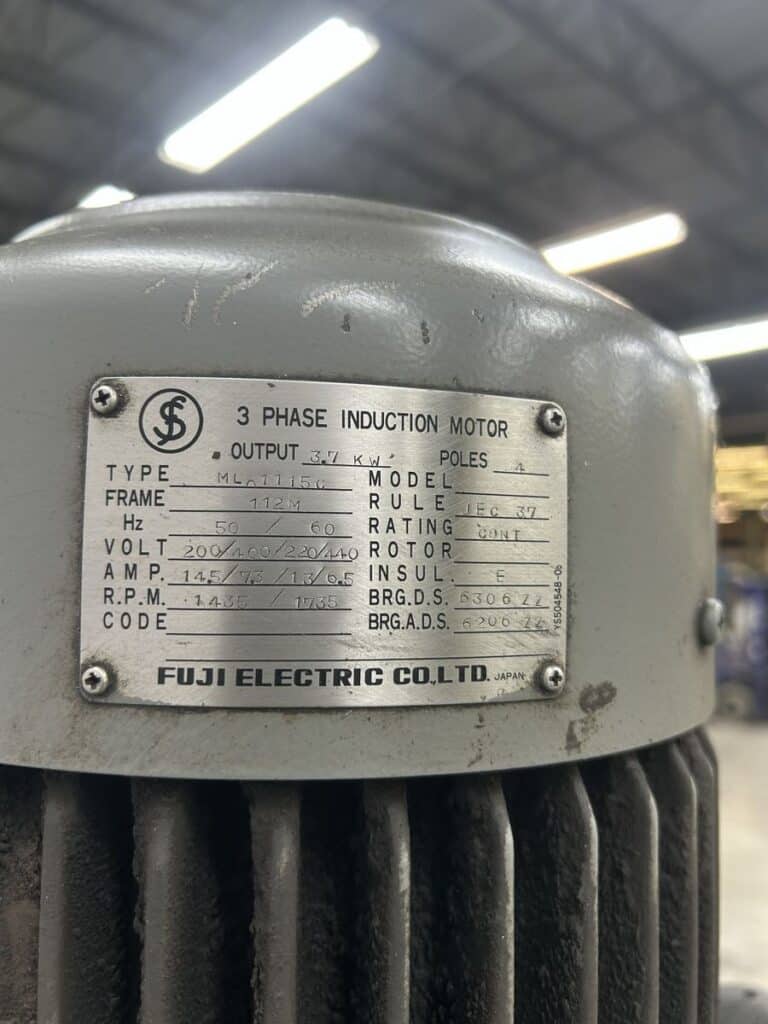

  • Spindle Motor HP: 5
  • Electrical: 460V/3PH

Equipped With

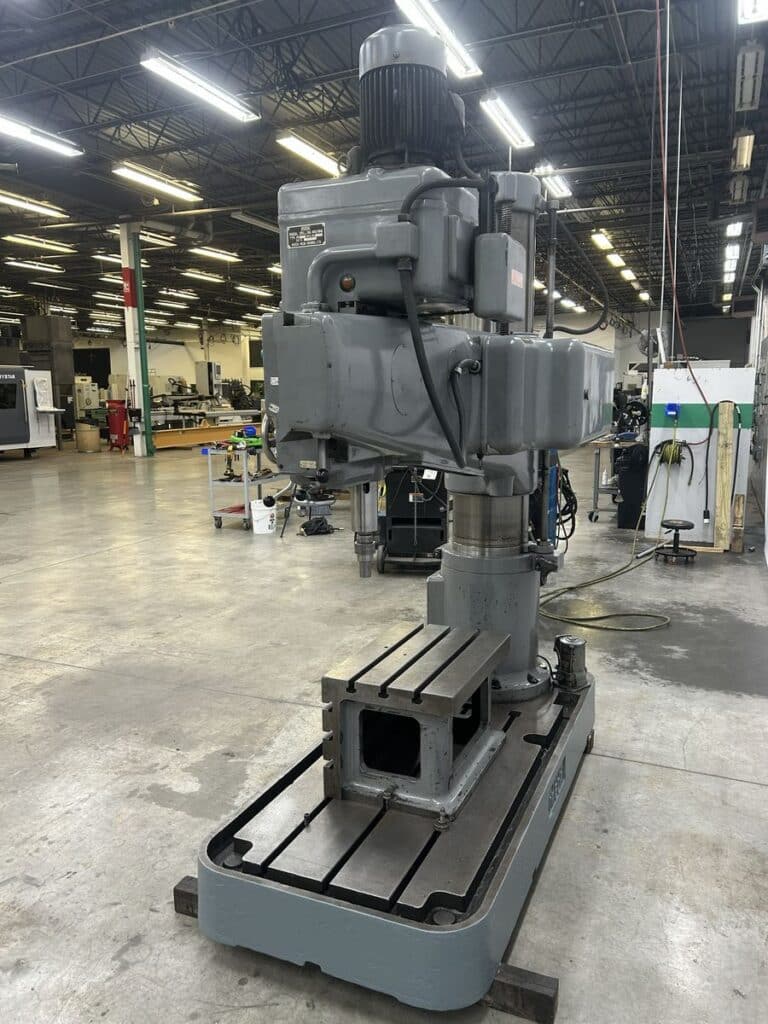

Powered Arm Elevation, Powered Arm & Head Clamping, Box Table

Additional Info

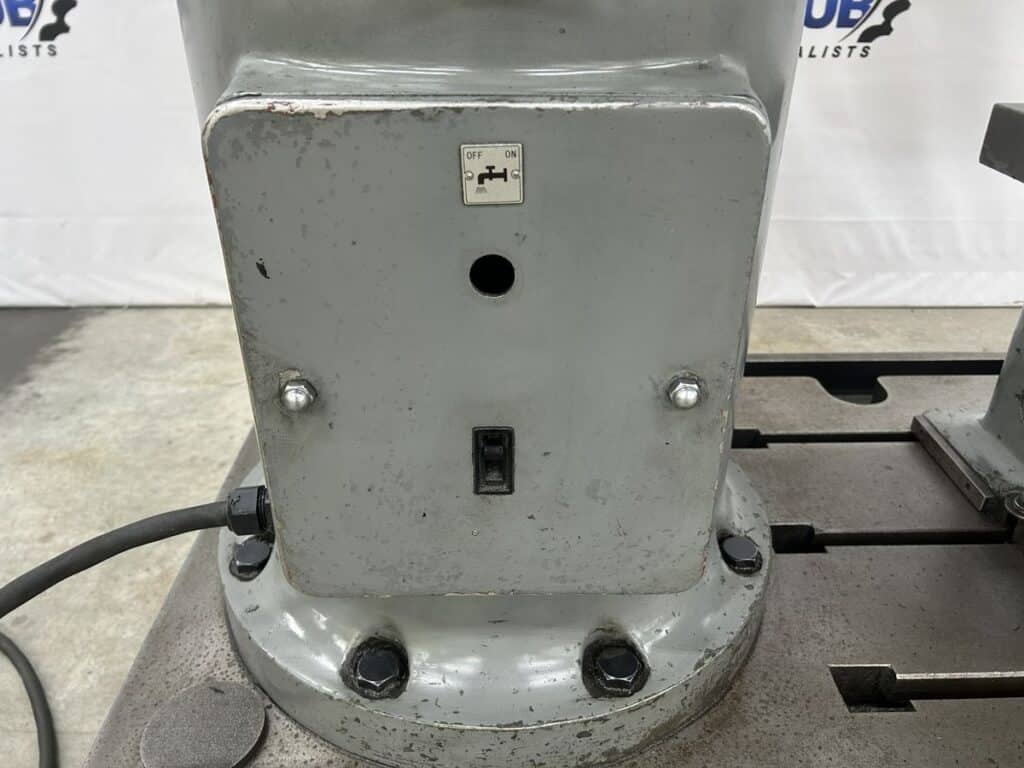

The Ikeda Radial Arm Drill can be demoed upon request, check out the video on the listing to see it in operation. The coolant pump does not work.
