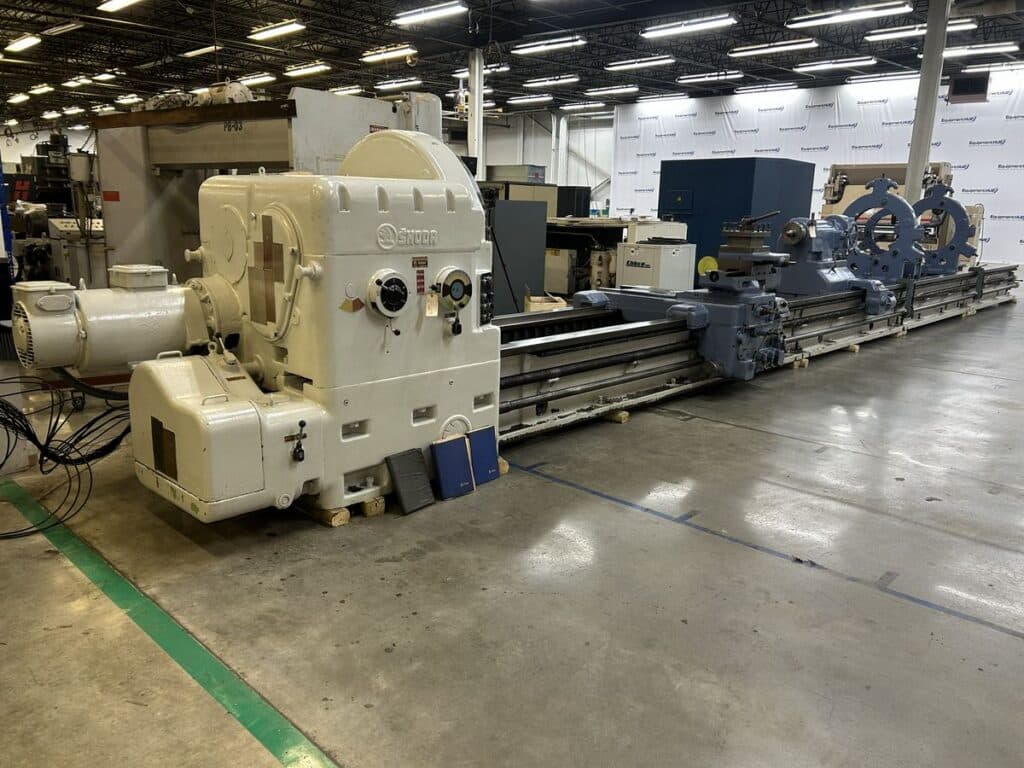

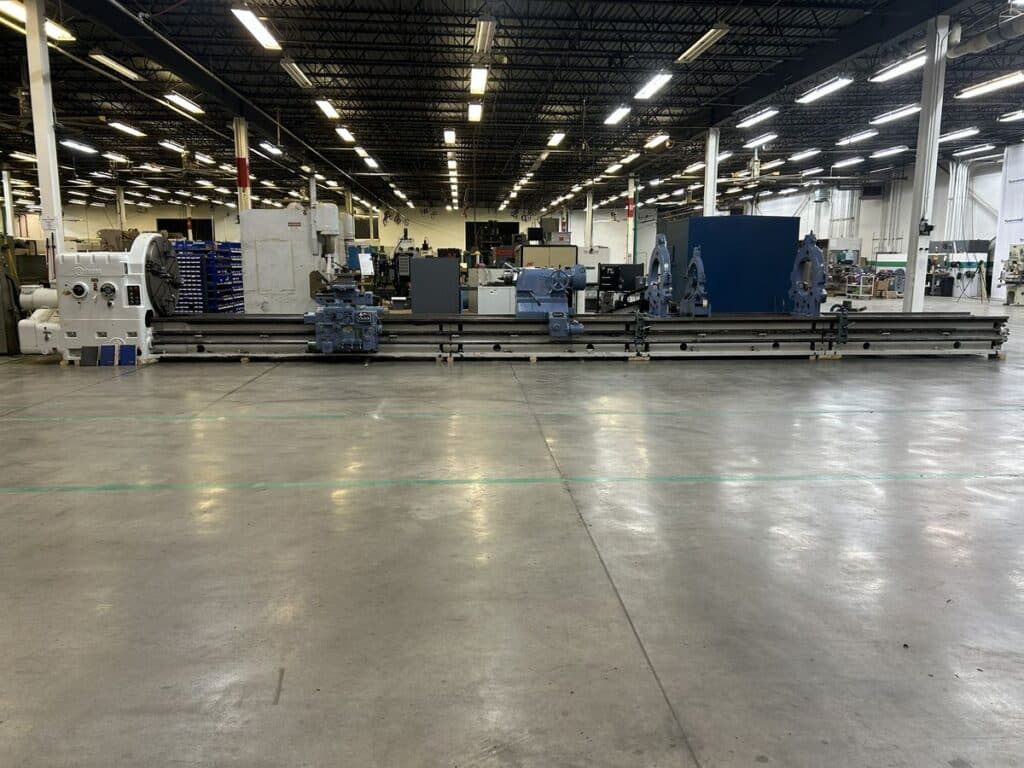

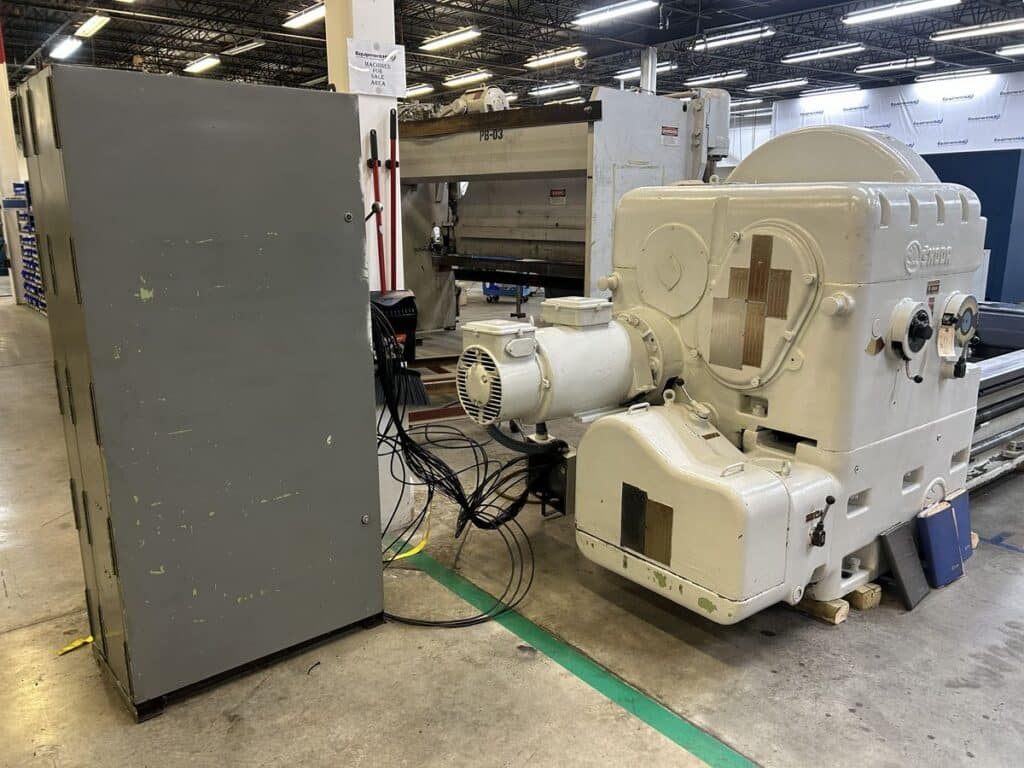

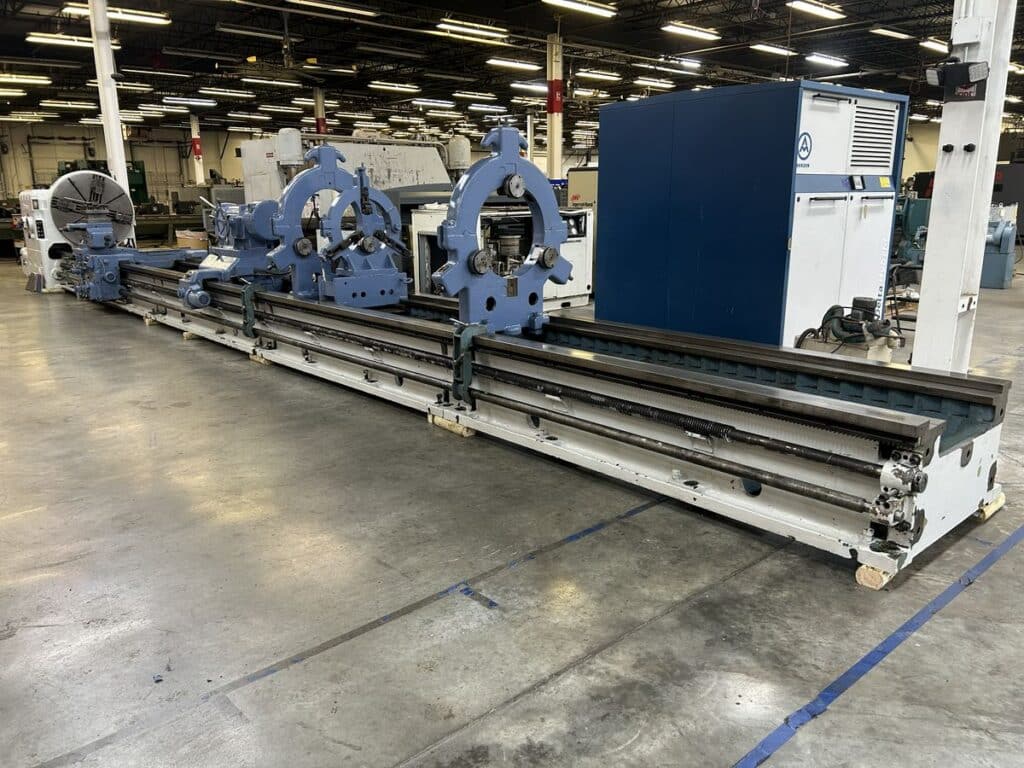

Skoda SRM 125/12-75 49″ x 480″ Heavy Duty Engine Lathe, 40′ Turning Length

Manufacturer

Skoda

Category

Lathes

Stock

180250032

Model

SRM 125/12-75

Dealer Location

Georgia

Spec Sheet

  • Stock #: 180250032
  • Location: Decatur, GA
  • Brand: Skoda
  • Model: SRM 125/12-75

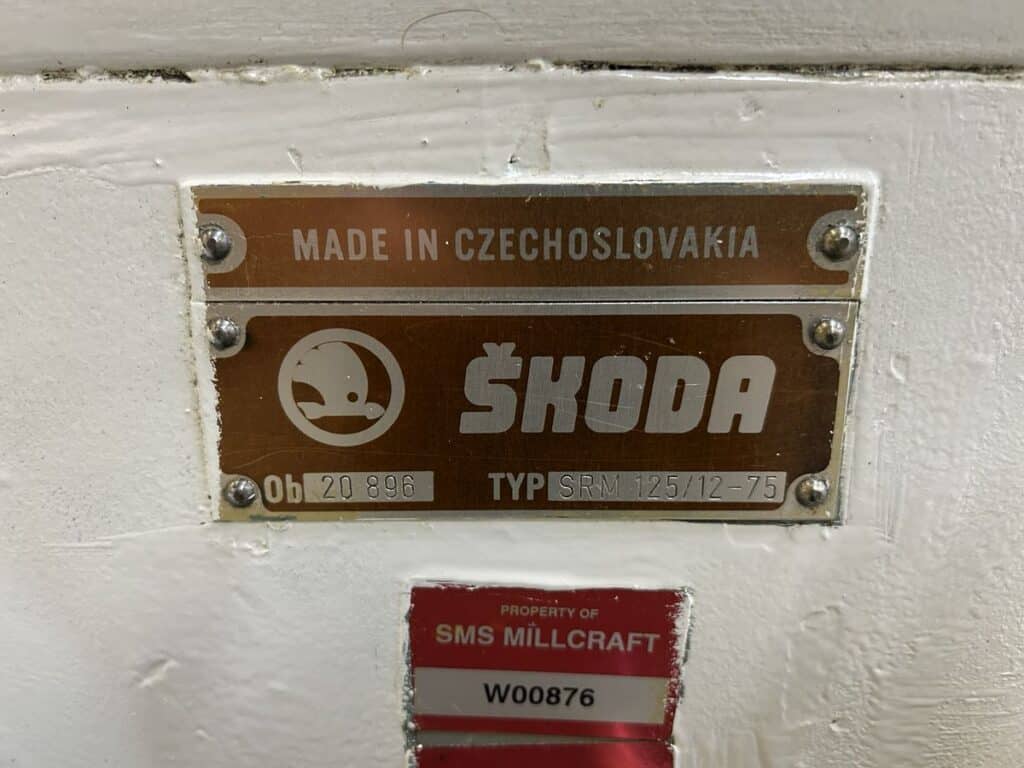

  • Serial #: 20 896
  • Approx. Shipping Weight: 55,000 Lbs.
  • Approx. Shipping Dimensions: 53′ L x 8′ W x 7′ H

Specifications

  • Swing Over Bed: 49″
  • Swing Over Carriage: 35″
  • Distance Between Centers(Approximate): 480″

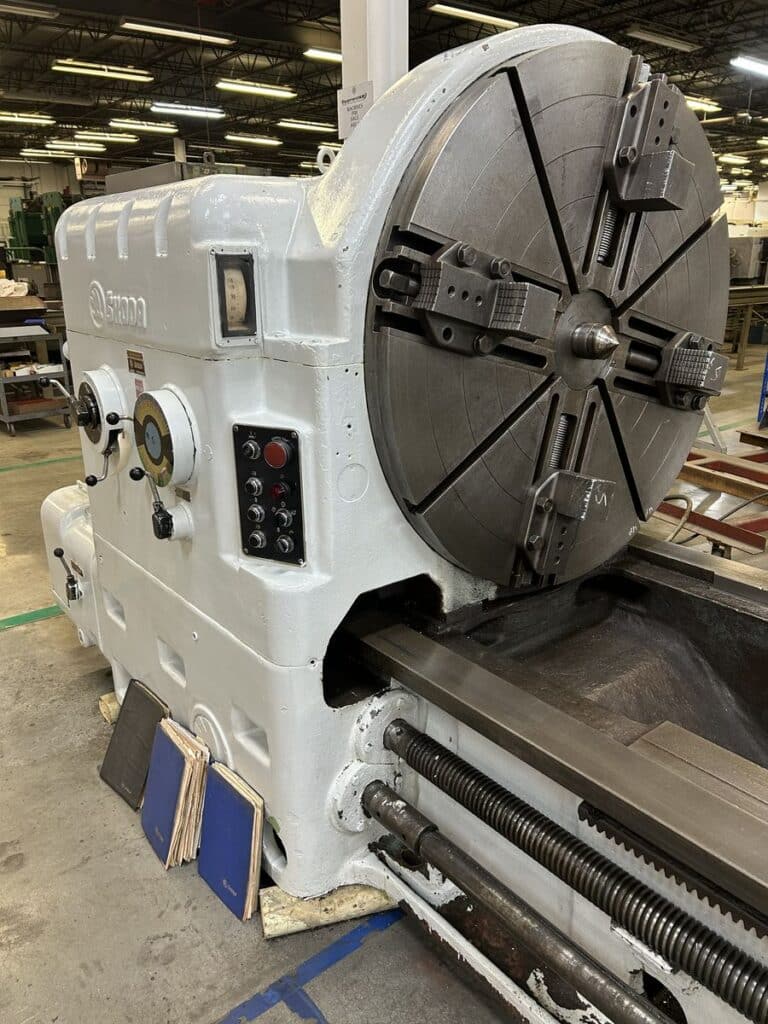

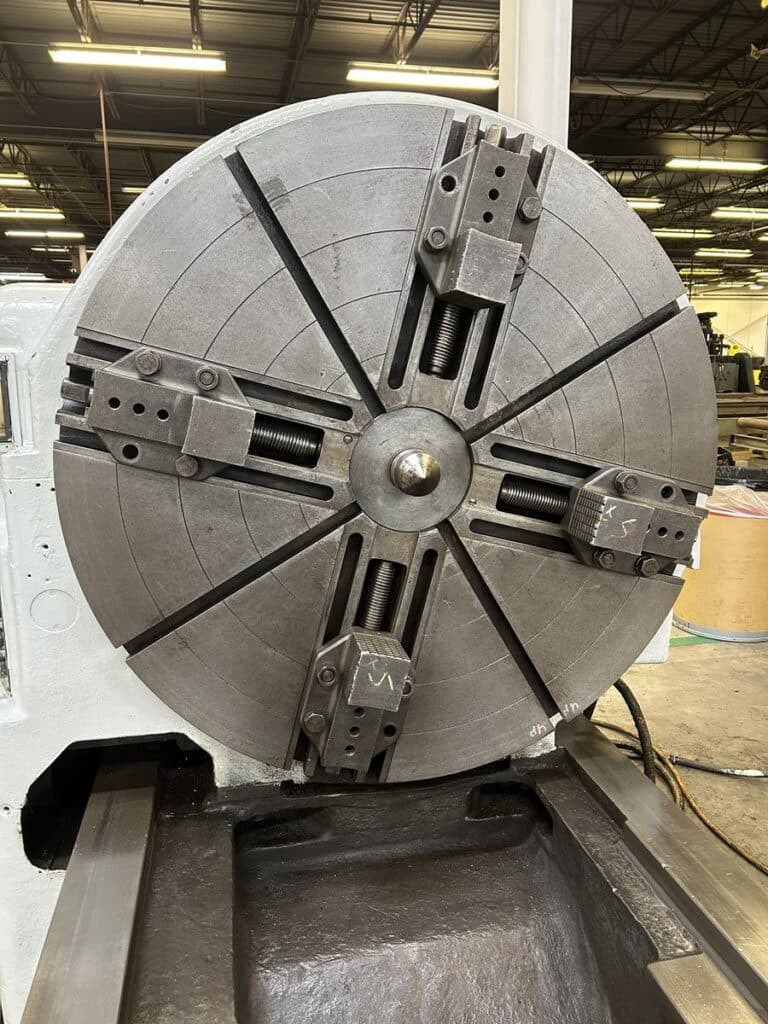

  • Maximum Torque of Face plate: 22,780 ft.-lbs.
  • Maximum Weight of Workpiece Between Centers(Without Rests): 30,850 Lbs.
  • Height of Bed: 24-1/2″
  • Width of Bed: 43-1/4″
  • Spindle Speeds 1st Range: 1.8 to 90 1.4 to 71 RPM
  • Spindle Speeds 2nd Range: 8 to 400 6,3 to 315 RPM

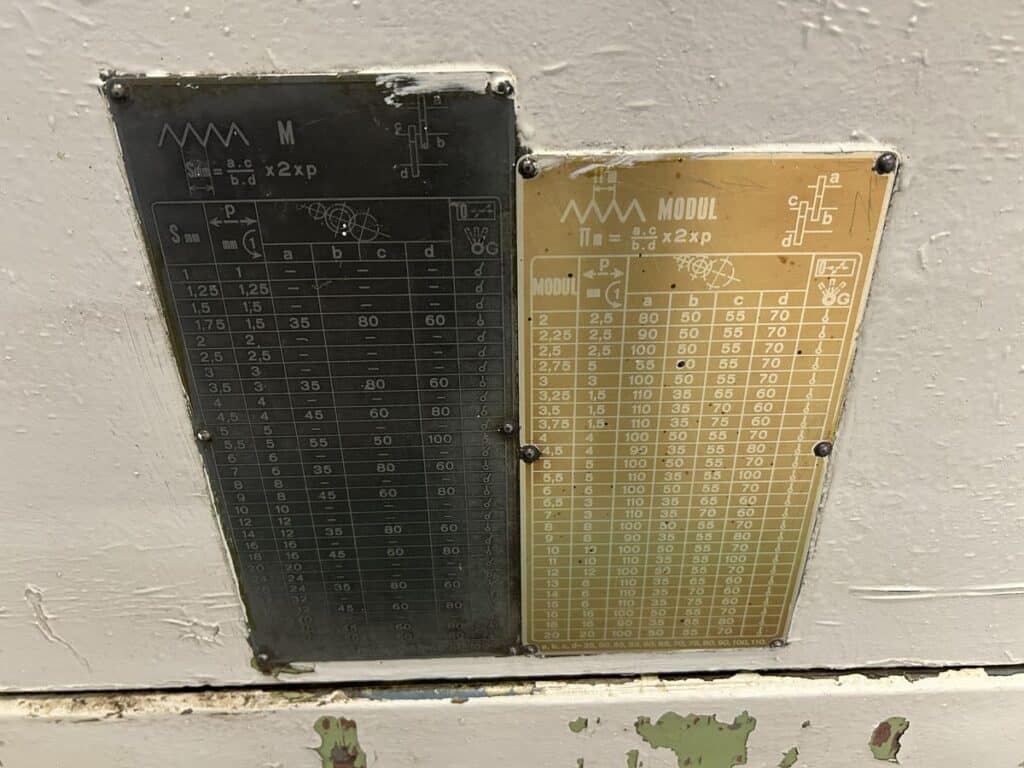

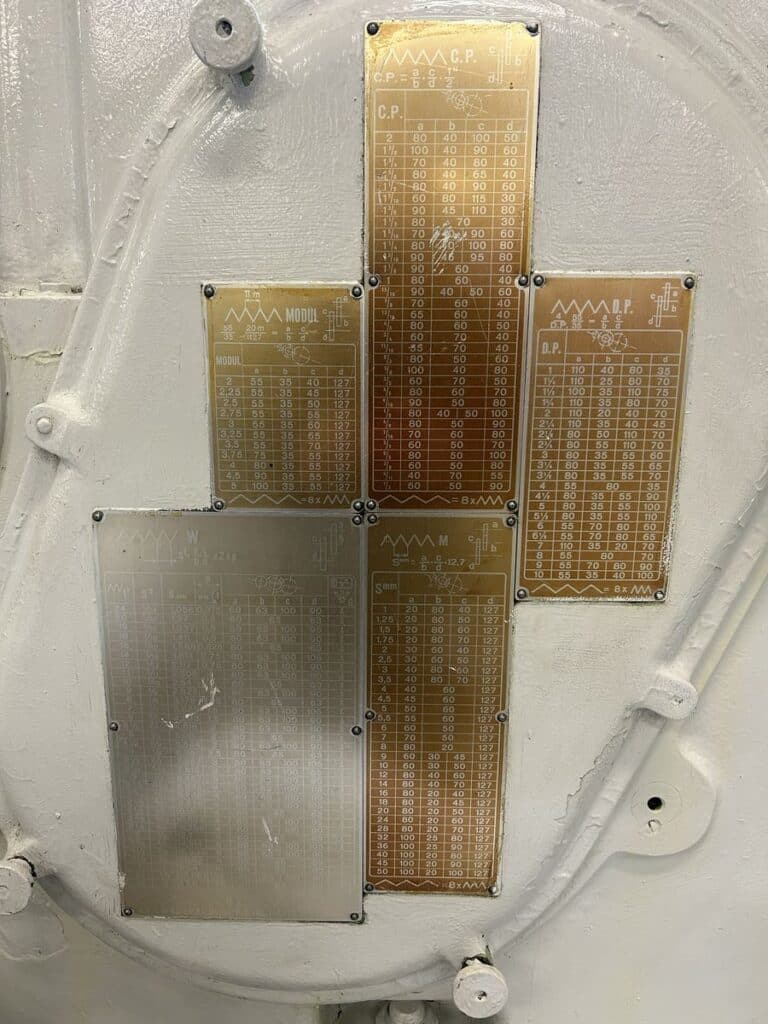

  • Metric Threads(28): 1 to 50
  • Module Threads(28): 2 to 20
  • Whitworth Threads: 24 to 1/2 TPI
  • Main Motor: 50 HP

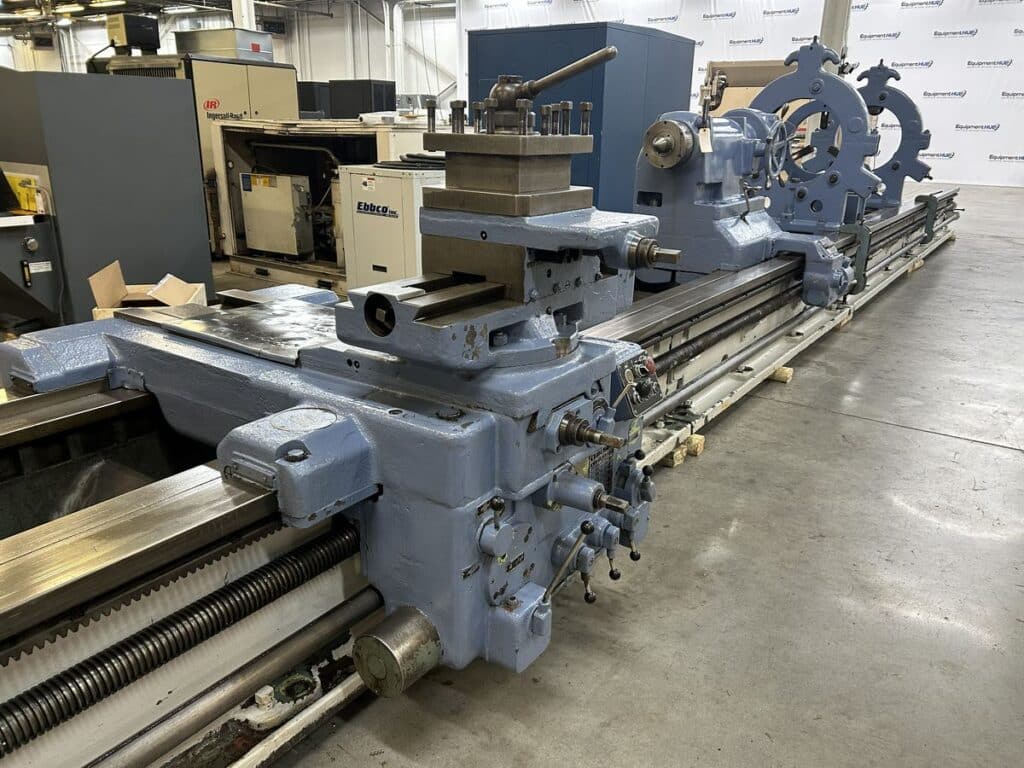

  • Motor For Rapid Traverse of Carriage: 1.75 HP

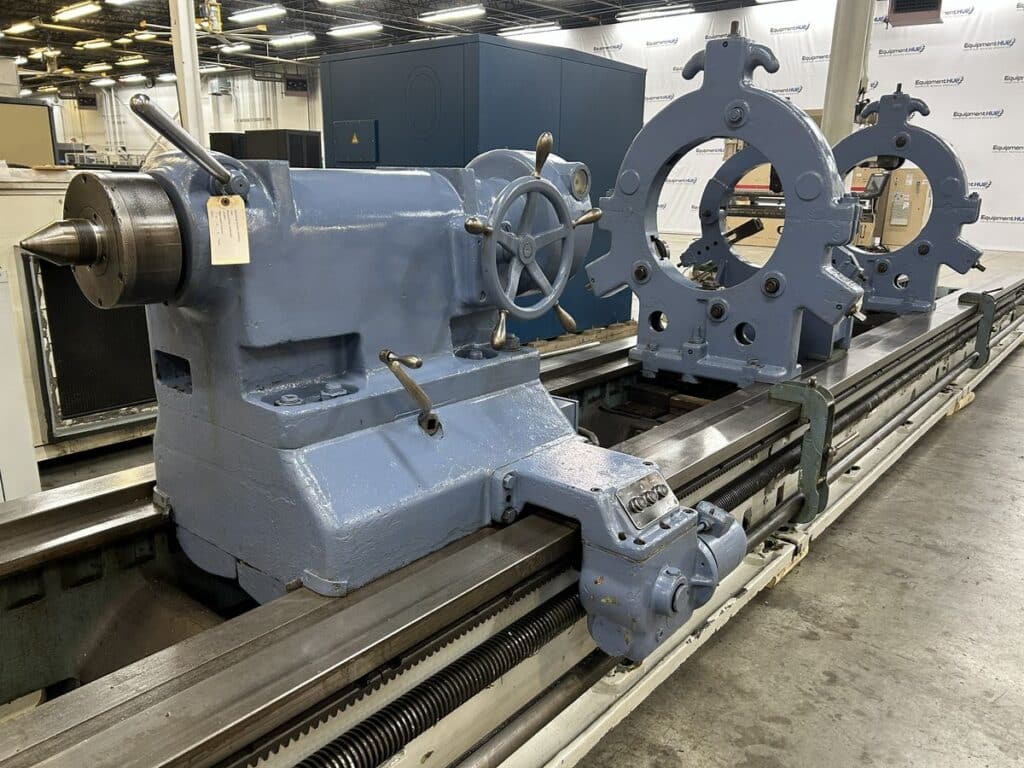

  • Motor For Travel of Tailstock: 1.5 HP
  • Overall Bed Length: 542″
  • Electrical: 480V/3PH

Equipped With

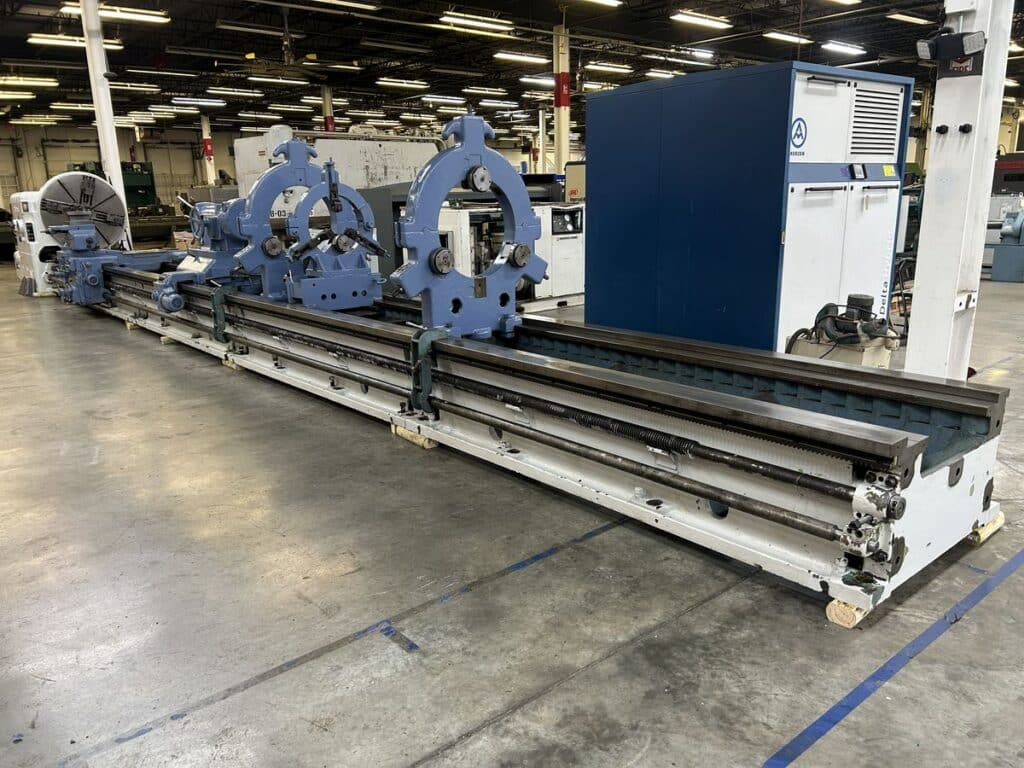

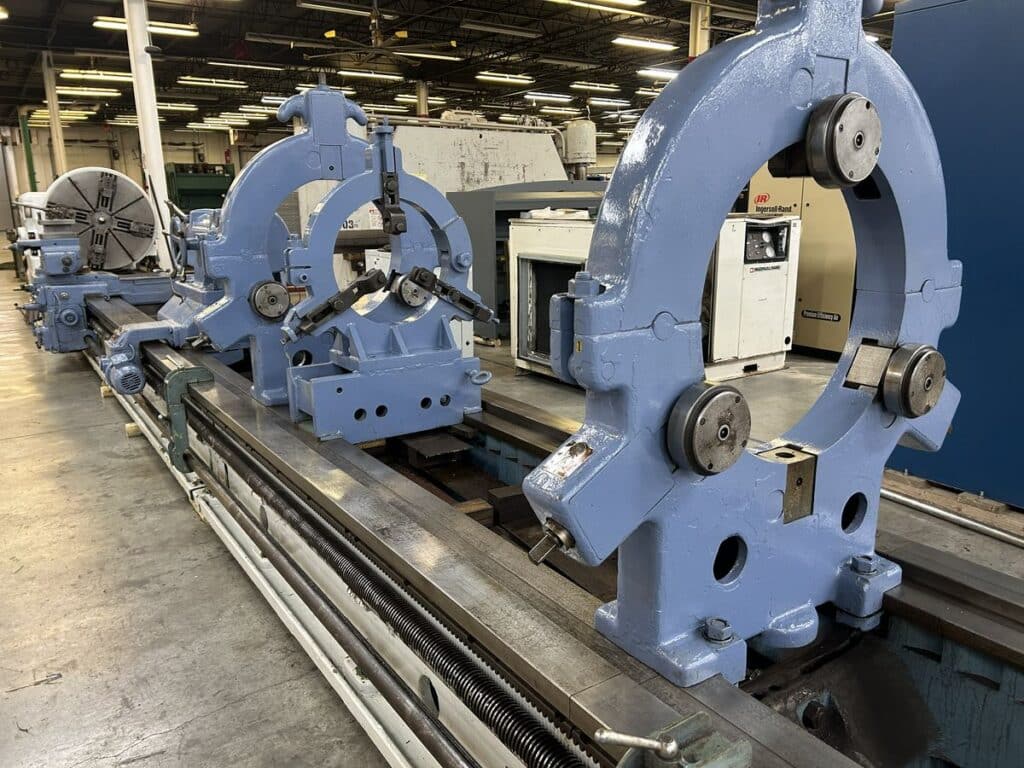

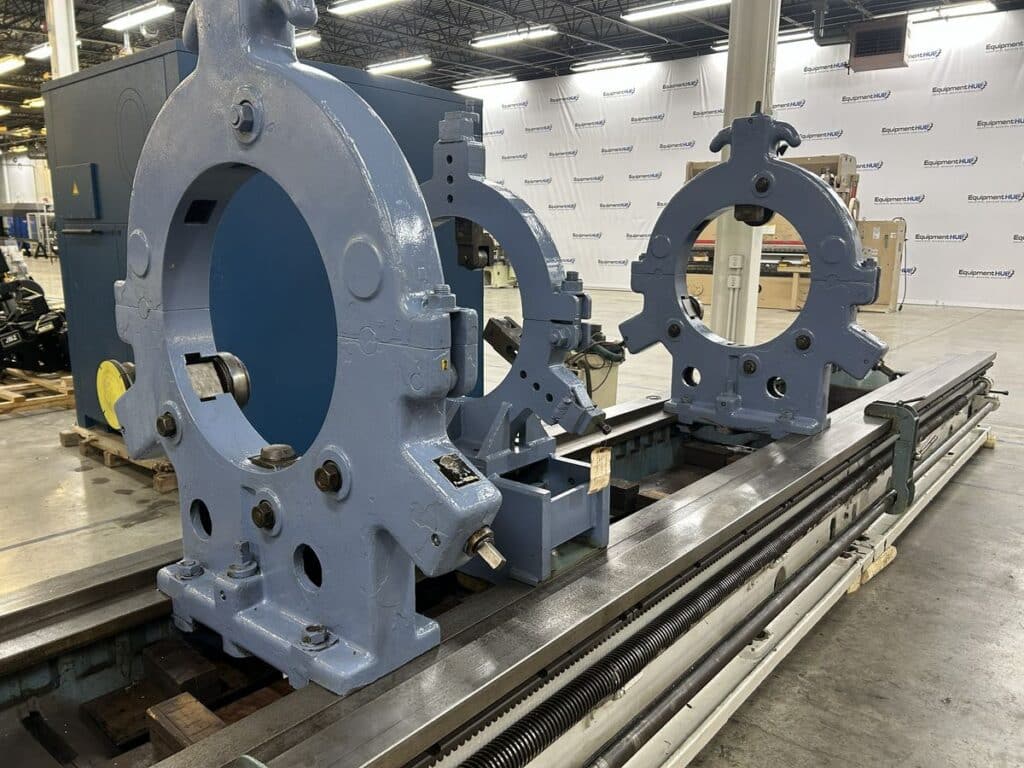

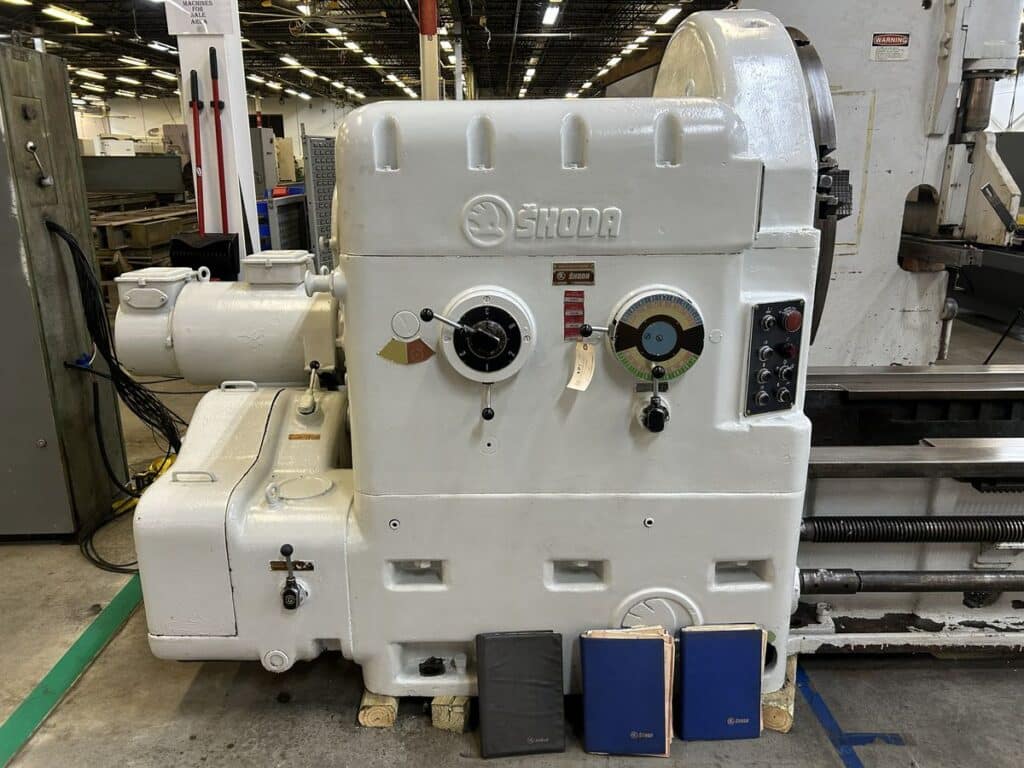

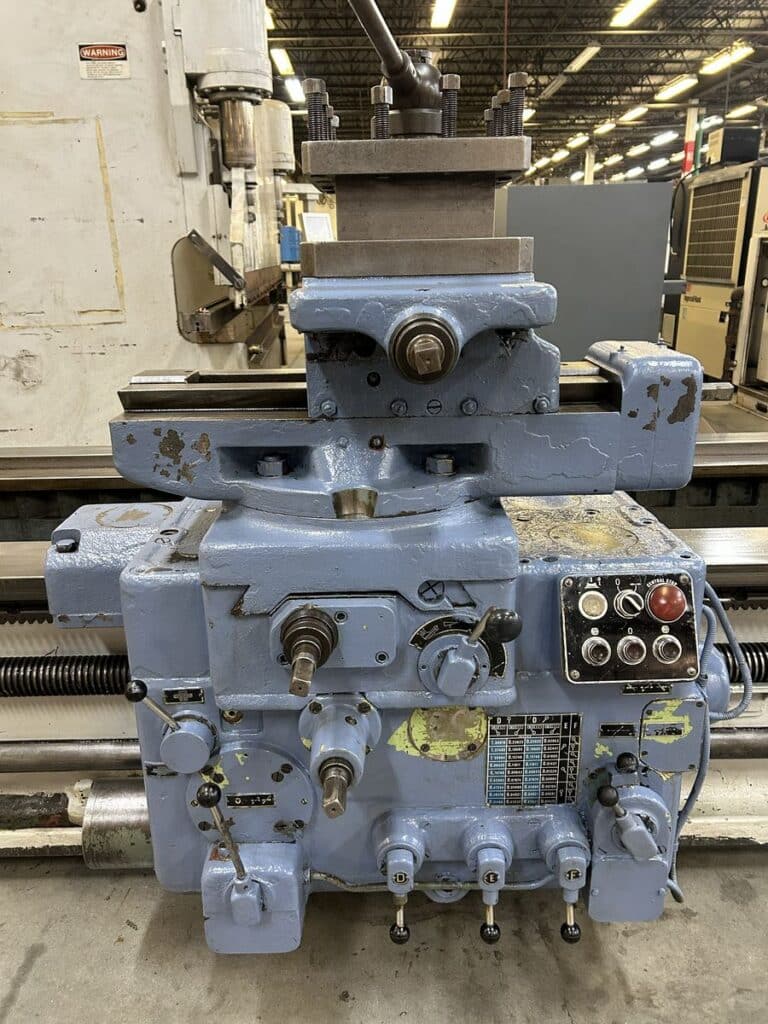

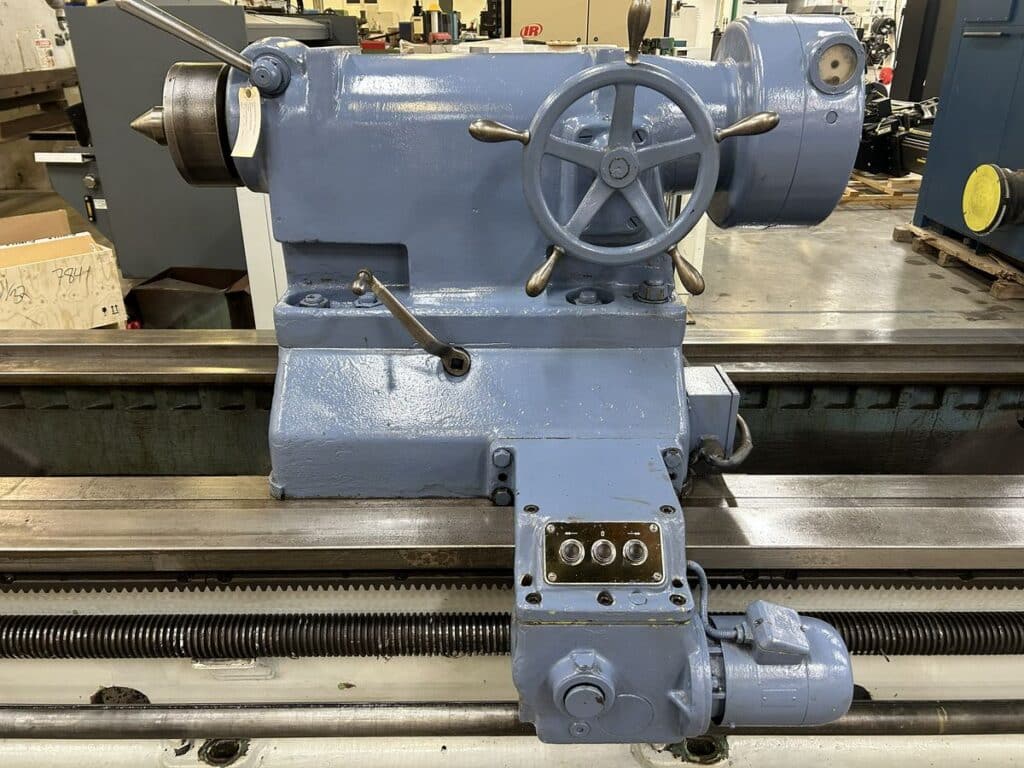

(3) Steady Rest, Powered Tailstock, Powered Carriage Feed, Manuals/documentation

Additional Info

The Skoda Engine Lathe can be demoed upon request.
