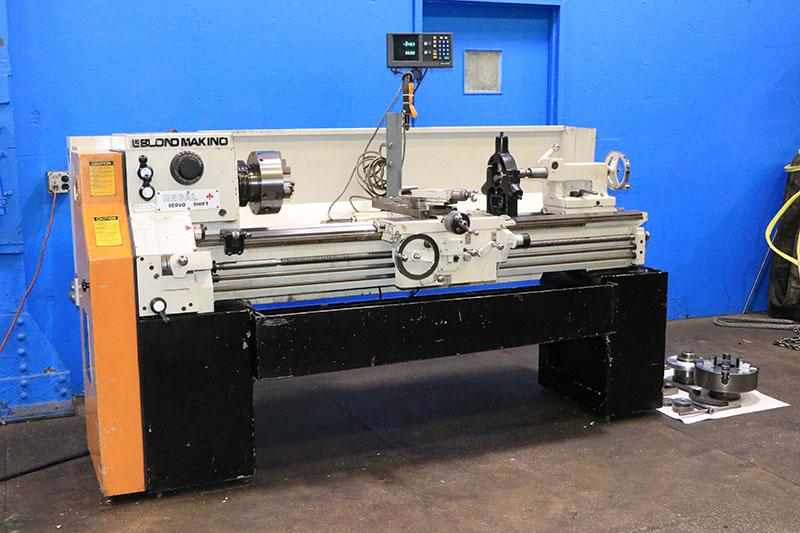

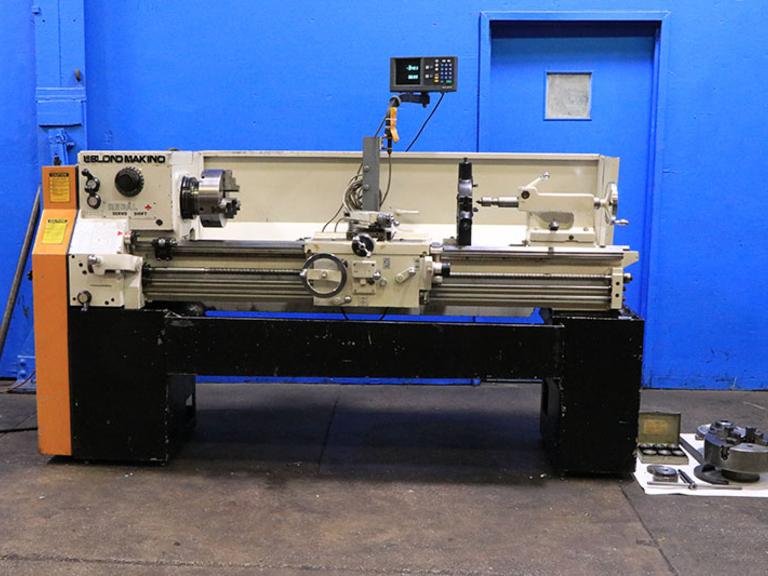

Leblond Makino 15" x 54" Regal Engine Lathe , Servo-Shift

Manufacturer

Leblond

Category

Lathes

Type

LATHES, ENGINE

Stock

7342

Model

Regal 15" x 54"

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Max Swing Over Ways: 15.5"

Max Swing Over Cross Slide: 9.5"

Max Center Distance: 54"

Spindle Speeds: (12) 45-1,800 RPM

Hole Thru Spindle: 2-17/64"

Spindle Mount: L1 Threaded Nose

Tailstock Quill Travel: 5"

Tailstock Quill Taper: #4 MT

Feed Rates: (48) .0018 - .104 IPR

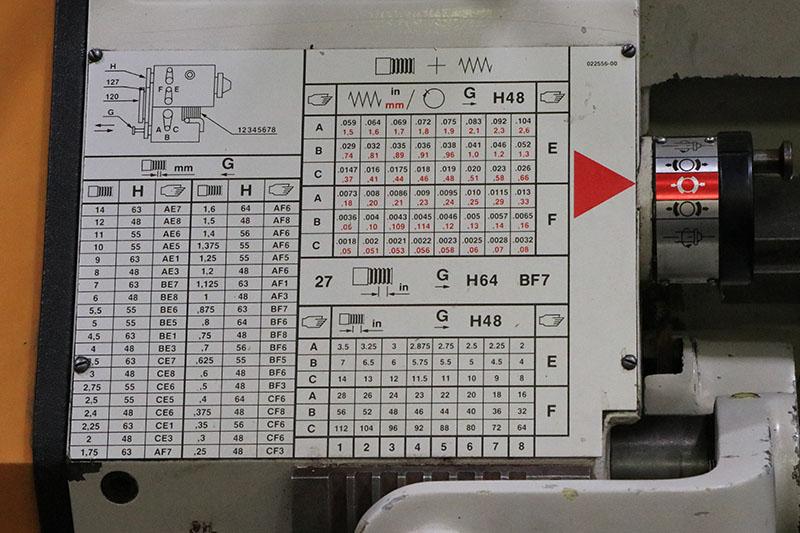

Threading Capacities: Inch (48) 2-112 TPI / Metric (40).25 - 14mm

Drive Motor: 7.5 HP

Equipped With:

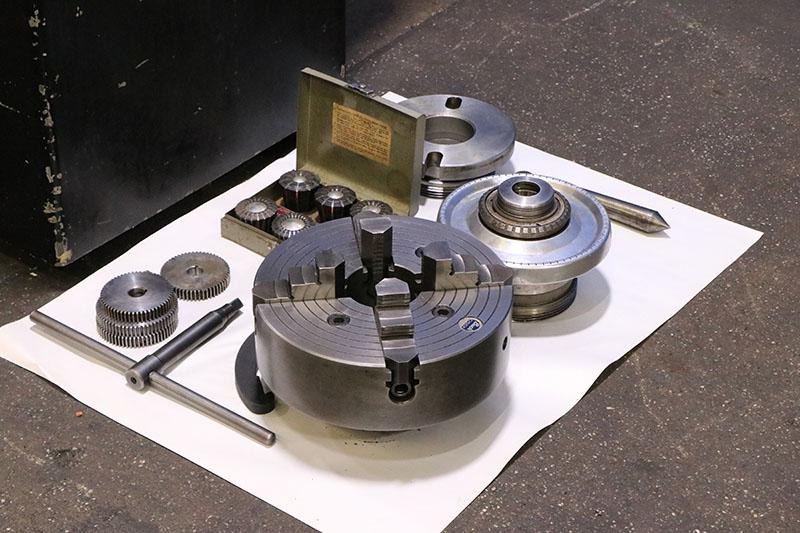

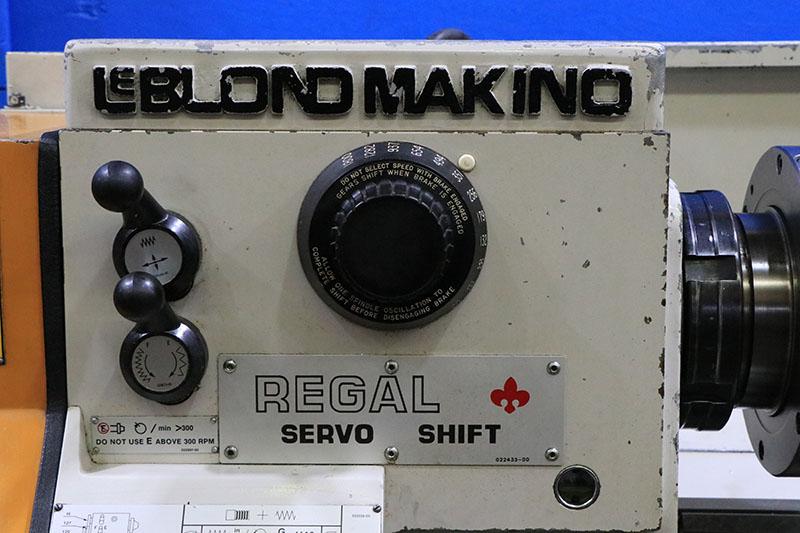

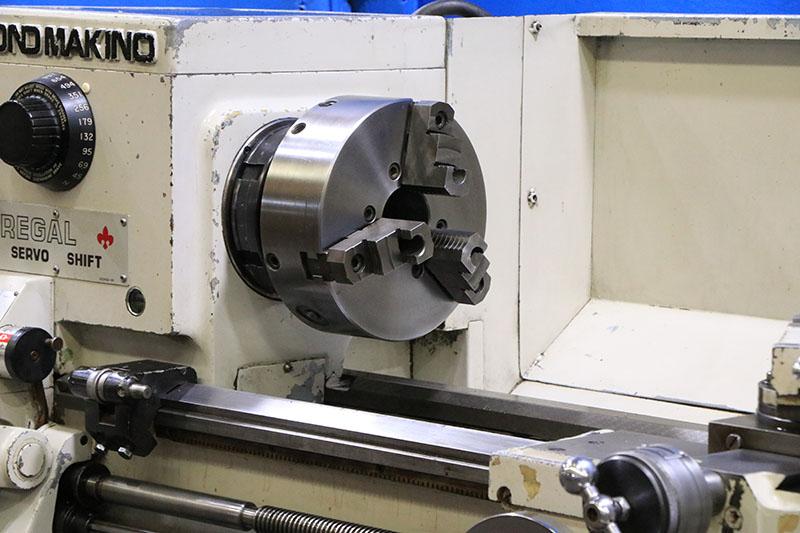

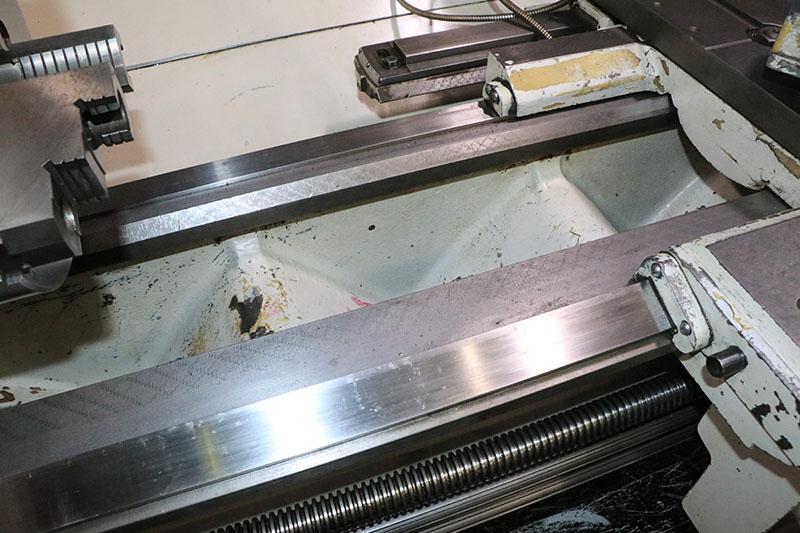

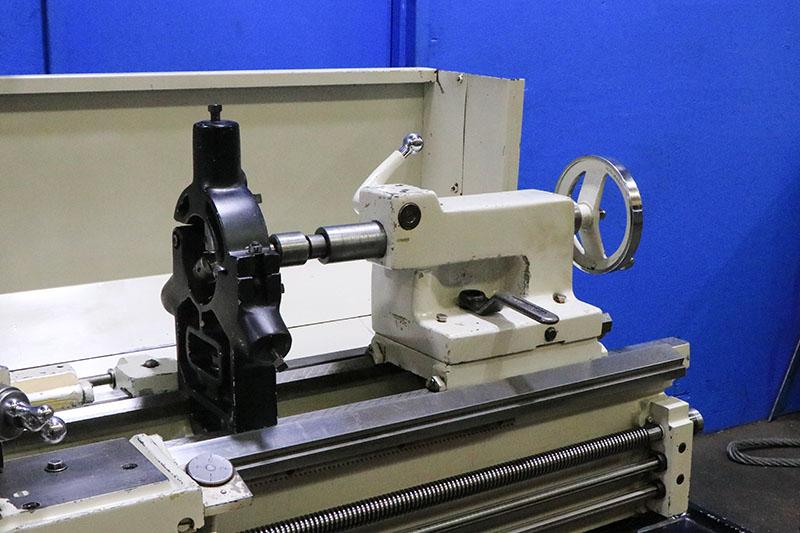

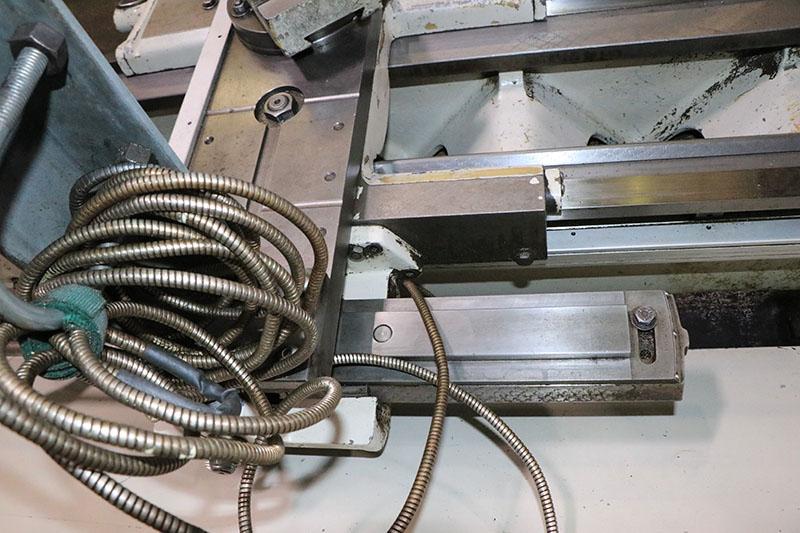

Servo Shift Speed Control, Inch & Metric Threading, Acu-Rite 2-Axis Digital Readout, Taper Attachment, 10" 3-Jaw Buck Chuck, 12" 4-Jaw Buck Chuck, Jacobs Rubber Flex Collet Chuckw Collets, Roller Type Steady Rest, Tailstock, Tailstock Center, Threading Dial, Micrometer Carriage Stop, Coolant System with Removable Chip Pan, Hardened & Ground Replaceable Ways, 7.5 HP Drive Motor

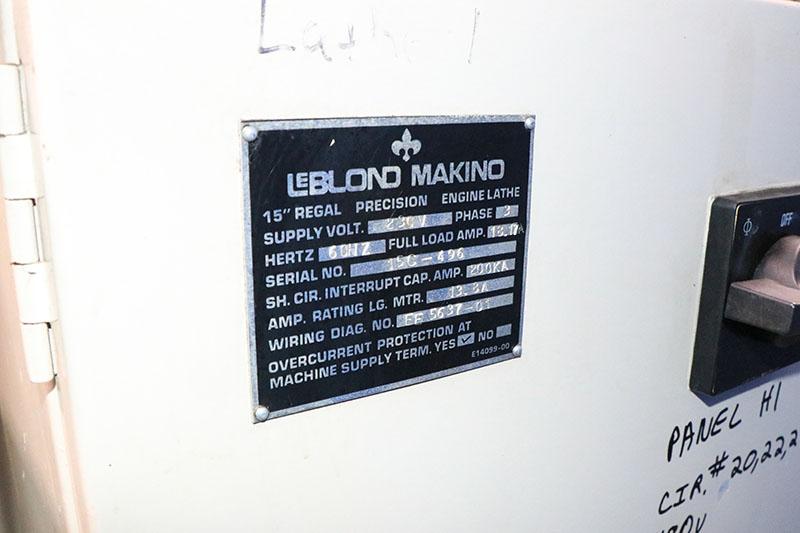

Electrics:

3 Phase
