Nomura NN-16SB6 Type 3 CNC Swiss Type Automatic Screw Machine with Mitsubshi M70 CNC Control, Edge Bar Feed, MP High Pressure Coolant and MORE!- Auction Item

Manufacturer

Nomura

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

Lot No.: 10

Model

NN-16SB6 Type 3

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/49967">,

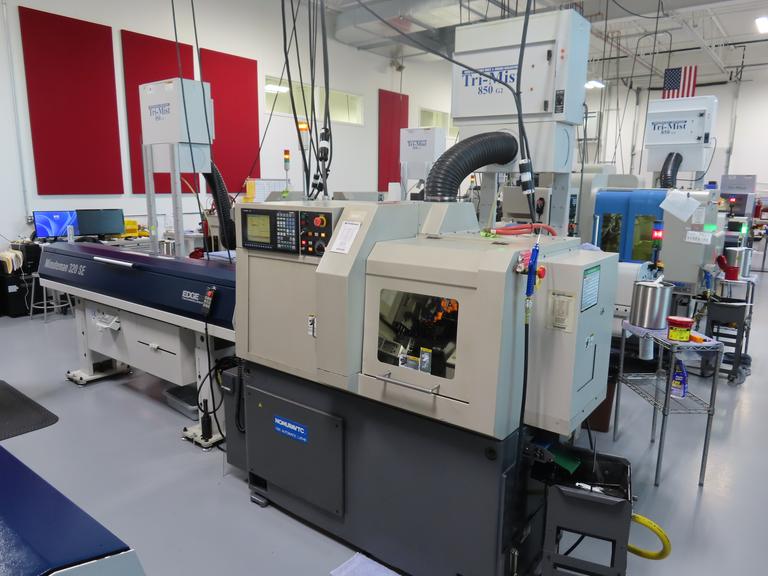

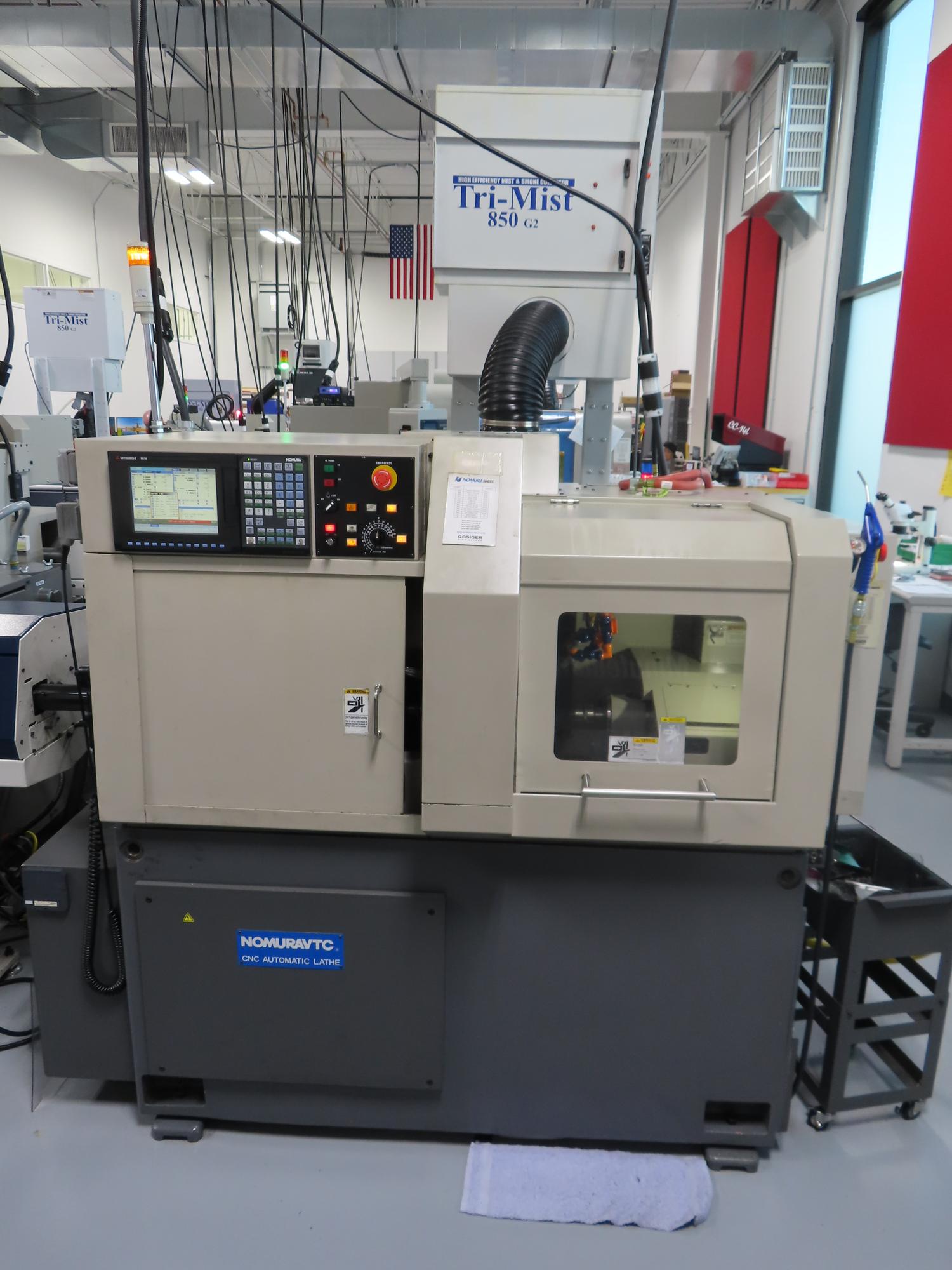

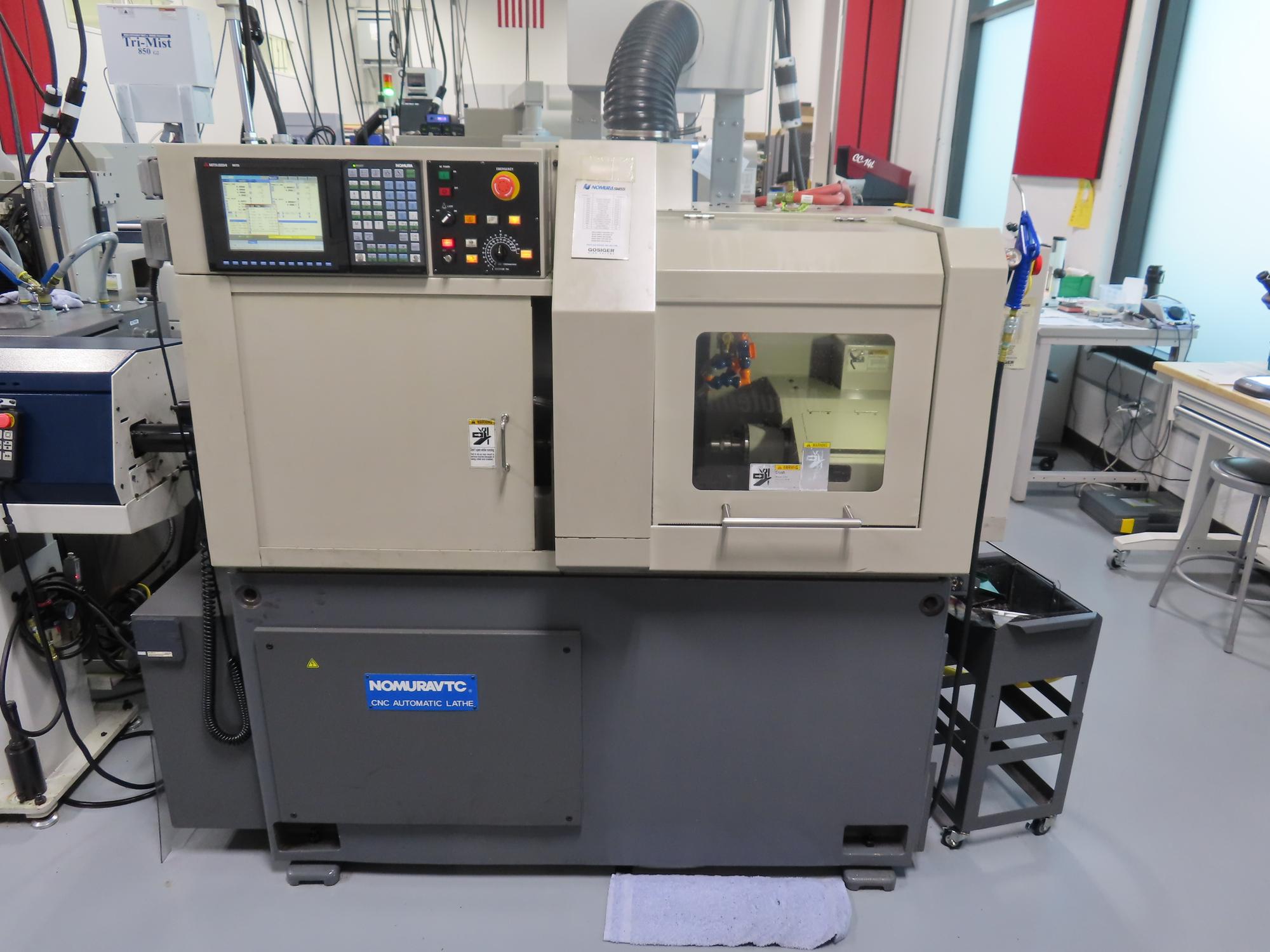

Lot 10: Nomura NN-16SB6 Type 3 CNC Swiss Type Automatic Screw Machine with Mitsubshi M70 CNC Control, Edge Bar Feed, MP High Pressure Coolant and MORE!
Equipped With:

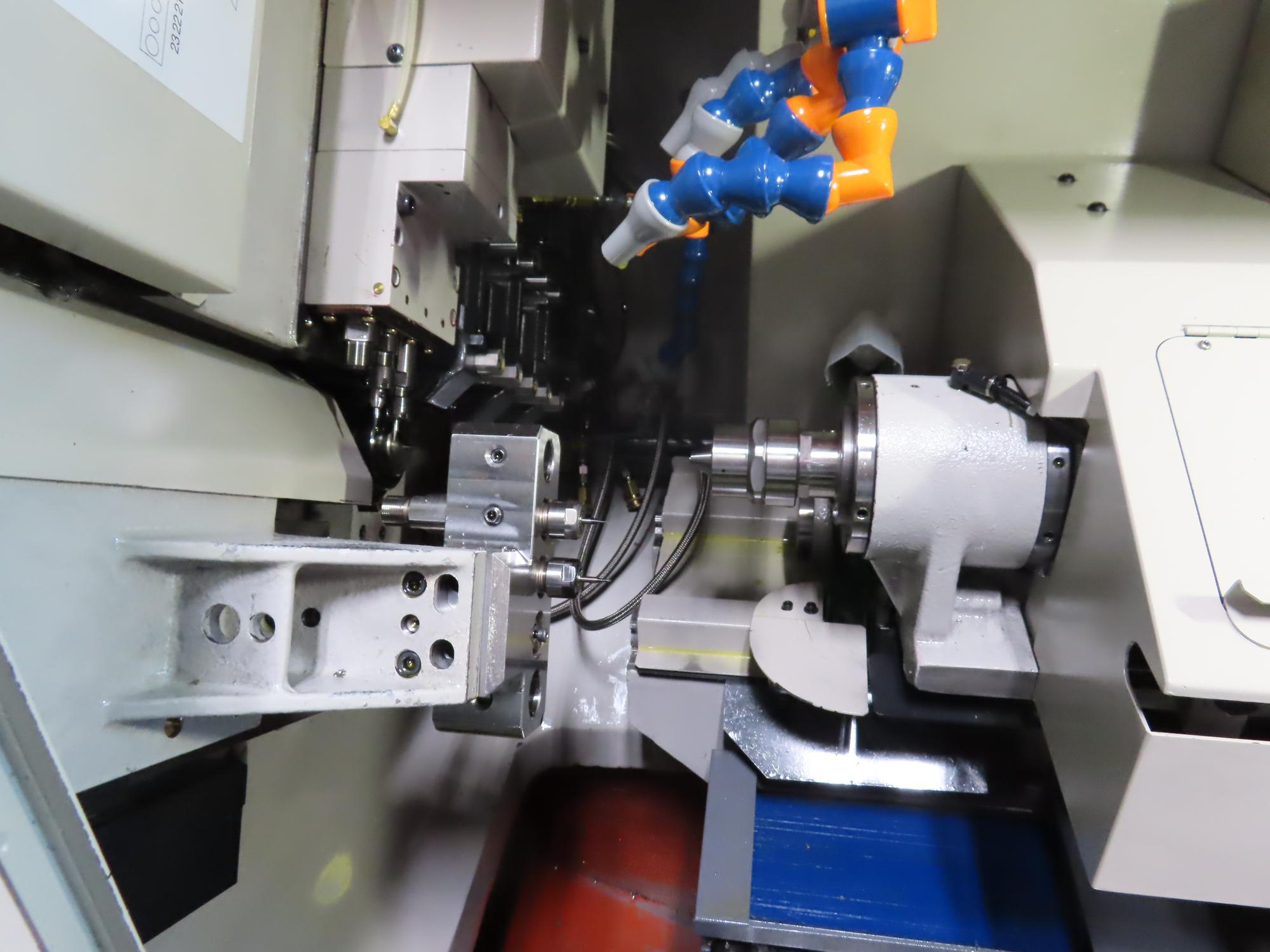

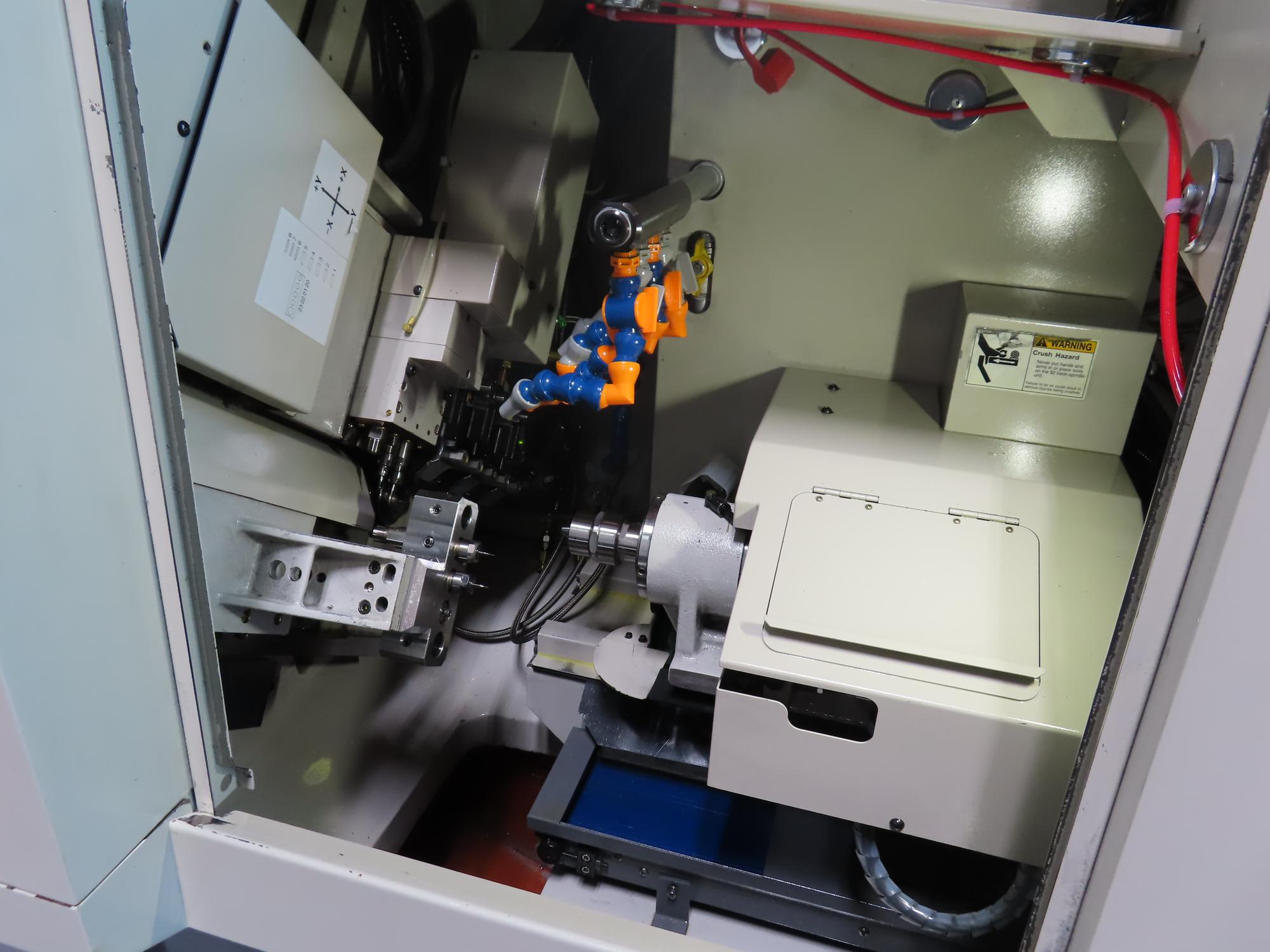

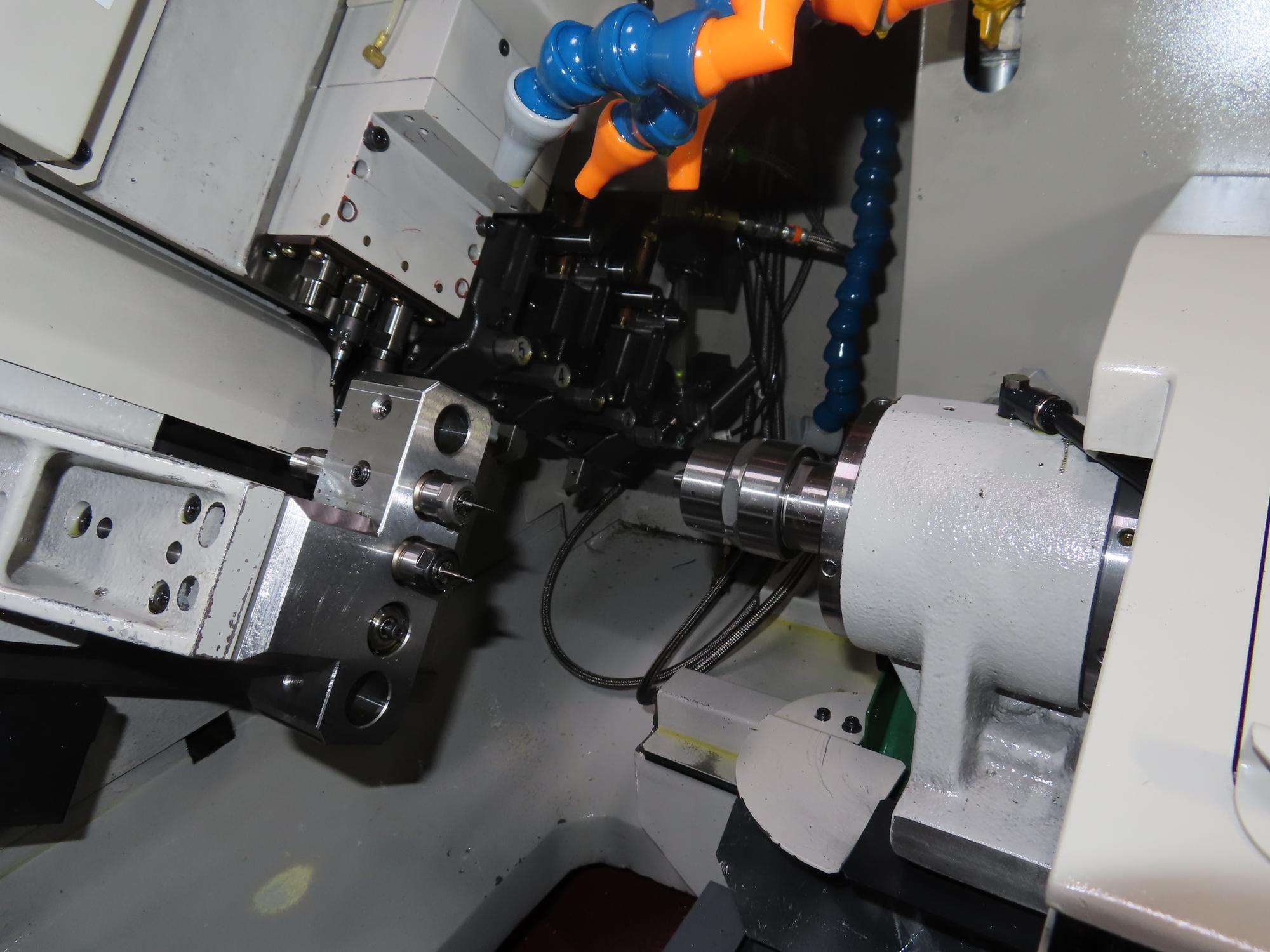

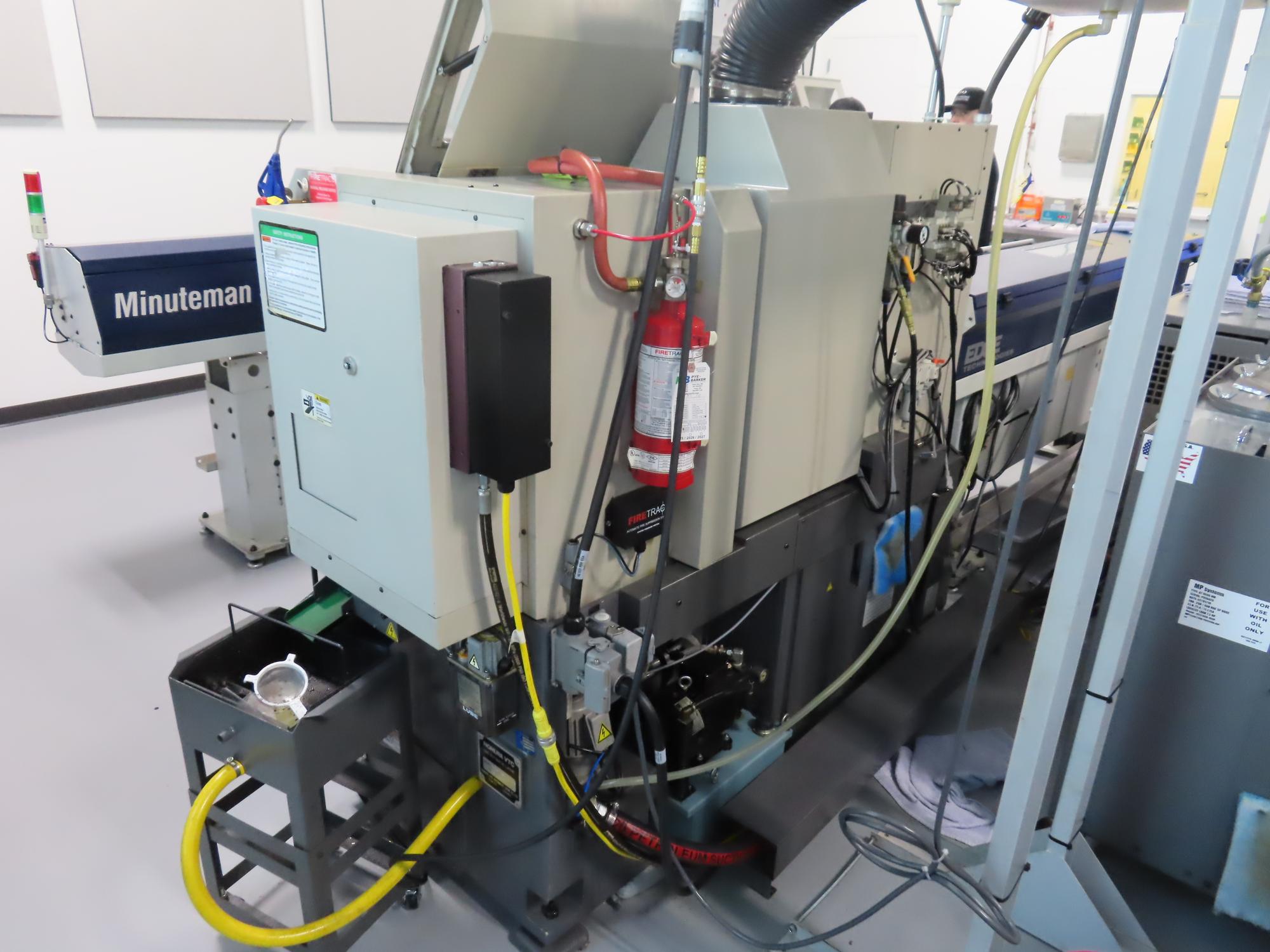

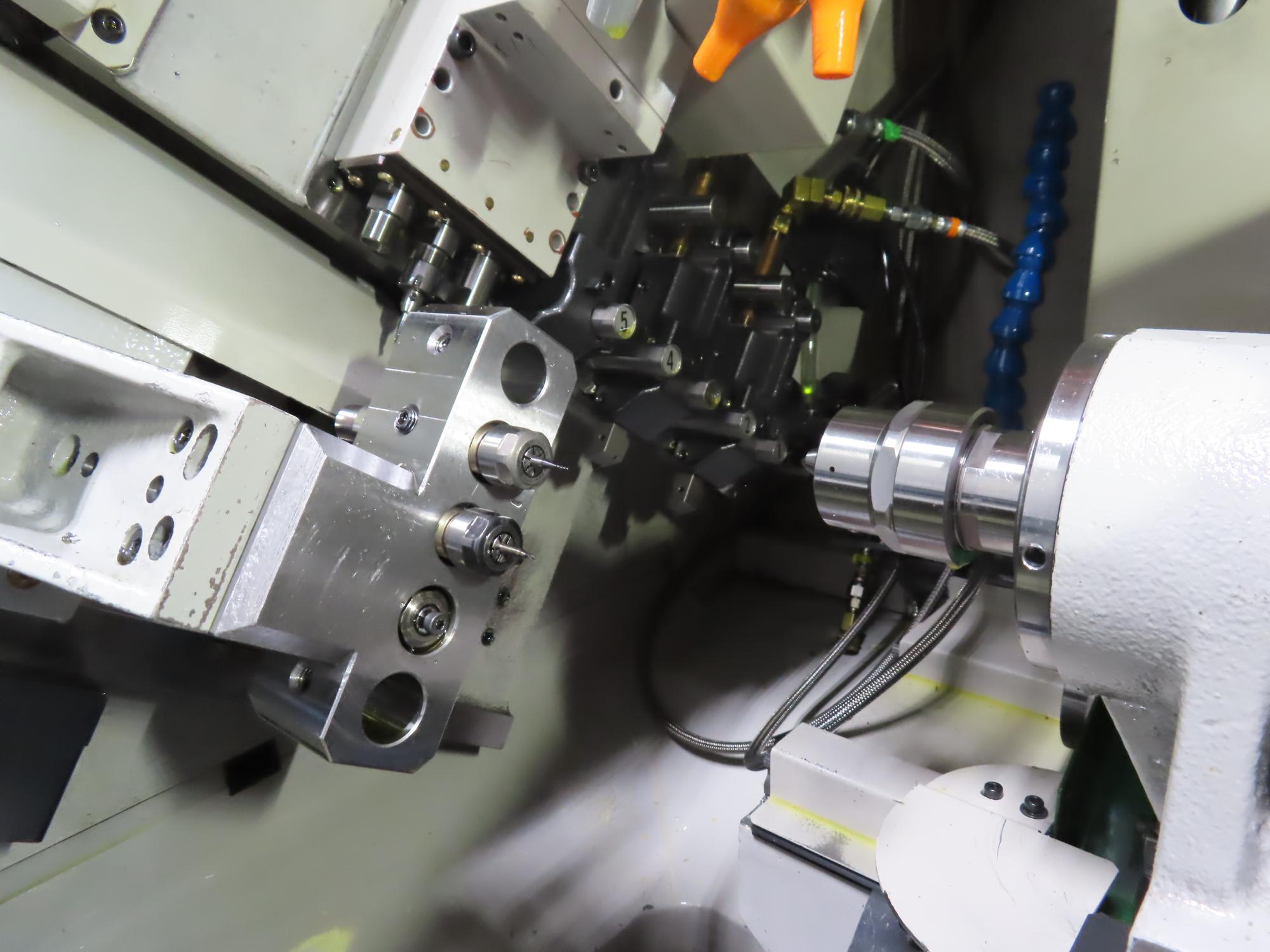

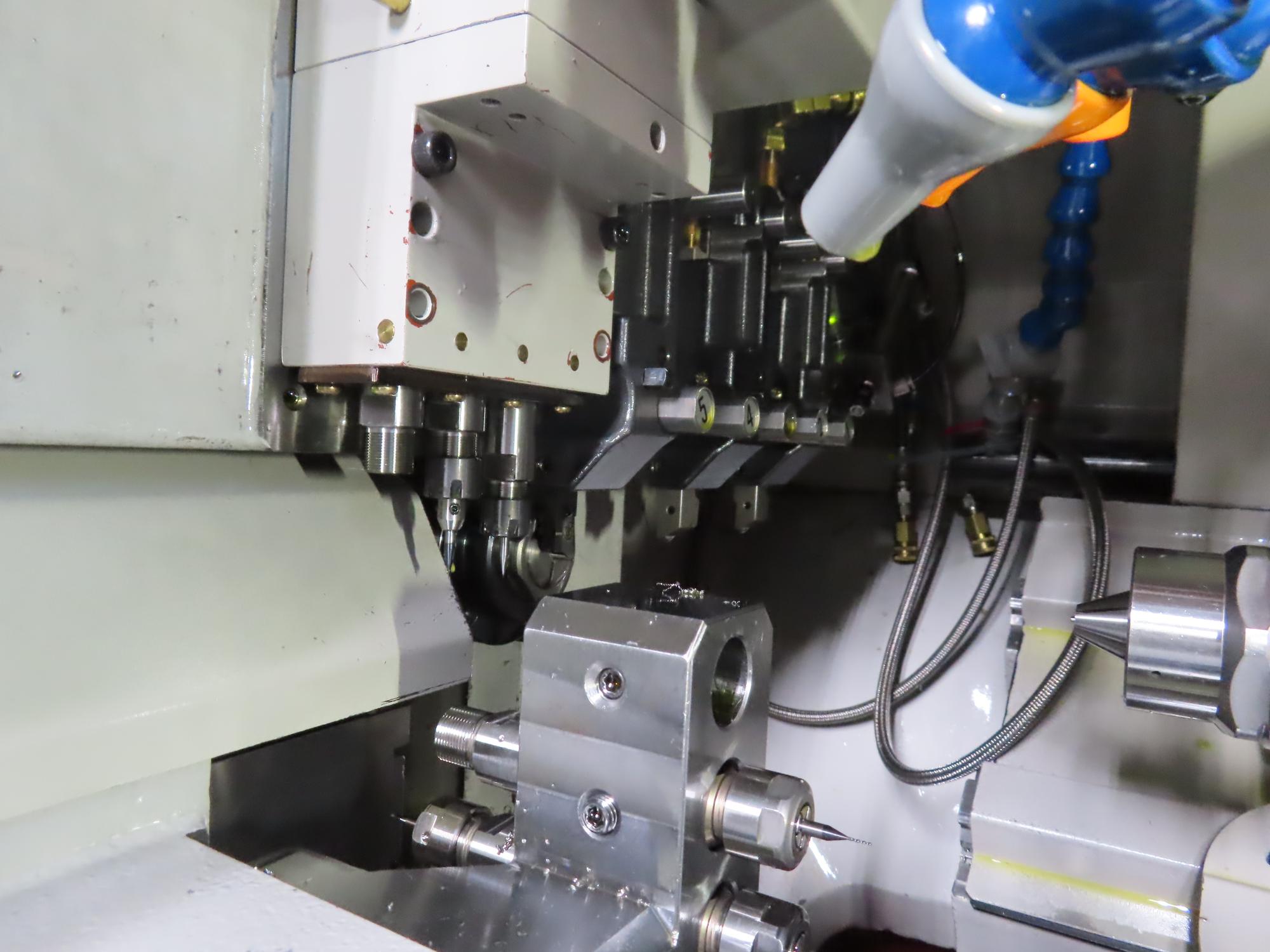

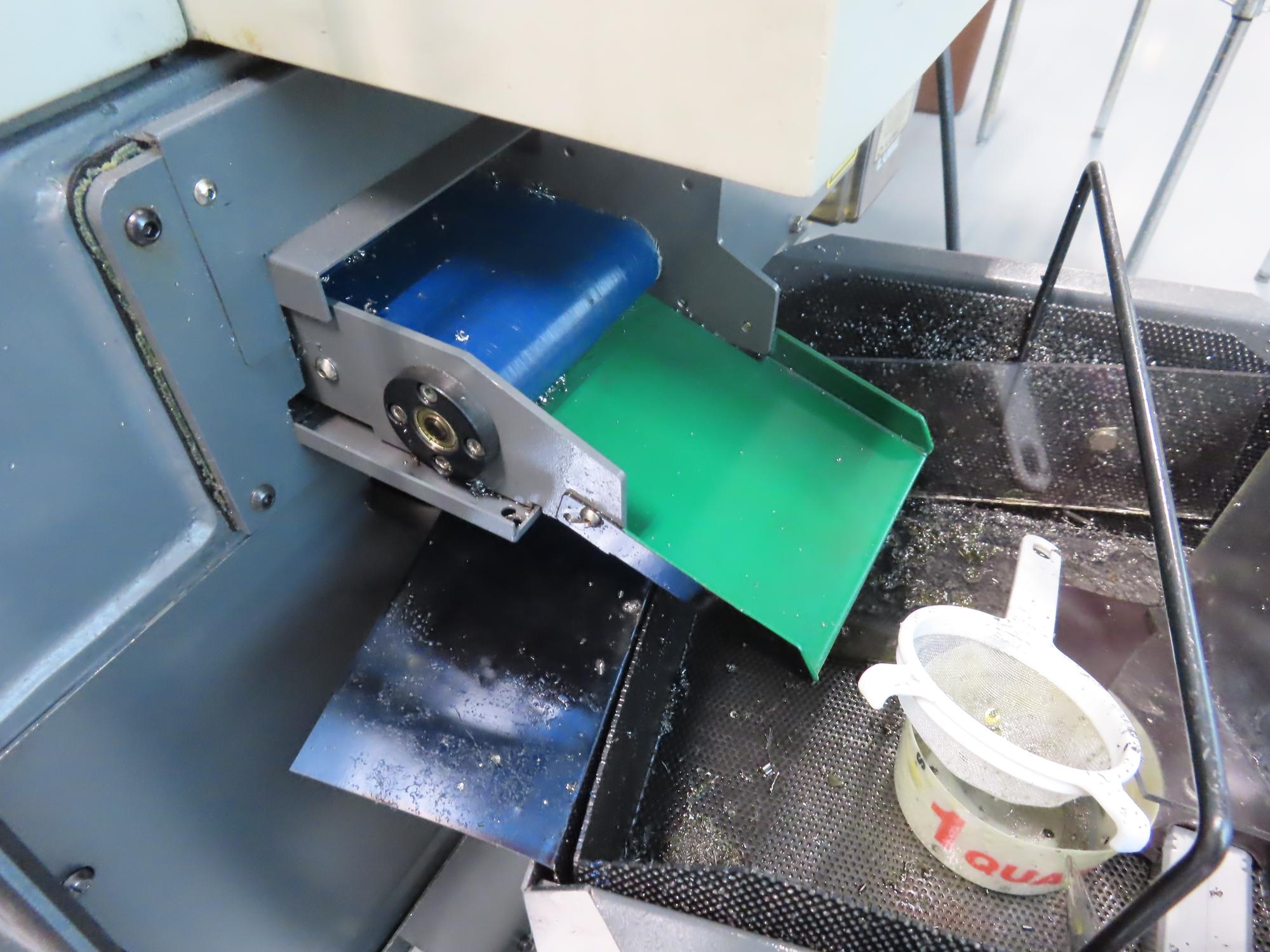

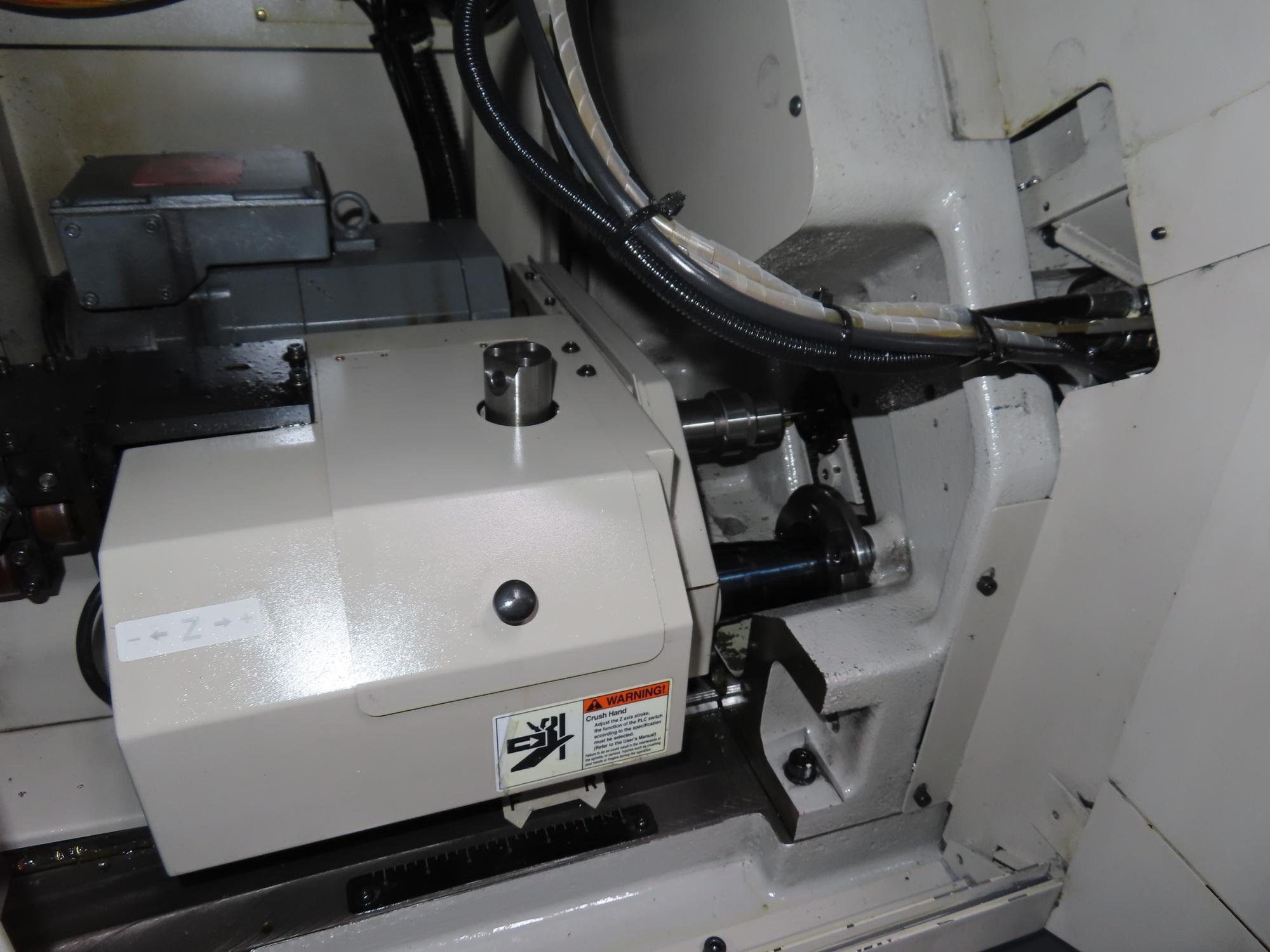

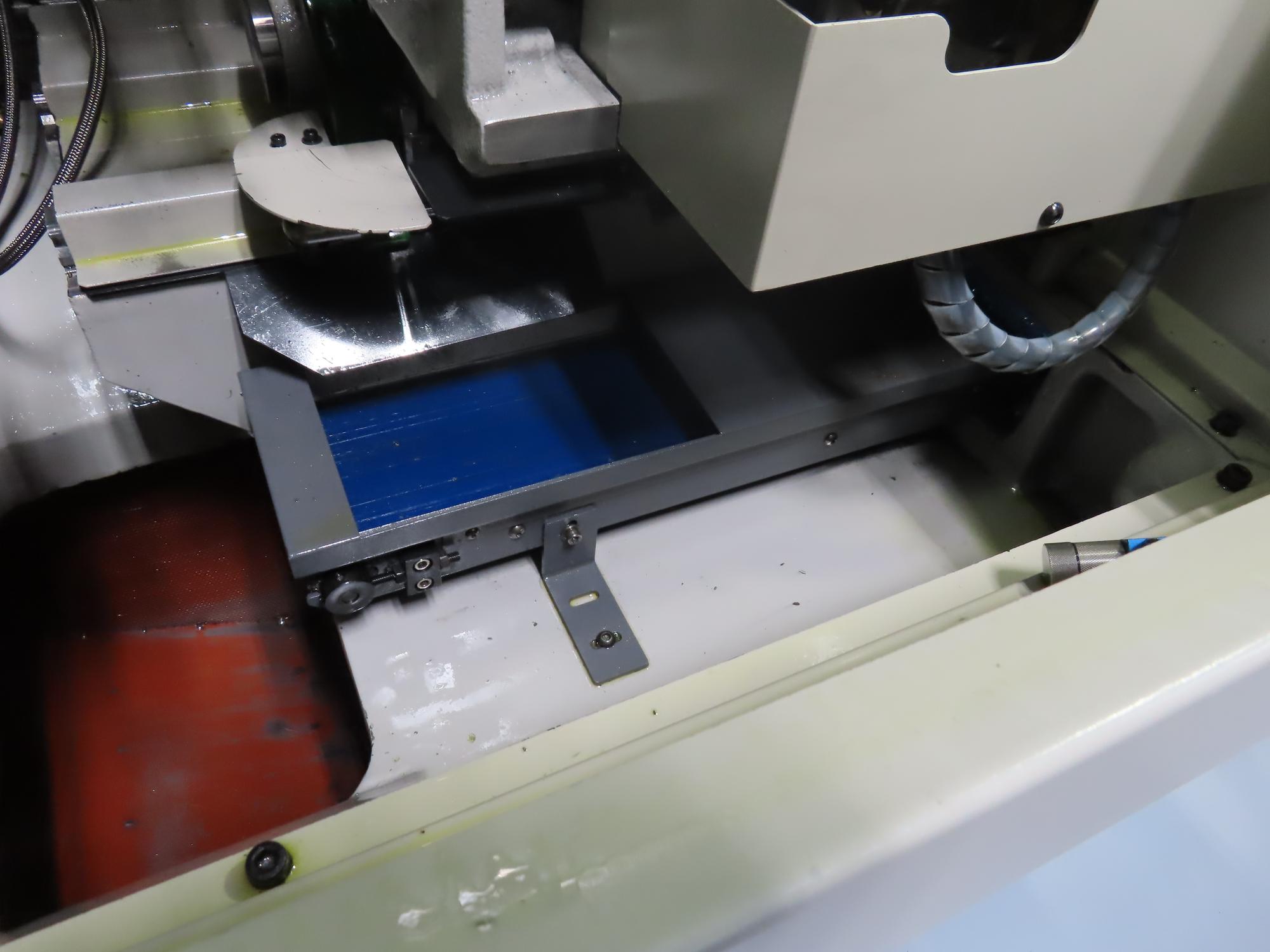

Mitsubishi M70 CNC Control, Edge Minuteman 320SE Magazine Bar Feed (serial number P4201721059), MP Model AT RF05 NM High Pressure Coolant System with Heat Exchanger (serial number P83505B), Tri-Mist 850 G2 Mist Collector, Fire Trace Fire Suppression System, Parts Catcher & Parts Conveyor, Full C-Axis on a Main & Sub Spindle, 5-Static and 3-Live Milling Stations on Main Slide, 5-Station Endworking/Backworking Tool Block, Assorted Collets, Manuals and Documentation.

Electrics:

220 Volts, 3 Phase

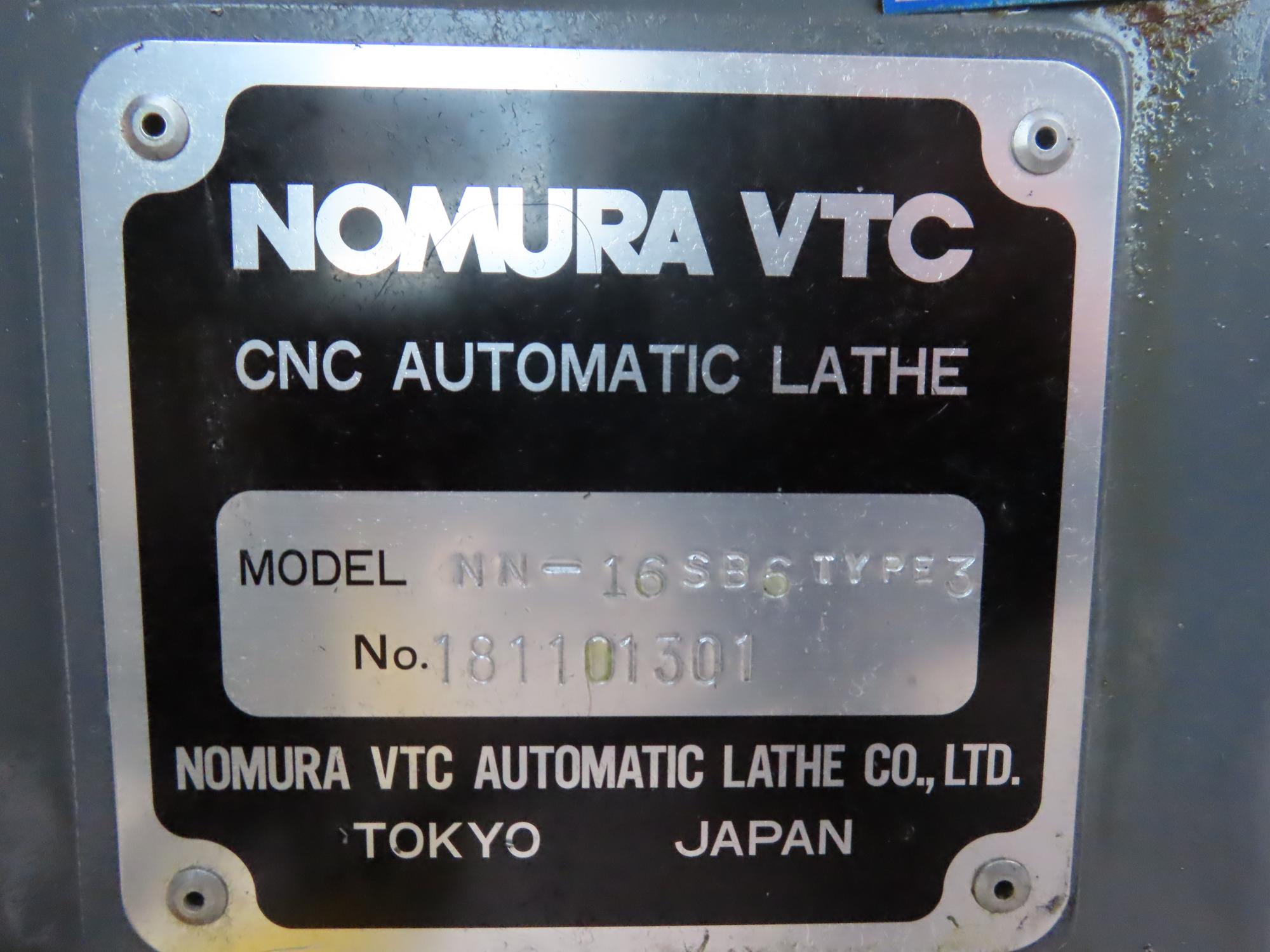

Manufacturer: Nomura Swiss Model: NN-16SB6 Type 3 Year: 2018 Serial Number: 181101301
Main Unit Approx Weight: 0.00 lbs
Main Unit Dimensions (in inches): Length: 80.00"  Width: 40.00"  Height: 66.00"
Specs:

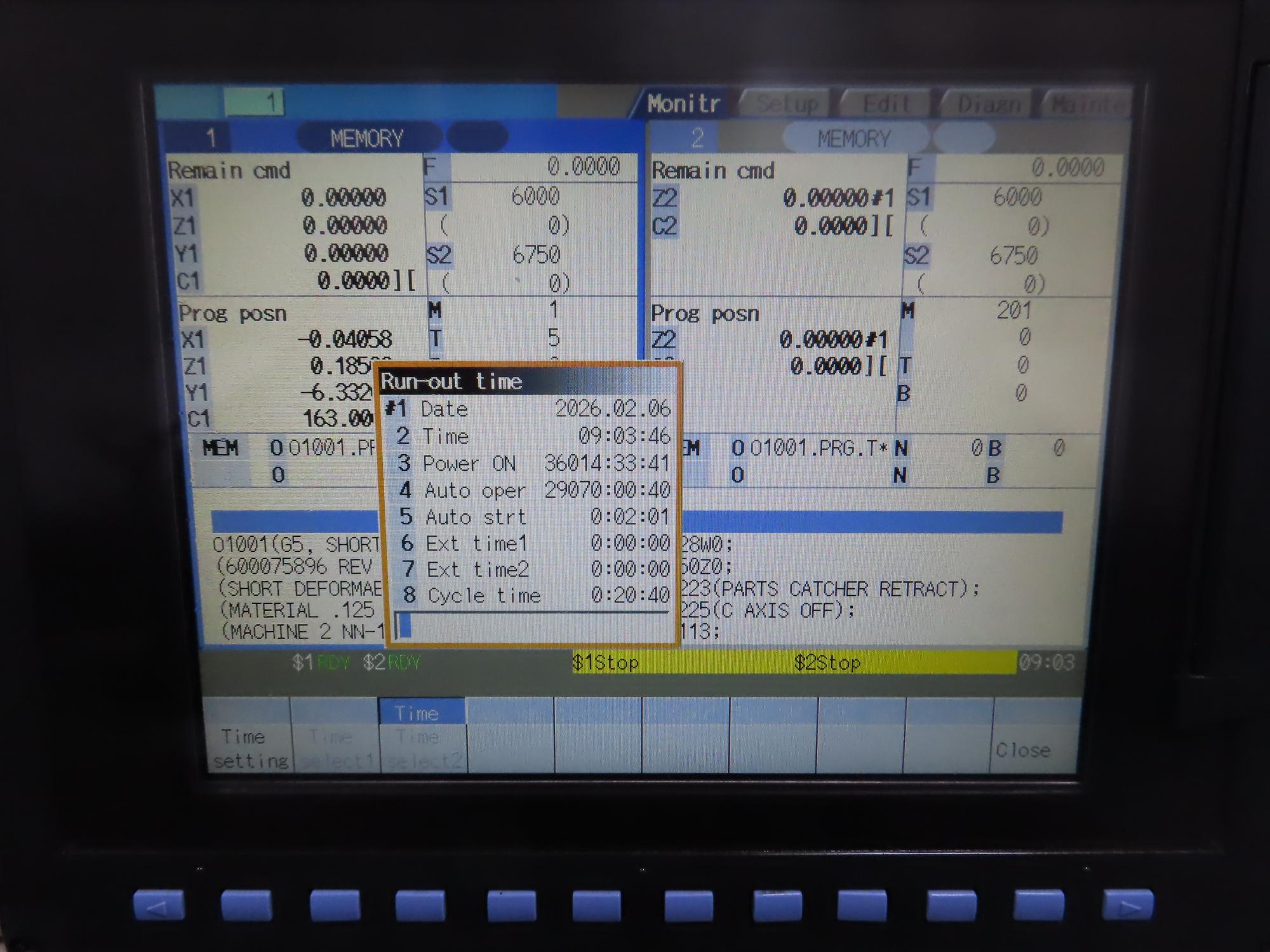

Control: Mitsubishi M70 CNC Control
Maximum Machining Diameter: 16mm
Maximum Machining Length: 160mm (Fixed Bushing Unit) / 110mm (Rotary Bushing Unit)
Main Spindle Speeds: 300 to 10,000 RPM (Fixed Bushing) / 300 to 8,000 RPM (Rotary Bushing))
Main Spindle Indexing: Full C-Axis
Back Spindle Speeds: 200 to 7,000 RPM
Sub-Spindle Indexing: Full C-Axis
Rotary Tool Speeds: 200 to 8,000 RPM
Back Spindle Max Chucking Diameter: 16mm
Turning Tools: 5
Rotary (Live) Tools: 3
Front Endworking Tools: 5
Back Endworking Tools: 5
Rapid Traverse (X/Y/Z): 1417 IPM
Main Spindle Drive: 3 HP
Back Spindle Drive: 1 HP
Rotary Tool Drive: 0.5 HP
Seller Company: Nanotech Precision, LLC
Seller Contact: Machinesused.com April Multishop Phone: (763) 745-1166
Item Location: Nanotech Precision, LLC, 2410 Niagara Lane N, Plymouth, MN 55447
Location Contact: Machinesused.com April Multishop Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: 14' x 14' Ground Level Door, Paved Lot
Removal Dates and Times: This item must be removed between Wednesday, April 29, 2026 and Friday, May 8, 2026
