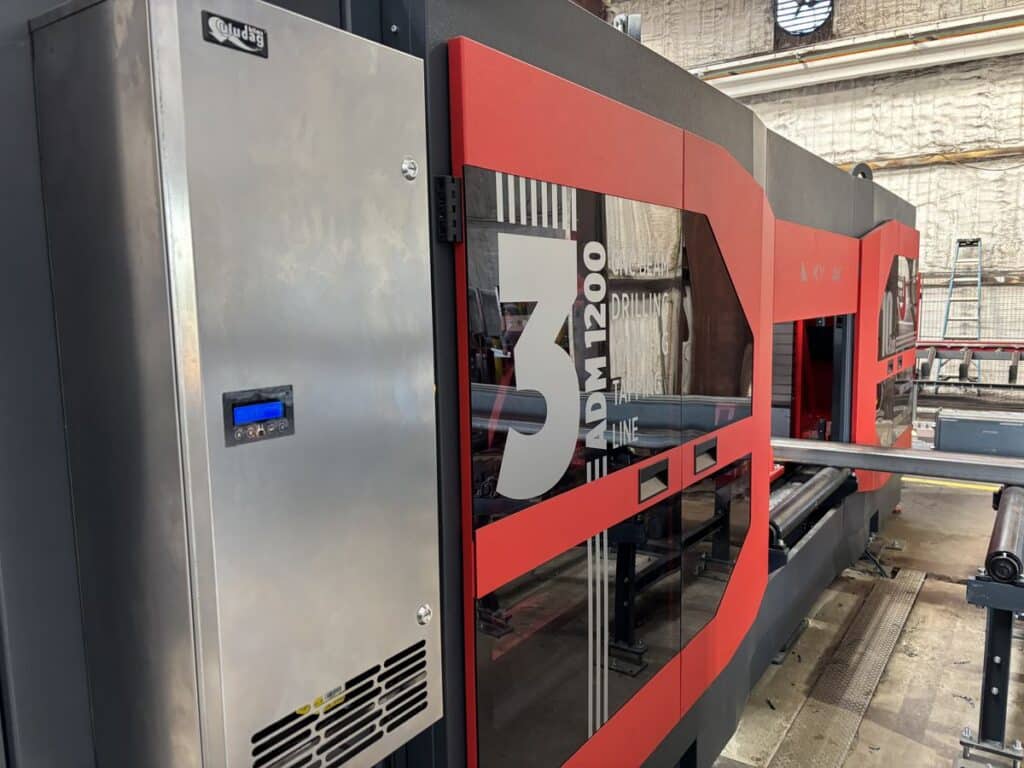

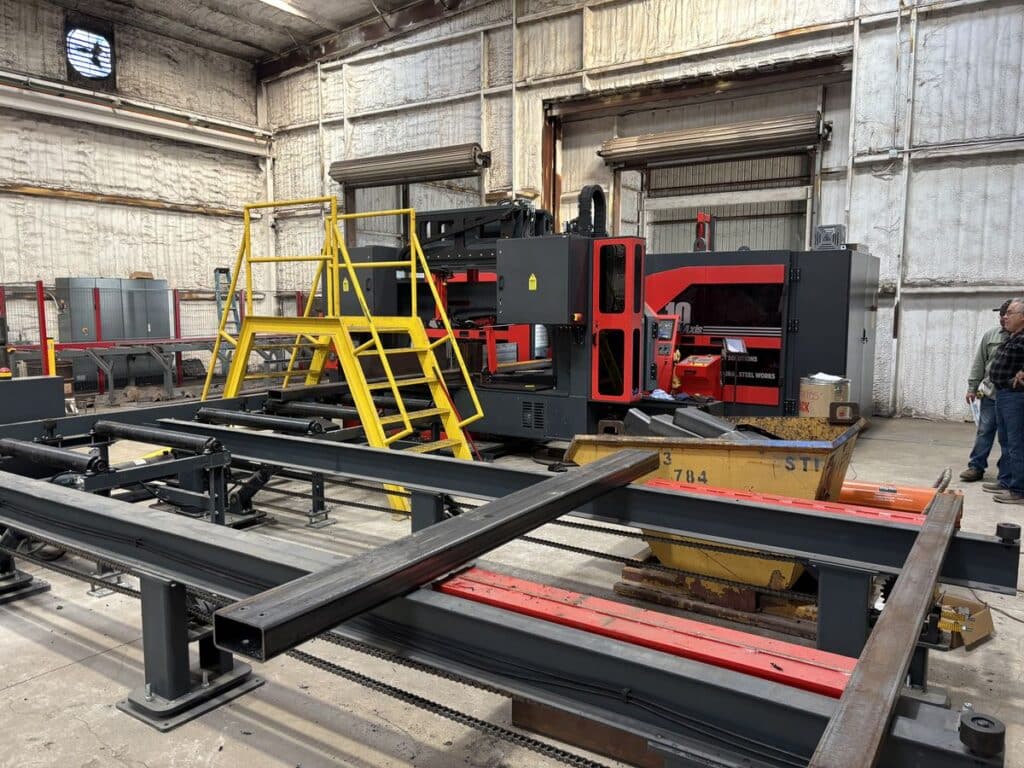

Akyapak 3 ADM 1200 / AST 1300 Three Spindle 10-Axis CNC Beam Drill Line with Miter Bandsaw (2025)

Manufacturer

Akyapak

Category

Drilling Machines

Type

DRILLS, RADIAL

Stock

171260016

Model

3 ADM 1200 / AST 1300

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 171260016
  • Location: TX
  • Brand: Akyapak
  • Model: 3 ADM 1200 / AST 1300
  • Year: 2025
  • Loading Fee: Rigging Required

Specifications

  • Capabilities: Drilling, Milling, Tapping, Countersinking, Layout Marking
  • Material: Beam, Channel, Tube, Angle, Plate
  • Min Beam Size: 8″ x 3.15″
  • Max Beam Size: 48″ x 20″
  • Number of Drill Heads: 3
  • Automatic Tool Changer (ATC): 3 (4 Station)
  • Drill Diameter: 3/8″ – 1-1/2″
  • Thread Tapping: M10 – M24
  • Drilling Thickness: 0.2″ – 3.94″
  • Tool Holder: BT40
  • Spindle Speed: 50 – 3,000 RPM (Stepless)
  • Vertical Spindle Strokes (X, Y, Z): 57″, 20″, 36″
  • Horizontal Spindle Strokes (X, Y, Z): 20″, 21″, 28″

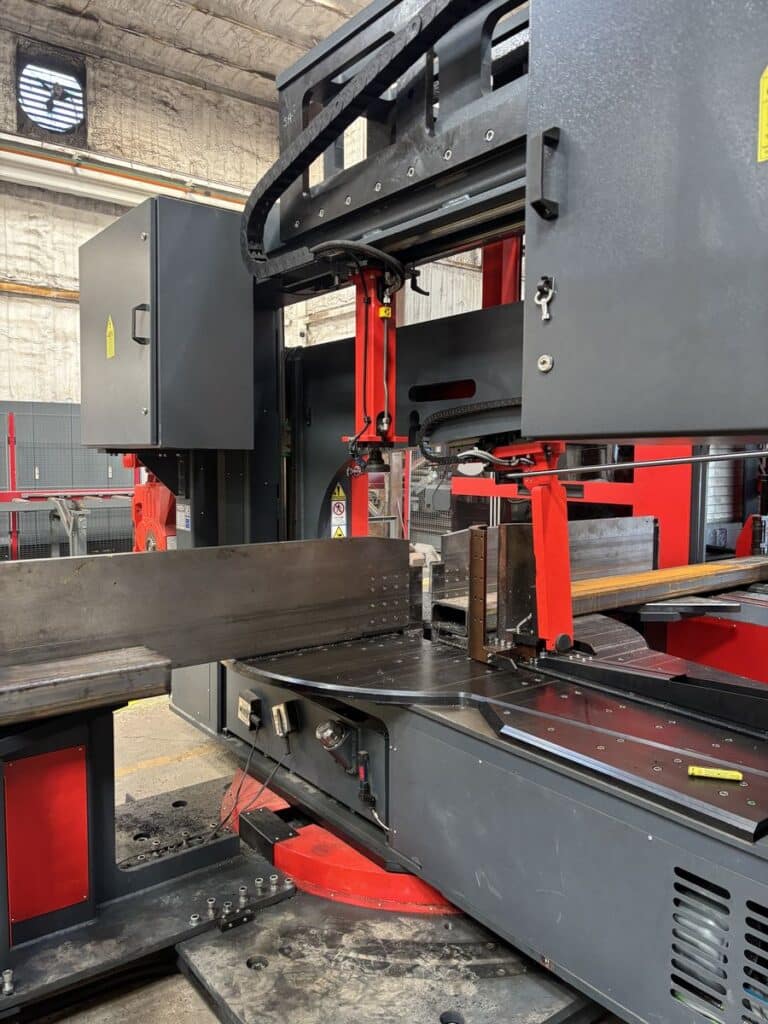

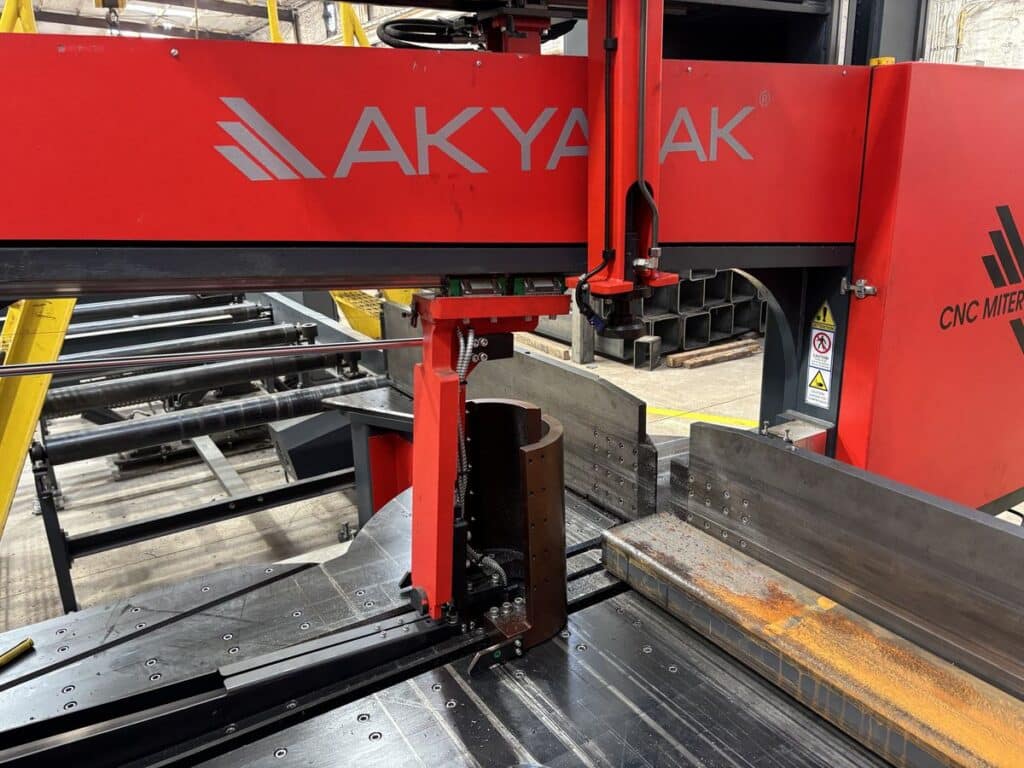

  • Miter Bandsaw Cutting Capacity: 3.15″ – 51.5″
  • Cutting Angle: 60°/60°
  • Upper Pressure Cylinders for Batch Cutting: Yes
  • Blade: 67 x 1,6mm (2.64″ x 16ga)
  • Total Saw Power: 24HP
  • Blade Speed: 65.6 – 377.3 ft/min

Equipped With

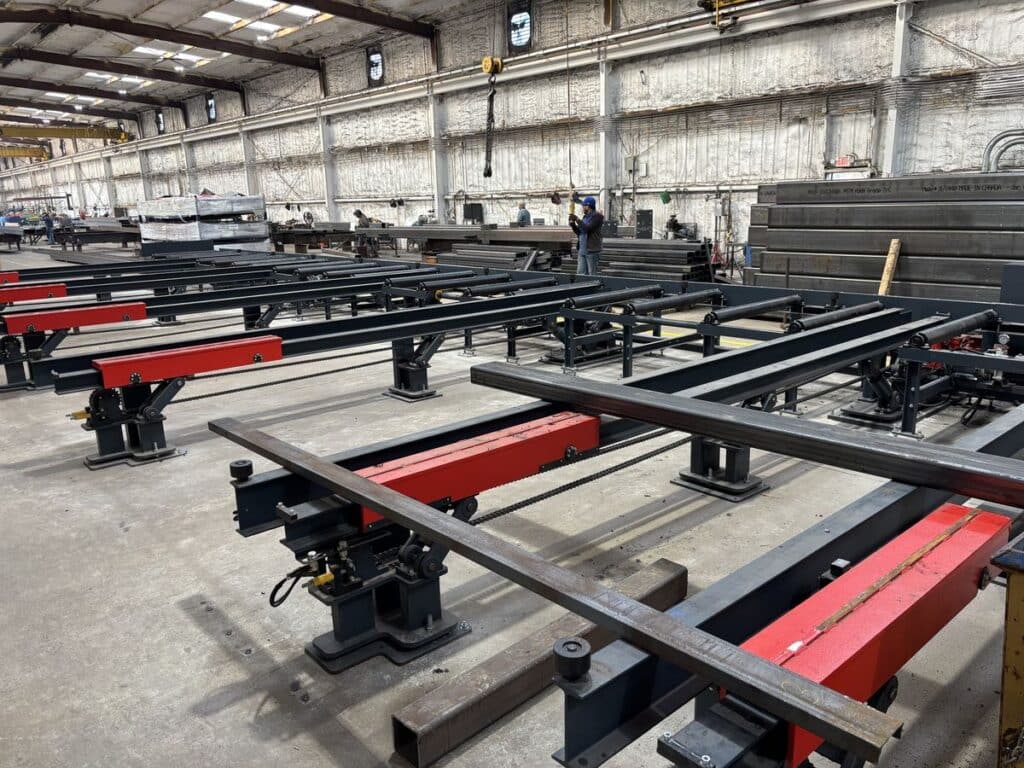

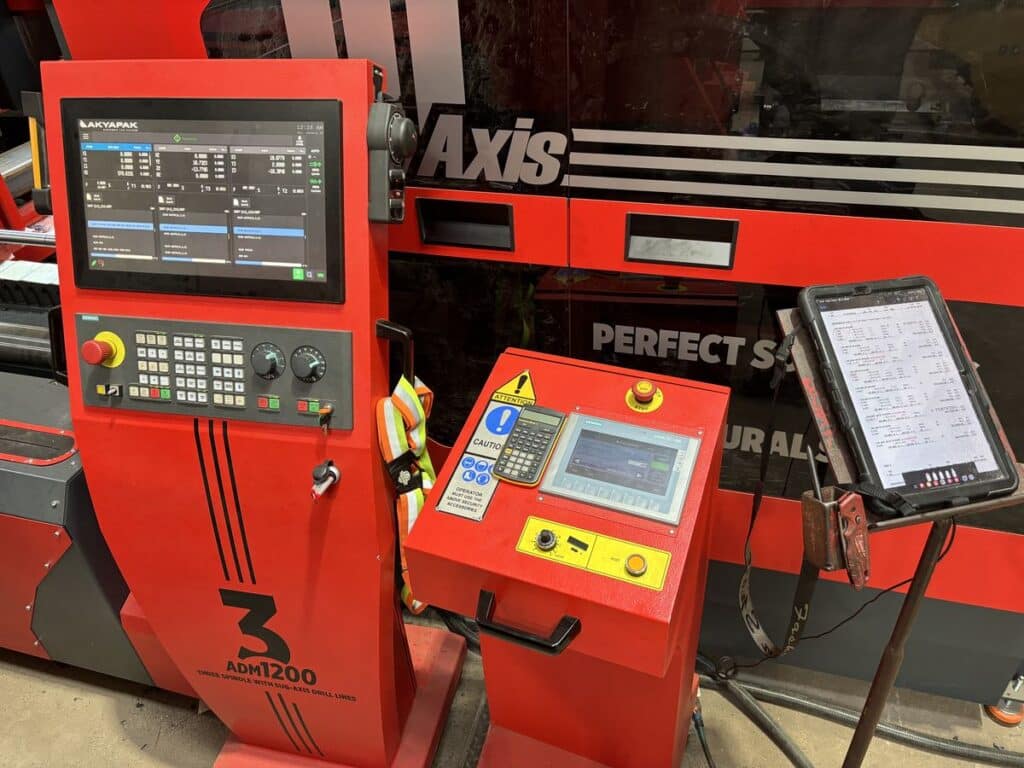

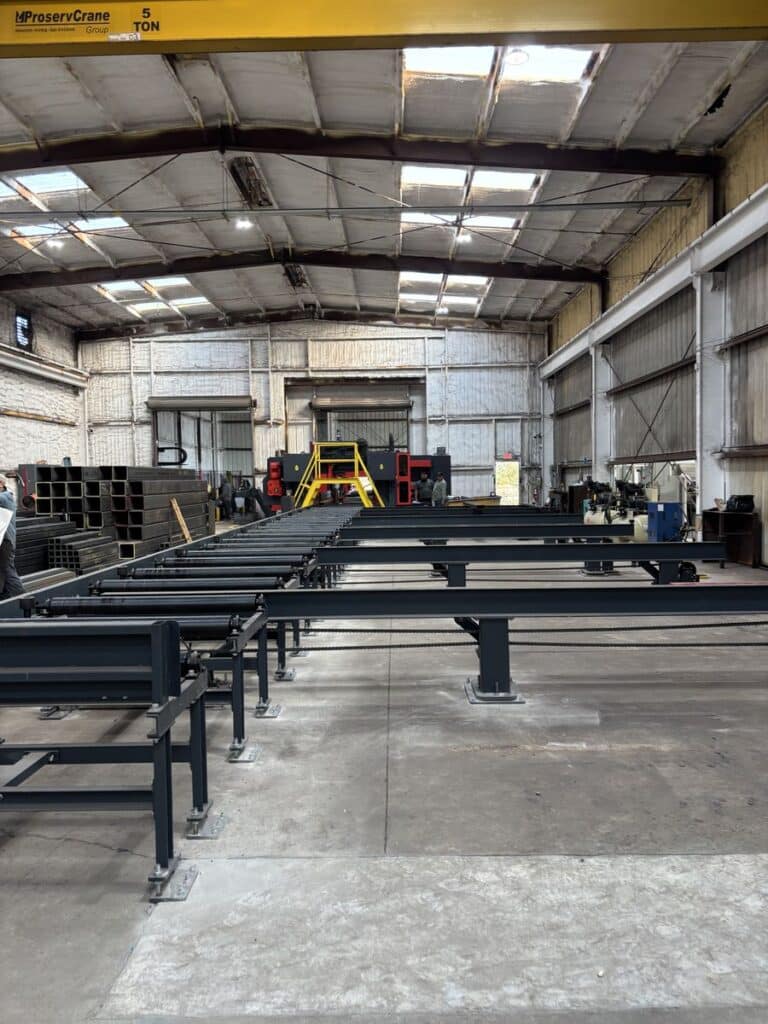

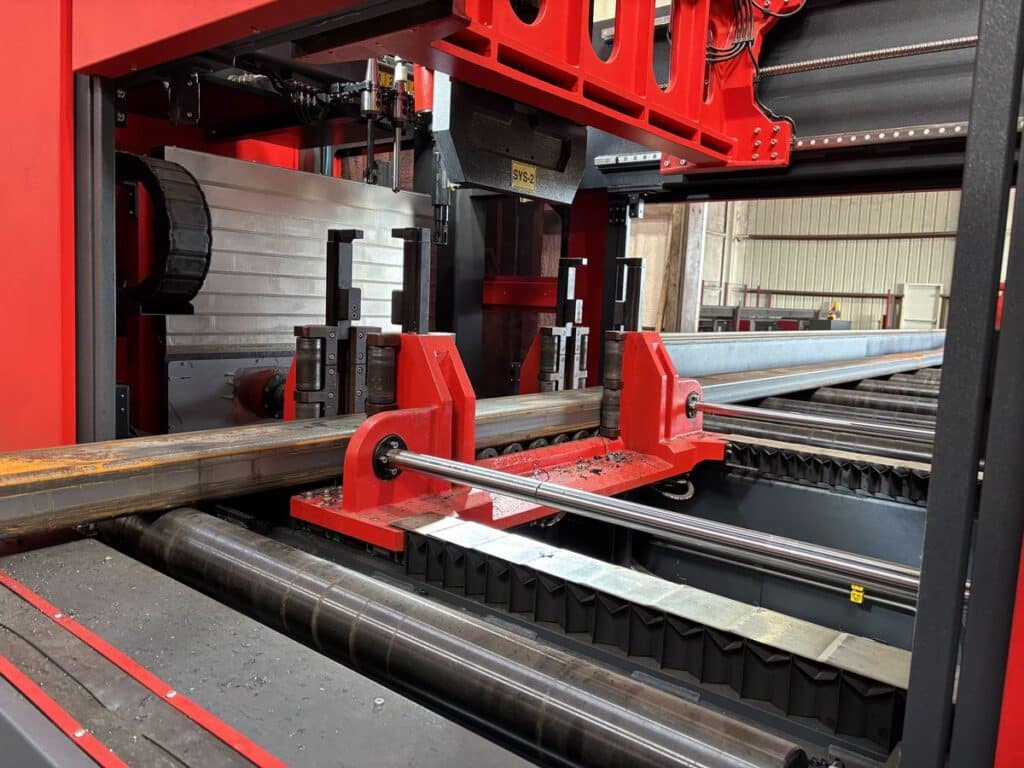

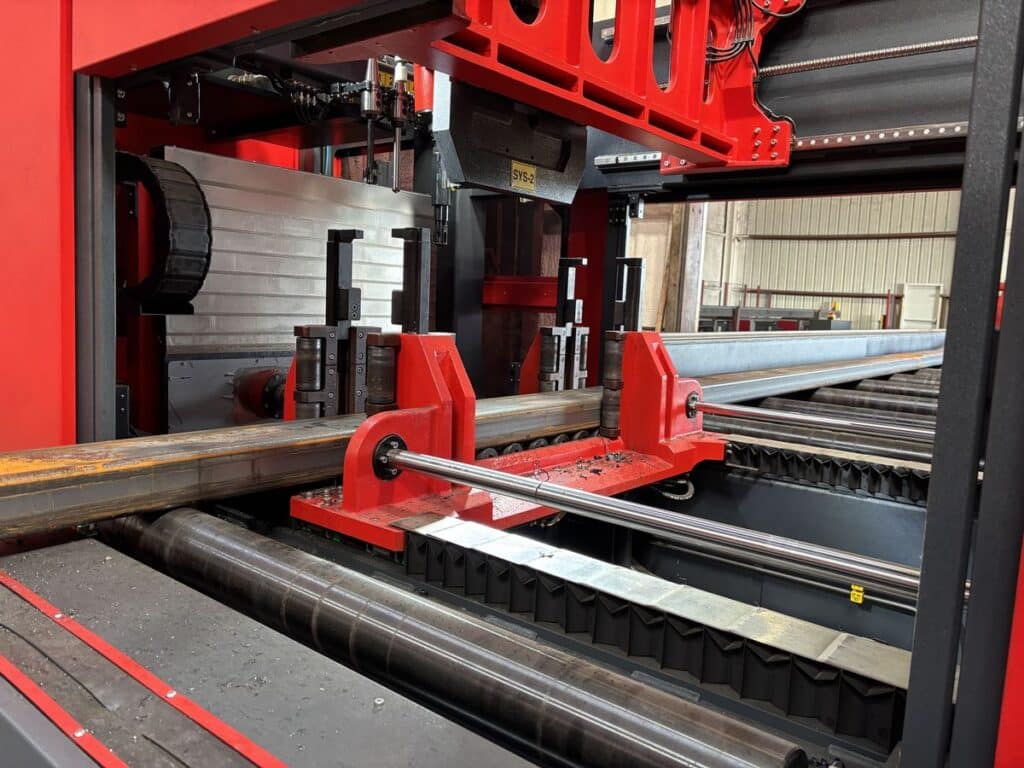

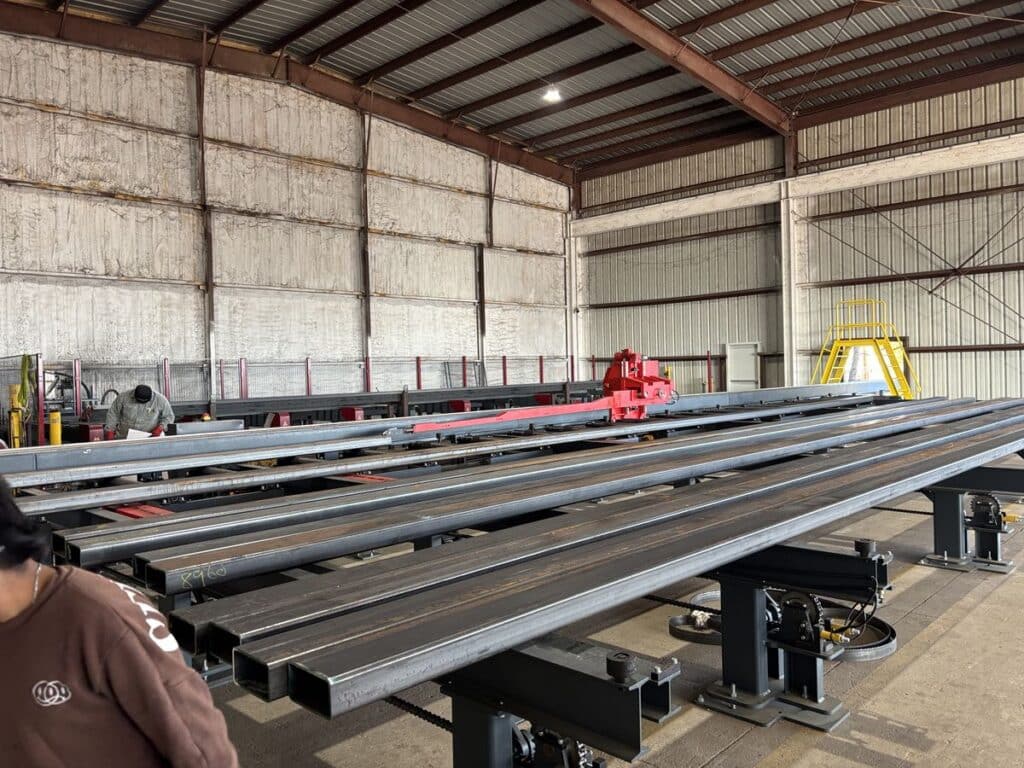

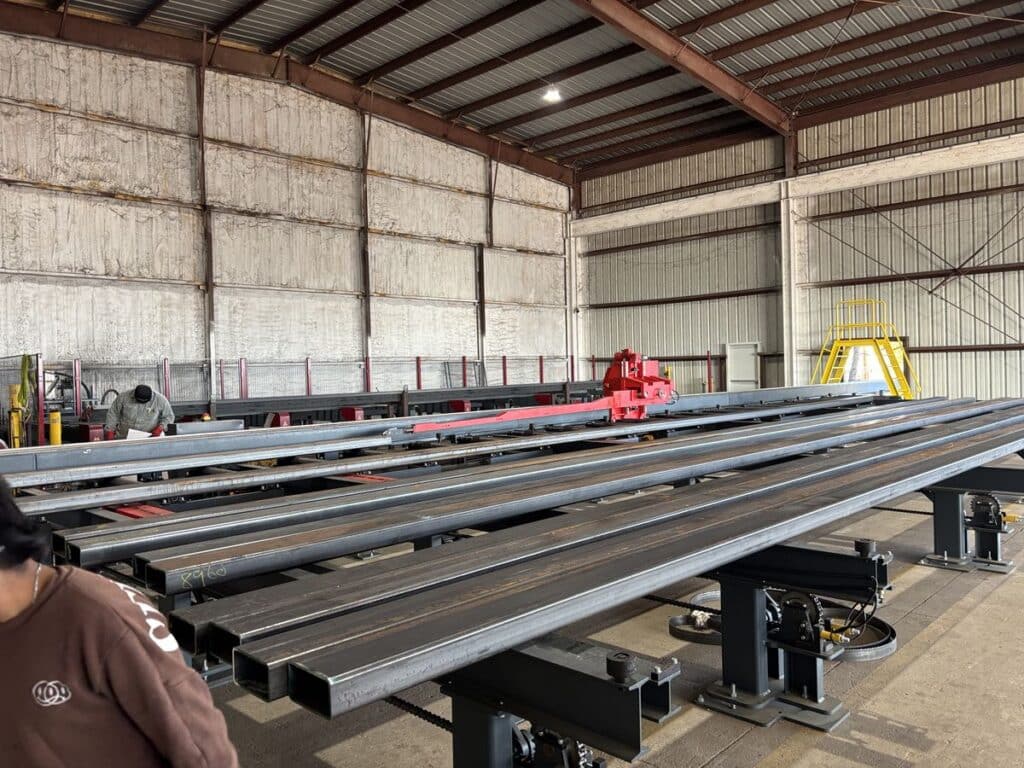

Drilling Unit: 3 ADM Drilling Units w/ 3 Automatic Tool Changer, Part Marking, Bandsaw Integration, Feeding Arm, Material Clamping, Automatic Tool and Material Measurement, 4th Side Layout Marking, Chip Conveyor, High Speed (20,000 RPM) Scribing Tools, Lantek Flex 3D Steel Work SD Plus Software, 60′ Infeed with Transfers, 60′ Outfeed with Transfers Miter Bandsaw Unit: Automatic Blade Tensioning System, Chip Brush for Blade, Integrated Chip Conveyor, Clamping Vice, Magnetic Material Discharge System, Feeding Arm with 60′ Infeed with Transfers, 60′ Outfeed with Transfers, AKYAPAK AST Controller Software

Additional Info

System is under power and available to demo.
