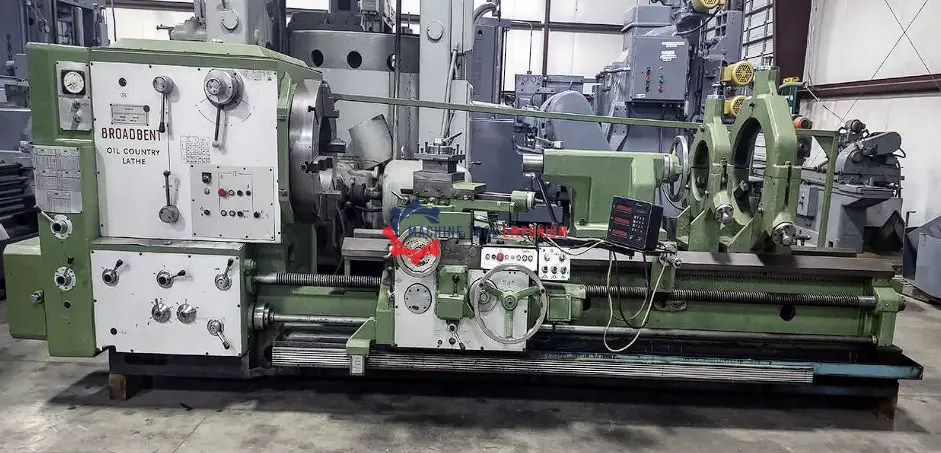

Used 1980 BROADBENT 33100

Manufacturer

BROADBENT

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

3690003

Model

33100

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Oil Field & Hollow Spindle Lathes
Manufacturer:
BROADBENT
Model:
33100
Year:
1980
Stock #:
3690003
Status:
For Sale
Serial #:
11257
Country:
United States
Swing34"863.6 mm
Centers100"2,540 mm
Spindle Bore16.25"412.75 mm
Power30 hp22.4 kW
RPM350 RPM350 RPM
Dimensions16'x72"x72"16'x72"x72"
Weight2000020000

Swing Over Bed Ways.........................................34"
Swing Over Cross Slide......................................20"
Swing In Gap................................................56"
Length Of Gap...............................................17"
Center Distance.............................................100"
Spindle Hole................................................16-1/4"
Spindle Speeds..............................................4 To 350 Rpm's
Chuck Size With 16-1/4" Hole Front..........................30" 4-Jaw
Chuck Size With 16-1/4" Hole Front..........................28" 4-Jaw
Feeds Cross ................................................0.050 To 1.575 IPR
Feeds Long .................................................0.101 To 3.101 IPR
Threads Inch................................................4 To 96 TPI
Threads Metric..............................................1 To 28 TPI
Tail Stock Quill Diameter...................................4"
Tail Stock Quill Travel.....................................10"
Tail Stock Taper............................................# 5 Morse
Floor Space Length & Width..................................R-L 16' X F-B 60"
Machine Height..............................................72"
Weight......................................................25,000 Lbs.
Main Motor..................................................30 Hp.
Currently Wired.............................................440 Volts 3 Phase

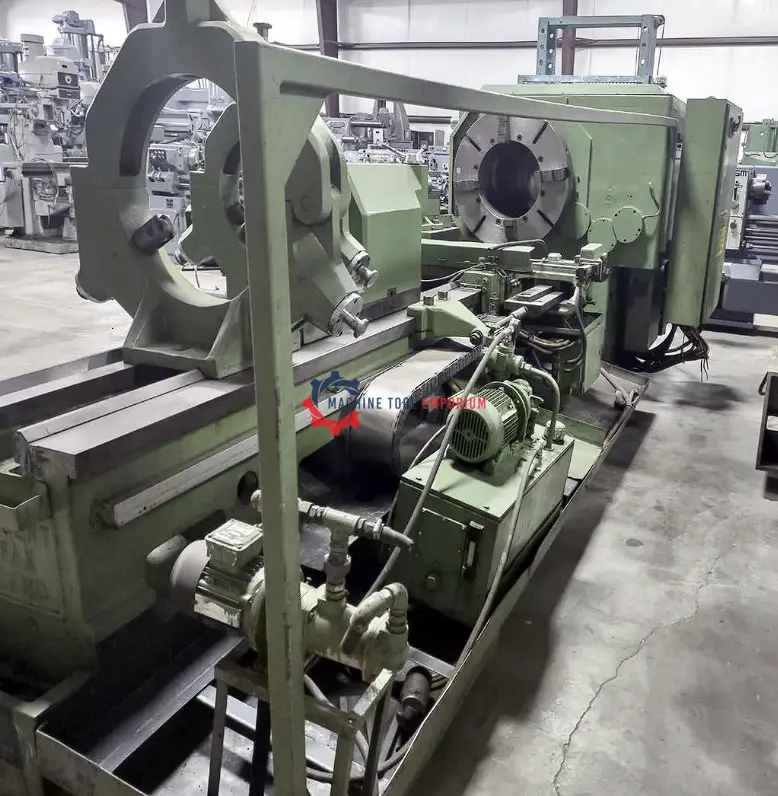

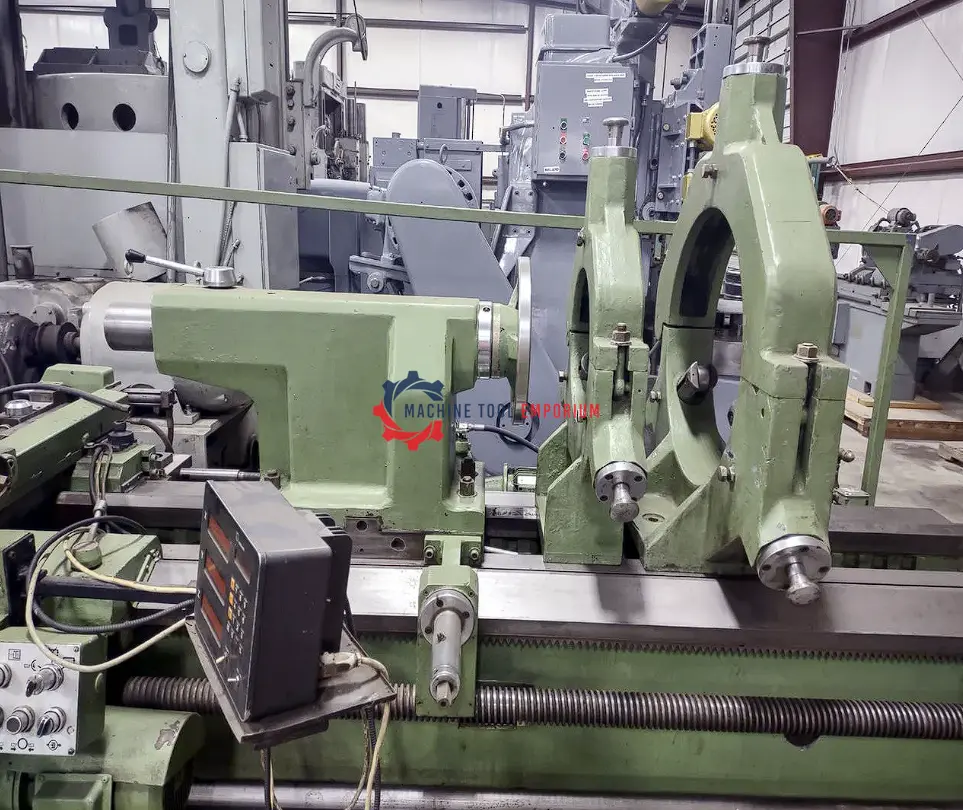

Steady Rest.................................................12-1/2"
Chip Pan....................................................Yes
Taper Attachment............................................Yes
Thread Dial.................................................Yes
6-Way Rapid Traverse........................................Yes
Coolant.....................................................Yes

Note As Taken From Services. Machine will be cleaned and cycled.

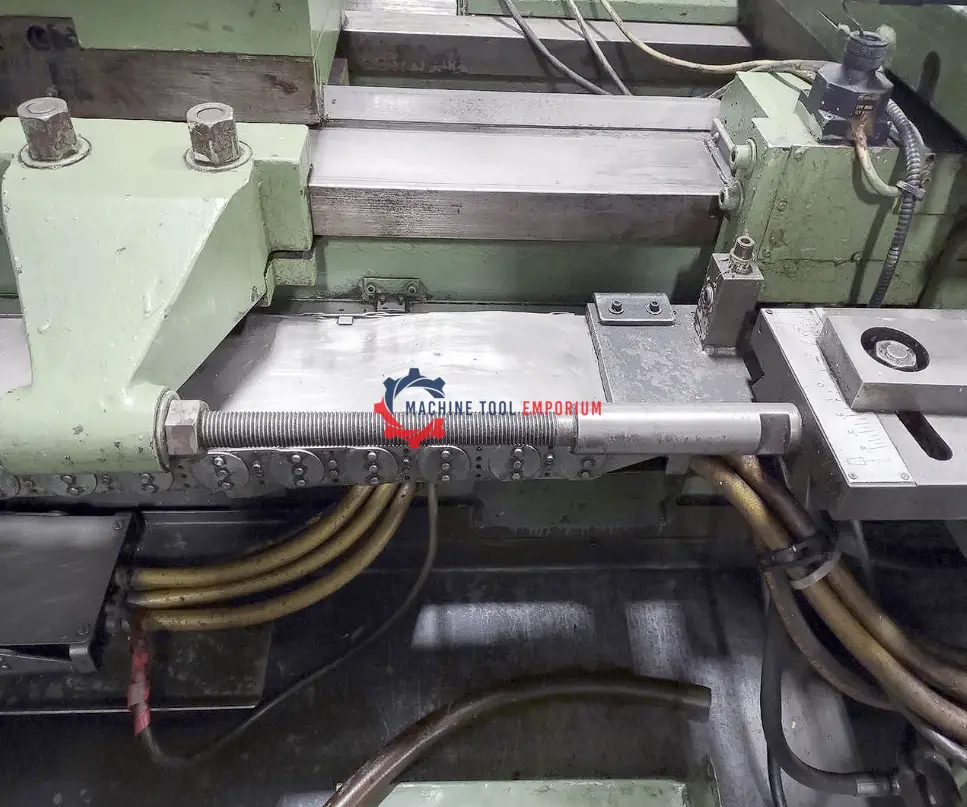

Missing the dog stops for the Longitudinal rapid return on the fast threading.

- Specifications are believed to be accurate and are to be verified by the buyer.
