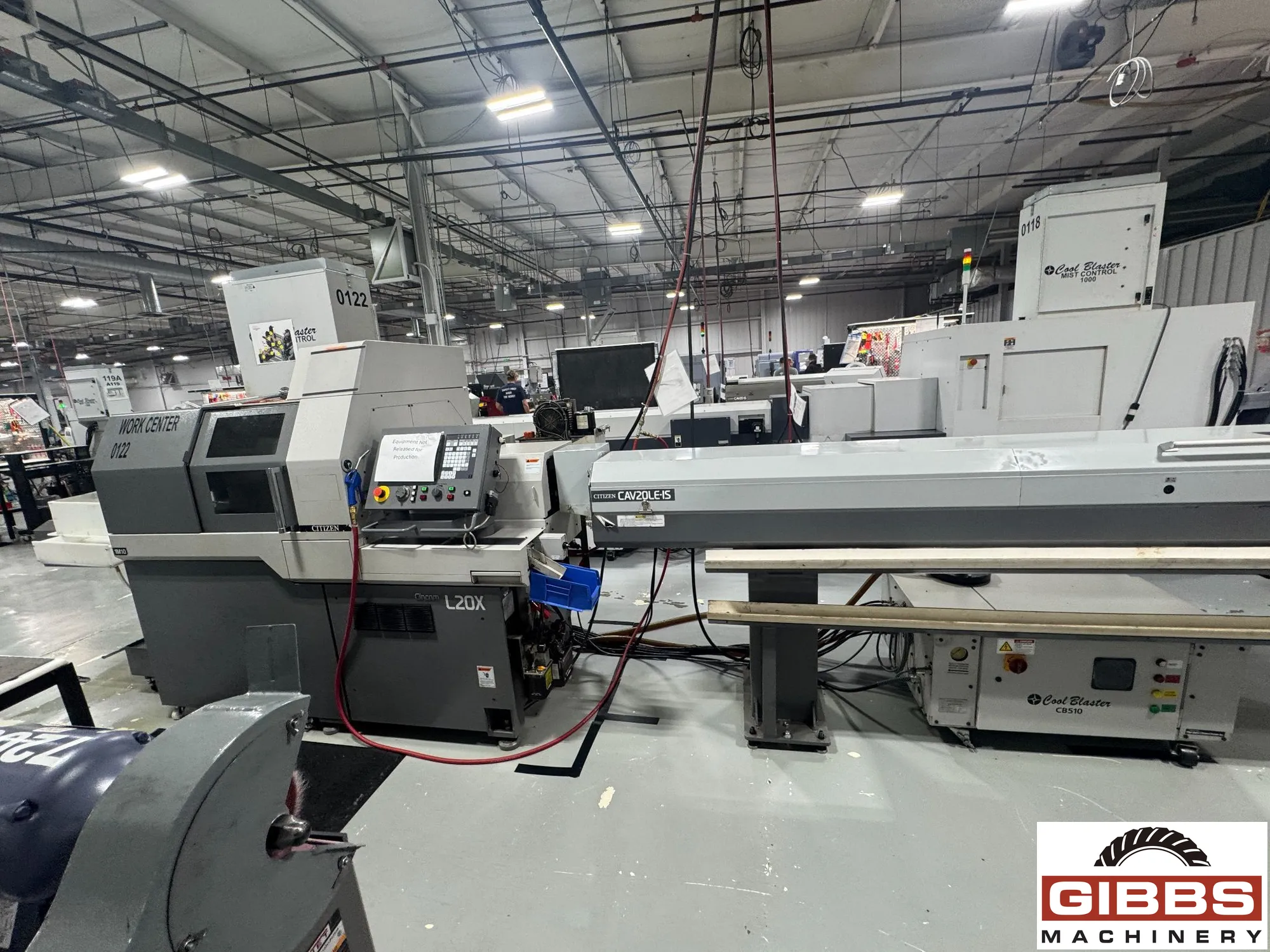

CITIZEN L20X - Horizontal Lathe

Manufacturer

CITIZEN

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

25904

Model

L20X

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

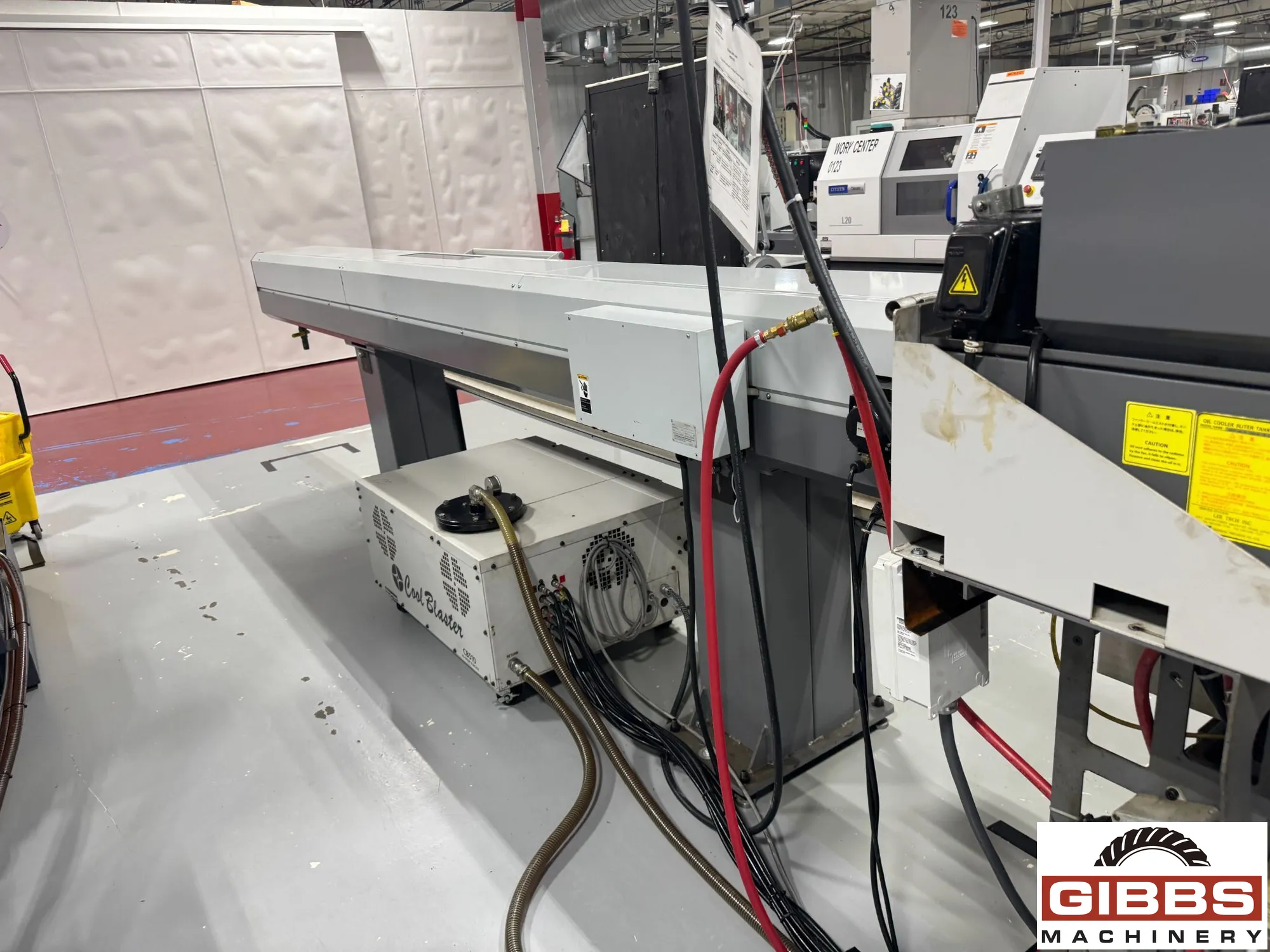

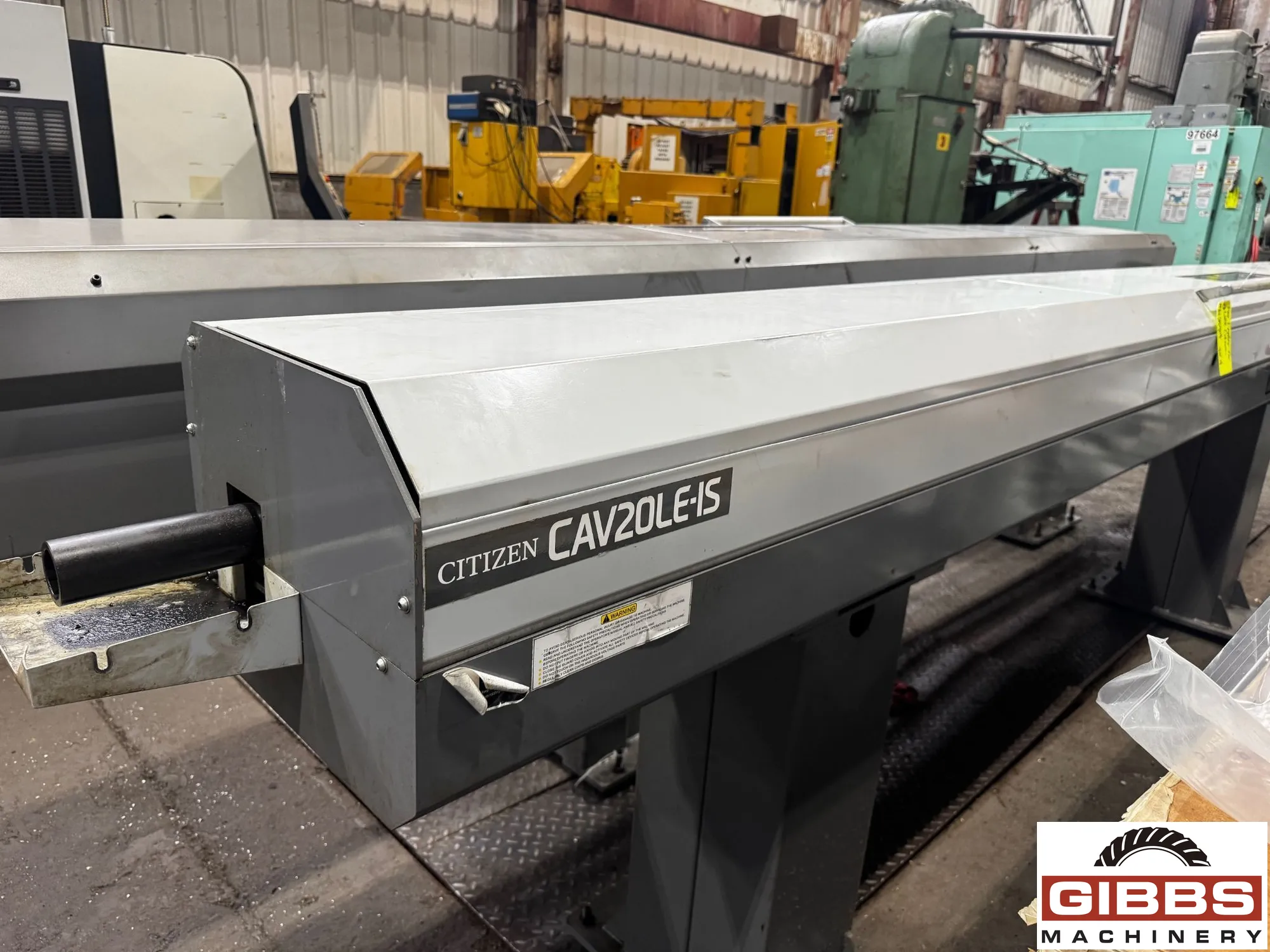

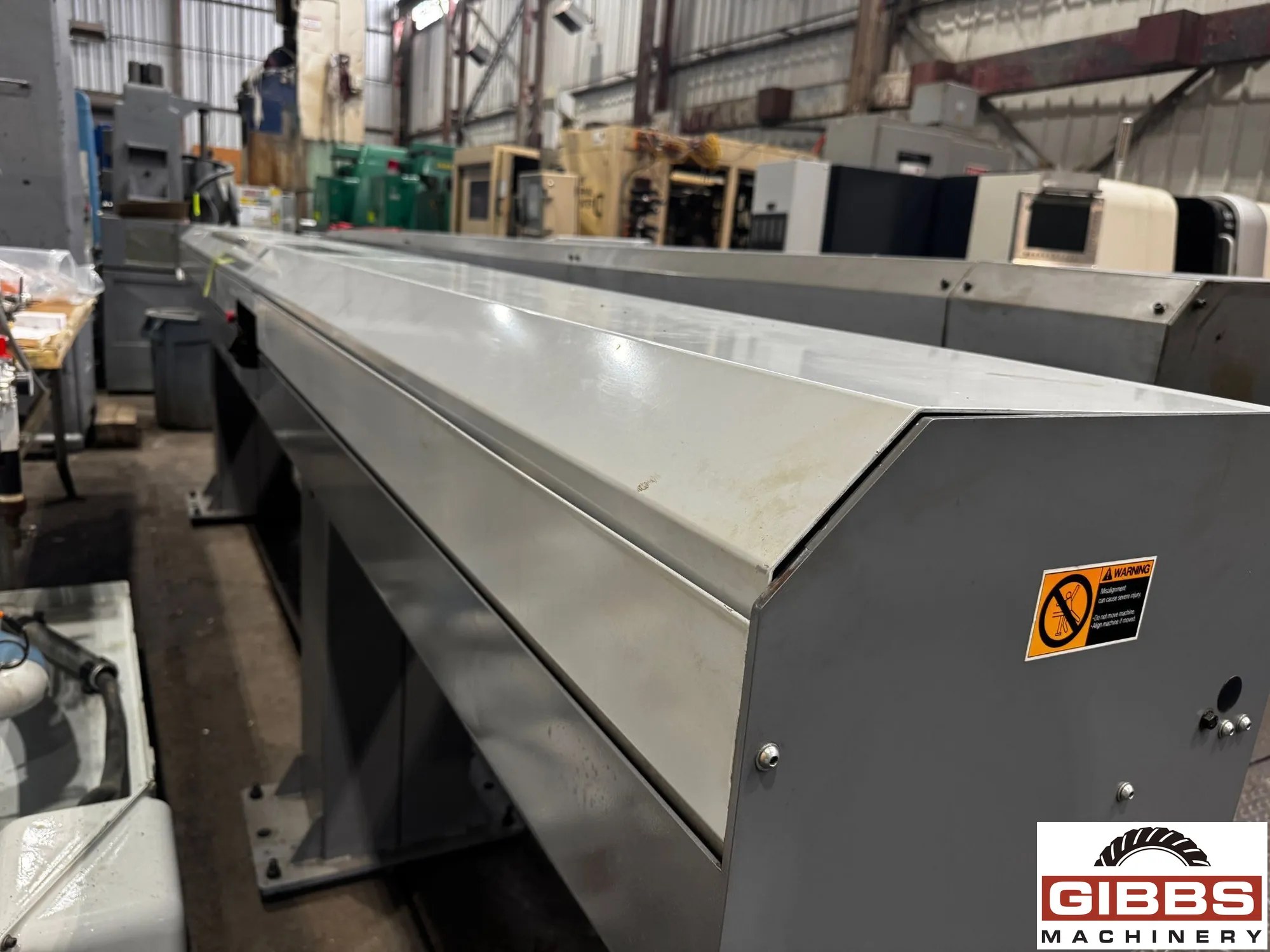

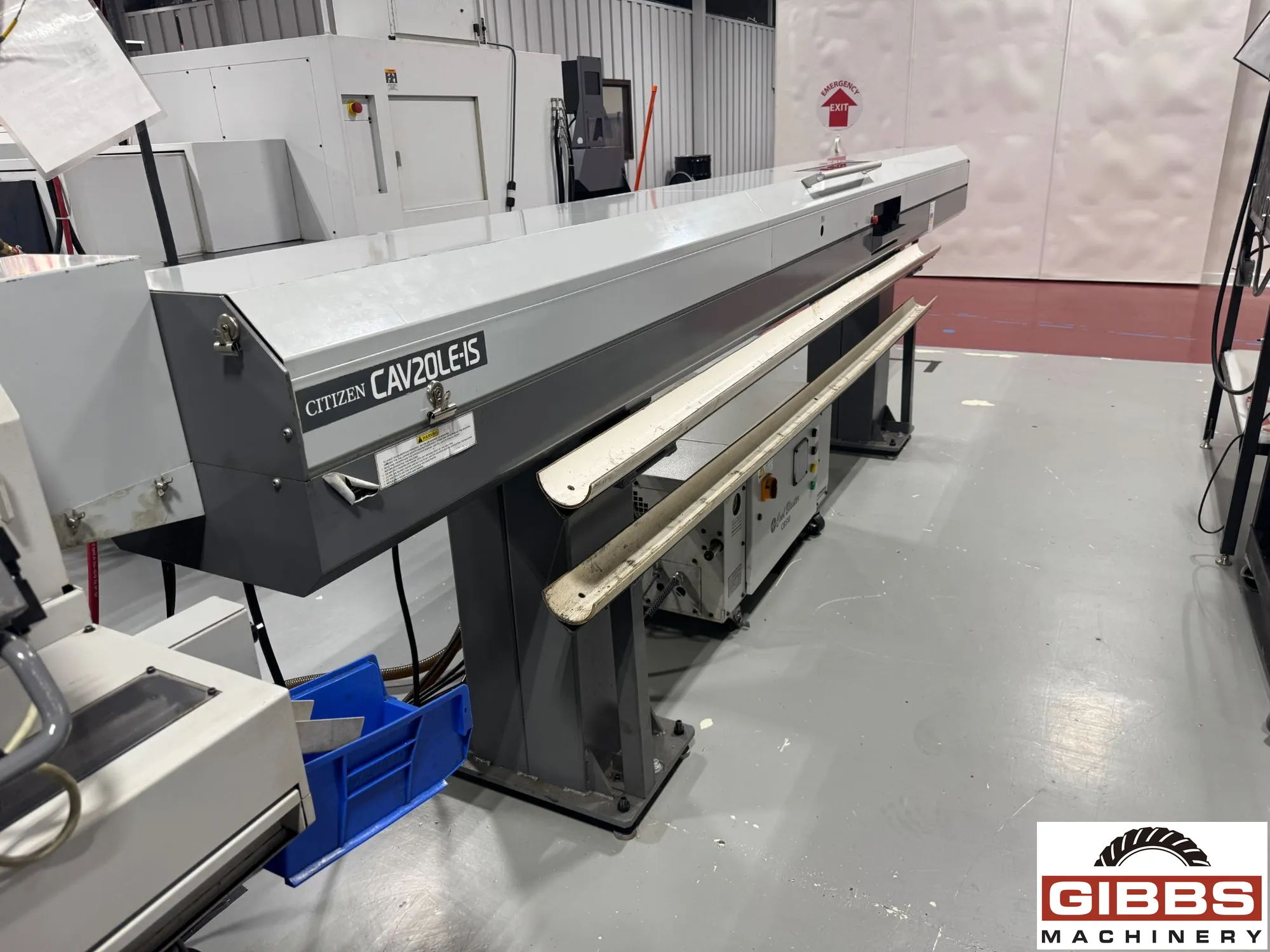

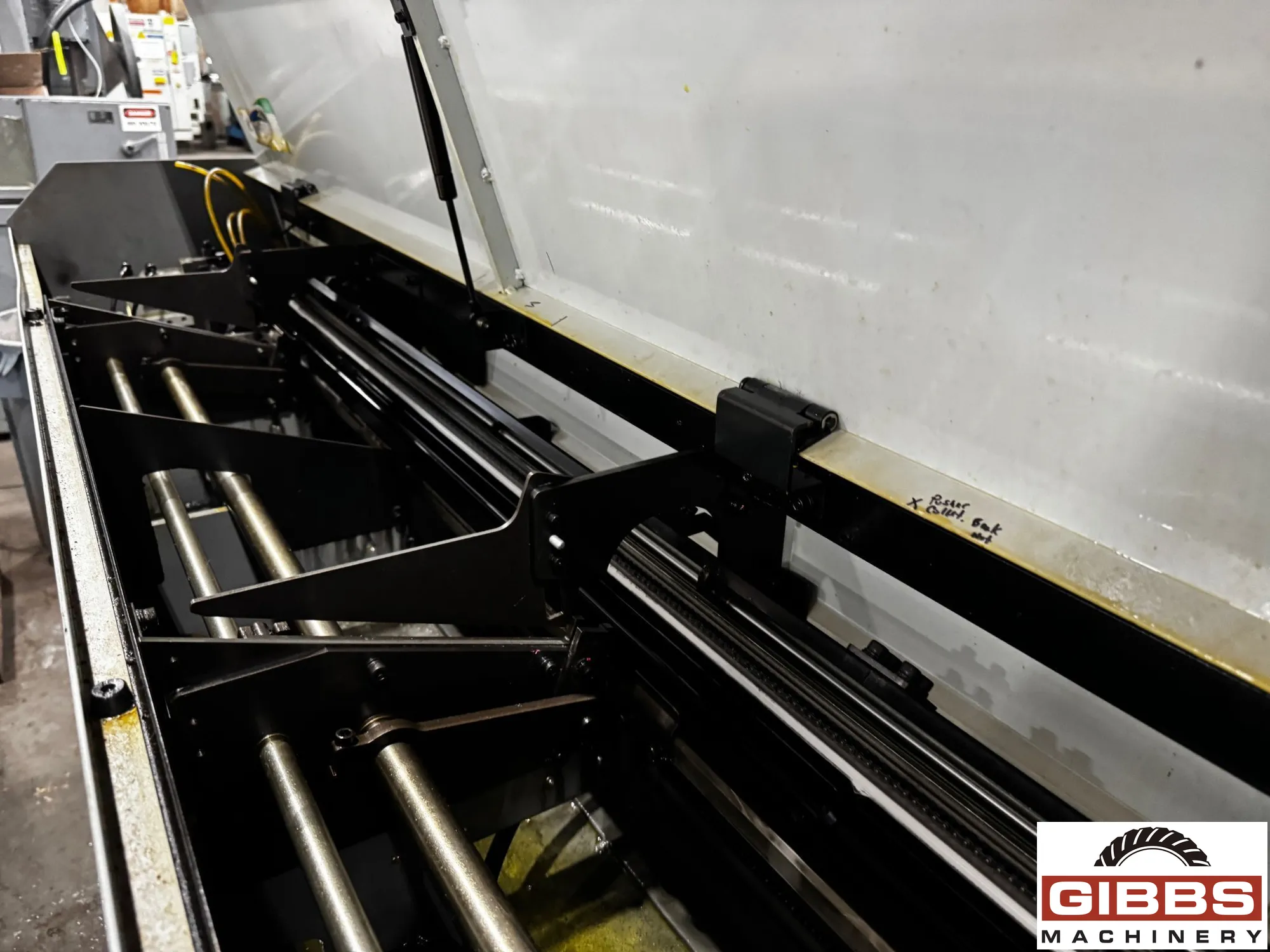

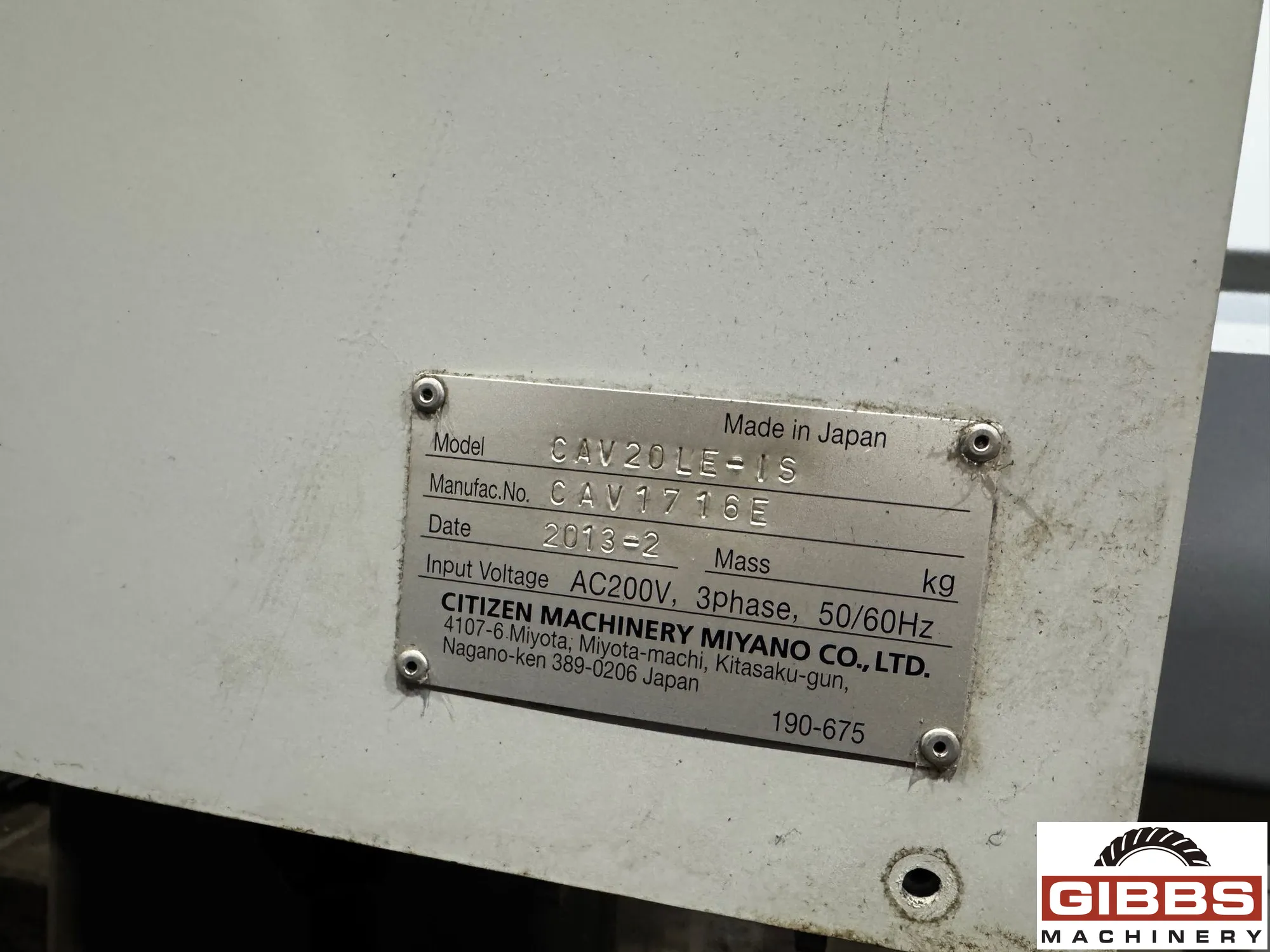

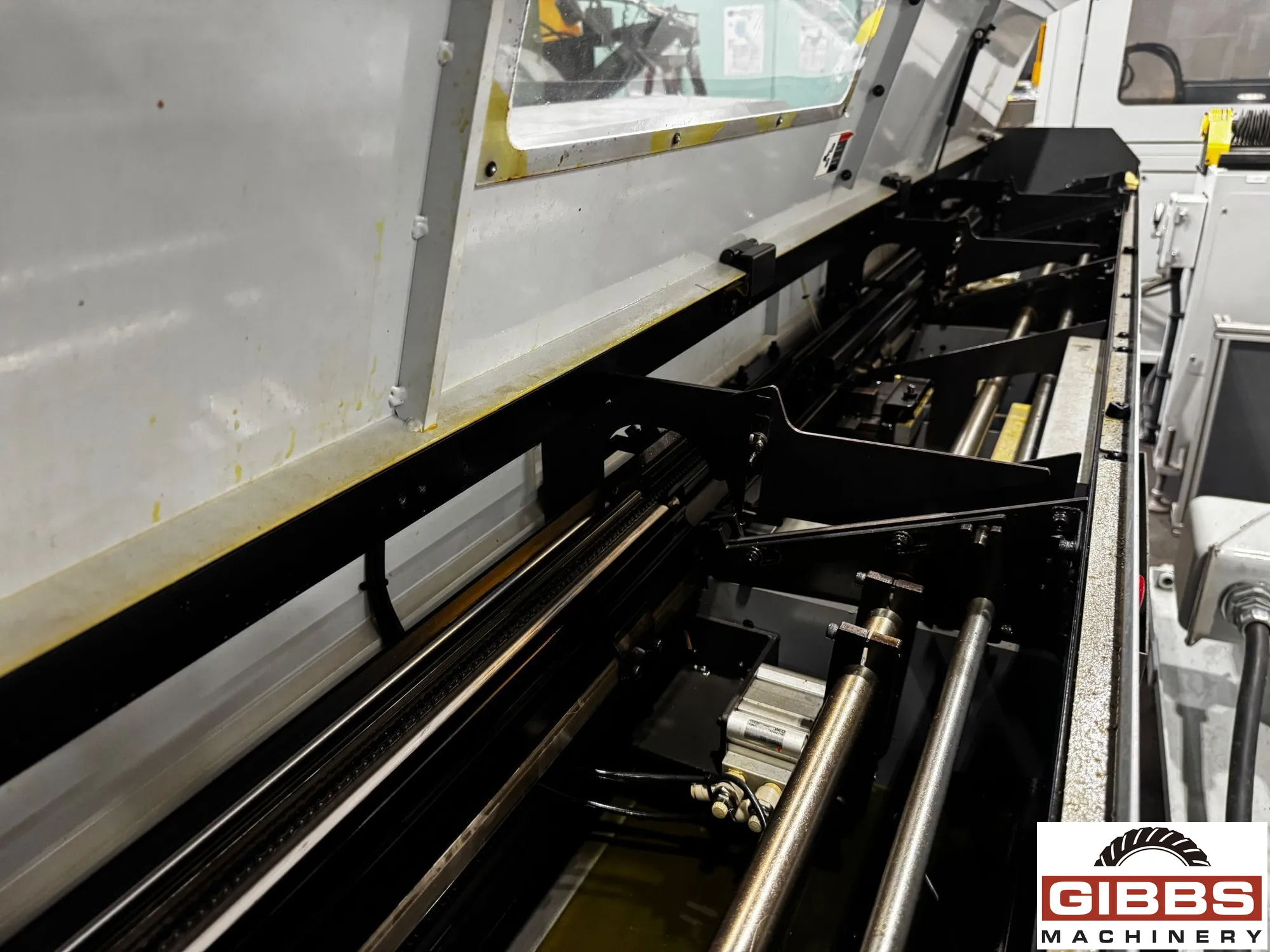

  • 2013 Citizen CAV20LE-IS Bar Feeder
  • Cool Blaster Mist Collector
  • Coolant System
  • Cool Blaster HP Coolant
  • Chip Conveyor
  • Part Conveyor
  • Fire Trace Internationl Suppresion
  • Stacklight
  • Worklight
,

Machine Specifications :

  • Year 2013
  • Manufacturer CITIZEN
  • Max Workpiece Diameter 0.8"
  • Max Workpiece Length 8.0"
  • Max X-Axis Travel 2.56"
  • Max Y-Axis Travel 10.24"
  • Max Z-Axis Travel 7.28"
  • Spindle Hole Dia 0.79"
  • RPM 10,000 RPM
  • Power 3.7
  • # Axis 7.0
  • Capacity 0.8"
,
The Citizen Cincom L20X is a high-performance 6-axis CNC Swiss-type lathe designed for precision machining of complex, small-diameter parts (up to , optional ). It features a gang tool post, back tool post with Y2-axis, and up to 39 tools for advanced, simultaneous front/back machining.
    Specifications:
  • Maximum Machining Diameter: 20 mm
  • Maximum Machining Length: 200 mm
  • Maximum Front Drilling Diameter: 10 mm
  • Spindle Through-Hole Diameter: 26.4 mm
  • Maximum Spindle Rotation: 10,000 min1
  • Maximum Chucking Diameter of Back Spindle: 20 mm
  • Maximum Workpiece Protrusion Length of Back Spindle: 40 mm
  • Maximum Number of Mountable Tools: 45
  • Turning Tool: 12 mm sq.
  • Rapid Feed Rate:
  • -X1, Y1, Z1, X2, Z2 Axis: 32 m/min
  • Front Spindle Drive Motor: 2.2 kW
  • Back Spindle Drive Motor: 1.0 kW
  • Coolant Motor: 0.4 kW
  • Power Supply Voltage: AC 200CV + 10%
  • Machine Dimensions (LxWxH): 89" x 49" x 88"
  • Machine Weight, Approx: 5,800#
