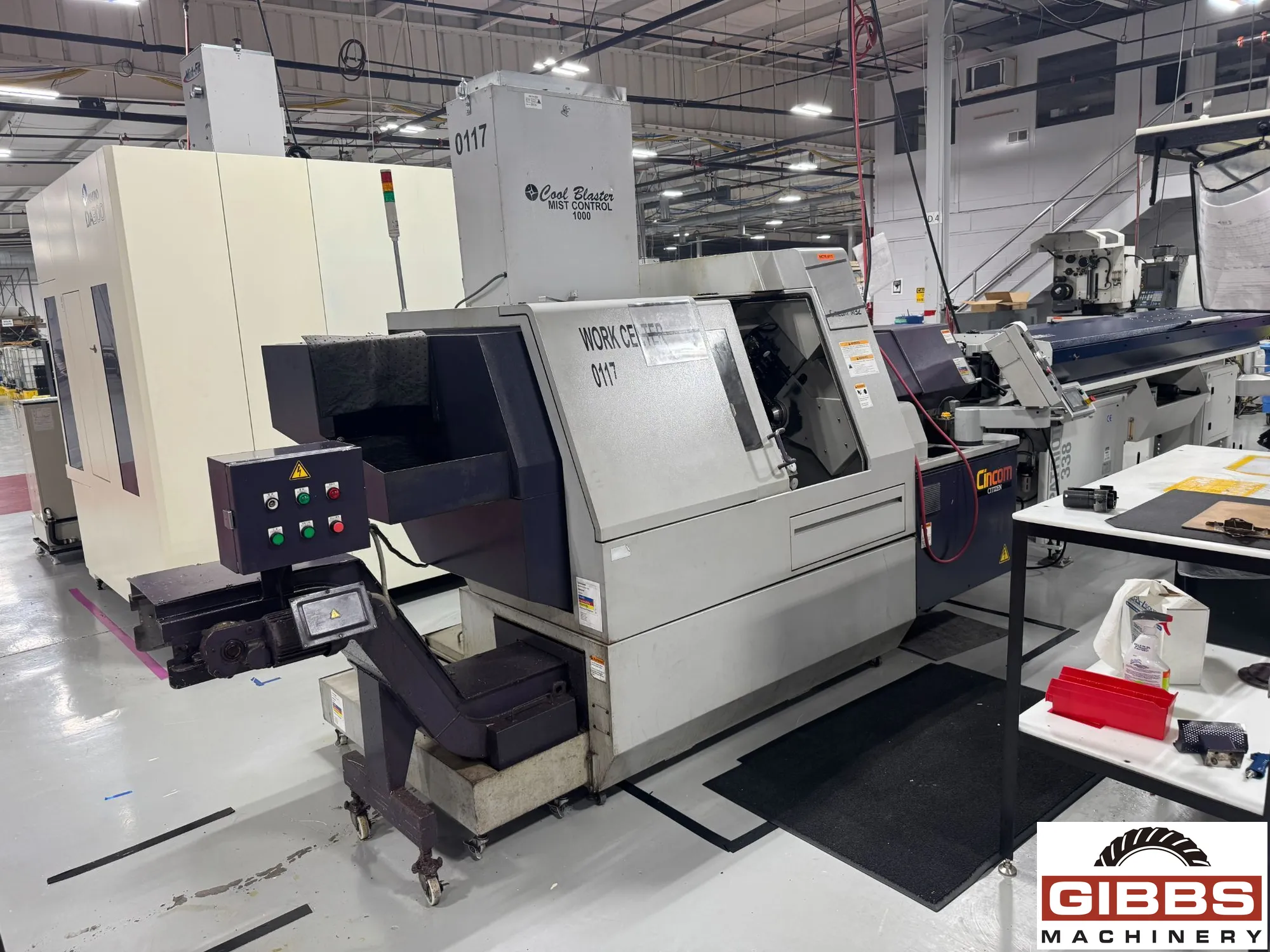

CITIZEN M32 - Horizontal Lathe

Manufacturer

CITIZEN

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

25901

Model

M32

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year
  • Manufacturer CITIZEN
  • Max Workpiece Diameter 1.26"
  • Max Workpiece Length 12.6"
  • Spindle Hole Dia 1.3"
  • RPM 8,000 RPM
  • Power 10.0 HP
  • # Axis 10.0
,
The Citizen Cincom M32 is a high-performance 32mm (optional 38mm) 5-axis Swiss-type CNC lathe designed for complex, high-precision machining with 12 to 15 programmable axes. It features a unique, flexible construction allowing switching between guide bushing and non-guide bushing modes, making it suitable for both long and short parts, typically used in automotive and medical industries
    Specifications:
  • Maximum Machining Diameter: 32 mm
  • Maximum Machining Length: 320 mm
  • Maximum Front Drilling Diameter: 12 mm
  • Main Spindle Speed: 8,000 RPM
  • Maximum Length of Back Spindle Workpiece: 145 mm
  • Rapid Feed Rate:
  • -X1, Y1, Z1, Z2, & Z3: 32 m/min
  • -X2: 18 m/min
  • -Y2: 12 m/min
  • Front Spindle Drive Motor: 5.5/7.5 kW
  • Back Spindle Drive Motor: 5.5/7.5 kW
  • Main Machine Unit Dimensions: 130" x 59" x 95"
  • Approximate Machine Weight: 9,350#
