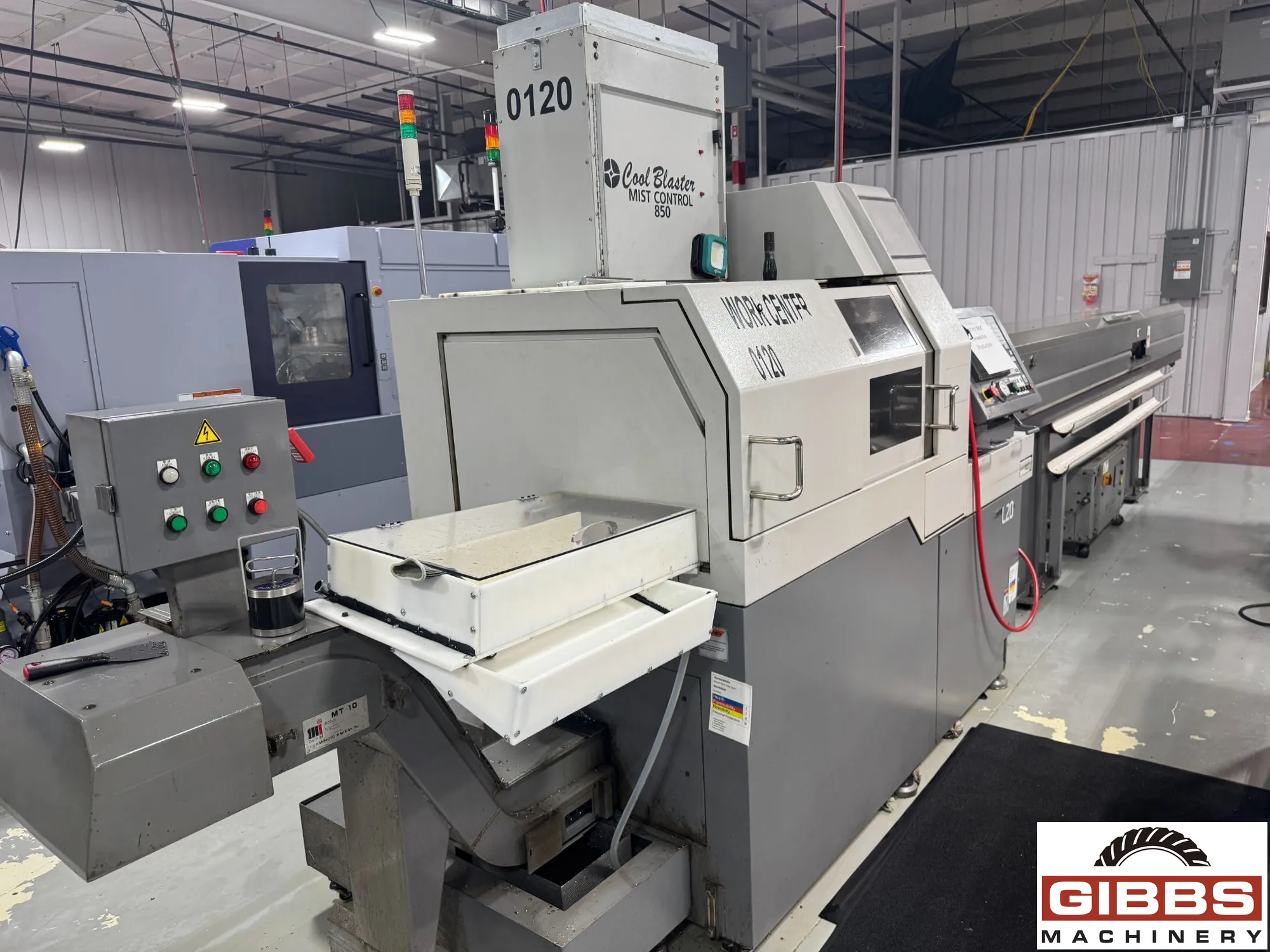

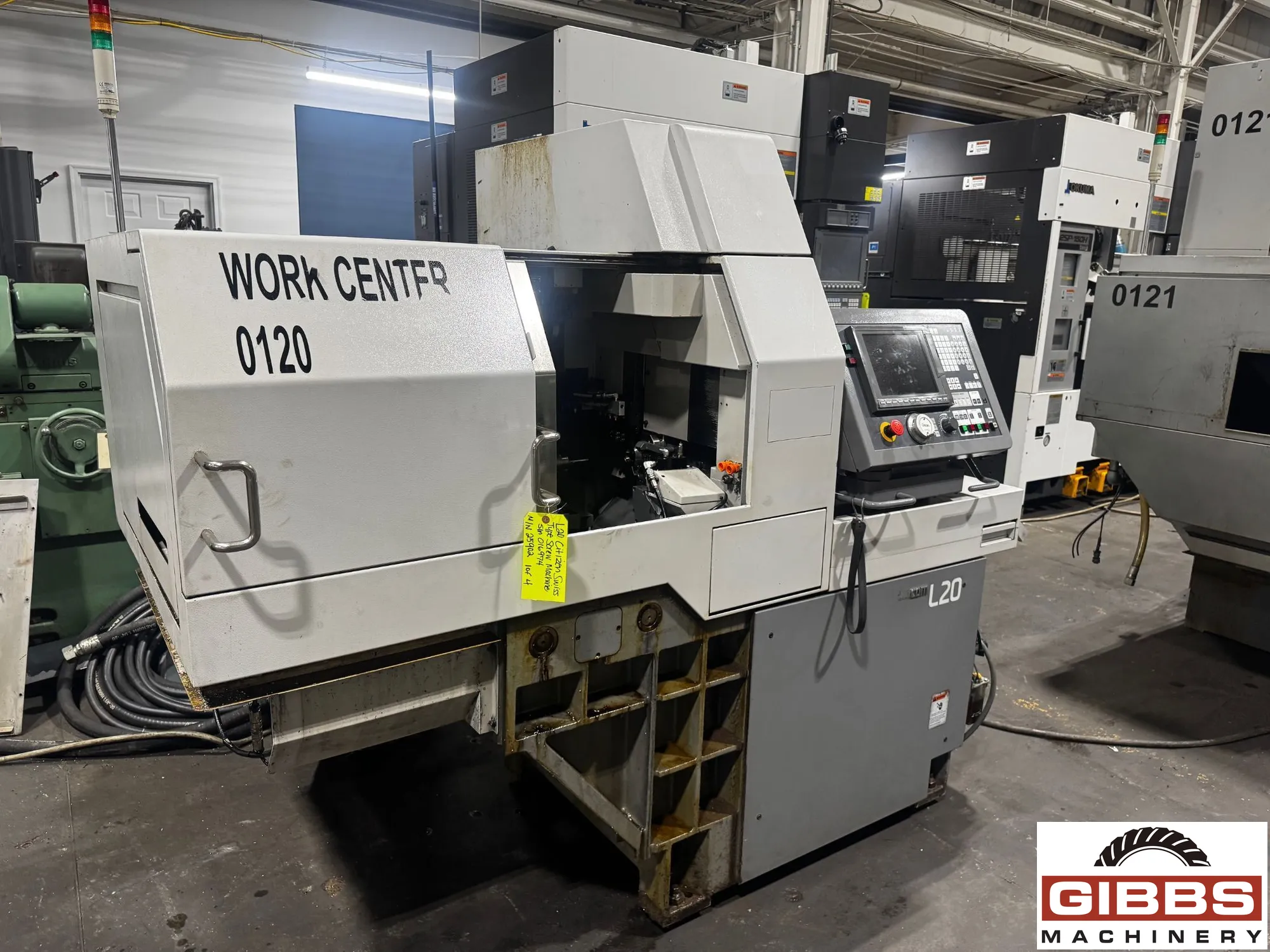

CITIZEN L20IX - Horizontal Lathe

Manufacturer

CITIZEN

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

25902

Model

L20IX

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year
  • Manufacturer CITIZEN
  • Max Workpiece Diameter 0.787"
  • Max Workpiece Length 7.874"
  • Max X-Axis Travel 7.28"
  • Max Y-Axis Travel 3.54"
  • Max Z-Axis Travel 9.25"
  • Spindle Hole Dia 0.8"
  • RPM 10,000 RPM
  • Power 3.7
  • # Axis 5.0
  • Capacity 0.787"
,
The Citizen Cincom L20 is a versatile, high-performance 20mm (optional 25mm) Swiss-type CNC lathe designed for precision machining of complex, small-diameter parts in medical, aerospace, and automotive industries. It features a 5-axis control system, 10,000 rpm spindle speeds, and revolutionary Low Frequency Vibration (LFV) technology for superior chip control.
    Specifications:
  • Maximum Machining Diameter: 20 mm
  • Maximum Machining Length: 200 mm
  • Maximum Front Drilling Diameter: 10 mm
  • Spindle Through-Hole Diameter: 26.4 mm
  • Maximum Spindle Rotation: 10,000 min1
  • Maximum Chucking Diameter of Back Spindle: 20 mm
  • Maximum Workpiece Protrusion Length of Back Spindle: 40 mm
  • Maximum Number of Mountable Tools: 38
  • Turning Tool: 12 mm sq.
  • Rapid Feed Rate:
  • -X1, Y1, Z1, X2, Z2 Axis: 32 m/min
  • Front Spindle Drive Motor: 2.2 kW
  • Back Spindle Drive Motor: 1.0 kW
  • Coolant Motor: 0.4 kW
  • Power Supply Voltage: AC 200CV + 10%
  • Machine Dimensions (LxWxH): 89" x 49" x 88"
  • Machine Weight, Approx: 5,800#
