CITIZEN M20 - Horizontal Lathe

Manufacturer

CITIZEN

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

25903

Model

M20

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Machine Specifications :

  • Year
  • Manufacturer CITIZEN
  • Spindle Hole Dia 0.75"
  • RPM 8,100 RPM
  • Power 5.0 HP
,

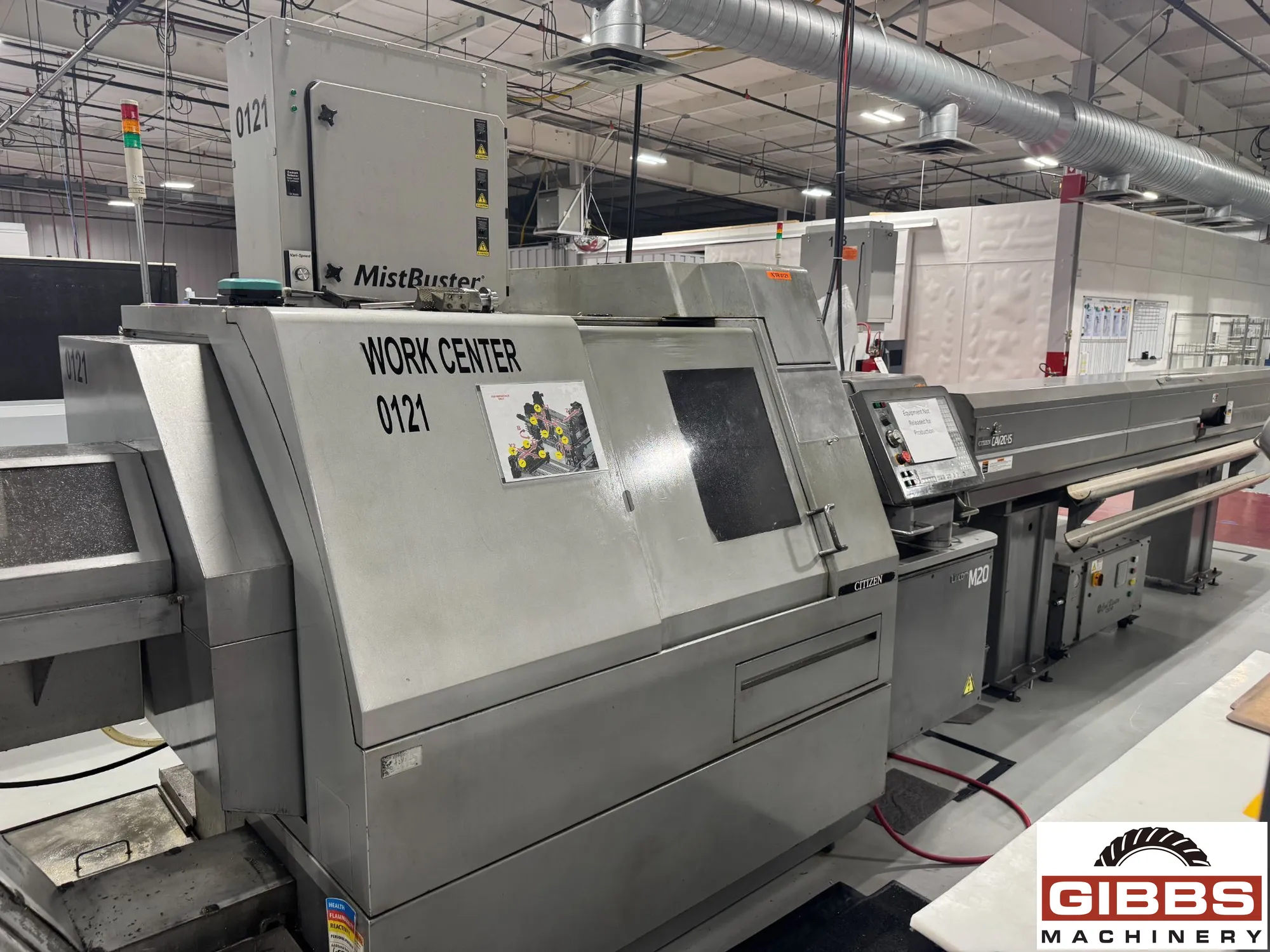

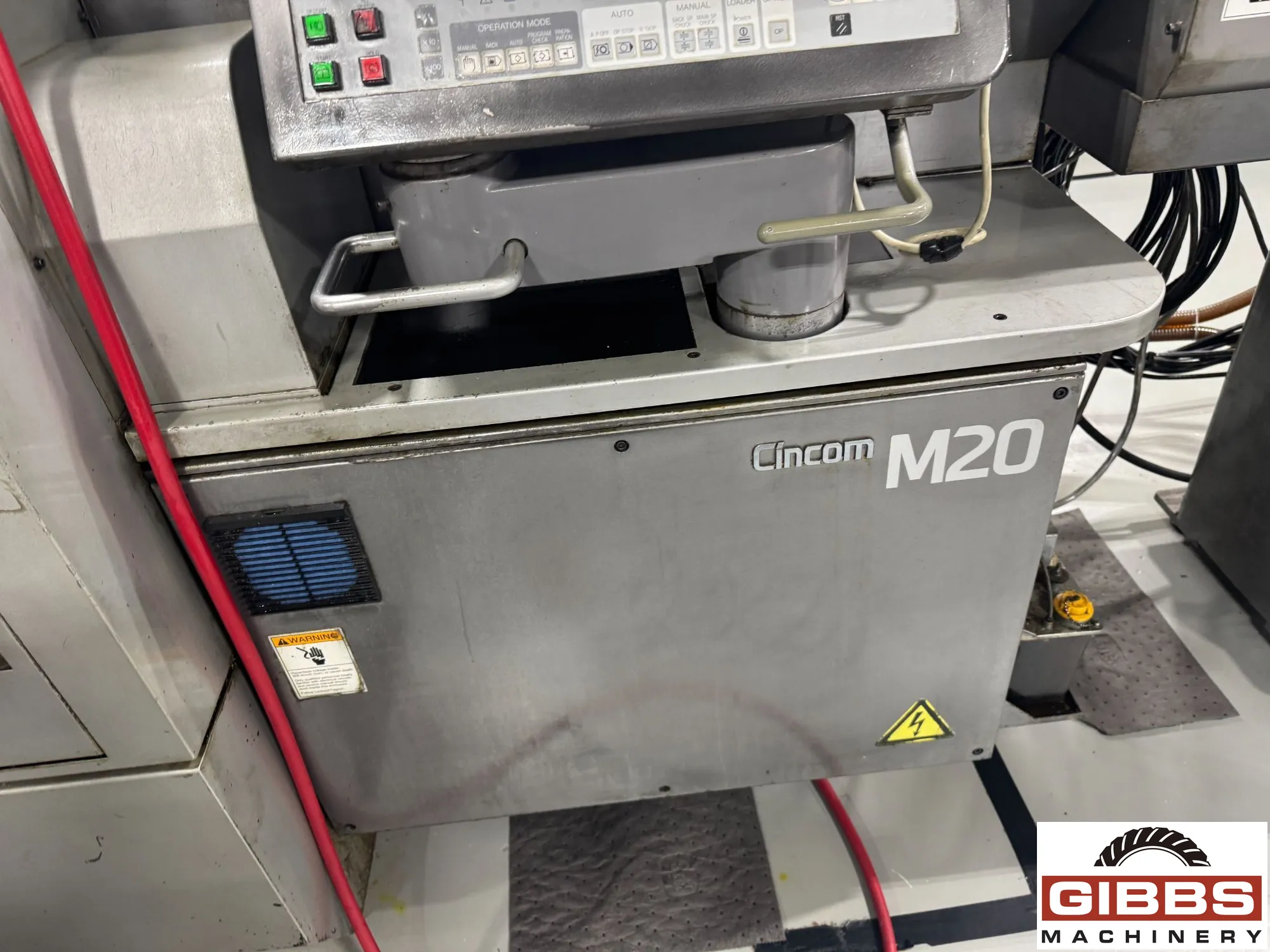

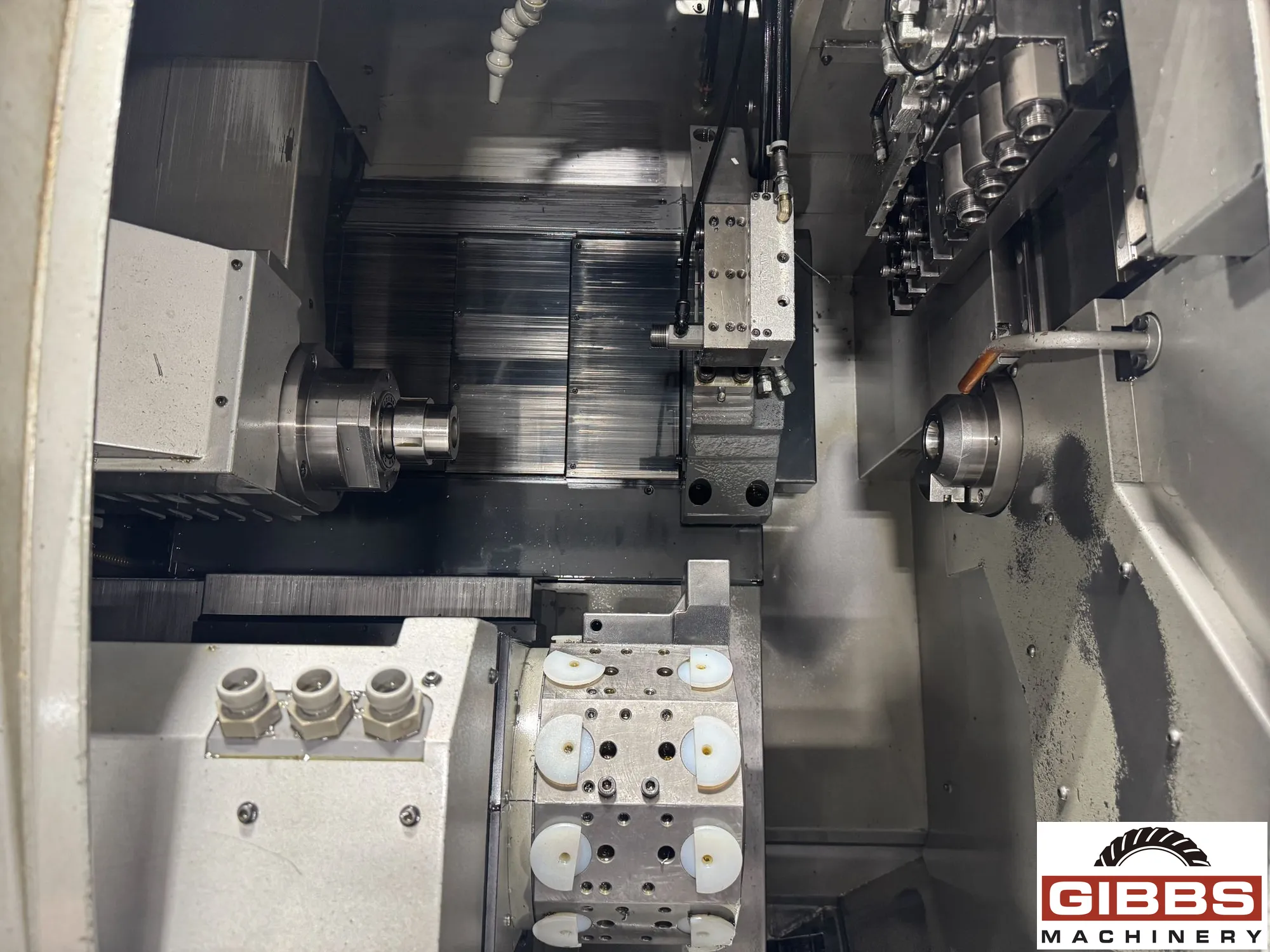

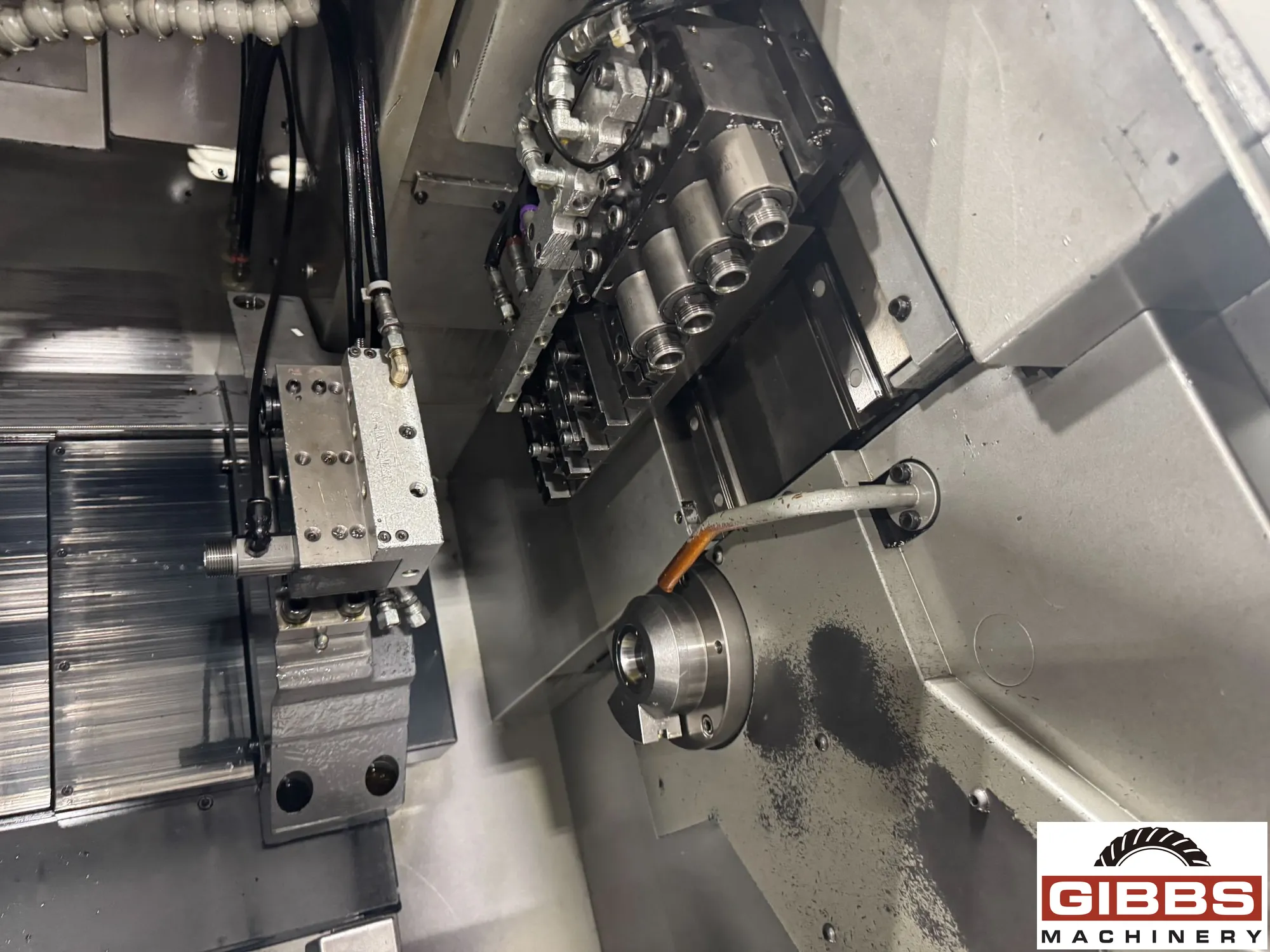

The Citizen Cincom M20 is a high-precision 20mm (0.79 in) CNC Swiss-type turning center designed for complex, small-part production in industries like medical, aerospace, and electronics. It typically features dual spindles (main/sub), live tooling (gang slide and turret), full C-axis capability, and high-pressure coolant systems.
    Specifications:
  • Bar Capacity: 20mm (0.787")
  • Max Machining Length: 320mm (12.6')

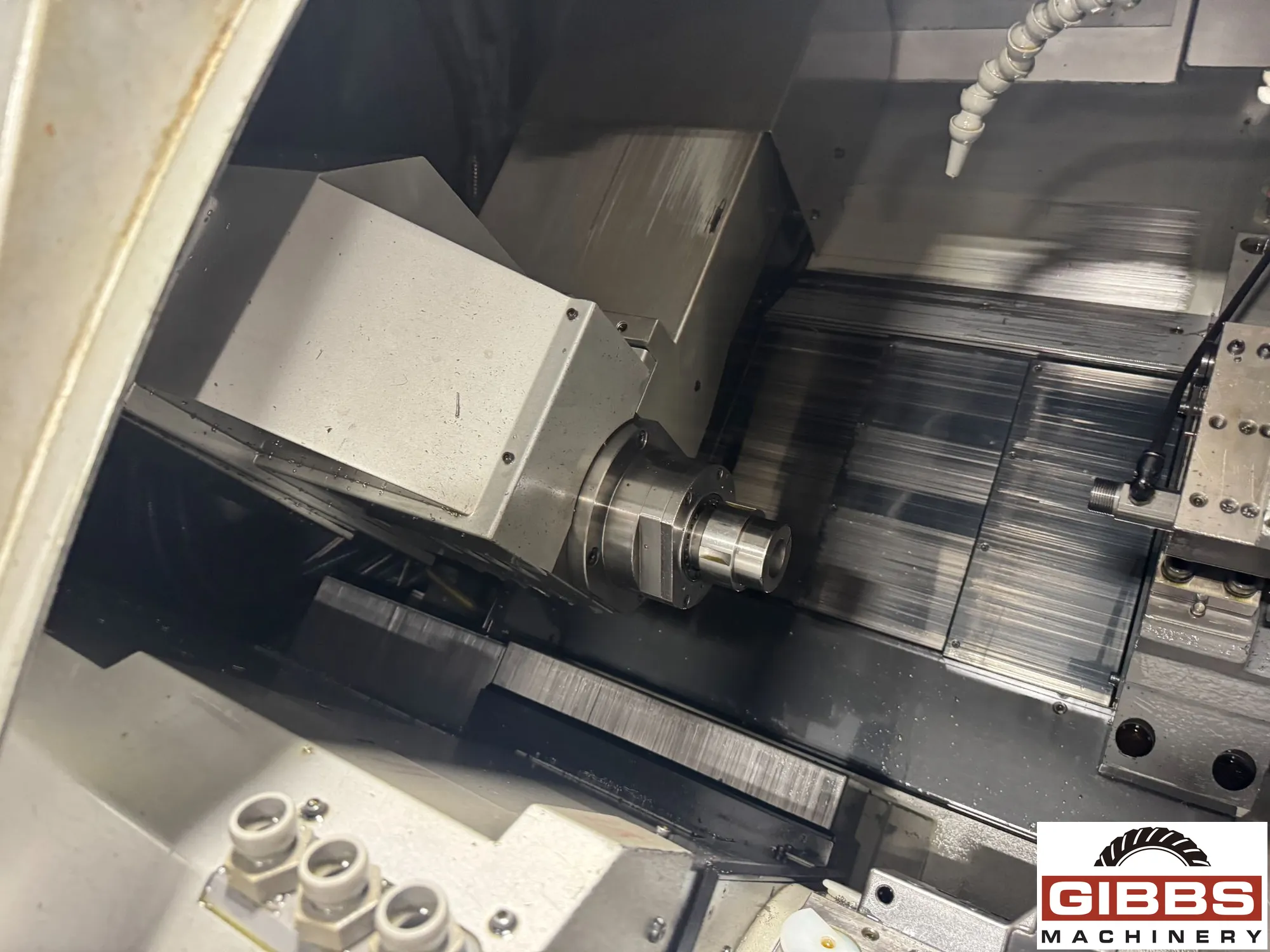

  • Max Back Spindle Chucking Diameter: 20mm
  • Max Back Spindle Work Length: 125mm (4.92")
  • Max Back Spindle Drilling/Threading: 8mm (0.315")
  • Spindle Speeds (Main): 200 - 8,100 RPM
  • Spindle Speeds (Sub): 150 - 7,200 RPM
  • Rotary Tool Speed (Main Slide): 250 - 5,000 RPM
  • Main Slide Tool Size: 13mm x 13mm x 150mm

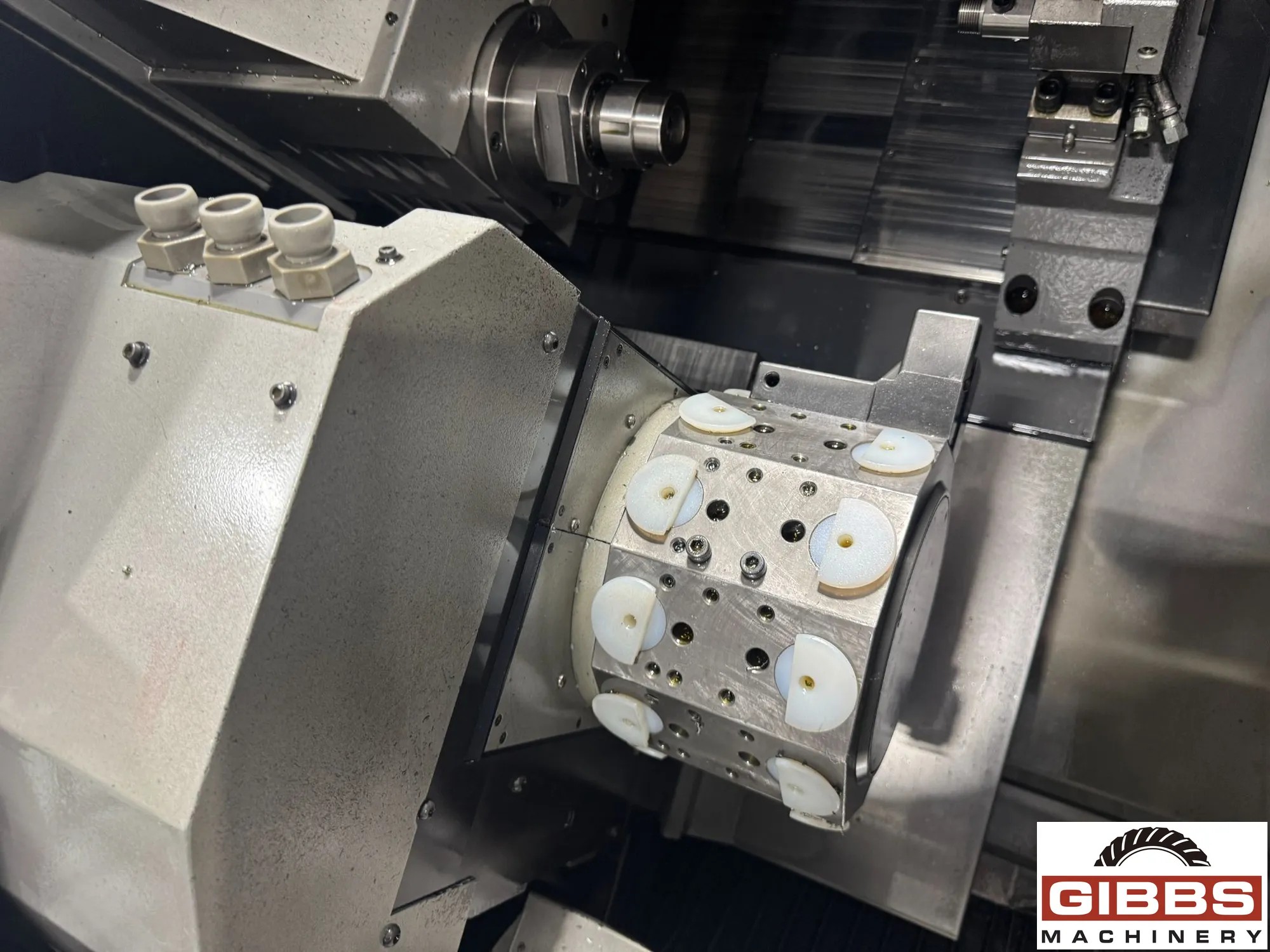

  • Turret Capacity: 10 (Live)
  • Turret Live Tool Speed: 320 - 6,300 RPM
  • Turning Tools Size: 5 Static
  • Turret Tool Size: 10mm x 10mm x 60mm
  • Machine Dimensions: 115" x 62" x 91"
  • Weight: 3,660 Lbs.
