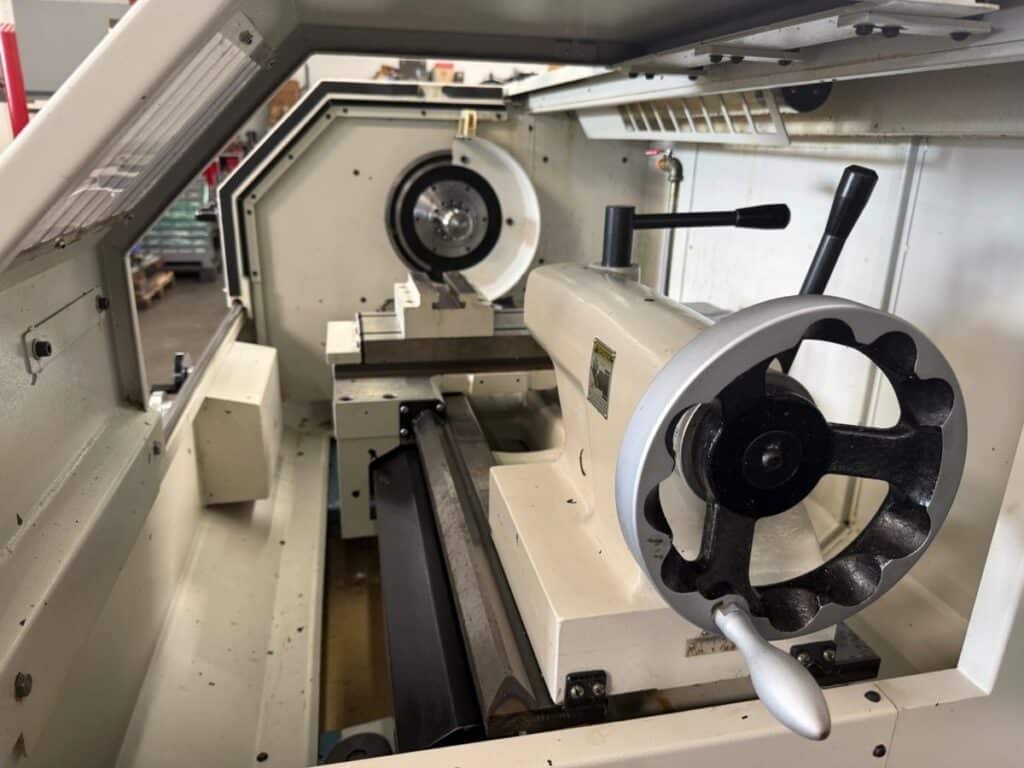

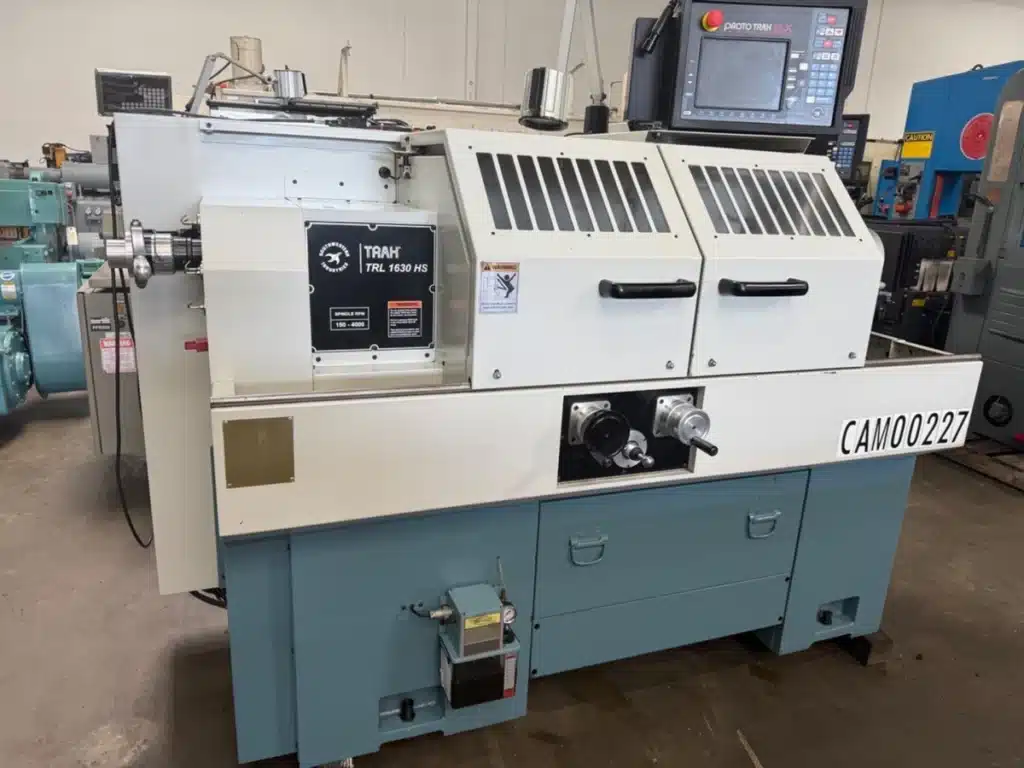

Southwestern TRAK TRL 1630SX Flat Bed CNC Lathe

Manufacturer

Southwestern TRAK

Category

Lathes

Type

LATHES, CNC

Stock

163260007

Model

TRL 1630SX

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 163260007
  • Location: CA
  • Brand: Southwestern TRAK
  • Model: TRL 1630SX
  • Year: 2018
  • Approx. Shipping Weight: 3,000 lbs
  • Approx. Shipping Dimensions: 82″L X 46″W X 67″H
  • Loading Fee: Free Loading

Specifications

  • Height of Centers: 8″
  • Swing Over Bed: 16″
  • Swing Over Cross Slide: 8.6″
  • Swing Over Saddle Wings: 16″
  • Max Distance Between Centers: 30″
  • Spindle Taper: A2-4
  • Spindle Speed Range: 150-2500 RPM (Variable)
  • Spindle HP: 7.5 HP
  • Spindle Bore: 1.57″
  • Taper In Headstock Spindle: #5 MT
  • Tailstock Quill Travel: 6.3″
  • Tailstock Quill Diameter: 2.36″
  • Tailstock Quill Taper Hole: #5 MT
  • Electrical: 230V / 3-Phase (60hz)

Equipped With

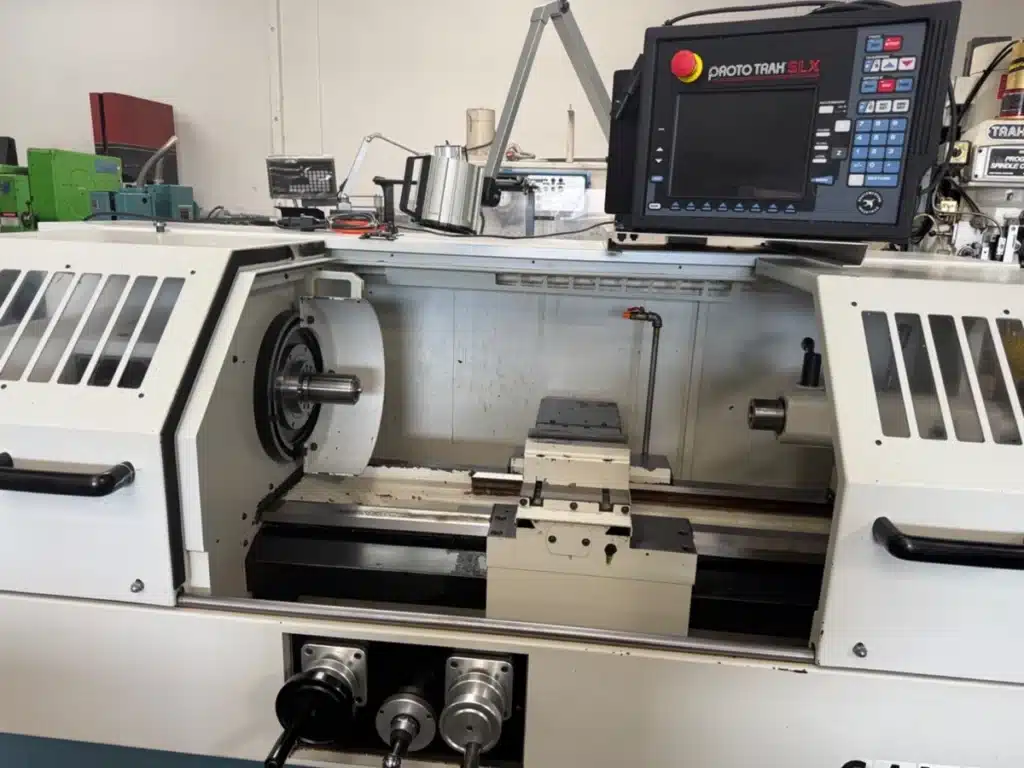

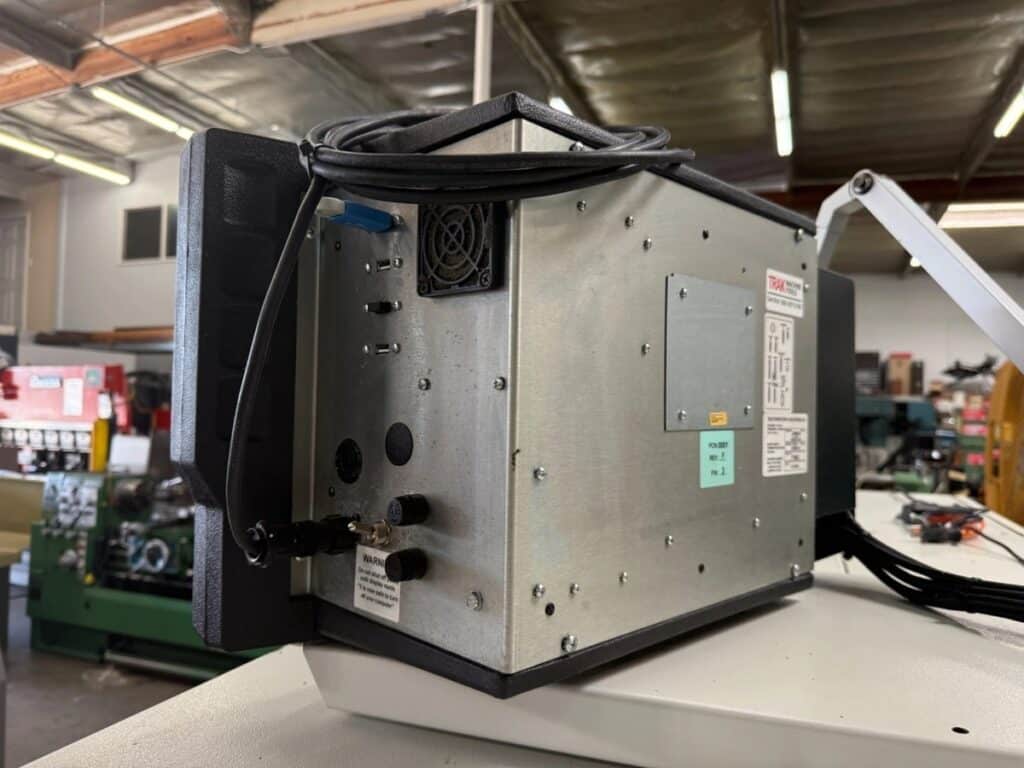

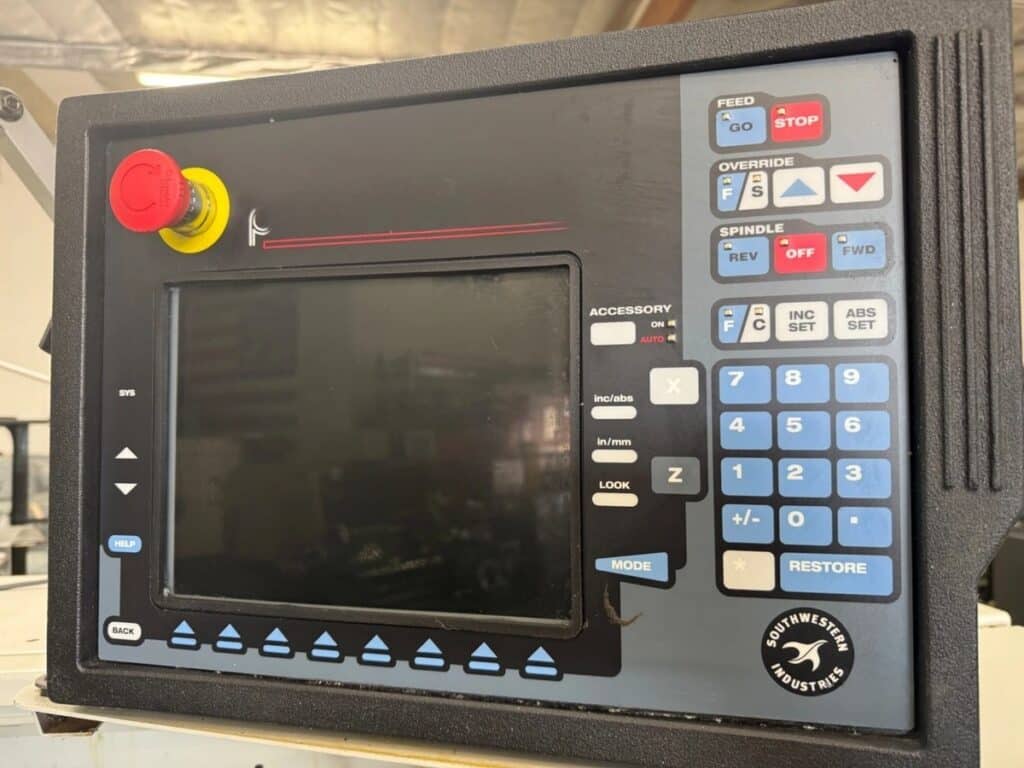

ProtoTRAK SLX Control, 2-Axis DRO During Manual Operation, Constant Surface Speed & Programmable Spindle Speeds, Servo Motors & Ground Ballscrews, AC Spindle Drive, Electronic Handwheels for X & Z Manual Traverse, Jogstick for Convenient Jog at Rapid Travels, Dorian Quick Change Toolpost,Hardened & Ground Bed Ways, Automatic Central Lubrication System for the Slide Ways & Ballscrews, Coolant System, Enclosure

Additional Info

This machine can be demoed under power upon request.
