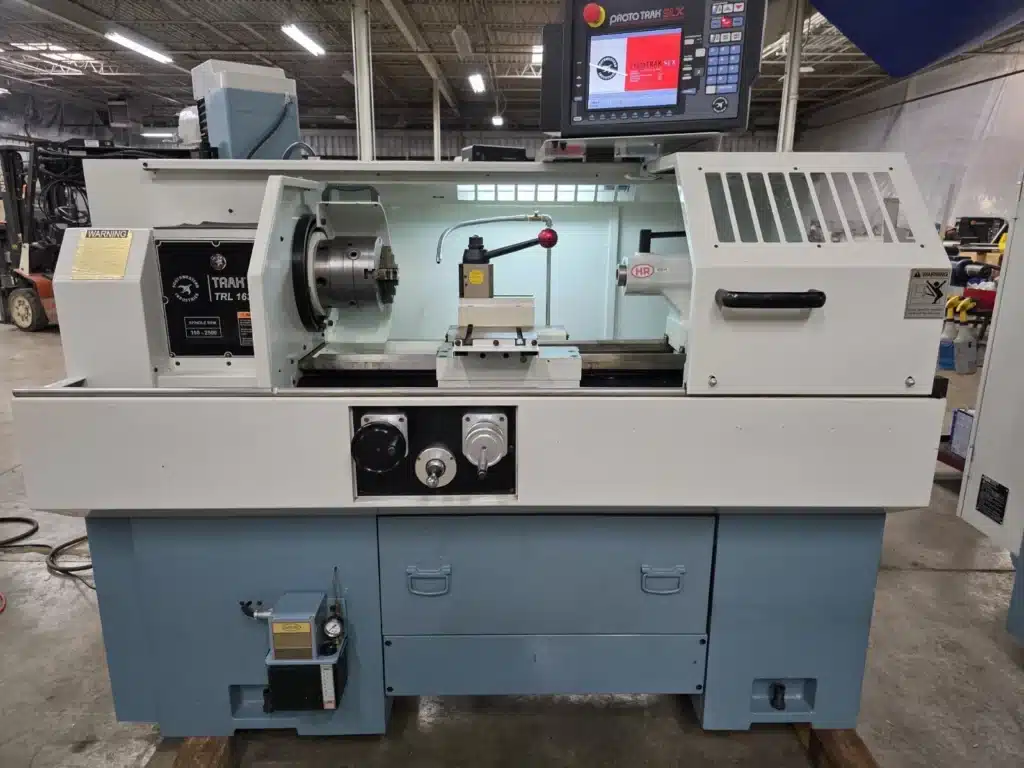

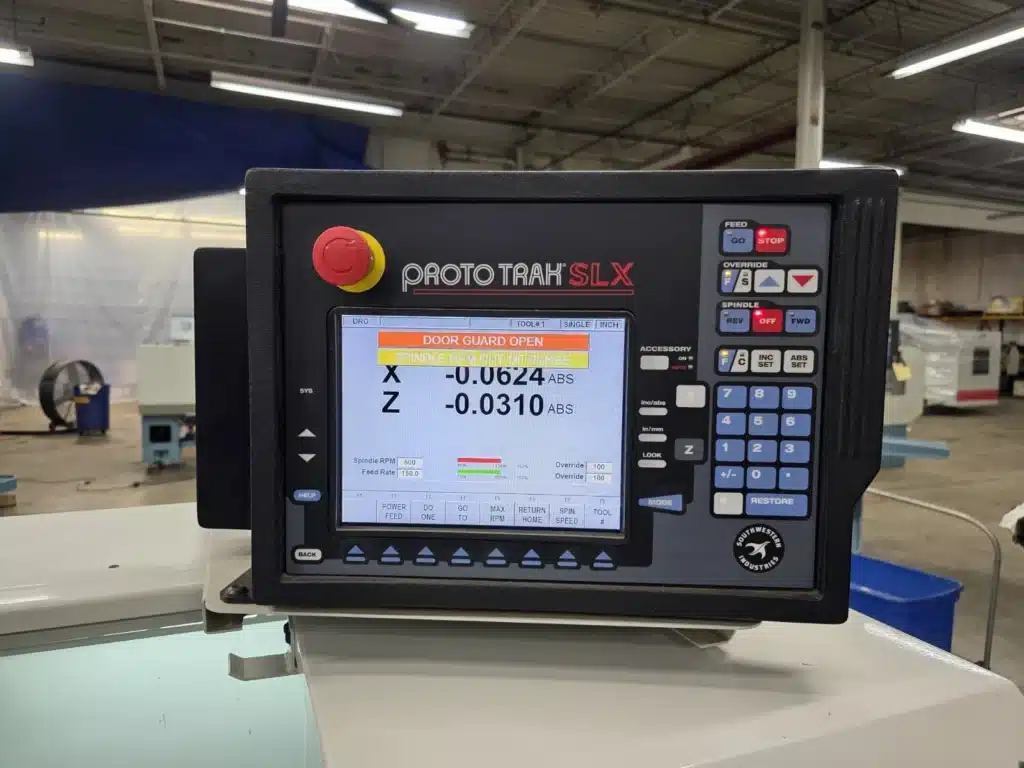

Southwestern Indusries ProtoTRAK TRL 1630SX CNC Lathe w/ ProtoTRAK SLX Control

Manufacturer

Southwestern Indusries ProtoTRAK

Category

Lathes

Type

LATHES, CNC

Stock

163260006

Model

TRL 1630SX

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 163260006
  • Location: VA
  • Brand: Southwestern Indusries ProtoTRAK
  • Model: TRL 1630SX
  • Year: 2015
  • Approx. Shipping Weight: 3,500 lbs
  • Approx. Shipping Dimensions: 87″L x 45″W x 67″H
  • Loading Fee: Free Loading

Specifications

  • Height of Centers: 8″
  • Distance Between Centers: 30″
  • Swing Over Bed: 16″
  • Swing Over Saddle Wings: 16″
  • Swing Over Cross Slide: 8.6″
  • Cross Slide Travel: 8.5″
  • Tool Section Max: 3 /4″
  • Coolant Tank Capacity: 8 Gallon
  • Width of Bed: 12.6″
  • Height of Bed: 12.6″
  • Spindle Nose: D1-6
  • Spindle Through Hole: 2.12″
  • Spindle Taper: MT#6
  • Spindle Diameter at Front Bearing: 3.15″

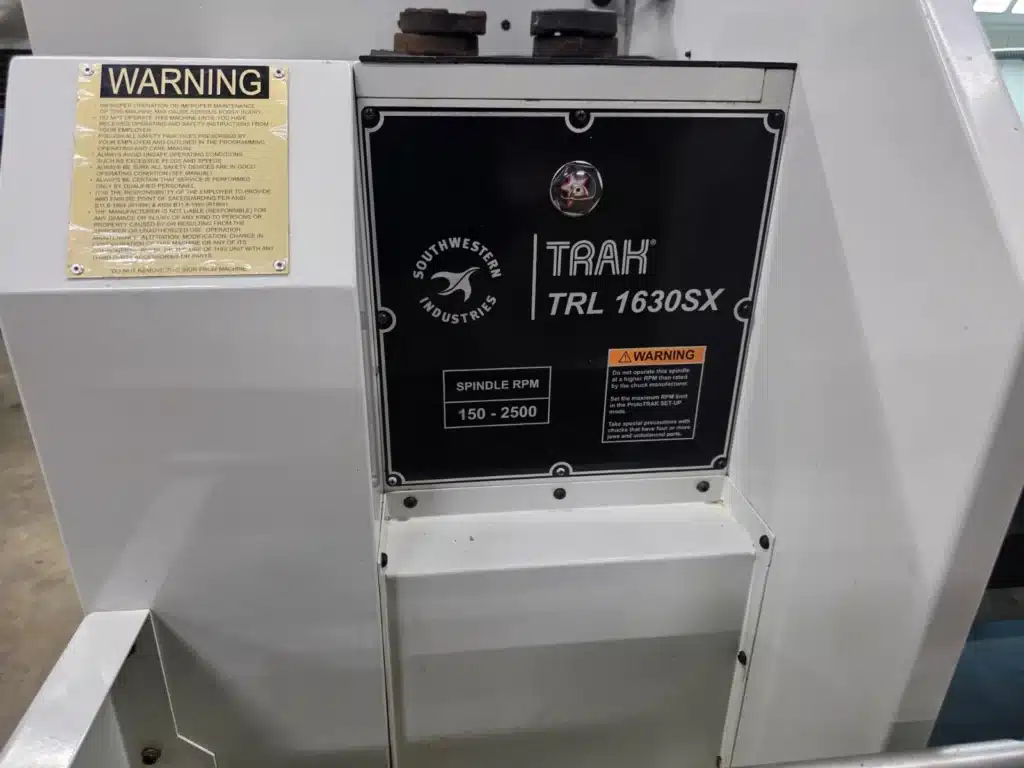

  • Spindle Speed Range (RPM): 150-2500
  • Tailstock Quill Travel: 5″
  • Quill Diameter: 2.36″
  • Quill Taper Hole: MT#4
  • Spindle Motor HP: 7.5 HP

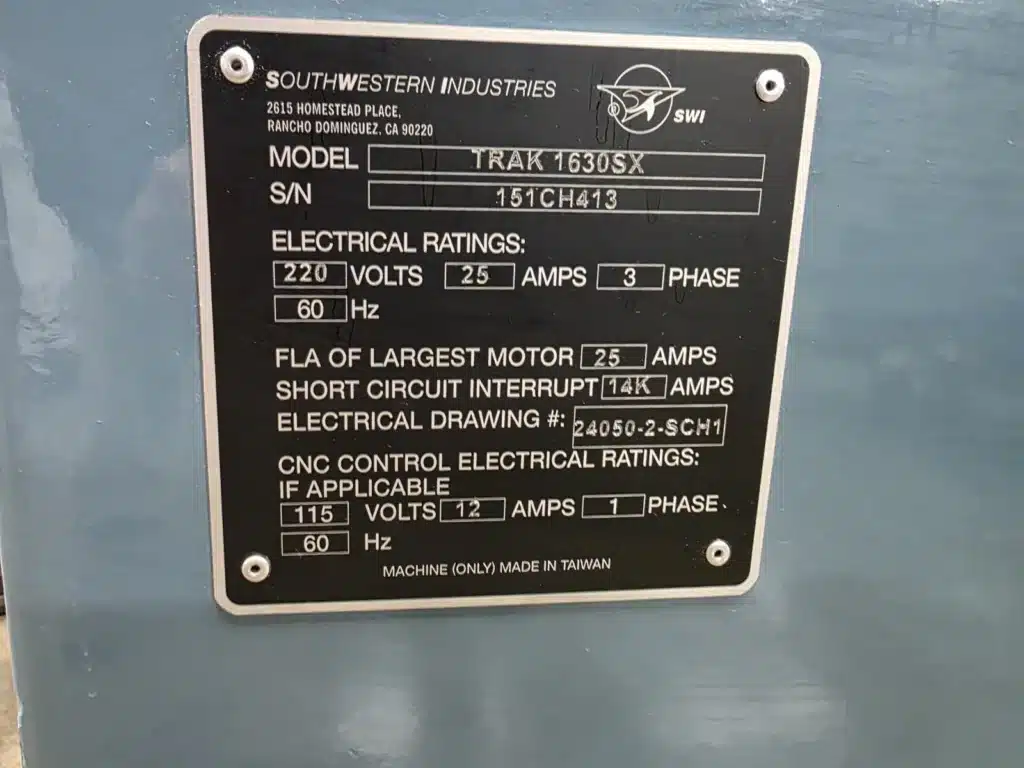

  • Power Requirements (Control): 110v 1-Phase , 8 Amps
  • Power Requirements (Machine): 220v 3-Phase, 60Hz
  • FLA: 25

Equipped With

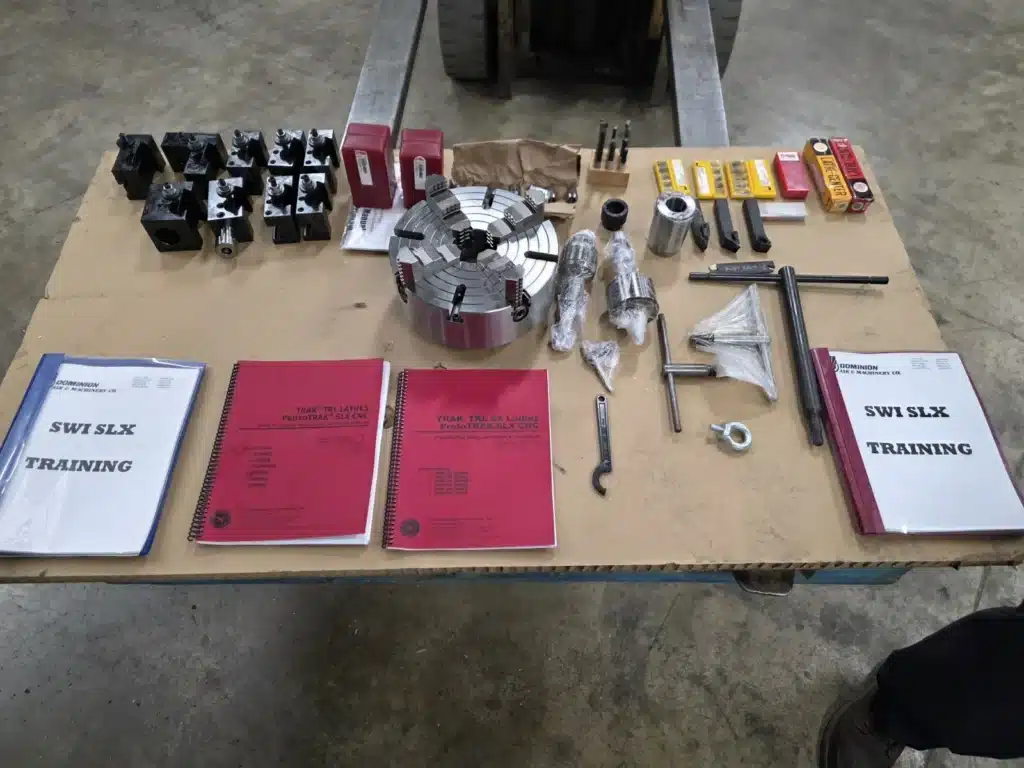

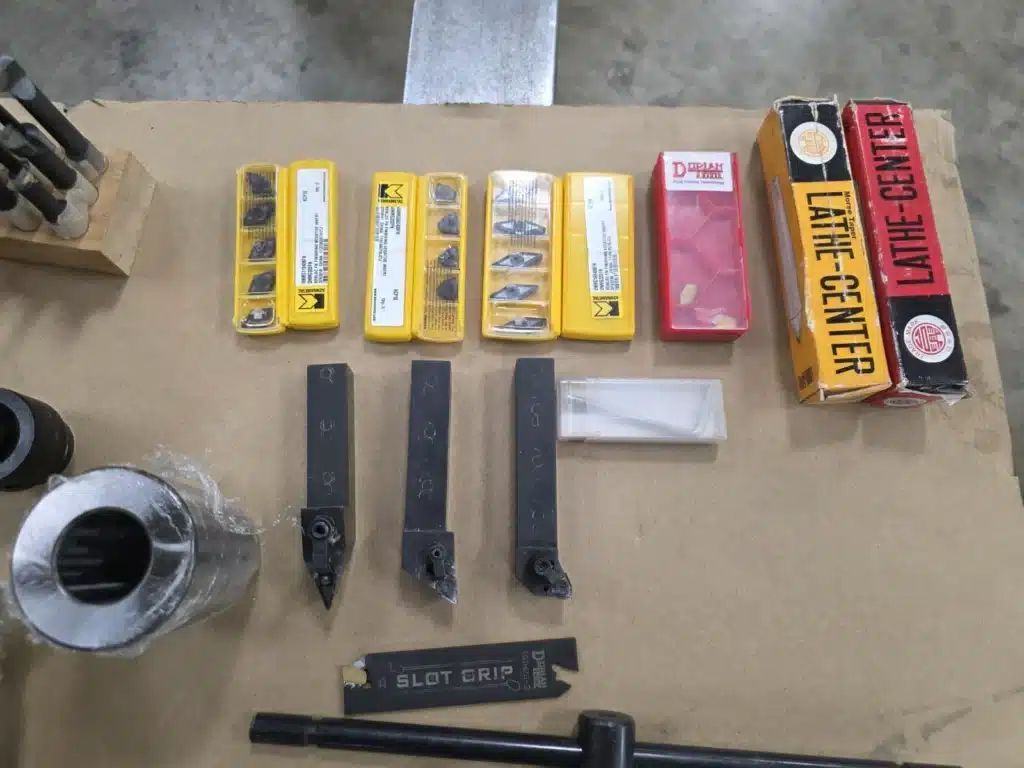

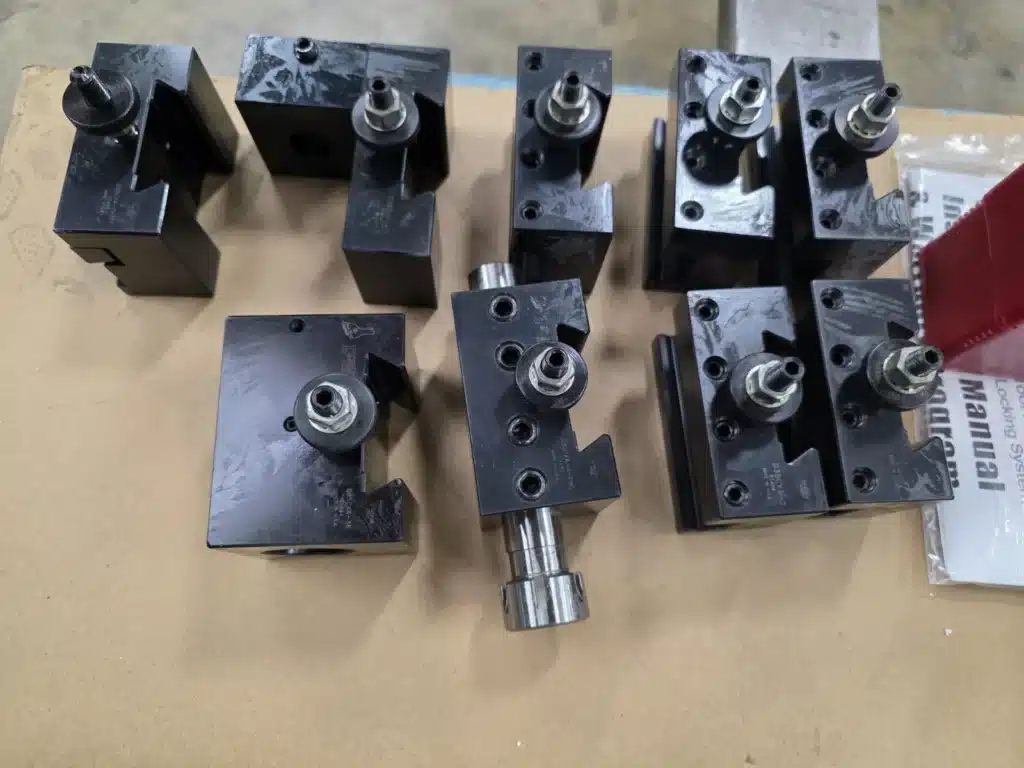

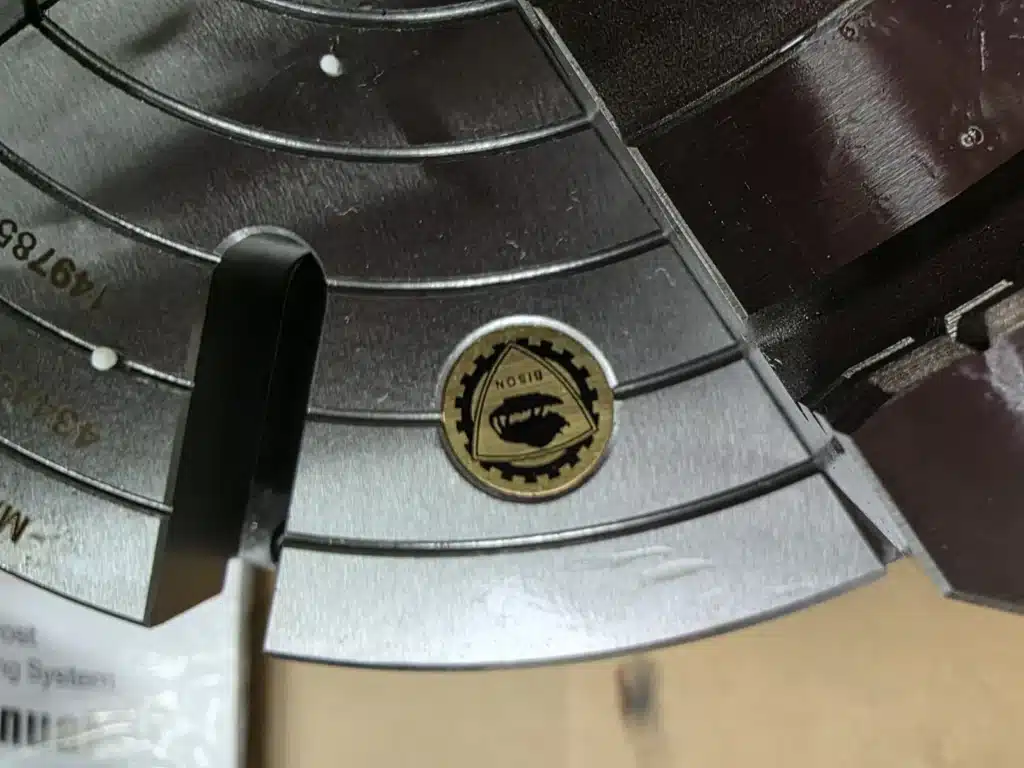

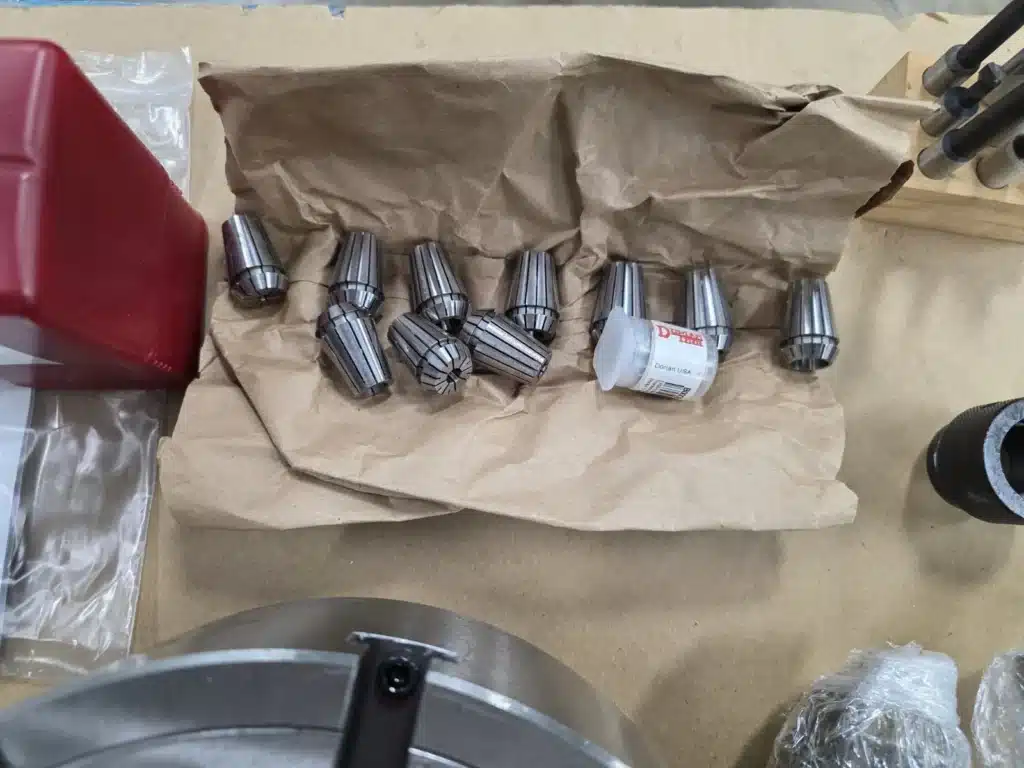

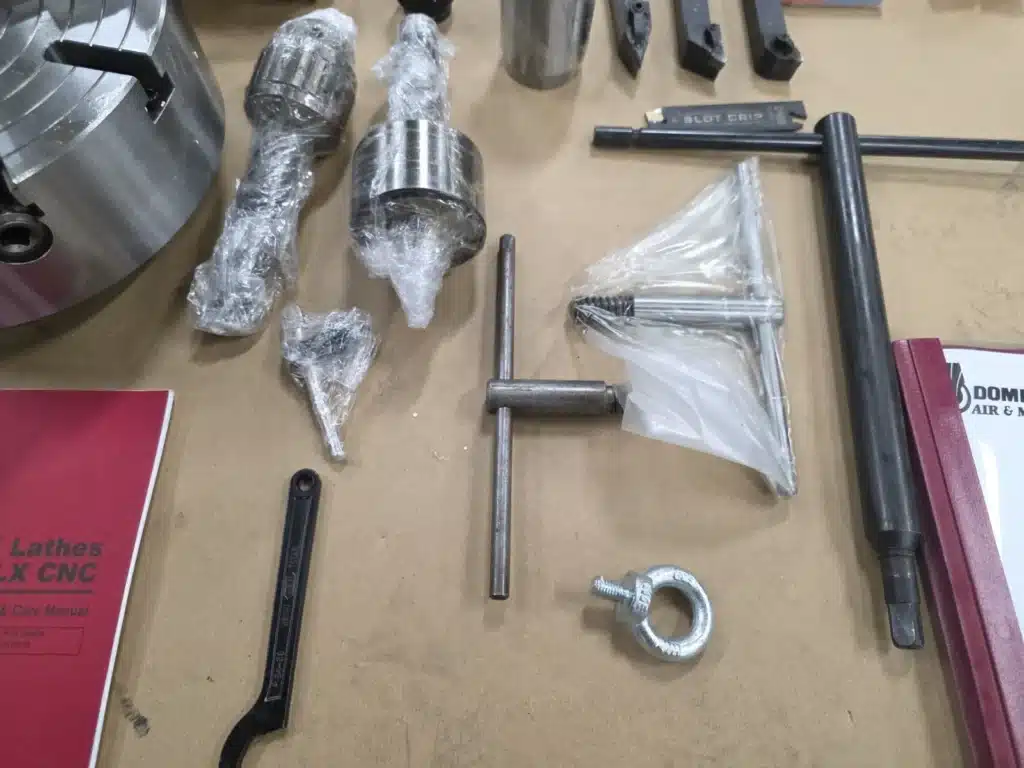

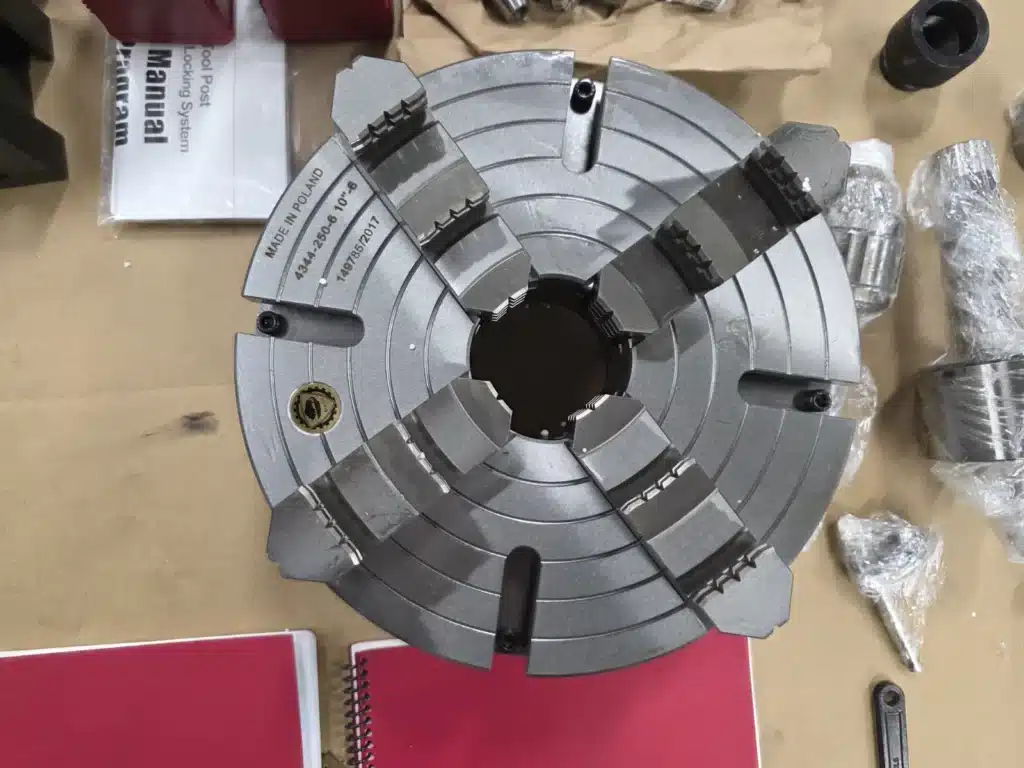

Brand New Bison 4-Jaw Chuck, Loads of New Tooling, and More (Comes As Pictured)

Additional Info

This machine was very lightly used and is in excellent condition. It can be inspected under power upon request.
