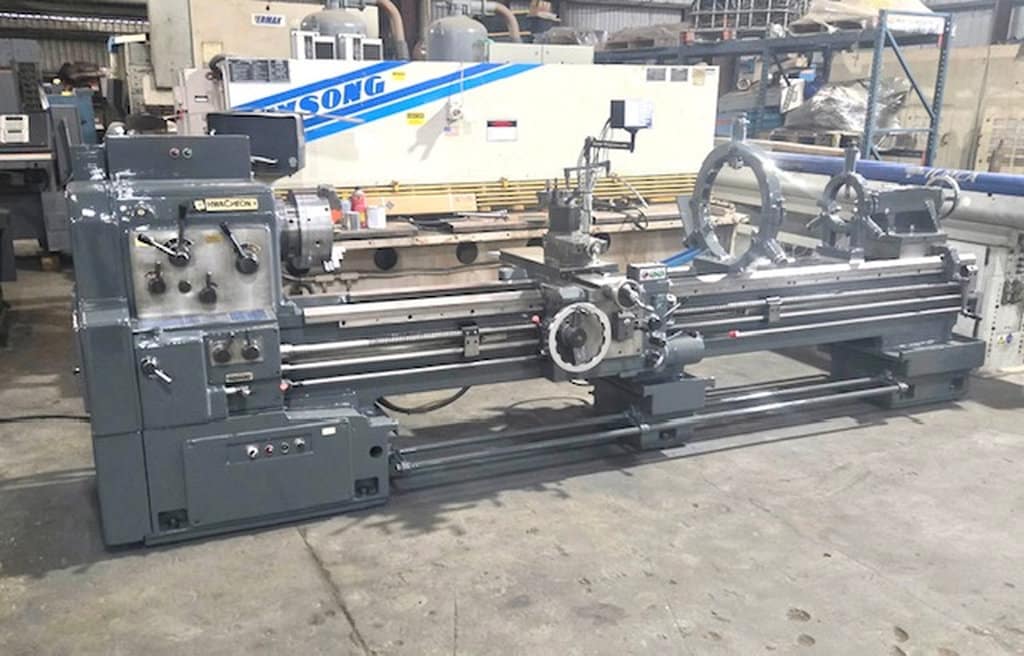

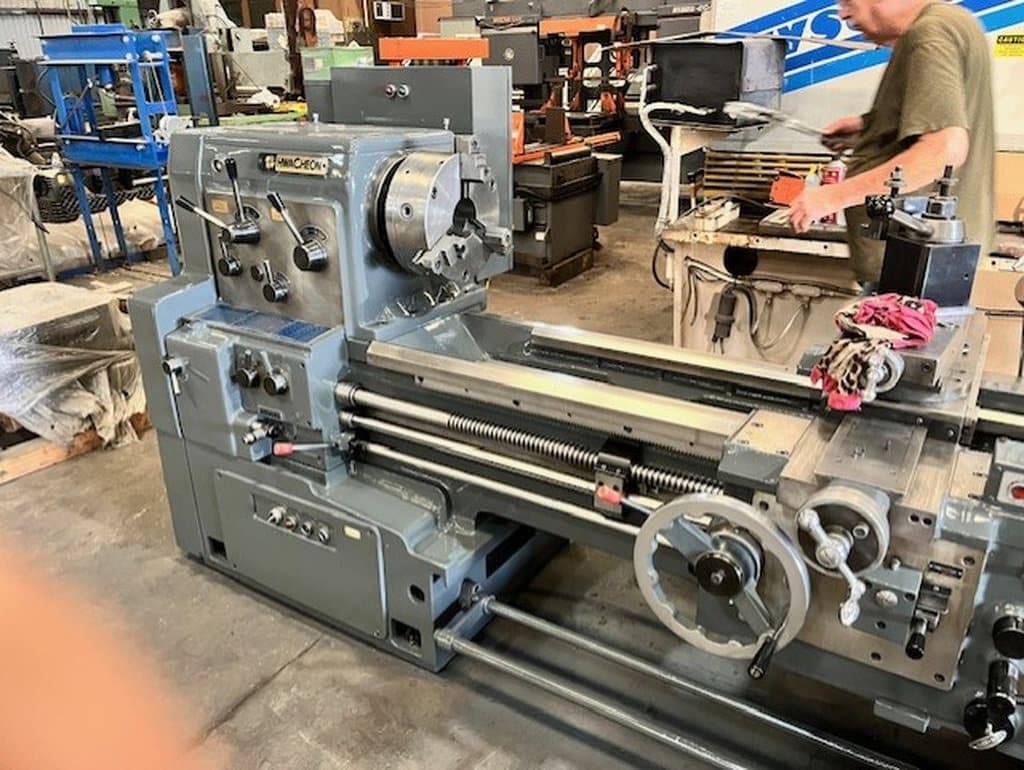

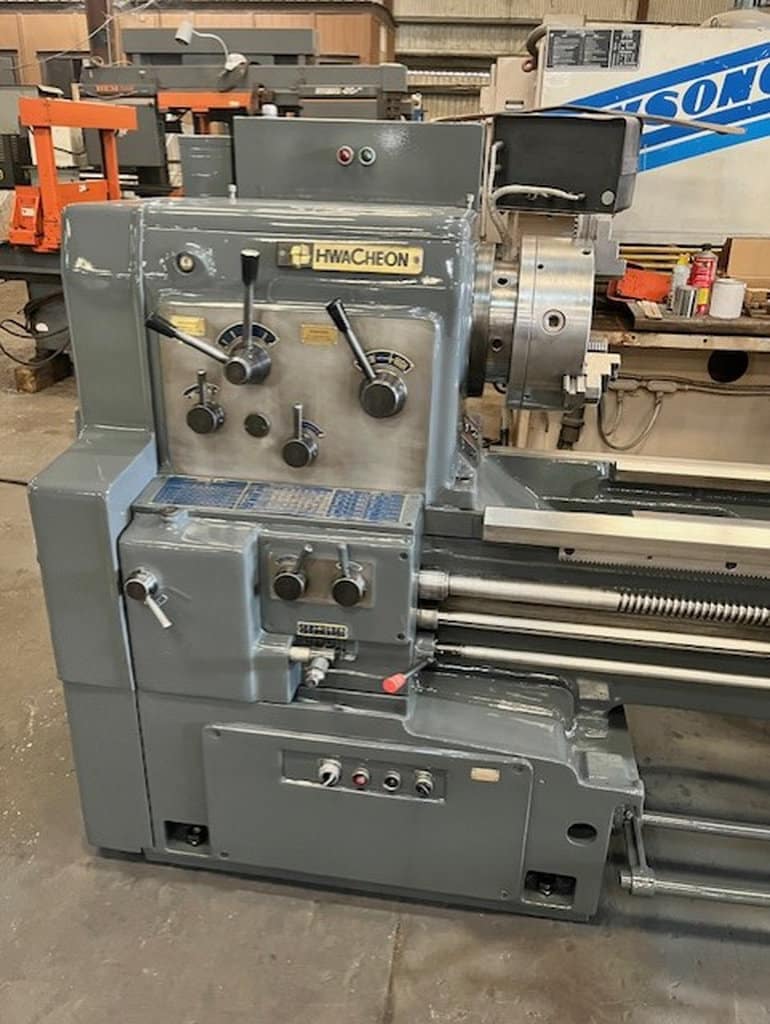

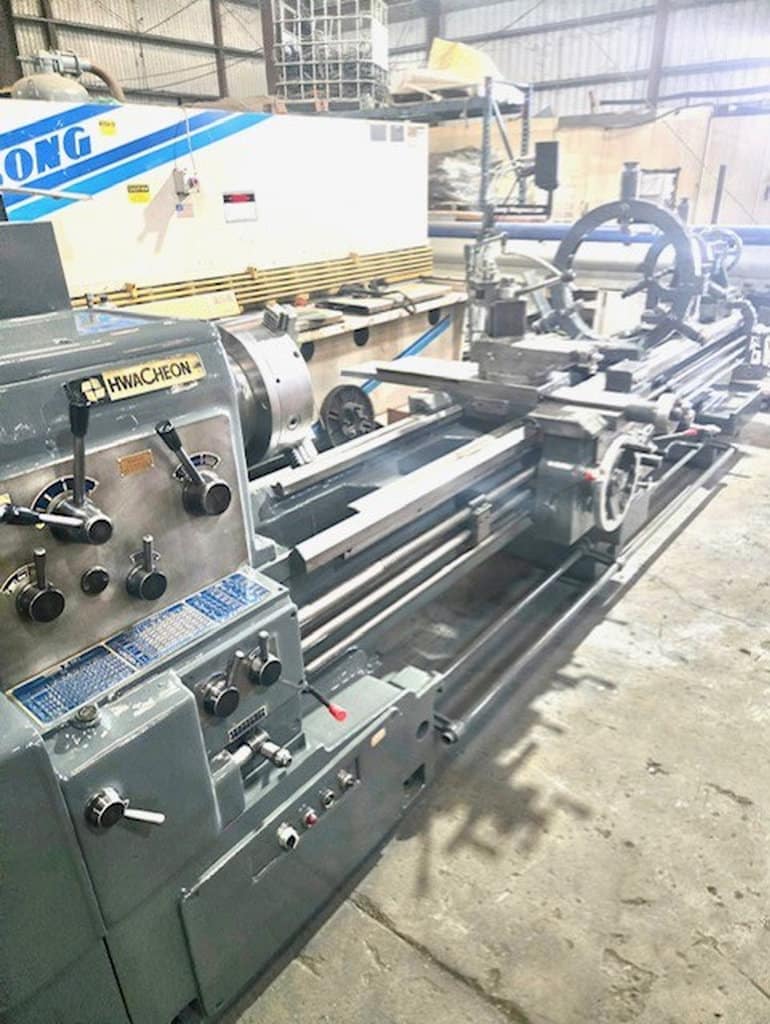

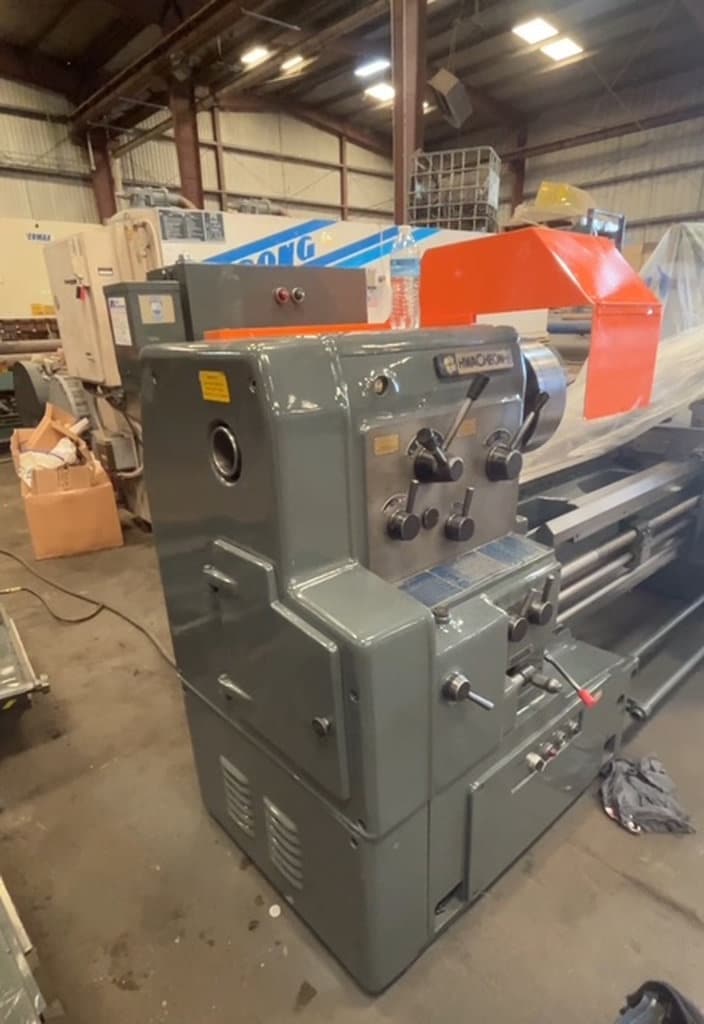

Hwacheon HL630 25″ x 120″ Precision Engine Lathe w/ Sony 2-Axis DRO

Manufacturer

Hwacheon

Category

Lathes

Type

LATHES, CNC

Stock

143260002

Model

HL630

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 143260002
  • Location: Houston, TX
  • Brand: Hwacheon
  • Model: HL630
  • Approx. Shipping Weight: 10,500 LBS.
  • Approx. Shipping Dimensions: 200″L x 60″W x 60″H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Swing Over Bed: 24.80″
  • Swing Over Cross Slide: 14.96″
  • Distance Between Centers: 118.11″
  • Spindle Nose: D1-8
  • Spindle Bore: 3.03″
  • Taper Of Spindle Bore: MT No.7
  • Taper Of Center: MT No.5
  • Range Of Spindle Speeds (12): 27-1,205 RPM
  • No. of Feed Changes: 40 Step
  • Longitudinal Feed (Z-Axis): 0.0015″~0.0216 IPR
  • Cross Feed (X-Axis): 0.0016~0.0228 IPR
  • Cross Slide Travel: 15.35″
  • Compound Rest Travel: 6.69″
  • Inch Threads: 56~2 TPI
  • Metric Threads: 0.5-14
  • D.P. Threads: 4-56
  • Module Threads: 1-7

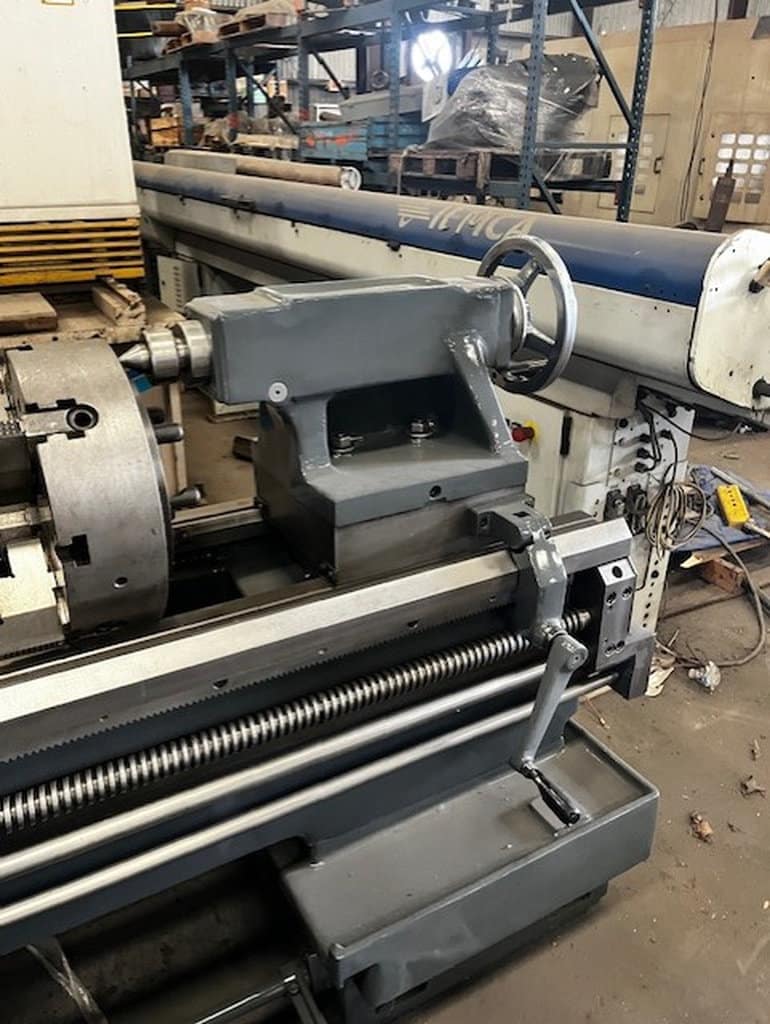

  • Tail Stock Quill Taper: MT No. 5
  • Tail Stock Quill Travel: 5.90″
  • Main Spindle HP: 14.74 HP

Equipped With

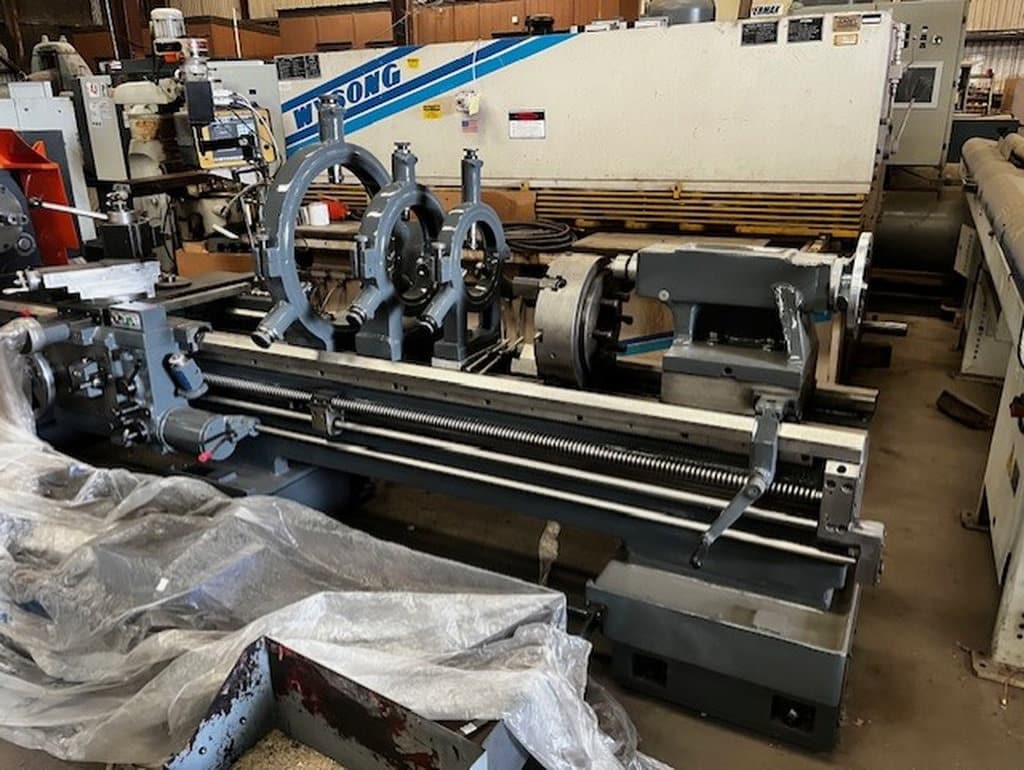

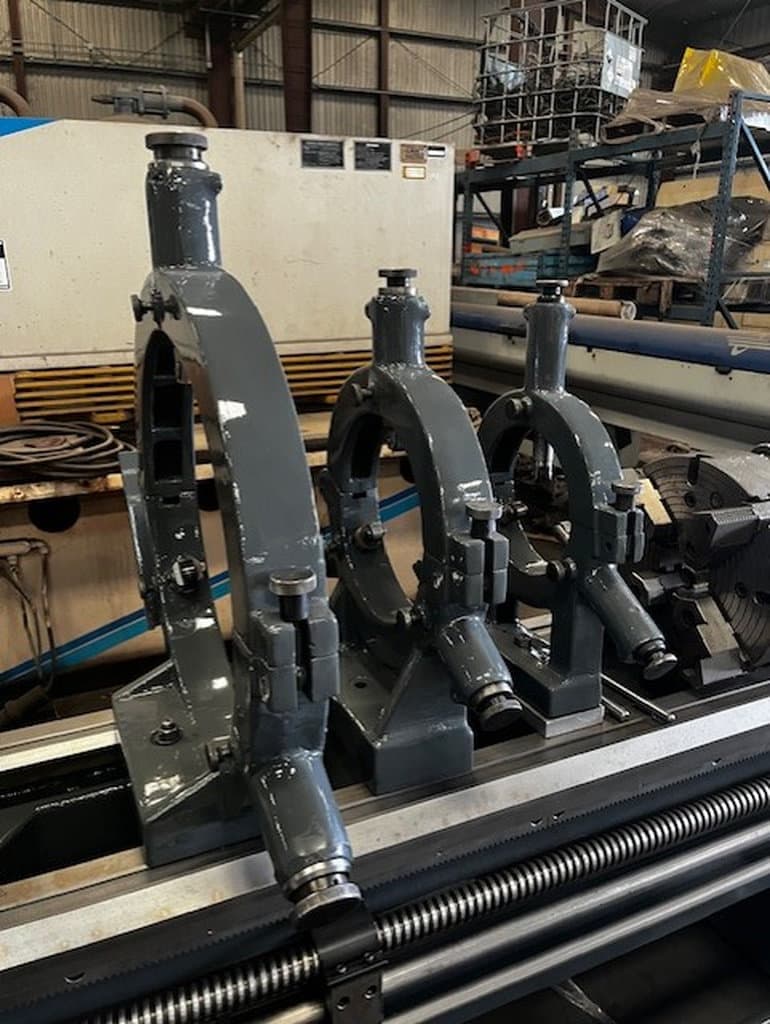

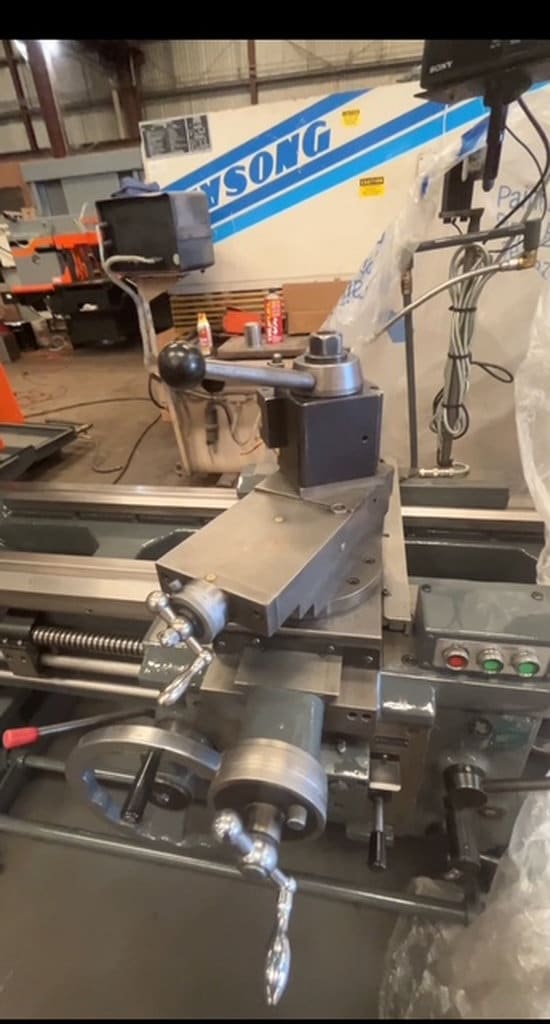

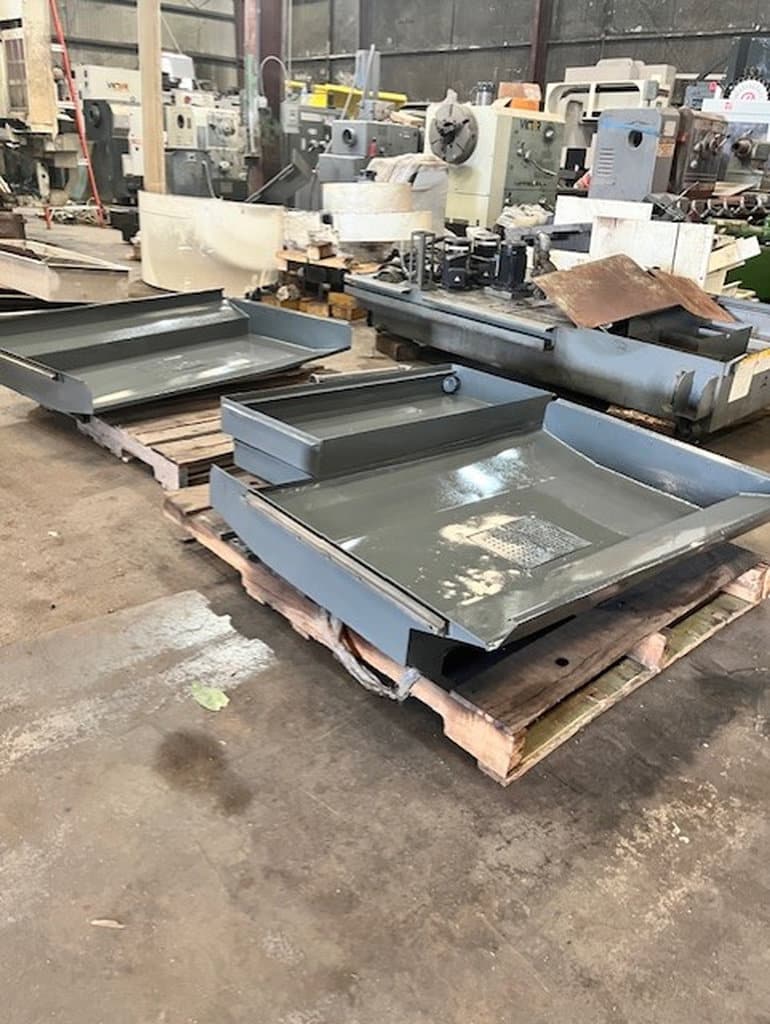

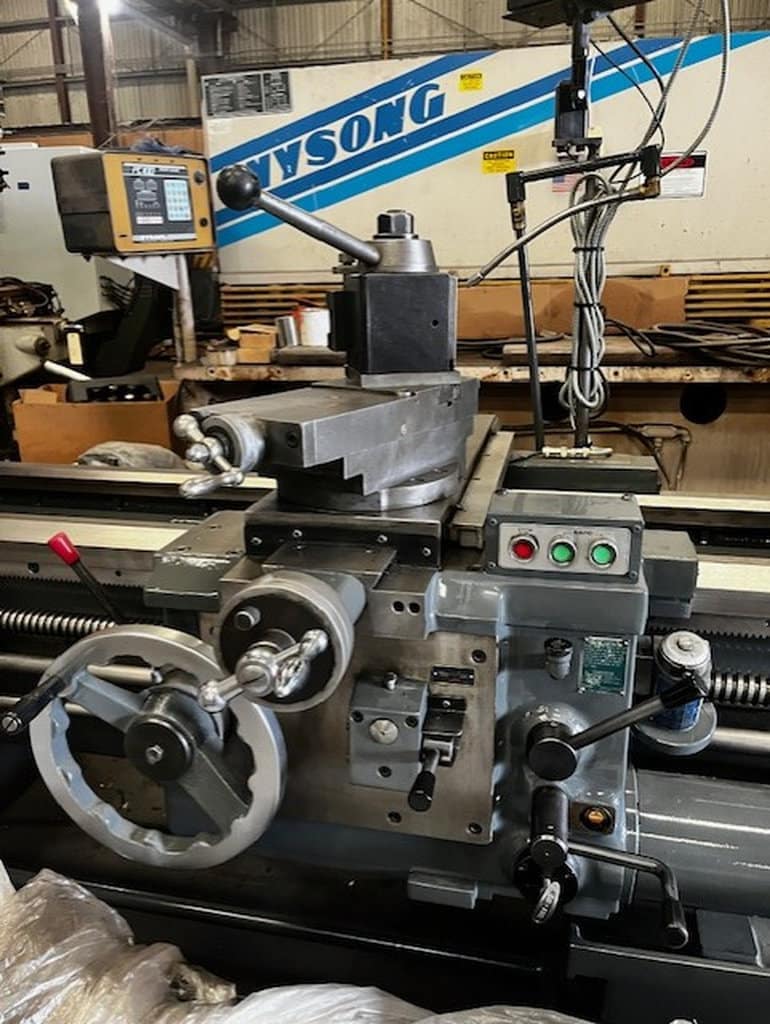

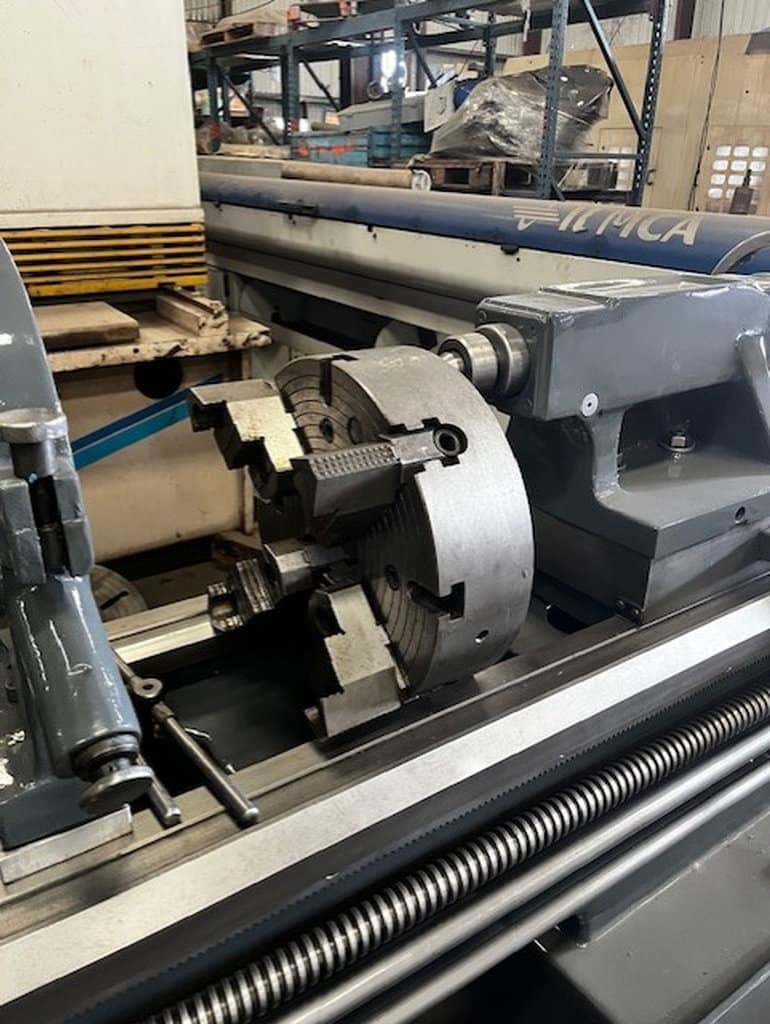

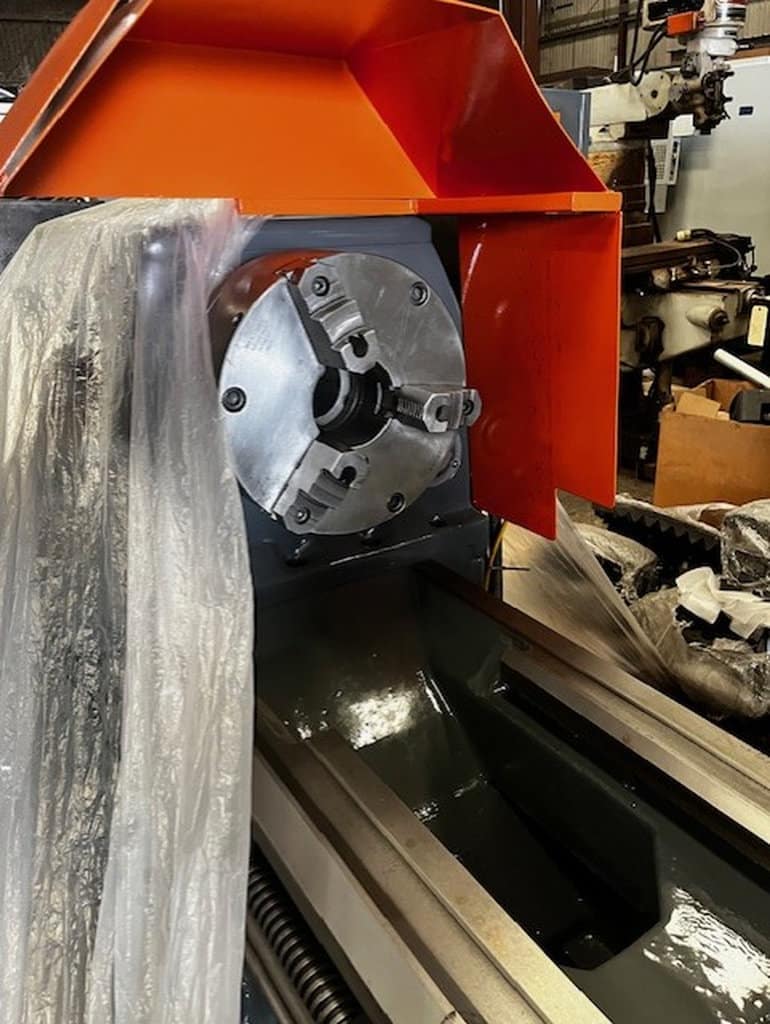

Sony 2-Axis Digital Readout System, Aloris Tool Post, Coolant System, 3 Steady Rests, 3-Jaw Chuck, 4-Jaw Chuck, Faceplate, Spindle Braking System
