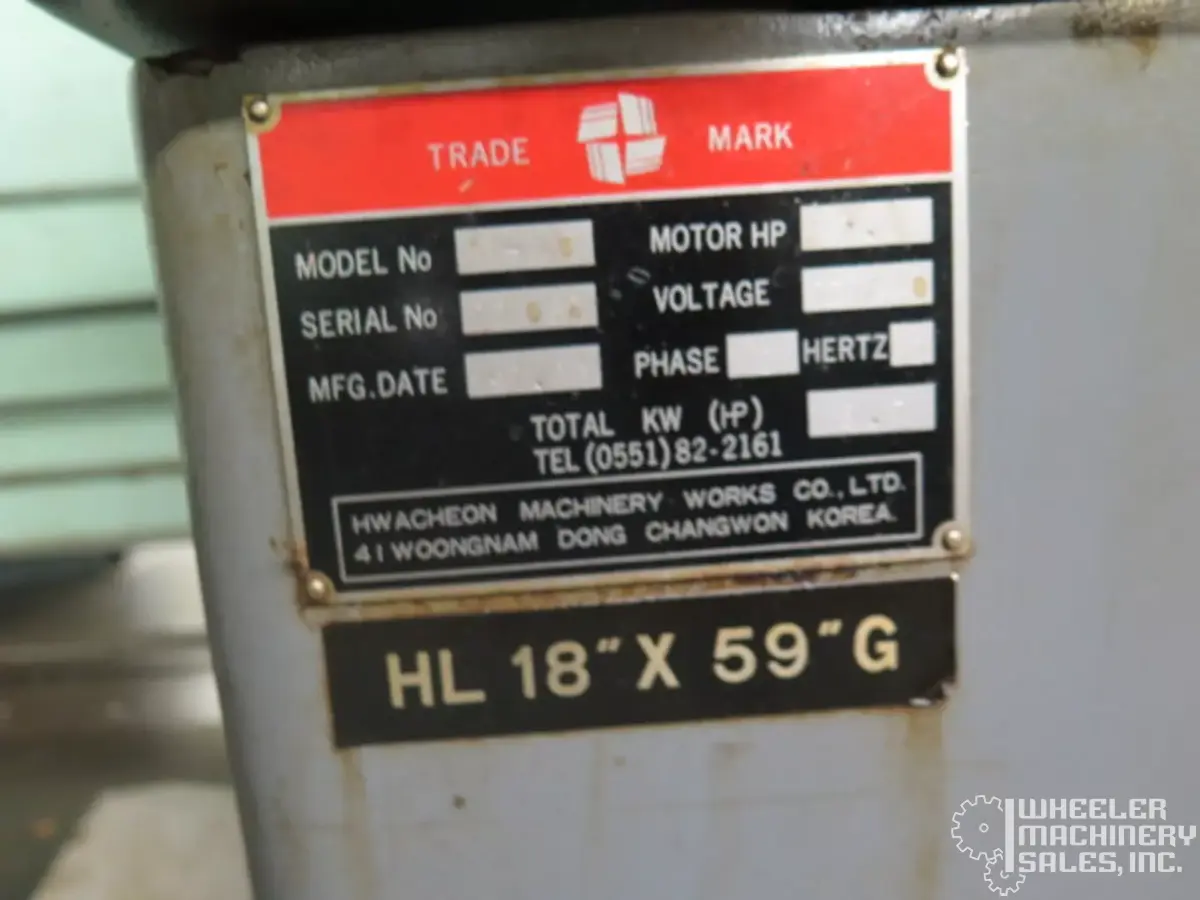

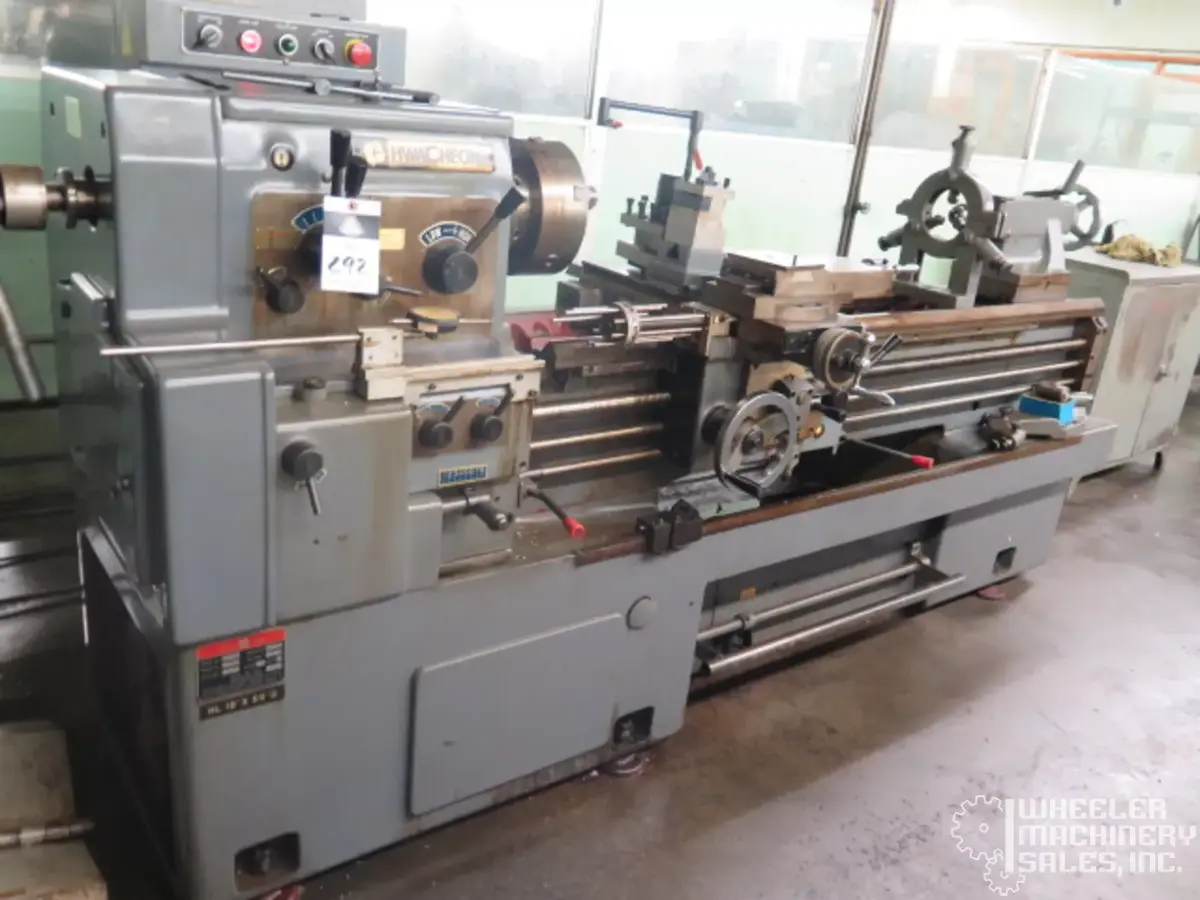

1997 HWACHEON HL18X59G Engine Lathe #8190 #1

Manufacturer

HWACHEON

Category

Lathes

Type

LATHES, ENGINE

Stock

8190

Model

HL-18

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
HWACHEON
Model:
HL-18
Year:
1997
Stock #:
8190
Status:
For Sale
Serial #:
224065
Country:
United States

Description

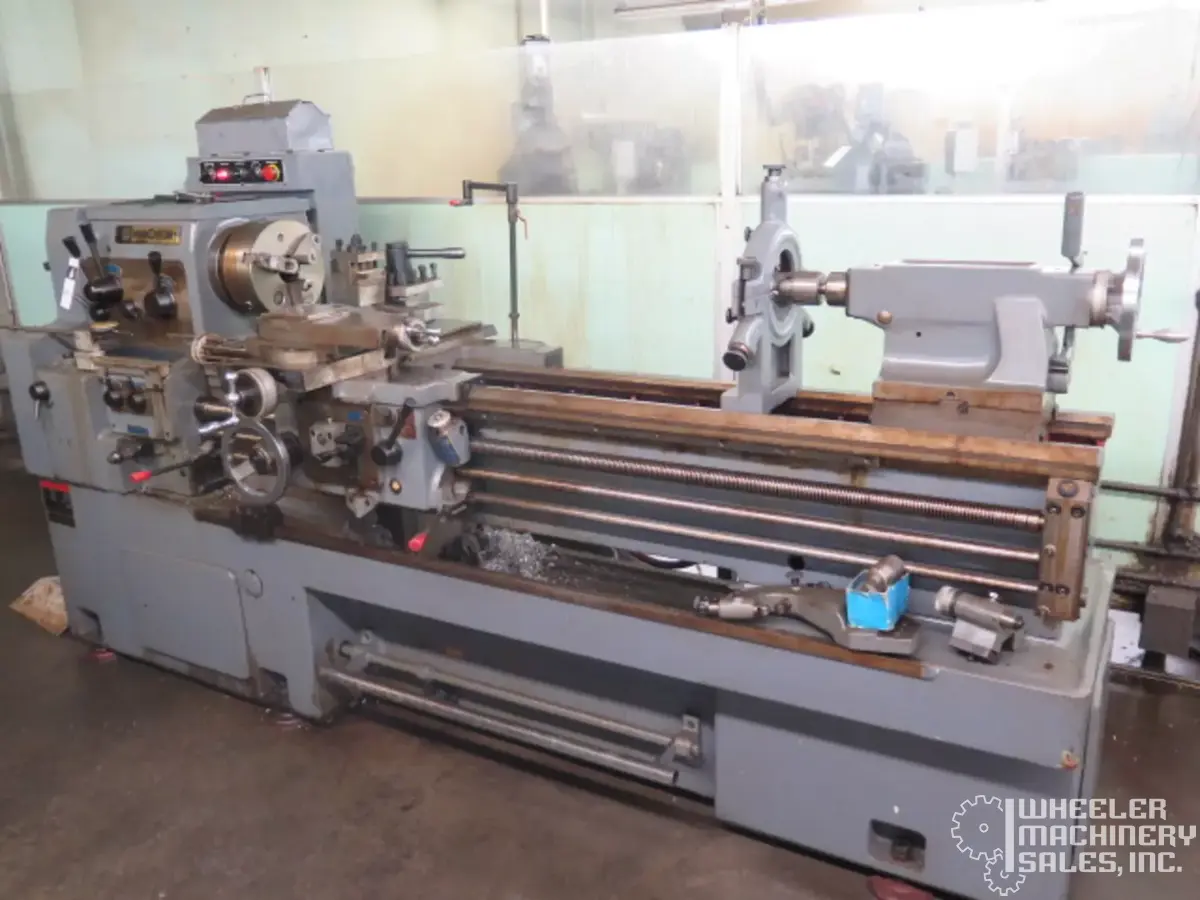

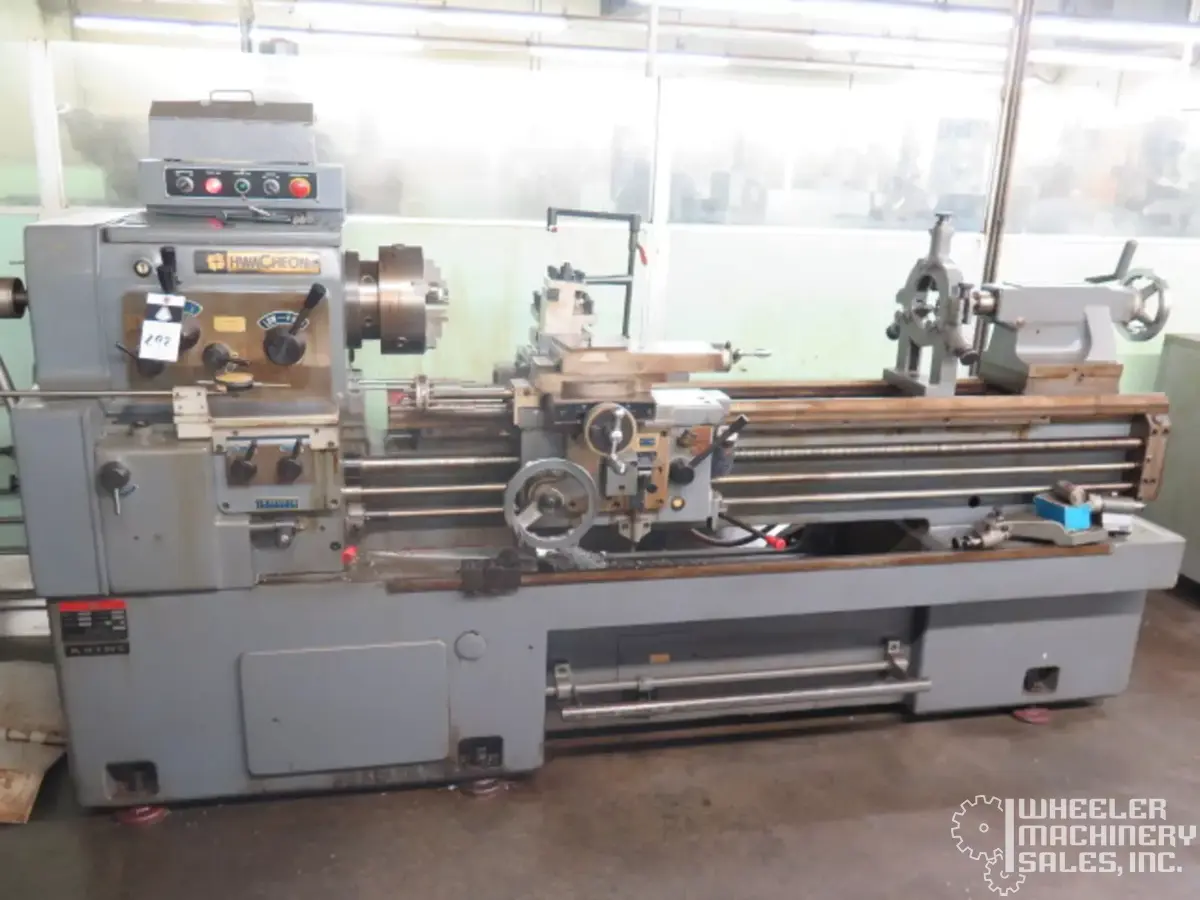

Used HWACHEON HL-18 Engine Lathe, featuring an 18" swing, 60" centers, and a 3.062" spindle bore. Powered by 7.5 hp with up to 1,800 RPM. Swing over cross slide is 12.5". Ideal for precision tasks.

Swing18"457.2 mm
Centers60"1,524 mm
Spindle Bore3.062"77.775 mm
Power7.5 hp5.6 kW
RPM1,800 RPM1,800 RPM
Swing Over Cross Slide12.5"317.5 mm

1997 HWACHEON HL18X59G Engine Lathe #8190 #1

SPECIFICATIONS:
Swing over bed: 18"
Swing over cross slide: 11"
Swing over gap: 25"
Distance between centers: 594"
Spindle nose: D1-6
Spindle bore: 2-3/64"
Taper of spindle bore: MT no. 6
Taper of center: MT no. 4
Number of spindle speeds: 12
Range of spindle speeds (RPM): 32, 62, 82, 112, 160, 200, 285, 395,
510, 710, 1010, 1800
Number of feed changes: 40
Cross slide travel: 10"

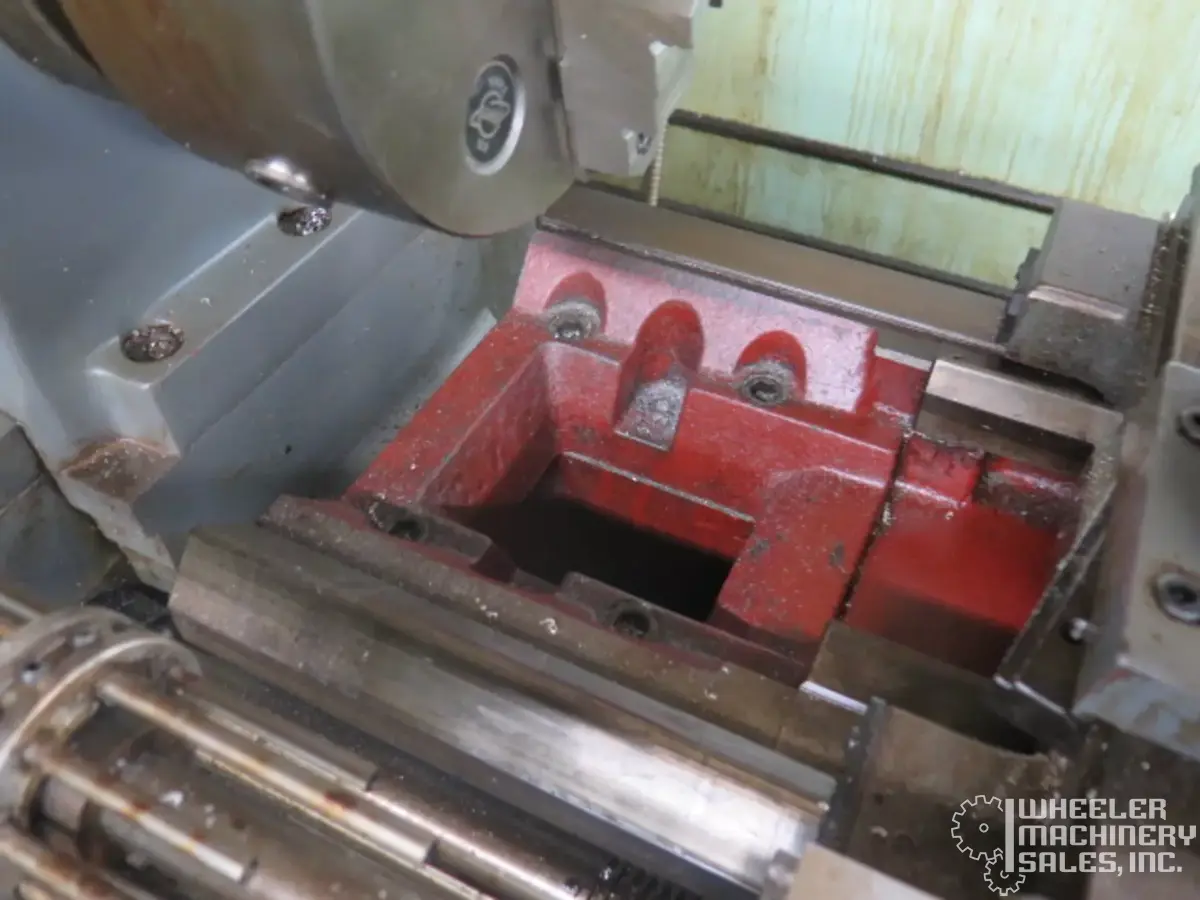

Gap width: 7-7/8"
Bed width: 13-3/4"

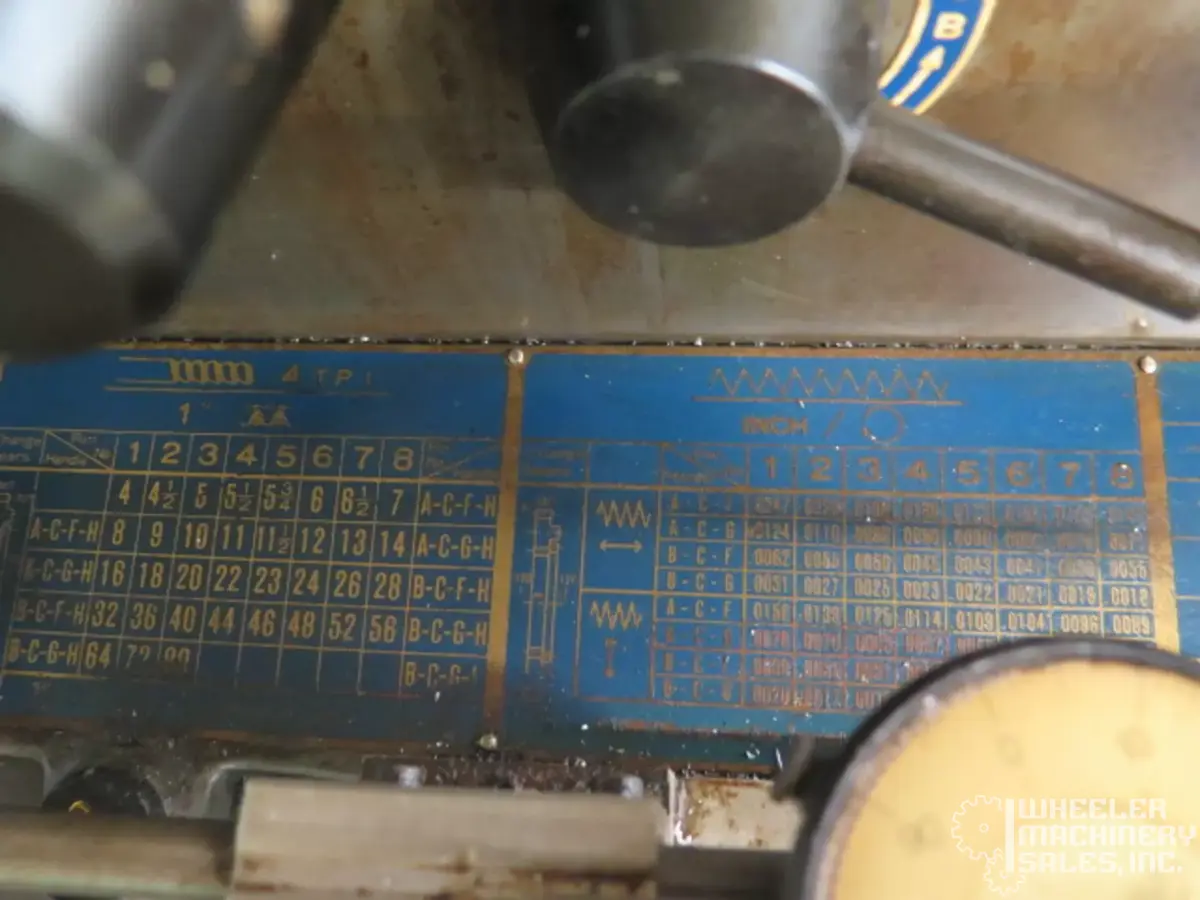

Inch threads: 4 to 80 TPI
Metric threads: .5 to 7 mm
Weight approx. 5,200 lbs.
Overall dimensions approx. 114" L-R x 42" F-B x 55" H

EQUIPPED WITH:

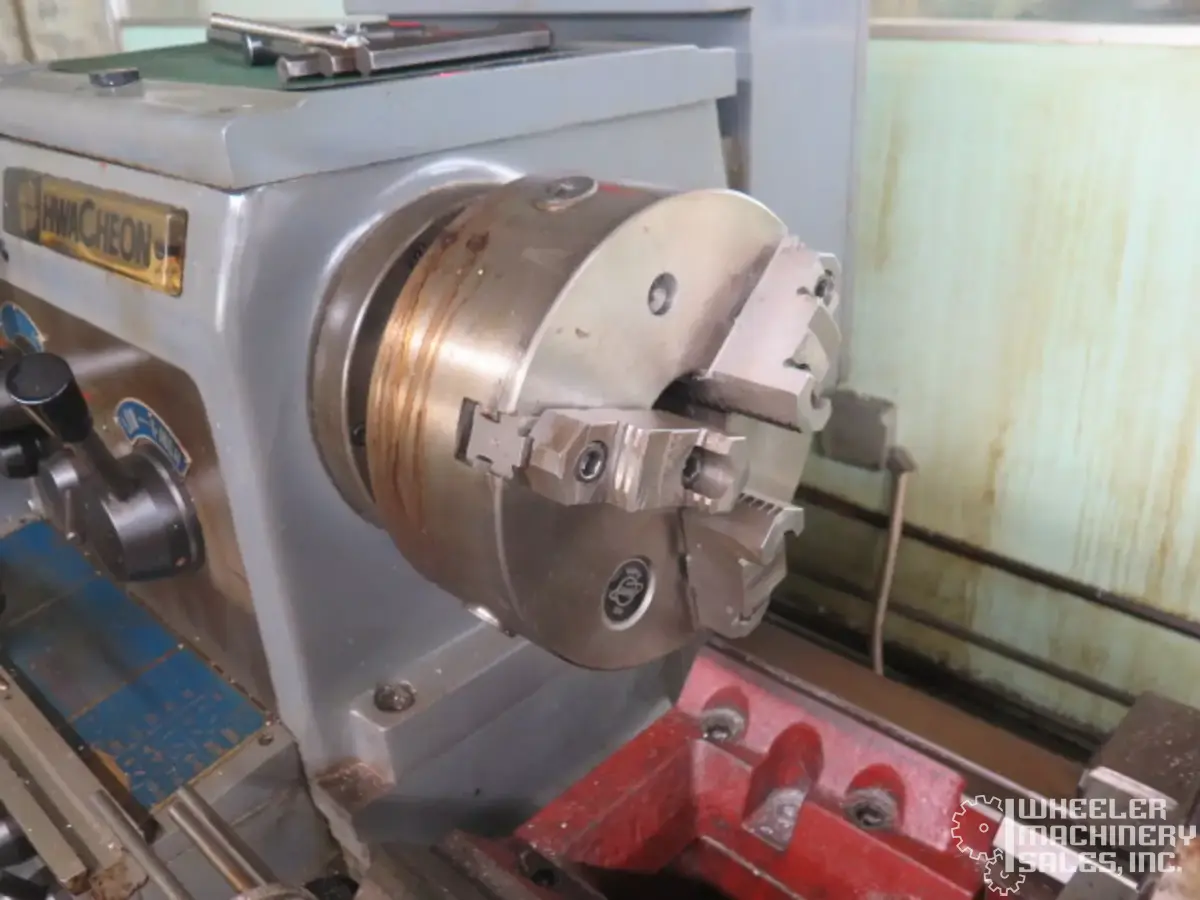

3 jaw chuck

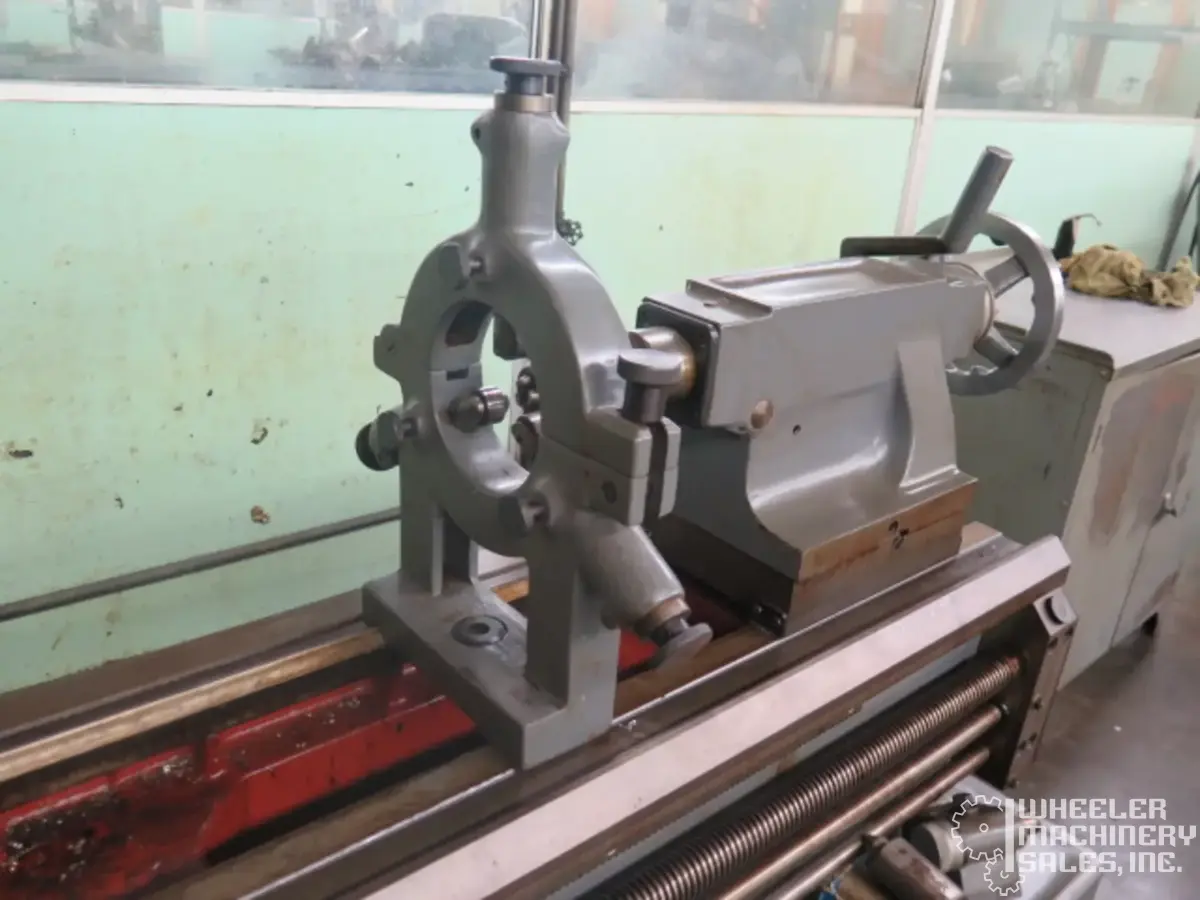

Steady rest
Follow rest

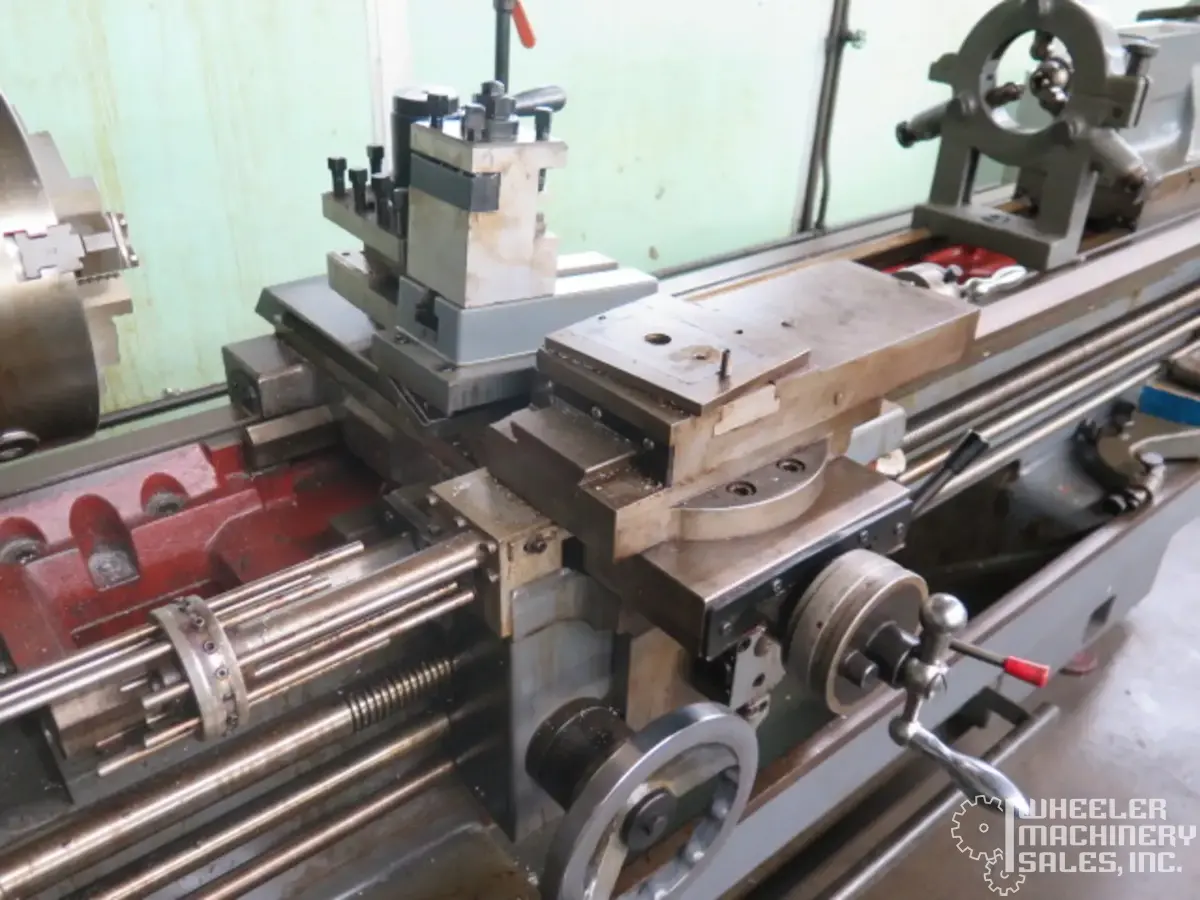

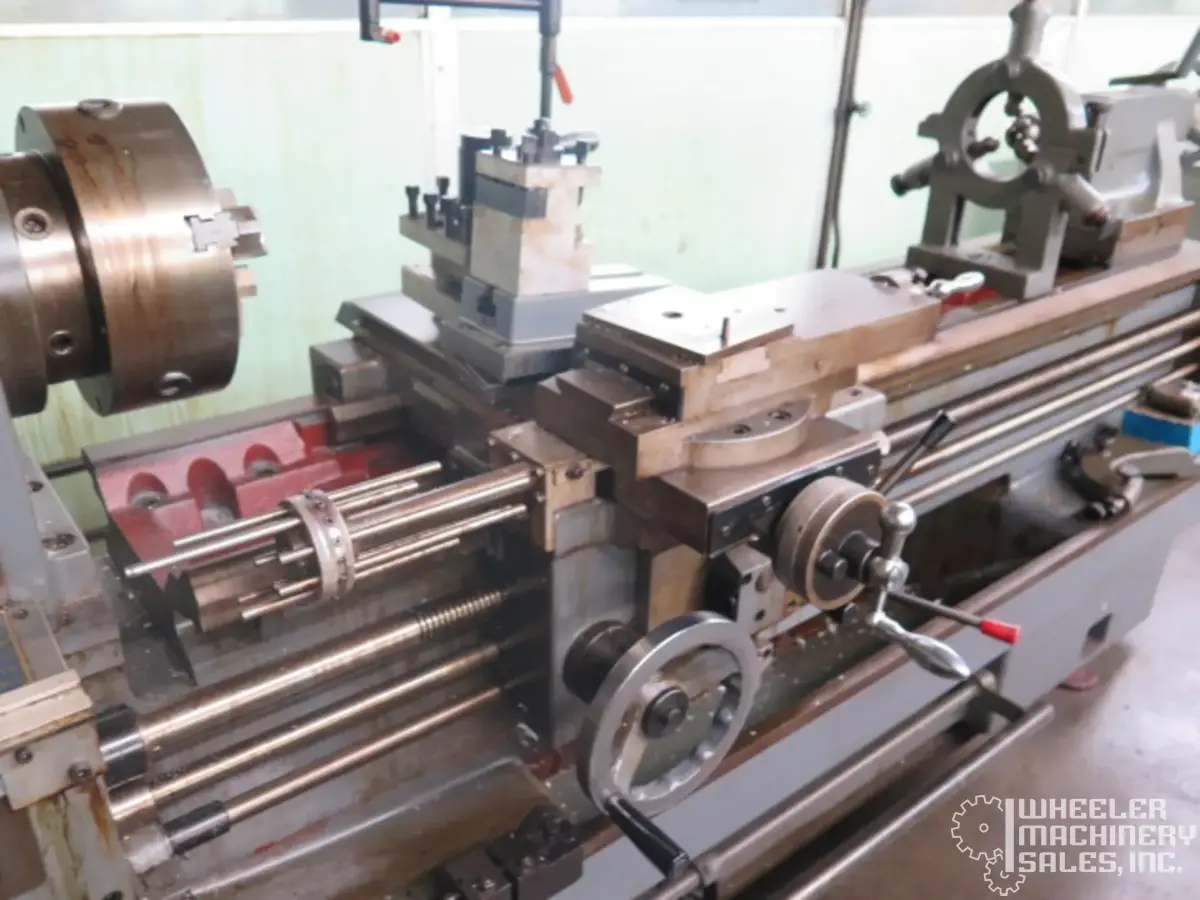

4-way tool post
Bed stop

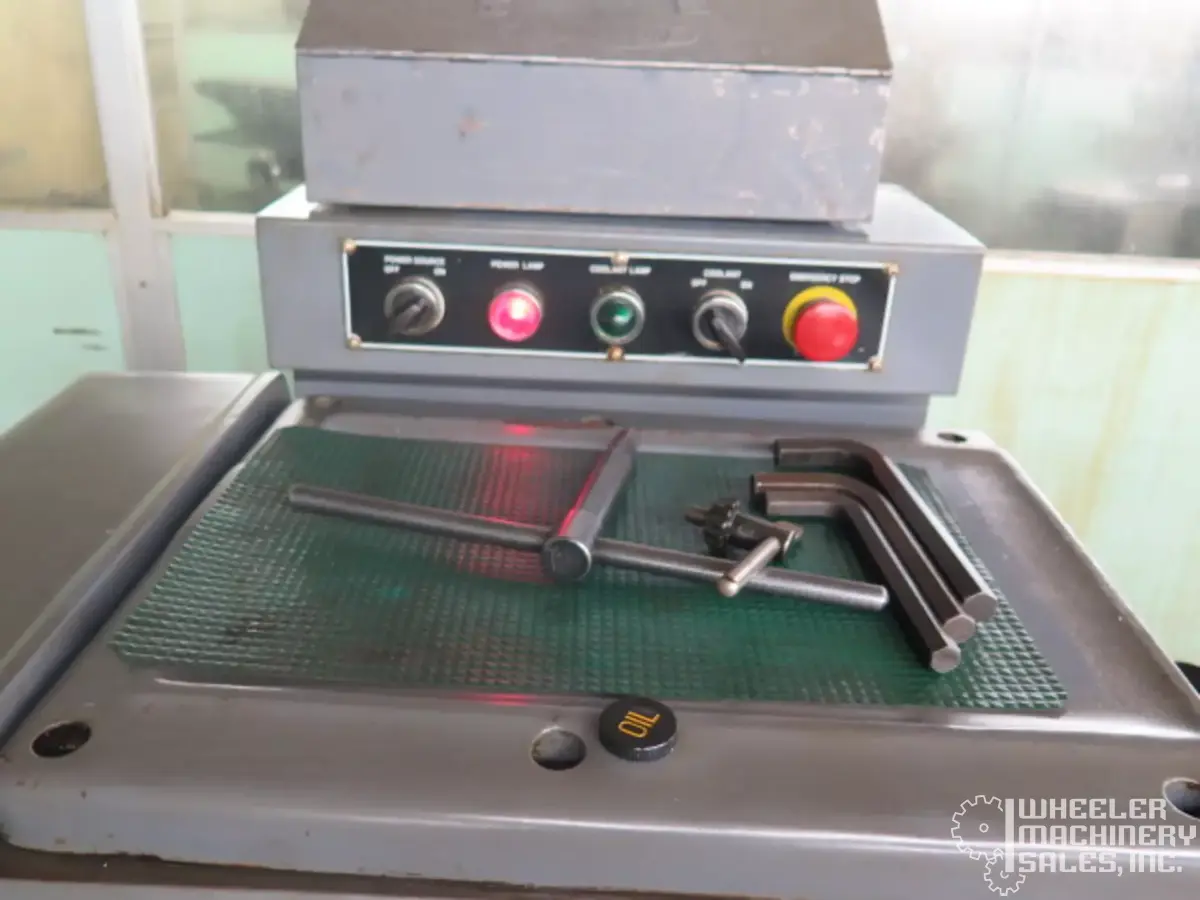

Selector switch for on - off
Coolant pump with control
Emergency stop treadle
Approx. 7.5 HP 240 volts motor
