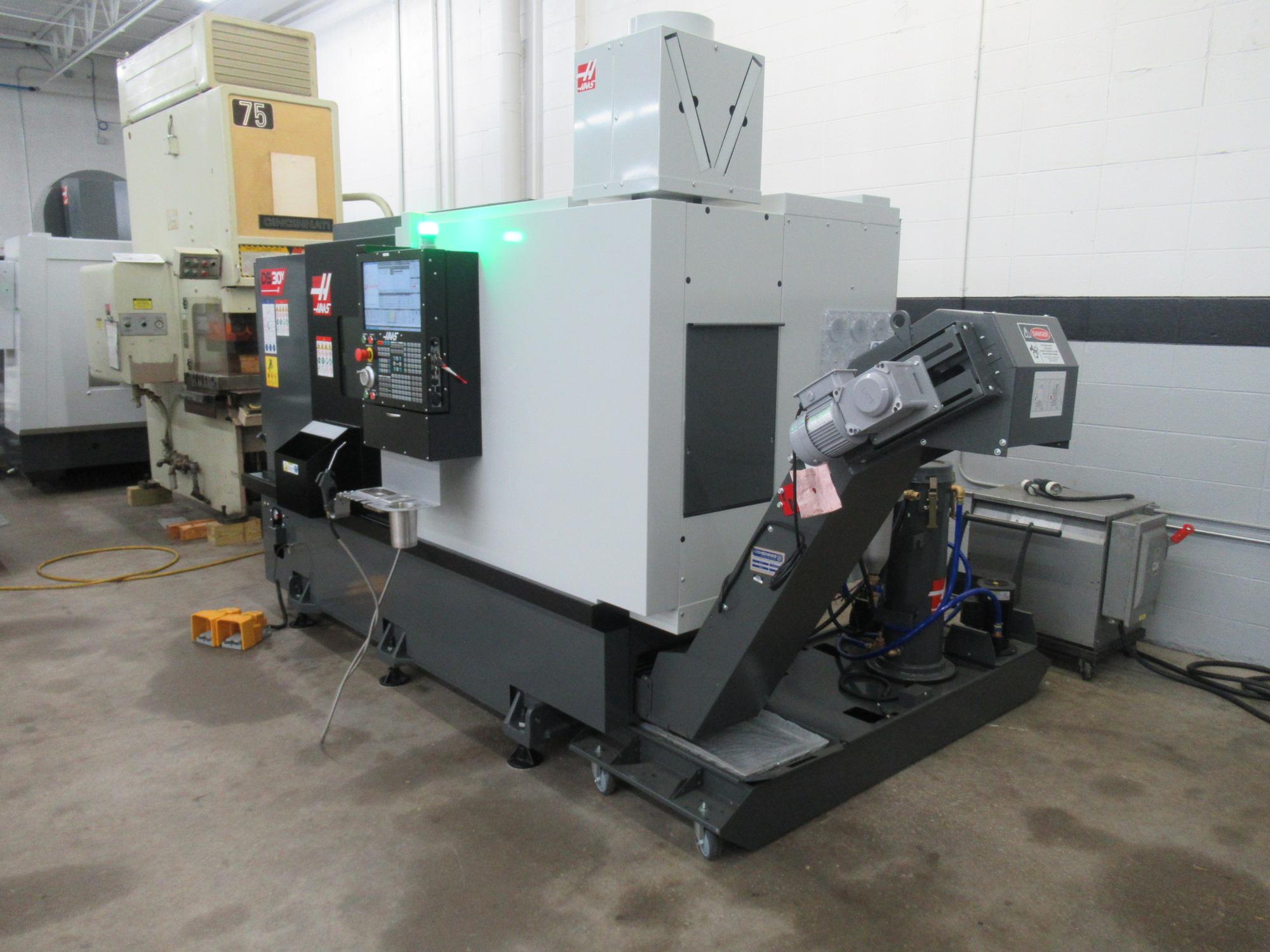

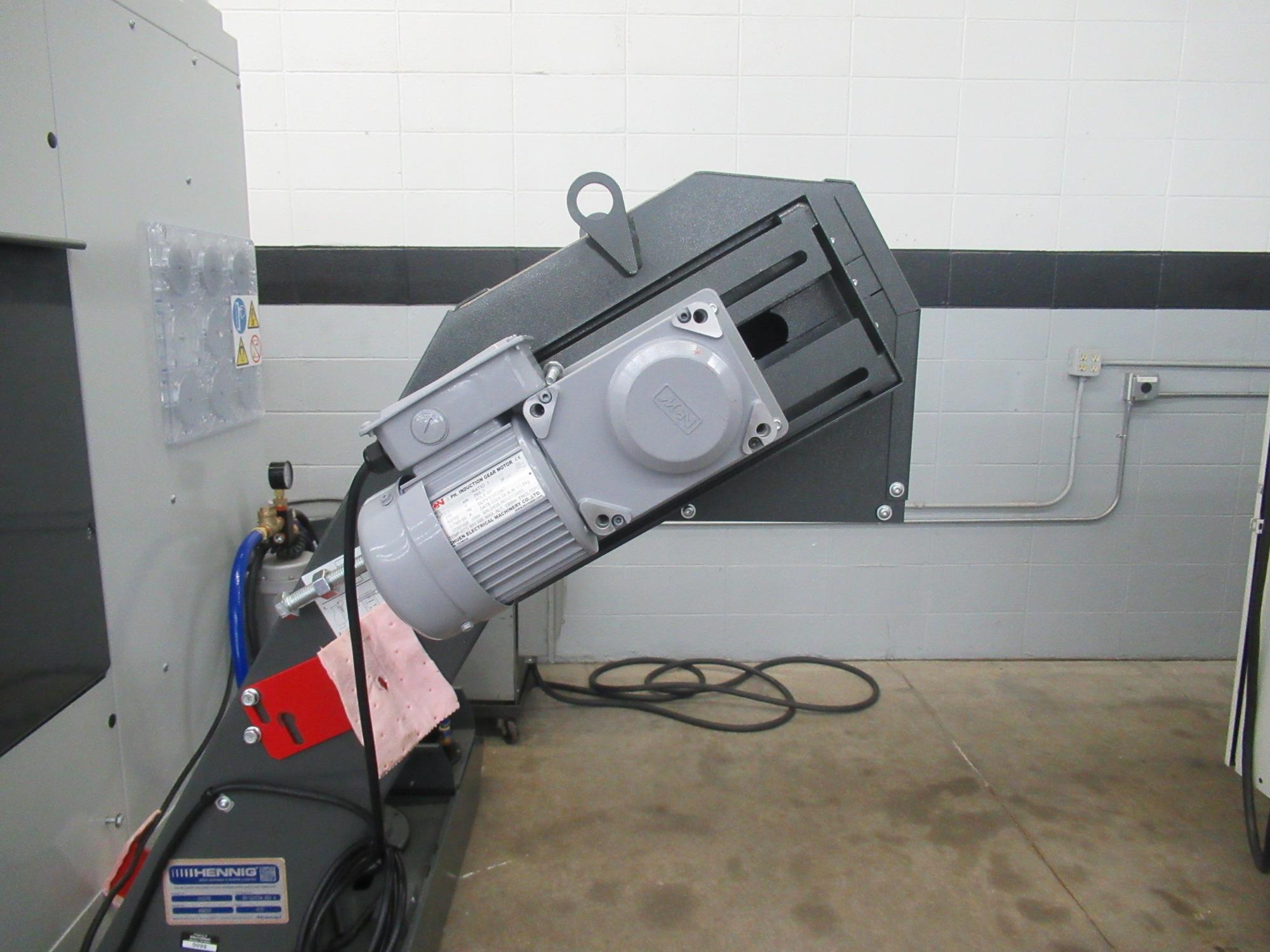

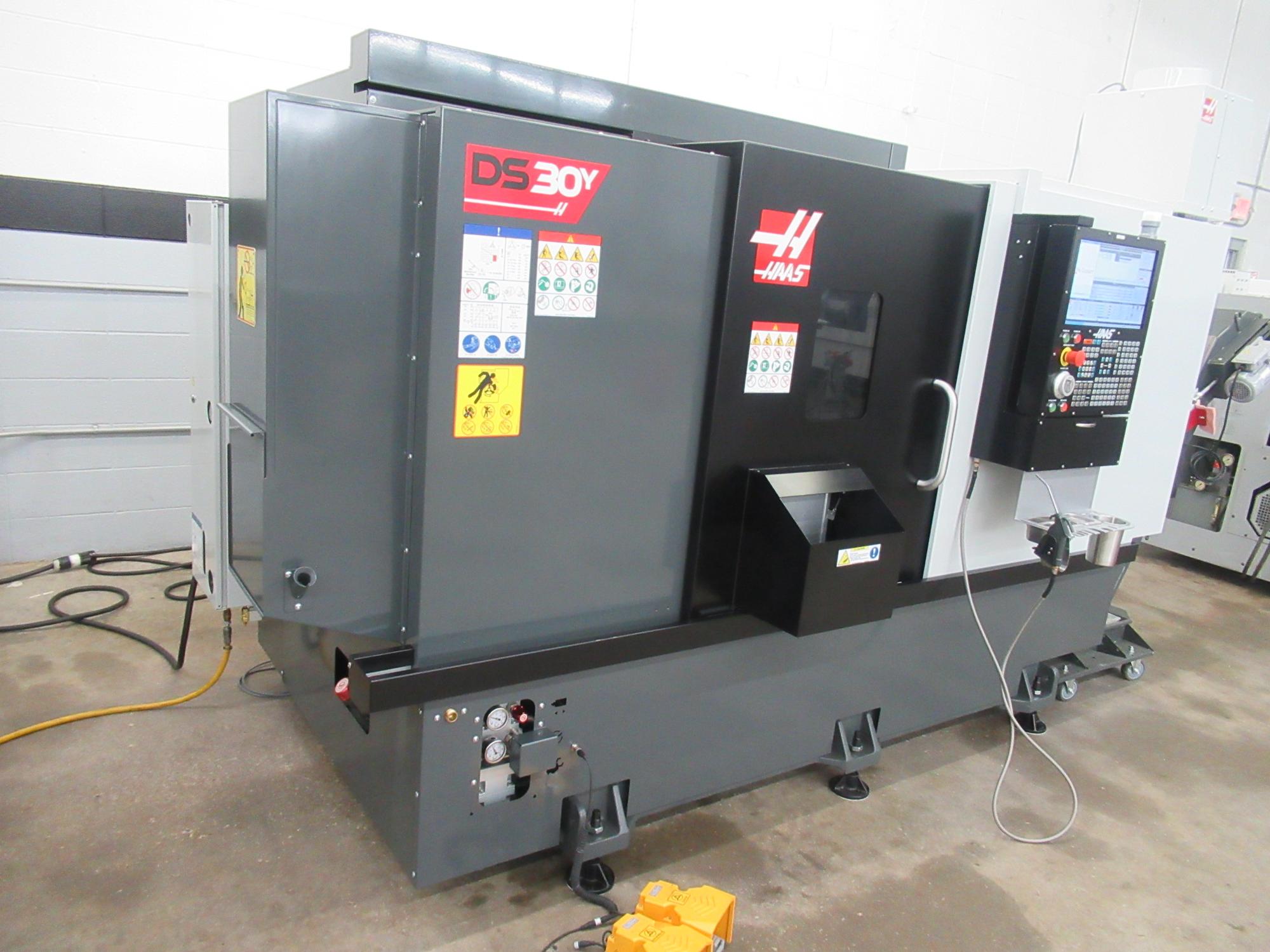

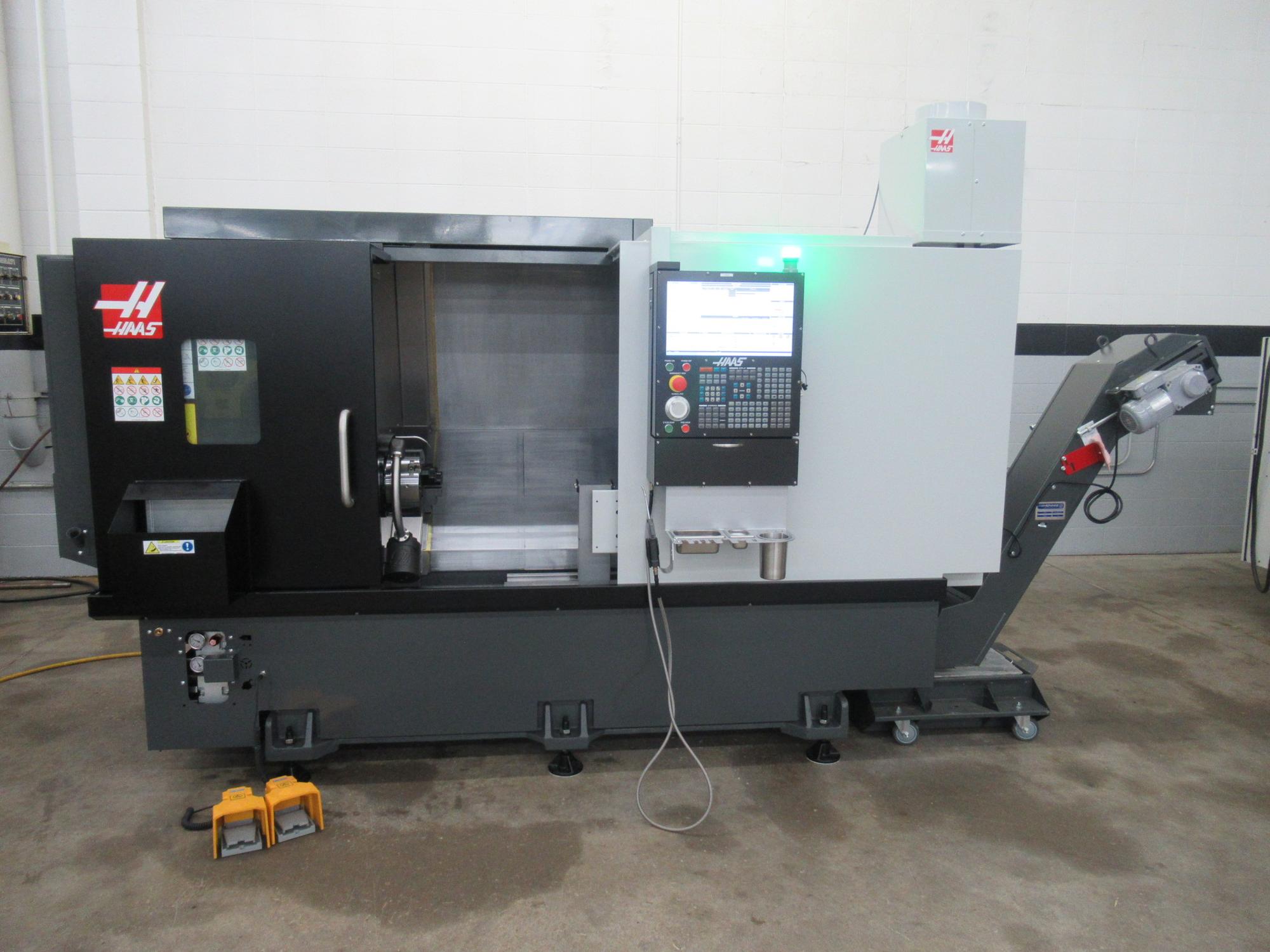

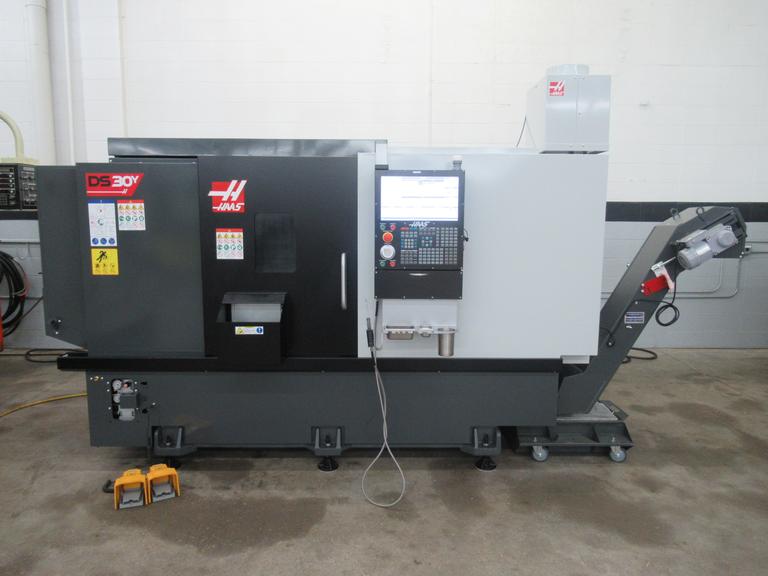

Haas DS-30Y Dual Spindle CNC Turning Center, Live Milling, Y-Axis, Tool Presetter, Parts Catcher, Chip Conveyor - NEW 2025 - ONLY 63 Spindle Hours!

Manufacturer

Haas

Category

Lathes

Type

LATHES, TURRET, CNC

Stock

7348

Model

DS-30Y

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

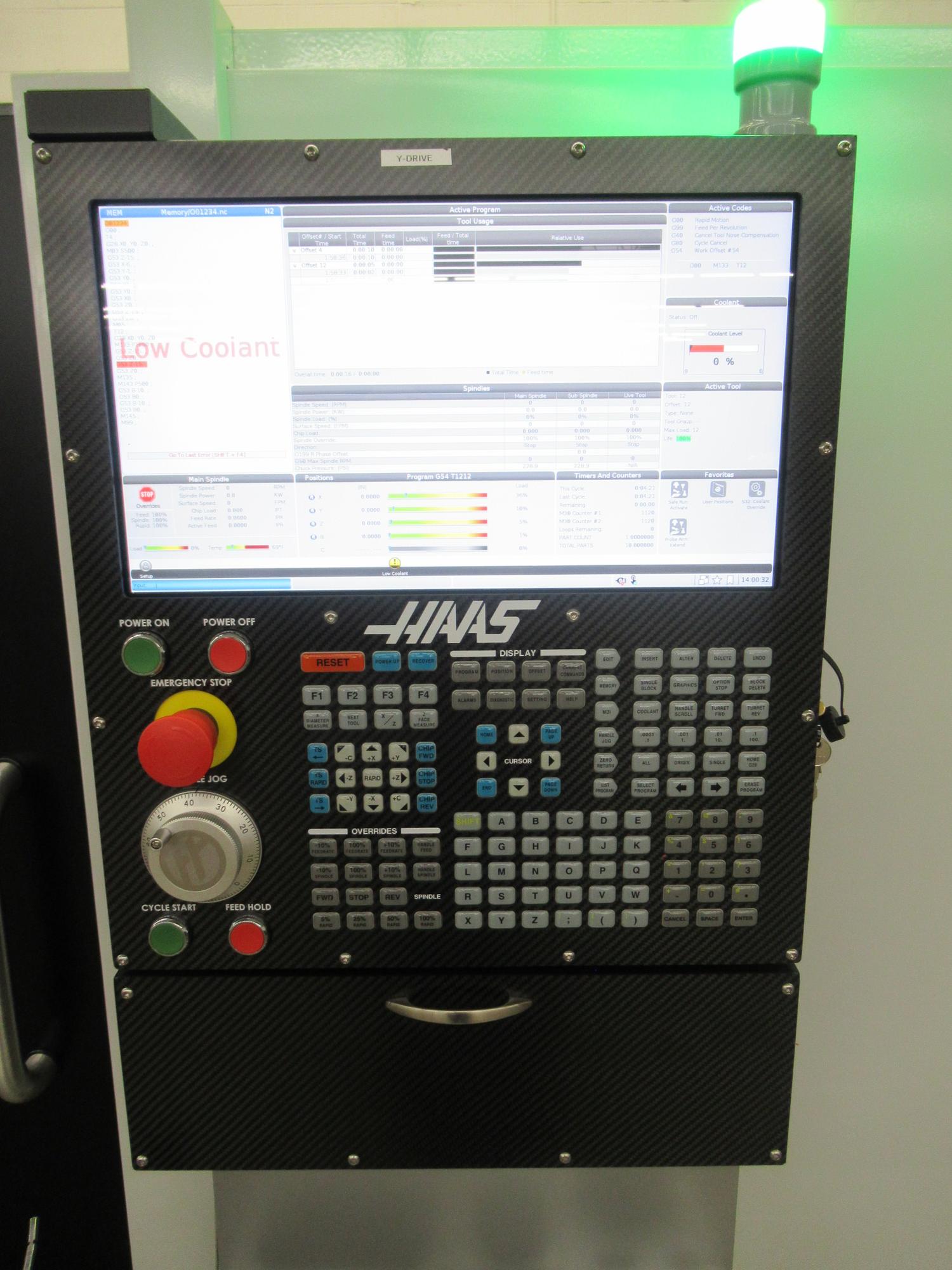

Control: Haas NextGen CNC Control

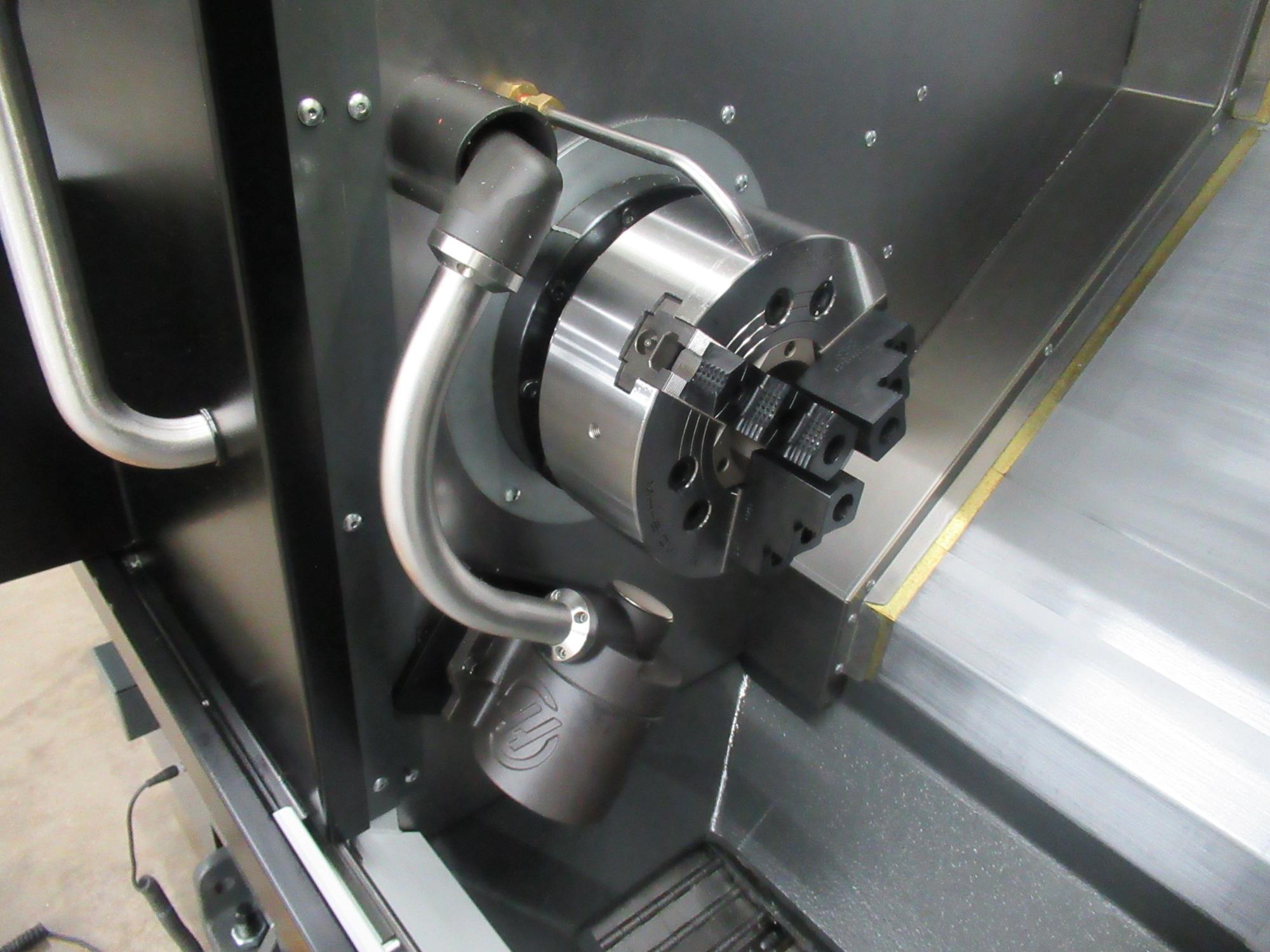

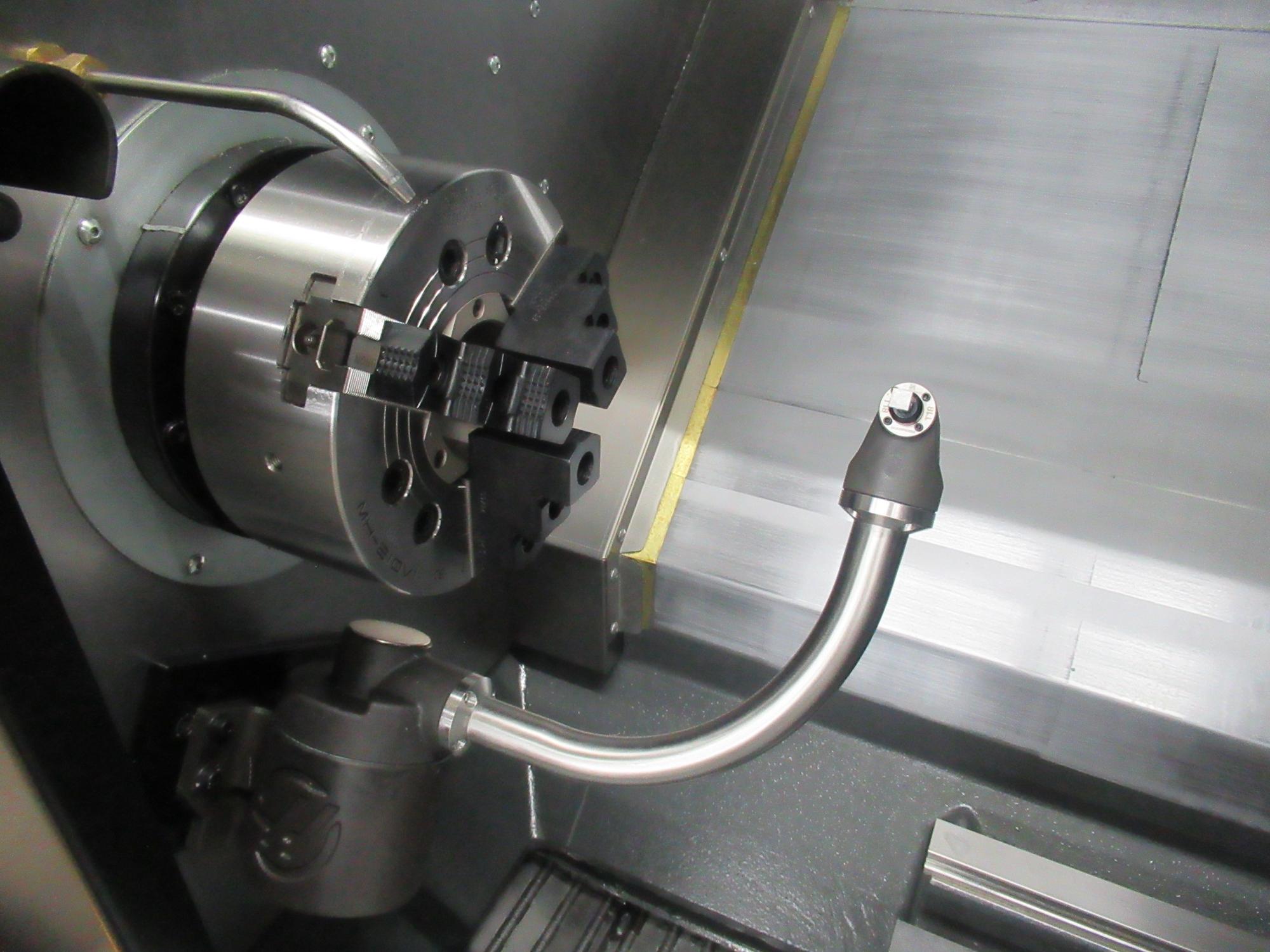

Main Spindle Chuck Size: 10"

Sub-SpindleChuck Size: 8"

Max Swing Over Bed: 31.75"

Max Swing Over Cross Slide: 20.75"

Max Turning Diameter: 18"

Main Spindle Speeds : 4000 Max RPM

Sub-Spindle Speeds : 4000 Max RPM

Main Spindle Drive: 30 HP

Sub-Spindle Drive : 20 HP

Max Turning Length: 23"

Main Bar Capacity: 3" Bar Capacity Upgrade

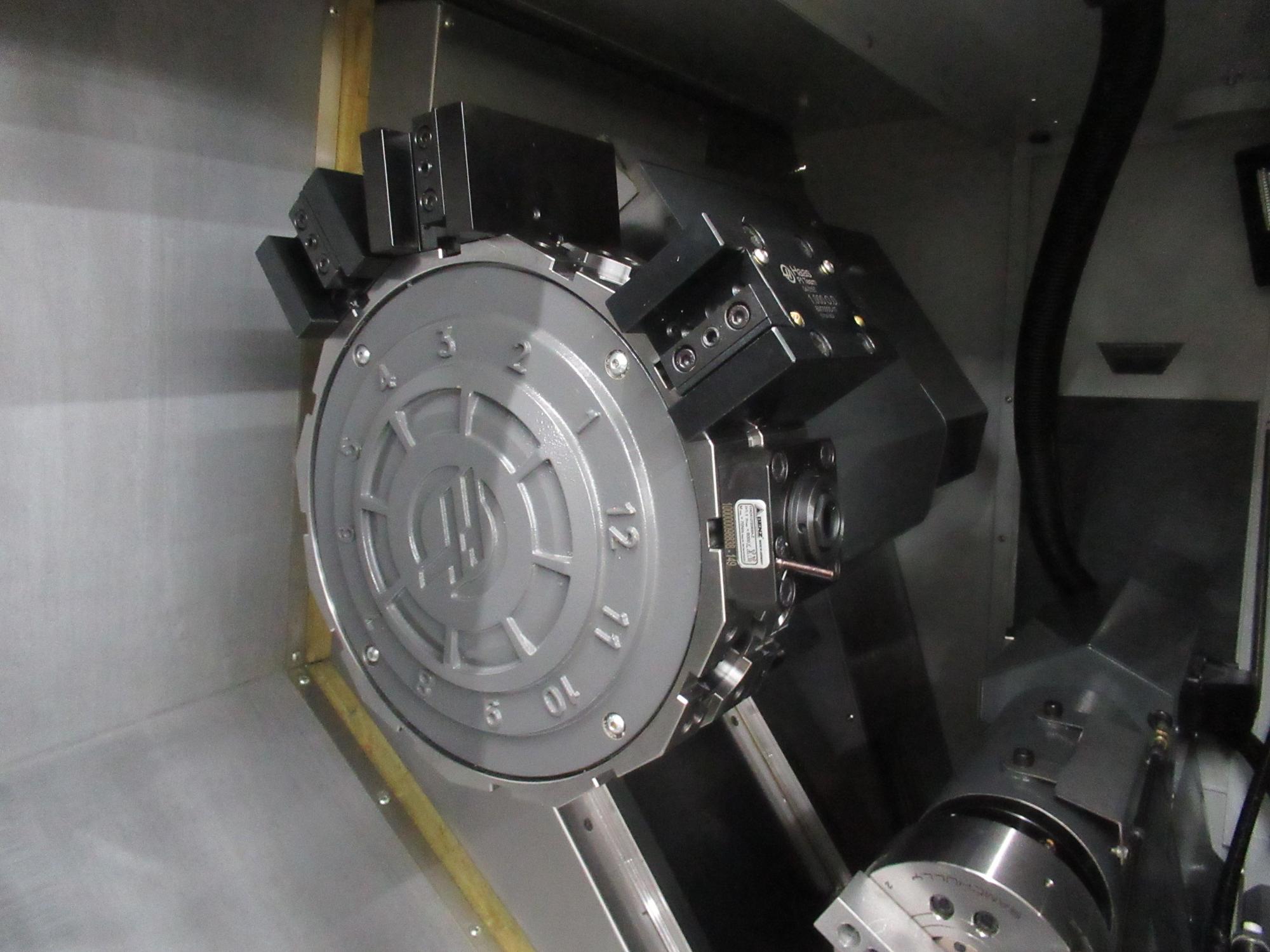

Turret Capacity: 12 Stations

Turret Travels (X/Z): (X/Y/Z) 12.5" / 4" / 23"

Live Tool Speeds: 6000 RPM

Rapids: (X/Z) 945 IPM (Y) 500 IPM

Sub-Spindle Bar Capacity: 2"

Main Spindle Orientation: C-Axis

Description:

This 2025 Haas DS‑30Y CNC Lathe is in like‑new condition with only 63 spindle hours, making it an outstanding opportunity to acquire a virtually unused, high‑performance turning center at a fraction of new cost. The DS‑30Y is designed for high‑volume production and complex part machining, featuring dual spindles and Y‑axis capability that allow complete machining of parts in a single setup. Built and supported by Haas Automation, this machine delivers reliability, precision, and strong resale value. Perfect for aerospace, automotive, medical, and job shop environments requiring speed, accuracy, and process efficiency.

Equipped With:

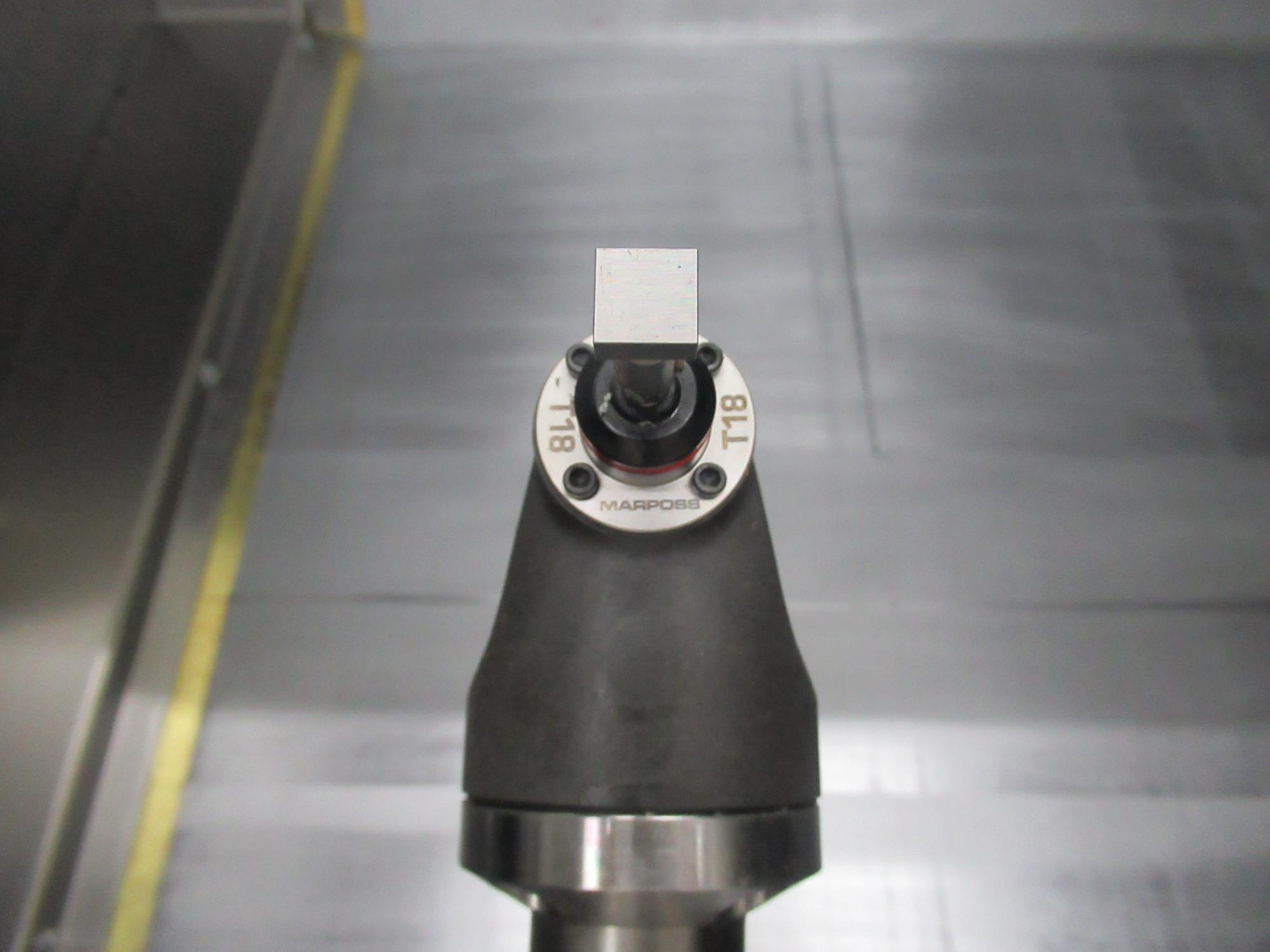

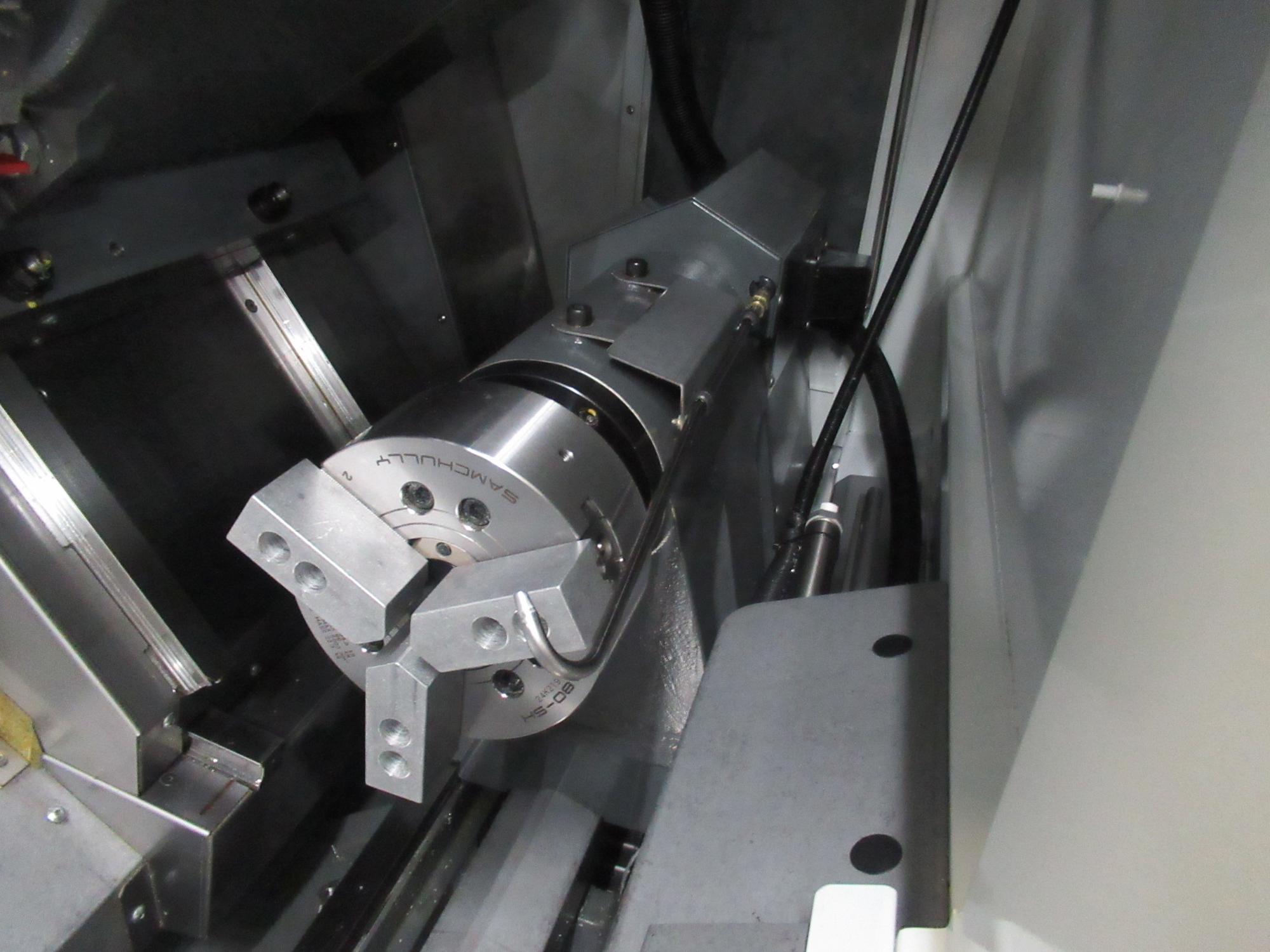

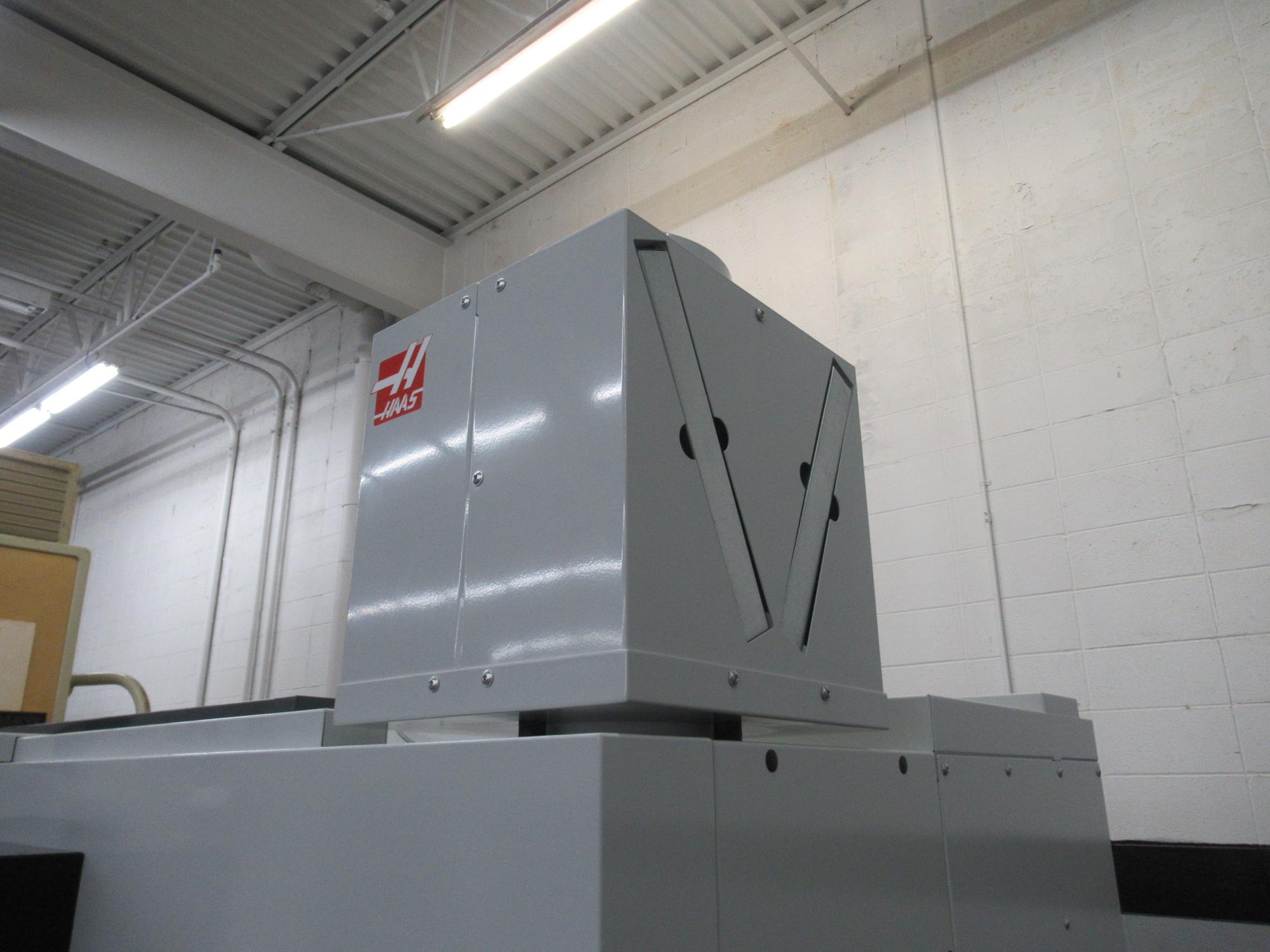

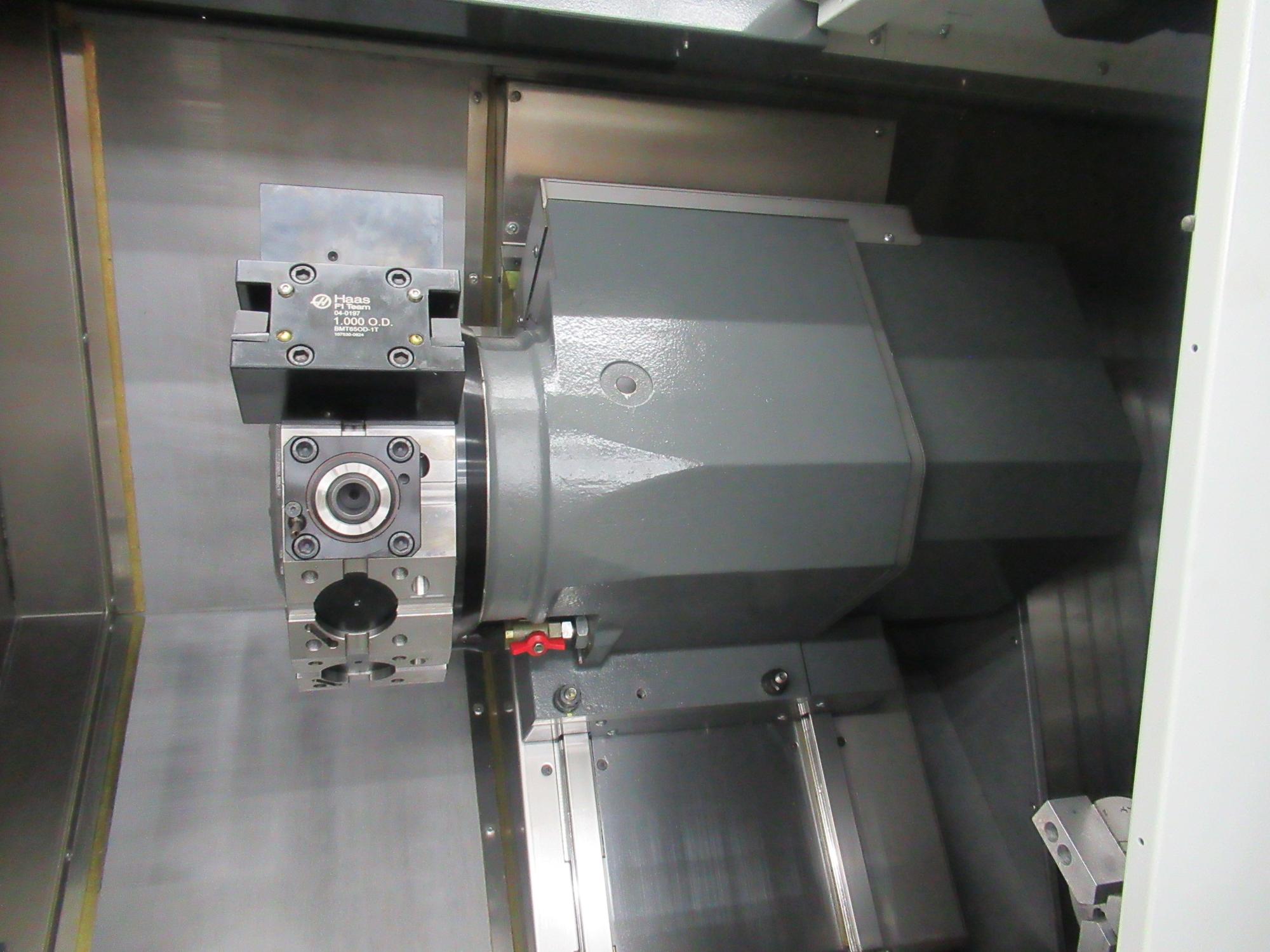

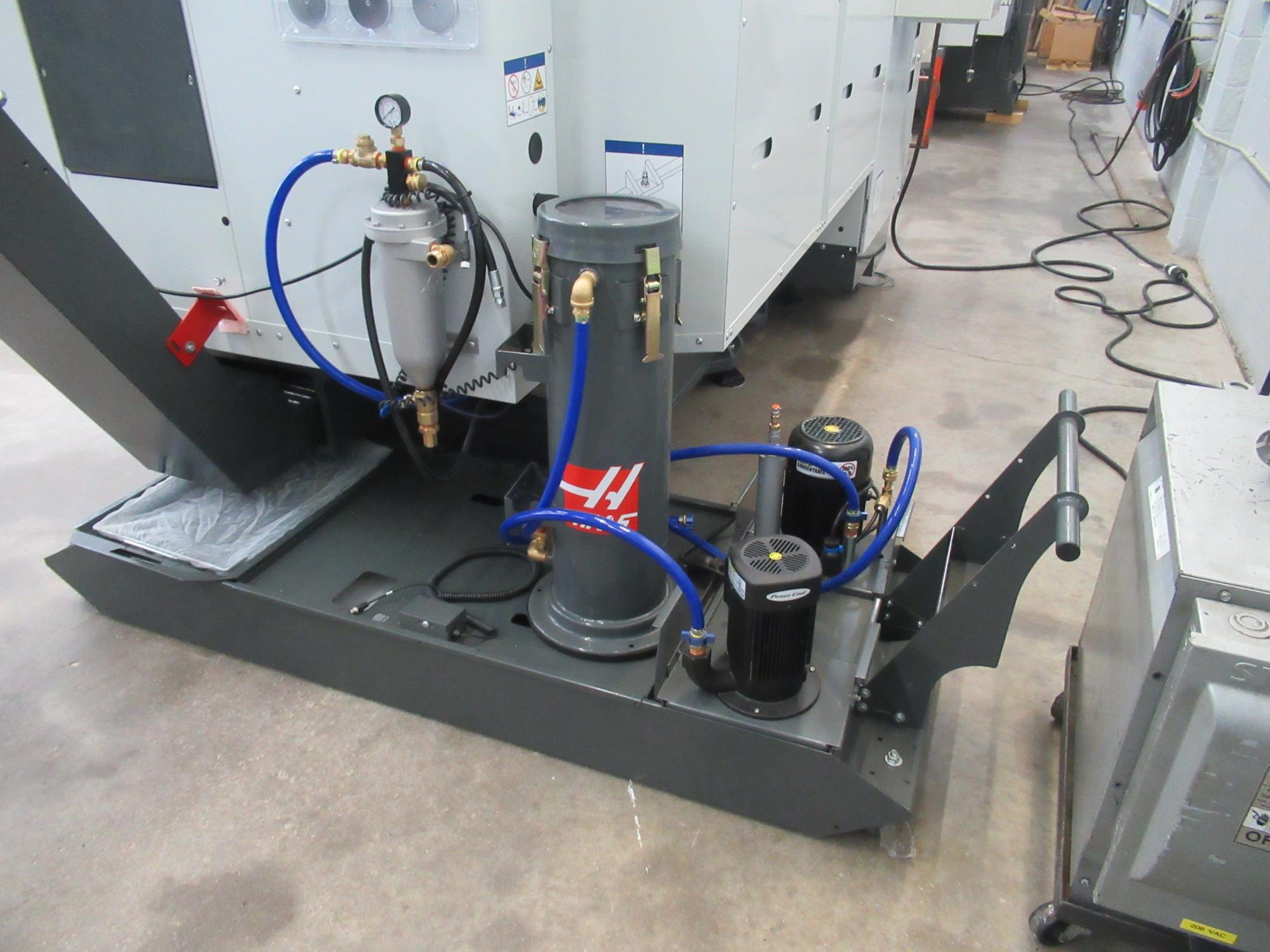

Haas NextGen CNC Control, 10" 3-Jaw Chuck on Main Spindle, 8" 3-Jaw Chuck on Sub Spindle, 12-Station Turret (BTM-65) with Live Milling and Y-Axis Capability, Automatic Tool Presetter, CNC Control Cabinet Cooler, Enclosure Exhaust System, High Pressure Coolant (300 PSI), Auxiliary Coolant Filter, Auto Jet Air Blast on Main Spindle, Jet Air Blast on Sub Spindle, 6000 RPM Maximum Live Milling Upgrade, Parts Catcher, 2-Radial Live Tool Holder, 1-Axial Live Tool Holder, Assorted Boring Bar and Stick Tool Holders (approx. 9 total),  User Definable Macros, Rigid Tap, Spindle Orientation, Visual Programming System, Keys, 7-Drawer Cabinet.

Electrics:

354 - 488 Volt, 3 Phase
