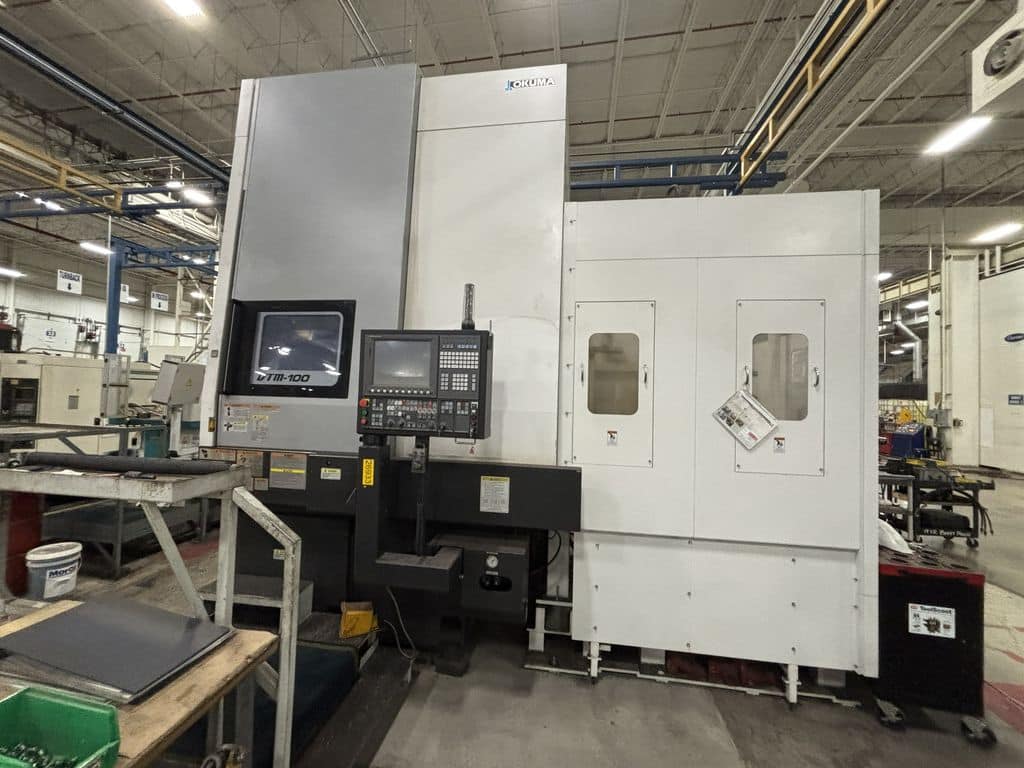

Okuma VTM-100 CNC Vertical Turning Center Lathe, VTL

Manufacturer

Okuma

Category

Lathes

Type

LATHES, CNC

Stock

150260006

Model

VTM-100

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 150260006
  • Location: Decatur, GA
  • Brand: Okuma
  • Model: VTM-100
  • Serial #: 202533
  • Year: 2017
  • Approx. Shipping Weight: 30,000 Lbs.
  • Approx. Shipping Dimensions: 30′ L x 8’6″ W x 12’11” H

Specifications

  • Max. Machining Diameter: 39.37″
  • Max Machining Height: 33.07″
  • Max Swing Diameter: 39.37″
  • Max Workpiece Load: 2,640 Lbs.
  • X-Axis Travel: 25.59″
  • Z-Axis Travel: 30.07″
  • C-Axis: 360° (0.001°)
  • Rapid Traverse X-Axis: 630 IPM
  • Rapid Traverse Z-Axis: 630 IPM
  • Spindle Nose: A2-11
  • Spindle Bore: 4.33″
  • Spindle Speed: 10 – 1,250 RPM
  • Spindle Motor: 40 HP
  • Turret Type: ATC Single Tool
  • Tool Size: 1.0″, 1.25″
  • Boring Bar Diameter: ø1.5″, ø2.0″
  • Max Spindle Speed: 10 – 4500 RPM
  • Speed Ranges: 2 Auto Ranges
  • Taper: 50
  • Capacity: 60 Tools
  • Max Tool Diameter: 6.70″ – 9.84″
  • Max Tool Length: 19.69″
  • Max Tool Weight: 66 Lbs.
  • Power Source: AC 22/480V, Three Phase, 60 Hz

Equipped With

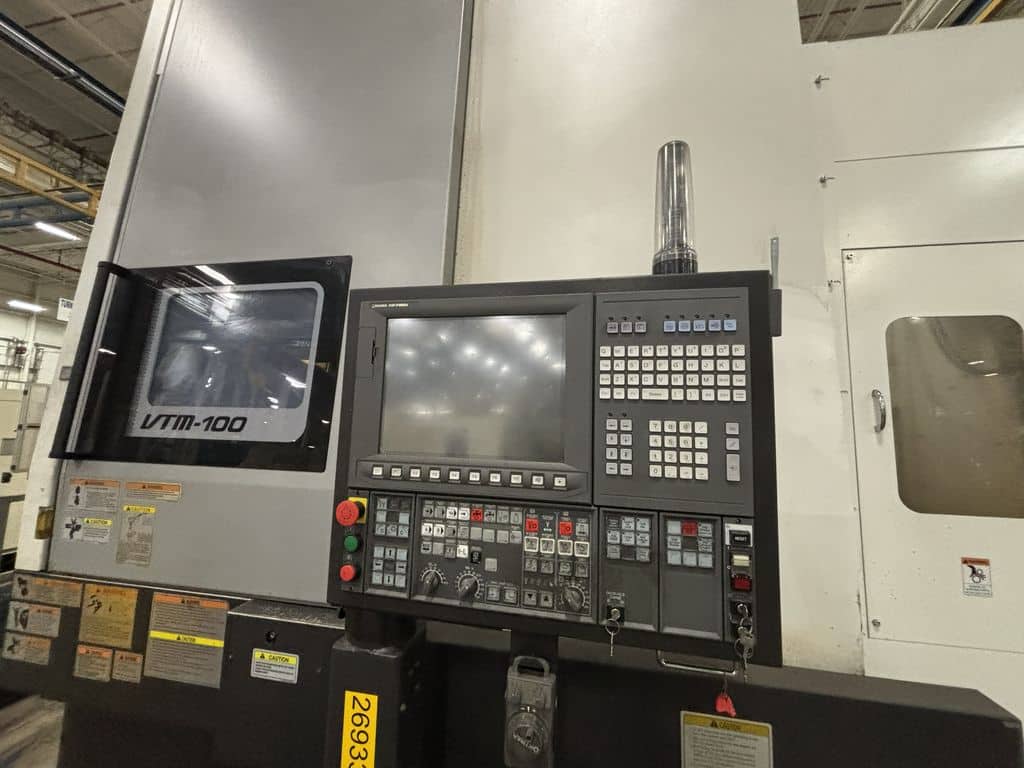

Okuma OSP-P300SA CNC Control, Coolant System, 60 Station Automatic Tool Changer

Additional Info

The Okuma VTM-100 can be demoed upon request.
