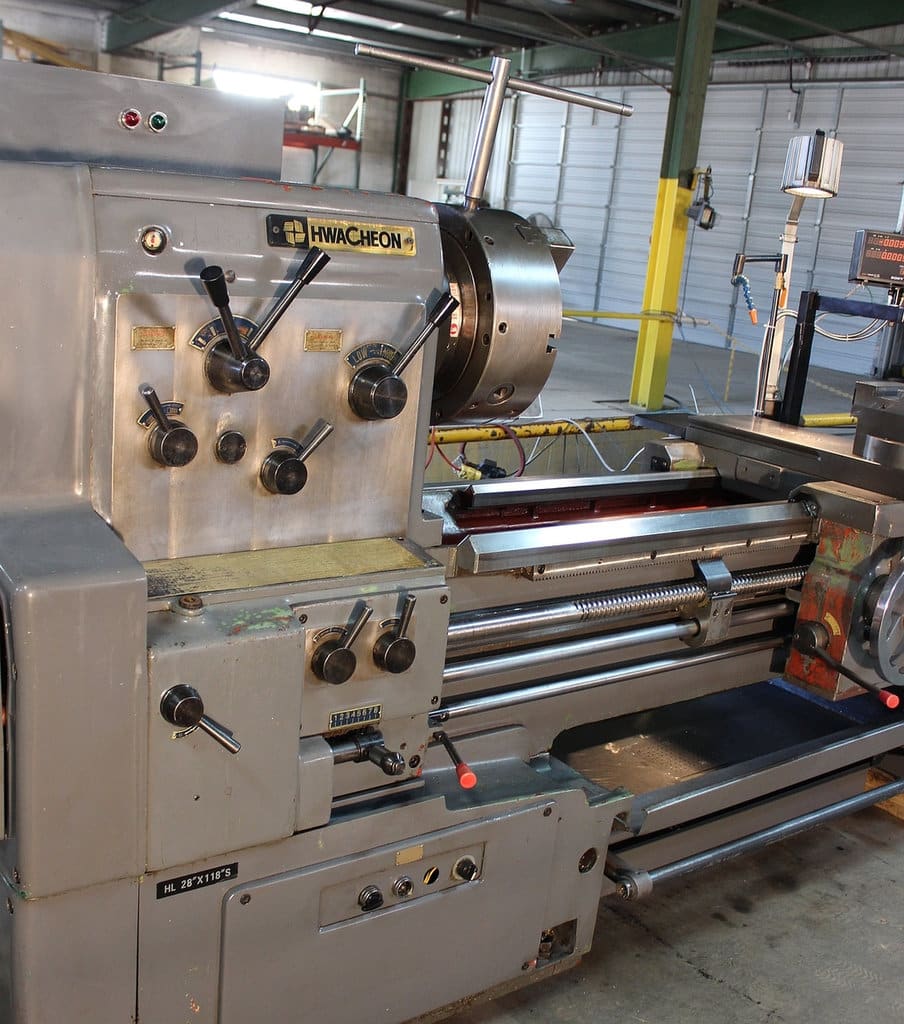

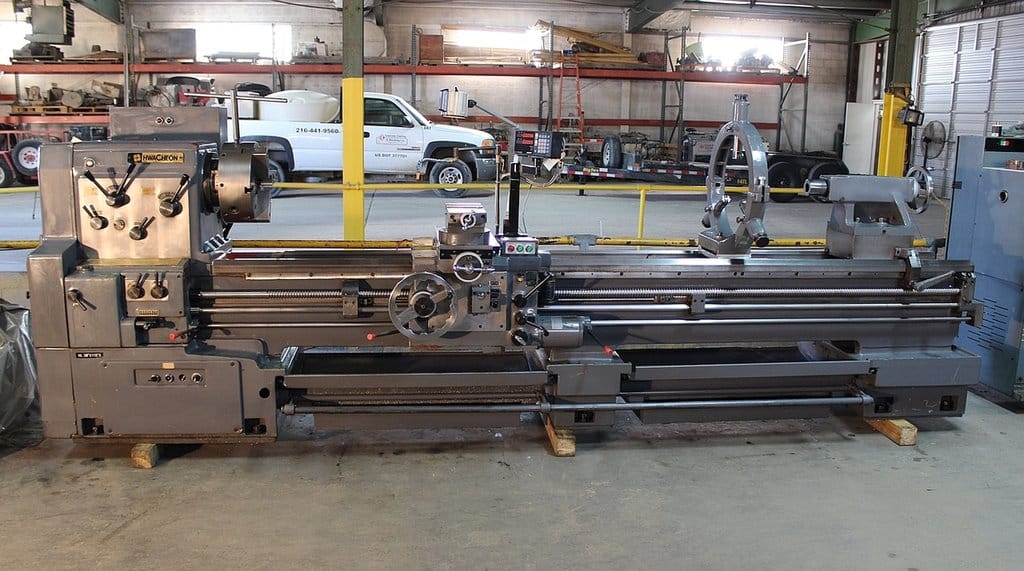

Hwacheon HL720 28″ x 120″ Precision Engine Lathe w/ Sony 2-Axis DRO

Manufacturer

Hwacheon

Category

Lathes

Type

LATHES, CNC

Stock

143260003

Model

HL720

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 143260003
  • Location: Ohio
  • Brand: Hwacheon
  • Model: HL720
  • Year: 1999
  • Approx. Shipping Weight: 10,250 LBS.
  • Approx. Shipping Dimensions: 187″L x 61″W x 58″H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Swing Over Bed: 28.34″
  • Swing Over Cross Slide: 18.50″
  • Distance Between Centers: 118.11″
  • Spindle Nose: D1-8
  • Spindle Bore: 3.03″

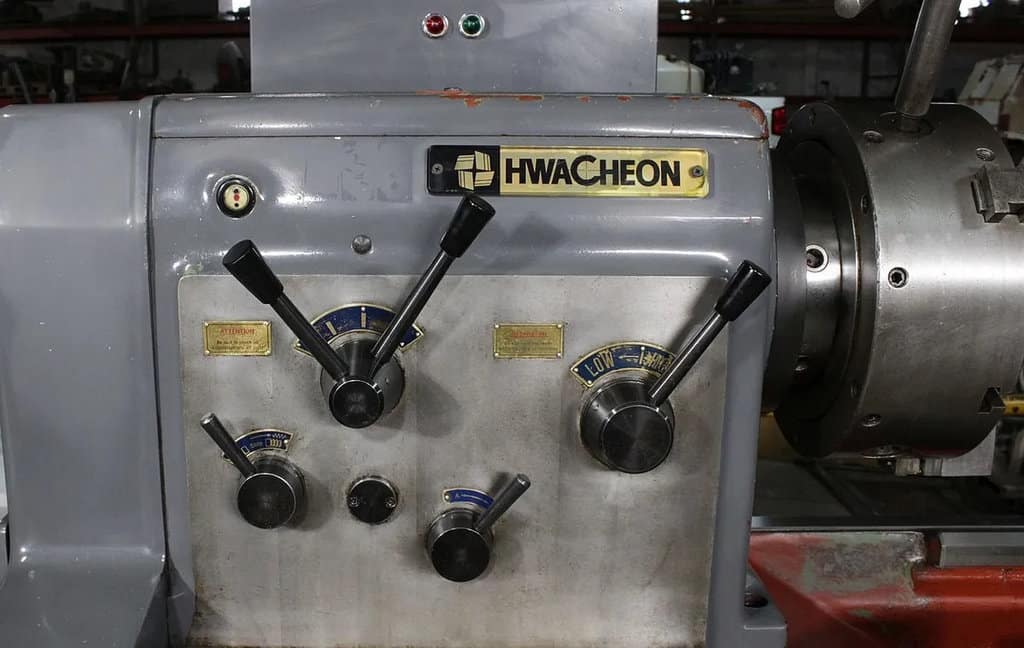

  • Number of Spindle Speeds: 12
  • Range of Spindle Speeds: 27 RPM – 1,205 RPM
  • Number of Feed Changes: 40
  • Longitudinal Feed (Z-Axis): .0015″ – .0216″ / rev
  • Cross Feed (X-Axis): .0016″ – .0228″ / rev
  • Cross Slide Travel: 15.35″
  • Compound Rest Travel: 6.69″

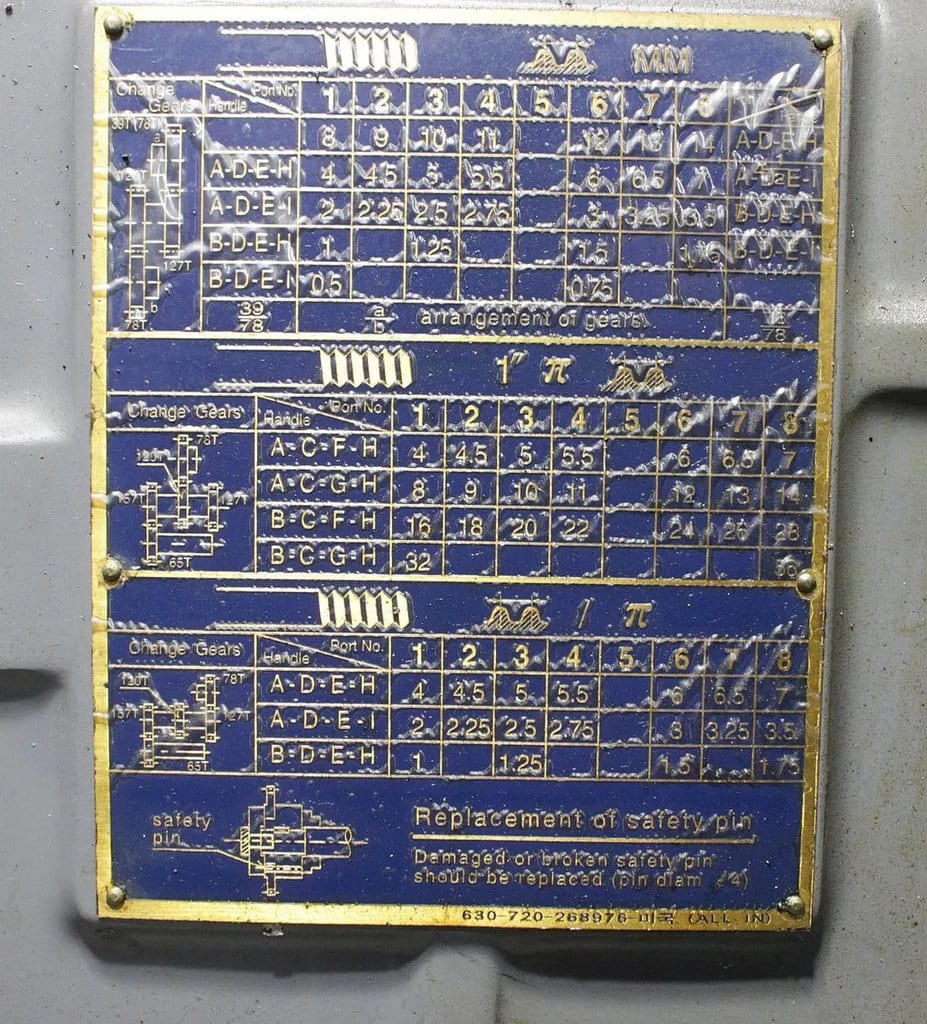

  • Inch Threads: 56-2
  • Metric Threads: .5 – 14
  • D.P. Threads: 4 – 56
  • Module Threads: 1 – 7

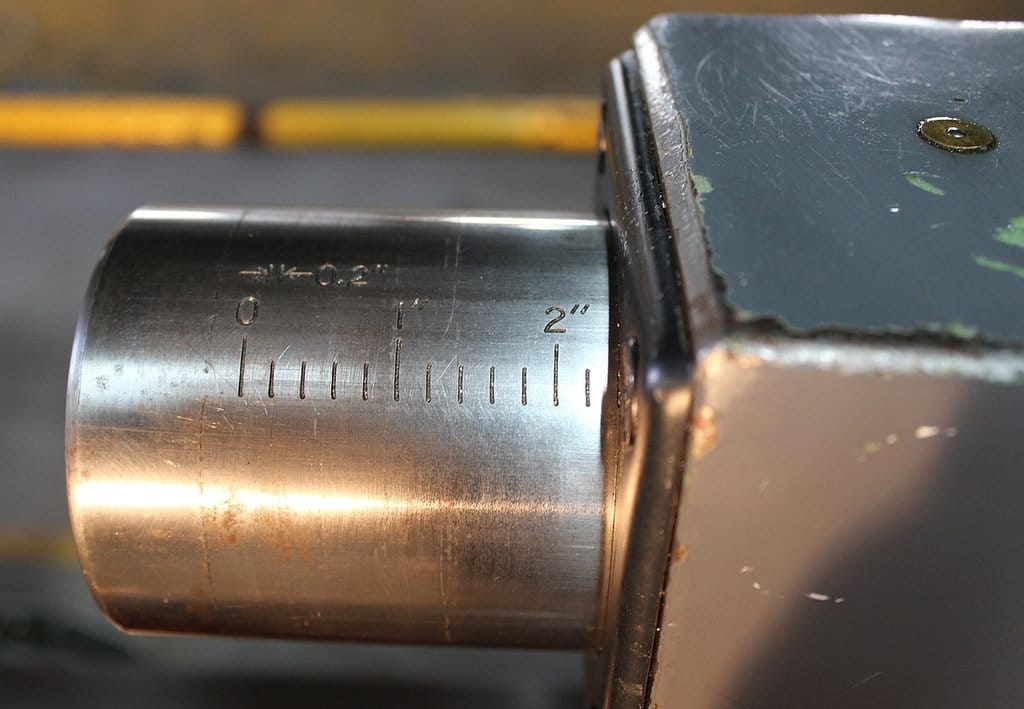

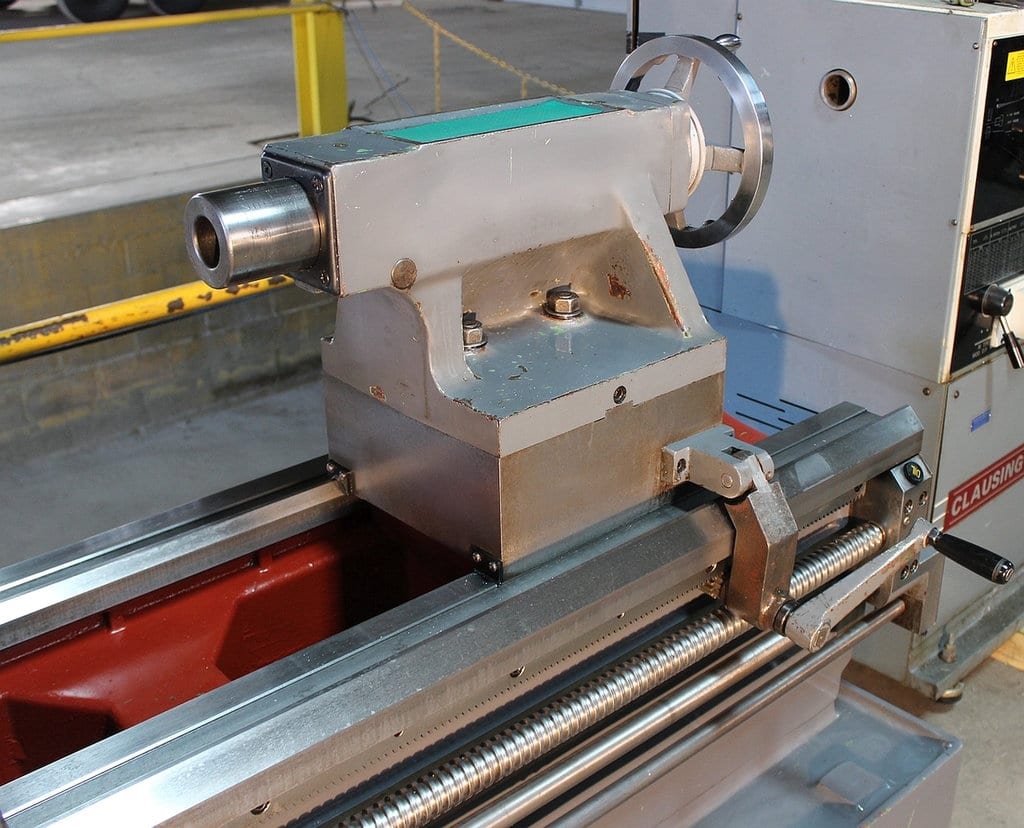

  • Tail Stock Quill Travel: 5.90″
  • Tail Stock Quill Taper: No. 5
  • Spindle Motor HP: 14.74

Equipped With

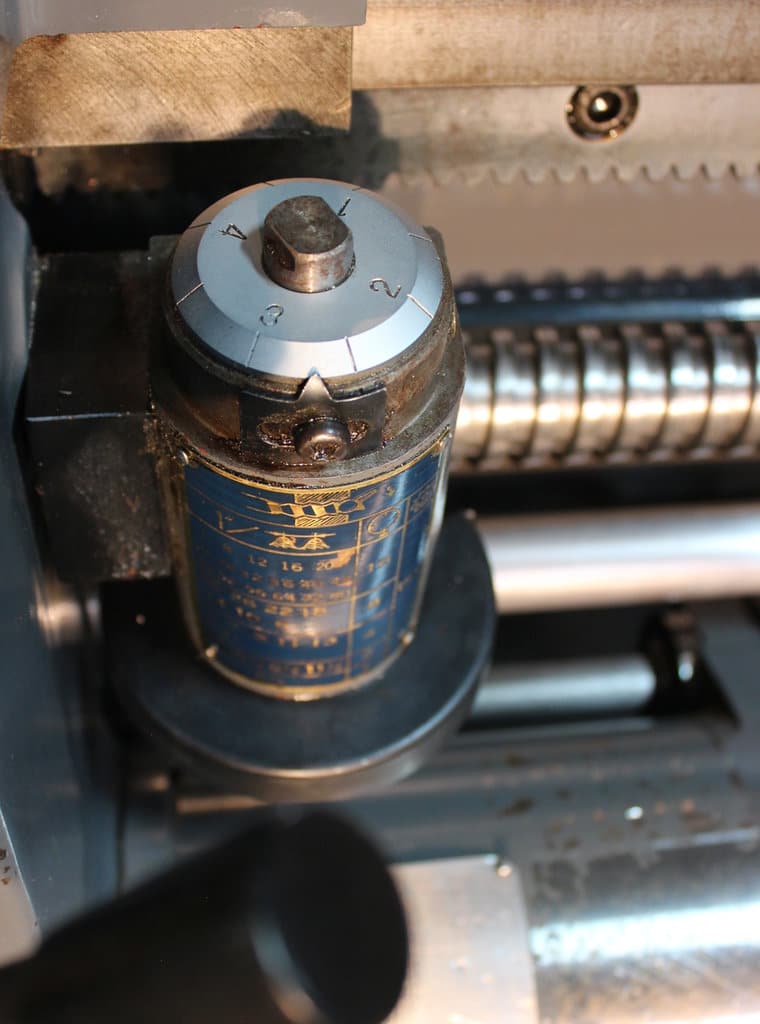

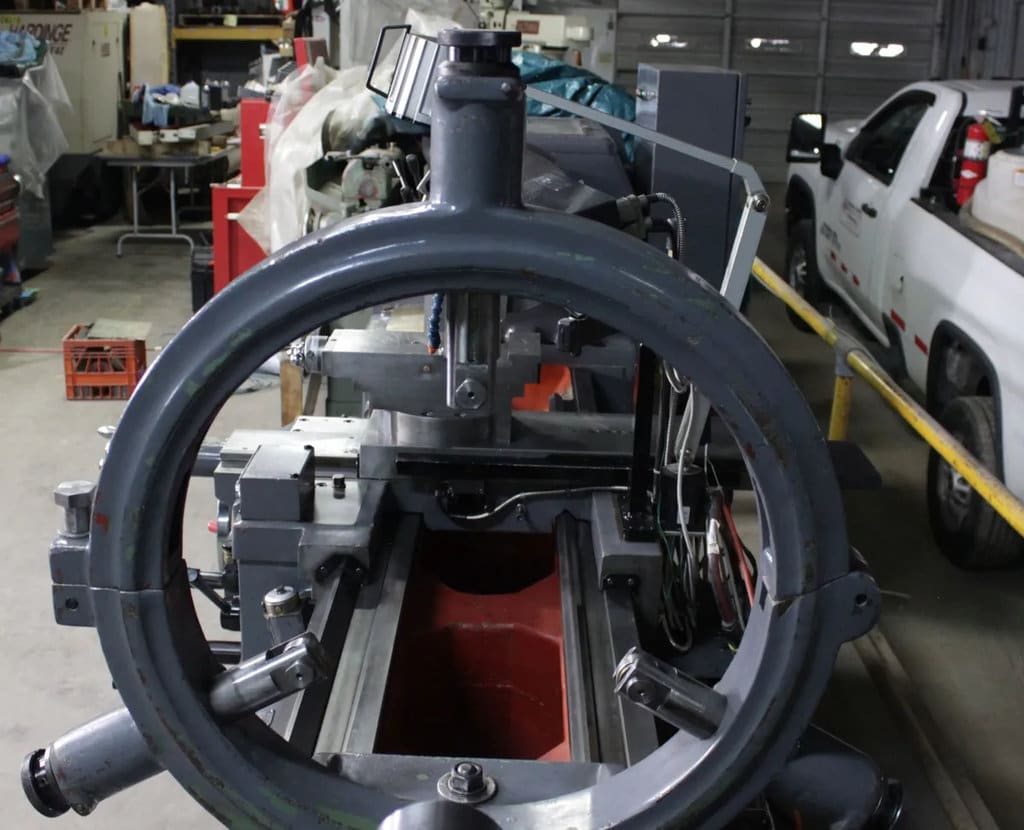

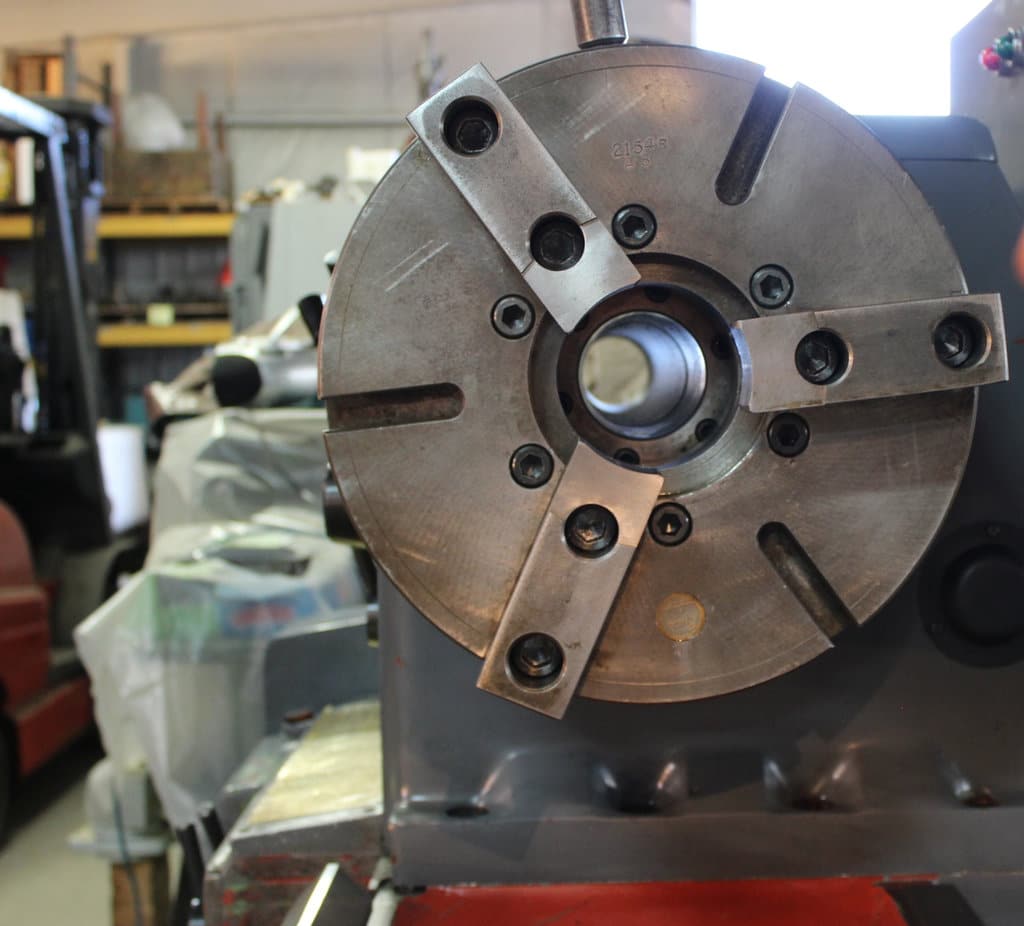

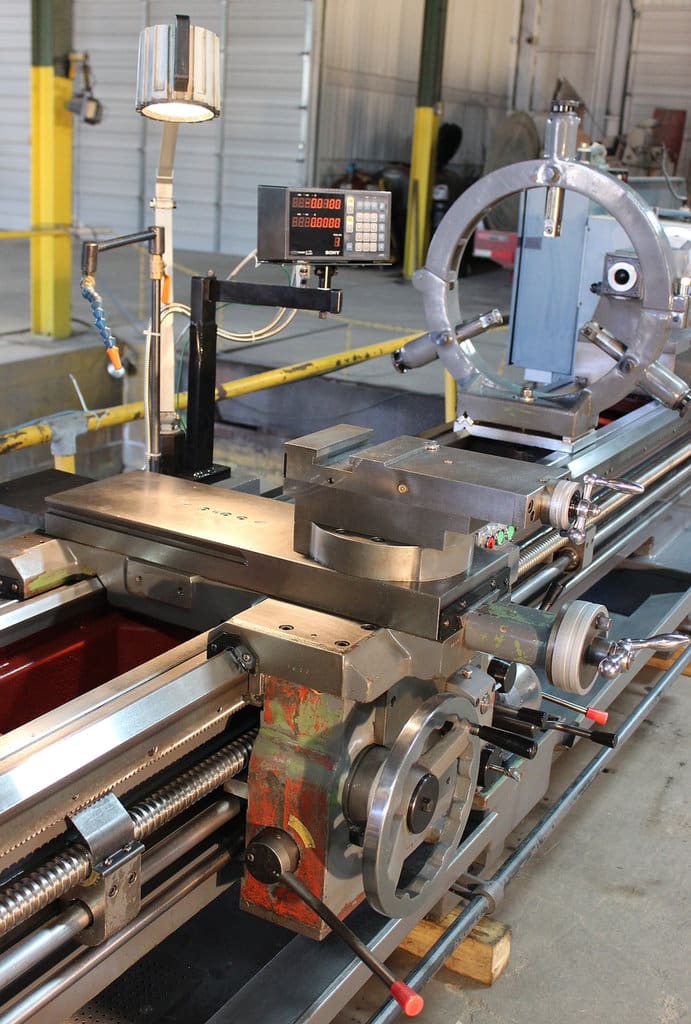

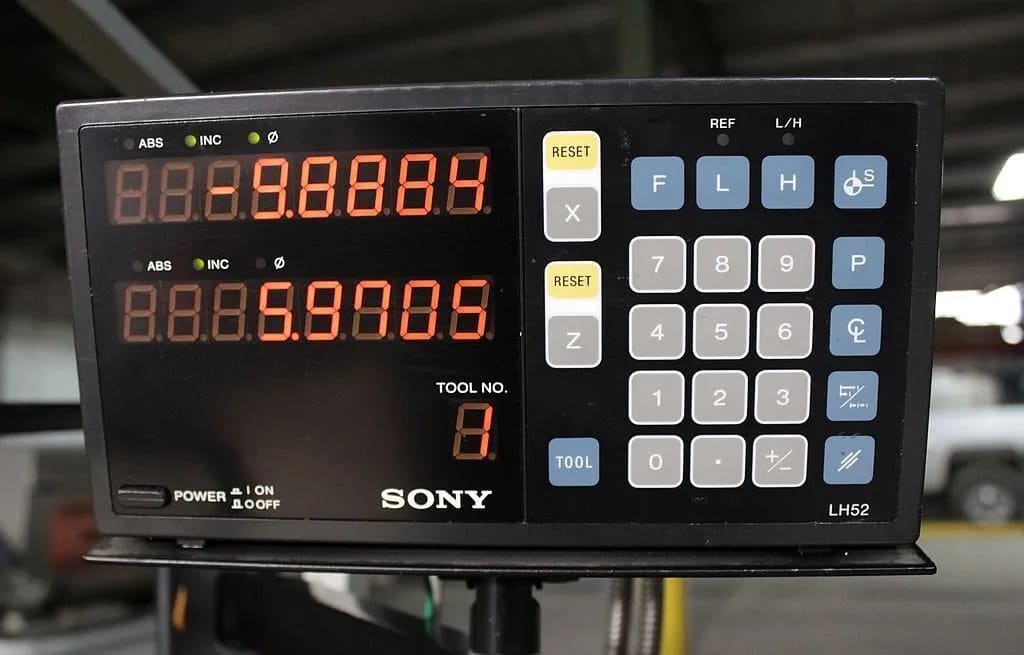

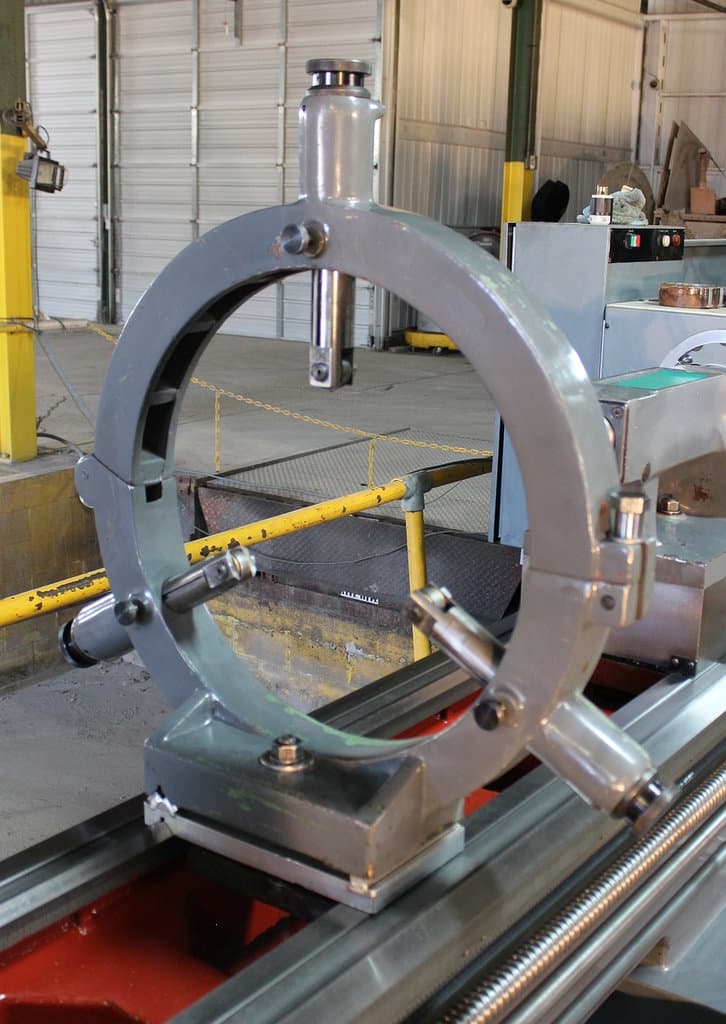

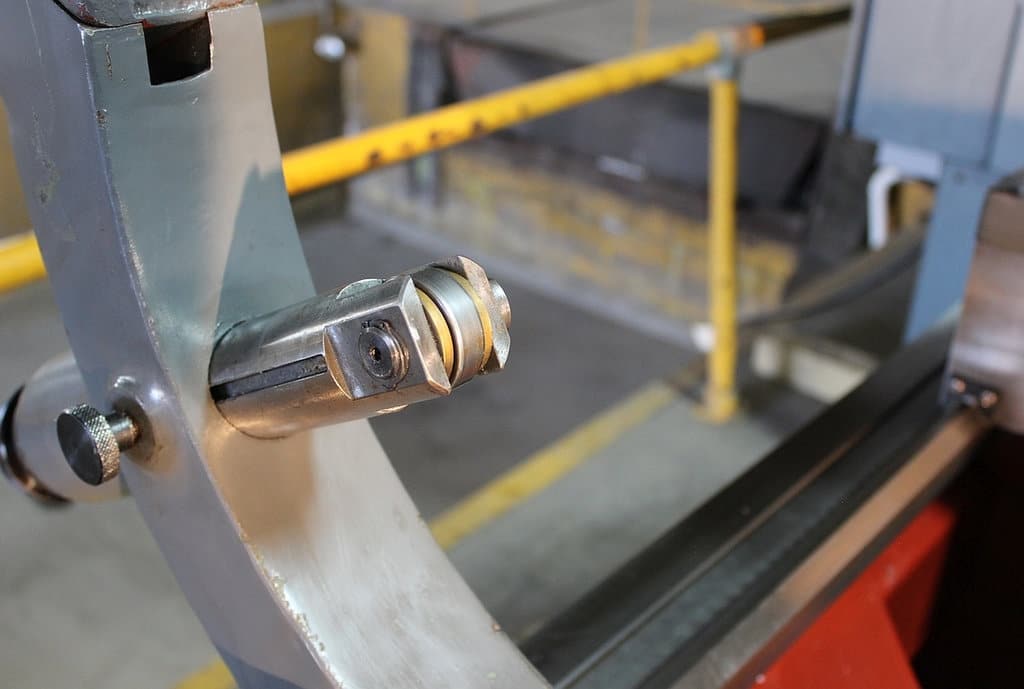

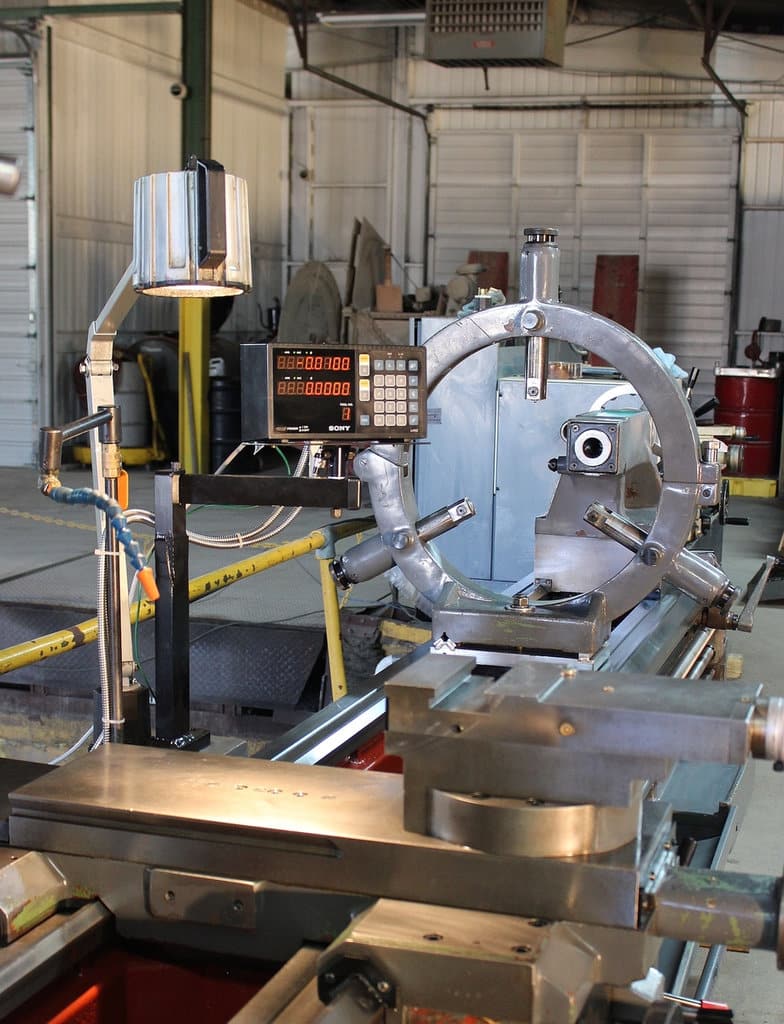

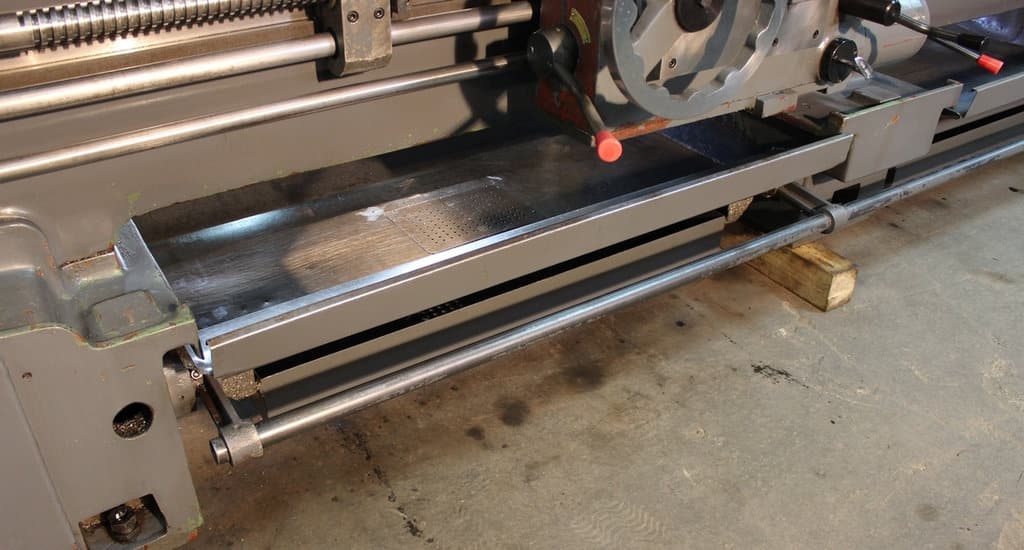

Sony 2-Axis Digital Readout System, Halogen Work Lamp, 15″ Heavy Duty Buck 3-Jaw Chuck, Coolant System, Two Removable Chip Pans, Two Removable Sub-Coolant Pans, Thread Dial, Rapid Traverse, Steady Rest (Over Sized : 11″~17″), Disc Brake w/ Dual Length Foot Brake Lever
