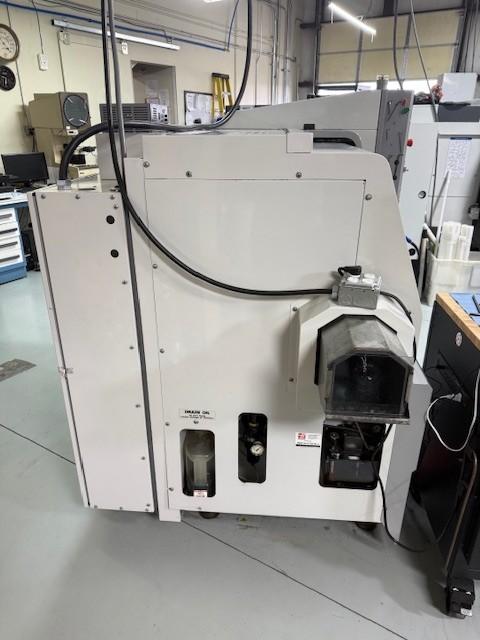

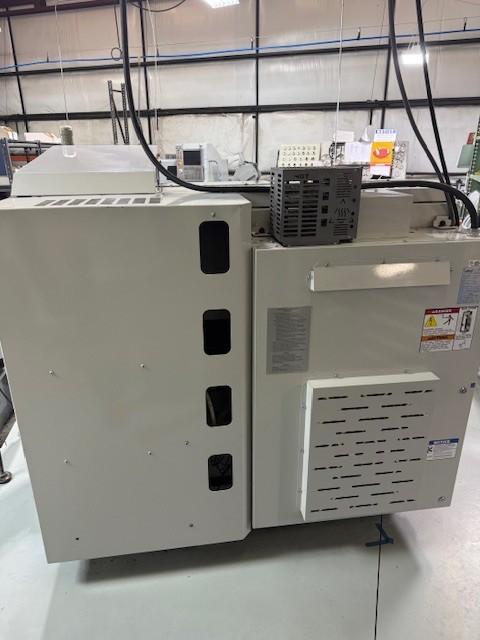

Haas SL-10 CNC Turning Center, Haas Coldfire CNC Control, Collet Chuck, Tool Setter, Chip Conveyor- Auction Item

Manufacturer

Haas

Category

Lathes

Type

LATHES, TURRET, CNC

Stock

Lot No.: 40

Model

SL-10

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/50542">,

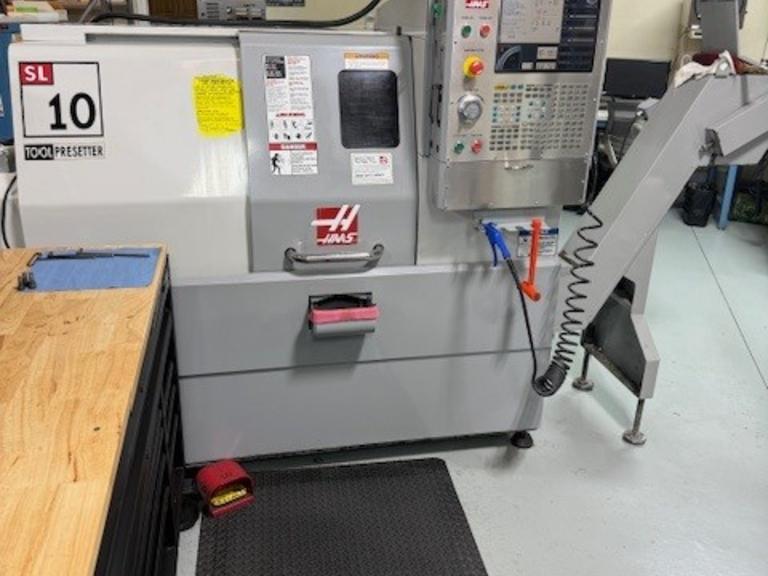

Lot 40: Haas SL-10 CNC Turning Center, Haas Coldfire CNC Control, Collet Chuck, Tool Setter, Chip Conveyor
Equipped With:

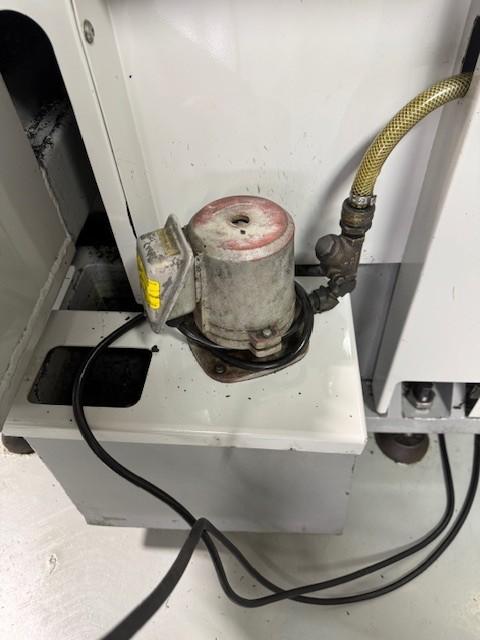

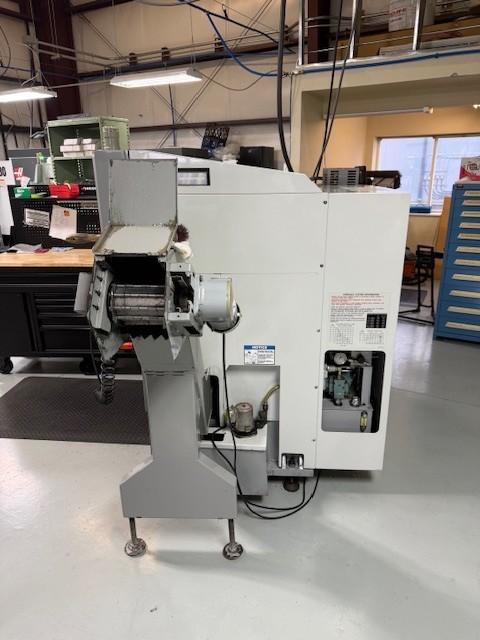

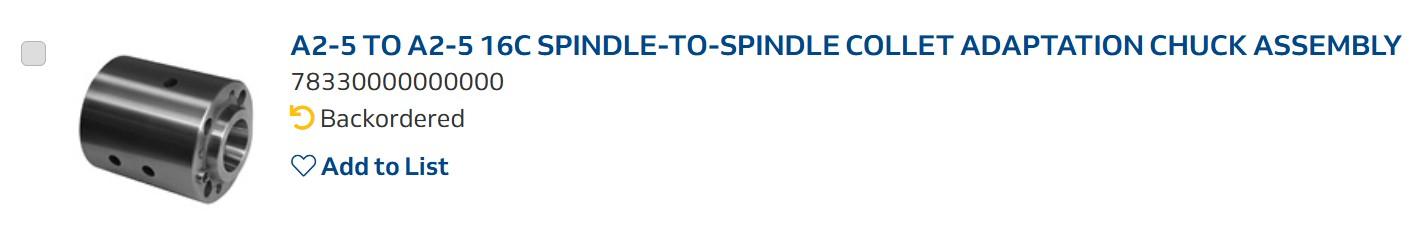

Haas Coldfire CNC Control, Collet Chuck, Tool Presetter, 12-Station Turret Assorted Tool Blocks and Wedges, Parts Catcher, Chip Conveyor, Coolant Pump

Electrics:

208-230 Volt, 3 Phase

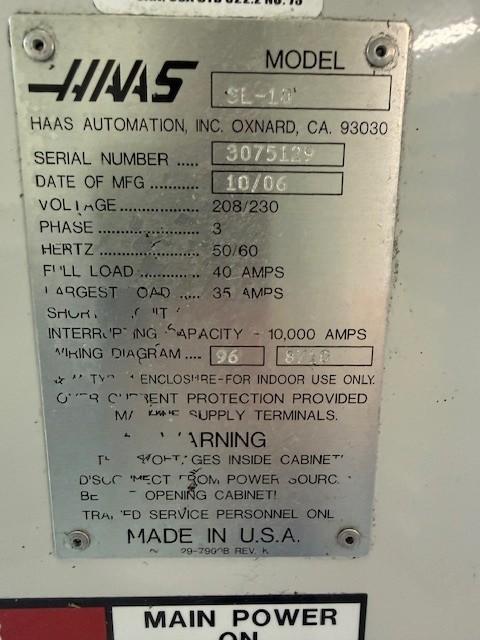

Manufacturer: Haas Model: SL-10 Year: 2006 Serial Number: 3075129
Main Unit Approx Weight: 5500.00 lbs
Main Unit Dimensions (in inches): Length: 127.00"  Width: 55.00"  Height: 69.00"
Specs:

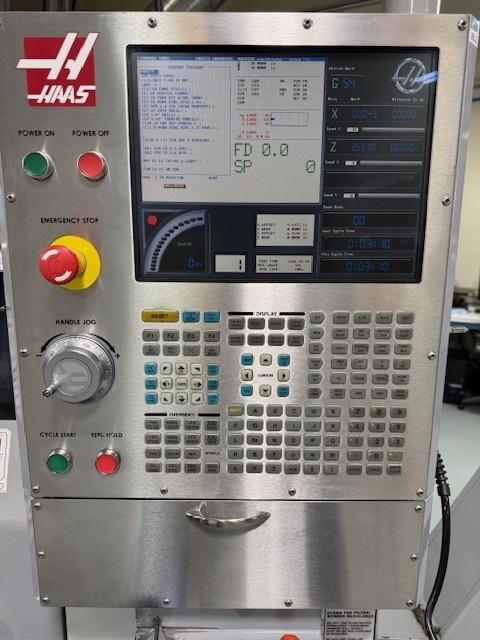

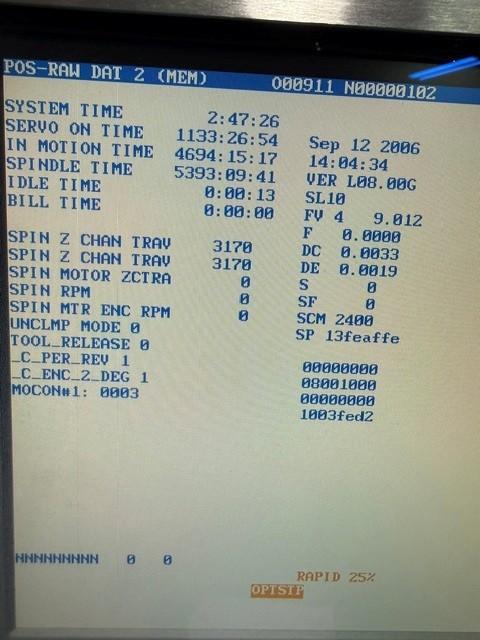

Control: Haas Coldfire CNC
Max Swing Over Bed: 16.25"
Max Swng Over Saddle: 8"
Max Turning Diameter: 11"
Spindle Speeds: 6,000 Max RPM
Spindle Drive: 15 HP
Hole Thru Spindle: 2.31"
Spindle Nose: A2-5
Hole Thru Draw Tube: 1.81"

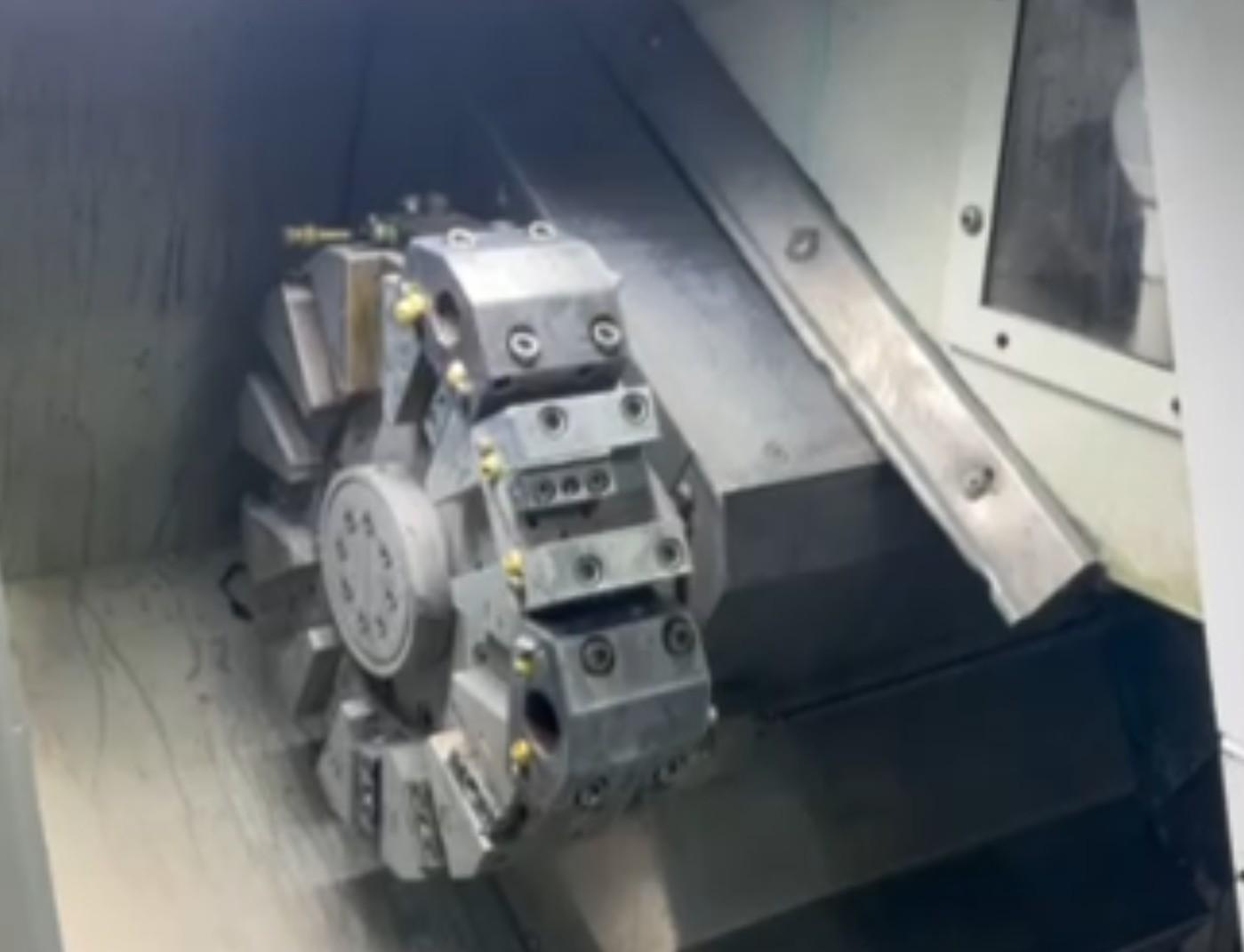

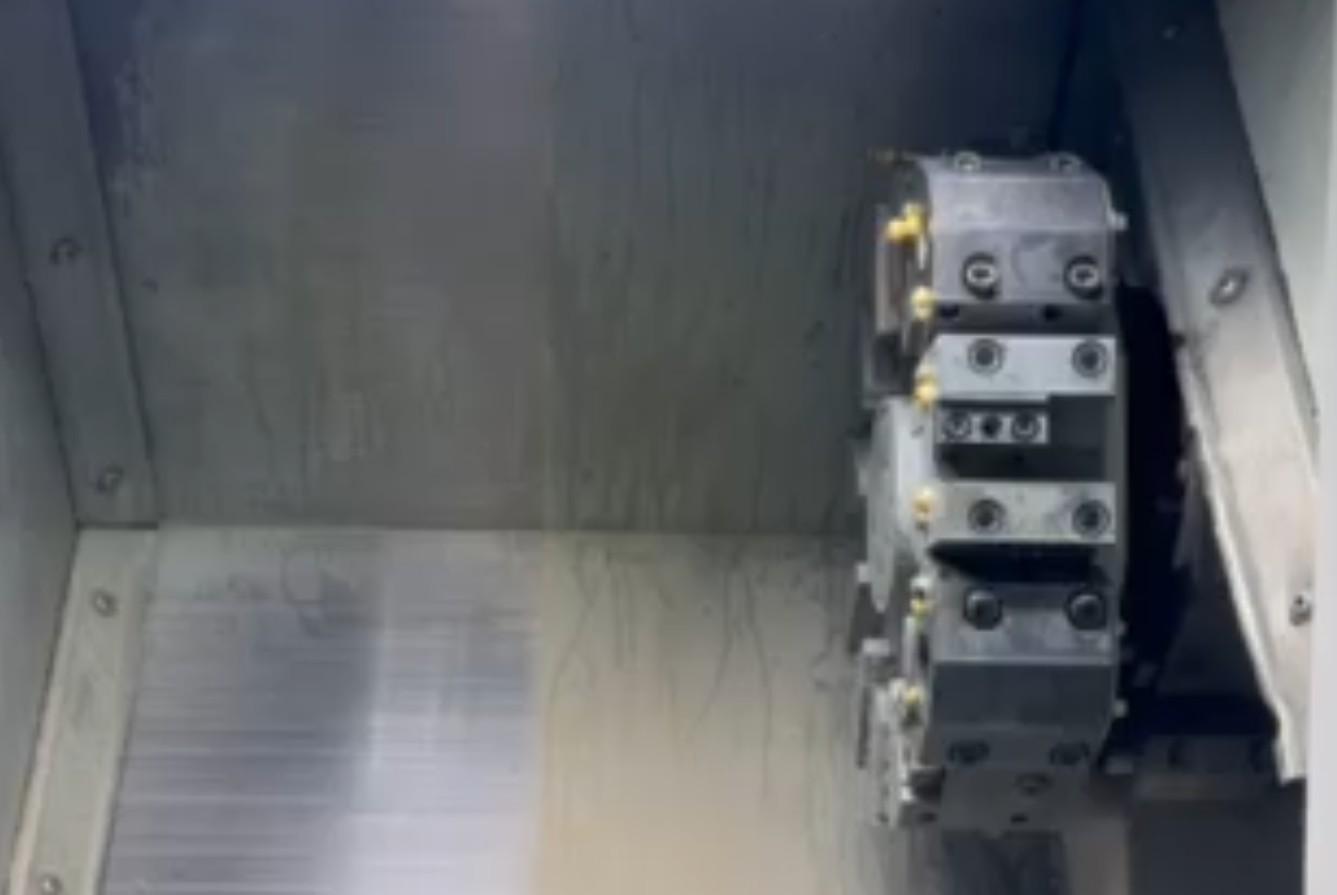

Turret Capacity: 12 Station
Turret Travels (X,Z): 6.25" x 14"
Rapid Traverse Rate (X/Z): 1,200 IPM
Turret Index Time: 1 Second (Per 1 Tool)
Max Bar Capacity: 1.8"
Max Swing Over Front Apron: 16.25"
Max Swing Over Cross Slide: 8"

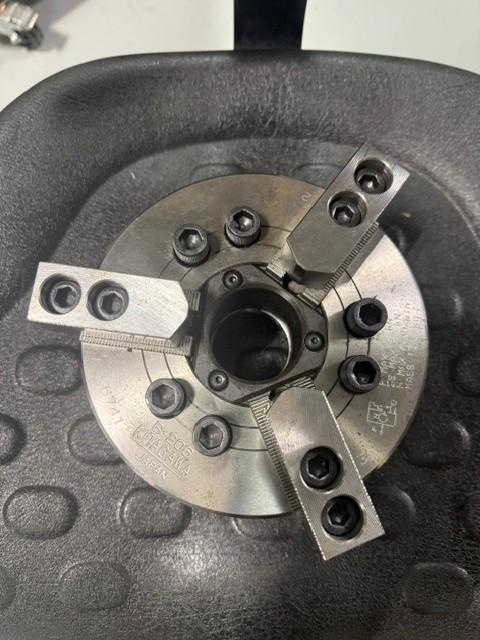

Chuck Size: 6.5"
Rapid Traverse Rate: 710 IPM
Seller Company: Eclipse Engineering
Seller Contact: Machinesused.com June MultiShop Phone: (763) 745-1166
Item Location: Westside Crane & Millwright, 3737 McCaslin Blvd, Louisville, CO 80027
Location Contact: Lon Bolejack Phone: (303) 494-2500
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Tuesday, June 2, 2026 and Friday, June 12, 2026
