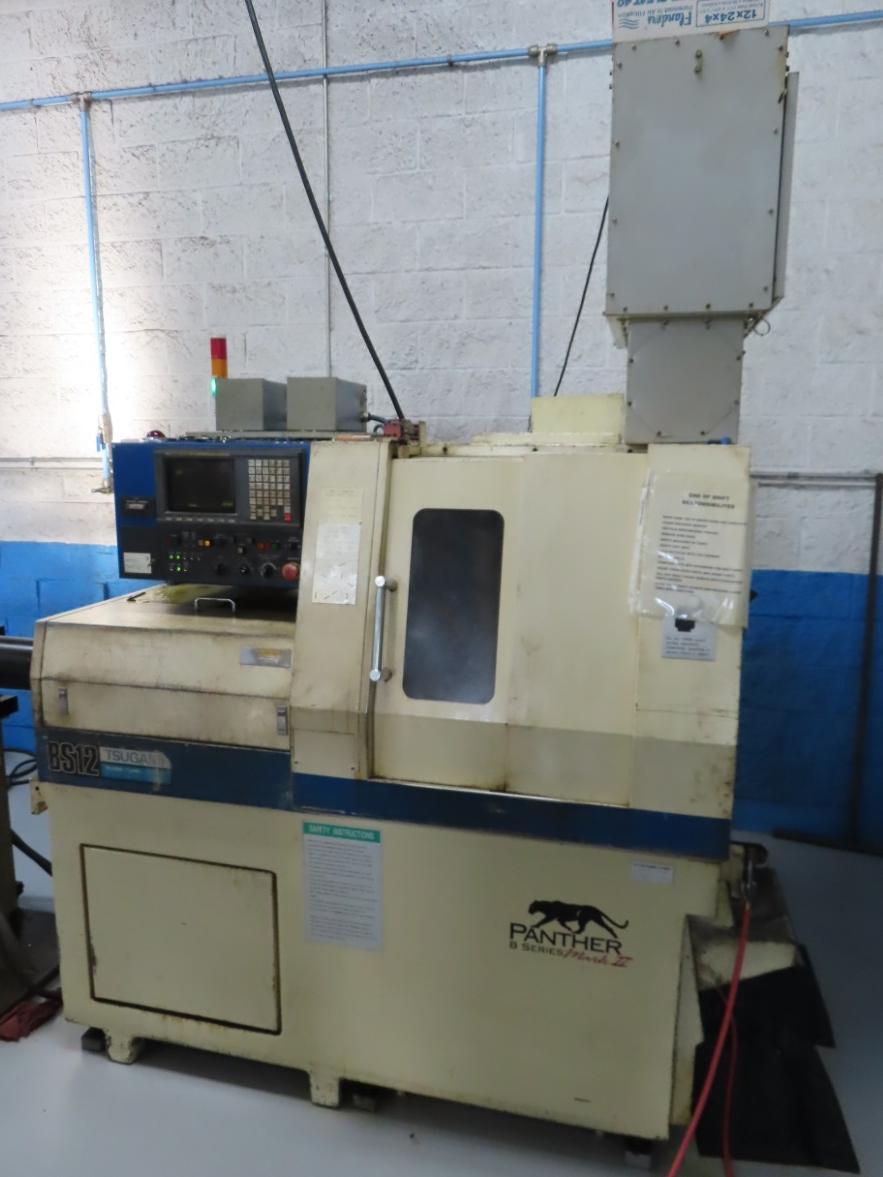

Tsugami BS12(D) CNC Swiss Type Screw Machine, Fanuc Control, Live Milling, Sub Spindle, Parts Catcher, Bar Feed- Auction Item

Manufacturer

Tsugami

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

Lot No.: 80

Model

BS12 Panther

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item at: https://www.machinesused.com/lots/50521">,

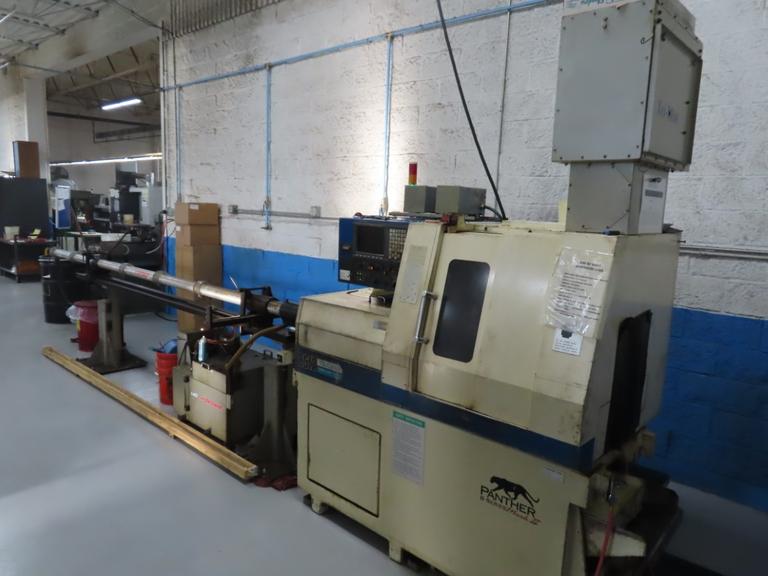

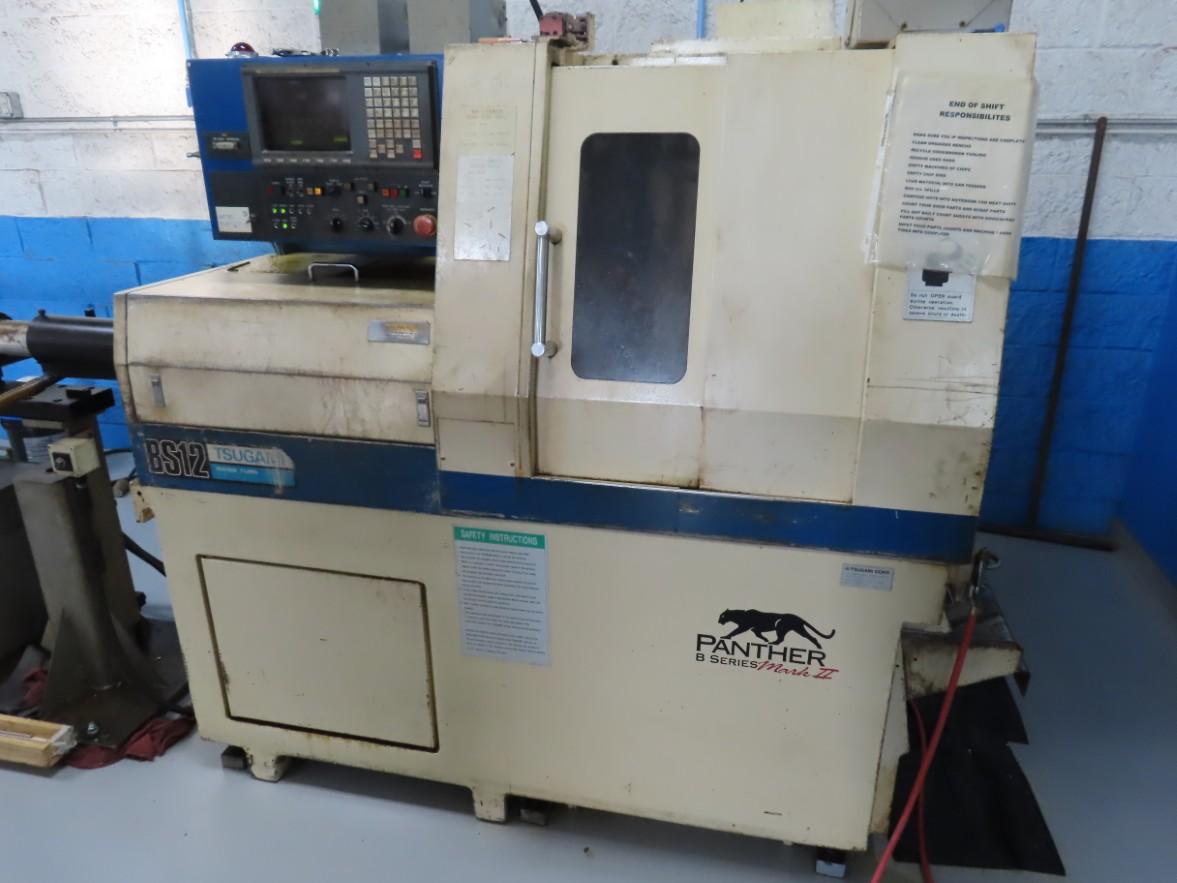

Lot 80: Tsugami BS12(D) CNC Swiss Type Screw Machine, Fanuc Control, Live Milling, Sub Spindle, Parts Catcher, Bar Feed
Equipped With:

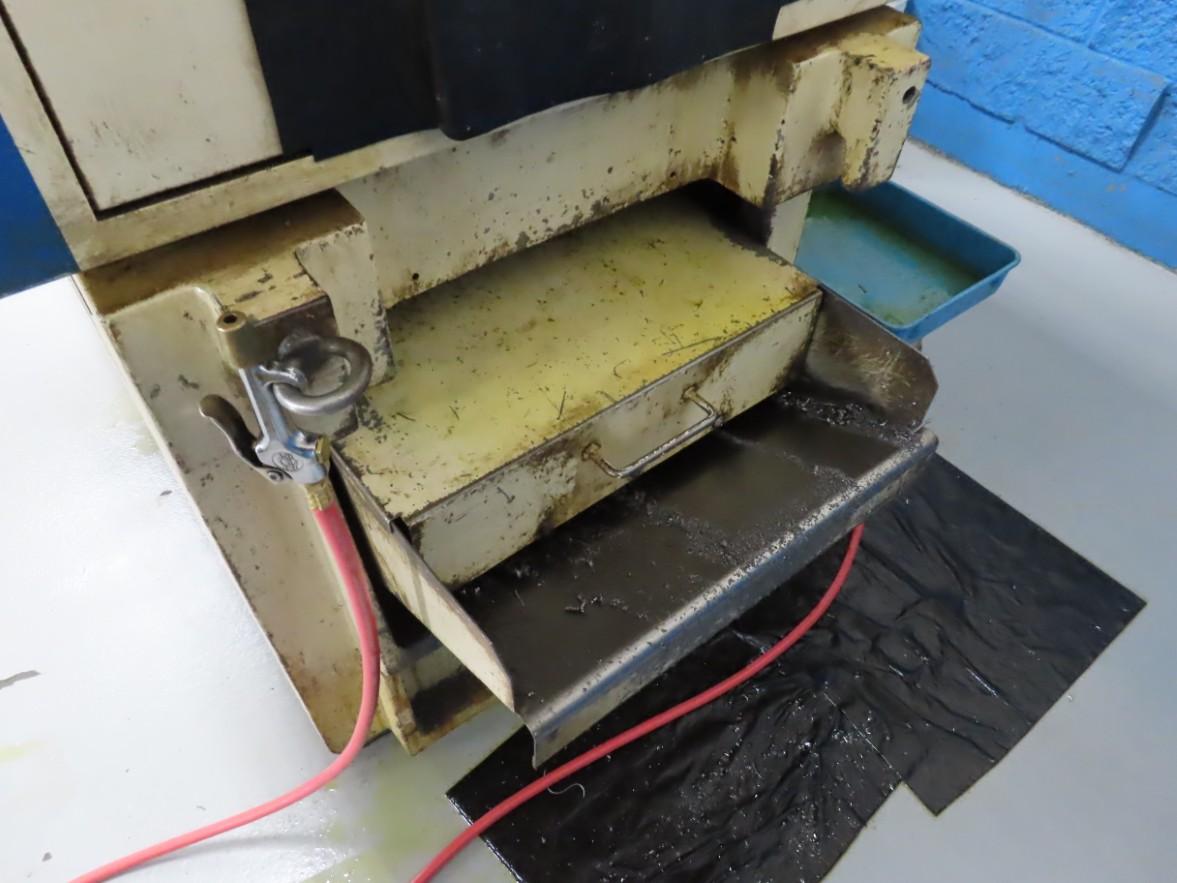

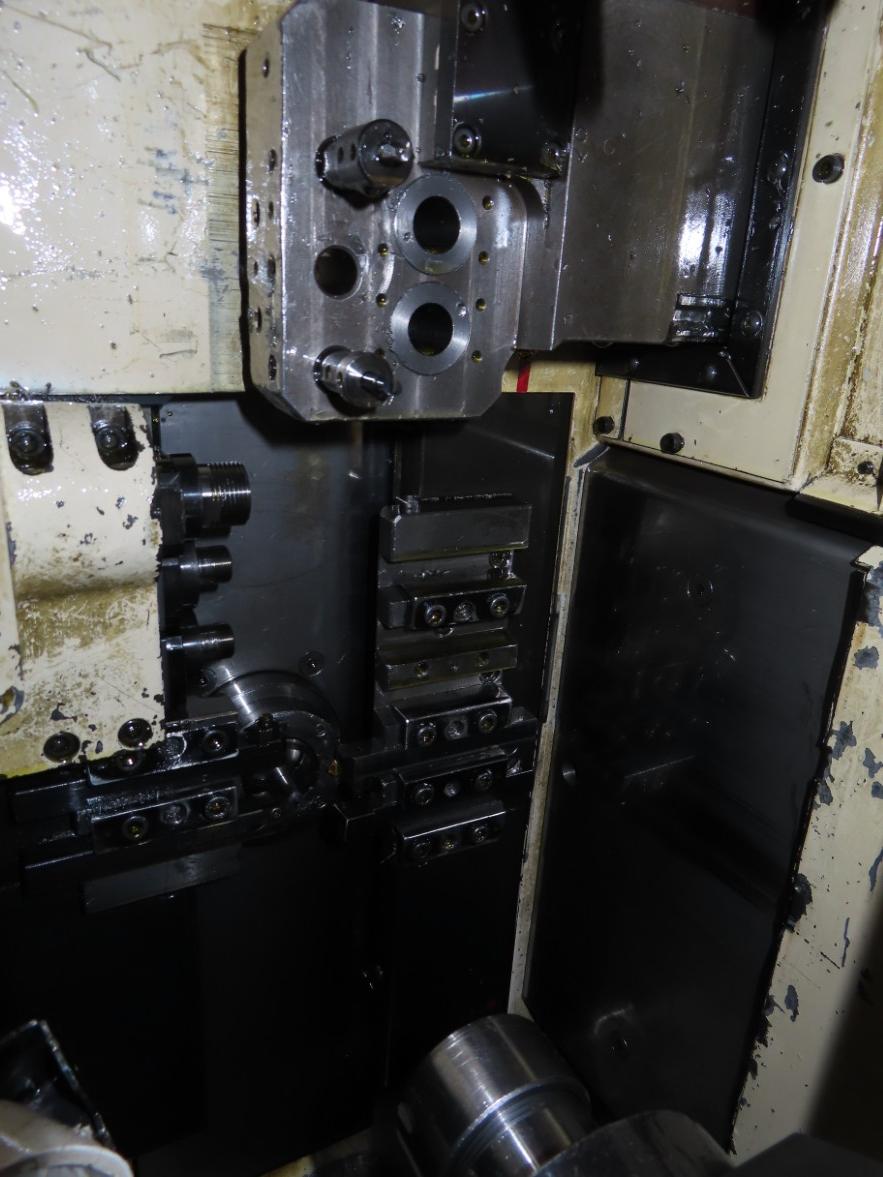

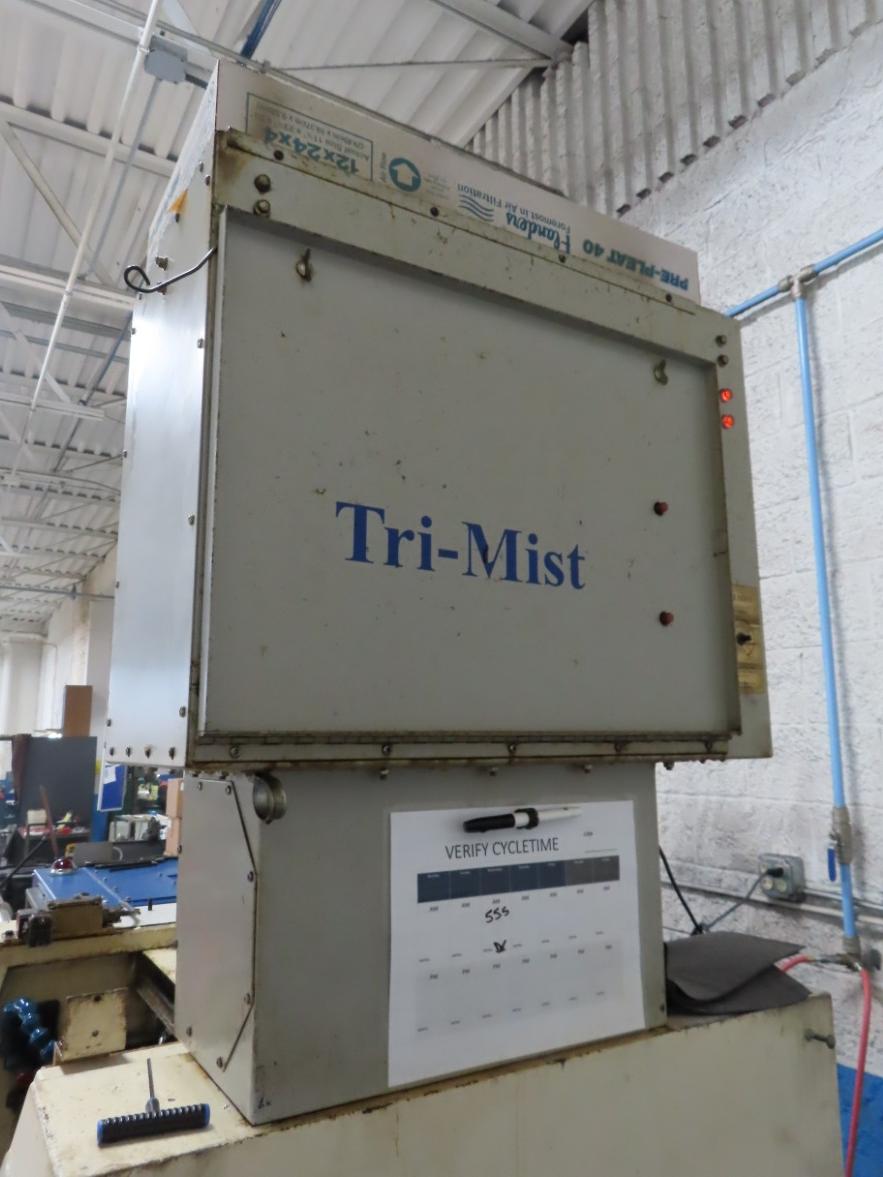

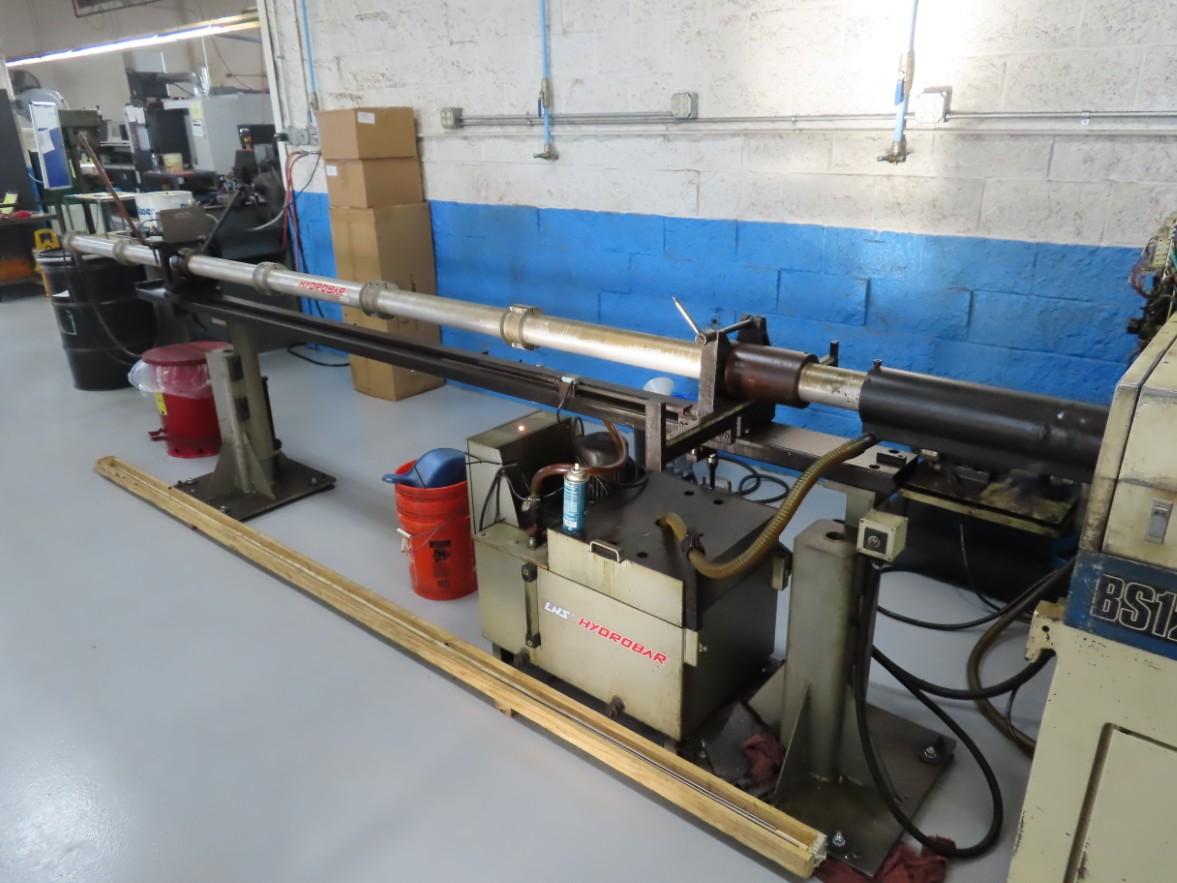

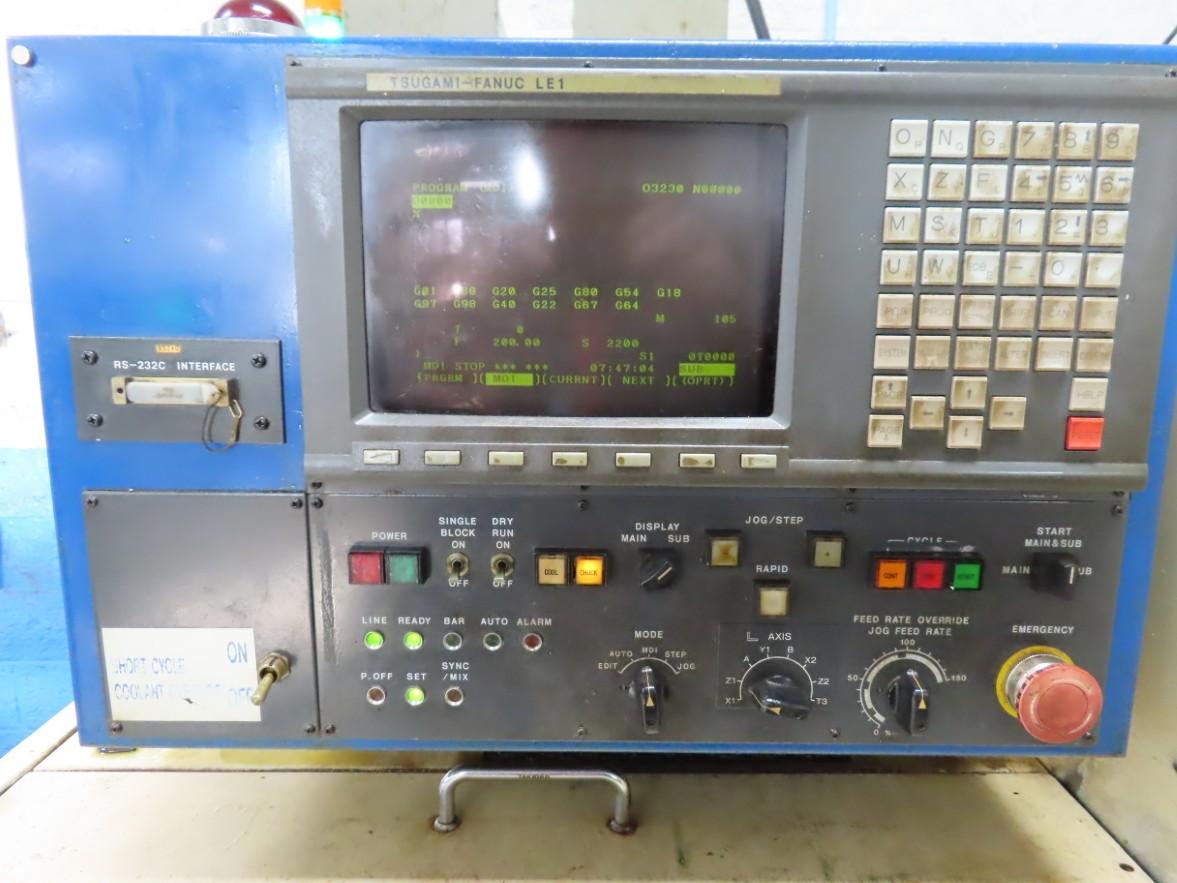

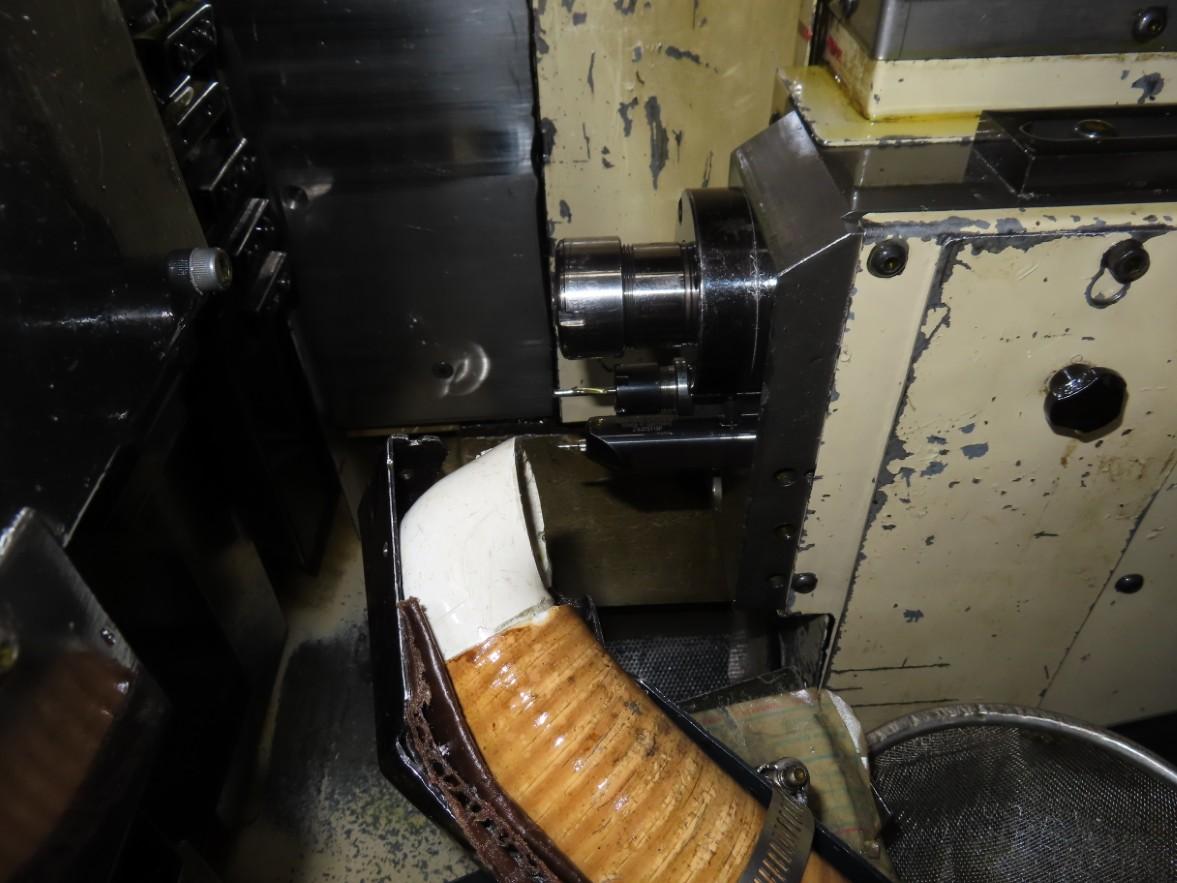

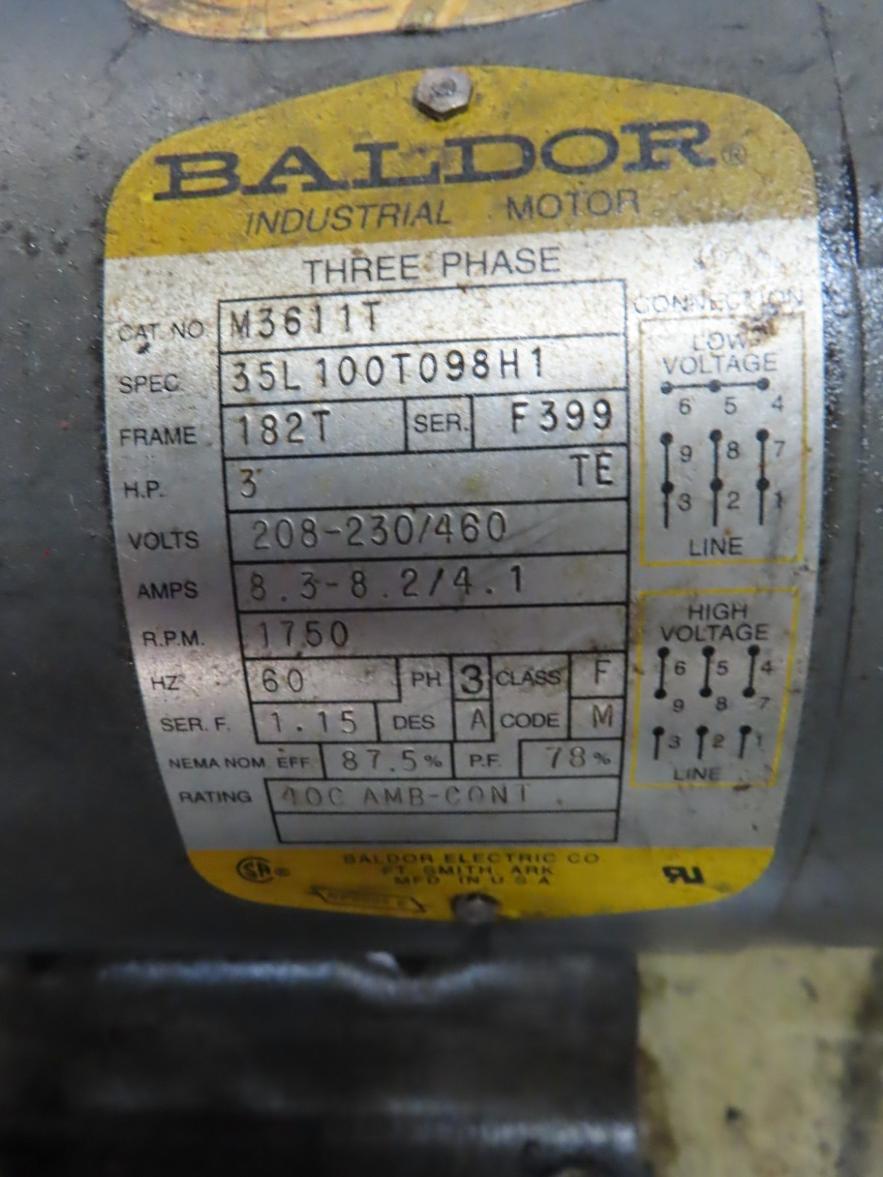

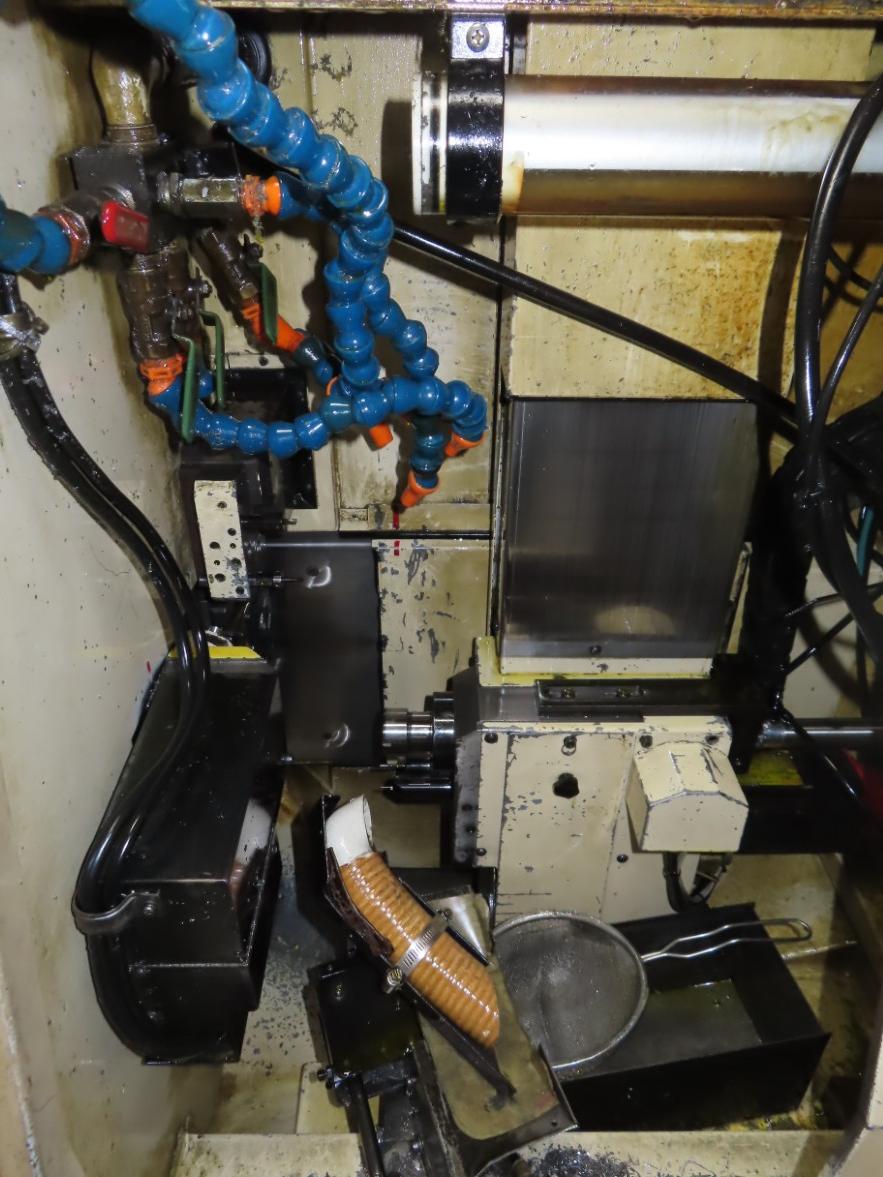

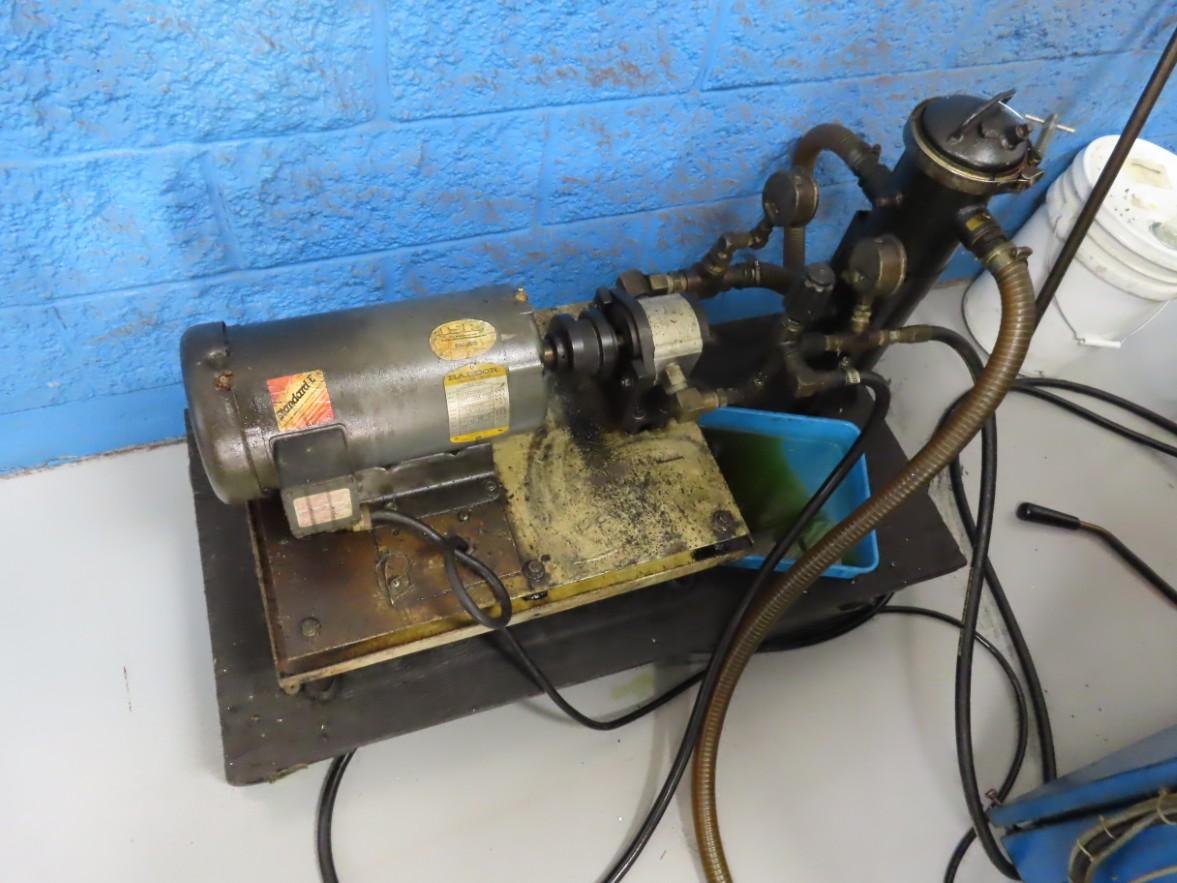

Tsugami-Fanuc LE1 CNC Control, LNS 3.12 HS-4.8 Hydrobar Bar Feed, TriMist Mist Collector, (3) Live Tools on Front Main Slide, (7) Static Tools on Main Slide, (5) Tool Back Working Block, Sub Spindle with (3) End Working Stations, 3 HP Coolant Pump with Large Assortment of New Filters, Assorted Collets and Guide Bushings, Parts Catcher, Manual

Description:

The Tsugami BS12(D) is a high‑precision CNC Swiss‑type screw machine designed for efficient production of small, complex parts with tight tolerances. Known for reliability, accuracy, and ease of use, this machine is well suited for medical, aerospace, electronics, and general precision machining applications. This machine features dual gang tooling capability (main and back working), allowing for reduced cycle times and increased productivity through simultaneous operations. The rigid construction and thermal stability of the BS12(D) contribute to consistent part quality over long production runs. Paired with an LNS Hydrobar bar feeder, this setup provides smooth, vibration‑free bar feeding for improved surface finishes and unattended operation. The Hydrobar is ideal for short‑to‑medium production runs and supports a wide range of bar materials.

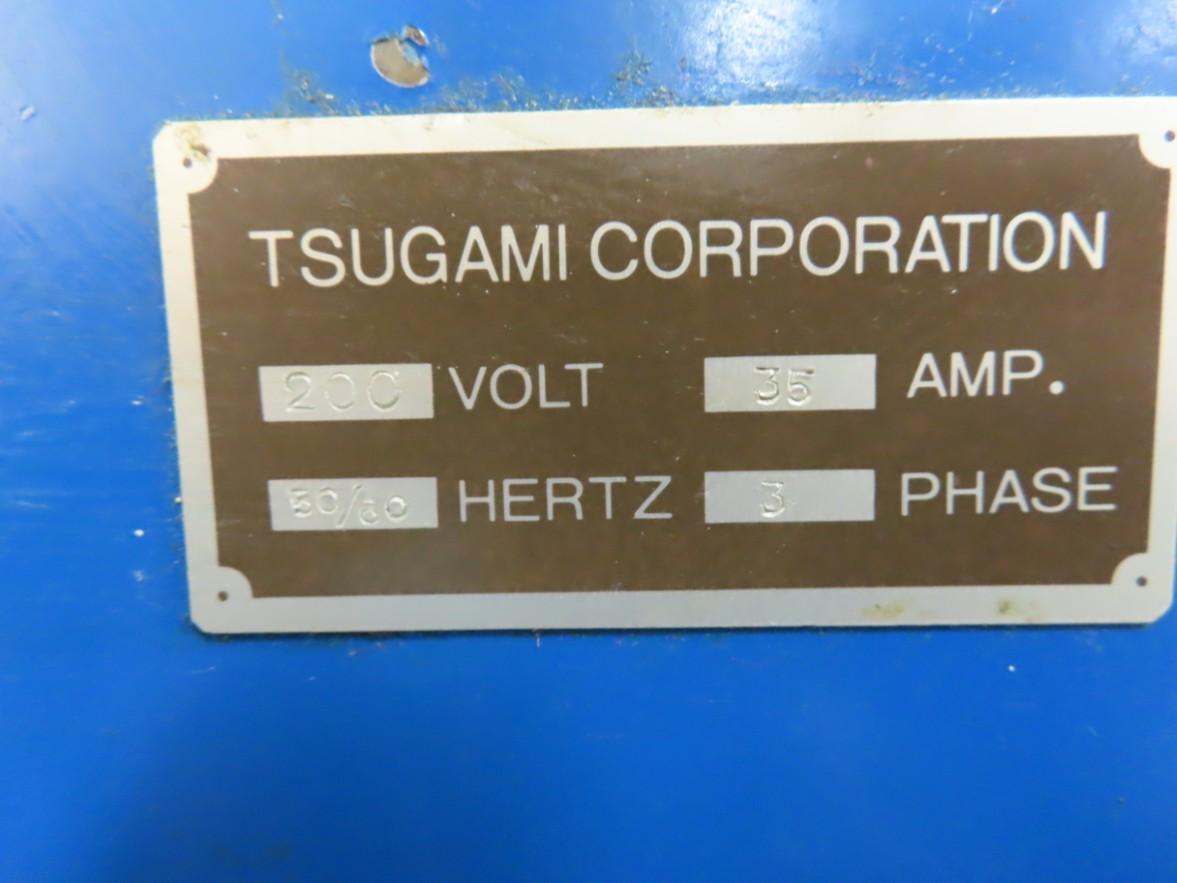

Electrics:

200 Volt, 3 Phase

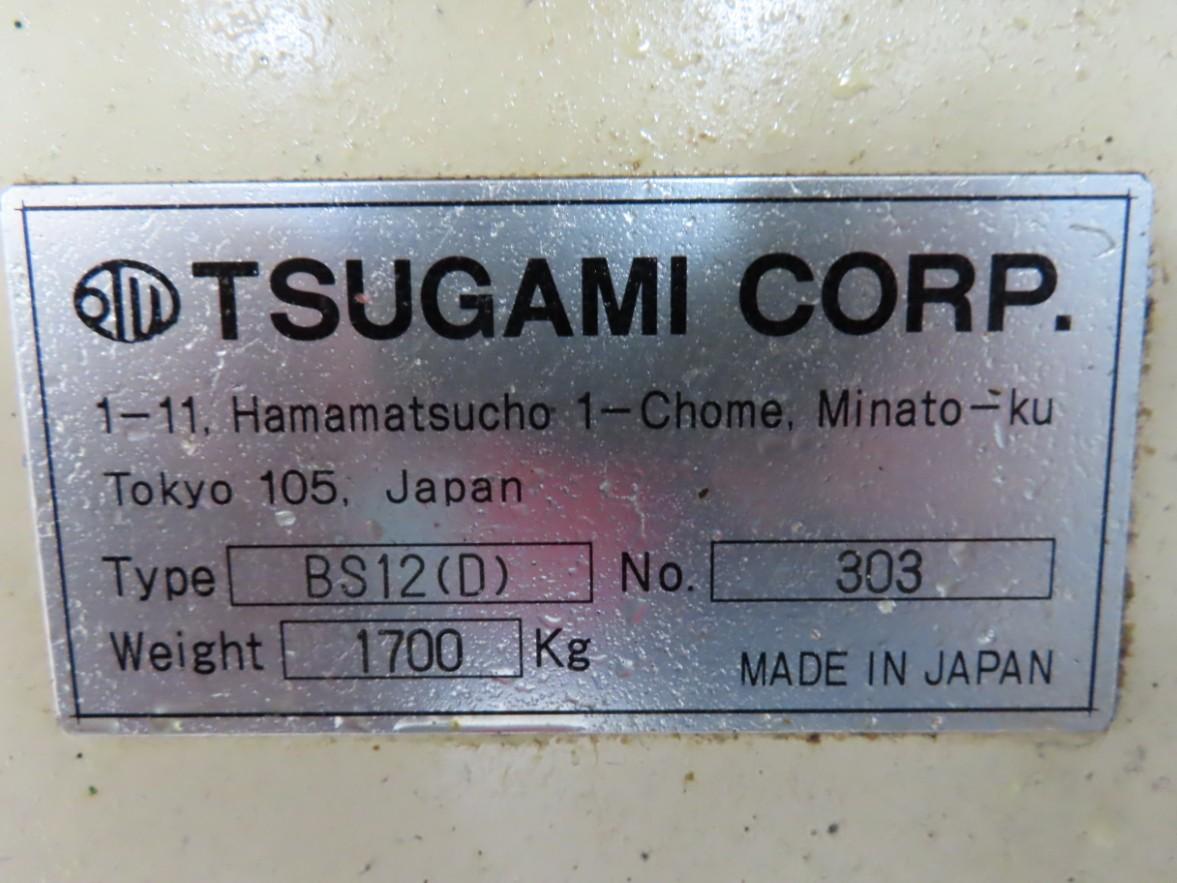

Manufacturer: Tsugami Model: BS12 Panther Serial Number: 303
Main Unit Approx Weight: 3400.00 lbs
Main Unit Dimensions (in inches): Length: 66.00"  Width: 33.00"  Height: 67.00"
Specs:
Control: Fanuc CNC Control
Maximum Machining Diameter: 12mm / .5"
Maximum Machining Length: 6.69"
Main Spindle Speeds: 200 - 12,000 Max RPM
Main Spindle Indexing: 5 Degree
Back Spindle Speeds: 200 - 4,000 Max RPM
Sub-Spindle Indexing: 15 Degree
Rotary Tool Speeds: 5,000 Max RPM
Back Spindle Max Chucking Diameter: 12mm
Turning Tools: 7 Static on Split Main Slide
Rotary (Live) Tools: 3 Live Positions on Main Slide / 2 On Sub-Spindle
Front Endworking Tools: 3
Back Endworking Tools: 3
Main Spindle Drive: 3 HP
Back Spindle Drive: .8 HP
Rotary Tool Drive: .7 HP
Seller Company: Micro-Matics LLC
Seller Contact: Machinesused.com June MultiShop Phone: (763) 745-1166
Item Location: Machinesused.com, 2410 Niagara Lane N, Plymouth, MN 55447
Location Contact: Machinesused.com June MultiShop Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Tuesday, June 2, 2026 and Friday, June 12, 2026
