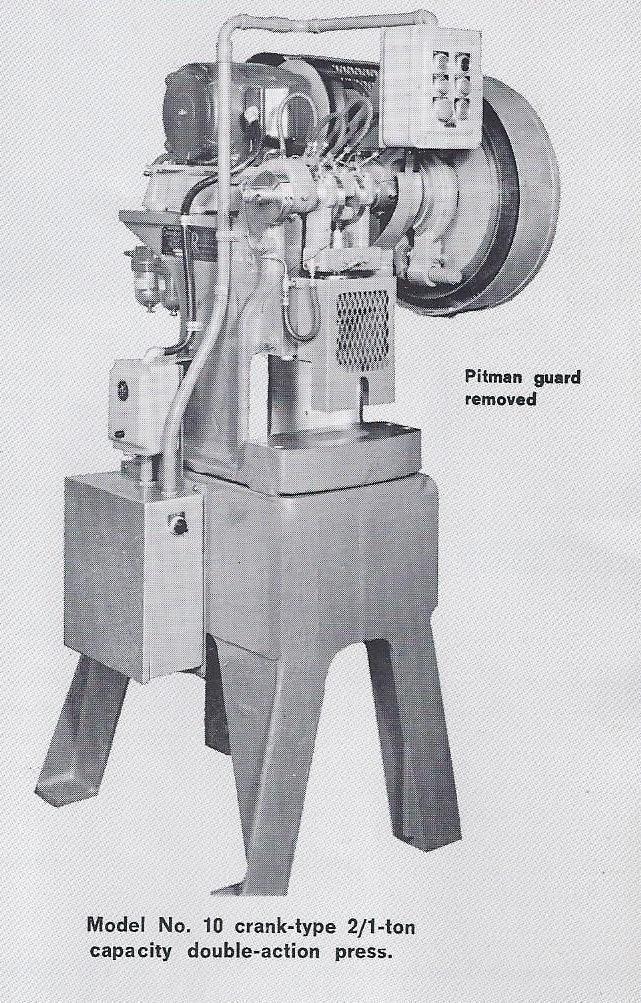

2/1 TON V & O DOUBLE ACTION BLANK & CUP PRESS: STOCK #66677

Manufacturer

Category

Presses

Stock

66677

Model

None listed

Dealer Location

Ohio

Spec Sheet




SERIAL ....................... 00043521

CAPACITY ..................... 2/1 TONS

CRANKSHAFT DIAMETER .......... 1-1/4" (AT BEARINGS)

STROKE OF BLANK HOLDER ....... 5/8"

STROKE OF PUNCH .............. 2"



BODY:

WIDTH OF BACK OPENING ........ 7-1/2"

WIDTH BETWEEN GIBS ........... 6-1/4"

HEIGHT TOP OF BED TO SHAFT ... 19"


BED:

AREA ......................... 6-1/2" TO 14"

RECTANGULAR OPENING .......... 3" X 6"

CENTER OF PLUNGER TO THROAT .. 3-5/8"

TOP OF BED TO BOTTOM OF WAYS . 6-1/2"


OUTER SLIDE:

AREA ......................... 5-1/4" X 5-3/4"

CAVITY DIAMETER .............. 1-7/8"

ADJUSTMENT ................... 3/4"


PLUNGER:

AREA ......................... 1-7/8"

ADJUSTMENT ................... 3/4"


FLYWHEEL:

DIAMETER & FACE .............. 16-1/2" X 3"

WEIGHT ....................... 100 LBS


MECHANICAL CLUTCH

FRONT TO BACK ROLL FEED

MECHANICAL CLUTCH
