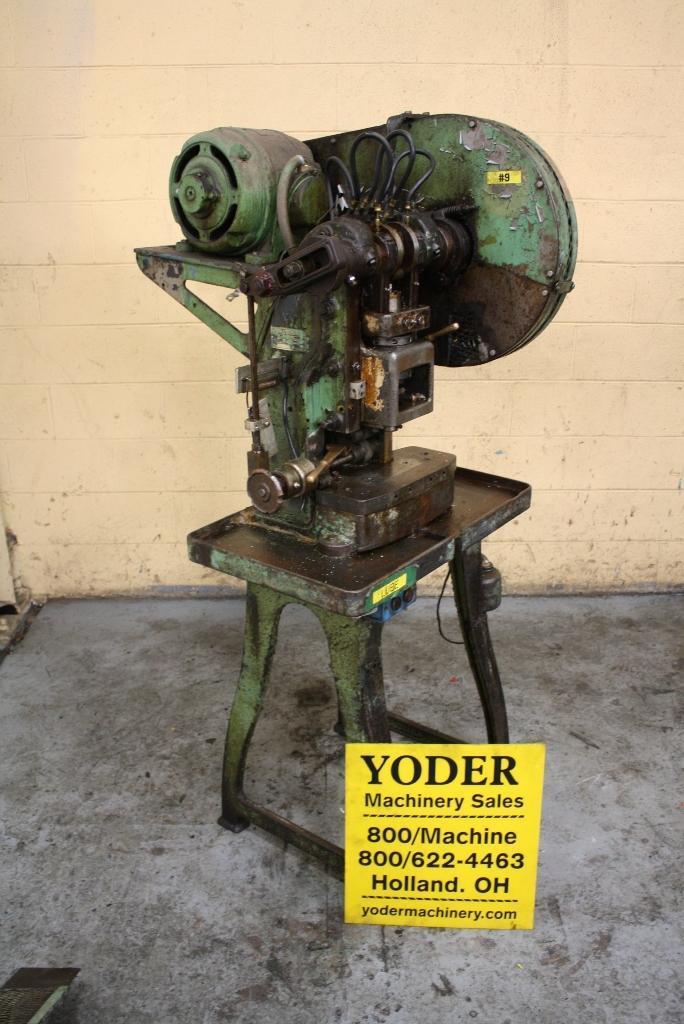

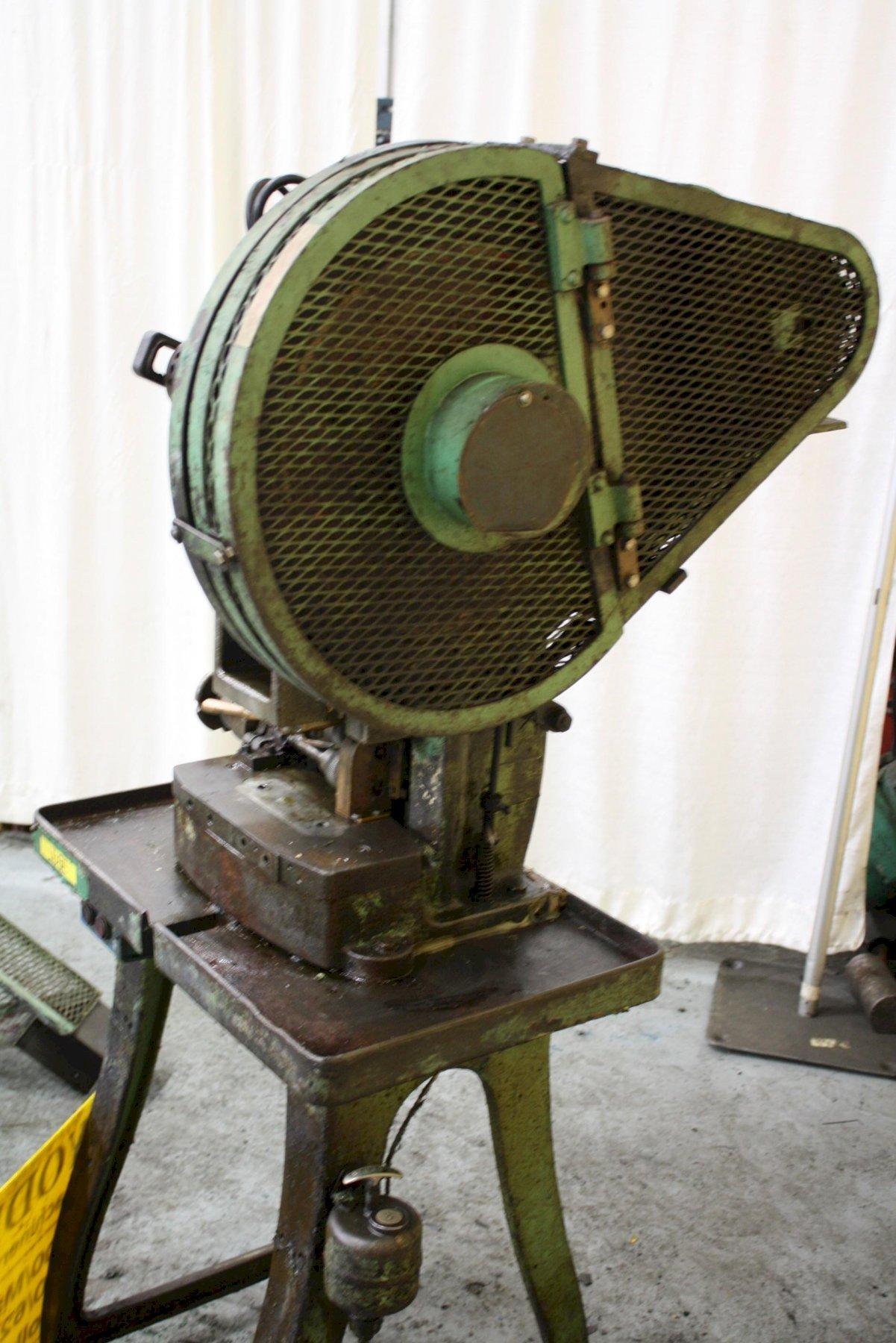

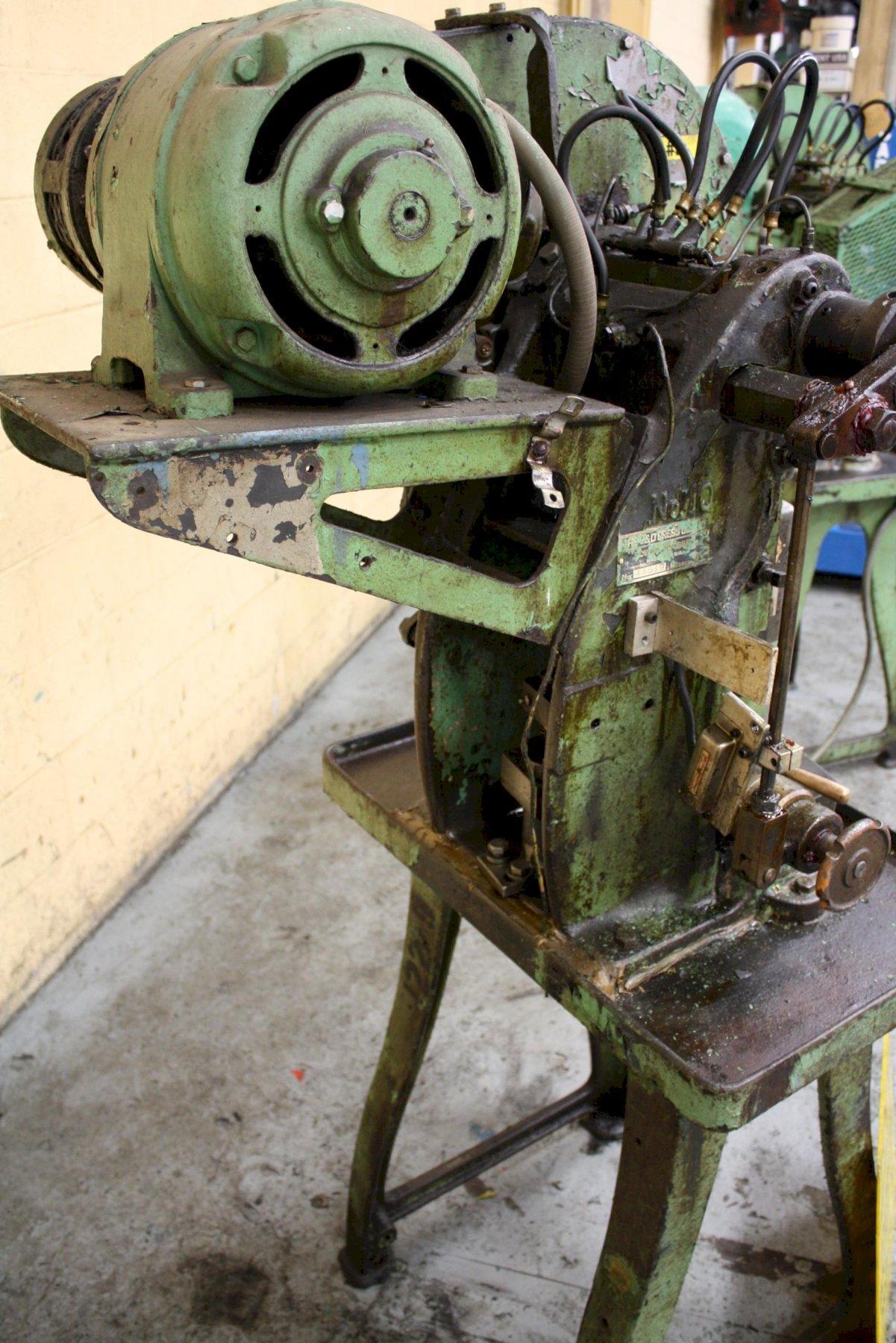

2/1 ON V & O DOUBLE ACTION BLANK & CUP PRESS: STOCK #66684

Manufacturer

Category

Presses

Stock

66684

Model

0010

Dealer Location

Ohio

Spec Sheet



SERIAL ....................... 00043589
CAPACITY ..................... 2/1 TONS
CRANKSHAFT DIAMETER .......... 1-1/4" (AT BEARINGS)
STROKE OF BLANK HOLDER ....... 5/8"
STROKE OF PUNCH .............. 2"


BODY:
WIDTH OF BACK OPENING ........ 7-1/2"
WIDTH BETWEEN GIBS ........... 6-1/4"
HEIGHT TOP OF BED TO SHAFT ... 19"

BED:
AREA ......................... 6-1/2" TO 14"
RECTANGULAR OPENING .......... 3" X 6"
CENTER OF PLUNGER TO THROAT .. 3-5/8"
TOP OF BED TO BOTTOM OF WAYS . 6-1/2"

OUTER SLIDE:
AREA ......................... 5-1/4" X 5-3/4"
CAVITY DIAMETER .............. 1-7/8"
ADJUSTMENT ................... 3/4"

PLUNGER:
AREA ......................... 1-7/8"
ADJUSTMENT ................... 3/4"

FLYWHEEL:
DIAMETER & FACE .............. 16-1/2" X 3"
WEIGHT ....................... 100 LBS

MECHANICAL CLUTCH
FRONT TO BACK ROLL FEED
