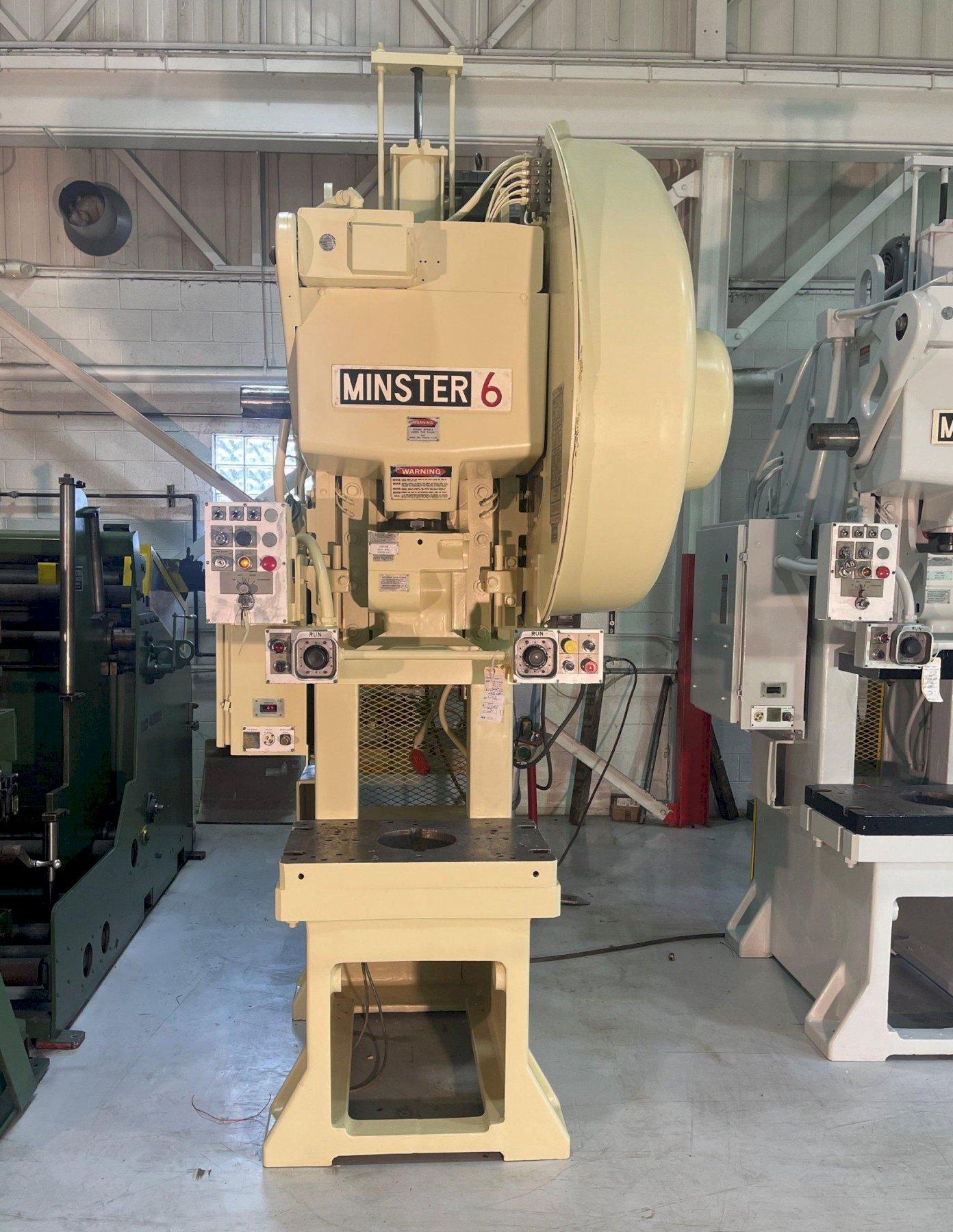

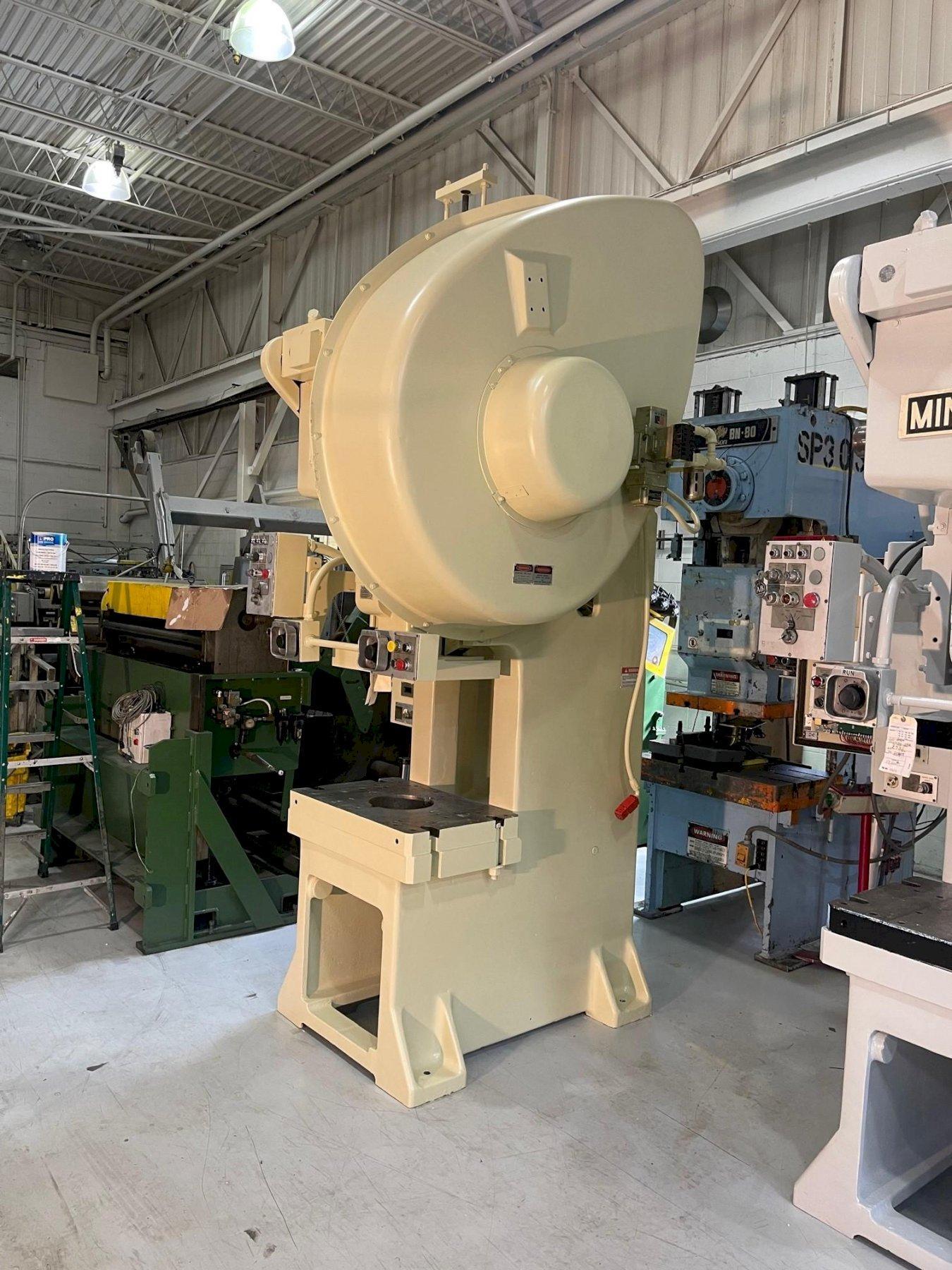

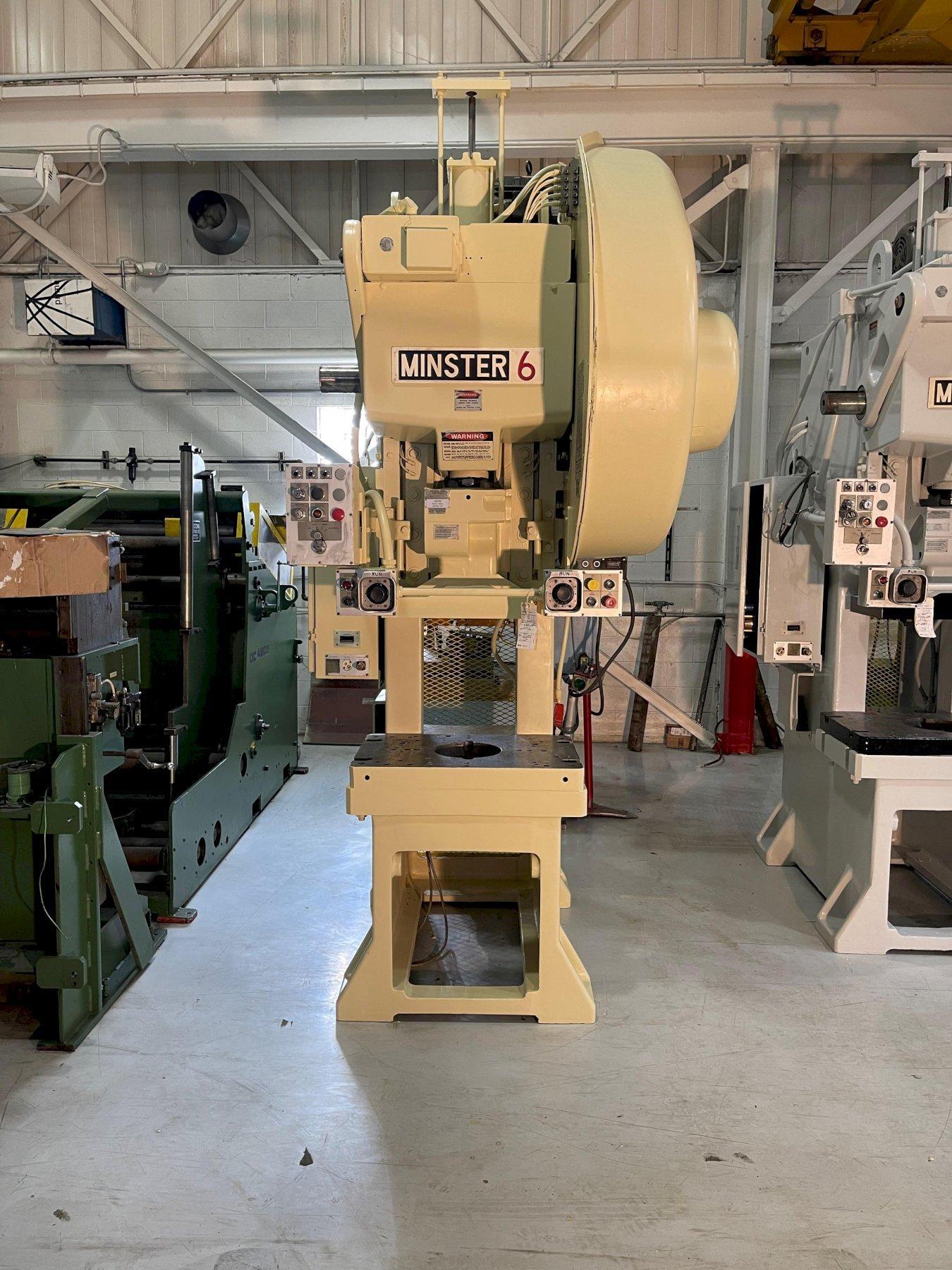

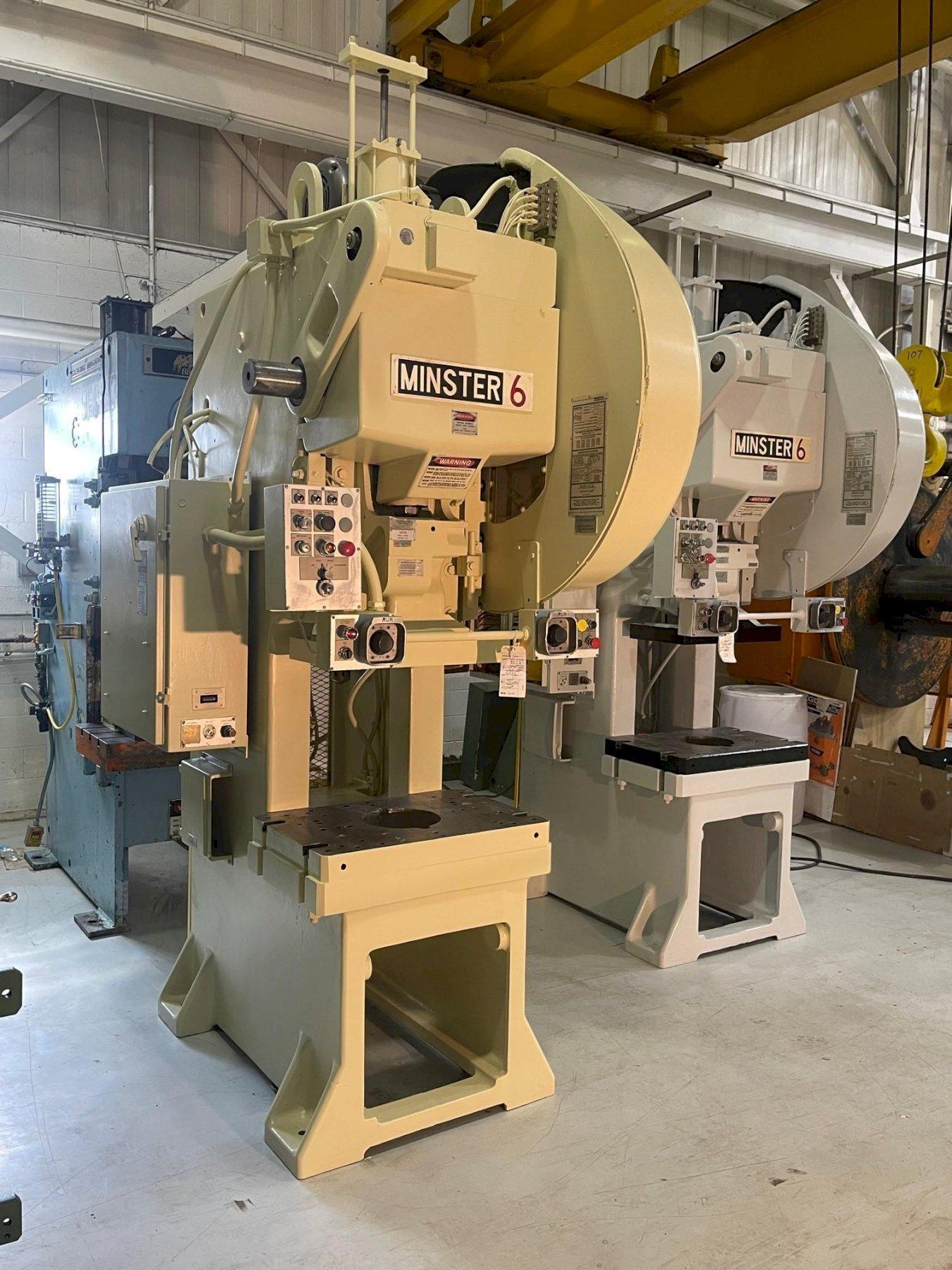

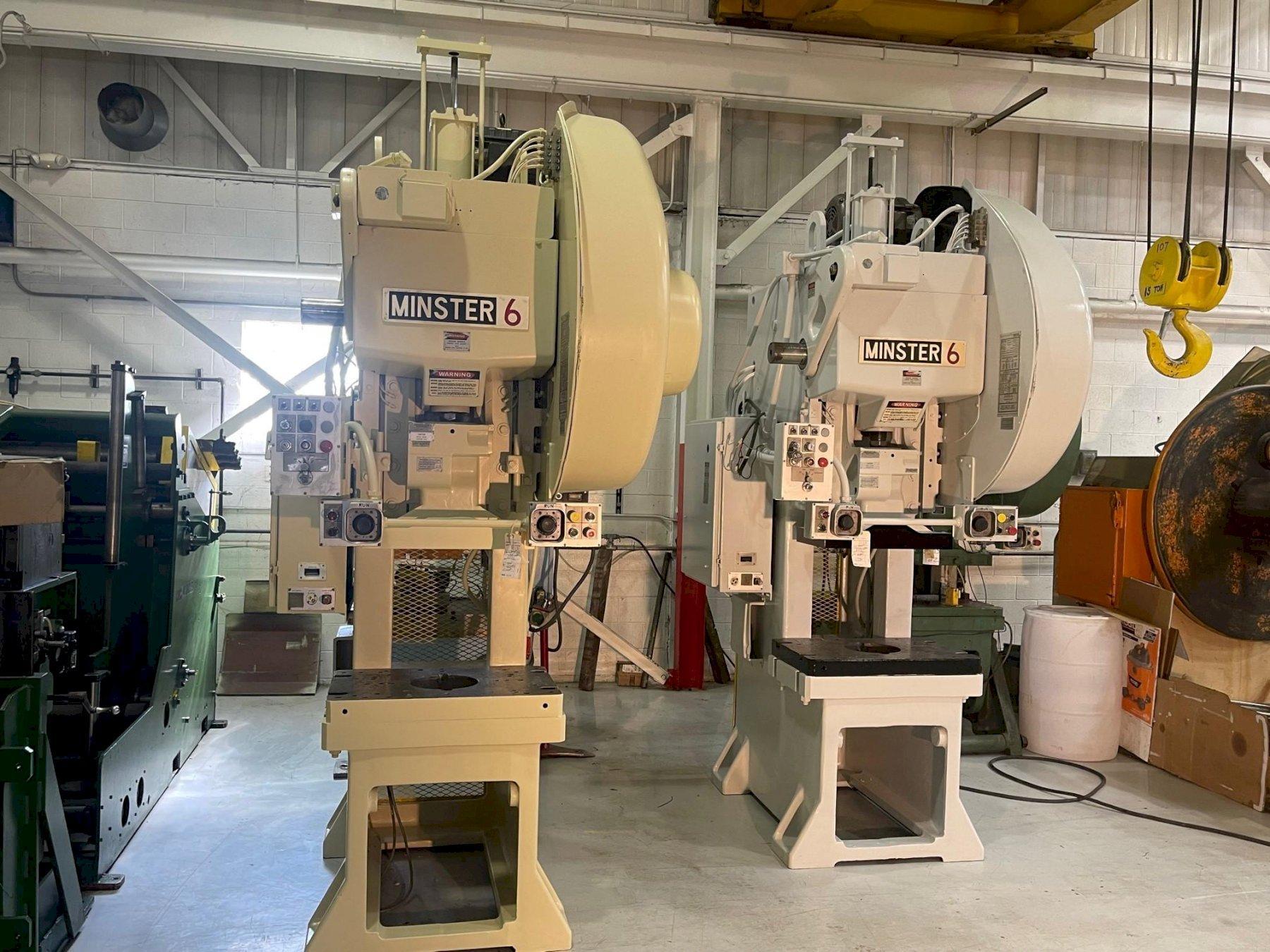

60 ton Minster #6SS OBS Flywheel Press, New 1995

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, GAP FRAME, (Single Crank)

Stock

2732

Model

#6SS Flywheel OBS

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 60
Stroke - 6 inches
Shut Height - 17 inches
Adjustment - 2.75 inches
Bed Size - 32" x 21"
Ram Area - 24" x 14.25"
SPM - 90


Standard Specifications
Model# 6SS
60 ton Capacity
6" Stroke
17" Shut Height on Bed
2.75" Motorized Adjustment
32" LR x 21" FB Bed Area
24" LR x 14.25" FB Slide Area
90 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Flywheel Type Press with belt drive
Recirculating Lube System
Palm Button Operator Station
Push Button Controls
3" Thick Bolster Plate
5 HP Main Drive Motor
Minster Press Controls

Approximate Weight 13,000 lbs.

Can be seen under power in the S&G Press Livonia Michigan Warehouse!

When it comes to precision metal stamping, choosing the right press is critical. Minster presses are a top choice, known for their strong build and dependable performance. A 60-ton Minster #6SS Flywheel Press, in particular, is a robust machine prized for its efficiency and consistent output across various metal forming tasks.1



What is a 60-Ton Minster #6SS Flywheel Press?



The Minster #6SS refers to a specific model of an open-back inclinable (OBI) mechanical press.2 The "6SS" often indicates a "Super Stock" or "Straight Side" variation. The "60 ton" denotes its maximum capacity, showing the force it can apply to materials.3 The key "flywheel" component defines how it operates.

On a flywheel press, an electric motor constantly spins a large, heavy flywheel, storing kinetic energy.4 When you start the press cycle, a clutch engages, quickly transferring this stored energy to the ram through a crank. This design delivers a powerful, fast blow, making it perfect for certain metal stamping jobs.





Applications of the 60-Ton Minster #6SS Flywheel Press



These versatile presses are essential in industries that need high-volume production of small to medium-sized metal parts. Common uses include:

  • Blanking: Cutting flat metal sheets into specific shapes.

  • Punching: Creating holes or cutouts in material.

  • Forming: Bending or shaping metal without cutting.

  • Coining: Making precise, often intricate, impressions on metal surfaces.

  • Progressive Die Stamping: Handling complex parts through multiple steps within a single die.

  • Manufacturing parts for the automotive, appliance, electronics, hardware, and general industrial sectors.



Why Choose a Flywheel Press for Metal Stamping?



Flywheel presses, like the Minster #6SS, offer distinct benefits for specific metal stamping needs:

  • High Speed and Productivity: The quick energy release from the flywheel allows for a high number of strokes per minute (SPM), leading to impressive production rates. This is vital for mass manufacturing.

  • Consistency and Repeatability: Once set up, flywheel presses deliver a consistent stroke length and force with each cycle, ensuring high part quality and tight tolerances over long production runs.5



  • Cost-Effectiveness for High Volume: While the initial investment can be substantial, their speed and reliability result in a low cost per part in high-volume production.

  • Simplicity and Reliability: Compared to more complex servo or hydraulic systems, the mechanical simplicity of a flywheel press often means less downtime and easier maintenance.

For operations that demand fast, consistent, and cost-effective production of stamped metal parts, a 60-ton Minster #6SS Flywheel Press remains a top-tier choice. Its proven performance and durability offer long-term value in today's competitive manufacturing landscape.
