500 ton Niagara SC2-500-108-48 Straight Side Mechanical Metal Stamping Press Press For Sale, Yea

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2863

Model

SC2-500-108-48

Dealer Location

Michigan

Request a Quote
View Contact Information

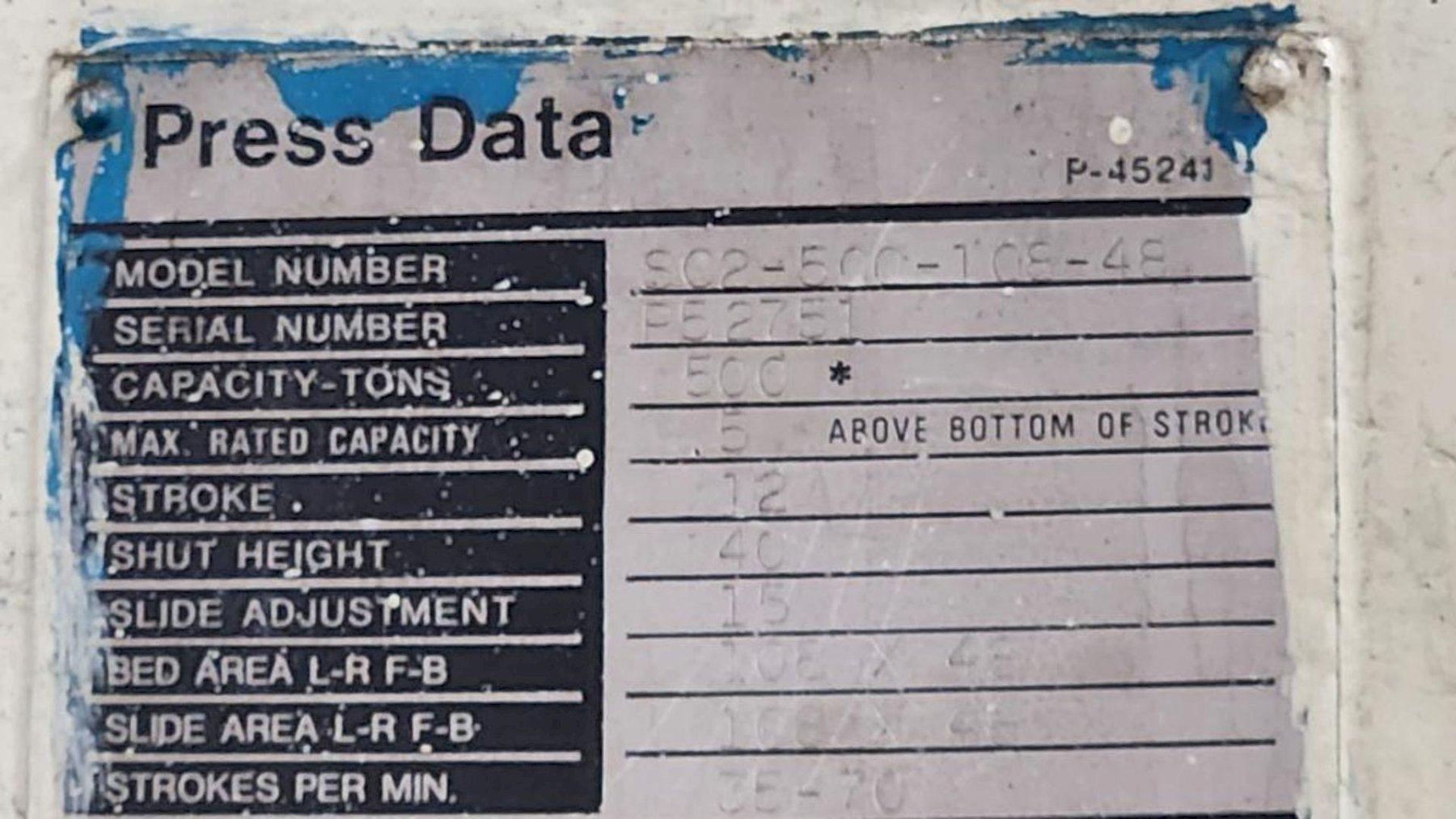

Spec Sheet

Tonnage - 500
Stroke - 12 inches
Shut Height - 40 inches
Adjustment - 15 inches
Bed Size - 108" LR x 48" FB
Ram Area - 108" LR x 48" FB
SPM - 35-70 VSPM


Standard Specifications
Niagara Straight Side Mechanical Press
Progressive Die Press

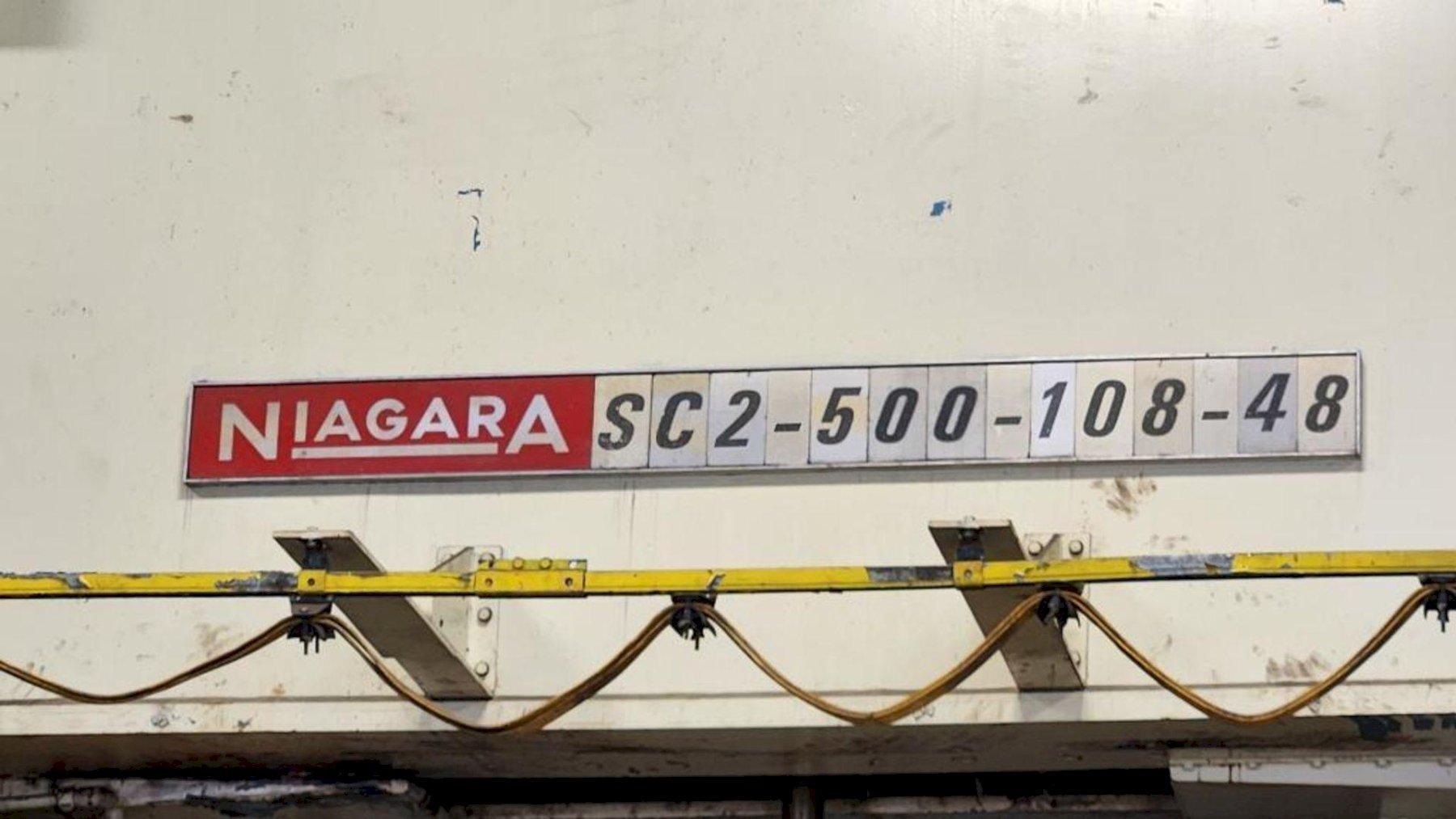

Model SC2-500-108-48
SN/ P52751
500 ton Capacity
12" Stroke
40" Shut Height
15" Adjustment
108" LR x 48" FB Bed Area
108" LR x 48" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
36" Shadow Light Curtains
T-Slotted Ram and Bolster
Hydraulic Overloads
37" Wide Windows
Pendant Mounted Operators Station
100 HP Main Drive Motor - Eddy Current
Vibro Dynamic Micro Level Isolation Floor Pads
Floor Standing

22' 2" Tall:  Maximum overall height including Vibro Mounts

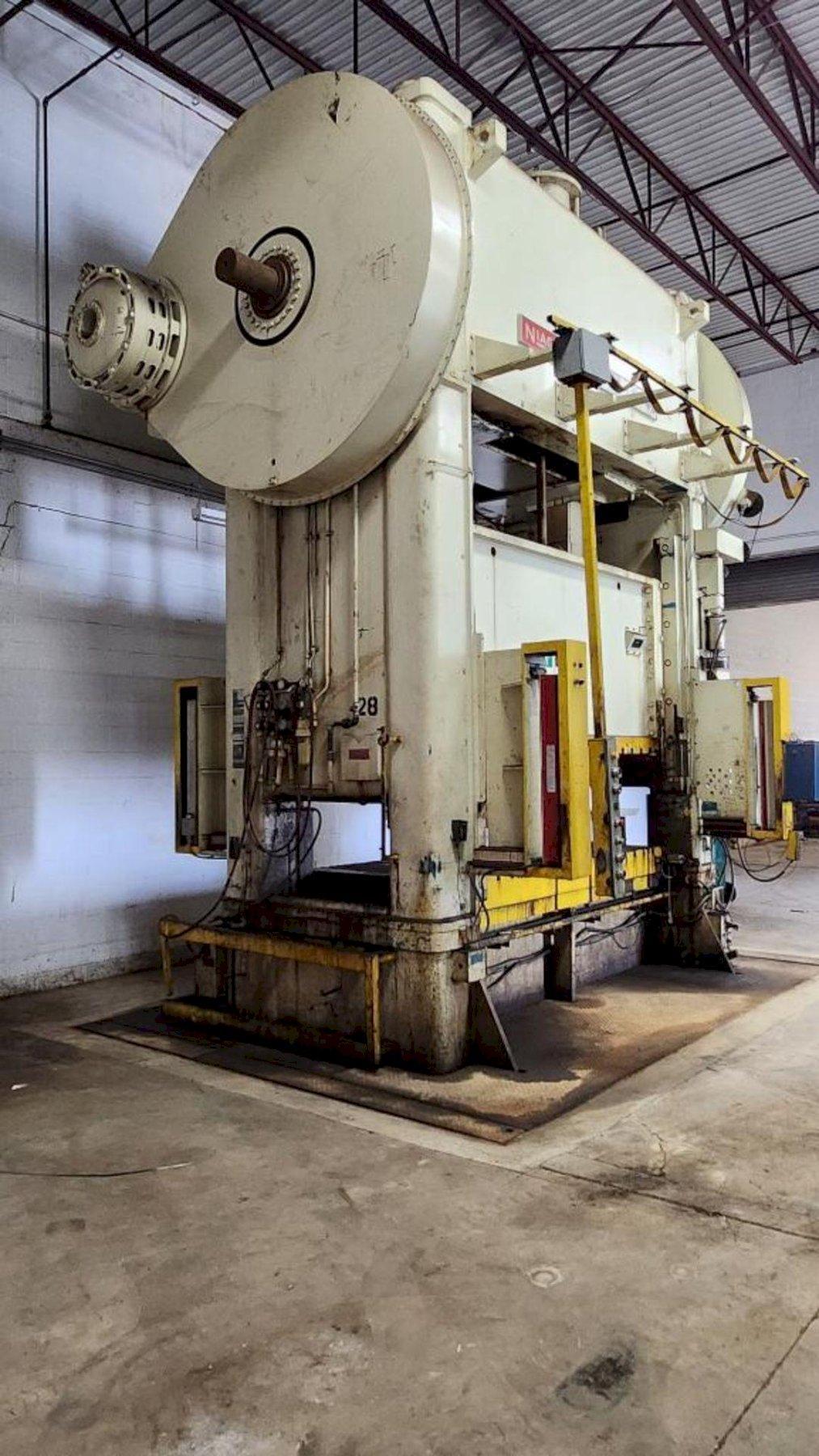

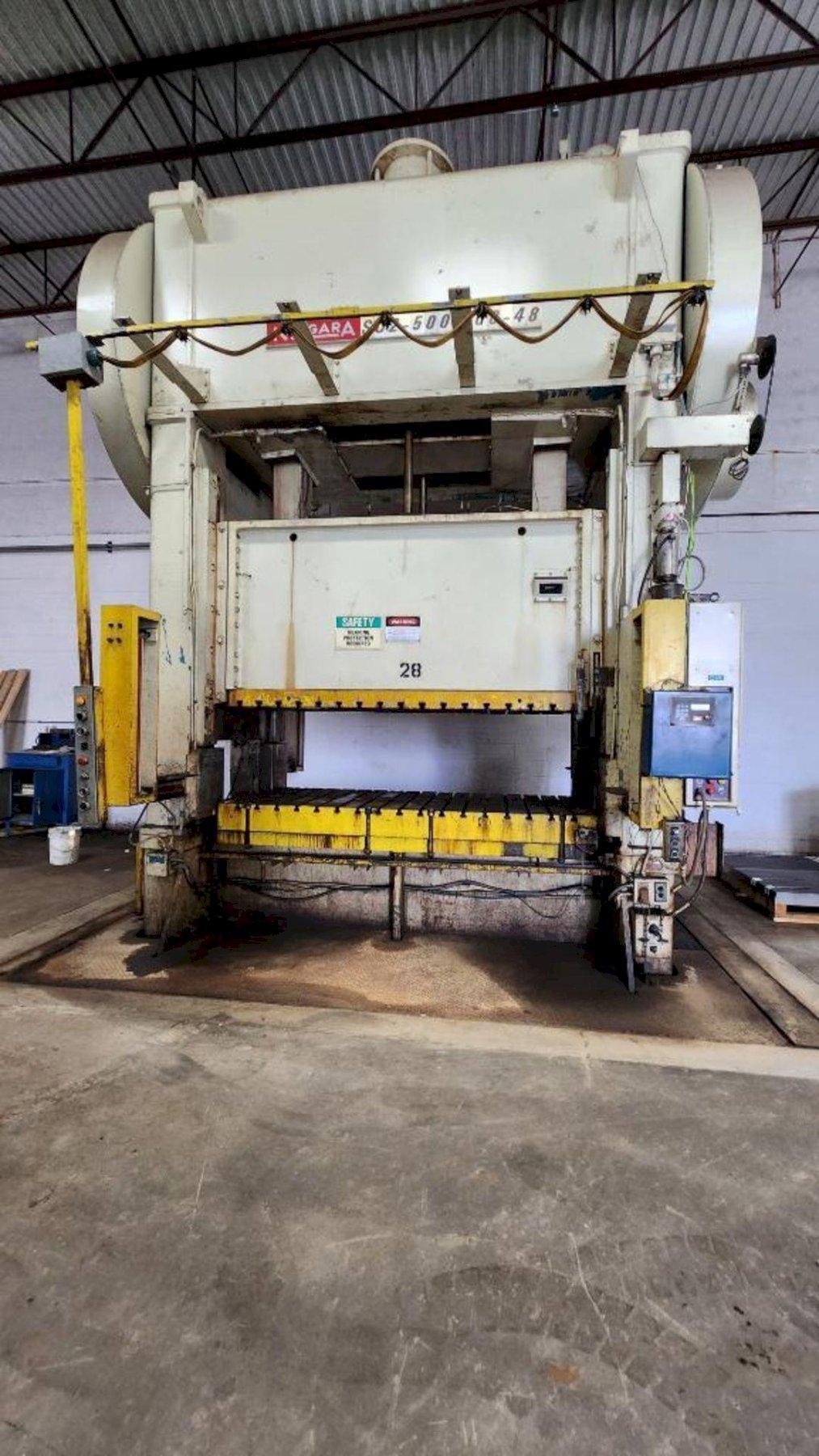

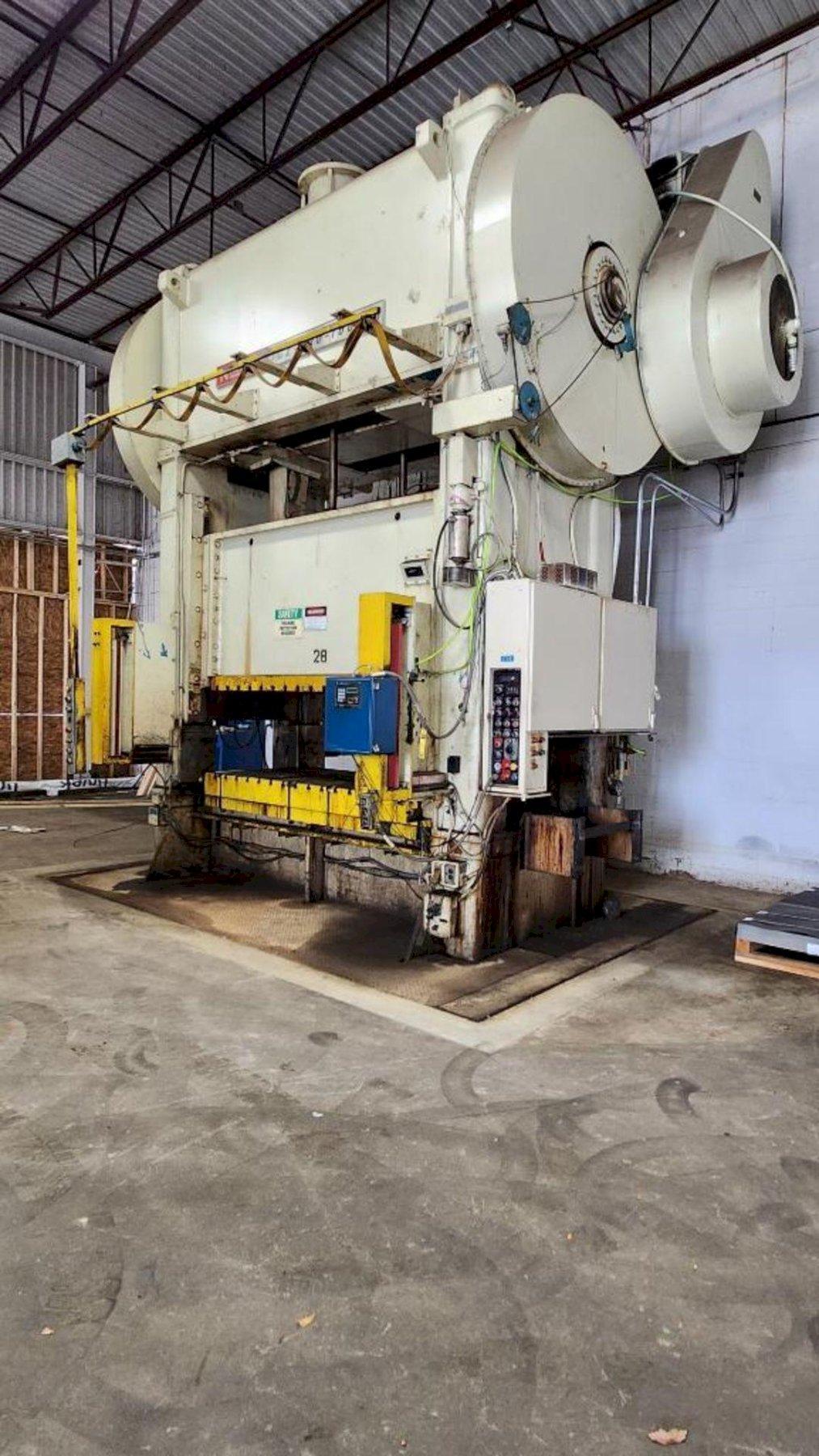

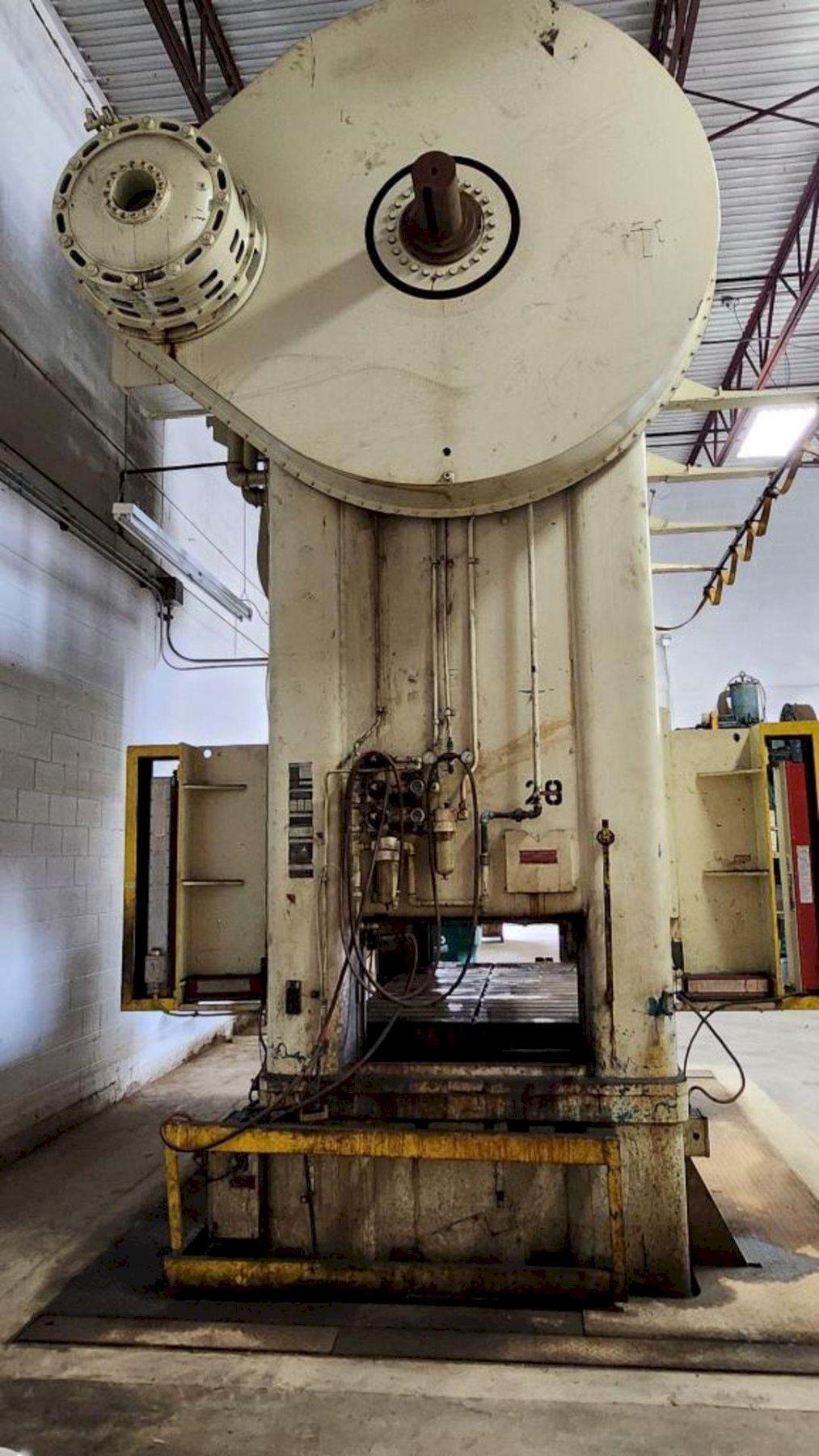

This used 500-ton Niagara Straight Side Mechanical Press can be seen under power upon request in the S&G Press Warehouse.

Click for more 500-ton Press Options

Used Stamping Presses For Sale, Straight Side Mechanical Press, Niagara Metal Stamping Press

Used Niagara Straight Side Press for Sale: 500-Ton Progressive Die Stamping

Searching for a reconditioned mechanical press for your high-volume stamping needs? This used 500-ton Niagara progressive die press (Model SC2-500-108-48) is the ideal solution. Engineered for precision and power, this straight side press offers a massive 500-ton capacity and a large 108" x 48" bed area, perfect for complex progressive die stamping.

This reconditioned press features a 12" stroke, 40" shut height, and a variable speed of 35-70 SPM. Key components include an air clutch and brake, air counterbalances, and a recirculating lube system for reliable operation. Safety is paramount with 36" shadow light curtains and hydraulic overloads.

Equipped with a 100 HP motor, a T-slotted ram and bolster, and Vibro Dynamic isolation pads, this floor-standing press is ready to integrate into any metal stamping or metal forming production line. Upgrade your capabilities with this dependable Niagara press, available now from S&G Press.

For more information and to get a quote on this used Niagara press, contact us today!
