75 ton Minster #7D-SS Die-Namic Mechanical Metal Stamping OBI Single Crank Press For Sale, Year

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, O.B.I., FLYWHEEL, (Single Crank)

Stock

2882

Model

#7D-SS

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 75
Stroke - 6 inches
Shut Height - 19 inches
Adjustment - 3.75 inches
Bed Size - 36" LR x 24" FB
Ram Area - 21" LR x 17" FB
SPM - 90


Standard Specifications

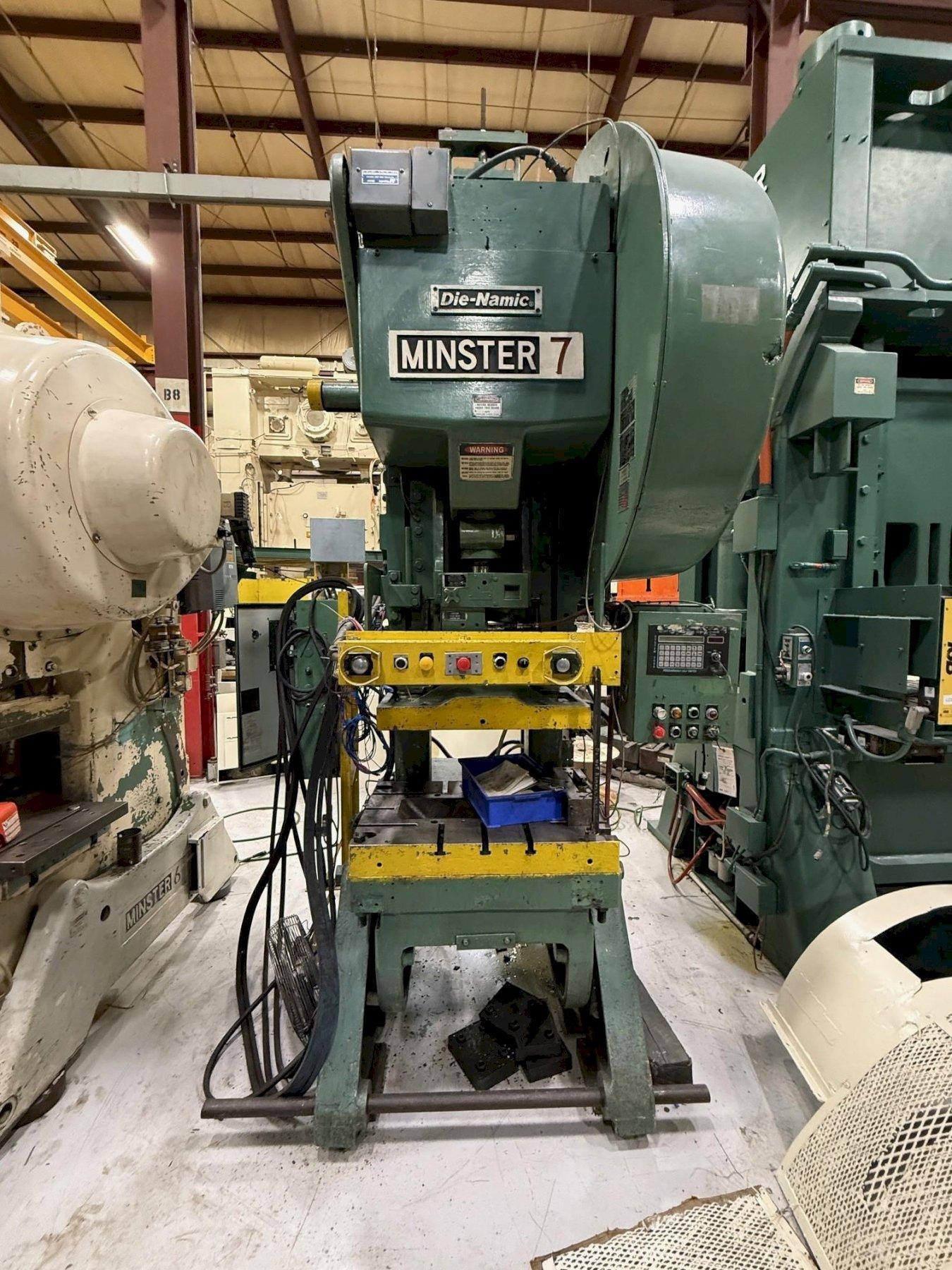

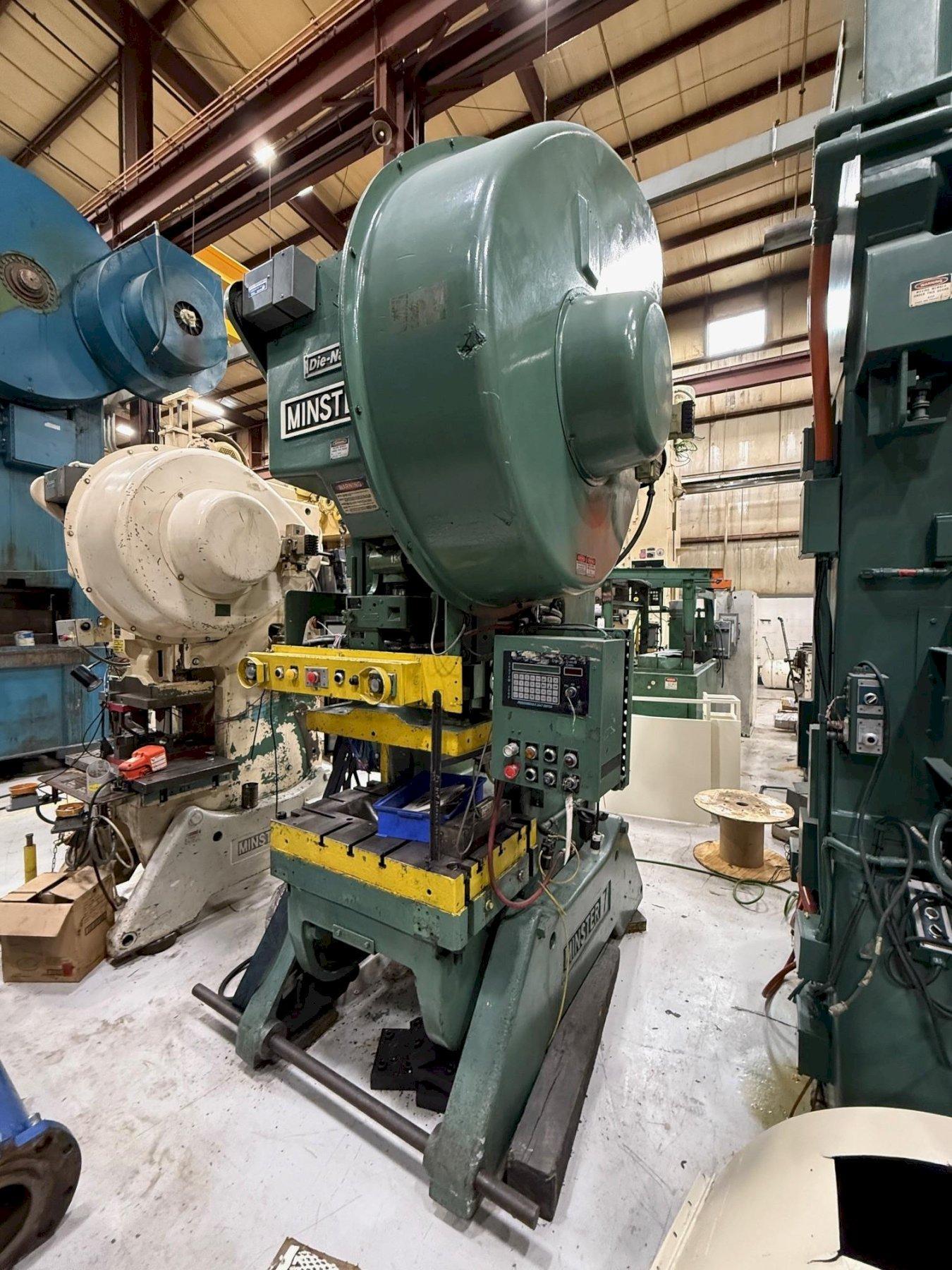

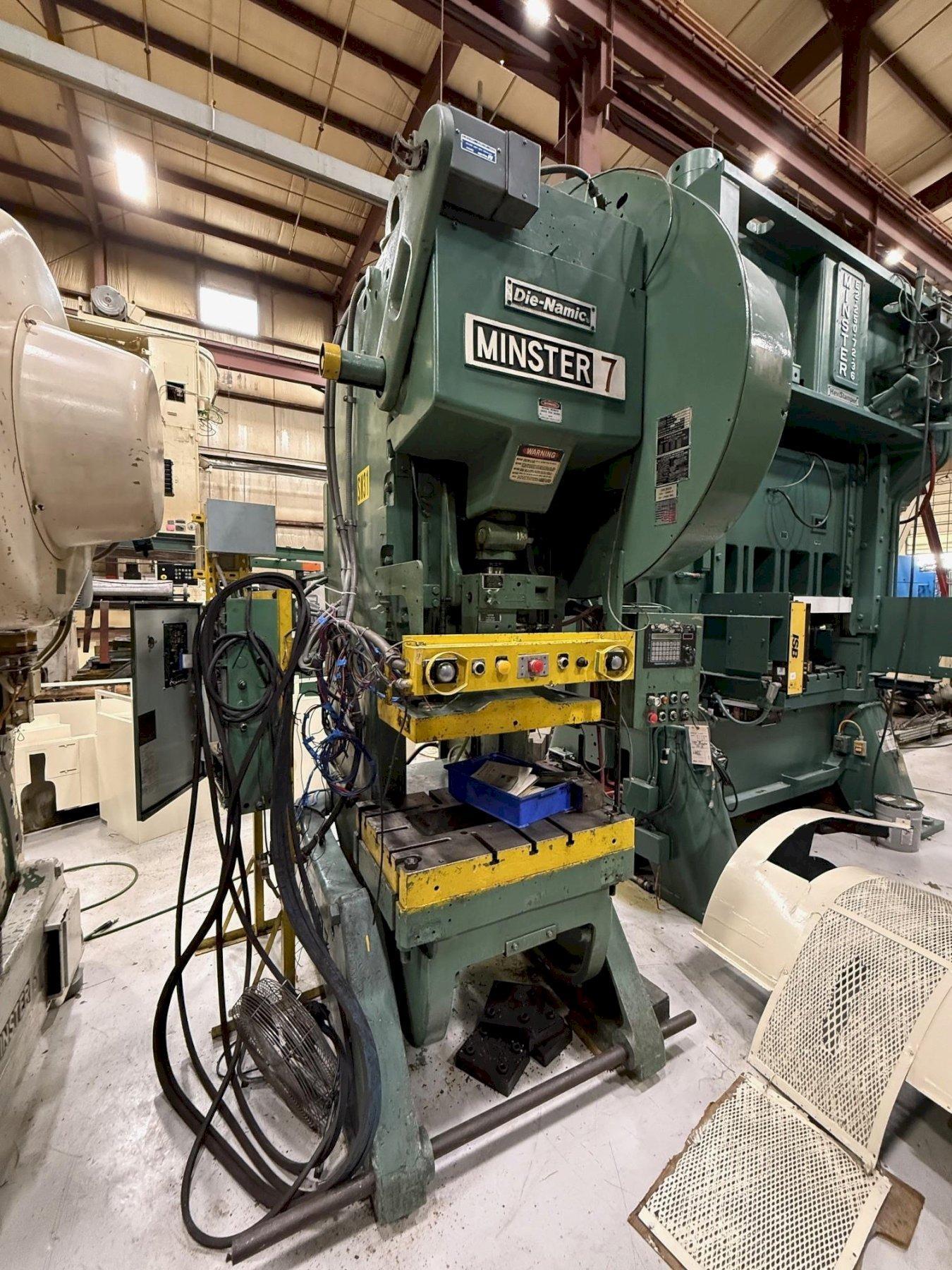

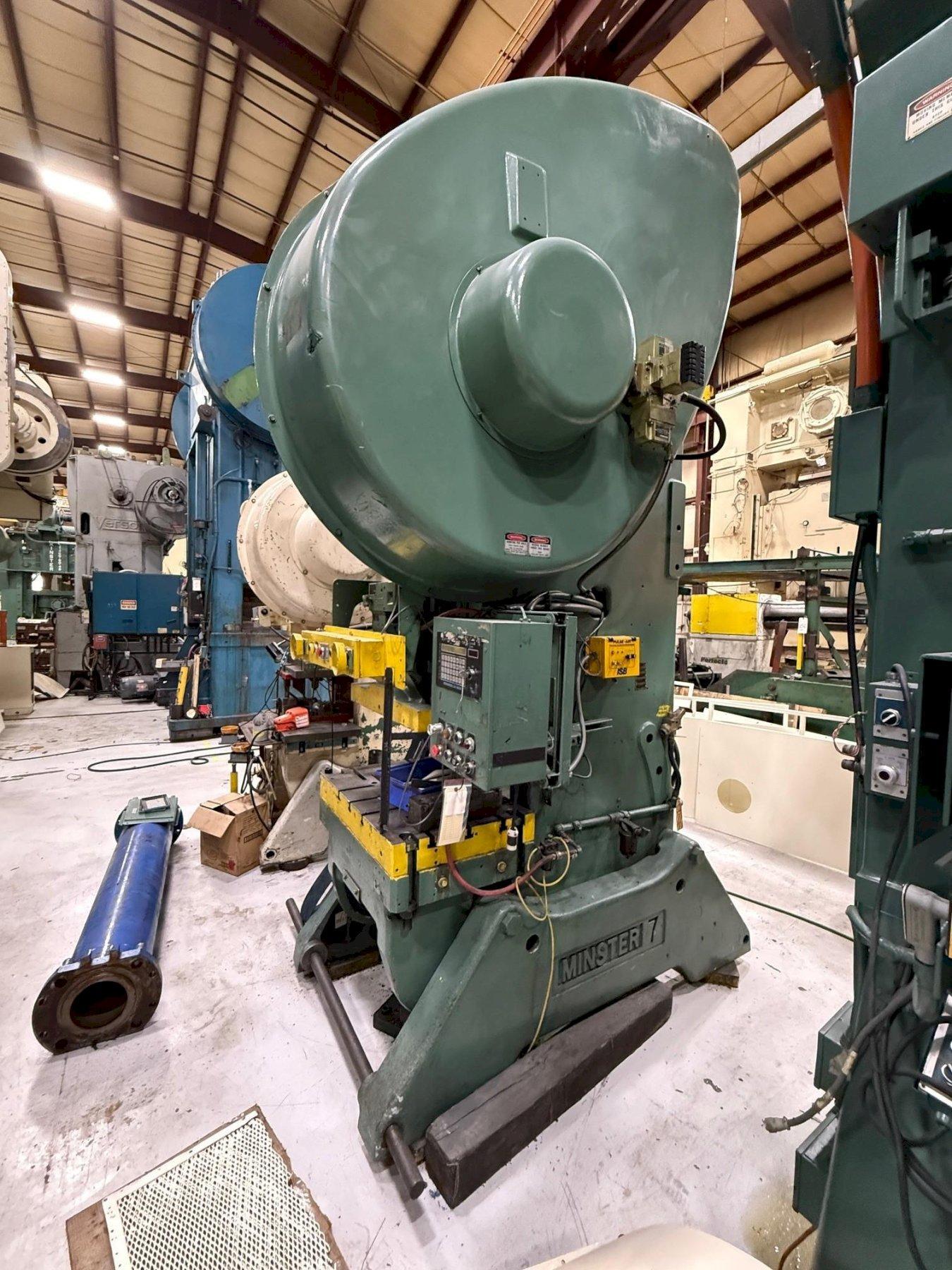

75 ton Minster Single Crank OBI Press

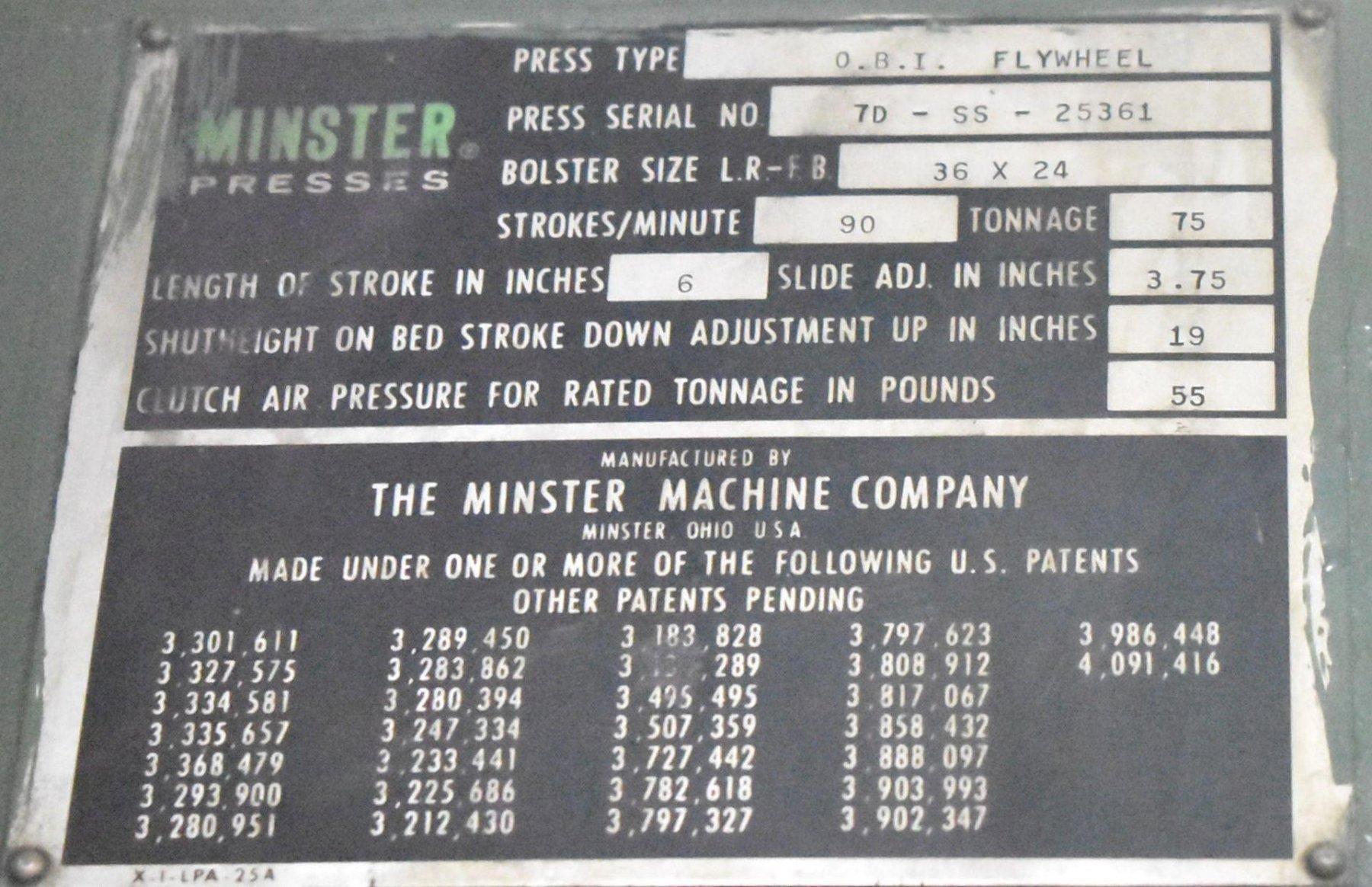

Model#7D-SS - sn/ 25361
75 ton Capacity
7" Stroke
18.5" Shut Height
3.5" Adjustment
36" LR x 24" FB Bed
21" LR x 17" FB Slide Area
90 VSPM

Equipment and Features
Air Clutch and Brake

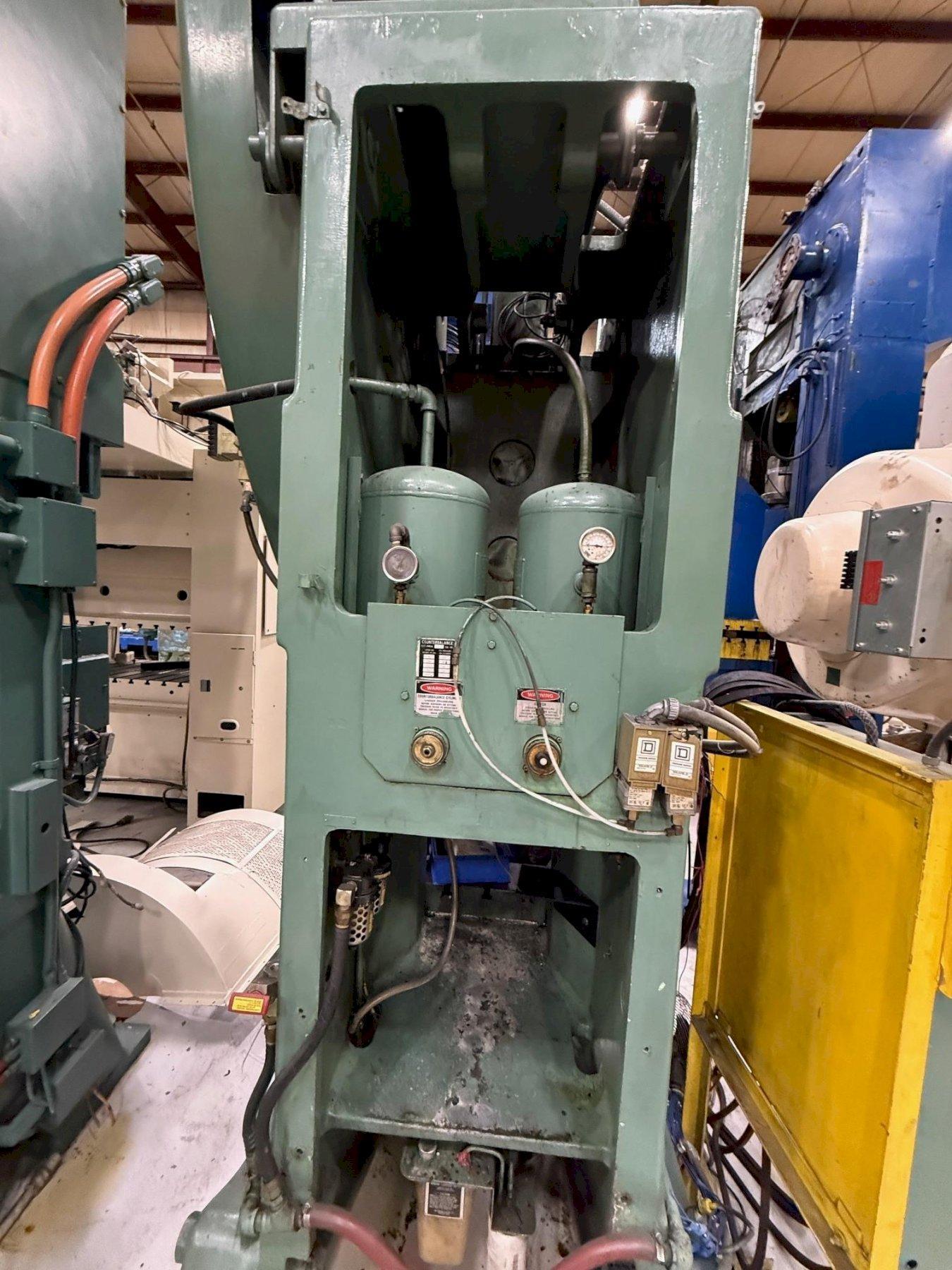

Air Counterbalances
Recirculating Lube System
3.5" Thick T-Slotted Bolster
Motors and Controls

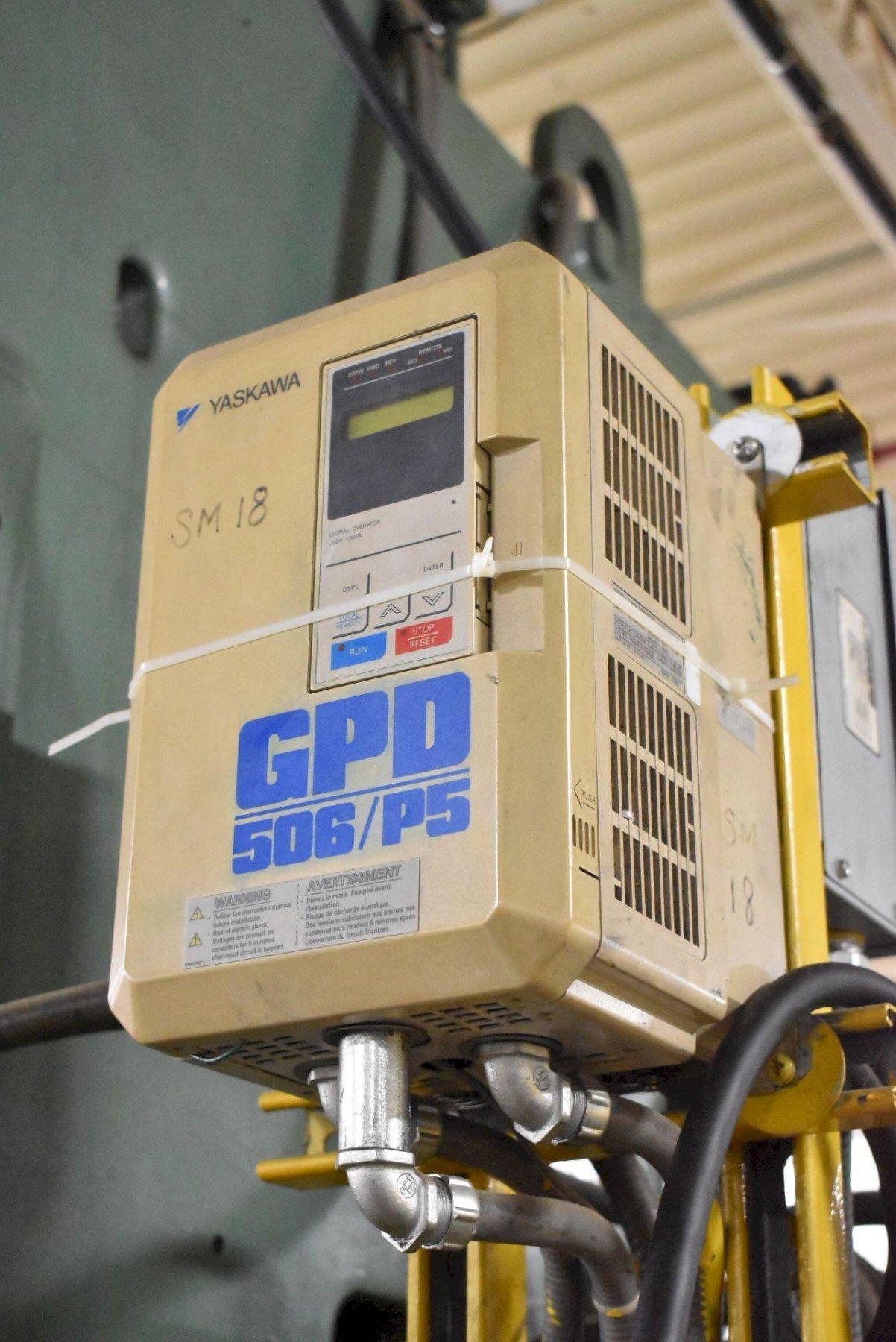

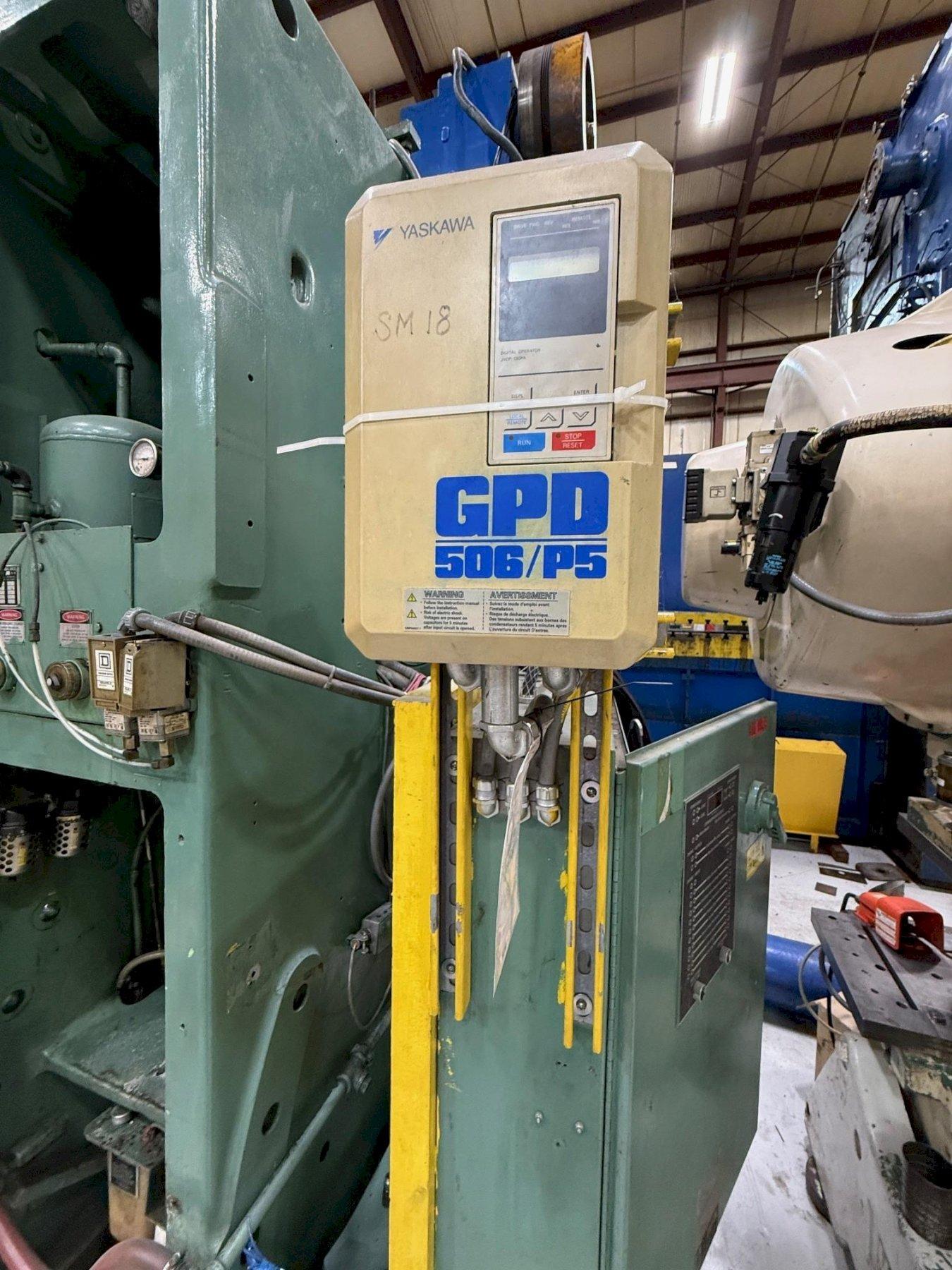

Yaskawa AC Variable Speed Drive Model GPD 506-P5
15 HP - 1800 RPM

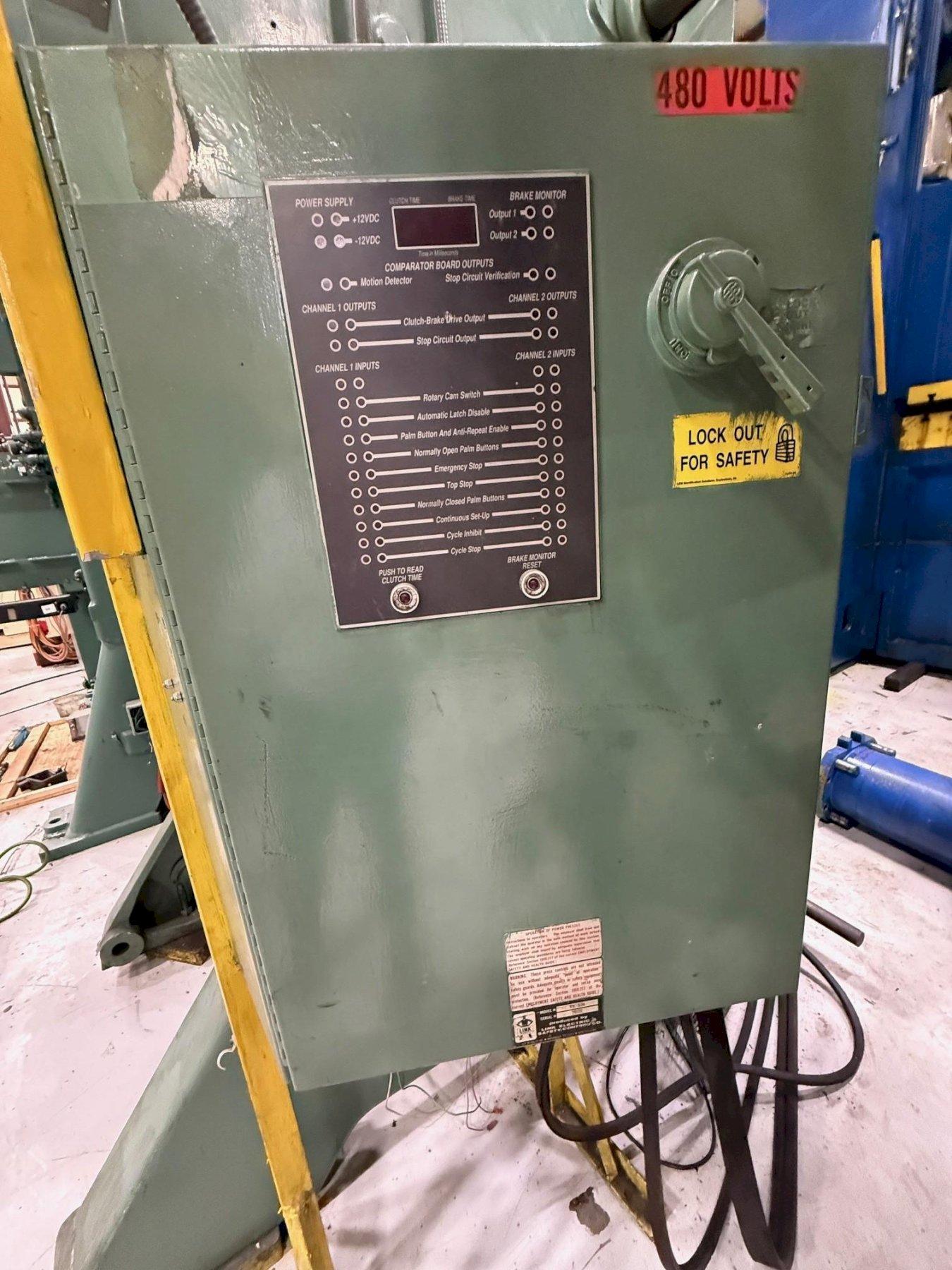

Link 501 Press Controls
Link Systems 2500 Programmable Limit Switch
Single, Inch, and Continuous Operation
Flywheel Brake
Palm Button
OBI - Open Back Inclinable Base
Palm Buttons
480 Volt

Press Weight: 23,100 lbs.

This Used 75-ton Minster OBI Stamping Press can be seen under power upon request in the S&G Press Livonia MI warehouse!

Minster 75 ton Capacity Mechanical Metal Stamping Single Crank OBI Press For Sale!
