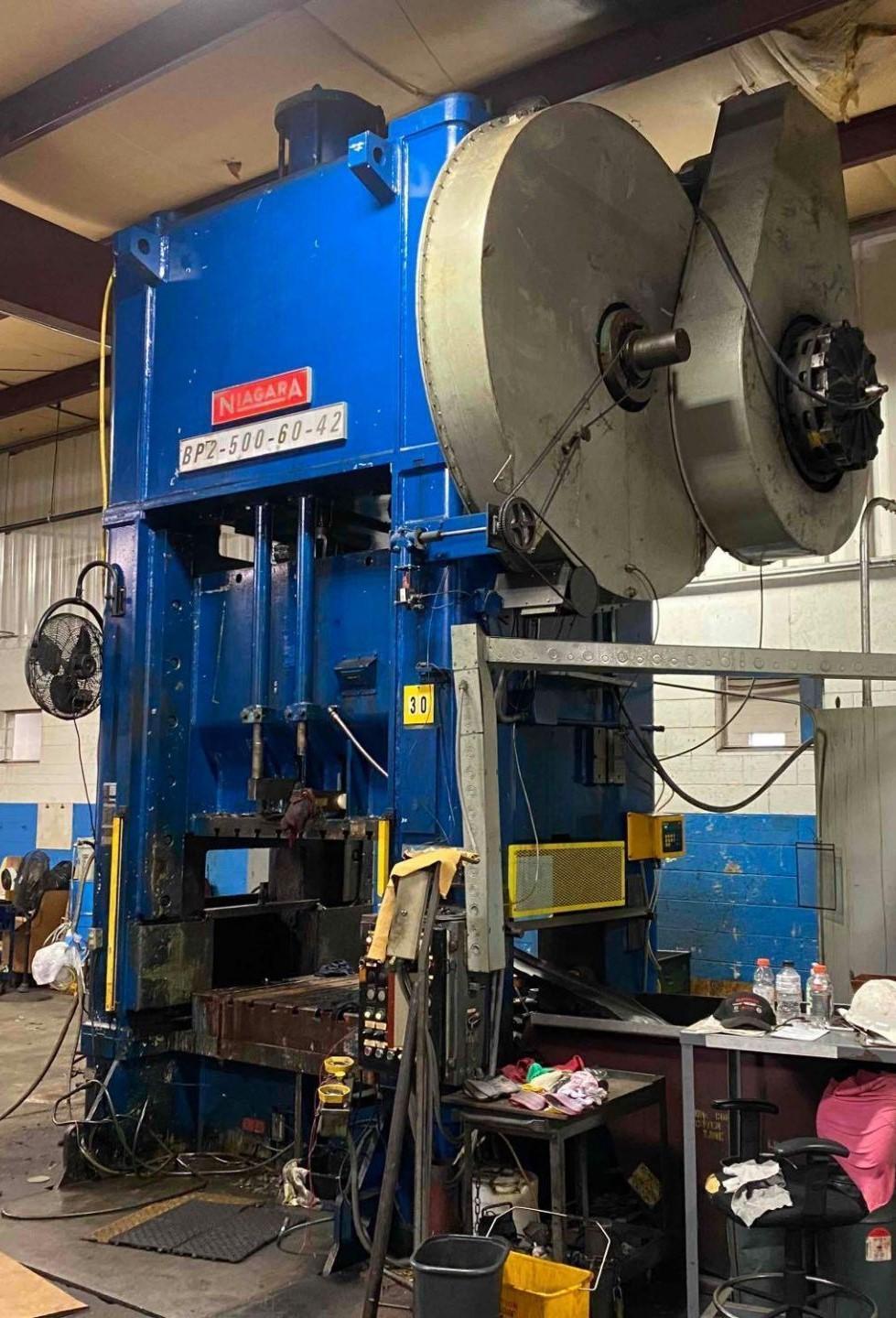

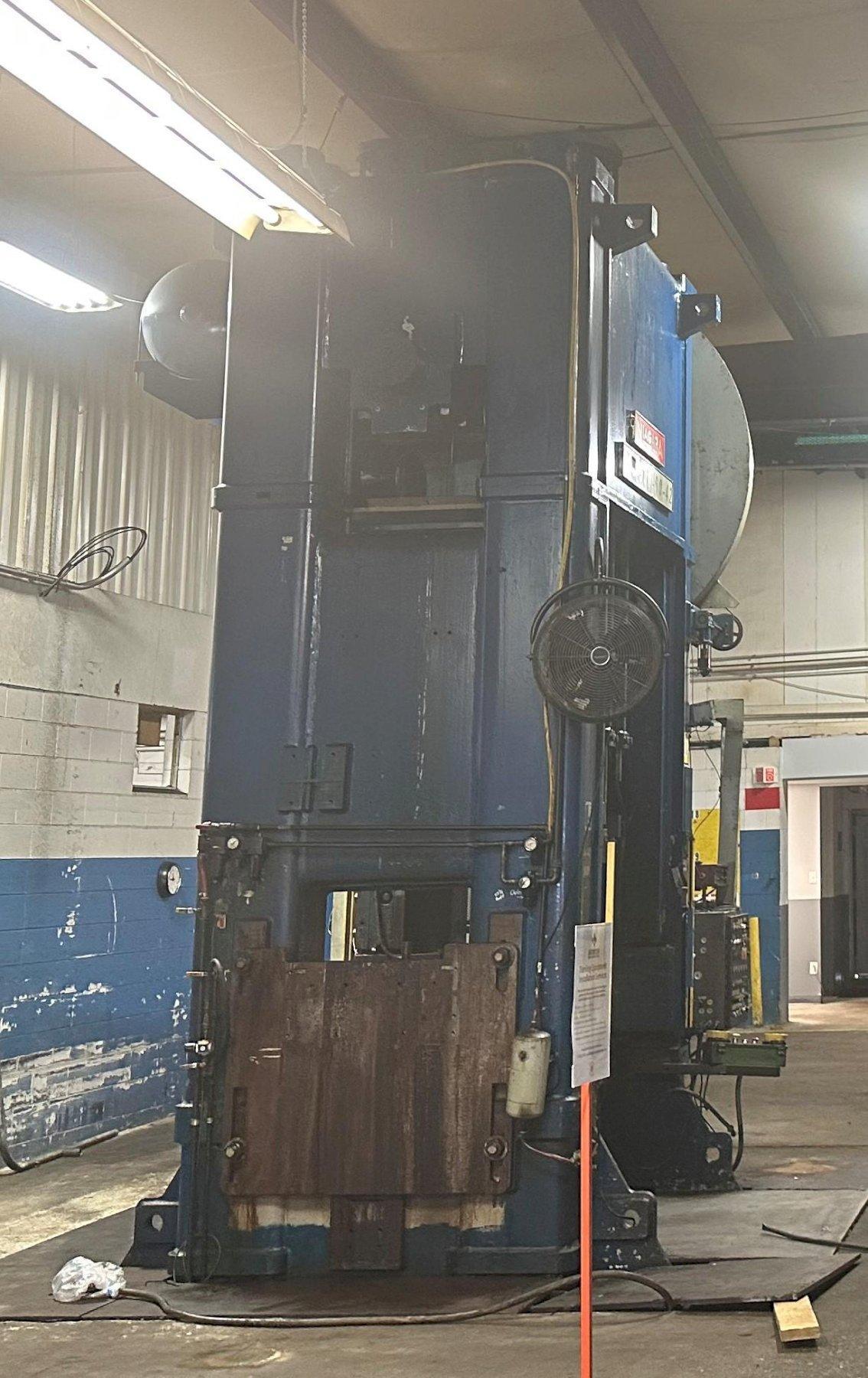

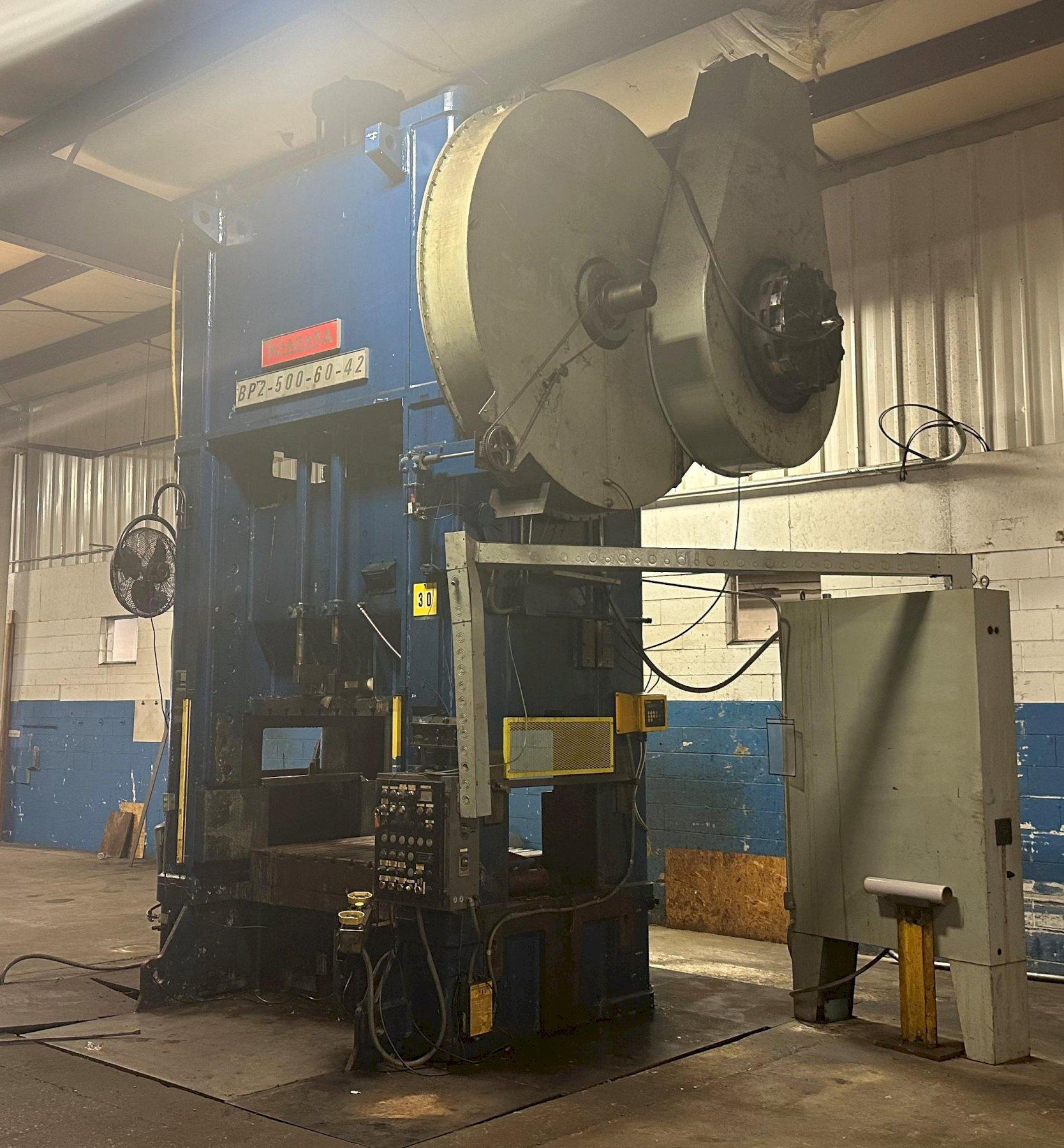

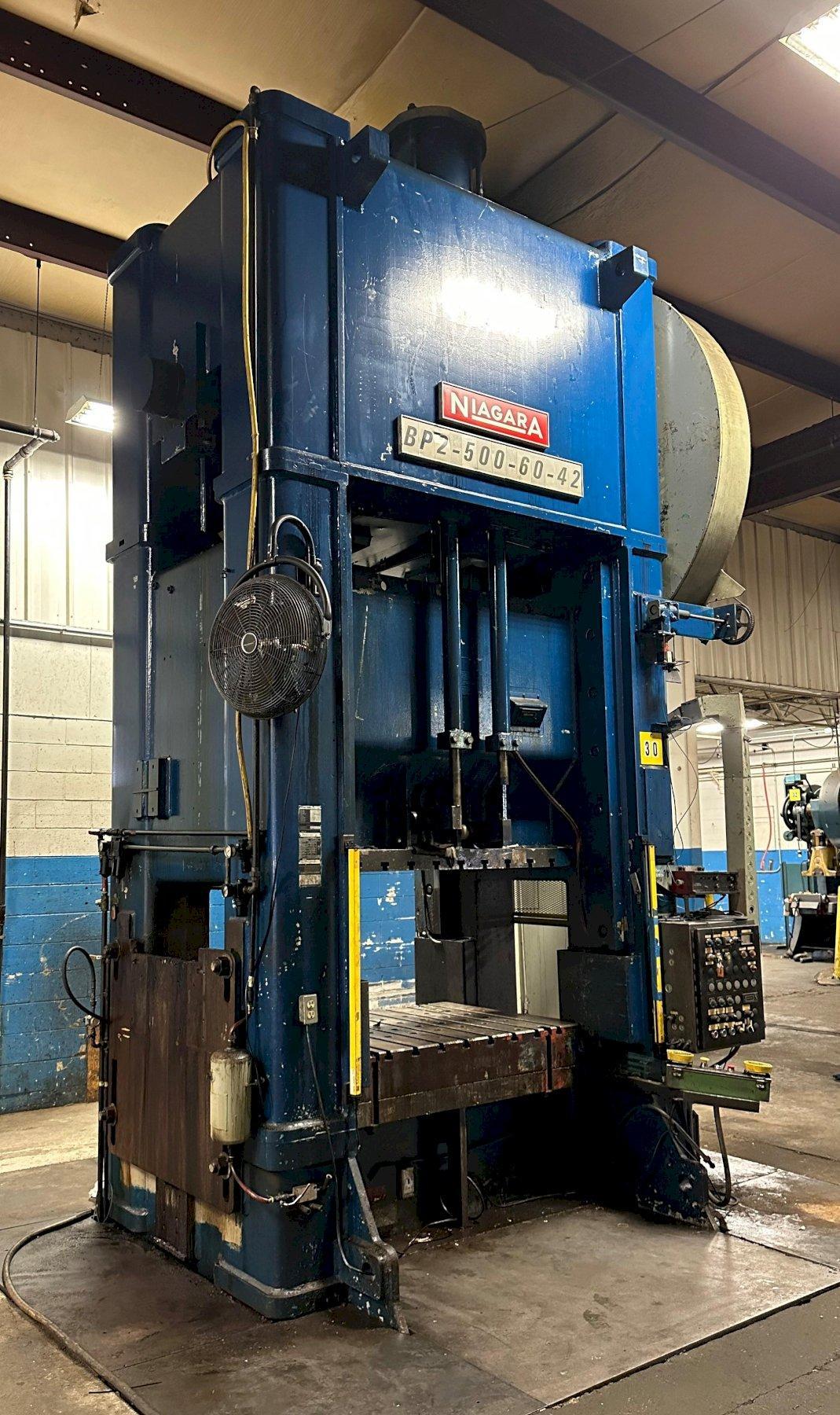

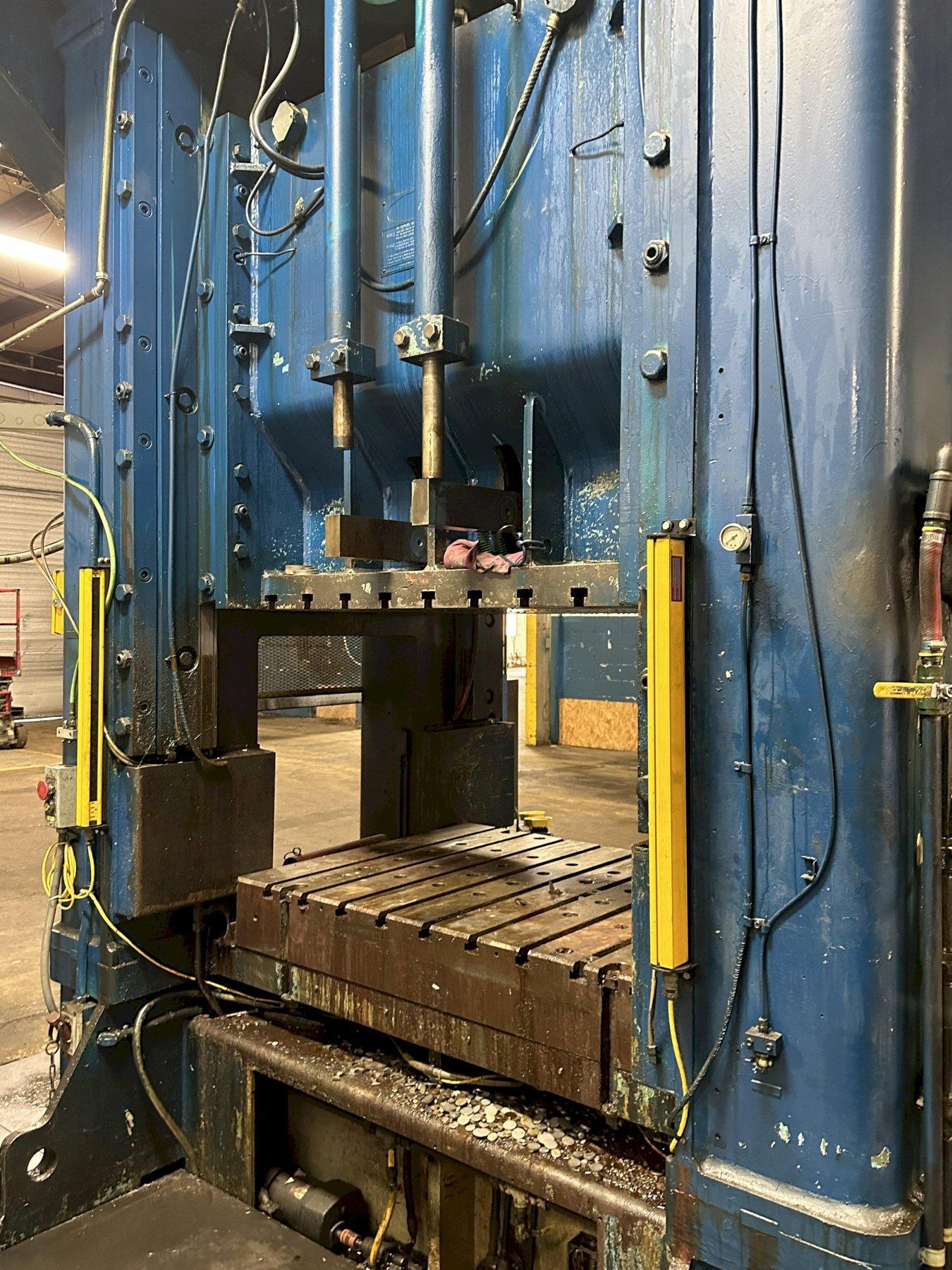

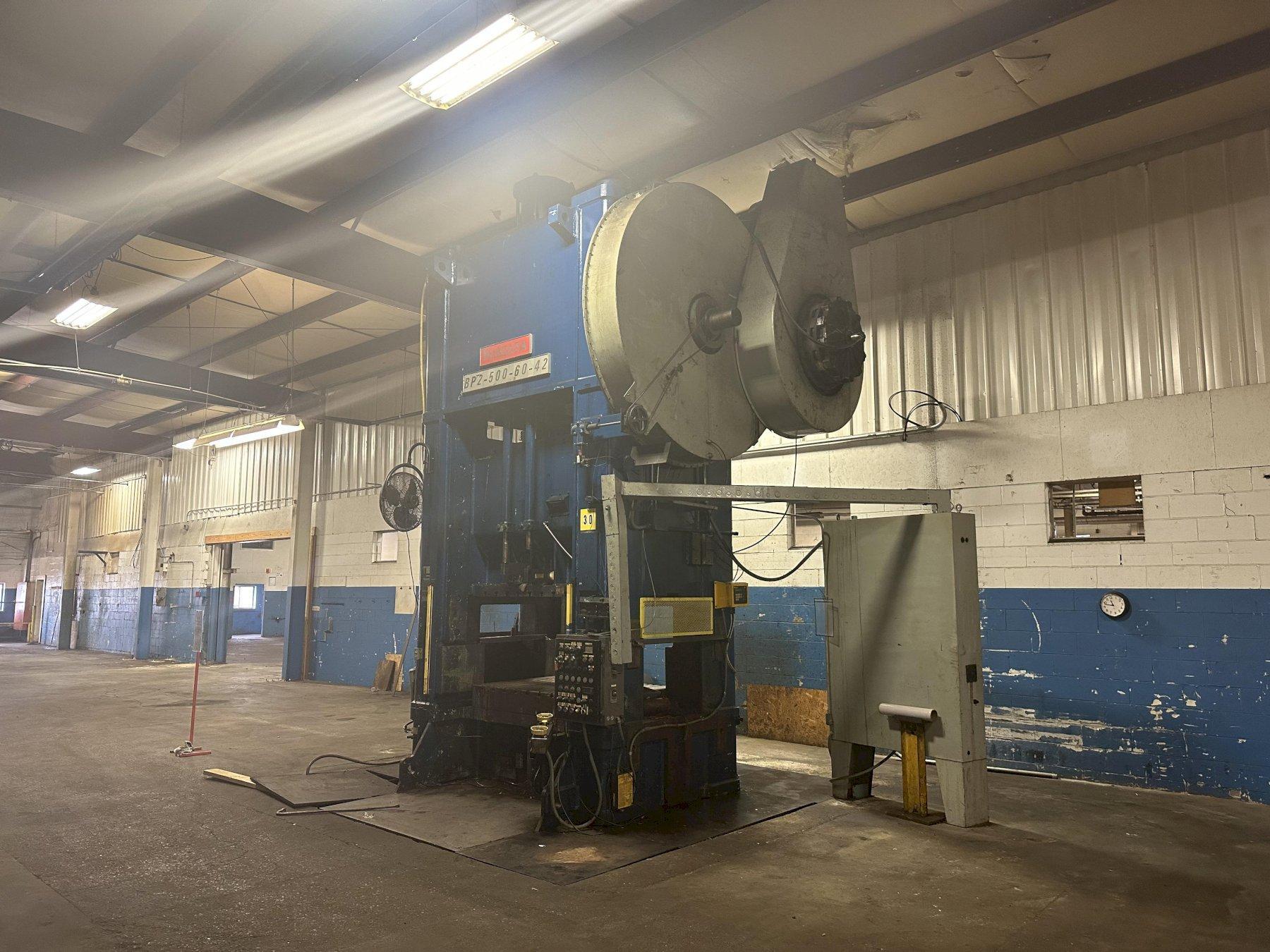

500 TON NIAGARA MODEL #BP2-500-60-42 STRAIGHT-SIDE PRESS, 6" STROKE: STOCK #18115

Stock

18115

Model

0500 TON

Dealer Location

Ohio

Spec Sheet

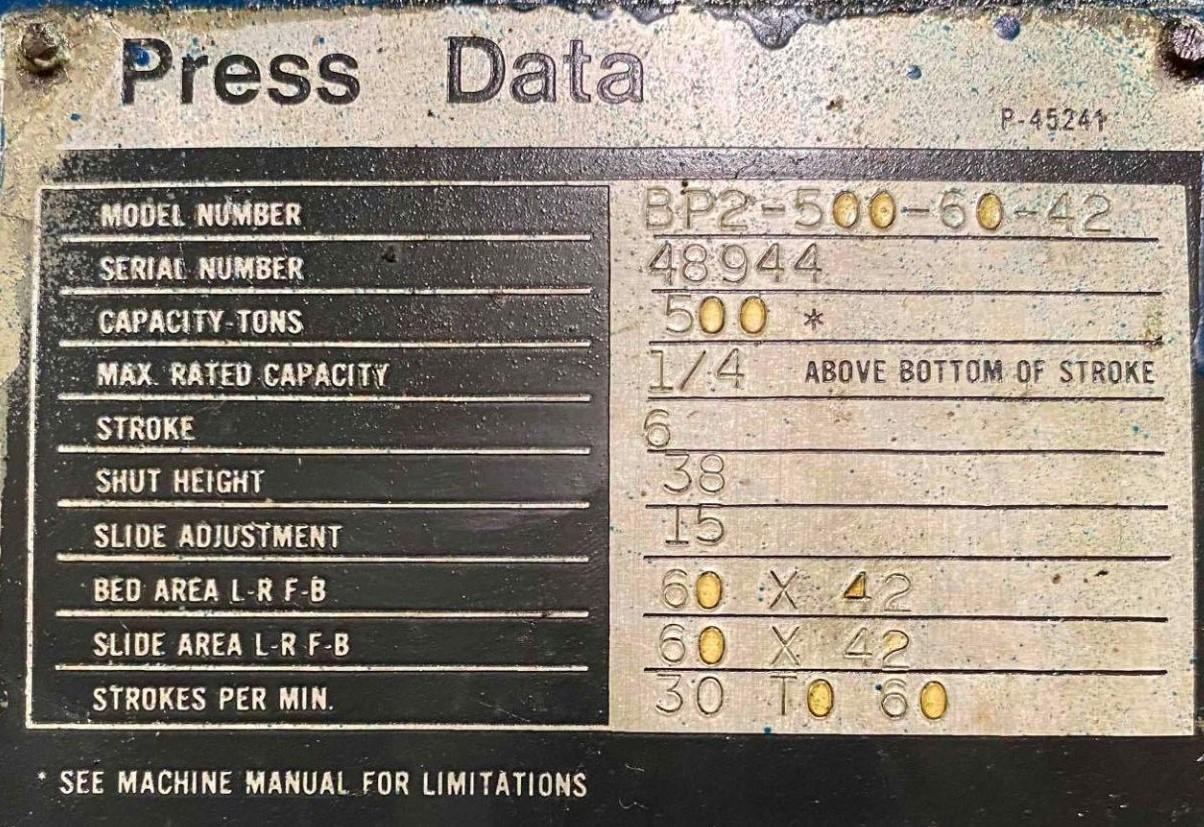

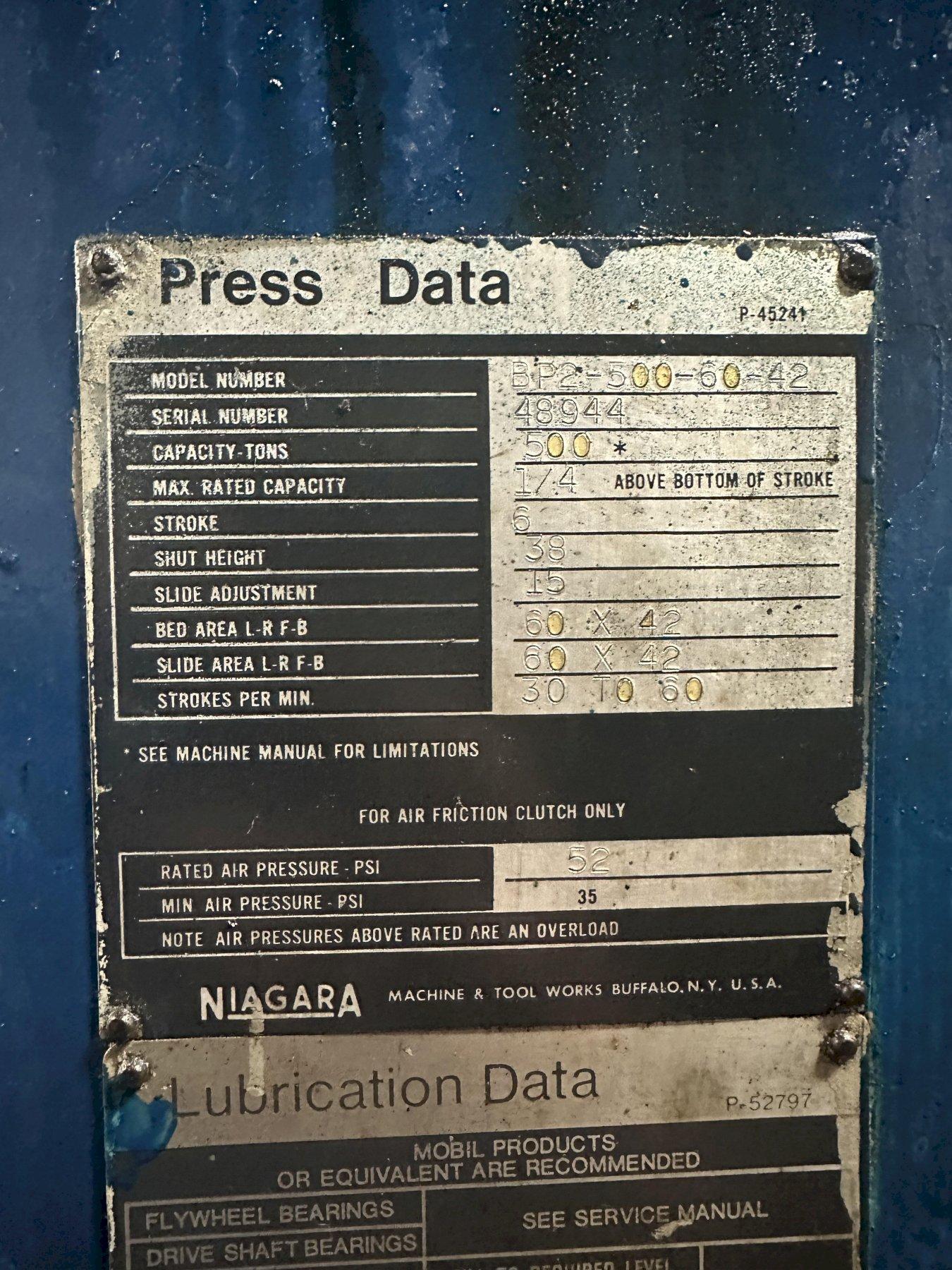

SERIAL ................ 48944
MODEL ................. BP2-500-60-42
CAPACITY............... 500 TONS
STROKE ................ 6"
SHUT HEIGHT(SDAU) ..... 38"
ADJUSTMENT (POWER) .... 15"
SPEED ................. 30 TO 60 SPM

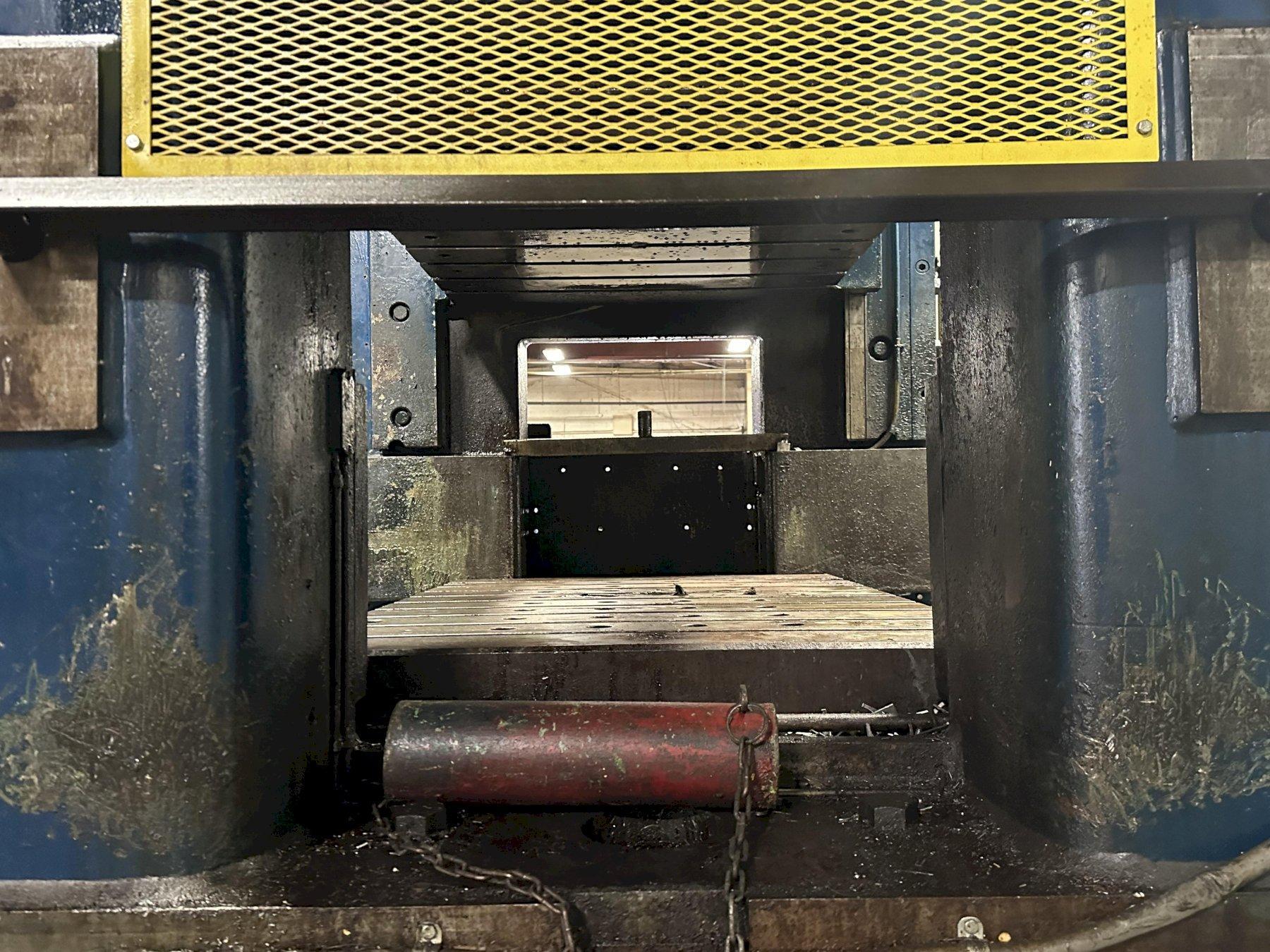

AREA OF BED & RAM ..... 60" X 42"

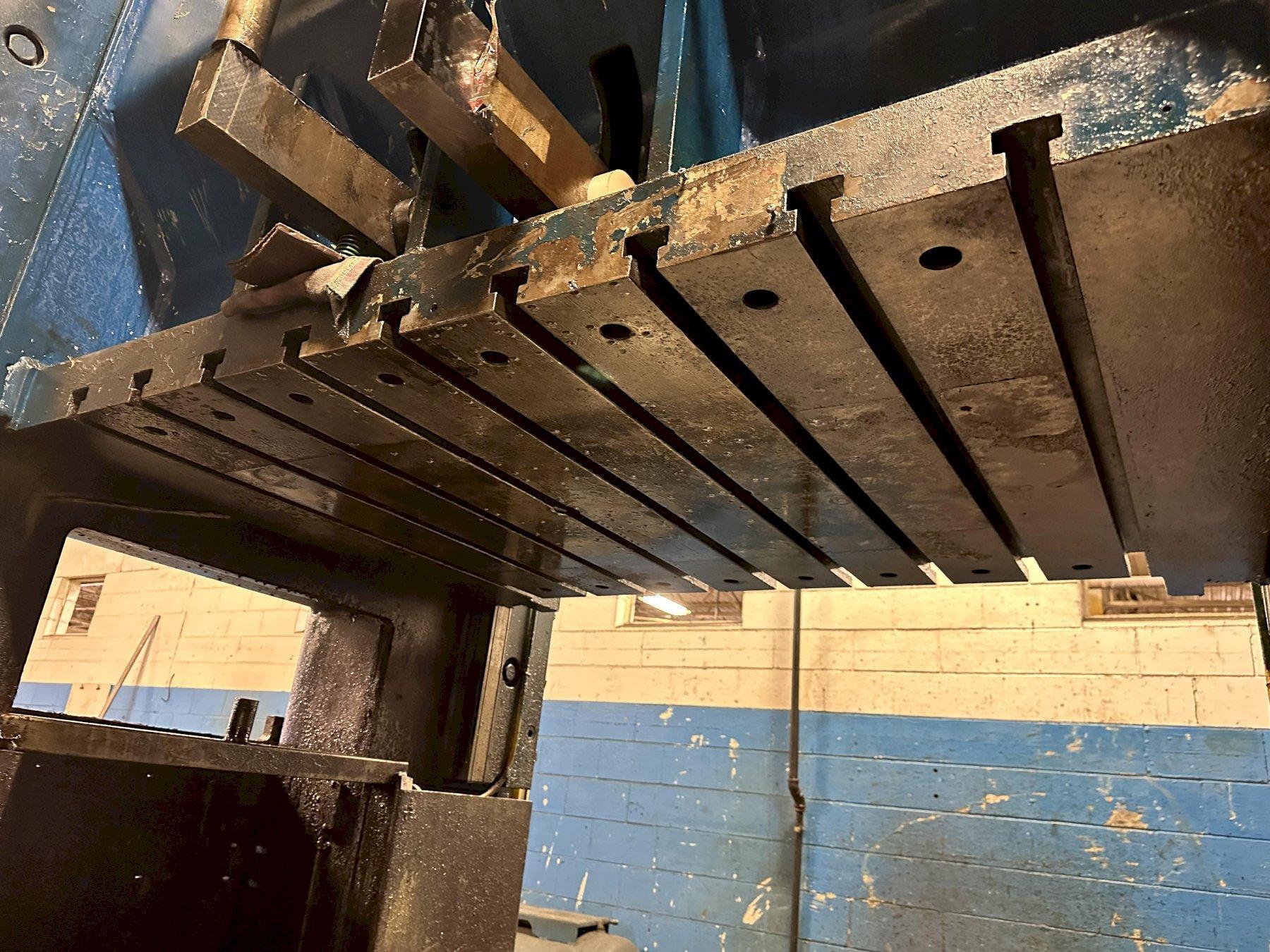

RAM BOLSTER SIZE ...... 60" X 42"

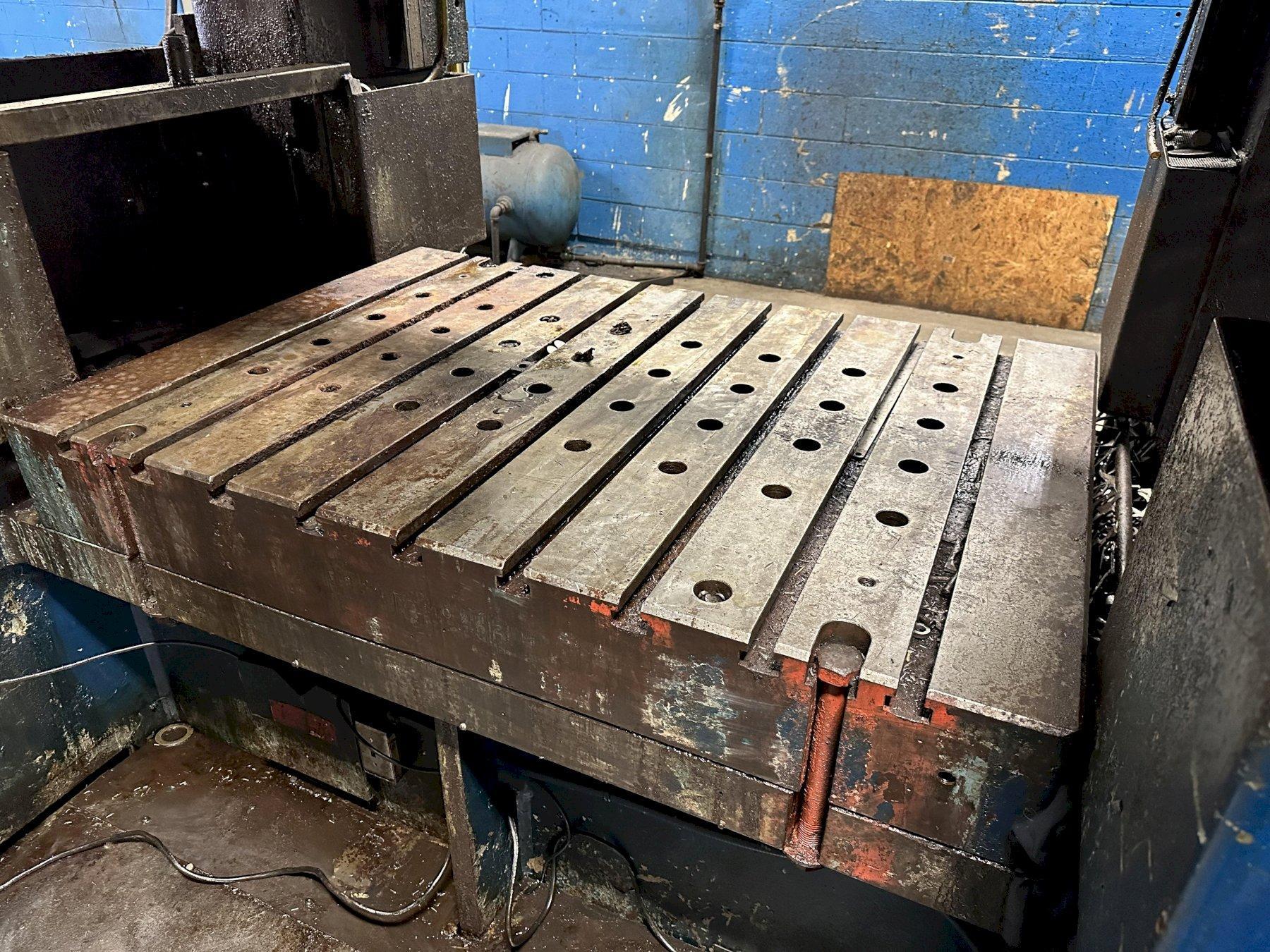

BED BOLSTER SIZE ...... 60" X 42"
BOLSTER THICKNESS ..... 8" THICK
WINDOW AREA (W X H) ... 35" X 30"
FLOOR TO BED .......... 42"
RUN MODES ............. JOG, SINGLE, CONTINUOUS

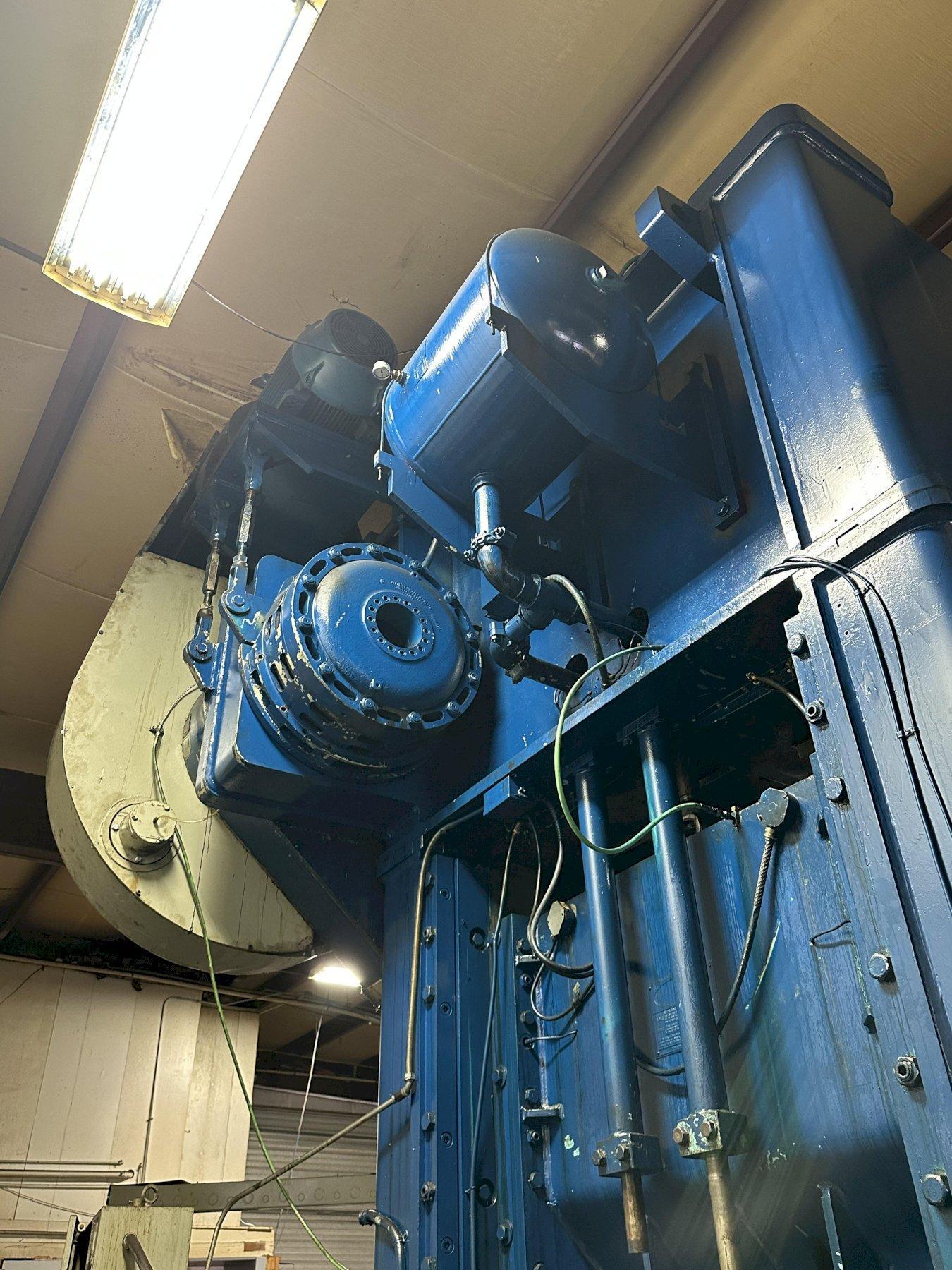

AIR CLUTCH ............ YES

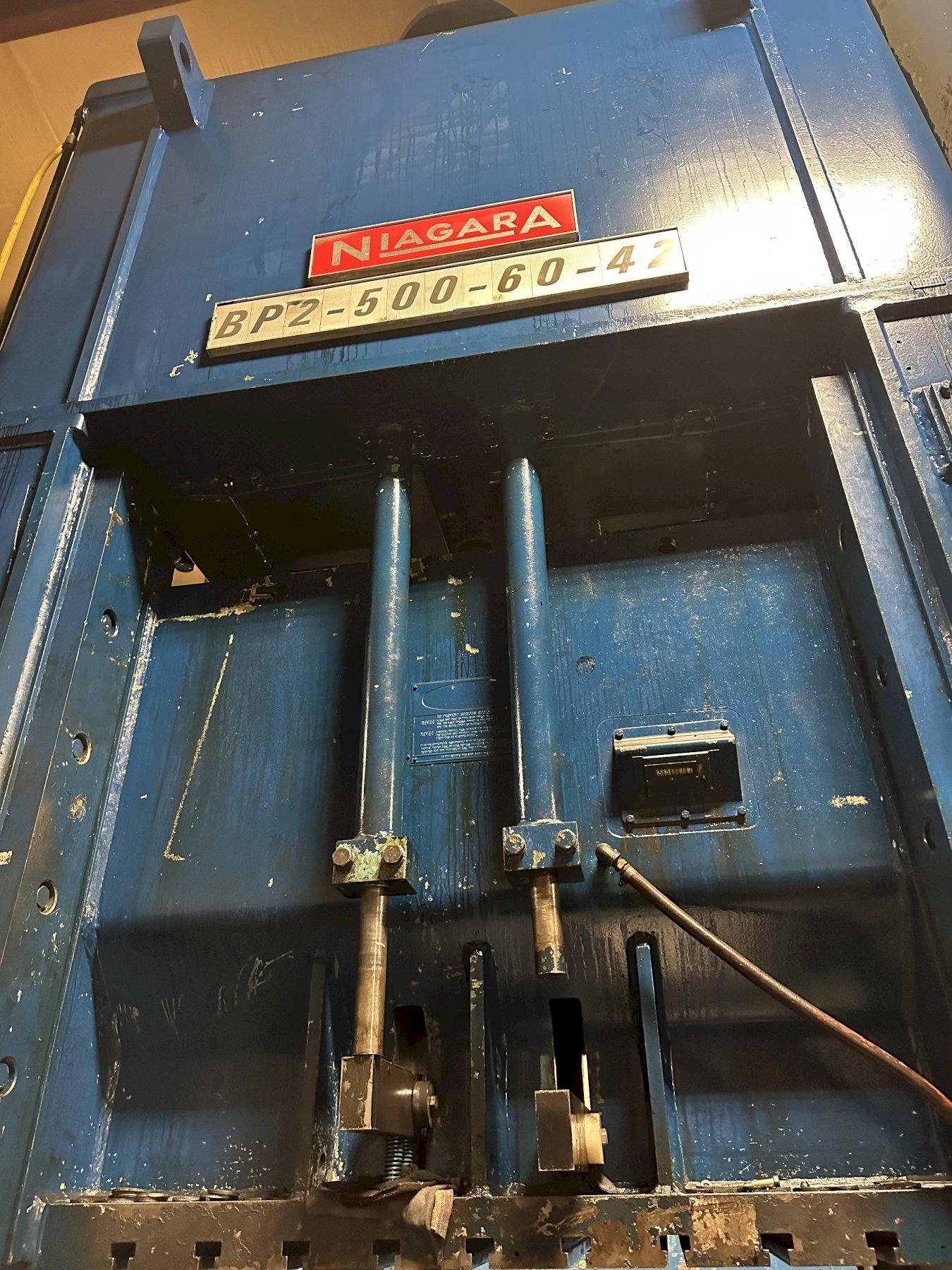

AIR COUNTERBALANCES ... YES
SINGLE BACK GEARED .... YES

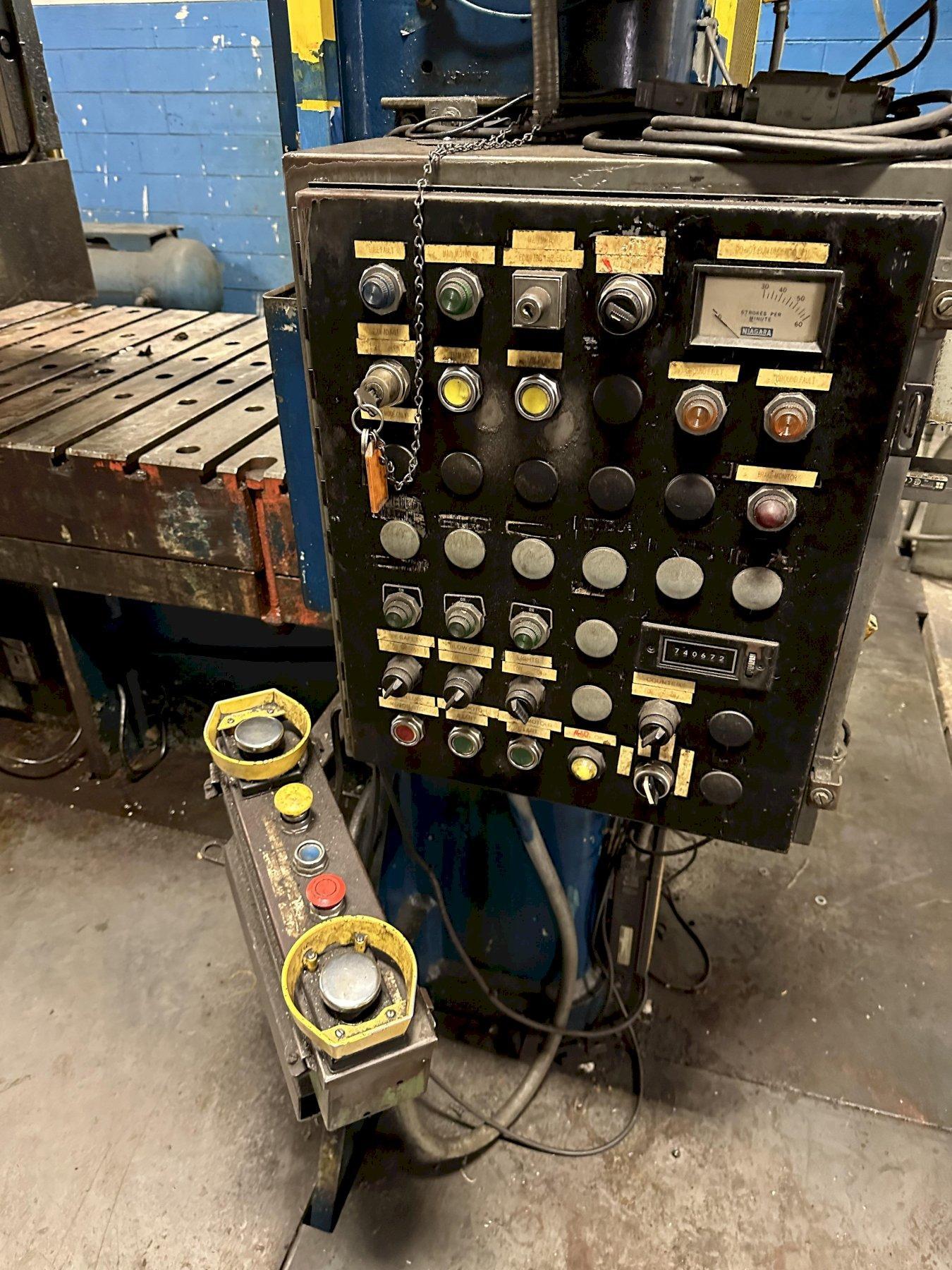

PEDESTAL CONTROLS ..... YES

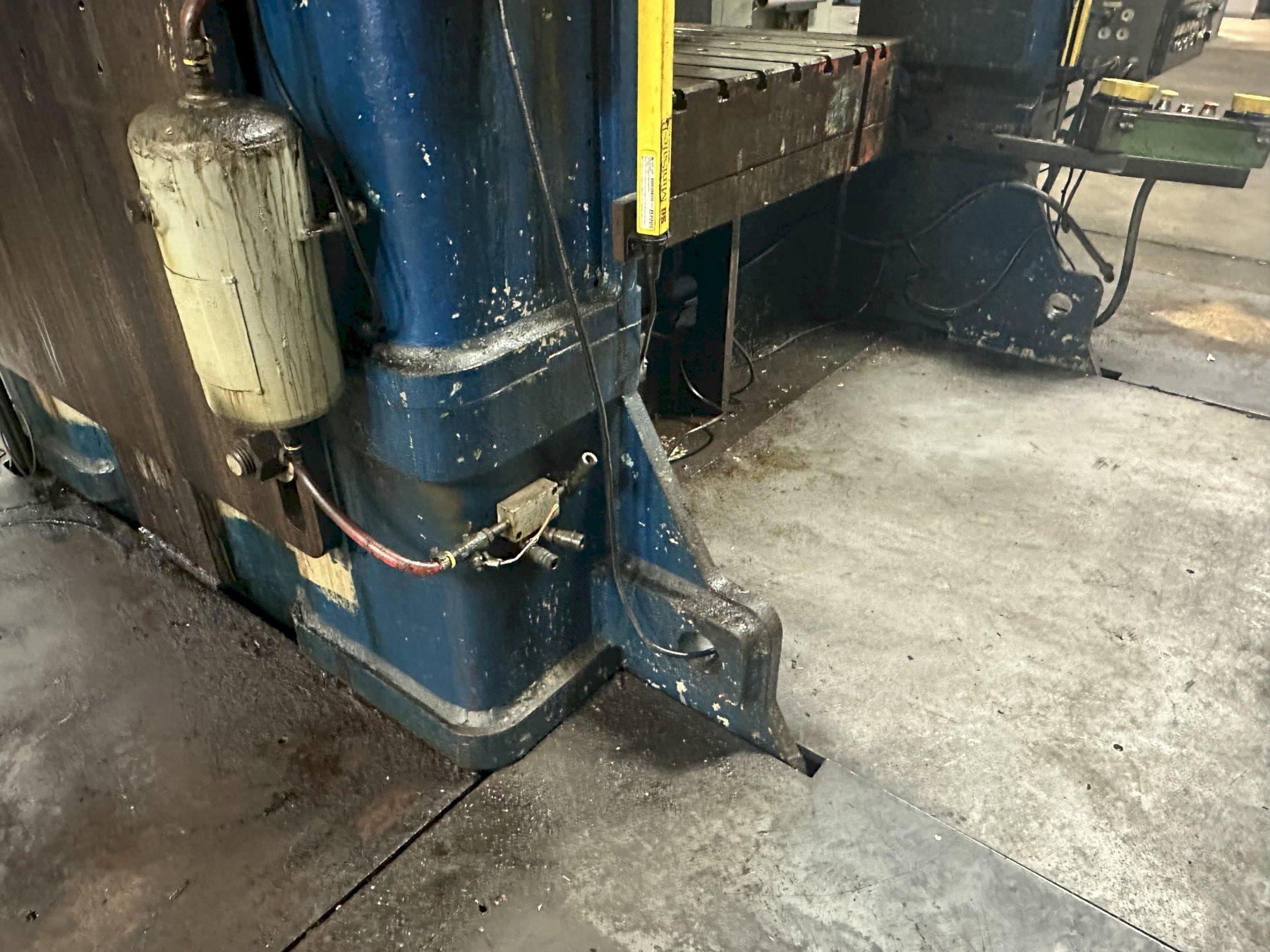

FLOOR STANDING ........ NO PIT REQUIRED
OVERALL HEIGHT ........ 232"
